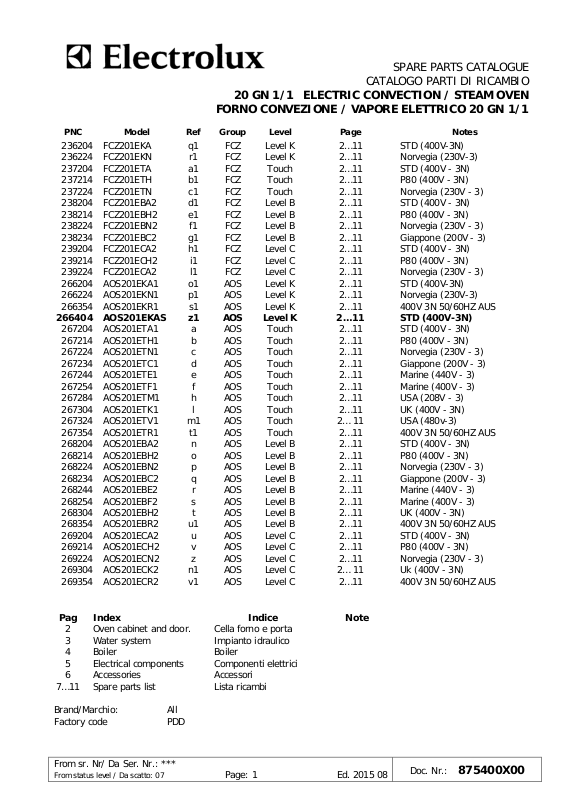

From sr. Nr/ Da Ser. Nr.: ***
SPARE PARTS CATALOGUE
236204
FCZ201EKA
q1
FCZ
Level K
2…11
STD (400V-3N)
236224
FCZ201EKN
r1
FCZ
Level K
2…11
Norvegia (230V-3)
237204
FCZ201ETA
a1
FCZ
Touch
2…11
STD (400V - 3N)
237214
FCZ201ETH
b1
FCZ
Touch
2…11
P80 (400V - 3N)
237224
FCZ201ETN
c1
FCZ
Touch
2…11
Norvegia (230V - 3)
238204
FCZ201EBA2
d1
FCZ
Level B
2…11
STD (400V - 3N)
238214
FCZ201EBH2
e1
FCZ
Level B
2…11
P80 (400V - 3N)
238224
FCZ201EBN2
f1
FCZ
Level B
2…11
Norvegia (230V - 3)
238234
FCZ201EBC2
g1
FCZ
Level B
2…11
Giappone (200V - 3)
239204
FCZ201ECA2
h1
FCZ
Level C
2…11
STD (400V - 3N)
239214
FCZ201ECH2
i1
FCZ
Level C
2…11
P80 (400V - 3N)
239224
FCZ201ECA2
l1
FCZ
Level C
2…11
Norvegia (230V - 3)
266204
AOS201EKA1
o1
AOS
Level K
2…11
STD (400V-3N)
266224
AOS201EKN1
p1
AOS
Level K
2…11
Norvegia (230V-3)
266354
AOS201EKR1
s1
AOS
Level K
2…11
400V 3N 50/60HZ AUS
266404
AOS201EKAS
z1
AOS
Level K
2…11
STD (400V-3N)
267204
AOS201ETA1
a
AOS
Touch
2…11
STD (400V - 3N)
267214
AOS201ETH1
b
AOS
Touch
2…11
P80 (400V - 3N)
267224
AOS201ETN1
c
AOS
Touch
2…11
Norvegia (230V - 3)
267234
AOS201ETC1
d
AOS
Touch
2…11
Giappone (200V - 3)
267244
AOS201ETE1
e
AOS
Touch
2…11
Marine (440V - 3)
267254
AOS201ETF1
f
AOS
Touch
2…11
Marine (400V - 3)
267284
AOS201ETM1
h
AOS
Touch
2…11
USA (208V - 3)
267304
AOS201ETK1
l
AOS
Touch
2…11
UK (400V - 3N)
267324
AOS201ETV1
m1
AOS
Touch
2… 11
USA (480v-3)
267354
AOS201ETR1
t1
AOS
Touch
2…11
400V 3N 50/60HZ AUS
268204
AOS201EBA2
n
AOS
Level B
2…11
STD (400V - 3N)
268214
AOS201EBH2
o
AOS
Level B
2…11
P80 (400V - 3N)
268224
AOS201EBN2
p
AOS
Level B
2…11
Norvegia (230V - 3)
268234
AOS201EBC2
q
AOS
Level B
2…11
Giappone (200V - 3)
268244
AOS201EBE2
r
AOS
Level B
2…11
Marine (440V - 3)
268254
AOS201EBF2
s
AOS
Level B
2…11
Marine (400V - 3)
268304
AOS201EBH2
t
AOS
Level B
2…11
UK (400V - 3N)
268354
AOS201EBR2
u1
AOS
Level B
2…11
400V 3N 50/60HZ AUS
269204
AOS201ECA2
u
AOS
Level C
2…11
STD (400V - 3N)
269214
AOS201ECH2
v
AOS
Level C
2…11
P80 (400V - 3N)
269224
AOS201ECN2
z
AOS
Level C
2…11
Norvegia (230V - 3)
269304
AOS201ECK2
n1
AOS
Level C
2… 11
Uk (400V - 3N)
269354
AOS201ECR2
v1
AOS
Level C
2…11
400V 3N 50/60HZ AUS
Pag
Index
Indice
Note
2
Oven cabinet and door.
Cella forno e porta
3 Water system
Impianto idraulico
4
Boiler
Boiler
5
Electrical comp onents
Componenti elettrici
6
Accessories
Accessori
7…11
Spare parts list
Lista ricambi
Brand/Marchio:
All
Factory code
PDD
CATALOGO PARTI DI RICAMBIO
20 GN 1/1 ELECTRIC CONVECTION / STEAM OVEN
FORNO CONVEZIONE / VAPORE ELETTRICO 20 GN 1/1
PNC Model Ref Group Level Page Notes
From status level / Da scatto: 07 Page: 1 Ed. 2015 08
Doc. Nr.:
875400X00
Page 2
From sr. Nr/ Da Ser. Nr.: ***
From status level / Da scatto: 07 Page: 2 Ed. 2015 08
Doc. Nr.:
875400X00
Page 3
From sr. Nr/ Da Ser. Nr.: ***
From status level / Da scatto: 07 Page: 3 Ed. 2015 08
Doc. Nr.:
875400X00
Page 4
From sr. Nr/ Da Ser. Nr.: ***
From status level / Da scatto: 07 Page: 4 Ed. 2015 08
Doc. Nr.:
875400X00
Page 5
From sr. Nr/ Da Ser. Nr.: ***
From status level / Da scatto: 07 Page: 5 Ed. 2015 08
Doc. Nr.:
875400X00
Page 6
From sr. Nr/ Da Ser. Nr.: ***
From status level / Da scatto: 07 Page: 6 Ed. 2015 08
Doc. Nr.:
875400X00
Page 7
From sr. Nr/ Da Ser. Nr.: ***
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
Pagina 2
Page 2
1
0530891900
0C6183
COPERCHIO
COVER
1
0873871302
0C4305
COPERCHIO
COVER
For Lev. C,K
2
0538832001
0C6205
FIANCO DX
RIGHT SIDE PANEL
3
0538834001
0C6207
SCHIENALE
BACK PANEL
4
0538834500
0C6209
FIANCO SX
LEFT SIDE PANEL
5
0806871700
0C4824
PIEDE
FOOT
5
0806871800
0C4825
PIEDE
FOOT
For Marine Version
7
0806843301
0C2483
CERNIERA INFERIORE
LOWER HIGE
8
0873870102
0C5083
ASS. VETRO INTERNO
ASS. INNER GLASS
9 0879400802
0C6603
PORTA COMPLETA NO VETRO
COMPLETE DOOR NO EXTERNAL
10
0530873600
0C4970
PROFILO FERMAVETRO DX
RIGHT TRIM
10
0530873700
0C4971
PROFILO FERMAVETRO SX
LEFT TRIM
11
0574815303
0C6561
VETRO ESTERNO
EXTERNAL GLASS
11
0574818701
0C4945
VETRO ESTERNO
EXTERNAL GLASS
For FCZ
12
0543828001
006976
AMMORIZZATORE
DAMPER
*
0856808701
0C4119
ASSIEME CHIUSURA
LOCK MECHANISM ASSEMBLY
13
13a
0853821500
0806873501
003824
0C8627
CORPO CHIUSURA
BOCCOLA
CORE DOOR LOCK MECHANISM
BUSH
14
0806822000
007007
CERNIERA VETRO INTERNO
HINGE, INNER GLASS
15
0853821600
003822
MECCANISMO DI ES T R E MIT A '
HOOK 16
0538804900
0C3802
NASELLO CHIUSURA PORTA
CATCH DOOR CLOSING
18
0513800501
0C4309
ASTA SUPERIORE
SUP. LEVER DOOR LOCK MEC.
20
0214593100
0H6043
SPINA ELASTICA
ELASTIC PIN
21
0513801100
0C4310
ASTA INFERIORE
INF. LEVER DOOR LOCK MEC.
22
0543839700
0C4088
GUARNIZIONE FLANGIA SPILLONE
GASKET
23
0543833700
0C1473
GUARNIZIONE CELLA
CAVITY GASKET
24
0831849104
0C4798
PARETE DI ASPIRAZIONE
SUCTION WALL
27
0654600000
049621
INTERRUTTOR E MA G NETICO
MAGNETIC SWITCH
28
0830400B00
0C6574
SONDA SPILLONE 6 PUNTI
MEAT PROBE (6 POINTS)
For Level TOUCH and
z1
28
0830400A00
0C6573
SONDA SPILLONE SINGOLO
MEAT PROBE (SINGLE POINT)
For Level B, C,K
29
0527865200
0C1505
SUPPORTO SPILLONE
MEAT PROBE SUPPORT
30
0543839501
0C4121
GUARNIZIONE
GASKET
31
0510815700
002653
POSIZIONATORE
POSITIONER
32
0516855300
006991
DADO SONDA CELLA
NUT, CAVITY PROBE
33
0543842600
0C4872
TAPPO PER SENSORE
STOPPER FOR SENSOR
34
0214105101
020997
CONTRODADO
LOCK NUT
35
0508838701
002700
RONDELLA
WASHER
36
0543816300
002624
TENUTA
GASKET
37
0516809400
002623
RACCORDO SONDA CELLA
CONNECTION, CAVITY PROBE
41
0806857201
0C4244
CONDOTTO SONDA LAMBDA
DUCT, LAMBDA PROBE
For Level A
42
0543838300
0C4093
GUARNIZIONE
GASKET
43
0538807400
0C4122
DISTANZIALE 20/10
SPACER 20/10
44
0617823801
007064
RESISTENZA (5.6 kW/400V)
HEATING ELEME NT (5. 6 kW/400V)
For 400V Version
44
0617826900
007066
RESISTENZA (5.6 kW/230V)
HEATING ELEMENT (5.6 kW/230V)
For 230V Version
44
0617827000
0C1936
RESISTENZA (5,6 kW/440V)
HEATING ELEMENT (5,6 kW/440V)
For 440V Version
44
0617829200
0C1396
RESISTENZA (5,5 kW/208V USA)
HEAT. ELEMENT (5,5 kW/208V
USA)
For 208V Version
44
0617829800
0C1500
RESISTENZA (5,5 kW/240 V USA)
HEAT. ELEMENT (5,5 kW/240V
USA)
For 240V Version
44
0617838900
0C6026
RESISTENZA (5,5 kW/200 V)
HEAT. ELEMENT (5,5 kW/200V)
For 200V Version
20 GN 1/1 ELECTRIC CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE ELETTRICO 20 GN 1/1
6 0512816004 007086 CERNIERA SUPERIORE UPPER HINGE
ESTERNO
GLASS
For AOS
26 0518808600 0C1740 FILTRO FONDO FILTER
From status level / Da scatto: 07 Page: 7 Ed. 2015 08
Doc. Nr.:
875400X00
Page 8
From sr. Nr/ Da Ser. Nr.: ***
20 GN 1/1 ELECTRIC CONVECTION / STEAMER OVEN
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
45
0806856300
0C4311
CONDOTTO BY-PASS
BY-PASS DUCT
46
0543832100
0C1194
GUARNIZIONE CONDOTTO ARIA
GASKET AIR DUCT
47
0611806001
006998
MOTORE
MOTOR
For Level TOUCH, B
47
0611809000
0C5287
MOTORE
MOTOR
For Level C,K
47
0611807300
0C1474
MOTORE
MOTOR
For 208V,240V 60Hz
48
0543816700
002873
O RING
O RING
49
0516808902
002699
CUSCINETTO
BEARING
50
0538815401
0C4138
FLANGIA
FLANGE
51
0835400800
0C6463
VENTOLA
FAN
52
0543816501
002689
GUARNIZION E RES IS T ENZE CELLA
GASKET, CAVITY HEAT. ELEMENT
53
0505404N00
0C3830
STAFFA
SUPPORT
55
0503897402
006253
ANGOLARE
SUPPORT
56
0699603700
049627
MAGNETE
MAGNET
57
0856828400
0C4975
CONDOTTO UMIDIFICATORE
HUMIDIFIER PIPNG
For Level C,K
58
0516887101
0C6228
DADO CONDOTTO
NUT HUMIDIFIER
For Level C,K
59
0527898900
0C4857
PIASTRA CHIUSURA
FLANGE
For Level C,K
63
63
0830400200
0806873601
0C6568
0C8719
MANIGLIA COMPLETA
MANIGLIA COMPLETA
COMPLETE DOOR HANDLE
COMPLETE DOOR HANDLE
for AOS Group
for FCZ Group
64
0830898902
0C6538
SENSORE TEMPERATURA
TEMP. PROBE
66
0543400900
0C7016
GUARNIZIONE PER TUBO
PIPE GASKET
67
0543816601
002692
TAPPO CARICO DISINCROST.
RECHARGE CAP FOR SCALER
Pagina 3
Page 3
100
0696808400
0C5517
ELETTROVALVOLA 2 VIE
WATER VALVE 2 WA YS
101
0543840600
0C4096
GUARNIZIONE FILTRO REFLEX
GASKET
for Level TOUCH,B
102
0549801800
0C2312
VALVOLA NON RITORNO
NOT RE-FLOW VALVE
for Level TOUCH,B
103
0516879400
0C2313
RACCORDO ENTRATA ACQUA
PIPE FITTING
104
0543840600
0C4096
ASSIEME FILTRO
FILTER
106
0516896102
0C4198
PORTAGOMMA
CONNECTION
107
0544809000
0C1117
VALVOLA NON RITORNO OF10D
VALVE
108
0516871900
0C1116
RACCORDO PER PO MP A
PUMP CONNECTION
109
0543832300
0C1935
O. RING
OR
110
0680801201
0C2341
POMPA
PUMP
for 50 Hz
- 0C5371
KIT POMPA
0C2341+0C1116+0C1935
PUMP KIT
0C2341+0C1116+0C1935
110
0680801301
0C2342
POMPA
PUMP
111
112
113
114
0806871100
0C6031
ASS CONDOTTO BASSO
WASHING PIPING DOWN
115
0806870900
0C6047
ASS.CONDOTTO ALTO
WASHING PIPING UP
116
0805400400
0C6204
ASS. COLLETORE + TUBI
COLLECTOR+PIPING
117
118
0543841400
0C4201
ANELLO DI TENUTA
OR 119
0516898301
0C4467
ATTACCO PER GETTO
CONNECTION FOR WASH ARM
120
0516892301
0C4202
DADO
NUT 121
0806873900
0C5503
ASSIEME GETTO RO TA NTE
ROTATING WASHING JET
122
0518807100
007026
MOLLA AGGANCIO GETTO ROTA
SPRING
123
124
0H22982800
007075
TUBO UMIDIFICATORE 57X2/5
PIPING
for Level TOUCH,B
124
0856828600
0C4977
TUBO UMIDIFICATORE
PIPING
for Level C,K
125
0831811702
0C1127
GRUPPO COLLEGAMENTO EXT.
EXTERNAL PIPING
126
126a - -
0C9799
0C9800
TUBO FLESSIBILE 6x8mm rosso
TUBO FLESSIBILE 6x8mm blu
FLEX PIPE 6x8mm red
FLEX PIPE 6x8mm blu
FORNO CONVEZIONE / VAPORE ELETTRICO 20 GN 1/1
For Level B
54 0503891801 006256 STAFFA SUPPORT
61 - 0C6465 KIT SONDA LAMBDA LAMBDA KIT For Level Touch
65 0830899101 0C6539 SENSORE TEMPERATURA TEMP. PROBE
68 0543843201 0C4965 GOMMINO CHIUSURA IN G.DISIN GASKET
for Level TOUCH,B
for Level TOUCH,B
For 50 Hz
for 60 Hz
From status level / Da scatto: 07 Page: 8 Ed. 2015 08
Doc. Nr.:
875400X00
Page 9
From sr. Nr/ Da Ser. Nr.: ***
20 GN 1/1 ELECTRIC CONVECTION / STEAMER OVEN
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
127
127a - -
0C9797
0C9798
TUBO FLESSIBILE 4x6mm rosso
TUBO FLESSIBILE 4x6mm blu
FLEX PIPE 4x6mm red
FLEX PIPE 4x6mm blu
128
0696808200
0C5515
ELETTROVALVOLA
WATER VALVE
for Level C
128
0696808801
0C6170
ELETTROVALVOLA
WATER VALVE
for Level B
129
0696400400
0C6407
GRUPPO VALVOLE CLEANYNG
VALVE GROUP C.S.
for Level C,K
129
0696400200
0C6371
GRUPPO VALVOLE CLEANYNG
VALVE GROUP C.S.
For 60Hz
129
0696808700
0C6372
GRUPPO VALVOLE CLEANYNG
VALVE GROUP C.S.
For level TOUCH,B
130
0831857200
0C6370
ASSIEME COLLETTORE LAVAGGIO
CONNECTION,C.S.
131
0546825100
0C6222
FORCELLA SICUREZZA
CLIP
132
0646817200
0C6217
PRESSOSTATO ATTACCO RAPID
CONNECTION FOR WASH
137 - 0C6375
KIT RIDUTTORI
FLOW REDUCER KIT
138 - 061303
KIT O-RING +BUSSOLA
O-RING +BUSH KIT
139
0219035015
0C6421
ANELLO ELASTICO
ELASTIC RING
141
0544400C01
0C8348
VITE TTL
TTL SCREW
Up to 5151…
141
0544400C02
0CA348
VITE TTL
TTL SCREW
From 5161…
142
0543400R00
0C7925
PASSACAVO
WIRING BUSH
143
0805402400
0C8328
TUBO EXT
EXT. PIPE
145
0544819400
0C5829
TUBO EPDM BLU
EPDM PIPE
146
0686400100
0C8347
POMPA DEFOND PHOENIX
PHOENIX DEFOND PUMP
Up to 4441…
From 4451…
147
0835400L00
0C8683
GRUPPO ENTRATA ACQUA
GROUP WATER INLET
147
0835400M00
0C8684
GRUPPO ENTRATA ACQUA
GROUP WATER INLET
For level C,K
148
0805400402
0C8458
ASS. COLLETORE + TUBI
COLLECTOR+PIPING
149
0855400Q00
0C1128
DOCCETTA
WATER SPRAY GUN
For P80 model touch-B
Pagina 4
Page 4
200
0878401400
0C9664
KIT ASSIEME BOILER
BOILER ASS.Y KIT
201
0560856300
0C5060
KIT ISOLAMENTO BOILER EL.
KIT INSULATION
202
0543816601
002692
TAPPO
STOPPER
203
0543817500
002634
GOMMINO INGRESSO DISINCR.
GASKET
203
0543843200
0C4965
GOMMINO INGRESSO DISINCR.
GASKET
For Lev. C,K
204
0830890600
0C1201
SONDA DI LIVELLO
LEVEL PROBE
205
0516809501
007117
RACCORDO PER VA L VO L A
CONNECTION
206
0696804201
0C0882
VALV.SFERA MOTORIZZATA
DRAIN VALVE
206
0696808500
0C5518
VALV.SFERA MOTORIZZATA
DRAIN VALVE
For 208V,240V 60Hz
207
0511817600
007040
MANICOTTO RIDOTTO
CONNECTION
version
208
0560840803
KIT ISOLAMENTO AIR BREAK
KIT ISOLATION
209
0543832400
0C4133
GUARNIZIONE AIR BREAK
AIR BREAK GASKET
210
0543842600
0C4872
TAPPO PER SENSORE
STOPPER FOR SENSOR
211
0527898700
0C4856
FLANGIA CHIUSURA FORO BOILER
FLANGE
212
0543842800
0C4963
GUARN. CHIUSURA FORO BOILER
GASKET
For Lev. C,K
213
0527898600
0C4821
FLANGIA TENUTA BOILER
FLANGE, BOILER
214
0543816800
002874
OR TENUTA BOILER
OR BOILER
215
0543844800
0C5834
GUARNIZION E RES IS T ENZ A
GASKET
216
0617836500
0C5841
RESISTENZA BOILER (24 kW/400V)
HEAT. ELEM. BOILER (24 kW/400V)
216
0617837500
0C5844
RESISTENZA BOILER (24 kW/230V)
HEAT. ELEM. BOILER (24 kW/230V)
For 230V Version
216
0617838400
0C5847
RESISTENZA BOILER (24 kW/440V)
HEAT. ELEM. BOILER (24 kW/440V)
For 440V Version
216
0617837200
0C5822
RESIST. BOILER (17 kW/208V USA)
HEATING ELEM. BO IL . 17 kW/208V
For 208V Version
216
0617837800
0C5825
RESIST. BOILER (17 kW/240V USA)
HEATING ELEM. BOIL. 17 kW/240V
For 240V Version
216
0617839500
0C6027
RESIST. BOILER (17 kW/200V)
HEATING ELEM. BOIL. 17 kW/200V
For 200V Version
217
0515857001
055347
DISTANZIALE
SPACER
218
0510828000
0C5564
RESCA D12 FILETT 1 /4' GA S
PIPE CONNECTION
FORNO CONVEZIONE / VAPORE ELETTRICO 20 GN 1/1
140 0505401R00 0C7924 PIASTRINA FISSAGGIO POMPE FIXING PLAQUE
141a 0546400J00 0C9538 CAPPUCCIO DI PROT. PROTECTION CAP
144 0246530100 005382 GOMMINO GASKET
146 0686400201 0CA112 POMPA CEME CEME PUMP
207a
0543816800
002874
O-RING
SEALING RING
For Touch, Lev.B
For Lev. C,K
From status level / Da scatto: 07 Page: 9 Ed. 2015 08
Doc. Nr.:
For 400V Version
875400X00
Page 10
From sr. Nr/ Da Ser. Nr.: ***
20 GN 1/1 ELECTRIC CONVECTION / STEAMER OVEN
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
219
0516879600
0C4099
UGELLO 'ELPIS'1/4'FD3.5-3/8'M
NOZZLE
220
0543400000
0C7033
GUARNIZIONE PORTELLO
GASKET
for level TOUCH
221
0J89061403
0C3443
PORTELLO ISPEZIONE
INSPECTION COVER
222

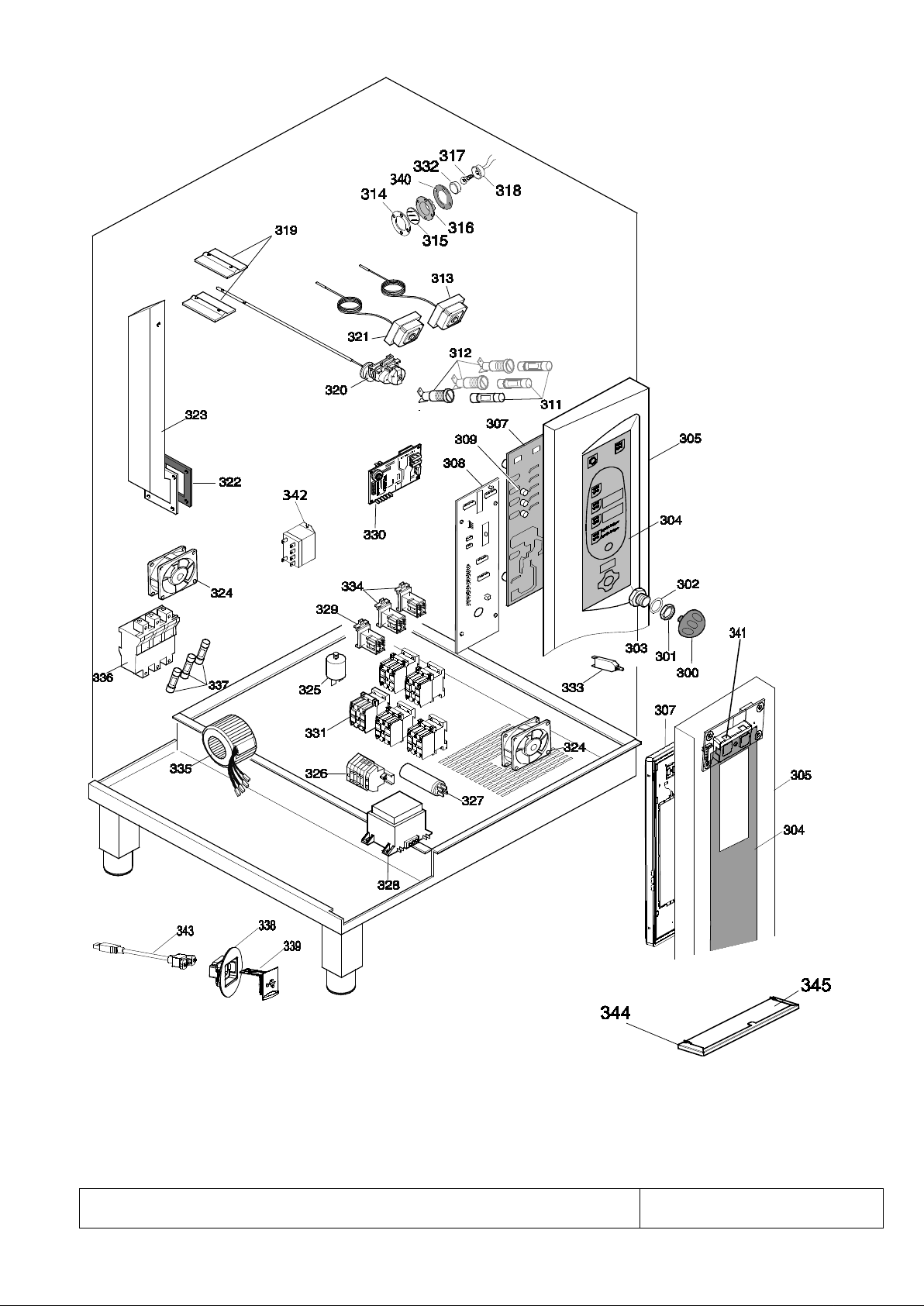

Pagina 5
Page 5
300
0806874001
MANOPOLA
HANDLE
301
0214114900
051263
CONTRODADO
LOCK NUT
For level B,C,K
302
0508836400
002727
RONDELLA
DISK
For level B,C,K
303
0516807301
BOCCOLA
BUSH
304
0548400600
0C6550
MEMBRANA LIV.TOUCH
LAYER LEV. TOUC H
AOS Ver.
304
0548400G00
0C6554
MEMBRANA LIV.B
LAYER LEV. B
for Level B AOS Ver.
304
0675855001
0C4948
MEMBRANA LIV.B
LAYER LEV. B
for Level B FCZ Ver.
304
0675855102
0C4949
MEMBRANA LIV.C
LAYER LEV. C
for Level C FCZ Ver.
For level touch “K”
AOS ver.
CRUSCOTTO + MEMBRANA TOUCH
CONTROL PANEL + LAYER TOUCH
305
0870400902
0C6586
CRUSC. LIV.TOUCH (NO MEMBR.)
CONT.PANEL TOUCH (NO LAYER)
AOS Ver.
305
0870400N00
0C6596
CRUSC. LIV.TOUCH (NO MEMBR.)
CONT.PANEL TOUCH (NO LAYER)
FCZ Ver.
0870400A00
0C6587
305
0873896602
0C4908
CRUSCOTTO LIV. B (NO MEMBR.)
CONT.PANEL LEV. B (NO LAYER)
for Level B FCZ Ver.
305
0870400P00
0C6597
CRUSCOTTO LIV. C (NO MEMBR.)
CONT.PANEL LEV. C (NO LAYER)
for Level C AOS Ver.
CRUSCOTTO LIV.TOUCH “K”CON
MEMBRANA
CON.PANEL TOUCH “K” WITH
LAYER
For level touch “K”
AOS ver.
307
675400A00
0C6571
SCHEDA USER INTERFACE
LIV.TOUCH
USER INT ERF. BOARD, L EV.
TOUCH
for Level TOUCH,K
up to 2441…
307
675400P01
0C8805
SCHEDA USER INTERFACE
USER INT ERF. BOARD, L EV.
for Level TOUCH,K
up to 4481…
307
675400P03
0CA070
SCHEDA USER INTERFACE
LIV.TOUCH
USER INT ERF. BOARD, L EV.
TOUCH
for Level TOUCH,K
from4491…
307
0675838802
0C0041
SCHEDA USER INTERFACE LIV. B
USER INTERF. BOARD, LEV. B
for Level B
307
0675854600
0C4891
SCHEDA USER INTERFACE LIV. C
USER INTERF. BOARD, LEV. C
for Level C
307
308
0675854602
0675400801
0C7350
0C6570
SCHEDA USER INTERFACE
SCHEDA POWER
USER INT. BOARD LEV.C. (1/2
MAIN POWER
FOR LEVEL c (START
for Level TOUCH,K
308
0675837818
0C0042
SCHEDA POWER
MAIN POWER
for Level B and C
-
0546814001
0C3750
DISTANZIALE ARCHETTO NYLON
SPACER NYLON
for Level B, C ,K
-
0633847400
0C6564
CABLAGGIO USER - POWER
MAIN TO USER CABLE
for TOUCH level
-
0638400P00
0C6565
CAVO ALIMENTAZIONE USER
POWER SUPPLY CABLE USER
for TOUCH level
311
0652800901
058871
FUSIBILE RAPIDO 6.30 A
FUSE FAST 6.3 A
311
0652805100
0C2230
FUSIBILE RAPIDO 6.30 x3.2A
FUSE FAST 6.3 x 3.2A
311
0652803900
0C2301
FUSIBILE 800 mA
FUSE T 800 mA
311
0652804900
0C3650
FUSIBILE 3,1 5A
FUSE 3,15A
For Marine Version
311
0652803300
0C1480
FUSIBILE RAPIDO 6.30 A
FUSE FAST 6.3 A
311
0652803100
0C6034
FUSIBILE RAPIDO 1.6 A
FUSE FAST 1,6 A
For 200V
311
0652805200
0C2236
FUSIBILE RAPIDO 1.6 A
FUSE FAST 1,6 A
For 200V
312
0652802100
0F0031
PORTAFUSIBILE
FUSE HOLDER
312
0652804800
0C2228
PORTAFUSIBILE
FUSE HOLDER
For Marine Version
313
0646812200
007042
LIMITATORE, CELLA
LIMITER, CAVITY
313
0646810802
006314
LIMITATORE, CELLA
LIMITER, CAVITY
314
0508840801
002628
FLANGIA
FLANGE
316
0543817202
002626
GUARNIZIONE
GASKET
FORNO CONVEZIONE / VAPORE ELETTRICO 20 GN 1/1
0830899101 0C6539 SONDA BYPASS 1100 BIANCO BYPASS PROBE 1100mm WHITE for Level TOUCH e B
0C5600
002662
304 0548400B00 0C6551 MEMBRANA LIV.TOUCH LAYER LEV. TOUC H FCZ Ver.
304 0548400K00 0C6557 MEMBRANA LIV.C LAYER LEV. C for Level C AOS Ver.
304 0548401H00 0C8707 MEMBRANA LIV.TOUC “K” LAYER LEV, TOUCH “K”
305 0875401B01 0C7031
305
305 0873896702 0C4909 CRUSCOTTO LIV. C (NO MEMBR.) CONT.PANEL LEV. C (NO LAYER) for Level C FCZ Ver.
305 0548401H00 0C8709
CRUSCOTTO LIV. B (NO MEMBR.) CONT.PANEL LEV. B (N O LAYER) for Level B AOS Ver.
LIV.TOUCH
TOUCH
For level B,C,K
For level B,C,K
for TOUCH AOS Group
from 2451…
309 0546824600 0C5833 PROLUNGA PULSANTE PROLONG For Level B,C,K
315 0574804900 002627 VETRO GLASS
From status level / Da scatto: 07 Page: 10 Ed. 2015 08
LIV.C(1/2 VEL)
SPEED)
Doc. Nr.:
S/N 120…)
For Marine Version
For 208V-240V
For 208V
875400X00
Page 11
From sr. Nr/ Da Ser. Nr.: ***
20 GN 1/1 ELECTRIC CONVECTION / STEAMER OVEN
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
317
0660400100
0C9877
LAMPADA ALOGENA
HALOGEN LAMP
From 4371…
318
0660806800
007105
PORTALAMPADA
LAMP HOLDER
319
0538804000
0C1169
FARFALLA CAMINO CELLA LW
CLOSER
320
0680802300
0C5501
MOTORIDUTTORE FIBER
MOTOREDUCER
320
0680802400
0C5502
MOTORIDUTTORE FIBER
MOTOREDUCER
For 60Hz
321
0646814900
0C2983
LIMITATORE, BOILER
LIMITER, BOILER
322
0543832200
0C1168
GUARNIZIONE
GASKET
323
0831806402
0C1219
CONDOTTO ARIA
DUCT, AIR
324
0624811000
0C4106
VENTILATORE
FAN
325
0694605400
049303
FILTRO
FILTER
326
0639806801
006238
MORSETTIERA
TERMINAL BOARD
326
0639812400
0C4820
MORSETTIERA
TERMINAL BOARD
For 230V, 208V, 24 0V
326
0639813200
0C6029
MORSETTIERA
TERMINAL BOARD
327
0694604400
047541
CONDENSATO RE 1 2. 5 Mf
CAPACITOR
For Level A, B
327
0694806000
0C5526
CONDENSATO RE 8 Mf
CAPACITOR
For Level C,K
328
0624400100
0C6400
TRASFORMATO R E 23 0V -12/24V
TRANSFORMER 230V-12/24V
328
0624807101
007046
TRASFORMATORE
TRANSFORMER
For 200V
328
0624807901
0C6945
TRASFORMATORE
TRANSFORMER
For 208V Version
328
0624807700
0C0949
TRASFORMATORE
TRANSFORMER
329
0648803001
058557
RELE
RELE
For 208V-240V
329
0648722900
088267
RELE
RELE
For 208V-240V
330
0624807002
007047
ALIMENTATORE SWITCHING
LAMBDA SWITCHING FEEDER
331
0648807300
088447
CONTATTORE K3-10A
CONTACTOR K3-10A
For Level A, B
331
0648807800
007104
CONTATTORE K3-40A
CONTACTOR K3-40A
For Level A, B
331
0648807700
007080
CONTATTORE K3-32A
CONTACTOR K3-32A
For Level C, 230V,
208V, 240V,K
331
0648807400
006879
CONTATTORE K3-18A
CONTACTOR K3-18A
For Level C, 230V,
208V, 240V, 200V ,K
331 0648613200
0L0355
CONTATTORE K3-24A
CONTACTOR K3-24A
For Japan models
200V
332
0509803900
0C4459
RIFLETTORE
REFLECTOR
333
0648808200
0C6061
INTERR. MAGNETICO
THERMIC
For Marine Version
335
0624400000
0C6945
TRASFORMATORE
TRANSFORMER
For 208V,240V
336
0652803400
0C1487
PORTAFUSIBILE
FUSE HOLDER
337
0652803500
0C1488
FUSIB.OMEGA 22X58 80A
FUSEOMEGA 22X58 80A
For 208V,240V
338
0546400200
0C6547
VASCHETTA USB
USB PLUG
for TOUCH level
340
0543843500
0C5451
GUARNIZIONE
GASKET
341
0675858601
0C8033
TASTO ON-OFF(INTER.PRINCIPALE)
ON-OFF (MAIN SWITCH)
For touch level
342
0648722900
088267
RELE’ SICUREZZA
SECURITY RELE
343
0638400Y00
0C6566
CAVO PROLUNGA USB
USB CABLE
for TOUCH level
345
0549400F00
0C9991
FILTRO CRUSCOTTO
FILTER CONTROL PANEL
Pagina 6
Page 6

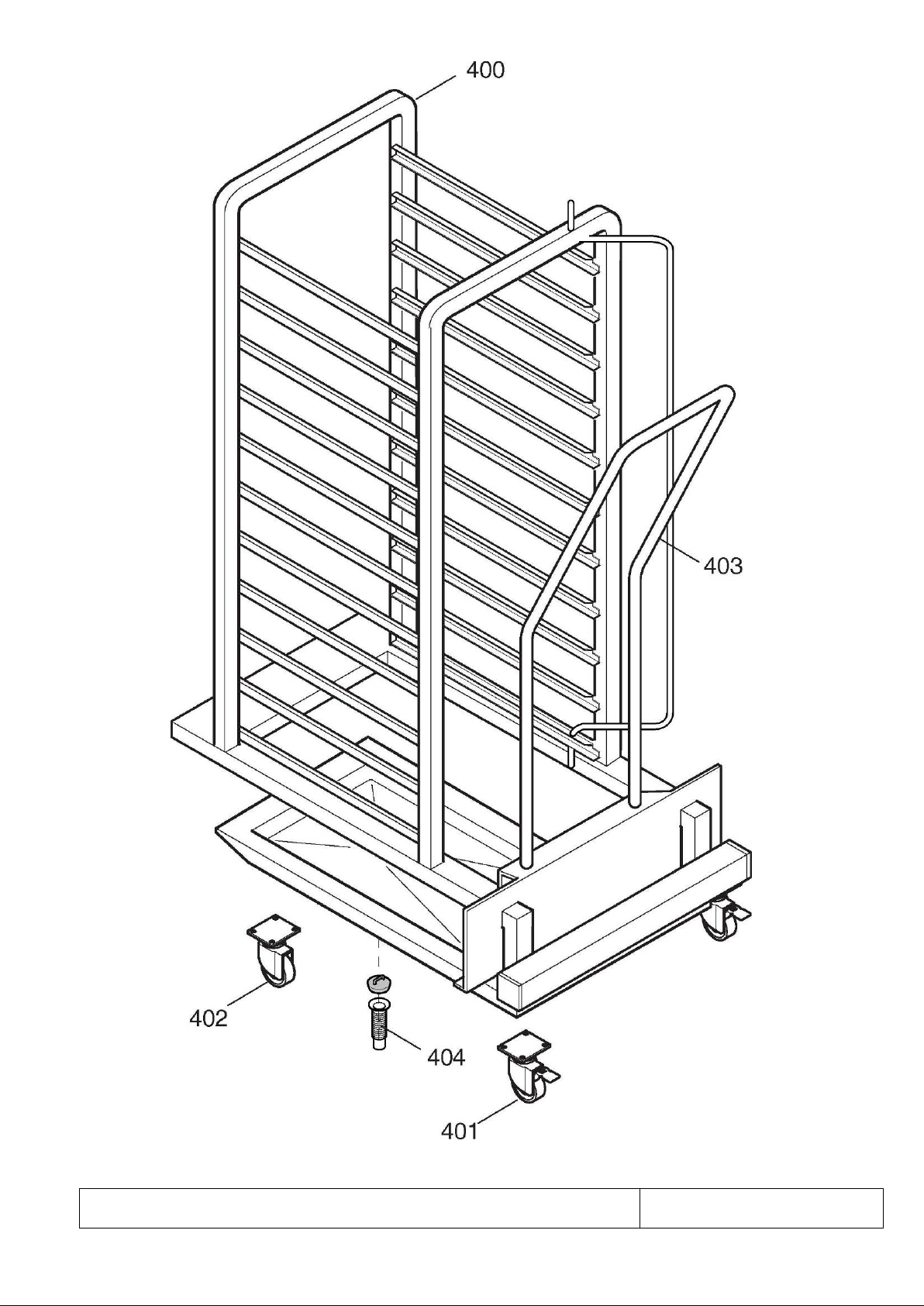

400
0853854207
007106
CARRELLO PORTA TEGLIE (P63)
TROLLEY (P63)
400
0853858706
0C4127
CARRELLO PORTA TEGLIE (P80)
TROLLEY (P80)
For P 80 Version
401
0835865000
0C1631
RUOTA CON FRENO
WHEEL WITH BRAKE
402
0835865100
0C1632
RUOTA
WHEEL
403
0517868200
007108
MANIGLIA
HANDLE
404
0H21503300
006309
PILETTA DI SCARICO
DRAIN
SONDE DI TEMPERATURA
TEMPERATURE PROBES
0830400N00
0C7028
SONDA CELLA 500mm ROSSA
CAVITY PROBE 5 00m m R ED
0830899101
0C6539
SONDA BYPASS 1100 BIANCO
BYPASS PROBE 1100mm WHITE
for Level TOUCH e B
FORNO CONVEZIONE / VAPORE ELETTRICO 20 GN 1/1
317 0660808300 0C4396 LAMPADA ALOGENA HALOGEN LAMP Up to 4361…
326 0639808600 0F0112 MORSETTIERA TERMINAL BOARD
For 200V
For Marine Version
for TOUCH level
For 208V,240V
339 0541400A00 0C6546 COPERTURA USB USB COVER for TOUCH level
344 0831851101 0C4935 ASSIEME FILTRO CRUSCOTTO ASS. FILTER CONTROL PANEL
For P 60 Version
0830899001 0C0325 SONDA BOILER 800mm AZZURRA BOILER PROBE 800mm BLUE for Level TOUCH e B
From status level / Da scatto: 07 Page: 11 Ed. 2015 08
Doc. Nr.:
875400X00
Loading...
