From sr. Nr/ Da Ser. Nr.: 015
From status level / Da scatto: 07 Page: 1 Ed. 2016 02
Doc. Nr.: 875400H00

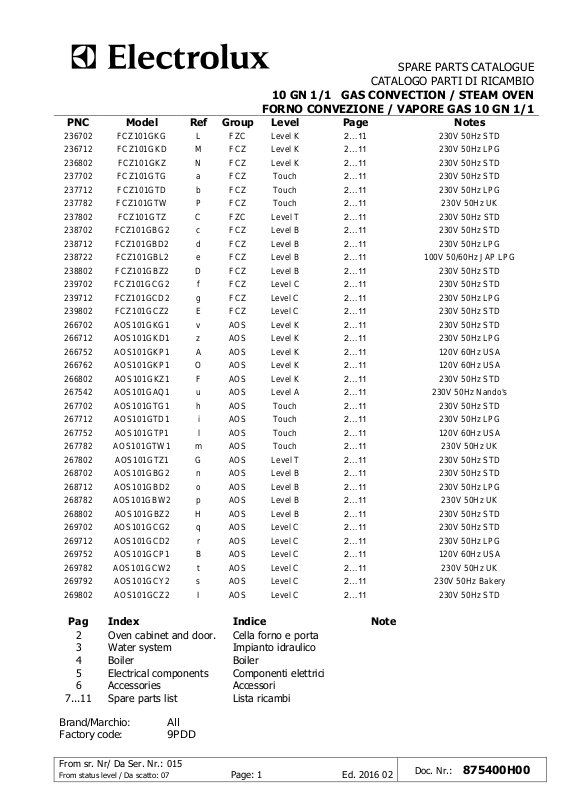

SPARE PARTS CATALOGUE
CATALOGO PARTI DI RICAMBIO
10 GN 1/1 GAS CONVECTION / STEAM OVEN
FORNO CONVEZIONE / VAPORE GAS 10 GN 1/1
PNC
Model
Ref
Group
Level
Page
Notes
236702
FCZ101GKG
L
FZC
Level K
2…11
230V 50Hz STD
236712
FCZ101GKD
M
FCZ
Level K
2…11
230V 50Hz LPG
236802
FCZ101GKZ
N
FCZ
Level K
2…11
230V 50Hz STD
237702
FCZ101GTG
a
FCZ
Touch
2…11
230V 50Hz STD
237712
FCZ101GTD
b
FCZ
Touch
2…11
230V 50Hz LPG
237782
FCZ101GTW
P
FCZ
Touch
2…11
230V 50Hz UK
237802
FCZ101GTZ
C
FZC
Level T
2…11
230V 50Hz STD
238702
FCZ101GBG2
c
FCZ
Level B
2…11
230V 50Hz STD
238712
FCZ101GBD2
d
FCZ
Level B
2…11
230V 50Hz LPG
238722
FCZ101GBL2
e
FCZ
Level B
2…11
100V 50/60Hz JAP LPG
238802
FCZ101GBZ2
D
FCZ
Level B
2…11
230V 50Hz STD
239702
FCZ101GCG2
f
FCZ
Level C
2…11
230V 50Hz STD
239712
FCZ101GCD2
g
FCZ
Level C
2…11
230V 50Hz LPG
239802
FCZ101GCZ2
E
FCZ
Level C
2…11
230V 50Hz STD
266702
AOS101GKG1
v
AOS
Level K
2…11
230V 50Hz STD
266712
AOS101GKD1
z
AOS
Level K
2…11
230V 50Hz LPG
266752
AOS101GKP1
A
AOS
Level K
2…11
120V 60Hz USA
266762
AOS101GKP1
O
AOS
Level K
2…11
120V 60Hz USA
266802
AOS101GKZ1
F
AOS
Level K
2…11
230V 50Hz STD
267542
AOS101GAQ1
u
AOS
Level A
2…11
230V 50Hz Nando's
267702
AOS101GTG1
h
AOS
Touch
2…11
230V 50Hz STD
267712
AOS101GTD1
i
AOS
Touch
2…11
230V 50Hz LPG
267752
AOS101GTP1
l
AOS
Touch
2…11
120V 60Hz USA
267782
AOS101GTW1
m
AOS
Touch
2…11
230V 50Hz UK
267802
AOS101GTZ1
G
AOS
Level T
2…11
230V 50Hz STD
268702
AOS101GBG2
n
AOS
Level B
2…11
230V 50Hz STD
268712
AOS101GBD2
o
AOS
Level B
2…11
230V 50Hz LPG
268782
AOS101GBW2
p
AOS
Level B
2…11
230V 50Hz UK
268802
AOS101GBZ2
H
AOS
Level B
2…11
230V 50Hz STD
269702
AOS101GCG2
q
AOS
Level C
2…11
230V 50Hz STD
269712
AOS101GCD2
r
AOS
Level C
2…11
230V 50Hz LPG
269752
AOS101GCP1
B
AOS
Level C
2…11
120V 60Hz USA
269782
AOS101GCW2
t
AOS
Level C
2…11
230V 50Hz UK
269792
AOS101GCY2
s
AOS
Level C
2…11
230V 50Hz Bakery
269802
AOS101GCZ2
I
AOS
Level C
2…11
230V 50Hz STD
Pag
Index
Indice
Note
2
3
4
5
6
7...11
Oven cabinet and door.
Water system
Boiler
Electrical components
Accessories
Spare parts list
Cella forno e porta
Impianto idraulico
Boiler
Componenti elettrici
Accessori
Lista ricambi
Brand/Marchio: All
Factory code: 9PDD
Page 2
From sr. Nr/ Da Ser. Nr.: 015
From status level / Da scatto: 07 Page: 2 Ed. 2016 02
Doc. Nr.: 875400H00
Page 3
From sr. Nr/ Da Ser. Nr.: 015
From status level / Da scatto: 07 Page: 3 Ed. 2016 02
Doc. Nr.: 875400H00
Page 4
From sr. Nr/ Da Ser. Nr.: 015
From status level / Da scatto: 07 Page: 4 Ed. 2016 02
Doc. Nr.: 875400H00
GAS
POS. A1
CELLA/CAVITY
POS. A1
BOILER
POS. A2
CELLA/CAVITY
POS. A2
BOILER
POS. 218
CELLA/CAVITY
POS. 218
BOILER
G20 0C1045 (ROSSA/RED) 0806826600 (VERDE/GREEN) 0C1139 (ø 7) 0C2444 (ø 7,5) 0C4110 (ø 18) 0C4125 (ø 21)
G25 0C1045 (ROSSA/RED) 0806826600 (VERDE/GREEN) 0C1141 (ø 8) 0C1143 (ø 8,5) 0C4110 (ø 18) 0C4125 (ø 21)
G30 0C1045 (ROSSA/RED) 0806826600 (VERDE/GREEN) 0C2442 (ø 5.5) 0C2446 (ø 5,8) 0C4110 (ø 18) 0C4110 (ø 18)
LPG 0C1045 (ROSSA/RED) 0806826600 (VERDE/GREEN) 0C1140 (ø 5.7) 0C1142 (ø 6,15) 0C4110 (ø 18) 0C4110 (ø 18)
DIAFRAMMA/DIAPHRAGM
AERATORE/AERATOR
DIAFRAMMA/DIAPHRAGM
Page 5
From sr. Nr/ Da Ser. Nr.: 015
From status level / Da scatto: 07 Page: 5 Ed. 2016 02
Doc. Nr.: 875400H00
Page 6
From sr. Nr/ Da Ser. Nr.: 015
From status level / Da scatto: 07 Page: 6 Ed. 2016 02
Doc. Nr.: 875400H00
Page 7
From sr. Nr/ Da Ser. Nr.: 015
From status level / Da scatto: 07 Page: 7 Ed. 2016 02
Doc. Nr.: 875400H00
10 GN 1/1 GAS CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE GAS 10 GN 1/1
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
Pagina 2
Page 2
1
0530891500
0C6179
COPERCHIO
COVER
1
0530891700
0C6181
COPERCHIO
COVER
For Level C ,K
2
0530890900
0C6174
FIANCO DX
RIGHT SIDE PANEL
3
0530892700
0C6190
SCHIENALE
BACK PANEL
4
0530893300
0C6196
FIANCO SX
LEFT SIDE PANEL
5
0831850900
0C4892
PIEDINO
FOOT
From 2008/01
up to 2012/18
5
0831842202
0C4233
PIEDINO
FOOT
Up to 2007/52
from 2012/19
6
0806847803
0C4234
CERNIERA SUPERIORE
UPPER HINGE
7
0806861600
0C4235
CERNIERA INFERIORE
LOWER HINGE
8
0873869902
0C4470
VETRO INTERNO
INNER GLASS
9
0873858407
0C4960
PORTA COMPLETA
COMPLETE DOOR
- 0518806205
0C6051
MOLLA FERMAVETRO INTERNO
SPRING FOR INTERNAL GLASS
10
0806859302
0C4476
PROFILO DX-SX
RIGHT AND LEFT TRIM
11
0574817103
0C4471
VETRO ESTERNO
EXTERNAL GLASS
for Group AOS
11
11
0574818501
0574400P00
0C4943
0C7972
VETRO ESTERNO
VETRO ESTERNO
EXTERNAL GLASS
EXTERNAL GLASS
for Group FCZ
for Nando’s model
12
0543839700
0C4088
GUARNIZIONE FLANGIA SPILLONE
GASKET
13
0543828001
006976
AMMORTIZZATORE
DAMPER
14
0806822000
007007
CERNIERA VETRO INTERNO
HINGE, INNER GLASS
15
0835871801
0C4089
GR.CHIUSURA A SCATTO 'HRS'
CLOSING MECHANISM
16
0510824200
0C4237
SUPPORTO GR.CHIUSURA
SUPPORTO
17
0548871501
0C4090
MANIGLIA CHIUSURA A SCATTO
DOOR HANDLE
18
0516896401
0C4238
DADO FISSAGGIO
NUT FOR DOOR CATCHER
19
0546822600
0C4091
TAPPO PER MANIGLIA 'HRS'
DOOR COVER HANDLE
20
0806859900
0C4092
NASELLO SINGOLO SCATTO
DOOR CATCHER
21
0699603700
049627
MAGNETE
MAGNET
22
0528869501
0C4239
VASCHETTA RACC.CONDENSA
DOOR DRAIN TRAY
23
0831846901
0C1477
GUARNIZIONE CELLA-PORTA
GASKET
-
0147098067
003926
SIGILLANTE (RED)
RED SEALANT
24
0831847003
0C4615
PARETE DI ASPIRAZIONE
SUCTION WALL
25
0518807301
0C3423
MOLLA AGGANCIO PARETE
SPRING
26
0518808600
0C1740
FILTRO FONDO
FILTER
27
0654600000
049621
INTERRUTTORE MAGNETICO
MAGNETIC SWITCH
28
0831831000
0C4240
SPILLONE CURVO MULTIPOINT
MEAT PROBE MULTI POINT
for Level Touch, O
28
0831830700
0C4241
SPILL. CURVO SINGOLO PUNTO
MEAT PROBE SINGLE POINT
for Level B e C,K
29
0527865201
0C1505
SUPPORTO SPILLONE
MEAT PROBE SUPPORT
30
0856814000
0C4242
BACINELLA SNODABILE
DRAIN TRAY
31
0806858800
0C4243
TUBO PER CONDENSA 1/1
DRAIN TUBE
32
0516855300
006991
DADO SONDA CELLA
NUT, CAVITY PROBE
33
0543842600
0C4872
TAPPO PER SENSORE
STOPPER FOR SENSOR
forl Level Touch, B
34
0214105101
020997
CONTRODADO PORTAUGELLO
LOCK NUT
35
0508838701
002700
RONDELLA SONDA CELLA
WASHER
36
0543816300
002624
GUARN. PER TENUTA SONDA
GASKET
37
0516809400
002623
RACCORDO SONDA CELLA
CONNECTION, CAVITY PROBE
38
0518818000
0C8561
MOLLA PER CHIUSURA
SPRING
41
0806857201
0C4244
COND. SONDA LAMBDA
FLANGE TUBE
for level A
42
0543838300
0C4093
GUARNIZIONE BYPASS/LAMBDA
GASKET
44
0543841300
0C4094
GUARN. VASC. CONDENSA
GASKET
45
0806873000
0C6351
CONDOTTO FLANGIATO BY-PASS
DUCT, BYPASS PROBE
for Level B
46
0543828901
007005
GUARN. CONDOTTO ARIA-COP.
GASKET, DUCT
47
0611809000
0C5287
MOTORE
MOTOR
forl Level C,K
47
0611806001
006998
MOTORE
MOTOR
for Level A e B
47
0611806901
0C1882
MOTORE
MOTOR
for 100V, 120V models
48
0543816700
002873
O RING
O RING
49
0516808902
002699
CUSCINETTO
BEARING
50
0538815400
0C4138
FLANGIA FISS.TENUTA MOTORE
FLANGE
Page 8
From sr. Nr/ Da Ser. Nr.: 015
From status level / Da scatto: 07 Page: 8 Ed. 2016 02
Doc. Nr.: 875400H00
10 GN 1/1 GAS CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE GAS 10 GN 1/1
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
51
0835400800
0C6463
VENTOLA
FAN
51
0831808400
0C1129
VENTOLA
FAN
for Level C,K
52
0831828701
0C4318
SCAMBIATORE
HEAT EXCHANGER
53
0543830700
0C1036
GUARNIZIONE
GASKET
54
0543831301
0C1132
GUARNIZIONE
GASKET
55
0527898900
0C4857
PIASTRA CHIUSURA
FLANGE
for Level C,K
56
0516892000
0C6296
PERNO SPILLONE
PROBE PIN
57
0856828400
0C4975
CONDOTTO UMIDIFICATORE
HUMIDIFIER PIPNG
for Level C ,K
58
0516887101
0C6228
DADO CONDOTTO
NUT HUMIDIFIER
for Level C,K
59
0543844600
0C6200
GUARNIZIONE CAMINO
GASKET
61 - 0C6465
KIT SONDA LAMBDA
LAMBDA KIT
for level TOUCH
62
0835872002
0C4477
ASSIEME CHIUSURA PORTA
COMPLETE CLOSING MECH.
Up to 6081…
62
0835402M00
*
ASSIEME CHIUSURA PORTA
COMPLETE CLOSING MECH.
From 6091…
63
0830400600
0C6572
MANIGLIA COMPLETA
COMPLETE DOOR HANDLE
for FCZ Group
63
0830400500
0C6569
MANIGLIA COMPLETA
COMPLETE DOOR HANDLE
for AOS Group
64
0830898902
0C6538
SENSORE TEMPERATURA CELLA
CAVITY TEMP. PROBE
65
0830899101
0C6539
SENSORE TEMP. BY-PASS
BY-PASS TEMP. PROBE
For TOUCH,B
66
0543400900
0C7016
GUARNIZIONE PER TUBO
PIPE GASKET
67
0543816601
002692
TAPPO CARICO DISINCROST.
RECHARGE CAP FOR SCALER
68
0543843201
0C4965
GOMMINO CHIUSURA ING.DISIN
GASKET
Pagina 3
Page 3
100
0696808400
0C5517
ELETTROVALVOLA
WATER VALVE
for Level Touch,B
-
0544819400
0C5829
TUBO EPDM BLU
BLU PIPE EPDM
- 0835872300
0C5385
FASCETTA NORMACLAMP
NORMACLAMP
101
0543840600
0C4096
GUARNIZIONE FILTRO
GASKET
102
0549801800
0C2312
VALVOLA NON RITORNO
NOT RE-FLOW VALVE
103
0516879400
0C2313
RACCORDO ENTRATA ACQUA
PIPE FITTING
for Level Touch,B
104
0543840600
0C4096
FILTRO INGRESSO ACQUA
INLET WATER FILTER
105
0831811400
0C1155
ASSIEME FILTRO
FILTER
106
0516896101
0C4198
RACCORDO PORTAGOMMA
PIPE FITTING
107
0544809000
0C1117
VALVOLA NON RITORNO
NOT RE-FLOW VALVE
108
0516871900
0C1116
RACCORDO PER POMPA
CONNECTION, PUPM
109
0543832300
0C1935
O-RING
O-RING
110
0680801201
0C2341
POMPA
PUMP
110
0680801301
0C2342
POMPA
PUMP
for 60Hz models
116
0805400200
0C6202
ASS. COLLETTORE LAVAGGIO
CONNECTION
117
0806871100
0C6031
ASS. SUPP. GETTO LAVAGGIO
SUPPORT
118
0543841400
0C4201
GUARNIZIONE IN RAME
GASKET
119
0516898301
0C4467
CUSCINETTO GETTO ROTANTE
BEARING
120
0516896000
0C4202
DADO
NUT 121
0806873900
0C5503
GETTO ROTANTE
ROTATING WASHING JET
122
0518807100
007026
MOLLA
SPRING
123
0544808100
0C1151
TAPPO PER SERBATOIO BLU
BLUE CUP
124
0544808200
0C1152
TAPPO PER SERBATOIO ROSSO
RED CUP
125
0873857102
0C4426
SERBATOIO DETERGENTE-BRIL
TANK
126
0544808900
0C1154
PARATIA PER SERBATOIO ROSSO
RED BULKHEAD
127
0544808400
0C1153
PARATIA PER SERBATOIO BLU
BLUE BULKHEAD
129
0H22982800
007075
TUBO UMIDIFICATORE
HUMIDIFIER PIPE
for Level Touch, B
129
0856828600
0C4977
TUBO UMIDIFICATORE
HUMIDIFIER PIPE
for Level C,K
130
0696808800
0C6170
ELETTROVALVOLA
WATER VALVE
for Level B
130
0696808200
0C5515
ELETTROVALVOLA
WATER VALVE
for Level C,K
131
0831857200
0C6370
ASS. COLLET. ENTRATA ACQUA
CONNECTION,C.S.
132
0696808600
0C6374
GRUPPO VALVOLE CLEANING
VALVE GROUP C.S.
For level Touch,B
132
0696400100
0C6373
GRUPPO VALVOLE CLEANING
VALVE GROUP C.S.
for Level Touch USA
132
0696400300
0C6406
GRUPPO VALVOLE CLEANING
VALVE GROUP C.S.
for Level C,K
132
0696400500
0C6408
GRUPPO VALVOLE CLEANING
VALVE GROUP C.S.
for Level C USA
133
0546825100
0C6222
FORCELLA SICUREZZA
CLIP
134
0646817200
0C6217
PRESSOSTATO ATTACCO RAPIDO
CONNECTION FOR WASH ARM
135
0513805000
0C5426
STAFFA SUPPORTO SERBATOIO
SUPPORT PLATE
Page 9
From sr. Nr/ Da Ser. Nr.: 015
From status level / Da scatto: 07 Page: 9 Ed. 2016 02
Doc. Nr.: 875400H00
10 GN 1/1 GAS CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE GAS 10 GN 1/1
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
136 - 0C6467
KIT GANCIO SERBATOIO
KIT TANK HOOK
137 - 0C6375
KIT PARZIALIZZATORI DI FLUSSO
FLOW REDUCER KIT
138 - 061303
KIT O-RING +BUSSOLA
O-RING +BUSH KIT
139
0219035015
0C6421
ANELLO ELASTICO
ELASTIC RING
140
0505401R00
0C7924
PIASTRINA FISSAGGIO POMPE
FIXING PLAQUE
141
0544400C01
0C8348
VITE TTL
TTL SCREW
Up to 5151…
141
0544400C02
0CA348
VITE TTL
TTL SCREW
From 5161…
141a
0546400J00
0C9538
CAPPUCCIO DI PROTEZIONE
PROTECTION CAP
142
0543400R00
0C7925
PASSACAVO
WIRING BUSH
143
0546814600
0C2309
TUBO EXT
EXT. PIPE
144
0246530100
005382
GOMMINO
GASKET
145
0544819400
0C5829
TUBO EPDM BLU
EPDM PIPE
146
0686400100
0C8347
POMPA DEFOND PHOENIX
PHOENIX DEFOND PUMP
Up to 4441…
146
0686400201
0CA112
POMPA CEME
CEME PUMP
From 4451…
147
0835400L00
0C8683
GRUPPO ENTRATA ACQUA
GROUP WATER INLET
147
0835400M00
0C8684
GRUPPO ENTRATA ACQUA
GROUP WATER INLET
For level C,K
-
0831854100
0C5562
TUBO ACQUA WRAS
WATER INLET PIPE WRAS
-
0835870400
0C3464
RIDUTTORE DI PRESSIONE
WATER PRESSURE REDUCER
Pagina 4
Page 4
200
0878401C00
0C9668
KIT ASSIEME BOILER
BOILER ASS.Y KIT
for Level Touch, B
200
0878401800
-
KIT ASSIEME BOILER
BOILER ASS.Y KIT
P
201
0560852501
0C4123
KIT ISOLAMENTO
KIT ISOLATION
for Level Touch e B
202
0543816601
002692
TAPPO
STOPPER
for Level Touch, B
203
0543817500
002634
GUARNIZIONE
GASKET
for Level Touch, B
204
0831831901
0C4098
SONDA DI LIVELLO
LEVEL PROBE
for Level Touch, B
205
0516868600
0C1063
RACCORDO
CONNECTION
for Level Touch, B
206
0696804201
0C0882
VALVOLA DI SCARICO 230V
DRAIN VALVE 230V
for Level Touch, B
206
0696808500
0C5518
VALVOLA DI SCARICO 240V
DRAIN VALVE 240V
for Level Touch 60Hz
207
0516868500
0C1062
MANICOTTO 1"-3/4"
CONNECTION 1"-3/4"
for Level Touch, B
208
0510828000
0C5564
RESCA D12 FILETT 1/4' GAS
PIPE CONNECTION
209
0516879600
0C4099
UGELLO 'ELPIS'1/4'FD3.5-3/8'M
NOZZLE
for Level Touch, B
210
0543842600
0C4872
TAPPO PER SENSORE
STOPPER FOR SENSOR
for Level Touch, B
211
0546821401
-
PANNELLO FRONTALE INFERIORE
PANEL
Level C e B,K
212
0543400000
0C7033
GUARNIZIONE PORTELLO
GASKET
for level TOUCH
213
0546815103
0C4532
PANNELLO FRONTALE INFERIORE
PANEL
for Level Touch
214
0873881200
0C4248
DOCCETTA
SHOWER
for Level Touch
up to 5201…
214
0875402G00
0CA407
DOCCETTA
SHOWER
for P and m
from 5211...
215
0543838200
0C4101
GUARNIZIONE BRUCIATORE LWZ
GASKET
216
0831827502
0C4289
BRUCIATORE
BURNER
217
0543838100
0C4102
GUARNIZIONE PER VENTILATORE
FAN GASKET
218
0538819000
0C4110
FLANGIA VENTILATORE
FAN FLANGE
219
0611808300
0C4103
VENTILATORE
FAN
220
0831846502
0C4462
CANDELINA DI ACC. E RIL.
IGNITION ROD
221
0543816800
002874
ANELLO DI TENUTA OR
O-RING
for Level Touch, B
222
0518807600
0C1044
MOLLA
SPRING
for Level Touch, B
223
0835859601
0C1057
VALVOLA GAS
GAS VALVE
223
0835867200
0C1879
VALVOLA GAS
GAS VALVE
USA Version
224
0543840600
0C4096
GUARNIZIONE
GASKET
225
0543841100
0C4104
GUARNIZIONE CANDELINA
ROD GASKET
226
0624810800
0C4260
CENTRALINA
IGNITION BOARD
227
0516847000
0C1058
DADO
NUT
228
0515801715
052671
BICONO X TUBO DA 16
SEAL
229
0624810600
0C4105
ACCENDITORE BRAHMA
IGNITION BOARD
230
0517877101
0C1054
CONDUTTURA L= 398MM
PIPE L= 398MM
for Level Touch,B
230
0517877001
0C1084
CONDUTTURA L= 330MM
PIPE L= 330MM
for Level Touch, B
231
0J89061403
0C3443
PORTELLO ISPEZIONE
INSPECTION COVER
for Level Touch
232
0527898700
0C4856
FLANGIA CHIUS. FORO BOILER
FLANGE
For Level C,K
Page 10
From sr. Nr/ Da Ser. Nr.: 015
From status level / Da scatto: 07 Page: 10 Ed. 2016 02
Doc. Nr.: 875400H00
10 GN 1/1 GAS CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE GAS 10 GN 1/1
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note
233
0543842800
0C4963
GUARN. CHIUSURA FORO BOILER
GASKET
For Level C,K
234
0527878700
0C6449
FLANGIA CHIUS. FORO BOILER
FLANGE
For level TOUCH,B
235
0543839200
0C6450
GUARN.CHIUS.FORO BOILER
GASKET
For level TOUCH,B
236
0830899100
0C0326
SONDA BYPASS (L 1200)
BYPASS PROBE (L 1200)
for Level TOUCH, B
Pagina 5
Page 5
300
0806874001
0C5600
MANOPOLA
HANDLE
301
0214114900
051263
CONTRODADO
LOCK NUT
302
0508836400
002727
RONDELLA
DISK
303
0516807301
002662
BOCCOLA
BUSH
304
0548400502
0C6549
MEMBRANA TOUCH AOS MODELS
LAYER TOUCH AOS MODELS
for TOUCH AOS Group
304
0548400B00
0C6551
MEMBRANA TOUCH FCZ MODELS
LAYER TOUCH FCZ MODELS
for TOUCH FCZ Group
304
0548400F01
0C6553
MEMBRANA LIV.B AOS MODELS
LAYER LEV. B AOS MODELS
for Level B AOS Group
304
0675855001
0C4948
MEMBRANA LIV.B FCZ MODELS
LAYER LEV. B FCZ MODELS
for Level B FCZ Group
304
0548400J01
0C6556
MEMBRANA LIV.C AOS MODELS
LAYER LEV. C AOS MODELS
for Level C AOS Group
304
304
304
0675855102
0548401900
0675847601
0C4949
0C8084
0C7961
MEMBRANA LIV.C FCZ MODELS
MEMBRANA LIC.C BAKERY MOD
MEMBRANA NANDO’S MODEL
LAYER LEV. C FCZ MODELS
LAYER LEV.C BAKERY MODELS
LAYER NANDO’S MODEL
for Level C FCZ Group
for Level C Bakery
for Nando’s model
304
0548401G00
0C8706
MEMBRANA LIV. TOUCH “K”
LAYER TOUCH “K”AOS MODELS
For Level Touch “K”
AOS Group
305
0875401801
0C7030
CRUSCOTTO LIV.TOUCH +
MEMBRANA
CONT.PANEL LEV. TOUCH + LAYER
for Level TOUCH AOS
305
0870400J00
0C6592
CRUSCOTTO LIV. TOUCH (NO
MEMBR.)
CONT.PANEL LEV.TOUCH (NO
LAYER)
for Level TOUCH FCZ
Ver.
305
0870400601
0C6583
CRUSCOTTO LIV. B (NO MEMBR.)
CONT.PANEL LEV. B (NO LAYER)
for Level B AOS Ver.
305
0873896002
0C4902
CRUSCOTTO LIV. B (NO MEMBR.)
CONT.PANEL LEV. B (NO LAYER)
for Level B FCZ Ver.
305
0870400K01
0C6593
CRUSCOTTO LIV. C (NO MEMBR.)
CONT.PANEL LEV. C (NO LAYER)
for Level C AOS Ver.
305
305
0873896102
0873895902
0C4903
0C4901
CRUSCOTTO LIV. C (NO MEMBR.)
CRUSCOTTO NANDO’S
CONT.PANEL LEV. C (NO LAYER)
CONT.PANEL NANDO’S
for Level C FCZ Ver.
For Nando’s model
305
0875401U00
0C8711
CRUSCOTTO LIV.TOUCH “K” CON
MEMBRANA
CONTROL PANEL TOUCH “K” WITH
LAYER
For Level Touch “K”
AOS Group
-
0831844900
0C4930
FILTRO ARIA CRUSCOTTO
AIR FILTER CONTROL PANEL
307
675400A00
0C6571
SCHEDA USER INTERFACE
LIV.TOUCH
USER INTERF. BOARD, LEV.
TOUCH
for Level TOUCH,K
up to 2441…
307
675400P01
0C8805
SCHEDA USER INTERFACE
LIV.TOUCH
USER INTERF. BOARD, LEV.
TOUCH
for Level TOUCH,K
from 2451…
up to 4481…
307
675400P03
0CA070
SCHEDA USER INTERFACE
LIV.TOUCH
USER INTERF. BOARD, LEV.
TOUCH
for Level TOUCH,K
from4491…
307
0675838802
0C0041
SCHEDA USER INTERFACE LIV. B
USER INTERF. BOARD, LEV. B
for Level B
307
0675854600
0C4891
SCHEDA USER INTERFACE LIV. C
USER INTERF. BOARD, LEV. C
for Level C
307
307
308
0675854602
0675837904
0675400802
0C7350
0C0043
0C6570
SCHEDA USER INT.LIV.C (1/2VEL)
SCHEDA USER INT. NANDO’S
SCHEDA POWER
USER INTERF.BOARD
LEV.C(1/2SPEED)
USER INTERF. BOARD NANDO’S
MAIN POWER
for level C(start s/n
120…)
for Nando’s model
for Level TOUCH,K
308
0675837808
0C0042
SCHEDA POWER
MAIN POWER
for Level B,C
-
0546814001
0C3750
DISTANZIALE ARCHETTO NYLON
SPACER NYLON
309
0546824600
0C5833
PROLUNGA PULSANTE
PROLONG
311
0652800901
058871
FUSIBILE RAPIDO 6.30 A
FUSE FAST 6.3 A
311
0652803900
0C2301
FUSIBILE OMEGA 800MA
FUSE OMEGA 800MA
311
0652805300
0C2237
FUSIBILE 6.3A FAST 5X20
FUSE 6.3A FAST 5X20
for 120V models
311
0652804500
0C1884
FUSIBILE OMEGA T 2.5A
FUSE OMEGA T 2.5A
for 120V models
311
0652803300
0C1480
FUSIBILE RAPIDO 6.30 A
FUSE FAST 6.3 A
for 120V models
311
0652803200
0C2953
FUSIBILE 5X20 2,5A T
FUSEOMEGA 5X20 2,5A T
for 100V,120V models
311
0652805200
0C2236
FUSIBILE 5X20 1,6A F
FUSEOMEGA 5X20 1,6A F
for 100V models
311
0652800701
058869
FUSIBILE 5X20 1,6A F
FUSEOMEGA 5X20 1,6A F
for 100V models
312
0652802100
0F0031
PORTAFUSIBILE
FUSE HOLDER
313
0646812200
007042
LIMITATORE, CELLA
LIMITER, CAVITY
313
0646810802
006314
LIMITATORE, CELLA
LIMITER, CAVITY
for 120V models
314
0508840801
002628
FLANGIA
FLANGE
315
0574804900
002627
VETRO
GLASS
316
0543842000
002626
GUARNIZIONE
GASKET
Page 11
From sr. Nr/ Da Ser. Nr.: 015
From status level / Da scatto: 07 Page: 11 Ed. 2016 02
Doc. Nr.: 875400H00
10 GN 1/1 GAS CONVECTION / STEAMER OVEN
FORNO CONVEZIONE / VAPORE GAS 10 GN 1/1
Pos
Factory
Code
6DGT
Code
Descrizione
Description
Ref./Note

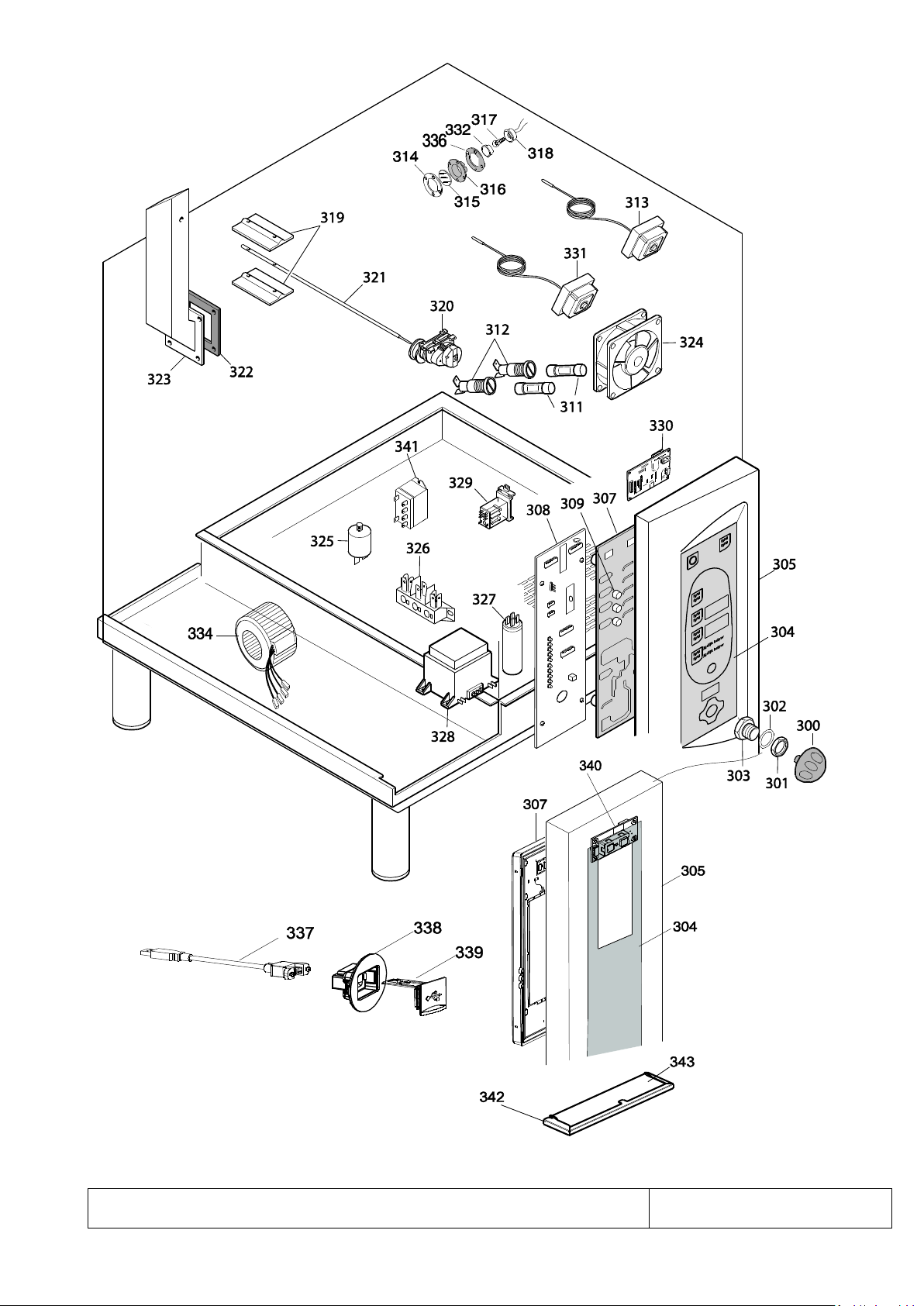

317
0660808300
0C4396
LAMPADA ALOGENA
HALOGEN LAMP
Up to 4361…
317
0660400100
0C9877
LAMPADA ALOGENA
HALOGEN LAMP
From 4371…
318
0660806401
007055
PORTALAMPADA
LAMP HOLDER
319
0508896801
007081
FARFALLA
CLOSER
320
0680802300
0C5501
MOTORIDUTTORE
MOTOREDUCER
320
0680802400
0C5502
MOTORIDUTTORE
MOTOREDUCER
for 120V models
321
322
0543828600
007053
GUARNIZIONE
GASKET
323
0831828500
0C4285
CONDOTTO ARIA
DUCT, AIR
324
0624811000
0C4106
VENTILATORE
FAN
325
0694805900
0C4950
FILTRO ANTIDISTURBO
FILTER
326
0639804900
046357
MORSETTIERA
TERMINAL BOARD
327
0694604400
047541
CONDENSATORE 12.5 Mf
CAPACITOR 12.5 MF
for Level A e B
not for USA models
327
0694604400
047541
CONDENSATORE 60 Mf
CAPACITOR 60 MF
For 100V models
327
0694804601
0C4812
CONDENSATORE 60 Mf
CAPACITOR 60 MF
For 120V models
327
0694806000
0C5526
CONDENSATORE DA 8 MF
CAPACITOR 8 MF
for Level C,K
328
0624400100
0C6895
TRASFORMATORE
TRANSFORMER
328
0624807100
007046
TRASFORMATORE
TRANSFORMER
for 100V models
329
0648803001
058857
RELE
RELE
for Level A e B
329
0648808000
0C1883
RELE
RELE
for 120V,100V models
329
0648723800
088086
RELE
RELE
for 120V models
330
0624807002
007047
ALIMENTATORE SWITCHING
SWITCHING FEEDER
for Level A
331
0646812900
0C1147
LIMITATORE, BOILER
LIMITER, BOILER
331
0646810902
006433
LIMITATORE, BOILER
LIMITER, BOILER
for 120V models
332
0509803900
0C4459
RIFLETTORE
REFLECTOR
333
0652801900
004010
PORTAFUSIBILE
FUSE HOLDER
for 120V models
334
0624400002
0C6945
TRASFORMATORE
TRANSFORMER
for 120V models
336
337
0543843500
0638400Y00
0C5451
0C6566
GUARNIZIONE
CAVETTO PROLUNGA USB
GASKET
USB CABLE
For Level TOUCH
338
0546400200
0C6547
VASCHETTA USB
USB PLUG
for TOUCH level
339
0541400A00
0C6546
COPERTURA USB
USB COVER
for TOUCH level
340
0675858601
0C8033
TASTO ON-OFF (INTER.PRINCIPALE)
ON-OFF (MAIN SWITCH)
For TOUCH level
341
0648722900
088267
RELE’ SICUREZZA
SAFETY RELE’
342
0831851002
0C4934
ASSIEME FILTRO CRUSCOTTO
ASS. FILTER CONTROL PANEL
343
0549400F00
0C9991
FILTRO CRUSCOTTO
FILTER CONTROL PANEL
Pagina 6
Page 6

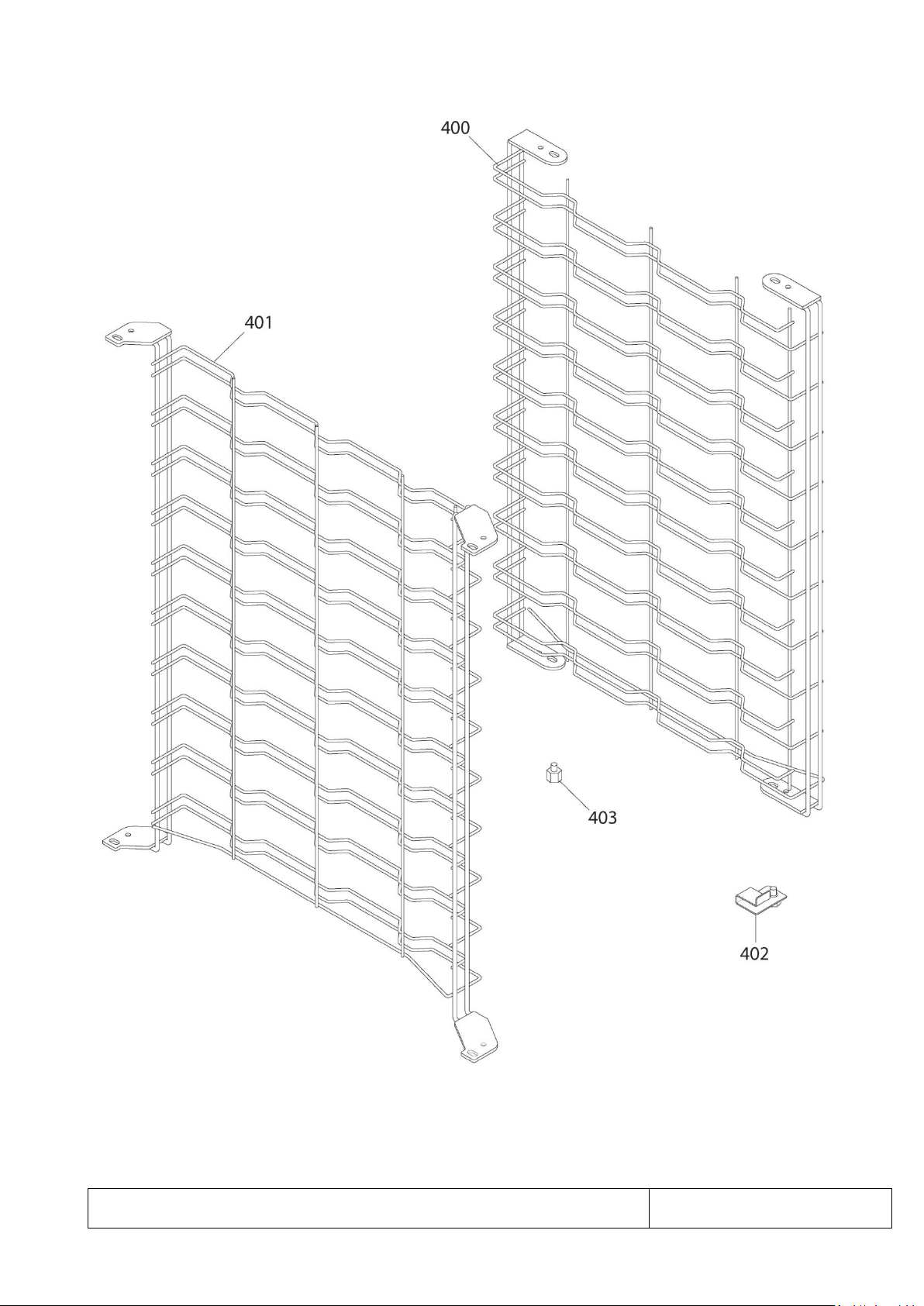

400
0831849200
0C4862
PORTATEGLIE DX P60
TRAY SUPPORT DX P60
401
0831848900
0C4861
PORTATEGLIE SX P60
TRAY SUPPORT SX P60
402
0806872800
0C4961
SUPPORTO CON S.G.
SUPPORT S.G.
403
0511828100
0C5620
SUPPORTO
SUPPORT
SONDE DI TEMPERATURA
TEMPERATURE PROBES
0830898902
0C6538
SONDA CELLA (L 500)
CAVITY PROBE (L 500)
0830899000
0C0325
SONDA BOILER (L 800)
BOILER PROBE (L 800)
for Level A e B
0830899100
0C0326
SONDA BYPASS (L 1200)
BYPASS PROBE (L 1200)
for Level A e B
Loading...
