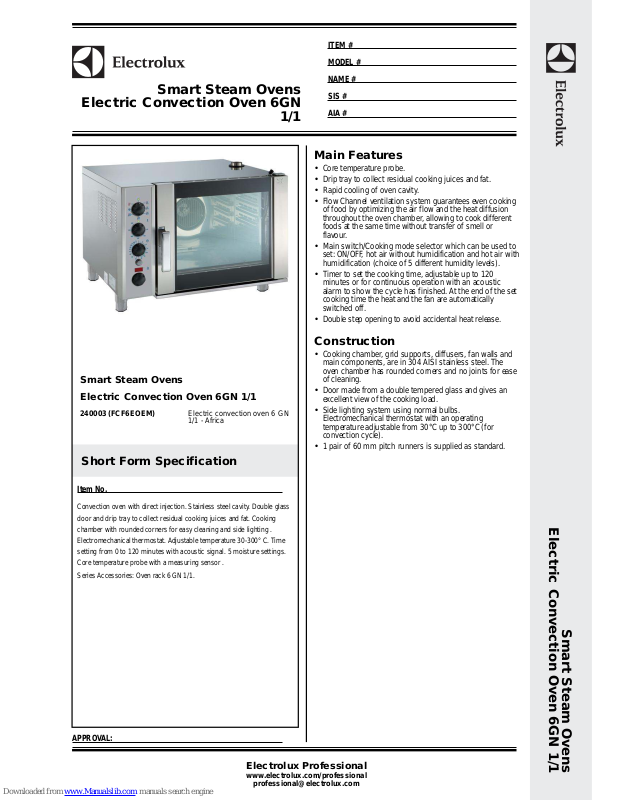

Electrolux 6GN 1/1, 240003, FCF6EOEM Short Form Specification

Smart Steam Ovens

Electric Convection Oven 6GN

1/1

ITEM #
MODEL #
NAME #
SIS #
AIA #

Short Form Specification

Item No.

APPROVAL:

Electrolux Professional

www.electrolux.com/professional

[e-mail]

Smart Steam Ovens

Electric Convection Oven 6GN 1/1

Smart Steam Ovens
Electric Convection Oven 6GN 1/1

240003 (FCF6EOEM)Electric convection oven 6 GN

1/1 - Africa

Convection oven with direct injection. Stainless steel cavity. Double glass
door and drip tray to collect residual cooking juices and fat. Cooking
chamber with rounded corners for easy cleaning and side lighting .
Electromechanical thermostat. Adjustable temperature 30-300° C. Time
setting from 0 to 120 minutes with acoustic signal. 5 moisture settings.
Core temperature probe with a measuring sensor .

Series Accessories: Oven rack 6 GN 1/1.

Main Features

•Core temperature probe.

•Drip tray to collect residual cooking juices and fat.

•Rapid cooling of oven cavity.

•Flow Channel ventilation system guarantees even cooking

of food by optimizing the air flow and the heat diffusion
throughout the oven chamber, allowing to cook different
foods at the same time without transfer of smell or
flavour.

•Main switch/Cooking mode selector which can be used to
set: ON/OFF, hot air without humidification and hot air with
humidification (choice of 5 different humidity levels).

•Timer to set the cooking time, adjustable up to 120
minutes or for continuous operation with an acoustic
alarm to show the cycle has finished. At the end of the set
cooking time the heat and the fan are automatically
switched off.

•Double step opening to avoid accidental heat release.

Construction

•Cooking chamber, grid supports, diffusers, fan walls and
main components, are in 304 AISI stainless steel. The
oven chamber has rounded corners and no joints for ease
of cleaning.

•Door made from a double tempered glass and gives an
excellent view of the cooking load.

•Side lighting system using normal bulbs.
Electromechanical thermostat with an operating
temperature adjustable from 30°C up to 300°C (for
convection cycle).

•1 pair of 60 mm pitch runners is supplied as standard.

Smart Steam Ovens

Electric Convection Oven 6GN

1/1

Smart Steam Ovens

Electric Convection Oven 6GN 1/1

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2014.04.08

Optional Accessories

•12lt external manual water softenerPNC 860412 ❑

•Pair of 1/1GN AISI 304 stainless steel gridsPNC 921101 ❑

•Support for 1/2GN pan (2pcs)PNC 921106 ❑

•Automatic water softener for ovens PNC 921305 ❑

•Resin sanitizer for water softenerPNC 921306 ❑

•Guide kit for 1/1GN drain panPNC 921713 ❑

•Couple of grids for whole chicken 1/1GN (8 per

grid)

PNC 922036 ❑

•Base for oven 6x1/1GNPNC 922101 ❑

•Retractable hose reel spray unitPNC 922170 ❑

•Side external spray unit (needs to be mounted

outside and includes support for mounting to
oven)

PNC 922171 ❑

•Fat filter for 6x1/1GNPNC 922177 ❑

•Frying griddle GN 1/1 PNC 922215 ❑

•Grid for whole chicken 1/1GN (8 per grid -

1,2kg each)

PNC 922266 ❑

•Kit universal skewer rack and 6 short skewers
for Lengthwise and Crosswise ovens

PNC 922325 ❑

•Universal skewer rackPNC 922326 ❑

•Smoker for lengthwise and crosswise ovens - 4

kinds of smoker wood chips are available on
request

PNC 922338 ❑

Smart Steam Ovens

Electric Convection Oven 6GN

1/1

Smart Steam Ovens

Electric Convection Oven 6GN 1/1

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2014.04.08

Front

Top

CWI

=Cold Water inlet

D=Drain

EI=Electrical connection

Side

Electric

Supply voltage:

240003 (FCF6EOEM)400 V/3N ph/50 Hz
Connected load:7.7 kW
Total Watts:7.7 kW

Key Information:

External dimensions, Height:633 mm
External dimensions, Width:860 mm
External dimensions, Depth:746 mm
Net weight:79.5 kg
Number of grids:6
Number/type of grids:6 - 1/1 Gastronorm
Type of grids:1/1 Gastronorm
Runners pitch:60 mm
Convection: ✗
Meat probe: ✗
Internal dimensions, width:560 mm
Internal dimensions, depth:370 mm
Internal dimensions, height:380 mm
