User information
Dear Customer,
Please read this user information carefully and keep it to refer to later.
Please pass the user information on to any future owner of the appliance.
The following symbols are used in the text:
1 Safety instructions
Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.
3 Useful tips and hints
2 Environmental information
3 Your dishwasher is fitted with the new “PULSE WASH” dishwashing
system. With this dishwashing system the motor speed and spray
pressure are varied during the dishwashing cycle to achieve better
cleaning of the dishes. It is for this reason that the noise level varies during the dishwashing cycle.
2
Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Diagram of appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Switching on for the first time – setting the language . . . . . . . . . . . . . 8
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Basic operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
An overview of the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting an option/setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adding special salt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Filling up with rinse aid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting the acoustic signal: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
In daily use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Loading cutlery and dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adjusting the height of the upper basket. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using 3in1 detergents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Selecting the dishwashing cycle (Cycle Table) . . . . . . . . . . . . . . . . . . . . . . . . 25
Starting a dishwashing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Setting the delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Switching off the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Resetting the language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Remedying small malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
If the dishwashing results are not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . 32
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Notes for Test Institutes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3
Installation and connection instructions. . . . . . . . . . . . . . . . . 37
Safety information for the installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Installing the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Connecting the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Electrical Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
4
Operating Instructions
1 Safety
Prior to using for the first time
• Follow the ”Instructions for installation and connection”.
Correct use
• The dishwasher is only intended for washing domestic dishes.
• Additions or modifications to the dishwasher are not permitted.
• Use only special salt, detergent and rinse aid suitable for domestic
dishwashers.
• Do not put any solvents in the dishwasher. This could cause an explosion.
Child safety
• Keep packaging away from children. There is a risk of suffocation.
• Children often do not recognise the hazards associated with electrical
appliances. Don’t allow children to use the dishwasher unsupervised.
• Make sure that children and pets don’t climb into the dishwasher.
Could endanger life!
• Dishwasher detergents can cause chemical burns to the eyes, mouth
and throat. Could endanger life! Comply with the safety instructions
of the dishwasher detergent manufacturer.
• The water in the dishwater is not for drinking. Risk of chemical burns.
General safety
• Repairs to the dishwasher are only to be carried out by qualified service engineers.
• When the dishwasher is not being used, switch it off and shut off the
water tap.
• Never unplug the appliance by pulling on the cable. Always pull the
plug.
• Never sit or stand on the open door.
• If the dishwasher is located in a room where there may be a frost, re-
move the connection hose from the tap after each use of the dishwasher.
5
Diagram of appliance
Ceiling spray arm
Upper basket spray arm
and floor spray arm
Water hardness
dial
Dispenser
for special salt
Dispenser
for detergent
Dispenser
for rinse aid

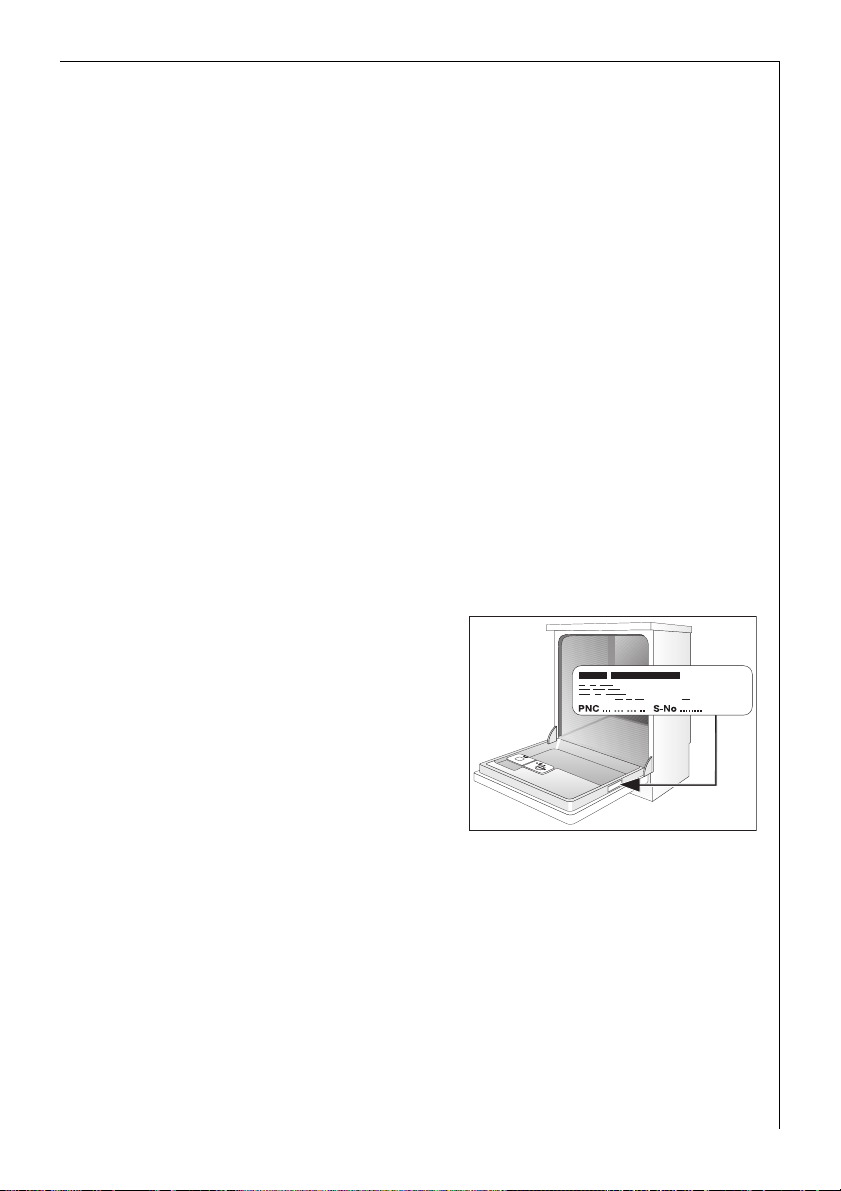

Rating plate
Filters
Interior lighting
6
Control panel
ON/OFF button Direction buttons OPTION
Display
button
RESET
button
Button functions
ON/OFF – Switching the appliance on and off
Direction
buttons
OPTION – Changing between Programmes menu and Options menu
RESET – cancelling the cycle that is running
OK/START – in the Programmes menu: starting a selected programme
– Selecting within the menu
– Selecting a value when adjusting options or settings
– while a dishwashing cycle is running: briefly changing the display’s
text line from displaying the cycle stage to displaying the dishwashing cycle
– with options and settings: cancelling the setting procedure
– changing from Options menu to Programmes menu
– changing from Settings sub-menu to Options menu
– changing from SETTINGS… (Options menu) to Settings sub-menu
– in the Options menu: starting and finishing the setting procedure
Button
OK/START
7
Switching on for the first time – setting the
language
1. Press the ON/OFF button.
First of all HELLO appears in the display.
As soon as the dishwasher is ready
for use, this is replaced by LANGUAGE ENGLISH; the word ENGLISH is
flashing.
2. Using the direction buttons ( or
) select the desired language.
3. Press the OK/START button.
This will have changed the display to
the desired language. CHOOSE PROGRAMME is shown in the display.
3 If you want to change the language at a later time, please see the sec-
tion “Resetting the language”.
3 You can adjust the display lighting, by changing the settings BRIGHT-
NESS and CONTRAST; see section “Basic operation”.
8
Display
Info status bar
Text line
Symbol line
The info status bar consists of a row of individual lamps that is divided
into two sections: the left section refers to the Programmes menu, the
right section to the Options menu.
• In the Programmes and Options menus you can see at what stage
within a cycle you currently are (the relevant lamp flashes).
• While a dishwashing cycle is running, the info status bar functions as
a programme progress display. You can then see at any time how
many programme stages are still to take place (including the current
programme stage).
The text line indicates in the Programmes menu the name of the programme selected and the estimated length of the cycle in minutes.
• In the Options menu the name of the selected option or setting is displayed and the current value set.
• While a dishwashing cycle is running, in the text line you can see the
name of the current programme stage and the estimated time remaining for the whole dishwashing cycle.
Using the OPTION button you can briefly display the name of the
dishwashing cycle.
• If there is a fault, a message is displayed.
The symbols in the symbol line have the following meanings:
– Option DELAY START active
– Programme with integrated disinfecting function selected
– Option 3 IN 1 active
– Loudspeaker is switched off; no acoustic signals (SOUND VOLUME setting)
9
Basic operation
This section contains basic information regarding the use of your dishwasher. Please read this section very carefully.
An overview of the menus
Programmes menu
AUTOMATIC
30 MINUTES
70° INTENSIVE
65° NORMAL
ENERGY
50° NORMAL
45° GLASS
PREWASH
OPTION
button
Options menu
DELAY START
3IN1
SETTINGS…
OK/Start
button
LANGUAGE
WATER HARDNESS
RINSE AID
SOUND VOLUME
BRIGHTNESS
CONTRAST
The Programmes menu
• After switching on the dishwasher you will find yourself in the Programmes menu.
• Select your dishwashing cycle here using the direction buttons ( or
). In the info status bar your position within the menu is always
shown.
• Change to the Options menu using the OPTION button.
10
The Options menu
• Here go to the desired setting using the direction buttons ( or ).
In the info status bar your position within the menu is always shown.
• For the option DELAY START see the section “Setting a delay start” for
the option 3 IN 1 see the section “Before using for the first time”
• Use the OK/START button to switch from the menu item SETTINGS…
to the Settings sub-menu.
The Settings sub-menu
Here go to the desired setting using the direction buttons ( or ). In
the info status bar your position within the sub-menu is always shown.
• LANGUAGE
To set the language of the text line in the display; also see the section
“Resetting the language”.
• WATER HARDNESS
To set the value for water hardness electronically (value range 1 to
10).
• RINSE AID
To activate or deactivate the inflow of rinse aid.
• SOUND VOLUME
To set the sound volume of the acoustic signals (value range 0 to 5);
at 0 the acoustic signals are switched off.
• BRIGHTNESS
To set the brightness of the display (value range 1 to 10).
• CONTRAST
To set the contrast of the display (value range 1 to 10).
Adjusting an option/setting
1. Go to the option or setting that you wish to adjust.
2. Press the OK/START button. The value that is currently set will flash.
3. Using the direction buttons ( or ) select the desired value.
4. Press the OK/START button. The newly set value is lit without flashing.
5. Using the direction buttons ( or ) you can select another option or
setting.
3 A selected value is accepted using the OPTION button. In the display
the first entry in either the Options or Settings menu is displayed.
3 You can abort the setting procedure using the RESET button.
11
Prior to using for the first time
1. Set the water softener
2. Fill up with special salt for water softeners
3. Fill up with rinse aid
3 If you wish to use “3in1” detergent, please do the following:
– First read the section “Using 3in1 detergents”.
– Switch on the dishwasher, go to option 3 IN 1, change value to ON
(see section “ Adjusting an option/setting”); symbol lights up in
the symbol line. As a result
– there is no need to fill up with special salt or rinse aid.
– there is no need to set the water softener.
– there is no need to activate/deactivate the rinse aid inflow.
– Before the start of the dishwashing cycle put 3in1 detergent in the
detergent dispenser.
Setting the water softener
The water softener must be set manually and electronically:
3 To avoid scale deposits on the dishes and in the dishwasher, the dishes
must be washed with soft water, i.e. water with a low lime content. The
water softener must be set according to the table to the water hardness in the area where you live. Your local water company will be able
to give you information about the water hardness in your area.
The dishwasher must be switched off.
Setting manually:
1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.
3. Turn water hardness dial on the left
wall of the dishwasher interior to O
or 1 (see table).
12
Setting electronically:
1. Press the ON/OFF button.
3 If the name of a programme stage is displayed in the display, a dish-
washing cycle is active. First of all you must abort the dishwashing cycle:
– Press the RESET button. CONFIRM CANCEL? appears in the display.
– Press the OK/START button. This cancels the dishwashing cycle.
2. Go to the WATER HARDNESS setting; see section “Adapting an option/
setting”.
3. Set WATER HARDNESS to the right setting.
If the water softener is set electronically to “1” this switches off the
display of the REFILL SALT message.
Water hardness Adjusting the hardness setting
in °d1))
51 - 70
43 - 50
37 - 42
29 - 36
23 - 28
19 - 22
15 - 18
11 - 1 4 1,9 - 2,5 II 3
4 - 10 0,7 - 1,8 I/II 2
below 4 below 0.7 I
1) (°d) German degree, measure of the hardness of water
2) [mmol/l] millimol per litre, international unit for water hardness
3) On this setting the length of the dishwashing cycle may be slightly longer.
*) factory setting
in mmol/l2))
9,0 - 12,5
7,6 - 8,9
6,5 - 7,5
5,1 - 6,4
4,0 - 5,0
3,3 - 3,9
2,6 - 3,2
Range Manual Electronic
IV 1
III
0*
no salt necessary
10
3)
9
8
7
6
5
4*
1
13
Adding special salt
To decalcify the water softener, it must be filled up with special salt.
Use only special salt suitable for domestic dishwashers.
If you do not use 3in1 detergent, fill up with special salt:
– Before using the dishwasher for the first time.
– If when starting a cycle the message REFILL SALT is displayed.
1. Open the door and remove the lower basket.
2. Screw open the lid on the salt dispenser by turning it anti-clockwise.
3. Only when using the dishwasher
for the first time:
Fill the salt dispenser with water.
4. Place the funnel (supplied) over the
dispenser opening.
Fill the dispenser with special salt;
the capacity of the dispenser is approx. 1.0-1.5 kg, depending on the
size of the grains. Do not overfill the
dispenser.
3 If water overflows when filling up with special salt, this is completely
harmless.
5. Clean away any salt remnants from the dispenser opening.
6. Screw the lid back on in a clockwise direction.
7. Run a dishwashing cycle after filling the salt dispenser with special
salt. This will wash away salt water and salt crystals that have been
spilt.
3 Depending on the size of the grains, it can take several hours for the
salt to dissolve in the water and for the message REFILL SALT not to be
displayed when starting a dishwashing cycle.
14
Filling up with rinse aid
With rinse aid the rinsing water drains away better and so you get
smear-free, gleaming dishes and clear glasses.
If you do not use 3in1 detergent, fill up with rinse aid:
– Before using the dishwasher for the first time.
– If when starting a dishwashing cycle the message REFILL RINSE AID is
displayed.
Use only special rinse aid for dishwashers and no other liquid detergents.
1. Open the door.
The rinse aid compartment is located on the inside of the dishwasher
door.
2. Press the release button on the rinse
aid compartment.
3. Open the cover.
4. Pour rinse aid in slowly right up to
the broken “max” line;
this corresponds to a volume of approx. 140 ml when full.
5. Press the lid shut until it clicks into
place.
6. Wipe up any spilt rinse aid with a
cloth. Otherwise there will be too
much foam when rinsing.
15
Loading...
