4 contents electrolux

Contents

Safety information..............................5

Product description ...........................7

Control panel.....................................8

Use....................................................9

Washing hints..................................22

International wash code symbol ......25

Washing programme ..................26-27

Programme information ...................28

Care and cleaning ...........................30

Something not working....................33

Techical data ...................................37

Consumption values ........................38

Installation .......................................39

Environment concerns.....................43

Guarantee conditions ......................44

Customer service centres................46

The following symbols are used in this manual:

Important information concerning your personal safety and information on how
to avoid damaging the appliance.

General information and tips

Environmental information

safety information electrolux 5

Safety Information

In the interest of your safety and to
ensure the correct use, before
installing and first using the
appliance, read this user manual
carefully, including its hints and
warnings. To avoid unnecessary
mistakes and accidents, it is
important to ensure that all people
using the appliance are thoroughly
familiar with its operation and safety
features. Save these instructions
and make sure that they remain
with the appliance if it is moved or
sold, so that everyone using it
through its life will be properly
informed on appliance use and
safety.

General safety

● It is dangerous to alter the

specifications or attempt to modify
this product in any way.

● During high temperature wash

programmes the door glass may get
hot. Do not touch it!

● Make sure that small pets do not

climb into the drum. To avoid this,
please check into the drum before
using.

● Any objects such as coins, safety

pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.

● Only use the advised quantities of

fabric softener and detergent.
Damage to the fabric can ensue if
you over-fill. Refer to the
manufacturer’s recommendations of
quantities.

● Wash small items such as socks,

laces, washable belts etc in a
washing bag or pillow case as it is
possible for such items to slip down
between the tub and the inner drum.

● Do not use your washing machine to

wash articles with whalebones,
material without hems or torn
material.

● Always unplug the appliance and

turn off the water supply after use,
clean and maintenance.

● Under no circumstances should you

attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.

Installation

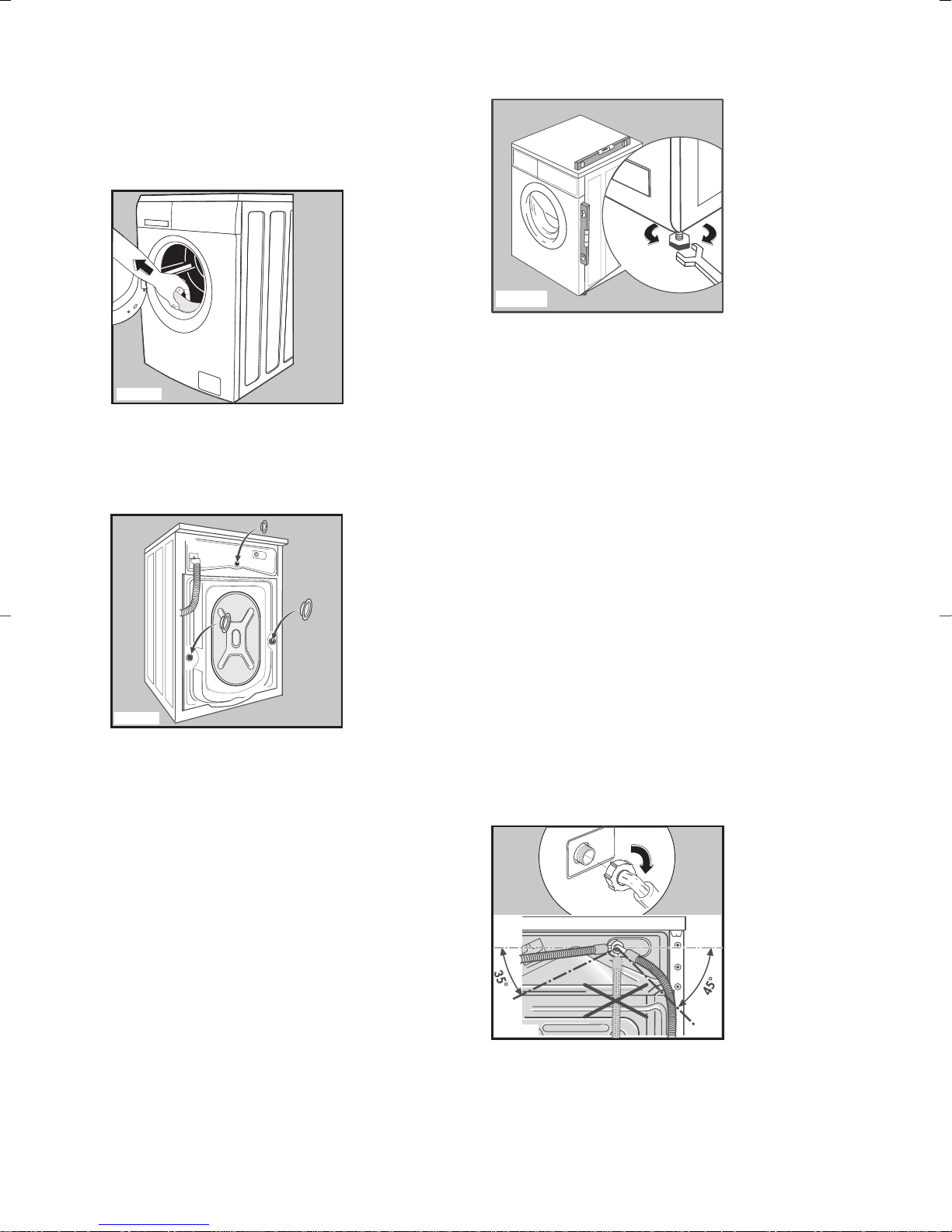

● This appliance is heavy. Care should

be taken when moving it.

● When unpacking the appliance,

check that it is not damaged. If in
doubt, do not use it and contact the
Service Centre.

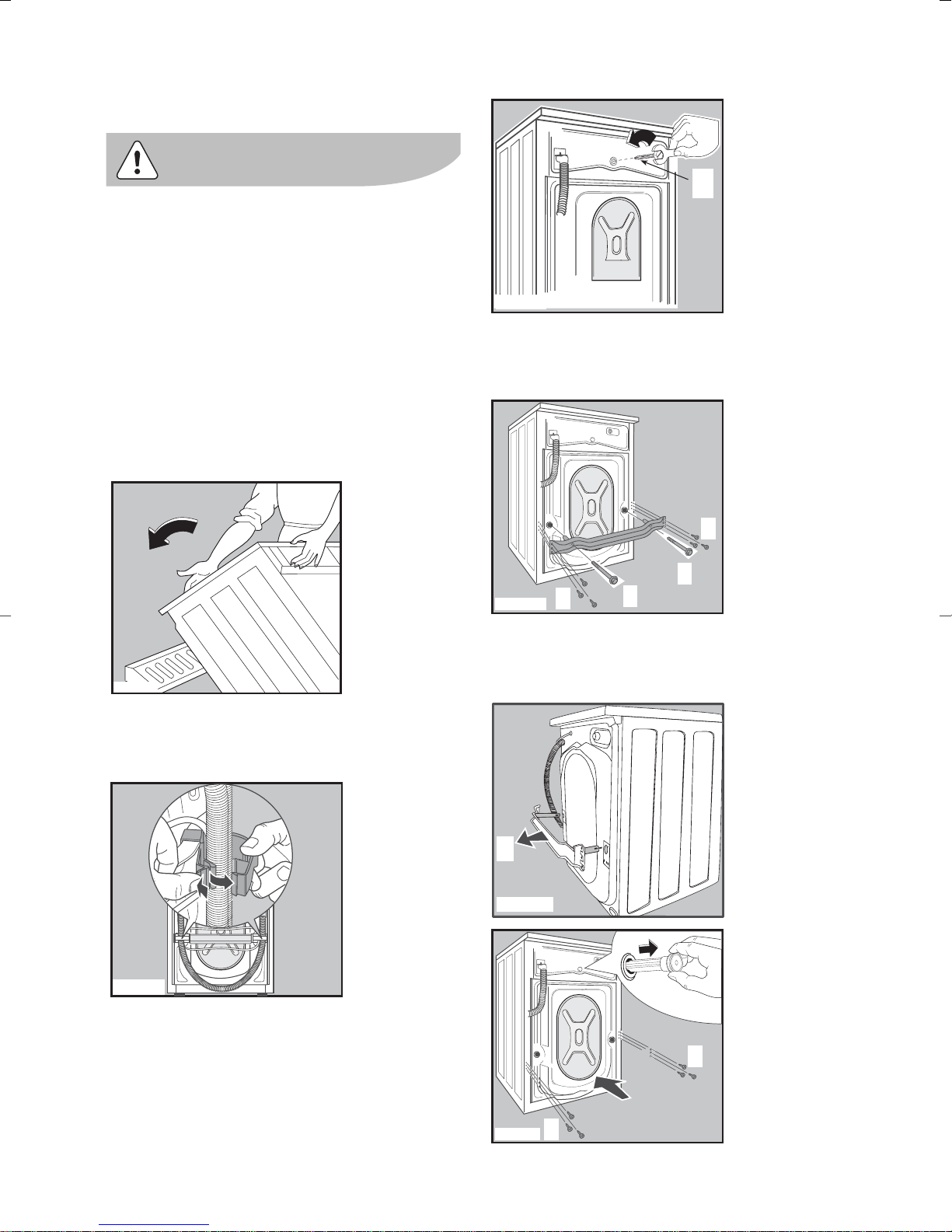

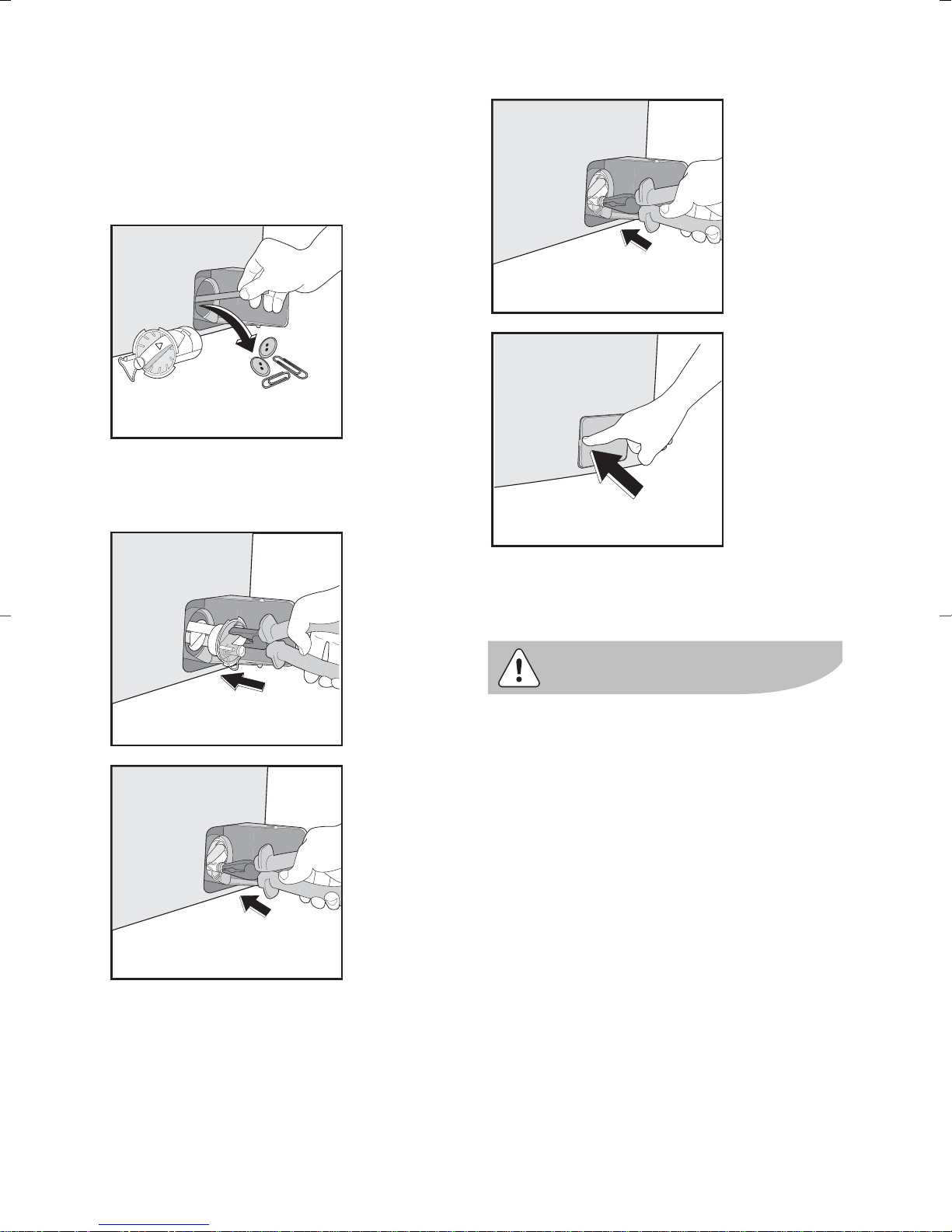

● All packing and transit bolts must be

removed before use. Serious
damage can occur to the product
and to property if this is not adhered
to. See relevant section in the user
manual.

● After having installed the appliance,

check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.

● If the machine is situated on a

carpeted floor, please adjust the feet
in order to allow air to circulate freely

● Always be sure, that there is no

water leakage from hoses and their
connections after the installation.

6 safety information electrolux

● If the appliance is installed in a

location subject to frost, please read
the “dangers of freezing”chapter.

● Any plumbing work required to install

this appliance should be carried out
by a qualified plumber or competent
person.

● Any electrical work required to install

this appliance should be carried out
by a qualified electrician or
competent person.

Use

● This appliance is designed for

domestic use. It must not be used
for purposes other than those for
which it was designed.

● Only wash fabrics which are

designed to be machine washed.
Follow the instructions on each
garment label.

● Do not overload the appliance. See

the relevant section in the user
manual.

● Before washing, ensure that all

pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat
stains such as paint, ink, rust, and
grass before washing. Underwired
bras must NOT be machine washed.

● Garments which have been in

contact with volatile petroleum
products should not be machine
washed. If volatile cleaning fluids are
used, care should be taken to
ensure that the fluid is removed from
the garment before placing in the
machine.

● Never pull the power supply cable to

remove the plug from the socket;
always take hold of the plug itself.

● Never use the washing machine if

the power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the washing machine is
accessible.

Child safety

● This washing machine is not

intended for use by young children
or infirm persons without
supervision.

● Young children should be supervised

to ensure that they do not play with
the appliance.

● The packaging components (e.g.

plastic film, polystyrene) can be
dangerous to children - danger of
suffocation! Keep them out of
children’s reach

● Keep all detergents in a safe place

out of children’s reach.

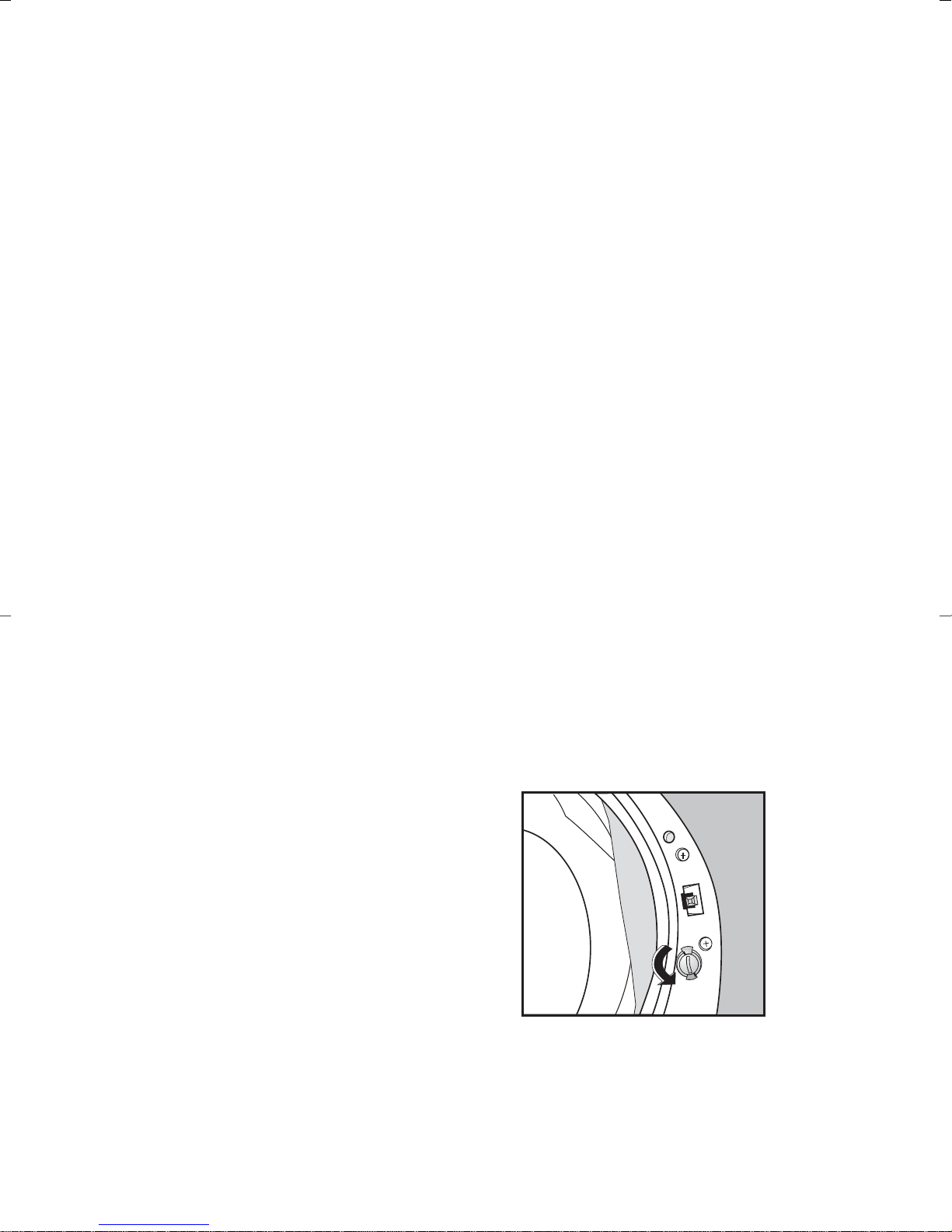

● Make sure that children or pets do

not climb into the drum. To avoid this
the machine incorporates special
feature. To activate this device, rotate
the button (without pressing it) inside
the door clockwise until the groove
is horizontal. If necessary use a coin.

To disable this device and restore
the possibility of closing the door,
rotate the button anti-clockwise until
the groove is vertical.

P1076

electrolux product description 7

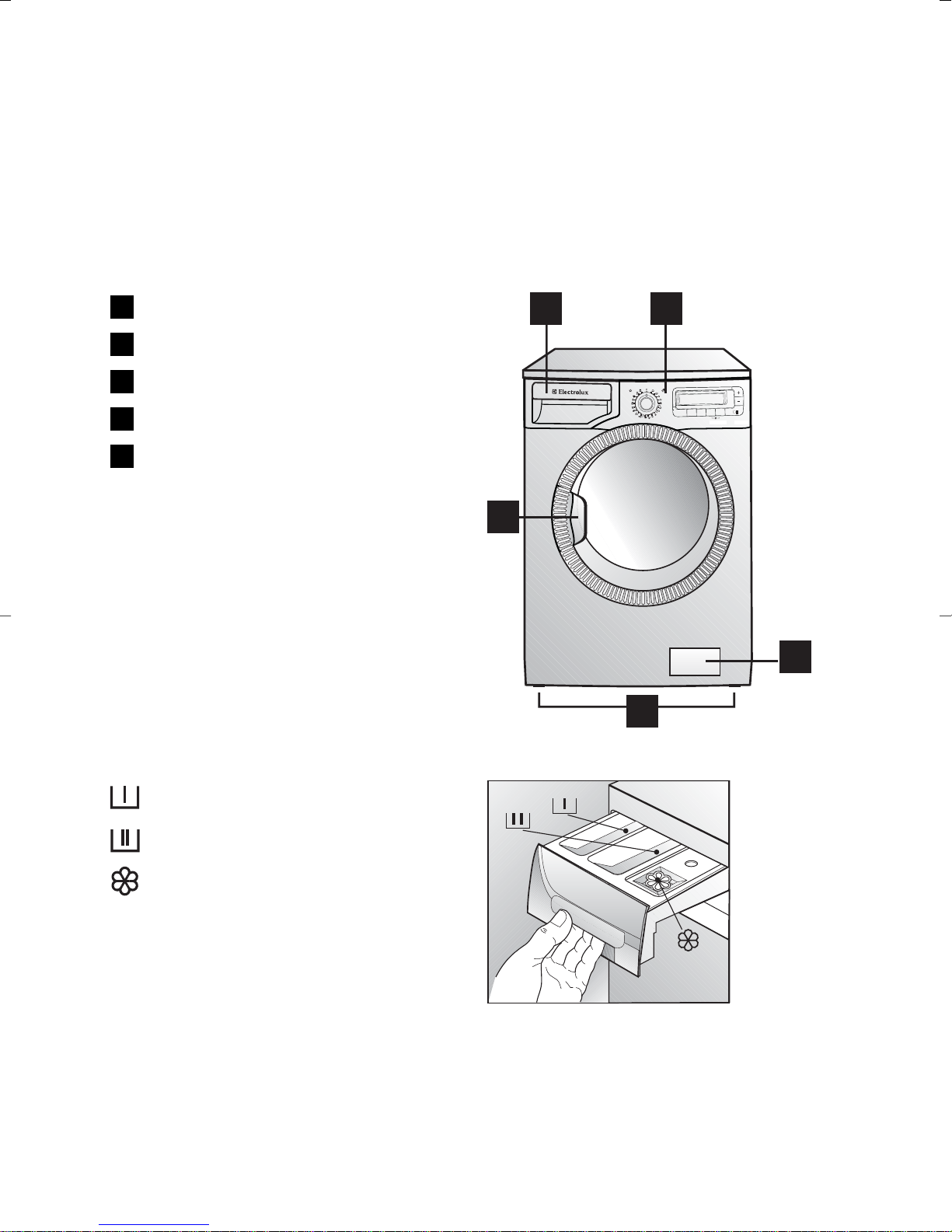

Product description

Detergent dispenser drawer

Control panel

Door opening handle

Drain pump

Adjustable feet

5

4

3

2

1

Prewash

Wash

Fabric Softener

Detergent dispenser drawer

Your new appliance meets all modern requirements for effective treatment of laundry
with low water, energy and detergent consumption.

The New Jet system allows total use of detergent and reduces water consumption
so saving energy.

1 2

Jeans

Cottons

Special

Curtains

Prewash

Synthetics

Duvet

Prewash

Lingerie

Delicate

Shirt

Silk

Economy

Economy

Wool

Hand wash

Quick wash

Time

Manager

Extra

Delay

Easy Iron

Spin

Temp.

Rinse

Start/
Pause

EWN 14780 W

7Kg Direct Spray

3

4

5

EN001

8 electrolux control panel

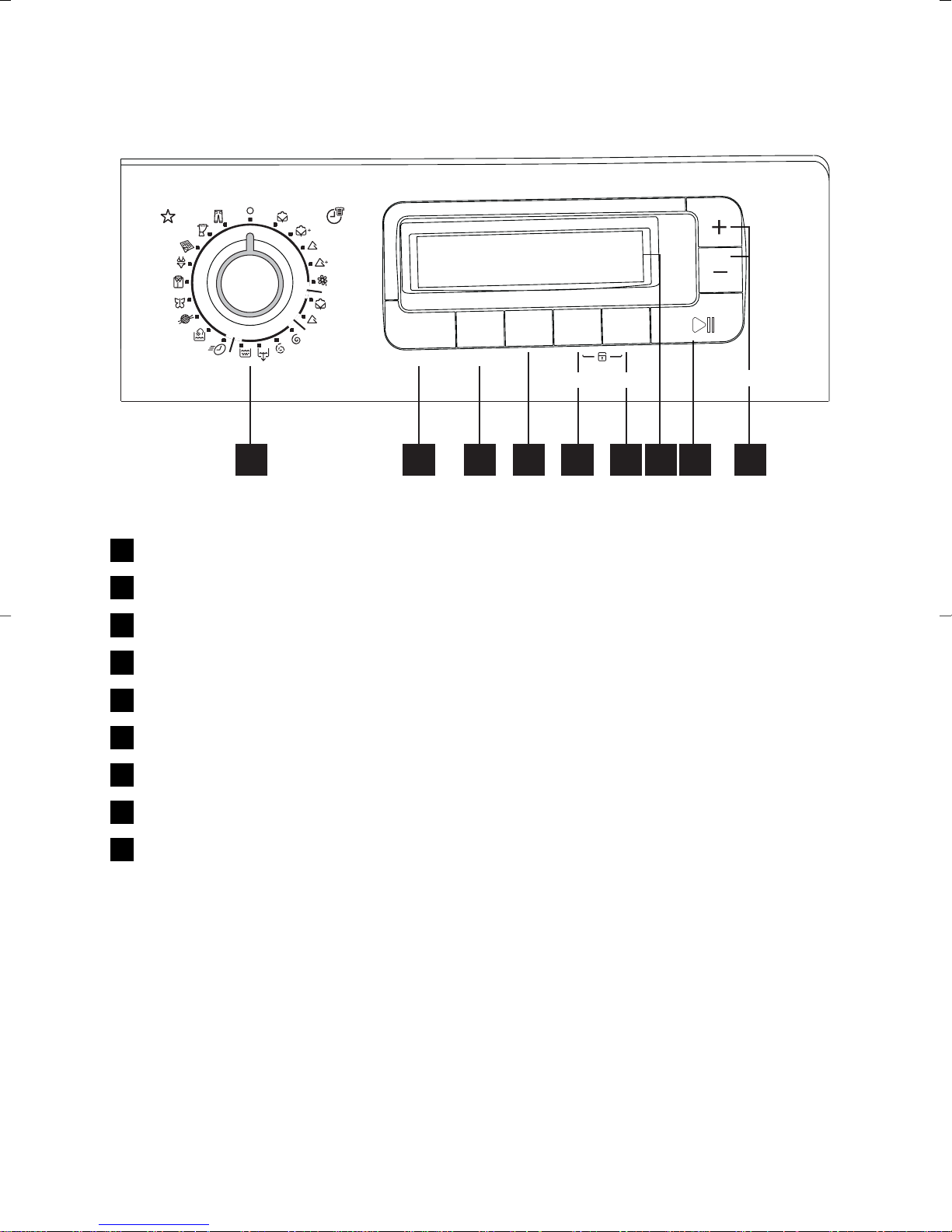

Control panel

Programme selector dial

Temperature button

Spin reduction button

Easy Iron button

Extra Rinse button

Delay button

Display

Start/Pause button

Time manger buttons

9

8

7

6

5

4

3

2

1

Special

Lingerie

Jeans

Curtains

Duvet

Shirt

Silk

Wool

Hand wash

Quick wash

Cottons

1 3 4 5 872 6 9

Prewash

Synthetics

Prewash

Delicate

Economy

Economy

Temp.

Spin

Easy Iron

Extra

Delay

Rinse

7Kg Direct Spray

Time

Manager

Start/
Pause

EWN 14780 W

use electrolux 9

Use
First Use

● Ensure that the electrical and water

connections comply with the
installation instructions.

● Remove the polystryrene block and

any material from the drum.

● Run a cotton cycle at 90°C, without

any laundry in the machine, to
remove any manufacturing residue
from the drum and tub.

Acoustic signals

The machine is provided of an acoustic
device, which sounds in the following
cases:

● when selecting a wash programme

● when depressing the options buttons

● in case of a wrong selection

● at the end of the cycle

● in the event of operating problems

By pressing the «Easy Iron» and «Extra
Rinse» buttons simultaneously for
about 6 seconds, the acoustic signal is
deactivated (except for the events of
operating problems).

By pressing these 2 buttons again, the
the acoustic signal is reactivated.

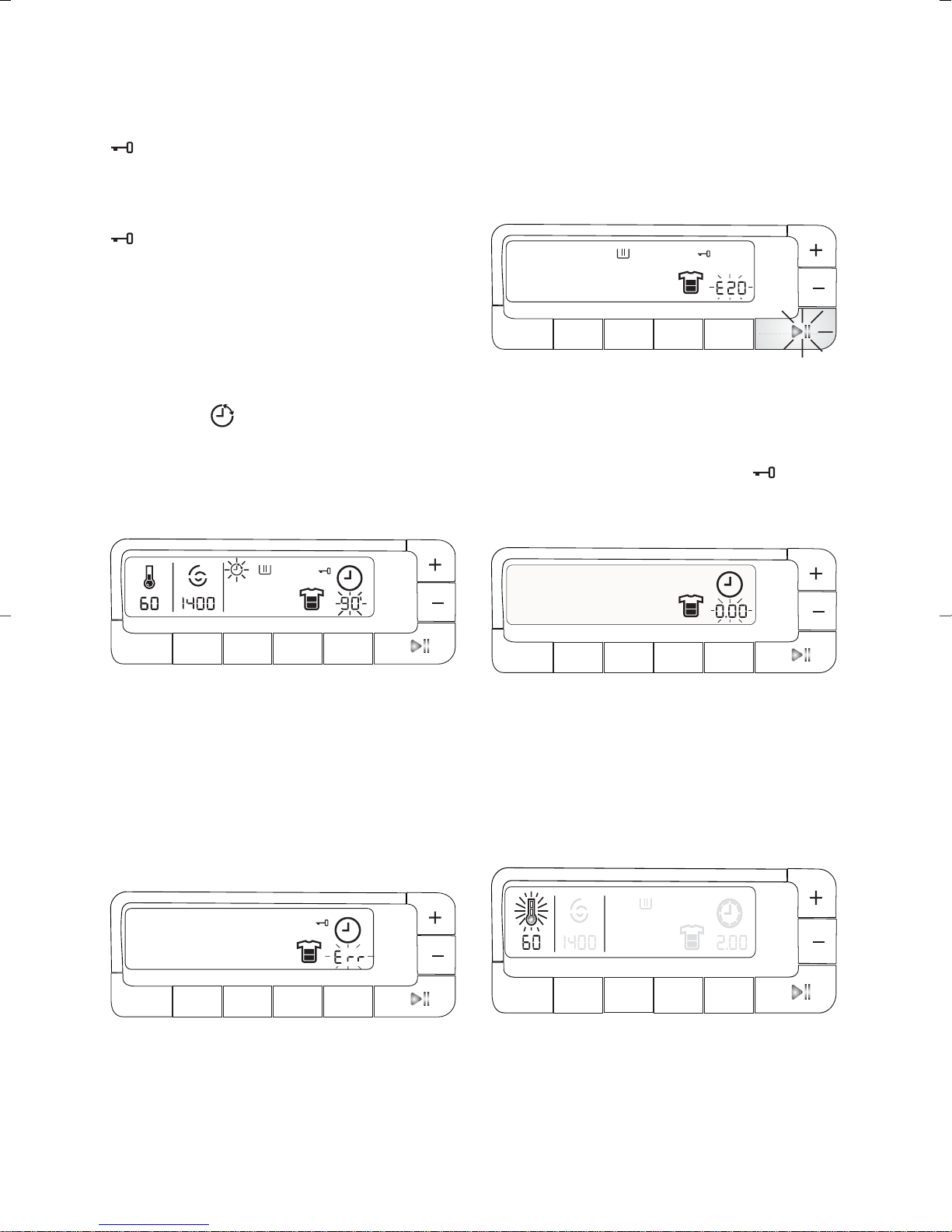

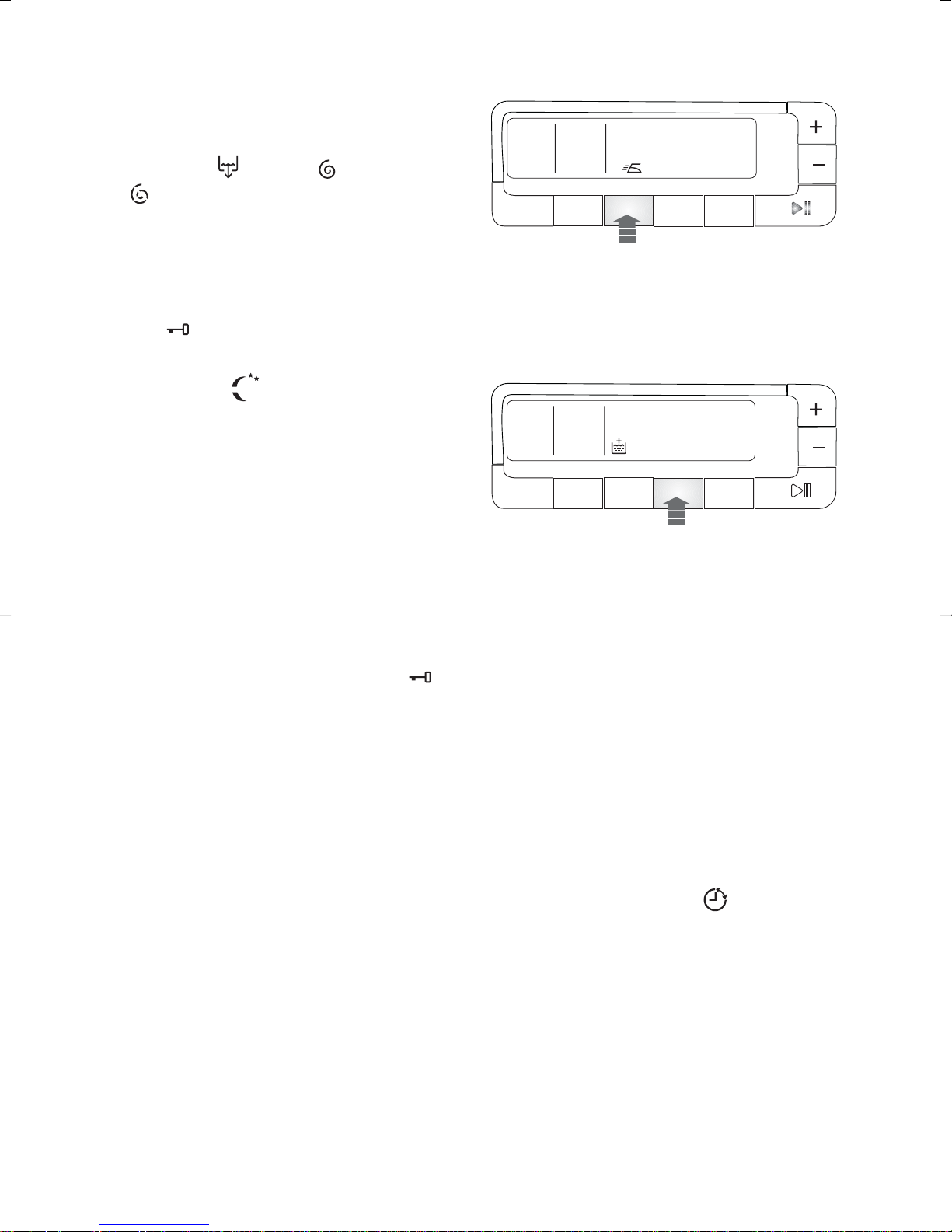

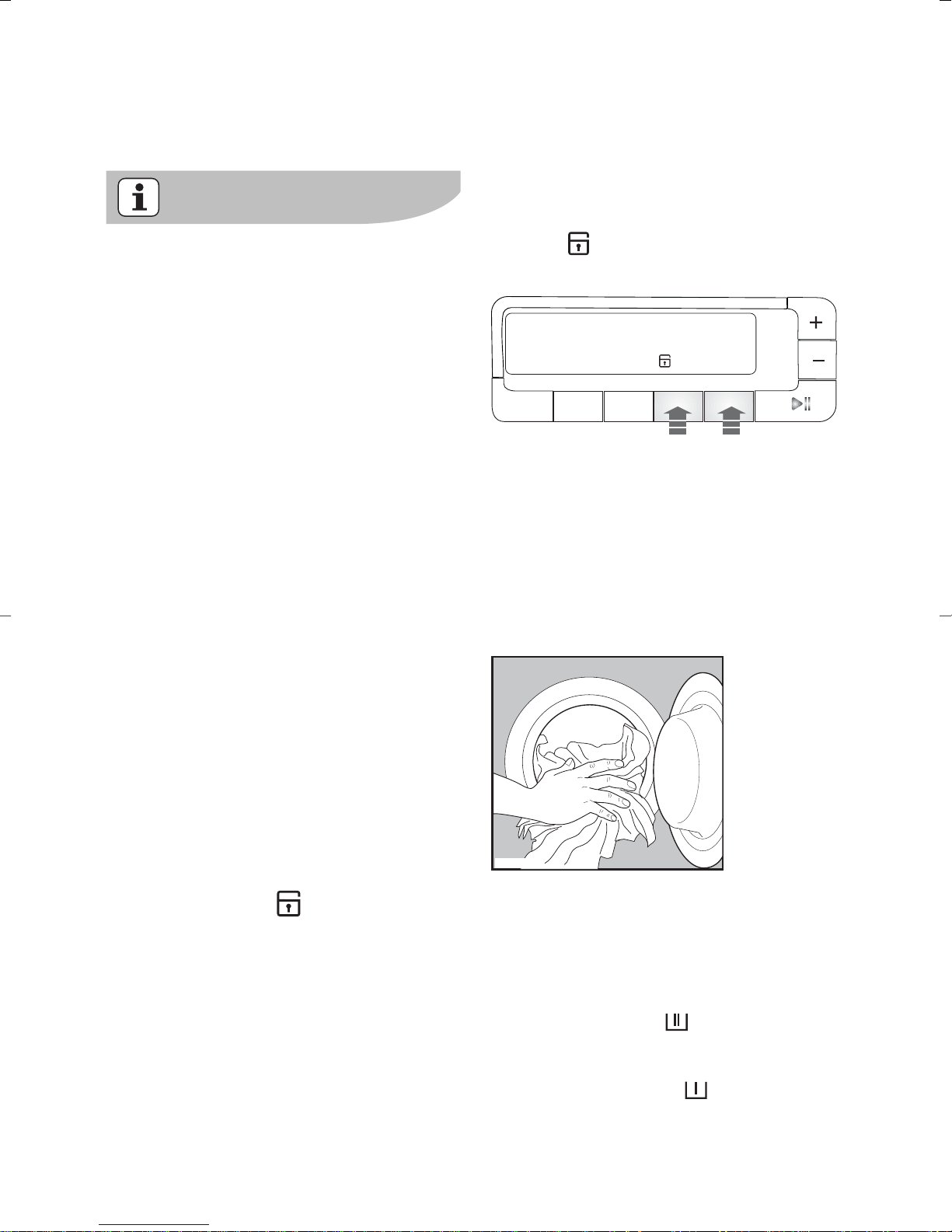

Child safety lock

This device permits you to leave the
appliance unsupervised without having
the worry that children might be injured
by or cause damage to the appliance.

This function remains able also when
the washing machine is not working.

Set this option before pressing the
Start/Pause and after having selected
the required wash programme.

To enable (disable) this option press
simoultaneously for about 6 seconds
«Extra Rinse» and «Delay» buttons until
the icon appears (disappears) on
(from) the display.

Daily Use

Load the laundry

Open the door by carefully pulling the
door handle outwards. Place the laundry
in the drum, one item at a time, shaking
them out as much as possible. Close
the door.

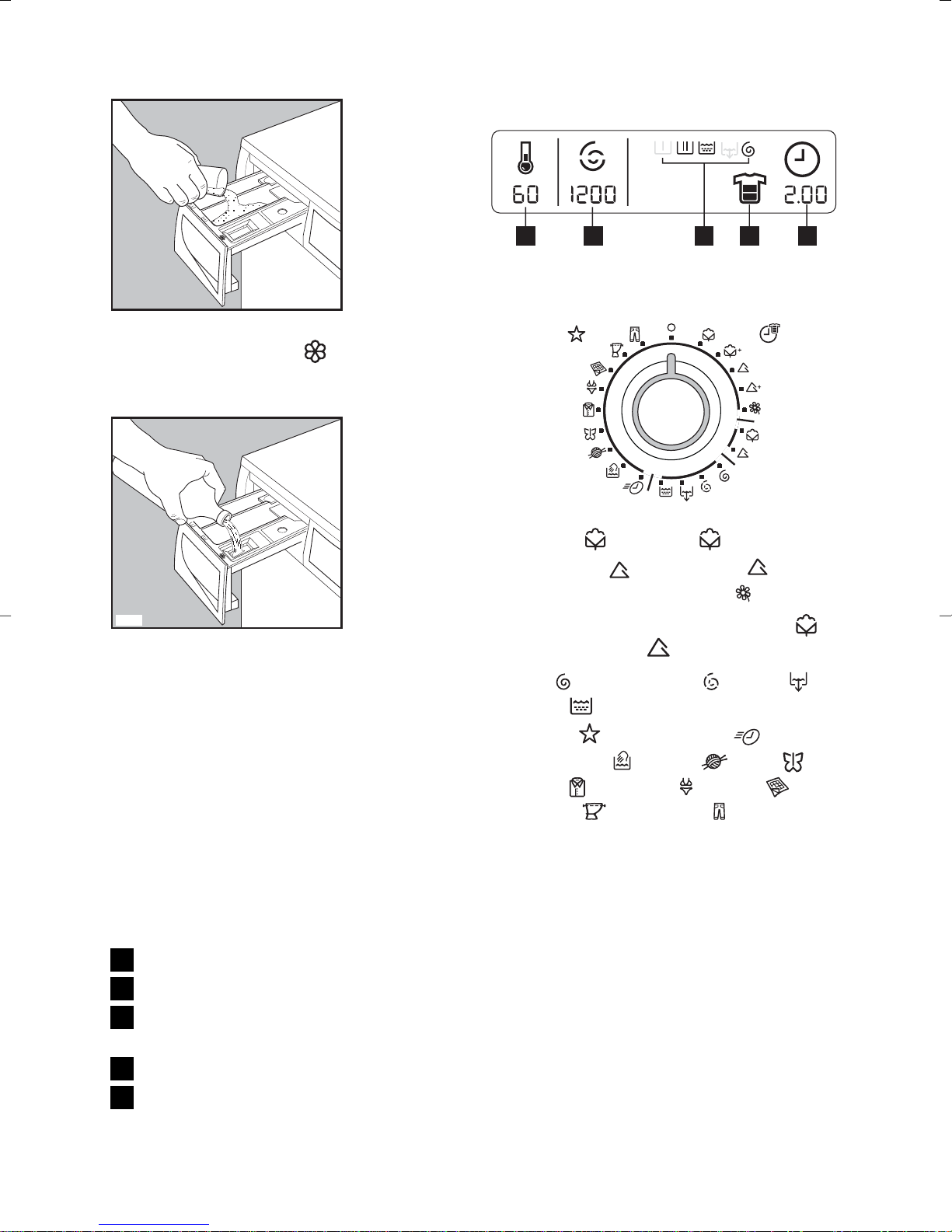

Measure out the detergent and the
fabric softener

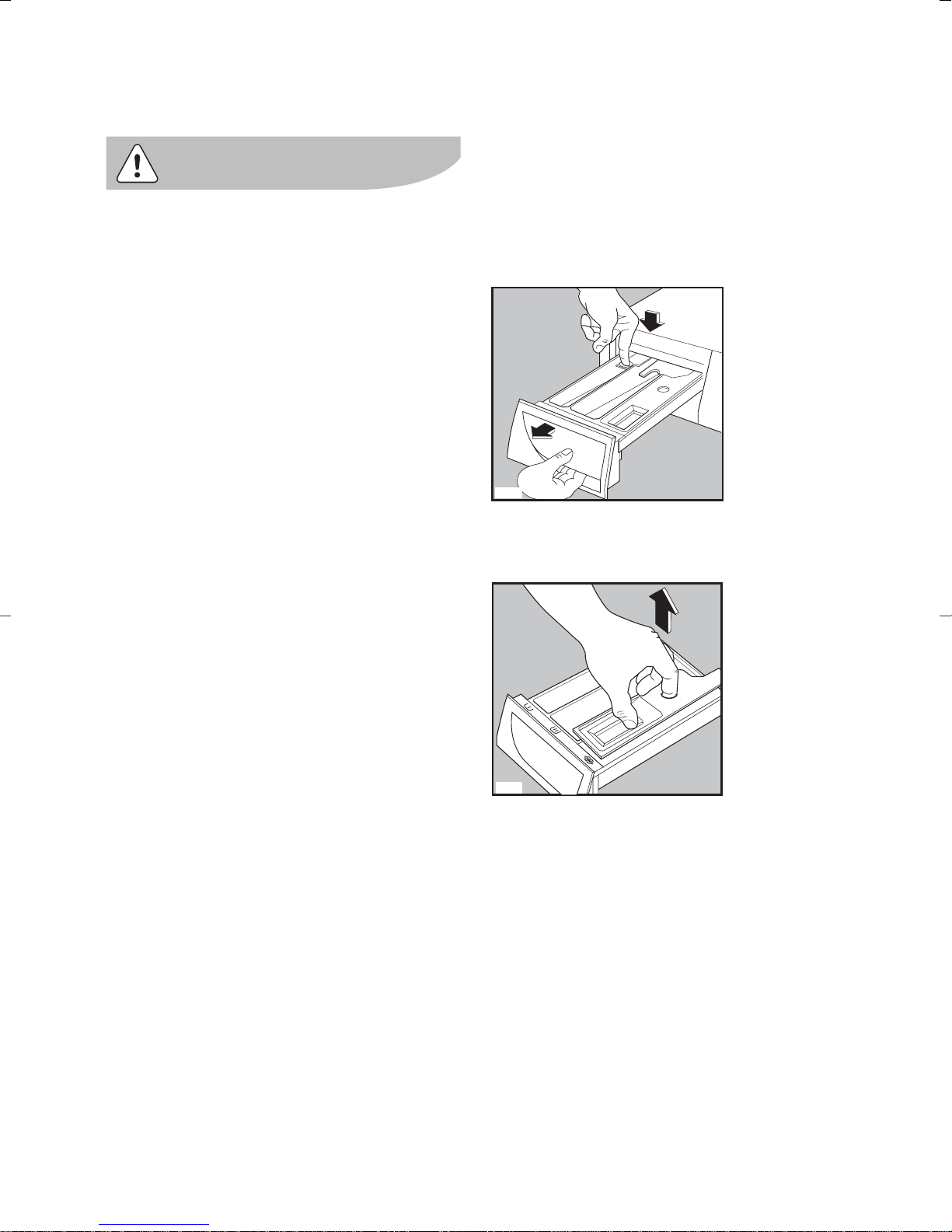

Pull out the dispenser drawer until it
stops. Measure out the amount of
detergent required, pour it into the main
wash compartment and, if you wish
to carry out a programme with the
«prewash» phase, pour it into the
compartment marked .

Time

Manager

Temp.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

P0004N

10 electrolux use

If required, pour fabric softener into the
compartment marked (the amount
used must not exceed the “MAX” mark
in the drawer). Close the drawer gently.

Select the required programme

Turn the programme selector dial to the
required programme.

The buzzer sounds. The washing
machine will propose a temperature and
automatically select the maximum spin
value provided for the programme you
have chosen.

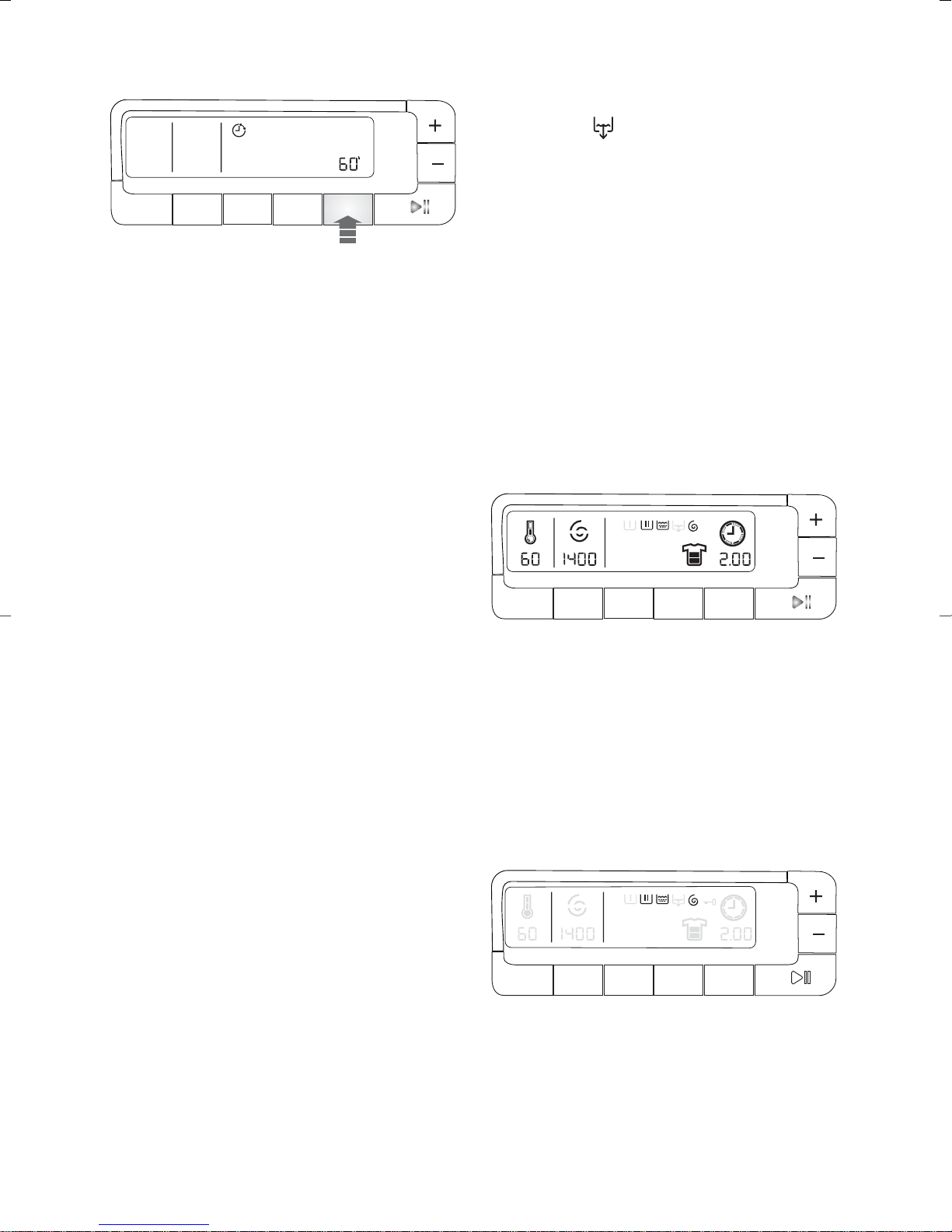

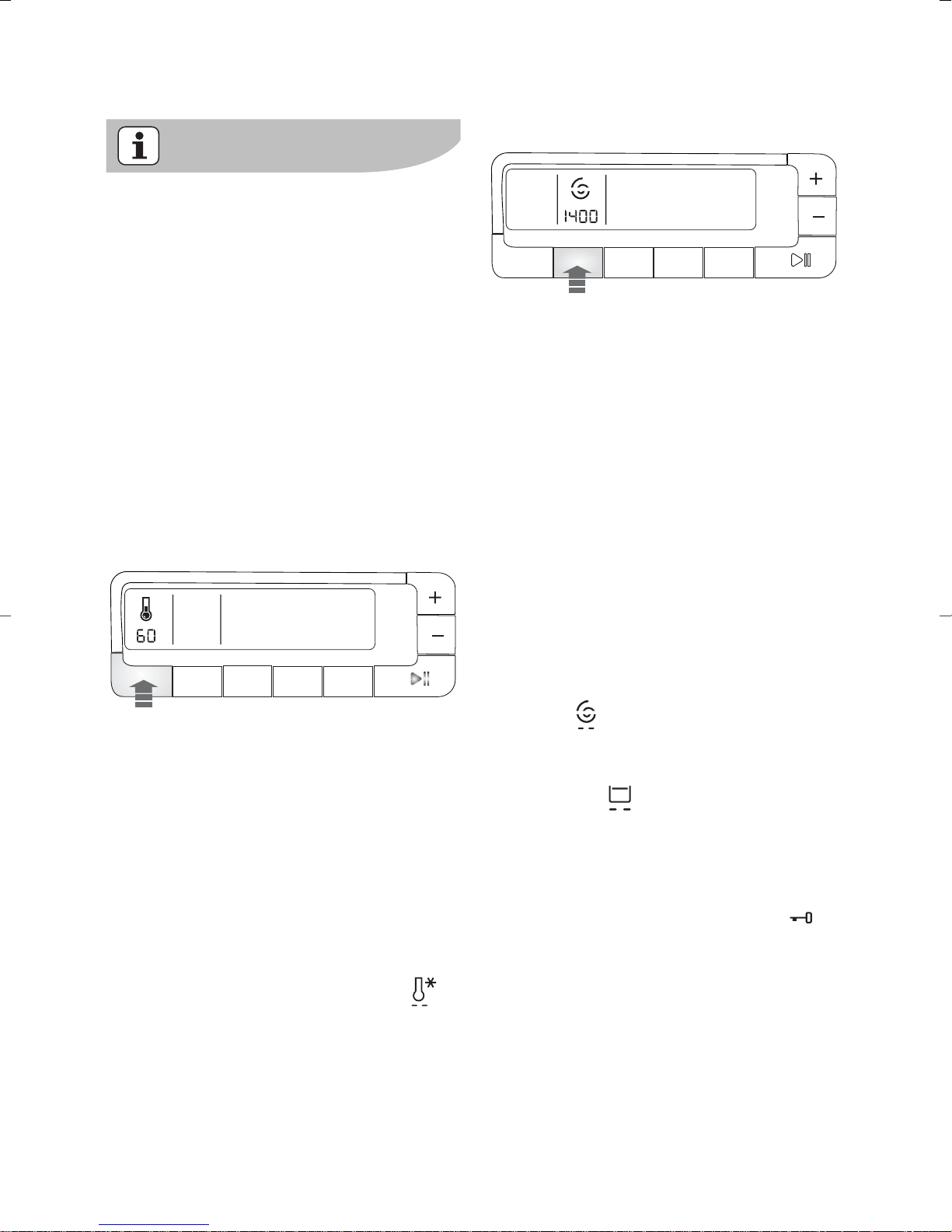

You can change these values by
operating the corresponding buttons. The
Display shows the following information
about the selected programme proposed:

temperature
spin speed
phase icons making up the

programme
soil degree
duration

5

4

3

2

1

The green Start/Pause light starts to flash.

The selector dial is divided into following
sections:

● Cottons , Cottons +Prewash,

Synthetics , Synthetics
+Prewash and Delicates .

● Economy programmes: Cottons

and Synthetics

.

● Spin , Delicate spin

,

Drain ,

Rinses .

● Special : Quick Wash ,

,

Handwash , Wool , Silk ,
Shirts , Lingerie , Duvet ,
Curtains and Jeans .

The selector dial can be turned either
clockwise or anticlockwise. Position «O»
to Reset programme/ Switching OFF of
the machine.

At the end of the programme the
selector dial must be turned to
position «O», to switch the machine
off.

C0064

C0065

1 2 3 4

5

Special

Lingerie

Jeans

Curtains

Duvet

Shirt

Silk

Wool

Hand wash

Quick wash

Cottons

Prewash

Synthetics

Prewash

Delicate

Economy

Economy

use electrolux 11

Attention!

If you turn the programme selector dial
to another programme when the
machine is working, the red
Start/Pause pilot light will flash 3 times
and the message Err will appear on the
display to indicate a wrong selection.
The machine will not perform the new
selected programme.

Programme Option buttons

Depending on the programme, different
functions can be combined. These must
be selected after choosing the desired
programme and before depressing the
Start/Pause button.

Select the temperature

Press this button repeatedly to increase or
decrease the temperature, if you want
your laundry to be washed at a
temperature different from the one
proposed by the washing machine.

Maximum temperatures are 90°C for
Cottons, 60°C for Cotton Eco and
Synthetics, 40°C for Synthetics Eco,
Delicates, Lingerie, Duvet, Curtains
and Jeans programmes, Wool and
fabrics to be handwashed, 30°C for
Quick Wash, Silk, Shirt and while
corresponds to cold wash.

During the washing cycle the
thermometer is animated.

Select the spin speed, No spin,
Rinse Hold or Night Cycle option

Press the Spin button repeatedly to
change the spin speed, if you want your
laundry to be spun at a speed different
from the one proposed by the washing
machine.

During the spinning phase the spiral is
animated.

Maximum speeds are:

● for Cottons: 1400 rpm;

● for Jeans programme: 1200 rpm;

● Wool and Handwash: 1000 rpm

● for Synthetics, Shirt and Lingerie:

900 rpm;

● for delicate fabrics, Silk, Quick Wash,

Duvet and Curtains: 700 rpm.

No spin option eliminates all the
spin phases (in some programmes
increases also the number of rinses).

Rinse Hold : by selecting this
option the water of the last rinse is not
emptied out to prevent the fabrics from
creasing.

When the programme has finished the
display shows a

0.00 flashing, the

(Door) icon is still visualized, the
Start/Pause light is off and the door is
locked to indicate that the water must
be emptied out.

Time

Manager

Temp.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

Time

Manager

Tem p.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

12 electrolux use

To empty out the water:

● turn the programme selector dial to

«O»

● select the (Drain), (Spin) and

(Delicate Spin) programme

● reduce the spin speed if needed, by

means of the relevant button

● depress Start/Pause button

● at the end of the programme, the

display shows a 0.00 flashing.
The (Door) icon desappears and
the door can be opened.

Night Cycle : by selecting this
option, the machine will not drain the
water of the last rinse, so as not to
wrinkle the laundry.

As all spinning phases are suppressed,
this washing cycle is very noiseless and
it can be selectionned at night or in
times with a more economical power
rate.
In some programmes the rinses will be
performed with more water.

When the programme has finished, the
display shows a

0.00 flashing, the

(Door) icon is still visualized, the
Start/Pause light is off and the door is
locked to indicate that the water must
be emptied out.

To empty out the water, please
read the previous option steps.

Select the Easy Iron option

Selecting this button the laundry is
gently washed and spun to avoid any
creasing. In this way ironing is easier.

Furthermore the machine will perform
some additional rinses for cotton and
synthetics.

This function can be used for cotton,
synthetic fabrics and the programme
Jeans.

Select the Extra Rinse option

This button can be selected with all
programmes except the Wool,
Handwash, Duvet, Lingerie, Silk, Quick
Wash and Shirt programmes. The
machine performs some additional
rinses.
This option is recommended for people
who are allergic to detergents, and in
areas where the water is very soft.

Select the Delay start
Before you start the programme, if

you wish to delay the start, press the
Delay Start button repeatedly, to select
the desired delay.

The corresponding icon will appear
on the display in the upper part of the
display.

The selected delay time value (up to 20
hours) will appear on the display for
about 3 seconds, then the duration of
the programme will appear again.

Time

Manager

Temp.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

Time

Manager

Temp.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

use electrolux 13

You must select this option after you
have set the programme and before you
press the Start/Pause button.

If you wish to add laundry in the
machine during the delay time you will
press Start/Pause button to put the
machine in pause. Add the laundry,
close the door and press Start/Pause
button again.

You can cancel the delay time at any
moment, before you press the
Start/Pause button.

The wash programme can be delayed
from 30 min - 60 min - 90 min, 2 hours
and then by 1 hour up to a maximum of
20 hours by means of this button.

Selecting the delayed start.

• Select the programme and the
required options.

• Select the delay start.

• Depress Start/Pause button: the
machine starts its hourly countdown.

The programme will start after the
selected delay has expired.

Cancelling the delayed start

• Depress Start/Pause button.

• Depress Start/Pause button, the
symbol

0’ is displayed.

• Depress Start/Pause button again.

Time

The Delay Start cannot be selected
with Drain programme.

Display

The display shows the following
information:

Duration of the selected programme

After selecting a programme, the
duration is displayed in hours and
minutes (for example 2.05). The
segments inside the clock icon are
animated.

The duration is calculated automatically
on the basis of the maximum
recommended load for each type of
fabric.

After the programme has started, the
time remaining is updated every minute.

Washing programme phase icons

By selecting the wash programme, all
the washing programme phase icons
corresponding to the various phases
making up the programme are shown in
the upper part of the display.

Manager

Tem p.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

Time

Manager

Temp.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

Time

Manager

Temp.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

14 electrolux use

After you have pressed the Start/Pause
button and the machine has started, the

Door icon is lighted-on and only the
phase running icon stays on.
When the programme has finished, a
flashing zero (0.00) is displayed and the

(Door) icon desappears.

Delay

The selected delay (20 hours max) set
by means of the relevant button appears
on the display for about 3 seconds, then
the duration of the previously selected
programme is displayed. The relevant
phase icon is lighted-on.
The delay time value decreases by one
unit every hour and then, when 1 hour
remains, the time decreases every
minute.

Incorrect option selection

If an option which is not compatible with
the set wash programme is selected,
the message Err is displayed at the
bottom of the display for about 2
seconds and the integrated red
Start/Pause light start flashing.

Alarm codes

In the event of operating problems,
some alarm codes can be displayed, for
example

E20 (see paragraph

“Something not working”).

End of programme

When the programme has finished a
flashing zero is displayed, the (Door)
icon desappears and the door can be
opened.

Heating phase

During the washing cycle the display
shows the temperature icon animated
to indicate that the appliance has
started the heating phase of the water
in the tub.

Time

Manager

Temp.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

Time

Manager

Tem p.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

Time

Manager

Tem p.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

Time

Manager

Temp.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

Time

Manager

Temp.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

use electrolux 15

Select the Start/Pause

To start the selected programme, press
the Start/Pause button; the green pilot
light stops flashing.

The “door” icon appears on the
display to indicate that the appliance
starts operating and the door is locked.

To interrupt a programme which is
running, depress the Start/Pause
button: the green pilot light starts to
flash.

To restart the programme from the
point at which it was interrupted,
press the Start/Pause button again.

If you have chosen a delayed start, the
machine will begin the countdown.

If an incorrect option is selected, an
integrated red pilot light of the “Start/
Pause” button flashes 3 times the
message Err is displayed for about 2
seconds. Three acoustic signals
sound.

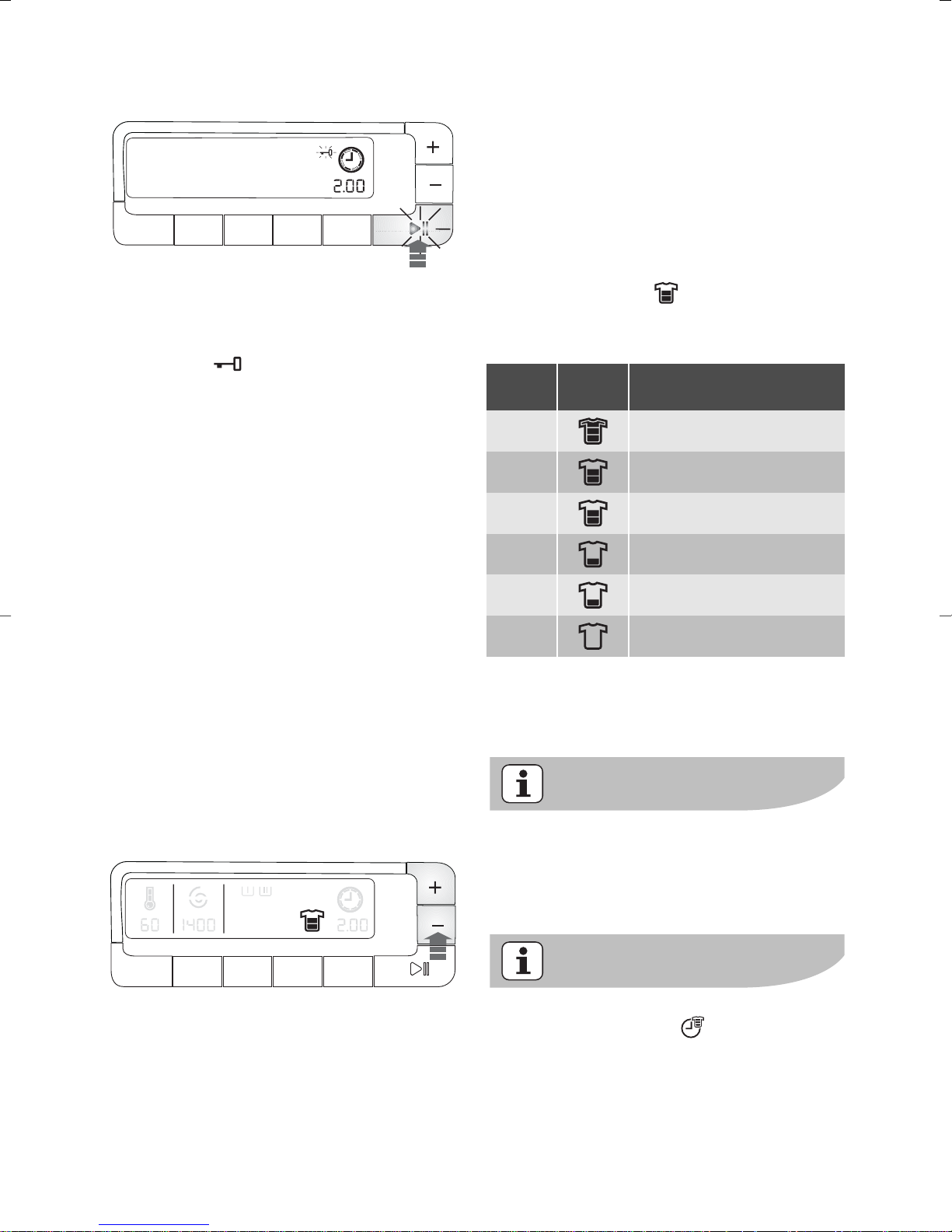

Select the “Time Manager” option

This function allows you to modify the
washing time, automatically proposed
by the washing machine. By pressing
the «Time manager buttons «+/-»
repeatedly, the duration of the washing
cycle can be increased or decreased.

The Time manager option cannot be
selected with Economy programme.

The soil level icon visualized on the
display will change to indicate which
type of soil degree you have chosen.

(*) Max. load for cotton: 3.5 kg.

Max. load for synthetic and
delicate: 2 kg.

Note

Once the programme has started the
Time manager option cannot be
changed.

Attention!

The “Time Manager” option cannot
be selected with the Economy
programmes.

Soil

Level

Icon Type of fabric

Intensive For heavy soiled items

Normal For normal soiled items

Daily For daily soiled items

Light For slightly soiled items

Quick For very slightly soiled items

Super

Quick (*)

For items used or worn for a

short time

Time

Manager

Tem p.

Spin Easy Iron

Extra

Rinse

Delay

Start/
Pause

Tem p.

Spin Easy Iron

Extra

Rinse

Delay

Time

Manager

Start/
Pause

16 electrolux use

The availability of these soil level icons
change according to the type of fabric
as shown in the following chart:

Altering an option or a running
programme

It is possible to change any option
before the programme carries it out.
Before you make any change, you
must pause the washing machine by
pressing the Start/Pause button.
(Only the Time Manager option
cannot be modified after the
programme has started. )

Changing a running programme is
possible only by resetting it. Turn the
programme selector dial to O and then
to the new programme position. The
washing water in the tub will not
emptied out. Start the new programme
by depressing the Start/Pause button
again.

Interrupting a programme

Depress the Start/Pause button to
interrupt a programme which is
running, the corresponding light starts
to flash. Depress the button again to
restart the programme.

Cancelling a programme

Turn the selector dial to O to cancel a
programme which is running. Now you
can select a new programme.

Opening the door after the
programme has started

First set the machine to pause by
pressing the Start/Pause button.
If the “door” icon desappears on
the display, the door can be opened.
If the “door” light does not goes
off, this means that the machine is
already heating, that the water level is
above the bottom edge of the door or
that the drum is turning. In this case
the door can not be opened.

If you cannot open the door but you
need to open it you have to switch the
machine off by turning the selector dial
to O.

After about 3 minutes the door can be
opened (pay attention to the water

level and temperature!).

Fabric Soil Level

Cottons

90°C

X X X X X X

60°C

X X X X X X

40°C

X X X X X X

50°C

X X X X X X

30°C

X X X X X X

(cold)

X X X X X X

Synthetics

Delicates

60°C

X X X X

50°C

X X X X

40°C

X X X X

40°C

X X X X

30°C

X X X X

30°C

X X X X

(cold)

X X X X

(cold)

X X X X

use electrolux 17

At the end of the programme

The machine stops automatically.
Some acoustic signals sound for 2
minutes.

If the Rinse Hold or Night Cycle

options have been selected, the
Start/Pause light goes off, a flashing
“

0.00” will appear on the display, the

(Door) icon is still visualized and the
door remains locked to indicate that
the water must be emptied out before
opening the door.

To empty out the water please read
the steps on the Rinse Hold option
paragraph.

At the end of the cycle, turn the
programme selector dial to «O» to
switch the machine off. Remove the
laundry from the drum and carefully
check that the drum is empty. If you do
not intend to carry out another wash,
close the water tap. Leave the door
open to prevent the formation of
mildew and unpleasant smells.

columns and margins electrolux 1818 electrolux washing hints

Washing hints

Sorting the laundry

Follow the wash code symbols on each
garment label and the manufacturer’s
washing instructions. Sort the laundry as
follows: whites, coloureds, synthetics,
delicates, woollens.

Temperatures

Before loading the laundry

Never wash whites and coloureds
together. Whites may lose their
“whiteness” in the wash.

New coloured items may run in the first
wash; they should therefore be washed
separately the first time.

Make sure that no metal objects
are left in the laundry (e.g. hair
clips, safety pins, pins).

Button up pillowcases, close zip
fasteners, hooks and poppers. Tie any
belts or long tapes.

Remove persistent stains before
washing.

Rub particularly soiled areas with a
special detergent or detergent paste.

Treat curtains with special care. Remove
hooks or tie them up in a bag or net.

Maximum loads

Recommended loads are indicated in
the programme charts.

General rules:
Cotton, linen: drum full but not too

tightly packed;

Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum

no more than one third full.
Washing a maximum load makes the

most efficient use of water and energy.
For heavily soiled laundry, reduce the

load size.

Laundry weights

The following weights are indicative:

Removing stains

Stubborn stains may not be removed by
just water and detergent. It is therefore
advisable to treat them prior to washing.

Blood: treat fresh stains with cold water.
For dried stains, soak overnight in water
with a special detergent then rub in the
soap and water.

90°

for normally soiled white
cottons and linen (e.g. tea
cloths, towels, tablecloths,
sheets...)

50°/60°

for normally soiled, colour
fast garments (e.g. shirts,

night dresses, pyjamas....) in

linen, cotton or synthetic
fibres and for lightly soiled
white cotton (e.g.
underwear).

(Cold)
30°-40°

for delicate items (e.g. net
curtains), mixed laundry
including synthetic fibres and
woollens bearing the label
«pure new wool, machine
washable, non-shrink».

1200 gbathrobe

100 gnapkin
700 gquilt cover
500 gsheet
200 gpillow case
250 gtablecloth
200 gtowelling towel
100 gtea cloth
200 gnight dress
100 gladies’ briefs
600 gman’s work shirt
200 gman’s shirt
500 gman’s pyjamas
100 gblouse
100 gmen’s underpants

washing hints electrolux 19

Oil based paint: moisten with benzine

stain remover, lay the garment on a soft
cloth and dab the stain; treat several
times.

Dried grease stains: moisten with
turpentine, lay the garment on a soft
surface and dab the stain with the
fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water
or a rust removing product used cold.
Be careful with rust stains which are not
recent since the cellulose structure will
already have been damaged and the
fabric tends to hole.

Mould stains: treat with bleach, rinse
well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach
(whites and fast coloureds only).

Ball point pen and glue: moisten with
acetone (*), lay the garment on a soft
cloth and dab the stain.

Lipstick: moisten with acetone as
above, then treat stains with methylated
spirits. Remove any residual marks from
white fabrics with bleach.

Red wine: soak in water and detergent,
rinse and treat with acetic or citric acid,
then rinse. Treat any residual marks with
bleach.

Ink: depending on the type of ink,
moisten the fabric first with acetone (*),
then with acetic acid; treat any residual
marks on white fabrics with bleach and
then rinse thoroughly.

Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub
with detergent paste.

(*) do not use acetone on artificial silk.

Detergents and additives

Good washing results also depend on
the choice of detergent and use of the
correct quantities to avoid waste and
protect the environment. Although
biodegradable, detergents contain
substances which, in large quantities,
can upset the delicate balance of nature.

The choice of detergent will depend on
the type of fabric (delicates, woollens,
cottons, etc.), the colour, washing
temperature and degree of soiling.

All commonly available washing machine
detergents may be used in this
appliance:

• powder detergents for all types of
fabric,

• powder detergents for delicate fabrics
(60°C max) and woollens,

• liquid detergents, preferably for low
temperature wash programmes (60°C
max) for all types of fabric, or special
for woollens only.

The detergent and any additives must
be placed in the appropriate
compartments of the dispenser drawer
before starting the wash programme.

If using concentrated powder or liquid
detergents, a programme without
prewash must be selected.

The washing machine incorporates a
recirculation system which allows an
optimal use of the concentrated
detergent.

Pour liquid detergent into the dispenser
drawer compartment marked just
before starting the programme.

Any fabric softener or starching additives
must be poured into the compartment
marked before starting the wash
programme.

20 electrolux washing hints

Follow the product manufacturer’s
recommendations on quantities to use
and do not exceed the «MAX» mark

in the detergent dispenser drawer.

Quantity of detergent to be used

The type and quantity of detergent will
depend on the type of fabric, load size,
degree of soiling and hardness of the
water used.

Water hardness is classified in so-called
“degrees” of hardness. Information on
hardness of the water in your area can
be obtained from the relevant water
supply company, or from your local
authority.

Follow the product manufacturers’
instructions on quantities to use.

Use less detergent if:

• you are washing a small load,

• the laundry is lightly soiled,

• large amounts of foam form during
washing.

Degrees of water hardness

Level

Degrees

German

°dH

French

°T.H.

Characteristic

1 0-7 0-15soft
2 8-14 16-25medium
3 15-21 26-37hard
4 > 21 > 37very hard

International wash code symbol electrolux 21

95

60

60

40

40

40

30

30

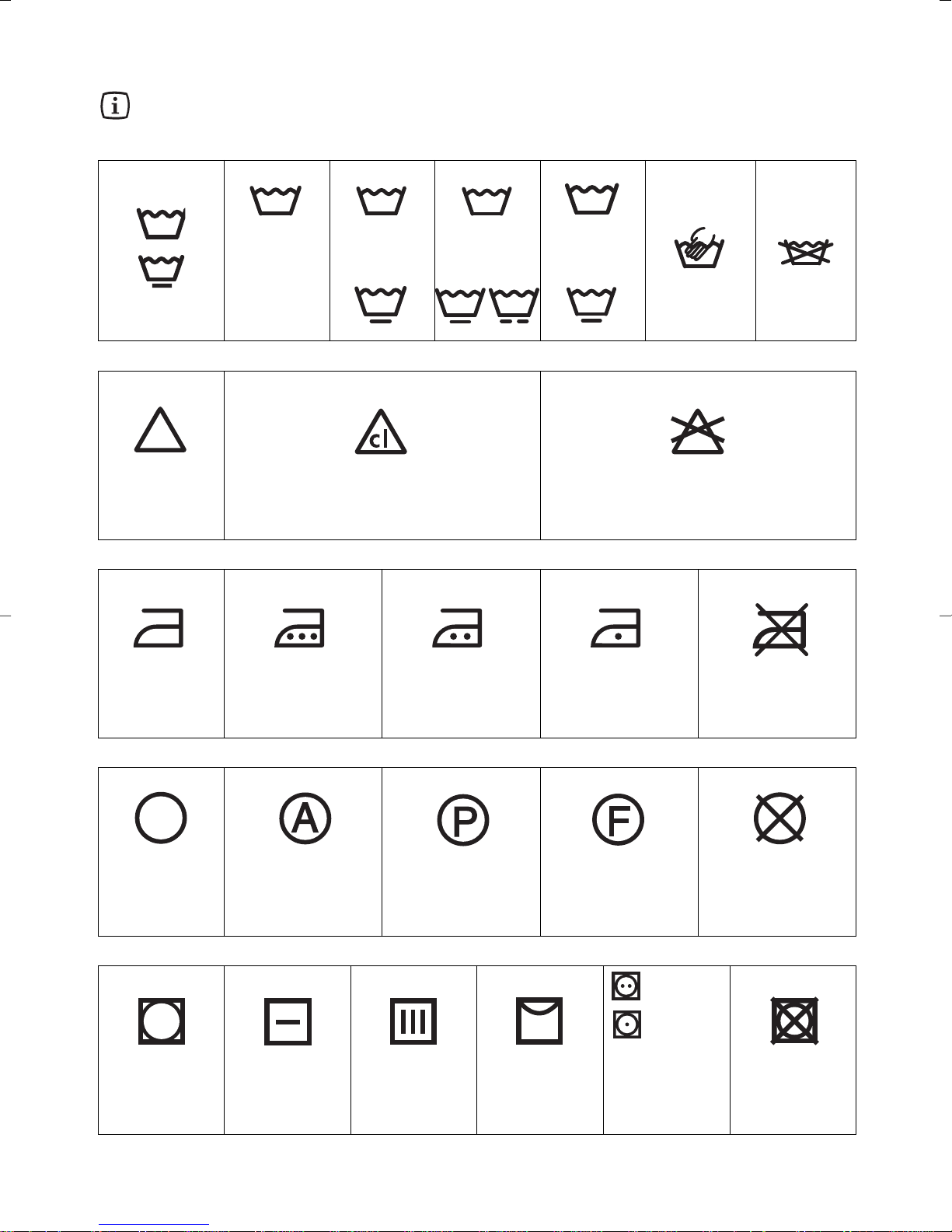

International wash code symbols

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic wash

Max. wash

temperature

95°C

Delicate wash

Bleaching Bleach in cold water Do not bleach

Ironing Hot iron

max 200°C

Max. wash

temperature

60°C

Max. wash

temperature

40°C

Warm iron

max 150°C

Max. wash

temperature

30°C

Hand wash Do not

Lukewarm iron

max 110°C

wash

at all

Do not iron

Dry cleaning Dry cleaning

in all solvents

Drying Flat On the line On clothes

Dry cleaning in

perchlorethylene,

petrol, pure alcohol,

R 111 & R 113

hanger

Dry cleaning

in petrol,

pure alcohol

and R 113

Tumble dry

Do not

dry clean

high
temperature

low
temperature

Do not

tumble dry

22 electrolux washing programmes

Washing programmes

Programme/
Temperature

Type of laundry Options

Description of

programme

Cottons

90 -

White

and coloured

cotton:e.g. sheets,

tablecloths, household
linen,

shirts, blouses,

underwear

.

Spin Red./No

Spin/Night Cycle/

Rinse Hold

Easy Iron

, Extra

Rinse, Time Manager

Main wash from 90°C
to (cold)
3 rinses
Long spin

Economy

60°

White and coloured
cotton economy,

lightly-normally soiled
items, shirts, blouses,
underwear.

Spin Red./No

Spin/Night Cycle/

Rinse Hold

Easy Iron

,

Extra Rinse

Main wash at 60°C
3 rinses
Long spin

Synthetics

60°-

Synthetic or mixed
fabrics, underwear,

coloured garments,
non-shrink shirts,
blouses.

Spin Red./No

Spin/Night Cycle/

Rinse Hold

Easy Iron

, Extra

Rinse, Time Manager

Main wash from 60°C
to (cold)
3 rinses
Short spin

+ Prewash

60° -

Synthetic or mixed
fabrics, underwear,

coloured garments,
non-shrink shirts,
blouses.

Spin Red./No

Spin/Night Cycle/

Rinse Hold

Easy Iron

, Extra

Rinse, Time Manager

Prewash at 30°C
Main wash from 60°C
to (cold)
3 rinses
Short spin

Delicates

40°-

Delicate fabrics, for
example curtains.

Spin Red./No

Spin/Night Cycle/

Rinse Hold

Easy Iron

, Extra

Rinse, Time Manager

Main wash from 40°
to (cold)
3 rinses
Short spin

O

For cancelling the
wash programme
which is running and
for switching the
machine off.

Economy

40°

Synthetic or mixed
fabrics economy,

underwear, coloured
garments, non-shrink
shirts, blouses.

Spin Red./No

Spin/Night Cycle/

Rinse Hold

Easy Iron

,

Extra Rinse

Main wash at 40°C
3 rinses
Short spin

+ Prewash

90° - 40°

White

and coloured

cotton:e.g. sheets,

tablecloths, household
linen,

shirts, blouses,

underwear

.

Spin Red./No

Spin/Night Cycle/

Rinse Hold

Easy Iron

, Extra

Rinse, Time Manager

Prewash at 30°C
Main wash from 90°C
to 40°C
3 rinses
Long spin

washing programmes electrolux 23

Rinse

Separate rinse cycle
for cotton hand
washed items.

Spin Red./No

Spin/Night Cycle/

Rinse Hold, Easy

Iron

, Extra Rinse

3 rinses
Long spin

Drain

For emptying out the
last rinse water in
programmes with the
Rinse Hold or Night
Cycle option.

Draining of water

Spin

Separate spin for
cottons.

Spin Reduction

Drain and long spin

Programme/
Temperature

Type of laundry Options

Description of

programme

Washing programmes

Delicate
Spin

Separate short spin
for synthetics,
delicates, wool and
handwashed fabrics.

Spin Reduction

Drain and short spin

Silk

30°

Silk items to be
gentle washed and
spun.

Spin Red./No

Spin/Night Cycle/

Rinse Hold

Main wash at 30°C
2 rinses
Short spin

Quick wash

30°

To be used for
laundry which is
lightly soiled or which
needs freshening up.

Spin Red./

No Spin/Night Cycle/

Rinse Hold

Main wash at 30°C
2 rinses
Short spin

Handwash

40° -

Special programme
for hand washing
fabrics.

Spin Red./

No Spin/Night Cycle/

Rinse Hold

Main wash from 40°
to (cold)
3 rinses
Short spin

Wool

40° -

Specially tested
programme for wool
garments bearing the
“Pure new wool, non­shrink, machine
washable” label.

Spin Red./

No Spin/Night Cycle/

Rinse Hold

Main wash from 40°
to (cold)
3 rinses
Short spin

Cottons..........................................7.0 kg

Synthetics......................................3.5 kg

Delicates ........................................3.5 kg

Wool/Handwash/Quick wash........2.0 kg

Silk ................................................1.0 kg

24 electrolux programme information

Programme/
Temperature

Type of laundry Options

Description of

programme

Washing programmes

Shirts

30°

Washing cycle for
lightly soiled shirts

Spin Reduction/

No spin

Main wash at 30°C
2 rinses
Short spin at 900 rpm

Lingerie

40°

Extremely delicate
items such as
underwired bras etc.

Spin Red./No

Spin/Night Cycle/

Rinse Hold

Main wash at 40°C
3 rinses
Short spin at max
900 rpm

Curtains

40°

Fragile materials
such as acrylic and
most curtains which
should be washed
as delicates

Spin Red./No

Spin/Night Cycle/

Rinse Hold

Extra Rinse

Prewash at 30°C
Main wash at 40°C
3 rinses
Short spin at 700 rpm

Duvet

40°

Washing cycle
suitable for a single
blanket or duvet.

Spin Reduction

Main wash at 40°C

3 rinses

Short spin at 700 rpm

Jeans

40°

Complete special
programme for
washing dark
coloured cotton
items as jeans,
shirts, t-shirts, track
and training suits

Spin Reduction

No Spin/Night

Cycle/Rinse Hold

Main wash at 40°C
5 rinses
Long spin at 1200
rpm

Max. load:

Shirts ............................................1 kg

Lingerie..........................................1 kg

Blanket/Curtains............................2 kg

Jeans..........................................3.5 kg

programme information electrolux 25

Programme information

Rinses

With this programme it is possible to rinse and spin cotton
garments which have been washed by hand.
The machine performs 3 rinses, followed by a final spin at
maximum speed. The spin speed can be reduced by
depressing the corresponding button.

Drain

For emptying out the water of the last rinse in programmes
with the Rinse Hold or Night Cycle option.
Turn first the programme selector dial to «O», then select
programme Drain and depress the Start/Pause button.

Spin

Separate spin for hand washed garments and after
programmes with Rinse Hold or Night Cycle option.
Before selecting this programme the selector dial must be
turned to «O». You can choose the speed by means of the
relevant button to adapt it to the fabrics to be spun.

O = Cancelling/OFF

To reset a programme and to switch off the machine turn
the selector dial to O. Now can a new programme be
selected.

Silk

Delicate washing programme suitable for silk and mixed
synthetics items. Washing temperature is 30°C.
The maximum spin speed is automatically reduced to 700
rpm.

Wool and

Handwash

Washing programme for machine washable wool as well as
for hand washable woollens and delicate fabrics with the
“hand washing” care symbol .

Economy
programmes

This programme can be selected for slightly or normally
soiled cotton and synthetic items. The temperature will
decrease and the washing time will be extended. This allows
to obtain a good washing efficiency by saving energy.

Delicate spin

Separate short spin at 700 rpm for hand washed garments.
It has to be used for synthetic, delicate, wool/handwashed,
silk items.

26 electrolux care and cleaning

Care and cleaning

You must DISCONNECT the appliance
from the electricity supply, before you
can carry out any cleaning or
maintenance work.

Descaling

The water we use normally contains
lime. It is a good idea to periodically use
a water softening powder in the
machine. Do this separately from any
laundry washing, and according to the
softening powder manufacturer's
instructions. This will help to prevent the
formation of lime deposits.

After each wash

Leave the door open for a while. This
helps to prevent mould and stagnant
smells forming inside the appliance.
Keeping the door open after a wash will
also help to preserve the door seal.

Maintenance Wash

With the use of low temperature washes
it is possible to get a build up of residues
inside the drum.
We recommend that a maintenance
wash be performed on a regular basis.

To run a maintenance wash:

• The drum should be empty of laundry.

• Select the hottest cotton wash
programme.

• Use a normal measure of detergent,
must be a powder with biological
properties.

External cleaning

Clean the exterior cabinet of the
appliance with soap and water only, and
then dry thoroughly.

Cleaning the dispenser drawer

The washing powder and additive
dispenser drawer should be cleaned
regularly.
Remove the drawer by pressing the
catch downwards and by pulling it out.
Flush it out under a tap, to remove any
traces of accumulated powder.

To aid cleaning, the top part of the
additive compartment should be
removed.

Cleaning the drawer recess

Having removed the drawer, use a small
brush to clean the recess, ensuring that
all washing powder residue is removed
from the upper and lower part of the
recess.
Replace the drawer and run the rinse
programme without any clothes in the
drum.

C0067

C0066

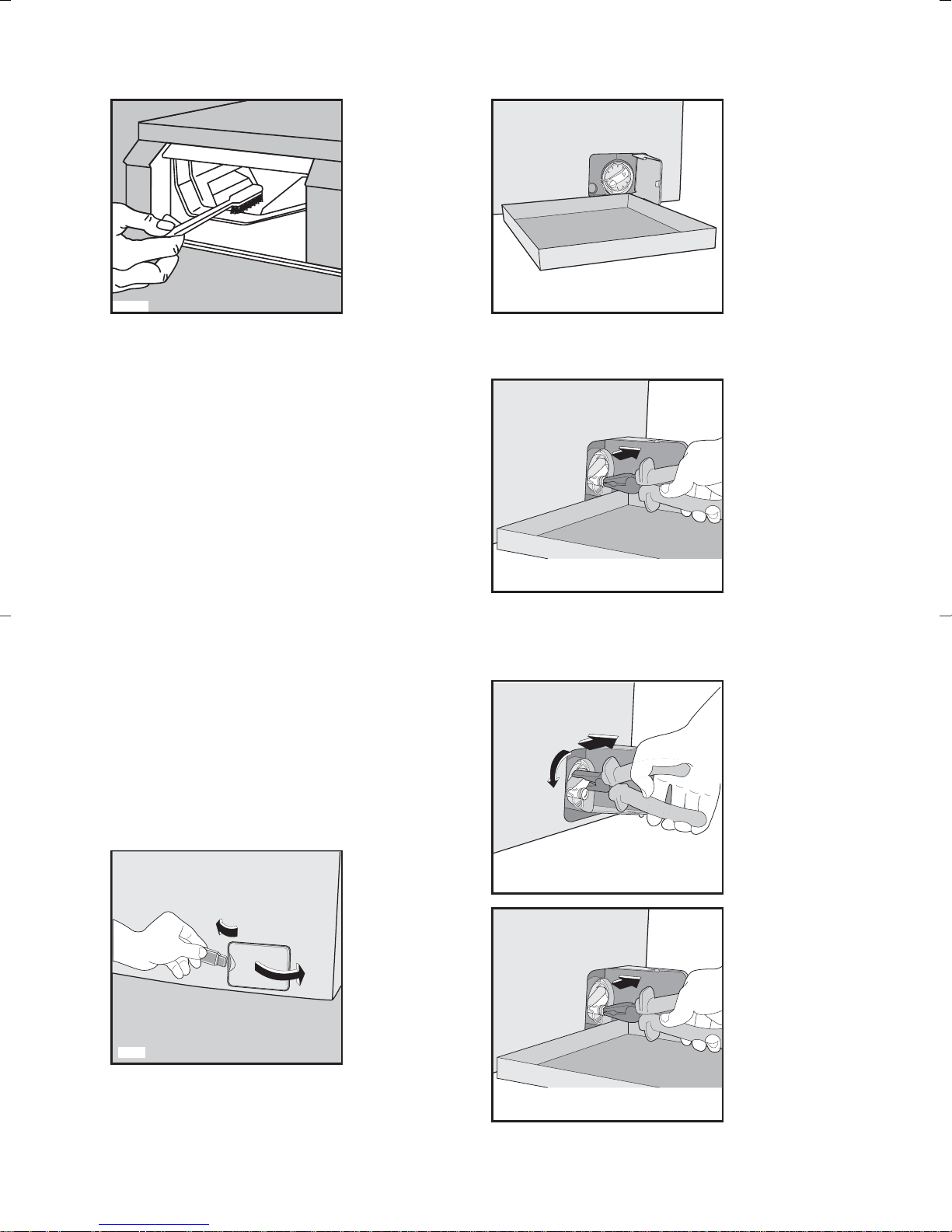

Cleaning the pump

The pump should be inspected if

• the machine does not empty and/or
spin

• the machine makes an unusual noise
during draining due to objects such as
safety pins, coins etc. blocking the
pump.

Proceed as follows:

• disconnect the appliance.

• if the appliance is operating, wait, if
necessary, until the water has cooled
down.

• open the pump door levering on the
groove with a coin or with the
suitable tool, that you can find in the
bag containing the instruction
booklet (or fitted on the appropriate
recess behind the detergent
dispenser drawer depending on the
model).

• place a bowl with a small edge close
to the pump to collect any spillage

• pull out the emergency emptying cap
from the filter cover, using a pliers.

• when no more water comes out,
unscrew the pump cover, using a
pliers, and remove the filter.

1

2

care and cleaning electrolux 27

P0038

P1223

P1224

1

2

P1222

P1225

P1224

28 electrolux care and cleaning

Always keep a rag nearby to dry up
spillage of water when removing the
cover.

• Remove any objects from the pump
impeller by rotating it.

• replace the filter into the pump
paying attention to insert it properly.
When done, screw it firmly

• replace the emergency emptying cap
into the filter cover and fix it firmly

• Close the pump door.

Warning!

When the appliance is in use and
depending on the programme selected
there can be hot water in the pump.

Never remove the pump cover during a
wash cycle, always wait until the
appliance has finished the cycle, and is
empty. When replacing the cover,
ensure it is securely retightened so as
to stop leaks and young children being
able to remove it.

Cleaning the water inlet filter

If your water is very hard or contains
traces of lime deposit, the water inlet
filter may become clogged.

P1226

P1228

P1230

P1227

P1228

care and cleaning electrolux 29

It is therefore a good idea to clean it
from time to time.

Turn off the water tap. Unscrew the
water inlet hose. Clean the filter using a
hard bristle brush. Tighten up the inlet
hose.

The dangers of freezing

If the machine is exposed to
temperatures below 0°C, certain
precautions should be taken:

• pull out the plug from the power
socket;

• turn off the water tap.

• unscrew the inlet hose.

• place a bowl with a small edge close
to the pump to collect any spillage
from the emergency emptying hose.
Place the end of the inlet hose in a
bowl placed on the floor and let
water drain out.

• screw the water inlet hose back on
and reposition the emergency
emptying cap on again into the filter
cover.

• when you intend to start the machine
up again, make sure that the room
temperature is above 0°C.

P1090

Emergency emptying out

If the water is not discharged, proceed
as follows to empty out the machine:

• pull out the plug from the power
socket;

• close the water tap;

• if necessary, wait until the water has
cooled down;

• open the pump door using a
screwdriver;

• place a bowl with a small edge close
to the pump to collect any spillage.
Remove the emergency emptying
cap from the filter cover. The water
should drain by gravity into the bowl.
When the bowl is full, put the cap
back on filter cover. Empty the bowl.
Repeat the procedure until water
stops flowing out;

• clean the pump if necessary as
previously described;

• replace the filter into the pump and
screw it firmly as previously
described;

• replace the emergency emptying cap
into the filter cover and close the
pump door.

30 electrolux Something not working

Something not working

Certain problems are due to lack of simple maintenance or oversights, which can
be solved easily without calling out an engineer. Before contacting your local
Service Centre, please carry out the checks listed below.

During machine operation it is possible that the red Start/Pause pilot light flashes,
one of the following alarm codes appears on the display and at the same some
acoustic signals sound every 20 seconds to indicate that the machine is not working:

● E10: problem with the water supply

● E20: problem with water draining

● E40: door open.

Once the problem has been eliminated, press the Start/Pause button to restart
the programme. If after all checks, the problem persists, contact your local
Service Centre.

Malfunction Possible cause Solution

The washing machine does
not start:

● The door has not been

closed.

E40

● The plug is not properly

inserted in the power
socket.

● There is no power at the

socket.

● The main fuse has blown.

● The selector dial is not

correctly positioned and the
Start/Pause button has not
been depressed.

● The «Delay Start» has been

selected.

● Close firmly the door.

● Insert the plug into the

power socket.

● Please check your domestic

electrical installation.

● Replace the fuse.

● Please turn the selector dial

and press the Start/Pause
button again.

● If the laundry are to be

washed immediately, cancel
the delay start.

The machine fills then
empties immediately:

● The end of the drain hose is

too low.

● Refer to relevant paragraph

in “water drainage” section.

The machine does not fill: ● The water tap is closed.

E10

● The inlet hose is squashed or

kinked. E10)

● The filter in the inlet hose is

blocked. E10

● The door is not properly

closed.

E40

● Open the water tap.

● Check the inlet hose

connection.

● Clean the water inlet hose

filter.

● Close firmly the door.

columns and margins electrolux 31

Malfunction Possible cause Solution

The machine does not
empty and/or does not spin:

● The drain hose is squashed

or kinked.

E20

● The drain pump is clogged.

E20

● The option or has

been selected.

● The option has been

selected.

● The laundry is not evenly

distributed in the drum.

● Check the drain hose

connection.

● Clean the drain pump.

● Select the programme or

.

● Select the programme

● Redistribute the laundry.

The door will not open: ● The programme is still

running.

● The door lock has not been

released.

● There is water in the drum.

● Wait the end of washing

cycle.

● Wait for the Door icon

desappearing.

● Select drain or spin

programme to empty out
the water.

No water is visible in the
drum

● Machines based on modern

technology operate very
economically using very little
water without affecting
performance.

There is water on the floor: ● Too much detergent or

unsuitable detergent
(creates too much foam)
has been used.

● Check whether there are

any leaks from one of the
inlet hose fittings. It is not
always easy to see this as
the water runs down the
hose; check to see if it is
damp.

● The drain hose is damaged.

● The cap on the emergency

emptying hose has not
been replaced after
cleaning the pump.

● Reduce the detergent

quantity or use another one.

● Check the water inlet hose

connection.

● Change it with a new one.

● Put the cap back on the

emergency emptying and
place the latter back in its
seat.

32 electrolux something not working

Malfunction Possible cause Solution

The machine vibrates or is
noisy:

● The transit bolts and

packing have not been
removed.

● The support feet have not

been adjusted.

● The laundry is not evenly

distributed in the drum.

● Maybe there is very little

laundry in the drum.

● Check the correct

installation of the appliance.

● Check the correct levelling

of the appliance.

● Redistribute the laundry.

● Load more laundry.

Unsatisfactory washing
results:

● Too little detergent or

unsuitable detergent has
been used.

● Stubborn stains have not

been treated prior to
washing.

● The correct temperature

was not selected.

● Excessive laundry load.

● Increase the detergent

quantity or use another one.

● Use commercial products to

treat the stubborn stains.

● Check if you have selected

the correct temperature.

● Introduce into the drum less

laundry.

The machine makes an
unusual noise

● The machine is fitted with a

type of motor which makes
an unusual noise compared
with other traditional
motors. This new motor
ensures a softer start and
more even distribution of
the laundry in the drum
when spinning, as well as
increased stability of the
machine.

something not working electrolux 33

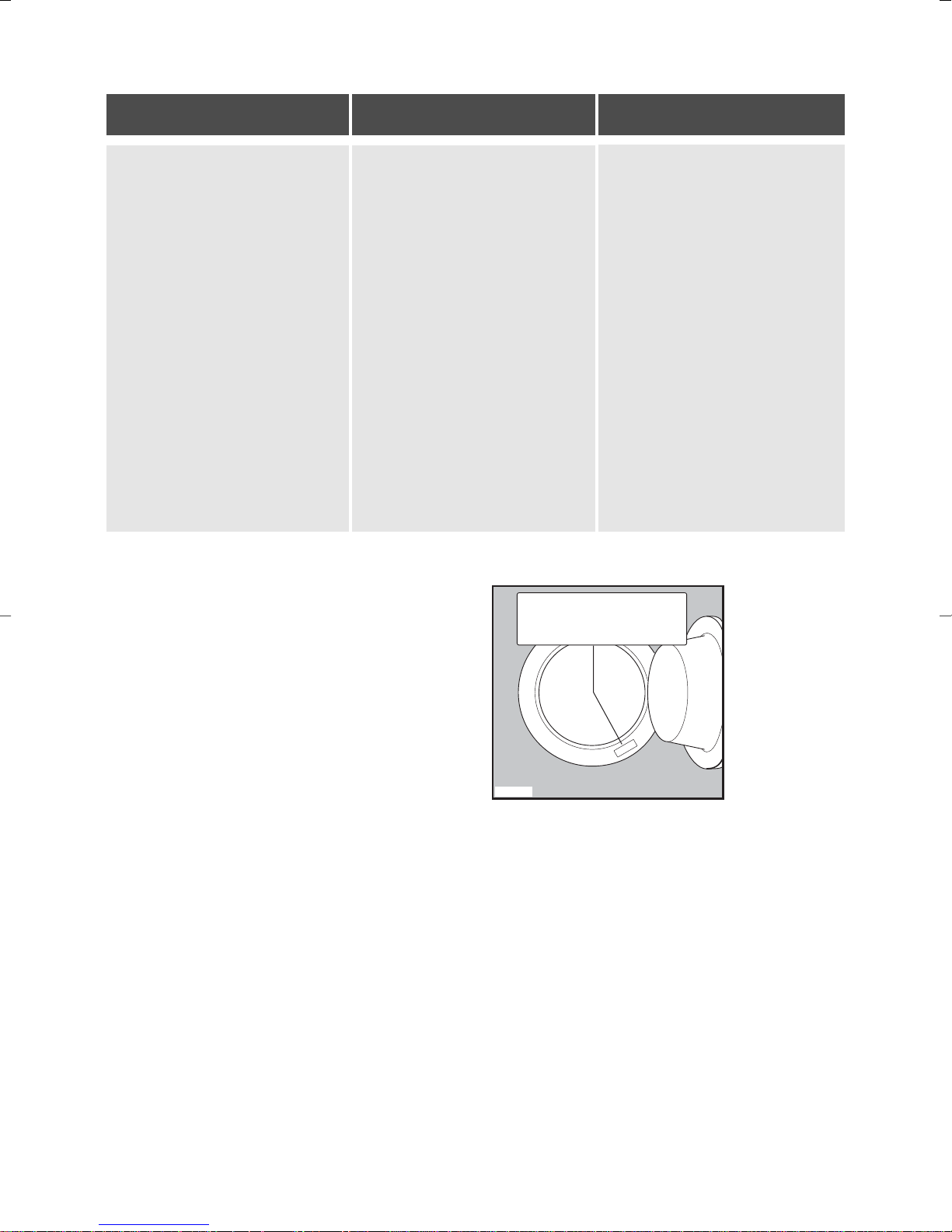

Malfunction Possible cause Solution

If you are unable to identify or solve the
problem, contact our service centre.
Before telephoning, make a note of the
model, serial number and purchase date
of your machine: the Service Centre will
require this information.

Spinning starts late or the
machine does not spin:

● The electronic unbalance

detection device has cut in
because the laundry is not
evenly distributed in the
drum. The laundry is
redistributed by reverse
rotation of the drum. This
may happen several times
before the unbalance
disappears and normal
spinning can resume. If,
after 10 minutes, the
laundry is still not evenly
distributed in the drum, the
machine will not spin. In this
case, redistribute the load
manually and select the
spin programme.

● Redistribute the laundry.

Mod. ..........

Prod. No. ...........

Ser. No. .........

P0042N

.
.
.
.
.

.
.

.
.
.

.
.

o

.

.

.

.

N

.

.

.

.

.

.

.

r

.

.

.

.

e

.

.

.

.

.

S

.

.

o

d

N

o

.

M

d
o

r

P

34 electrolux technical data

Technical data

Dimensions Width 60 cm

85 cm

63 cm

Height

Depth

Water supply pressure Minimum 0,05 MPa

0,8 MPa

Maximum

Cotton
Synthetics
Delicates
Handwash
Silk

Maximum Load 7 kg

3.5 kg

3.5 kg
2 kg
1kg

Maximum

Spin Speed 1400 rpm (EWN 14480 W - S)

Electrical connection Voltage

- Overall power - Fuse

Information on the electrical connection is given on
the rating plate on the inner edge of the appliance
door

consumption values electrolux 35

Consumption values

Water

consumption

(in litres)

Programme Energy

consumption

(in kWh)

Programme

duration

(in minutes)

Cottons 90°

2.2565

Cottons + Prewash 90°

2.4578

Synthetics 60°

1.054

Synthetics + Prewash 60°

1.1565

Delicates 40°

Cottons Economy 60°

Synthetics Economy 40°

0.663

1.1957

0.5550

For the duration of the programmes, please refer to the display on the

control panel.

Handwash 40°

0.4558

Silk 30°

0.4558

Wool 40°

0.4550

Shirt 30°

0.1838

Lingerie 40°

0.4558

Quick wash 30°

0.2550

0.680

0.7577

0.867

--

--

0.1546

--

Duvet 40°

Curtains 40°

Jeans 40°
Spin

Delicate spin

Drain

Rinses

The consumption data shown on this chart is to
be considered purely indicative, as it may vary
depending on the quantity and type of laundry,
on the inlet water temperature and on the
ambient temperature. It refers to the highest
temperature for each wash programme.

(*) The programme “Cottons Economy” at

60°C with a max load of 7 kg is the
reference programme for the data entered
in the energy label, in

compliance with

EEC 92/75 standards.

36 electrolux installation

Installation

Unpacking

All transit bolts and packing must be
removed before using the appliance.

You are advised to keep all transit
devices so that they can be refitted if the
machine ever has to be transported
again.

1. After removing all the packaging,
carefully lay machine on it’s back to
remove the polystyrene base from the
bottom.

2. Remove the power supply cable and
the draining hose from the hose
holders on the rear of the appliance.

3. With a suitable spanner unscrew and
remove the central rear bolt A.

HEC0001

HEC0008

4. Unscrew and remove the two large
rear bolts B and the six smaller bolts

C.

5. Remove the bracket D and refit the
six smaller bolts C and slide out the
relevant plastic spacer E.

C

C

HEC0023

E

HEC0011S

D

HEC0003S

C

C

B

B

A

HEC00022

installation electrolux 37

6. Open the porthole, take out the inlet
hose from the drum and remove the
polystyrene block fitted with the
adhesive tape on the door seal.

7. Fill the smaller upper hole and the two
large ones with the corresponding
plastic plug caps supplied in the bag
containing the instruction booklet.

Positioning

Install the machine on a flat hard floor.
Make sure that air circulation around the
machine is not impeded by carpets,
rugs etc.

Check that the machine does not touch
the wall or other kitchen units. Level the
washing machine by raising or lowering
the feet. The feet may be tight to adjust
as they incorporate a self locking nut,
but the machine MUST be level and
stable.
Any necessary adjustment can be made
with a spanner. If necessary, check the
setting with a spirit level.

HEC0005

HEC0010

Accurate levelling prevents vibration,
noise and displacement of the machine
during operation. Never place
cardboard, wood or similar materials
under the machine to compensate for
any unevenness in the floor.

Water inlet

An inlet hose is supplied and can been
found inside the machine drum.

Do not use the hose from your
previous machine to connect to the
water supply.

1. Open the porthole and extract the
inlet hose.

2. Connect the hose with the angled
connection to the machine.

Do not place the inlet hose
downwards. Angle the hose to the
left or right depending on the
position of your water tap.

3. Set the hose correctly by loosening
the ring nut. After positioning the inlet
hose, be sure to tighten the ring nut
again to prevent leaks.

HEC0006

HEC007S

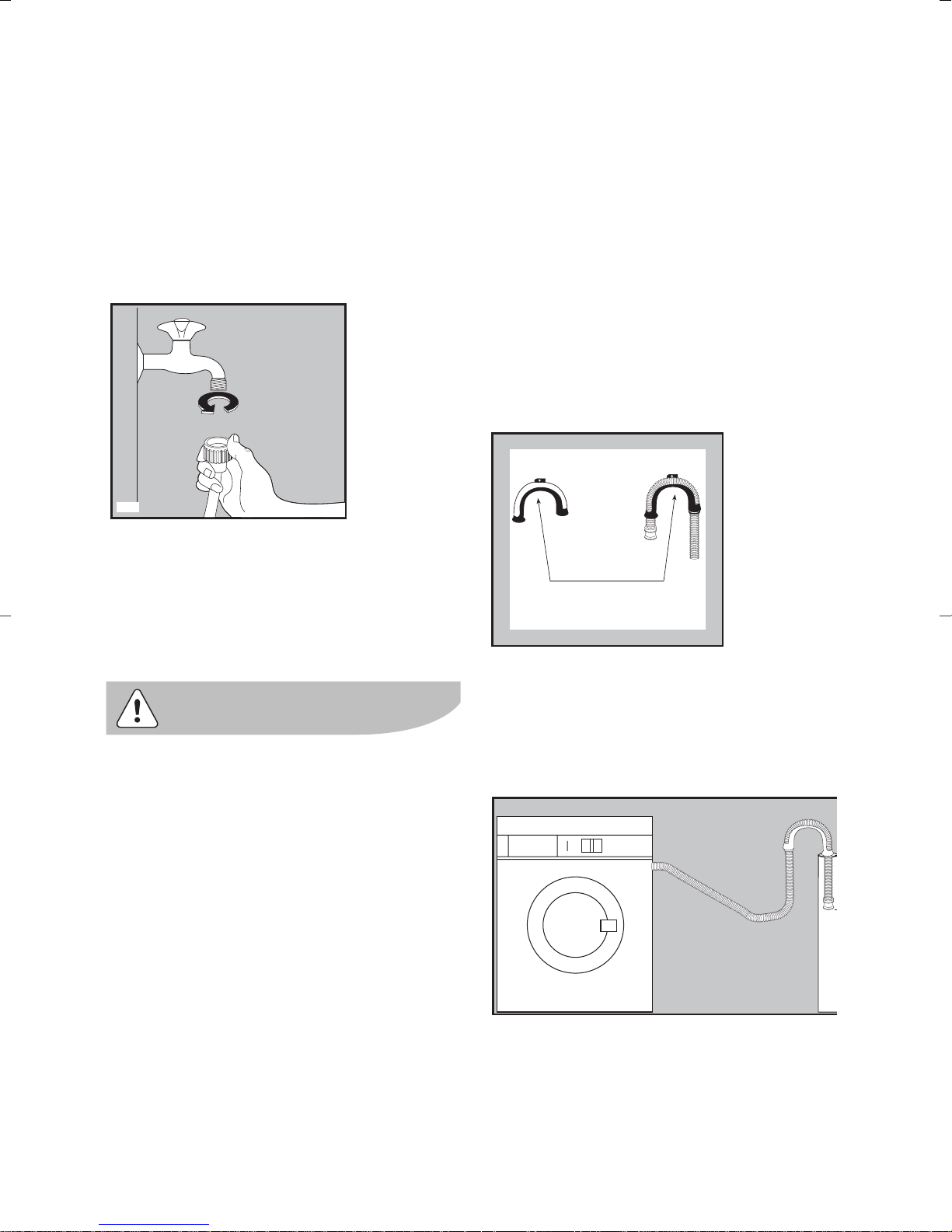

38 electrolux

4. Connect the hose to a tap with a
3/4” thread. Always use the hose
supplied with the appliance. The
inlet hose must not be lengthened. If
it is too short and you do not wish
to move the tap, you will have to
purchase a new, longer hose
specially designed for this type of

use.

The inlet hose must not be lengthened. If
it is too short and you do not wish to
move the tap, you will have to purchase
a new, longer hose specially designed
for this type of use.

Note !

Installation should comply with
local water authority and building
regulations’ requirements.

The appliance must be connected to a
cold water supply.
A minimum water pressure of 0.05
MPa (0.5 bar) is required for safe
operation of the appliance.
If you cannot make the cold water
connection direct from the rising mains,
you may be able to operate the
appliance from your cold water storage
system.

P1088

There should be a minimum distance
of 5.02m (16.5 ft) between the
appliance’s inlet and the bottom of the
water storage tank.

Water drainage

This appliance is designed to be
permanently plumbed into your home's
drainage system using one of the
following methods.

1. Into a drainage standpipe.

Firstly form a hook in the end of the
drain hose using the «U» piece
supplied.

Place the drain hose into your
standpipe, which should have an
internal diameter of approximately
38mm thus ensuring there is an air
break between the drain hose and
standpipe.

When discharging into a standpipe
ensure that the top of the standpipe is
no more than 90 cm (35.4'') and no
less than 60 cm (23.6'') above floor
level.

38 mm (11.2)

standpipe

diameter

HEC0013

U piece

supplied

P1199

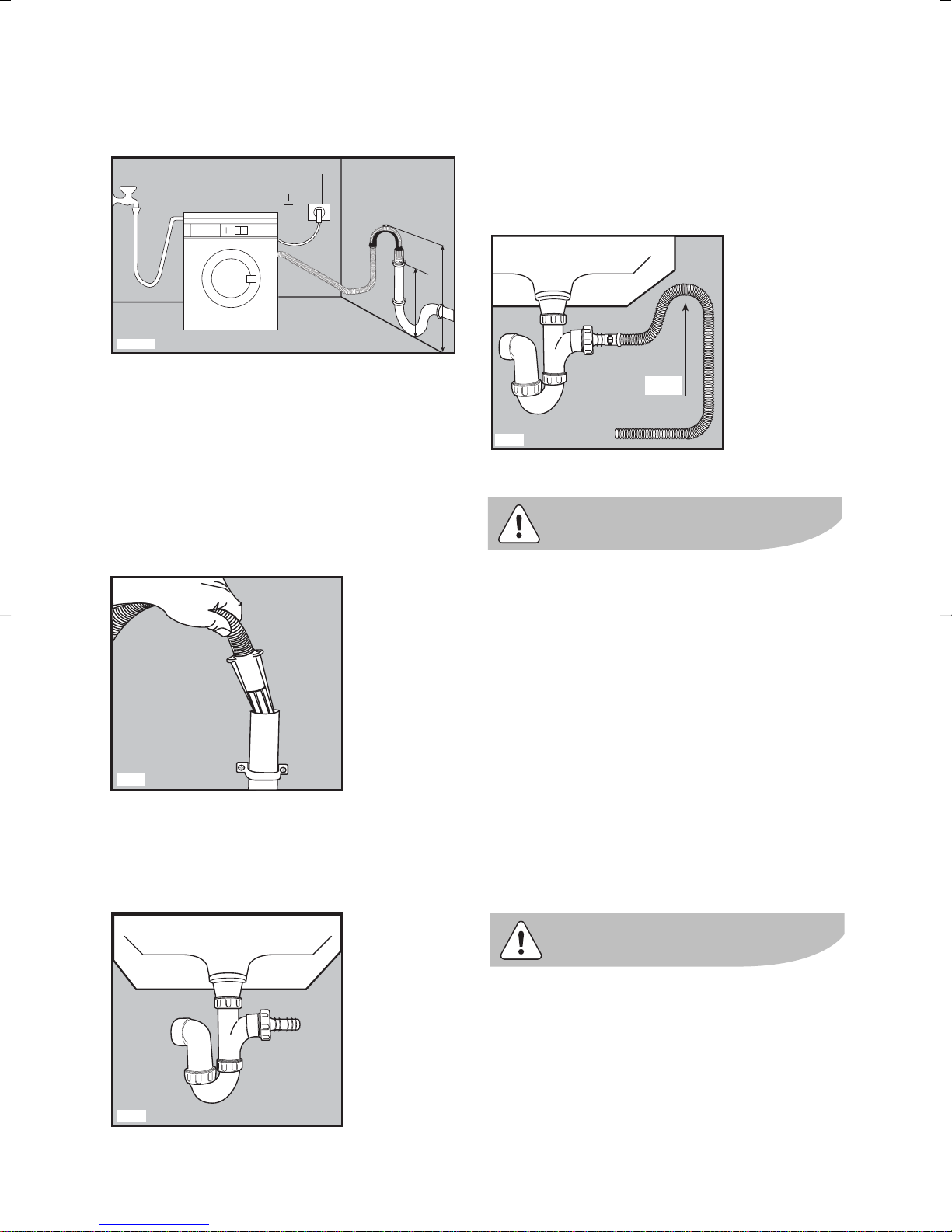

installation electrolux 39

The drain hose may be extended to a
maximum of 4 metres.

An additional drain hose and joining
piece is available from your local
Service Force Centre. The joining piece
must have an internal diameter of 18
mm.
If your drain hose looks like this (see
below) you do not require the «U»
piece. Just push the hose firmly into
the standpipe.

2. Onto a sink outlet spigot.

If the outlet spigot has not been used
before, remove any blanking plug that
may be in place.

P1197

P1212

Min. 60 cm (23.6)

Max. 90 cm (35.4)

3 pin

HEC0012

Push the drain hose onto the spigot
and secure with a clip if required,
ensure a loop is formed in the drain
hose (see diagram) to prevent waste
from the sink entering the washing
machine.

Important!

Before connecting the machine to new
pipework or to pipework that has not
been used for some time, run off a
reasonable amount of water to flush
out any debris that may have collected
in the pipes.

Special conditions

If the floor is carpeted or covered with
crumbly or soft material, insert a rigid
support base under the feet to prevent
noise, vibration or displacement. The
base should protrude a few
centimetres beyond the edges of the
machine.

Warning !

The machine should NOT be placed on
deep pile carpeting.

P1198

Loop

40 electrolux installation

Note

Please ensure that when the appliance
is installed it is easily accessible for the
engineer in the event of a breakdown.

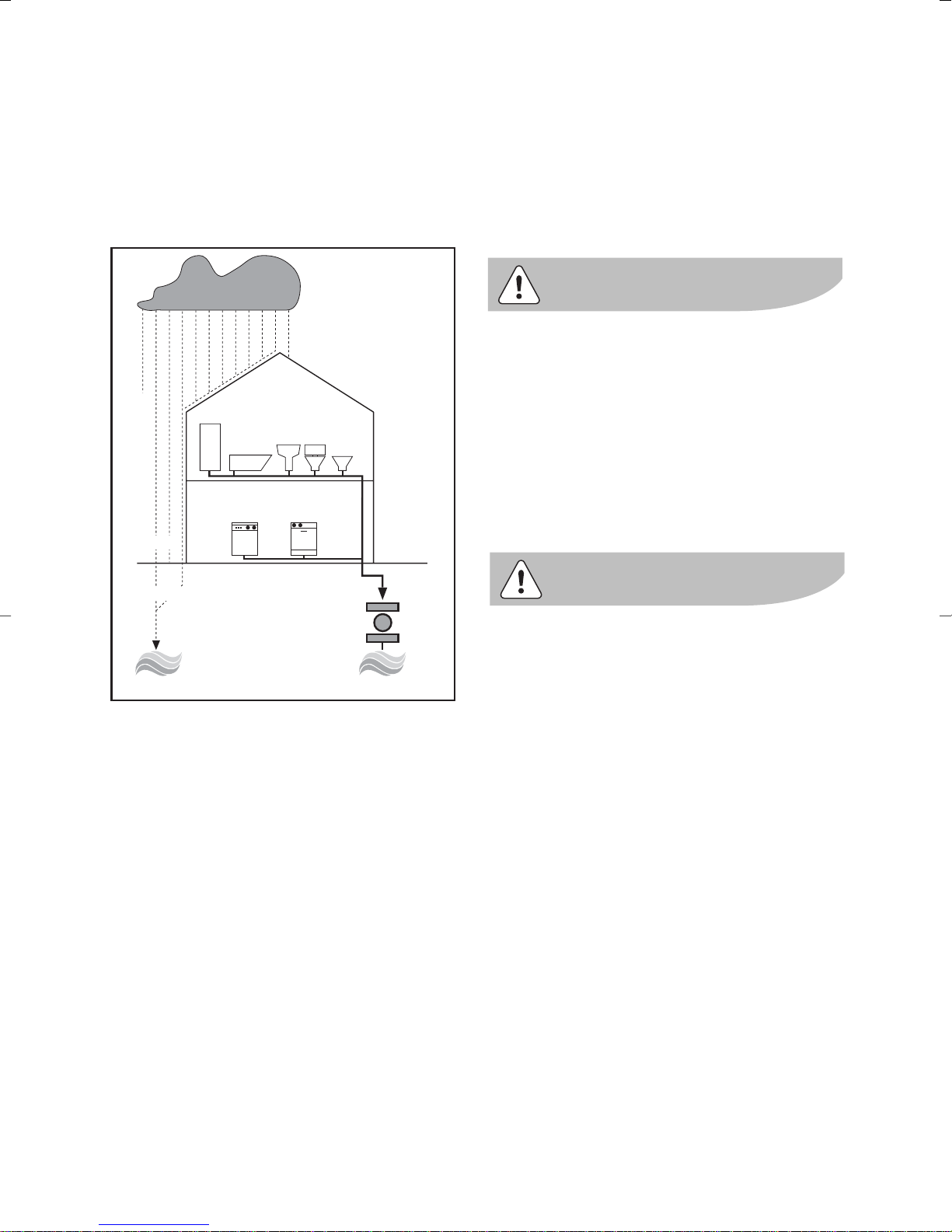

In the interest of the environment

Washing machines and dishwashers
should be connected to the FOUL
drainage system, the water will then be
taken to a sewage works for treatment
before being discharged safely into a
river.
It is essential that these appliances are
not connected to the surface water
drainage system as this water is
discharged directly into a river or stream
and may cause pollution.
If you require any further advice please
contact your local water authority.

SHOWER

BATH

SINK TOILET

BIDET

WASHING
MACHINE

DISHWASHER

RAINWATER

'RUN-OFF'

SURFACE WATER

DRAINS & SEWERS

UNTREATED
DISCHARGE

RIVER

FOUL DRAIN

FOUL SEWERS

SEWAGE

TREATMENT

WORKS

RIVER

P0987

TREATED

DISCHARGE

Electrical connection

Any electrical work required to install
this appliance should be carried out by
a qualified electrician or competent
person.

Important!

This appliance must be earthed.
The manufacturer declines any
liability should this safety measure
not be observed.

Before switching on, make sure the
electricity supply voltage is the same
as that indicated on the appliance’s
rating plate.

Important!

Information on the electrical
connection is given on the rating
plate on the inner edge of the
appliance door.

The appliance is supplied with a
13amp plug fitted. In the event of
having to change the fuse in the plug
supplied, a 13amp ASTA approved
(BS1363/A) fuse must be used.

Should the plug need to be replaced
for any reason, proceed as described
below.

The wires in the mains lead are
coloured in accordance with the
following code:

Green and Yellow......................- Earth

Blue ..........................................-

Neutral

Brown ......................................- Live

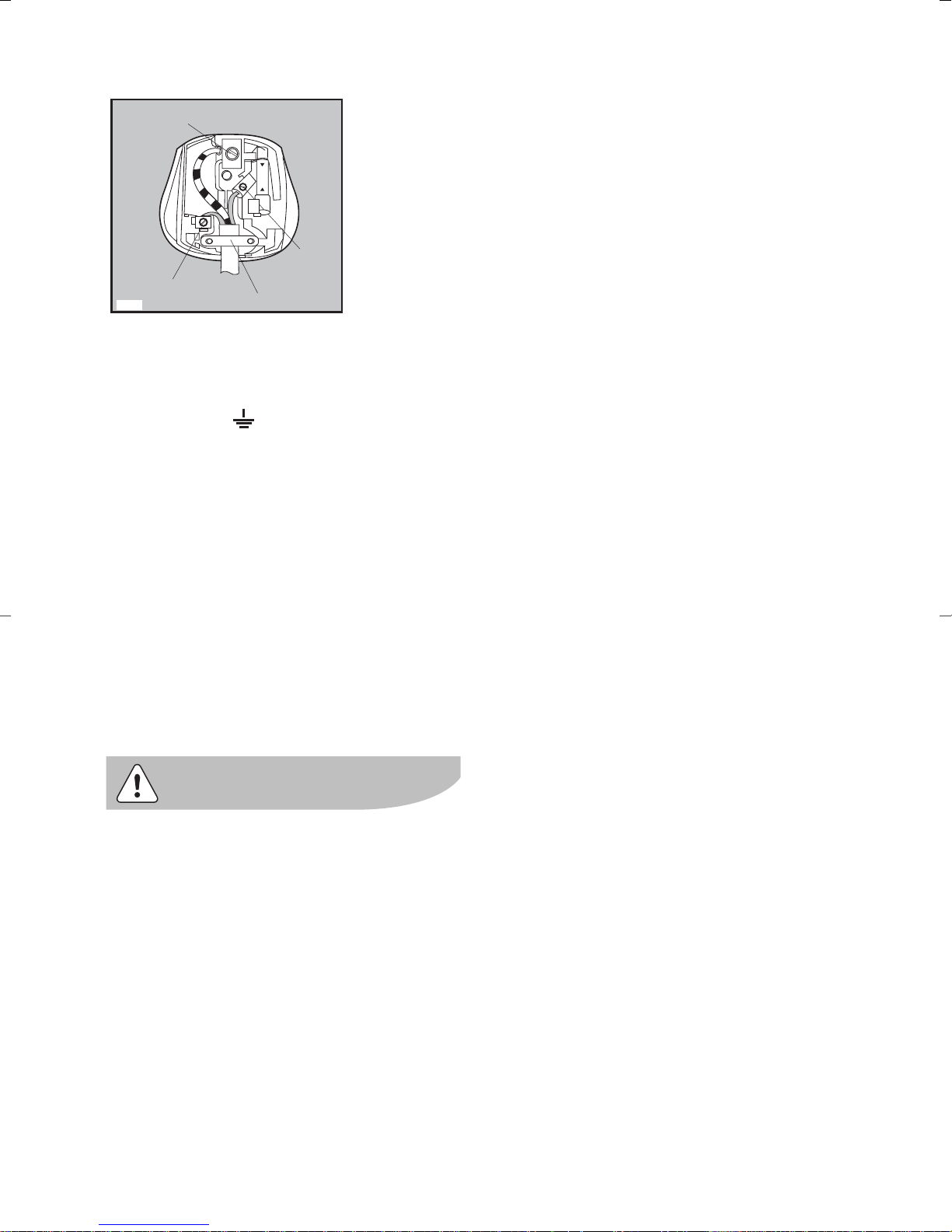

installation electrolux 41

The wire coloured green and yellow
must be connected to the terminal
marked with the letter «E» or by the
earth symbol or coloured green
and yellow.

The wire coloured blue must be
connected to the terminal marked «N»
or coloured black.

The wire coloured brown must be
connected to the terminal marked «L»
or coloured red.

Upon completion there must be no cut,
or stray strands of wire present and the
cord clamp must be secure over the
outer sheath.

Warning!

A cut off plug inserted into a 13
amp socket is a serious safety
(shock) hazard.
Ensure that the cut off plug is
disposed of safely. Should the
appliance power supply cable need
to be replaced, this must be carried
out by our Service Force Centre.

The power supply cable must be easily
accessible after installing the appliance.

GREEN & YELLOW

BROWN

CORD CLAMP

BLUE

13 A

P1041

E

N

L

Permanent connection

In the case of permanent connection it
is necessary that you install a double
pole switch between the appliance and
the electricity supply (mains), with a
minimum gap of 3mm between the
switch contacts and of a type suitable
for the required load in compliance with
the current electrical regulations.
The switch must not break the yellow
and green earth cable at any point.

42 electrolux environment concerns

Environment concerns

Packaging materials

The materials marked with the symbol

are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by

disposing of them properly in
appropriate collection containers.

Old machine

Use authorised disposal sites for your
old appliance. Help to keep your country
tidy!

The symbol on the product or on its
packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local city office, your
household waste disposal service or the
shop where you purchased the product.

Ecological hints

To save water, energy and to help
protect the environment, we
recommend that you follow these tips:

• Normally soiled laundry may be
washed without prewashing in order
to save detergent, water and time
(the environment is protected too!).

• The machine works more
economically if it is fully loaded.

• With adequate pre-treatment, stains
and limited soiling can be removed;
the laundry can then be washed at a
lower temperature.

• Measure out detergent according to
the water hardness, the degree of
soiling and the quantity of laundry
being washed.

guarantee/customer service electrolux 43

Standard guarantee conditions

We, Electrolux, undertake that if within
12 months of the date of the purchase
this Electrolux appliance or any part
thereof is proved to be defective by
reason only of faulty workmanship or
materials, we will, at our option repair
or replace the same FREE OF
CHARGE for labour, materials or
carriage on condition that:

• The appliance has been correctly in­stalled and used only on the electri­city supply stated on the rating plate.

• The appliance has been used for
normal domestic purposes only, and
in accordance with the manufactu­rer’s instructions.

• The appliance has not been ser­viced, maintained, repaired, taken
apart or tampered with by any per­son not authorised by us.

• Electrolux Service Force Centre must
undertake all service work under this
guarantee.

• Any appliance or defective part re­placed shall become the Company’s
property.

• This guarantee is in addition to your
statutory and other legal rights.

Exclusions

• Damage or calls resulting from trans­portation, improper use or neglect,
the replacement of any light bulbs or
removable parts of glass or plastic.

• Costs incurred for calls to put right
an appliance which is improperly in­stalled or calls to appliances outside
the United Kingdom.

• Appliances found to be in use within
a commercial environment, plus tho­se which are subject to rental agree­ments.

• Products of Electrolux manufacturer
that are not marketed by Electrolux.

Service and Spare Parts

In the event of your appliance requiring
service, or if you wish to purchase
spare parts, please contact your local
Service Force Centre by telephoning

0870 5 929 929
Your telephone call will be

automatically routed to the Service
Force Centre covering your postcode
area.For the address of your local
Service Force Centre and further
information about Service Force,
please visit the website at:

www.serviceforce.co.uk
Before calling out an engineer, please

ensure you have read the details under
the heading “Something not working”

When you contact the Service Force
Centre you will need to give the follo­wing details:

1. Your name, address and postcode.

2. Your telephone number.

3. Clear concise details of the fault.

4. The model and Serial number of the

appliance (found on the rating plate).

5. The purchase date.

Please note a valid purchase receipt or
guarantee documentation is required
for in guarantee service calls.

44 electrolux guarantee/customer service

Customer Care

For general enquiries concerning your
Electrolux appliance, or for further infor­mation on Electrolux products please
contact our Customer Care
Department by letter or telephone at
the address below or visit our website
at:
www.electrolux.co.uk

Customer Care Department Electrolux
Major Appliances

Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: [phone] (*)
(*) Calls may be recorded for training

purposes

European Guarantee

This appliance is guaranteed by
Electrolux in each of the countries
listed at the back of this user manual,
for the period specified in the appliance
guarantee or otherwise by law.

If you move from one of these
countries to another of the countries
listed below the appliance guarantee
will move with you subject to the
following qualifications:

• The appliance guarantee starts from
the date you first purchased the
appliance which will be evidenced by
production of a valid purchase
document issued by the seller of the
appliance.

• The appliance guarantee is for the
same period and to the same extent
for labour and parts as exists in your
new country of residence for this
particular model or range of
appliances.

• The appliance guarantee is personal
to the original purchaser of the
appliance and cannot be transferred
to another user.

• The appliance is installed and used in
ac-cordance with instructions issued
by Electrolux and is only used within
the home, i.e. is not used for
commercial purposes.

• The appliance is installed in
accordance with all relevant
regulations in force within your new
country of residence.

The provisions of this European
Guarantee do not affect any of the
rights granted to you by law.

Customer Service Centres

Should you need further assistance please contact your local Customer Service
Centre

www.electrolux.com

à

 

Albania

[phone]

Rr. Pjeter Bogdani Nr. 7 Tirane

Belgique/België/Belgien

[phone]

Bergensesteenweg 719, 1502 Lembeek

Česká republika

[phone]

Budějovická 3, Praha 4, 140 21

Danmark

[phone]

Sjællandsgade 2, 7000 Fredericia

Deutschland

[phone]

Muggenhofer Str. 135, 90429 Nürnberg

Eesti

[phone]

Mustamäe tee 24, 10621 Tallinn

España

[phone]

Carretera M-300, Km. 29,900 Alcalá de Henares Madrid

France

www.electrolux.fr

Great Britain

[phone]

Addington Way, Luton, Bedfordshire LU4 9QQ

Hellas

[phone]

4, Limnou Str., 54627 Thessaloniki

Hrvatska

[phone]

Slavonska avenija 3, 10000 Zagreb

Ireland

[phone]

Longmile Road Dublin 12

Italia

[phone]

C.so Lino Zanussi, 26 - 33080 Porcia (PN)

Latvija

[phone]

Kr. Barona iela 130/2, LV-1012, Riga

Lituania

[phone]

Verkiu, 2 9, 09108 Vilnius, Lithuania

Luxembourg

[phone]

Rue de Bitbourg, 7, L-1273 Hamm

Magyarország

[phone]

H-1142 Budapest XIV, Erzsébet királyné útja 87

Nederland

[phone]

Vennootsweg 1, 2404 CG - Alphen aan den Rijn

Norge

[phone]

Risløkkvn. 2 , 0508 Oslo

Österreich

[phone]

Herziggasse 9, 1230 Wien

Polska

[phone]

ul. Kolejowa 5/7, Warsaw

Portugal

[phone]

Quinta da Fonte - Edificio Gonçalves Zarco - Q35 -2774-518 Paço de Arcos

Romania

[phone]

Str. Garii Progresului 2, S4, 040671 RO

Schweiz-Suisse-Svizzera

[phone]

Industriestrasse 10, CH-5506 Mägenwil

Slovenija

[phone]

Tr aška 132, 1000 Ljubljana

Slovensko

[phone]

Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK, Seberíniho 1, 821 03 Bratislava

Suomi

www.electrolux.fi

Sverige

[phone]

Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm

Türkiye

[phone]

Tarlabași caddesi no : 35 Taksim Istanbul

Россия

[phone]

129090 Москва, Олимпийский проспект, 16, БЦ “Олимпик”

electrolux 45

46 electrolux

ANC number: 132 972 160-01-142007
