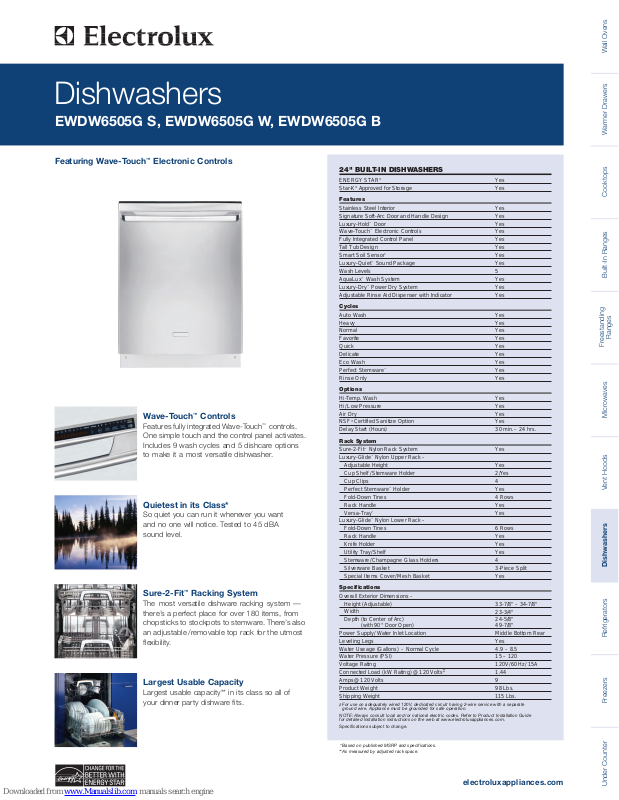

Dishwashers
EWDW6505G S, EWDW6505G W, EWDW6505G B
Wall OvensWarmer DrawersCooktopsBuilt-In Ranges
Featuring Wave-Touch™Electronic Controls
Wave-Touch™Controls
Features fully integrated Wave-Touch™controls.
One simple touch and the control panel activates.
Includes 9 wash cycles and 5 dishcare options
to make it a most versatile dishwasher.
Quietest in its Class*
So quiet you can run it whenever you want
and no one will notice. Tested to 45 dBA
sound level.
Sure-2-Fit™Racking System
The most versatile dishware racking system —
there’s a perfect place for over 180 items, from
chopsticks to stockpots to stemware. There’s also
an adjustable/removable top rack for the utmost
flexibility.
Largest Usable Capacity
Largest usable capacity** in its class so all of
your dinner party dishware fits.
24" BUILT-IN DISHWASHERS
ENERGY STAR
Star-K®Approved for Storage
Features
Stainless Steel Interior
Signature Soft-Arc Door and Handle Design
Luxury-Hold™Door
Wave-Touch™Electronic Controls
Fully Integrated Control Panel
Tall Tub Design
Smart Soil Sensor
Luxury-Quiet™Sound Package
Wash Levels
AquaLux™Wash System
Luxury-Dry™Power Dry System
Adjustable Rinse Aid Dispenser with Indicator
Cycles
Auto Wash
Heavy
Normal
Favorite
Quick
Delicate
Eco Wash
Perfect Stemware
Rinse Only
Options
Hi-Temp. Wash
Hi/ Low Pressure
Air Dry
NSF®Certified Sanitize Option
Delay Start (Hours)
Rack System
Sure-2-Fit™Nylon Rack System
Luxury-Glide™Nylon Upper Rack –
Adjustable Height
Cup Shelf/ Stemware Holder
Cup Clips
Perfect Stemware™Holder
Fold-Down Tines
Rack Handle
Versa-Tray
Luxury-Glide™Nylon Lower Rack –
Fold-Down Tines
Rack Handle
Knife Holder
Utility Tray/Shelf
Stemware/ Champagne Glass Holders
Silverware Basket
Special Items Cover/ Mesh Basket
Specifications
Overall Exterior Dimensions –
Height (Adjustable)
Width
Depth (to Center of Arc)
Power Supply/ Water Inlet Location
Leveling Legs
Water Useage (Gallons) – Normal Cycle
Water Pressure (PSI)
Voltage Rating
Connected Load (kW Rating) @120 Volts
Amps@ 120 Volts
Product Weight
Shipping Weight
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and/ or national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at www.electroluxappliances.com.
Specifications subject to change.
®
™
™
™
(with 90° Door Open)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
5
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
30 min.– 24 hrs.
Yes
Yes
2/Yes
4
Yes
4 Rows
Yes
Yes
6 Rows
Yes
Yes
Yes
4
3-Piece Split
Yes
33-7/8" – 34-7/8"
23-3/4"
24-5/8"
49-7/8"
Middle Bottom Rear
Yes
4.9 – 8.5
15 – 120
‡
120V/ 60Hz/15A
1.44
9
98 Lbs.
115 Lbs.
Ranges
Freestanding
MicrowavesVent Hoods
DishwashersRefrigerators
FreezersUnder Counter
*Based on published MSRP and specifications.
**As measured by adjusted rack space.
electroluxappliances.com
Page 2
Dishwashers
EWDW6505G S, EWDW6505G W, EWDW6505G B

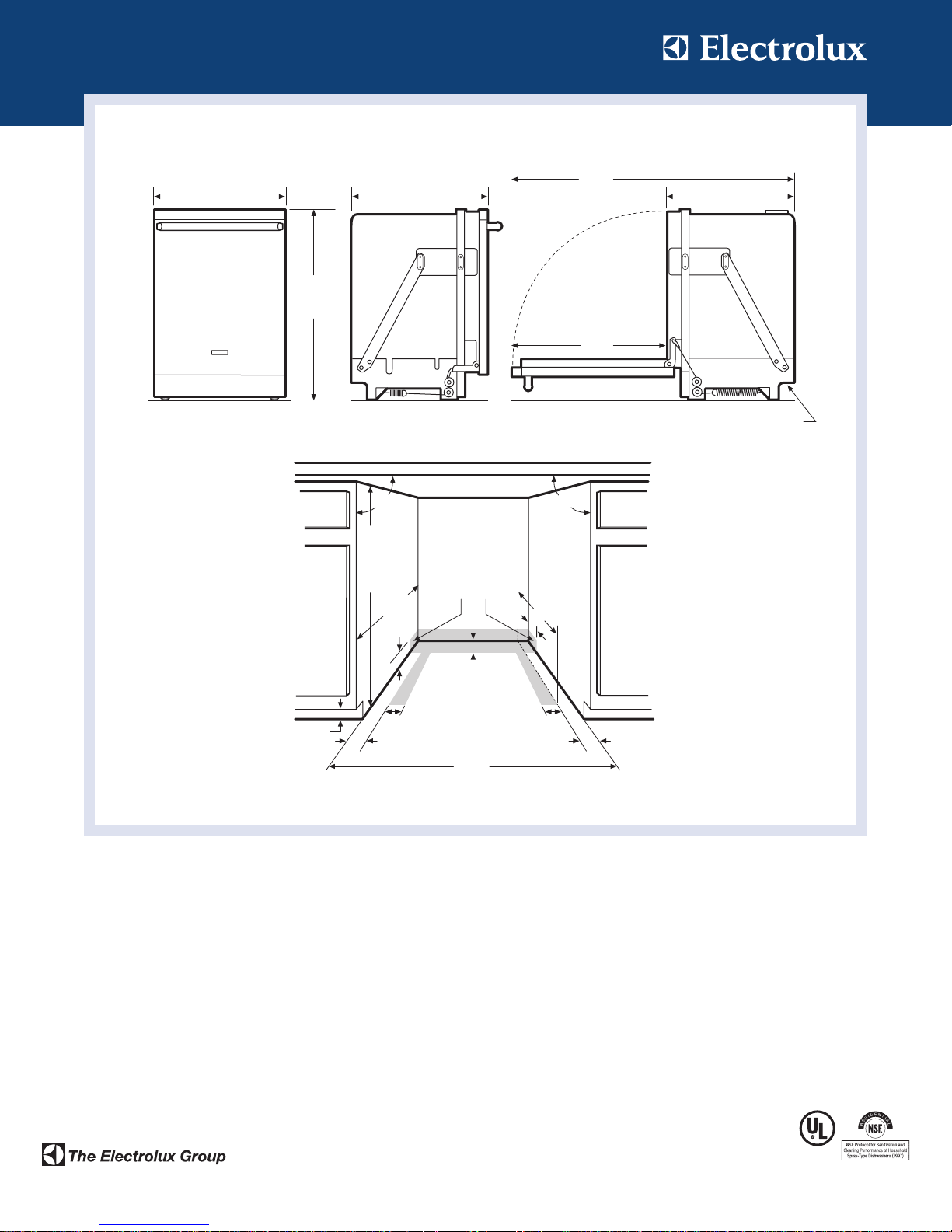

Front
233/4"
337/8"
Adjustable
7
to 34
/8"*
*Height only adjustable to 343/4"max. when
installed in 35"max. standard cabinetry cutout.
90°
34"
min.
to
35"
max.**
24"
min.
3
Left
245/8"
"
Electrical, water,
and drain lines
must be confined
to shaded area.
Preferred
Drain Areas
3
"
18"
90°
3"
497/8"
Door in 90°
open position
273/8"
Right
1
22
/2"
Water inlet and power supply
location (middle bottom rear)
35"max. height for
standard cabinetry cutout.
31/2"min.to
1
/2"max.
4
13/4"
1
(1/4"min. clearance
required from unit to
3
/4"1
underside of countertop.)
Built-In Dishwasher Specifications
•
Product Weight – 98 Lbs.
•
Voltage Rating –120V /60Hz /15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.)
•
Amps @120V = 9 Amps
•
Always consult local and/or national electric & plumbing codes.
•
Water Pressure – Hot water line to dishwasher must provide between
15 and 120 pounds per square inch (psi).
•
Make sure location has right drain, water and electrical outlets to make
connections.
•
Keep back free of drain, water & electrical supply.
•
Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
**NOTE:
3
/4"
1
3
/4"
24"
•
Connections preferably located toward left side of dishwasher. Do not
cross drain, water or electrical lines in front of motor, blower or frame.
•
Minimum clearance of 1/4" required from unit to underside of countertop.
•
Leveling legs supplied to adjust height. (Note: Height only adjustable to
34-3/4" max. when installed in 35" max. standard cabinetry cutout to
allow for 1/4" min. clearance.)
•
When installing in corner, allow 2" clearance between opened door and
wall, to allow door to open.
•
When installing at end of cabinet line, sides must be fully enclosed.
•
Do not install unit under a cooktop, damage may occur.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
•
