Electrolux EWD1402DSD User Manual
EWD1402DSD
User manualBuilt-in Warming Drawer
1 electrolux.com.au 2
IMPORTANT INSTRUCTIONS
CONGRATULATIONS
Dear customer,
Thank you for purchasing an Electrolux Warming Drawer.
You’ve chosen a product that brings with it decades
of professional experience and innovation. Ingenious
and stylish, it has been designed with you in mind.
So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time.
Welcome to Electrolux.
BEFORE USING YOUR APPLIANCE
Check for any damage or marks. If you find the appliance
damaged or marked you must report it within 7 days to
claim for damages under the manufacturers warranty.
Before you use the appliance, we recommend
that you read through the whole user manual
which provides the description of the product
and its functions. To avoid the risks that are always
present when you use a gas appliance, it is
important that the product is installed correctly
and that you read the safety instructions carefully
to avoid misuse and hazards.
For future reference, please store this booklet in
a safe place.
This appliance complies with the requirements
of Australian Standard AS/NZS 60335.2.6.
BEFORE YOU CALL
Please ensure you read the instruction manual fully before
you call for service, or a full service fee could be applicable.
CONDITIONS OF USE
This appliance is intended to be used in household
and similar applications such as:
• Staff kitchen areas in shops, offices and other
working environments
• By clients in hotels, motels and other residential
type environments
• Bed and breakfast type environments
• Small catering and small non-retail applications
Record model and serial number here:
Model number: ____________________________________
Serial number: _____________________________________
CONTENTS
Important instructions _____________________________ 2
Caring for the environment ______________________ 2
Cleaning and heating up for the first time __________ 2
Safety instructions ____________________________ 2
Cleaning and care ________________________________ 4

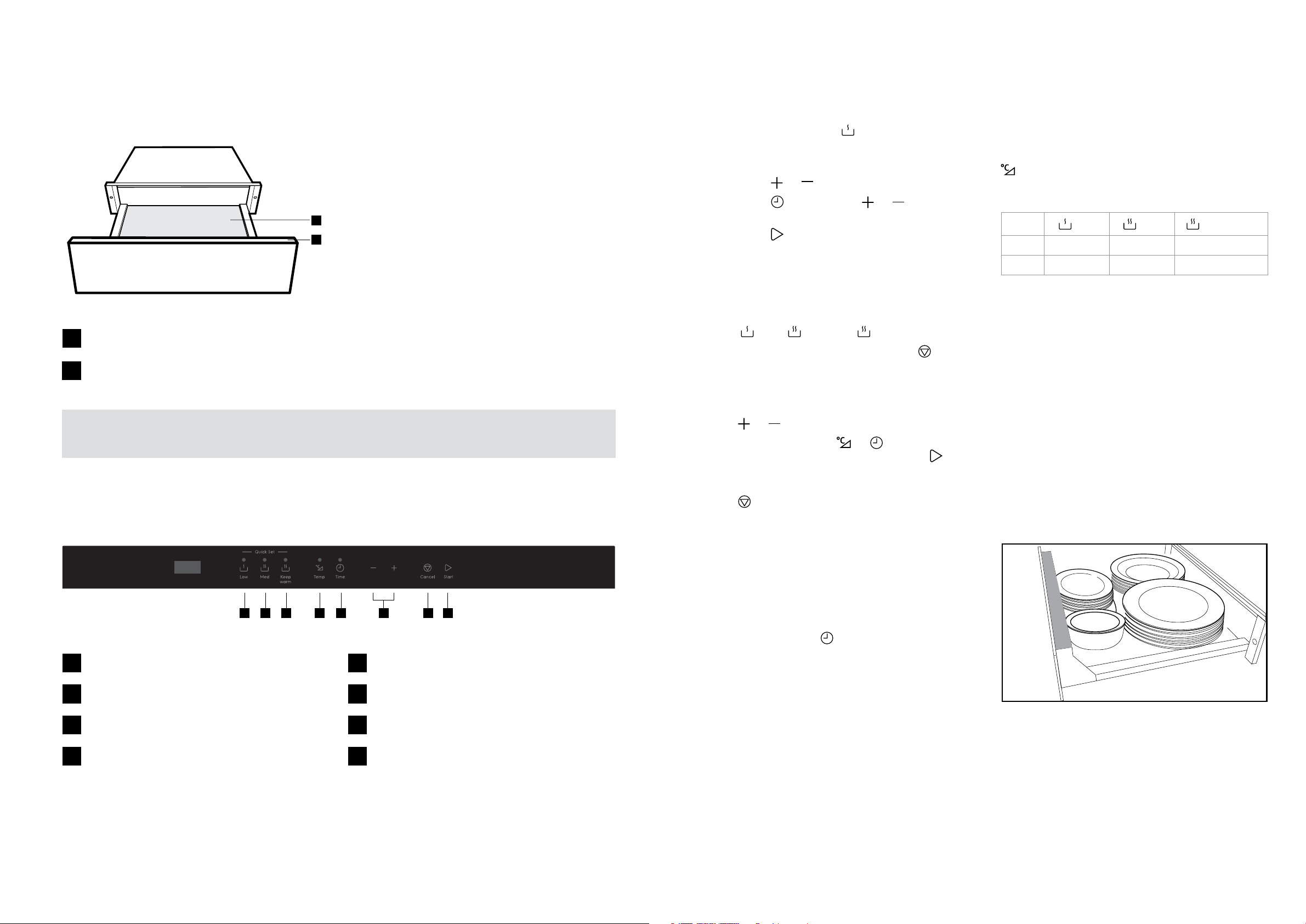

Guide to the appliance _____________________________ 5
Components _________________________________ 5
Control panel _________________________________ 5
Operation ________________________________________ 6
Function settings _____________________________ 6
Temperature settings ___________________________ 6
Capacity _____________________________________ 6
Installation _______________________________________ 7
Safety _______________________________________ 7
Enviromental protection ________________________ 7
Technical data ________________________________ 7

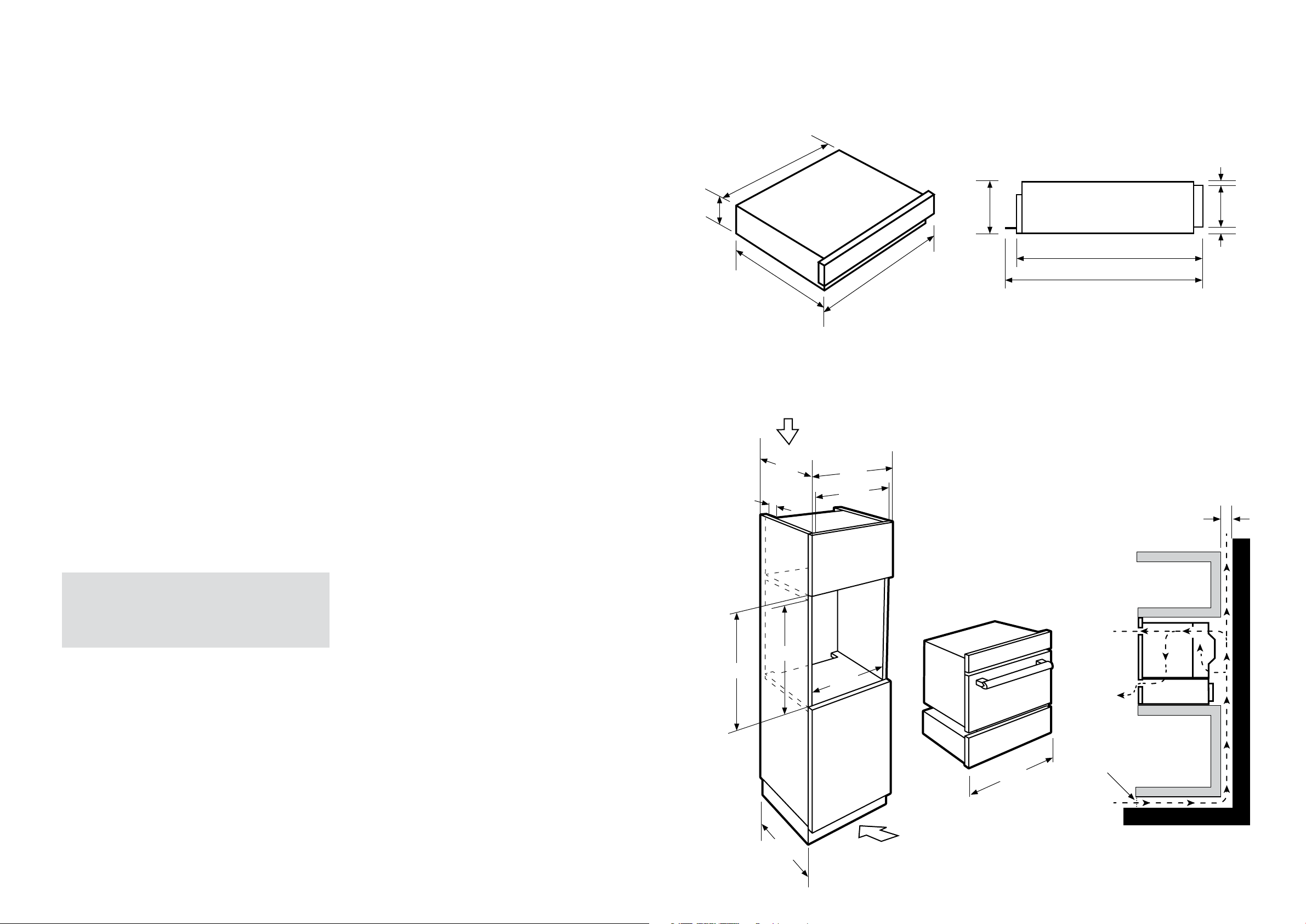

Building-in dimensions _________________________ 8
Troubleshooting ___________________________________ 9
Warranty information _____________________________ 10
SYMBOLS
The symbols you will see in this booklet have
these meanings:
WARNING
This symbol indicates information concerning
your personal safety.
CAUTION
This symbol indicates information on how
to avoid damaging the cooker or cabinet.
IMPORTANT
This symbol indicates tips and information
about use of the cooker.
ENVIRONMENT
This symbol indicates tips and information about
economical and ecological use of the cooker.
NOTE: Model codes shown in this manual are the
generic code. Your product will also include a two
letter suffix which denotes colour and series level.
Important Information that may impact
your Manufacturer’s Warranty
Adherence to the directions for use in this manual is
extremely important for health and safety. Failure to strictly
adhere to the requirements in this manual may result in
personal injury, property damage and affect your ability to
make a claim under the Electrolux manufacturer’s warranty
provided with your product. Products must be used,
installed and operated in accordance with this manual. You
may not be able to claim on the Electrolux manufacturer’s
warranty in the event that your product fault is due to
failure to adhere to this manual.
CARING FOR THE ENVIRONMENT
DISPOSAL OF THE PACKING MATERIAL
The transport and protective packing has been selected
from materials that are environmentally friendly for disposal,
and should be recycled.
Ensure that any plastic wrappings, bags, etc are disposed
of safely and kept out of the reach of babies and young
children to prevent danger of suffocation.
Disposal of your old appliance
Electrical and electronic appliances often contain
materials which, if handled or disposed of incorrectly,
could be potentially hazardous to human health and
the environment. They are, however, essential for the
correct functioning of your appliance.
Please do not dispose of old appliances with your
household waste. Please dispose of them at your local
community waste collection/recycling centre or contact
your dealer for advice. Please ensure that it presents
no danger to children while being stored for disposal.
CLEANING AND HEATING UP
FOR THE FIRST TIME
1 Remove any protective film and sticky labels.
2 Remove the anti-slip mat and sponge with warm
water and a little washing-up liquid. Dry using a
soft cloth.
3 Wipe the appliance inside and out with a damp
cloth only, and then dry with a soft cloth.
4 Replace the anti-slip mat in the drawer.
5 Heat the empty drawer for at least two hours,
using the following procedure:
– Switch the appliance on by touching the
sensor.
– Touch the
light comes on.
sensor repeatedly until the LED
– Touch the sensor repeatedly until the LED
on the far right lights up
– Touch the
6 Close the drawer
IMPORTANT
The warming drawer is fitted with a softclose selfclosing mechanism. It also has a contact switch,
which ensures that the heating element and fan in
the appliance only work when the drawer is closed.
IMPORTANT
Metal components have a protective coating which
may give off a slight smell when heated up for the
first time. The smell and any vapours will dissipate
after a short time, and do not indicate a faulty
connection or appliance. Ensure that the kitchen is
well ventilated whilst the appliance is first heated.
sensor repeatedly until 2h lights up
SAFETY INSTRUCTIONS
WARNING
These warnings have been provided in the interest
of safety. You MUST read them carefully before
installing or using the appliance.
Correct application
• The appliance is not designed for commercial use.
It is intended for domestic use only in residential
environments.
• The appliance is not intended for outdoor use.
• Any other usage is not supported by Electrolux
and could be dangerous.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
• This appliance is not a toy! To avoid the risk of injury,
do not let children play with the appliance or its
controls.
• The appliance gets hot when in use and remains
hot for quite a while after being switched off. Keep
children well away from the appliance until it has
cooled down and there is no danger of burning.
3 electrolux.com.au 4
IMPORTANT INSTRUCTIONS (CONTINUED)
• Packaging, eg. cling film, polystyrene and plastic
wrappings must be kept out of the reach of babies
and children to avoid danger of suffocation. Dispose
of or recycle all packaging safely as soon as possible.
Correct use
The warming drawer is designed to keep hot food
warm. It is not designed to warm food up from room
or fridge temperature. Ensure food is already really
hot when you place it in the drawer.
• You could burn yourself on the hot drawer or
crockery. Protect your hands with heat-resistant
pot holders or gloves when using the appliance.
Do not let them get wet or damp, as this causes
heat to transfer through the material more quickly,
with the risk of scalding or burning yourself.
• Do not store any plastic containers or flammable
objects in the warming drawer. They could melt
or catch fire when the appliance is switched on.
• Due to the high temperatures radiated, objects left
near the appliance when it is in use could catch
fire. Do not use the appliance to heat up the room.
• Never replace the anti-slip mat supplied with the
appliance with paper kitchen towel or similar.
• If you overload the drawer, or sit or lean on it, the
telescopic runners will be damaged. The telescopic
runners can support a maximum load of 25kg.
• Do not install this appliance behind a cupboard door,
it requires adequate ventilation to operate safely.
• Do not heat up unopened tins or jars of food in the
drawer, as pressure will build up in the tin or jar causing
it to explode. This could result in injury or scalding, as
well as potential damage to the appliance.
• The underside of the drawer gets hot when switched
on. Be careful not to touch it when the drawer is open.
• Do not use plastic or aluminium containers. These melt
at high temperatures and could catch fire. Use only
heat-resistant crockery made of glass, porcelain, etc.
• Take care when opening and closing the loaded
drawer, so that liquids do not spill over and get
through the vents. This can cause the appliance
to short circuit.
• Bacteria can develop on the food if the temperature
is too low. Make sure you set a high enough
temperature to keep food warm.
Technical safety
ELECTRICAL CONNECTION
The appliance is fitted with a plug and must only be
connected to a properly installed earthed socket.
Only a qualified electrician who takes the approriate
regulations into account may install the socket or
replace the connecting cable. If the plug is no longer
accessible following installation, an all-pole isolating
switch must be present on the installation side with
a contact gap of at least 3mm. Contact protection
must be ensured by the installation.
• Installation, maintenance and repair work may only
be carried out by a suitably qualified and competent
person in strict accordance with national and local
safety regulations. Installation, maintenance and
repairs by unqualified persons could be dangerous.
• A damaged appliance can be dangerous. Before
installation check the appliance for visible signs of
damage. Do not use a damaged appliance.
• The electrical safety of this appliance can only be
guaranteed when correctly installed and earthed.
It is most important that this basic safety requirement
is observed.
• To avoid the risk of damage to the appliance, make
sure that the connection data (frequency and voltage)
on the data plate corresponds to the household
supply before connecting the appliance to mains
supply. Consult a qualified electrician if in any doubt.
• Do not connect the appliance to the mains electricity
supply by a multi-socket adapter or an extension
lead. These do not guarantee the required safety
of the appliance (eg. danger of overheating).
• For safety reasons, this appliance may only be used
when it has been built in.
• Do not open the casing of the appliance. Tampering
with electrical connections or components and
mechanical parts is highly dangerous to the user
and can cause operational faults. Warranty will also
be voided.
• While the appliance is under guarantee, repairs
should only be undertaken by a qualified service
technician. Otherwise, warranty is voided.
• Faulty components must only be replaced by
genuine Electrolux original spare parts.
• The appliance must be disconnected from the mains
electricity supply during installation, maintenance and
repair work. Ensure that power is not supplied to the
appliance until after it has been installed or until any
maintenance or repair work has been carried out.
• In areas that may be subject to infestation by
cockroaches or other vermin, pay particular attention
to keeping the appliance and its surroundings in a
clean condition at all times. Any damage that may
be caused by cockroaches or other vermin will not
be covered by the warranty.
• If the power supply cord is damaged, it must be
replaced by Electrolux, its service agent or similarly
qualified persons in order to avoid creating an
electrical hazard.
CLEANING AND CARE
DANGER OF INJURY.
Do not use a steam cleaning appliance to clean
this appliance. The steam could reach electrical
components and cause a short circuit.
Do not immerse the appliance in water or other
liquid when cleaning.
DANGER OF DAMAGE.
Unsuitable cleaning agents can damage the
surfaces of the appliance. Only use domestic
washing-up liquid to clean the appliance.
To avoid damaging the surfaces of your appliance,
do not use:
• cleaning agents containing soda, ammonia,
acids or chlorides
• cleaning agents containing descaling agents
• abrasive cleaning agents, eg. powder cleaners
and cream cleaners
• solvent-based cleaning agents
• stainless steel cleaning agents
• dishwasher cleaner
• oven sprays
• glass cleaning agents
• hard, abrasive sponges and brushes,
eg. pot scourers
IMPORTANT
The power cord can only be routed through the hole in
the bottom of the drawer to avoid touching the back shell
of the appliance.
CAUTION
In order to avoid a hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied
through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and
off by the utility.
Appliance front and interior cleaning
Remove any soiling immediately. If this is not done,
it might become difficult or impossible to remove and
could cause the surfaces to alter or discolour.
Clean all surfaces with a clean sponge and a solution
of hot water and washing-up liquid. Then dry with a soft
cloth. A clean, damp microfibre E-cloth without cleaning
agent can also be used.
All surfaces are susceptible to scratching. Scratches on
glass surfaces could even cause a breakage. Contact
with unsuitable cleaning agents can alter or discolour
the surfaces.
Anti-slip mat
Remove the anti-slip mat from the drawer before cleaning it.
Clean the anti-slip mat by hand only, using a solution of
hot water and a little washing-up liquid, and then dry with
a cloth.
Do not put the anti-slip mat back into the drawer until it is
completely dry.
NOTE: Do not wash the anti-slip mat in a
dishwasher. Never place the anti-slip mat in the
oven to dry.
• sharp metal scrapers
Clean and dry the entire appliance after each use.
Allow the appliance to cool down to a safe temperature
before cleaning.
Loading...
