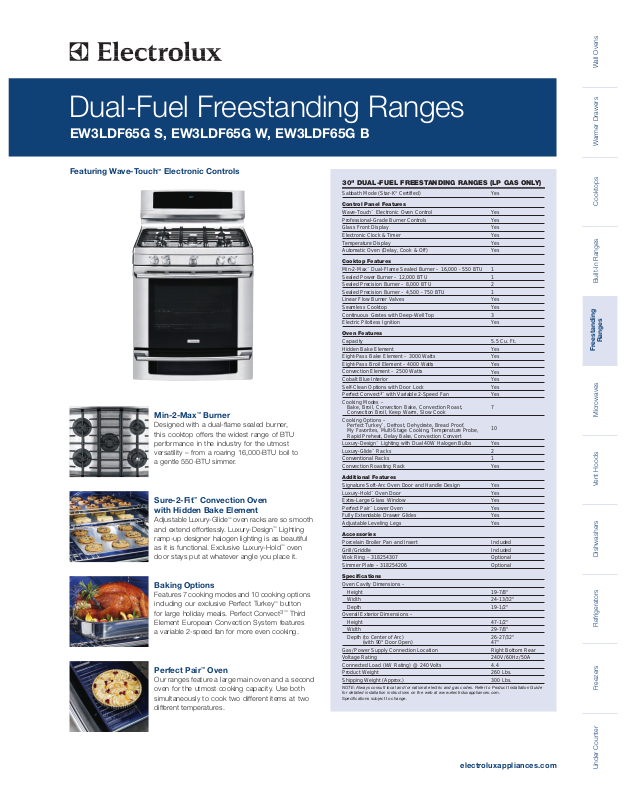

Electrolux EW3LDF65GS User Manual
Dual-Fuel Freestanding Ranges
EW3LDF65G S, EW3LDF65G W, EW3LDF65G B
Featuring Wave-Touch™Electronic Controls
30" DUAL-FUEL FREESTANDING RANGES (LP GAS ONLY)
Sabbath Mode (Star-K®Certified)
Control Panel Features
Wave-Touch™Electronic Oven Control
Professional-Grade Burner Controls
Glass Front Display
Electronic Clock & Timer
Temperature Display
Automatic Oven (Delay, Cook & Off)
Cooktop Features
Min-2-Max™Dual-Flame Sealed Burner – 16,000 - 550 BTU
Sealed Power Burner – 12,000 BTU
Sealed Precision Burner – 8,000 BTU
Sealed Precision Burner – 4,500 - 750 BTU
Linear Flow Burner Valves
Seamless Cooktop
Continuous Grates with Deep-Well Top
Electric Pilotless Ignition
Oven Features
Capacity
Hidden Bake Element
Eight-Pass Bake Element – 3000 Watts
Eight-Pass Broil Element – 4000 Watts
Convection Element – 2500 Watts
Cobalt Blue Interior
Min-2-Max™Burner
Designed with a dual-flame sealed burner,
this cooktop offers the widest range of BTU
performance in the industry for the utmost
versatility – from a roaring 16,000-BTU boil to
a gentle 550-BTU simmer.
Sure-2-Fit™Convection Oven
with Hidden Bake Element
Adjustable Luxury-Glide™oven racks are so smooth
and extend effortlessly. Luxury-Design
ramp-up designer halogen lighting is as beautiful
as it is functional. Exclusive Luxury-Hold
door stays put at whatever angle you place it.
™
Lighting
™
oven
Baking Options
Features 7cooking modesand 10 cooking options
including our exclusive Perfect Turkey
for large holiday meals. Perfect Convect
Element European Convection System features
a variable 2-speed fan for more even cooking.
™
button
™
3
Third
Perfect Pair™Oven
Our ranges feature a large main oven and a second
oven for the utmost cooking capacity. Use both
simultaneously to cook two different items at two
different temperatures.
Self-Clean Options with Door Lock
Perfect Convect
Cooking Modes –
Bake, Broil, Convection Bake, Convection Roast,
Convection Broil, Keep Warm, Slow Cook
Cooking Options –
Perfect Turkey
My Favorites, Multi-Stage Cooking, Temperature Probe,
Rapid Preheat, Delay Bake, Convection Convert
Luxury-Design™Lighting with Dual 40W Halogen Bulbs
Luxury-Glide™Racks
Conventional Racks
Convection Roasting Rack
Additional Features
Signature Soft-Arc Oven Door and Handle Design
Luxury-Hold™Oven Door
Extra-Large Glass Window
Perfect Pair™Lower Oven
Fully Extendable Drawer Glides
Adjustable Leveling Legs
Accessories
Porcelain Broiler Pan and Insert
Grill/ Griddle
Wok Ring – 318254307
Simmer Plate – 318254206
Specifications
Oven Cavity Dimensions –
Height
Width
Depth
Overall Exterior Dimensions –
Height
Width
Depth (to Center of Arc)
Gas/ Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 240 Volts
Product Weight
Shipping Weight (Approx.)
NOTE: Always consult local and/ or national electric and gas codes. Refer to Product Installation Guide
for detailed installation instructions on the web at www.electroluxappliances.com.
Specifications subject to change.
™
3
with Variable 2-Speed Fan
™
, Defrost, Dehydrate, Bread Proof,
(with 90° Door Open)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1
1
2
1
Yes
Yes
3
Yes
5.5 Cu. Ft.
Yes
Yes
Yes
Yes
Yes
Yes
Yes
7
10
Yes
2
1
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Included
Included
Optional
Optional
19-7/8"
24-13/32"
19-1/2"
47-1/2"
29-7/8"
26-27/32"
47"
Right Bottom Rear
240V/ 60Hz/ 50A
4.4
260 Lbs.
300 Lbs.
Wall OvensWarmer DrawersCooktopsBuilt-In Ranges
Ranges
Freestanding
MicrowavesVent HoodsDishwashersRefrigerators
FreezersUnder Counter
electroluxappliances.com
Dual-Fuel Freestanding Ranges
EW3LDF65G S, EW3LDF65G W, EW3LDF65G B
Side
25"
13 "
max.
24"
15"
C
L
1
/8"
30
111/2"
2"
Area allows for flush
installation with throughthe-wall connection of
pipe stub/shutoff valve
and rear wall 240V outlet
Area allows for flush
installation with throughthe-floor connection
of pipe stub/shutoff valve
23"
101/2"
30"min.
5" min.
to nearest
285/8"
263/8"
combustible
wall (either
side of unit)
34"
min.
18"min.
above 36"
height
36"
stand.
Overall depth
including oven
door in 90°open
position – 47"
Gas
connection
and power
supply
location
(right bottom
rear)
7"
Front
115/8"
1
47
/2"
357/8"
Adjustable
to
361/8"
297/8"
30" Dual-Fuel Freestanding Range Specifications
•
Product Weight – 260 Lbs.
•
Electrical Requirements – 240 Volts AC, 4-wire, 60 Hertz, 50 Amps
Dedicated Circuit
•
Connected Load (kW Rating) @ 240 Volts = 4.4kW
•
Amps @ 240 Volts = 18.3 Amps
•
Always consult local and/or national electric and gas codes.
•
Range ships with 3/4" factory regulator.
•
Range is Lp only and cannot be converted to natural gas.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of rangetop and bottom of
unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
•
USA
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
CANADA
EW3LDF65G 01/08 © 2008 Electrolux Major Appliances, NA Printed in the U.S.A.
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No.28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•
Allow 5" minimum clearance from edge of rangetop to nearest
combustible wall on either side of unit.
•
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
Wok Ring – (318254307).
•
Simmer Plate – (318254206).
•
electroluxappliances.com
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
