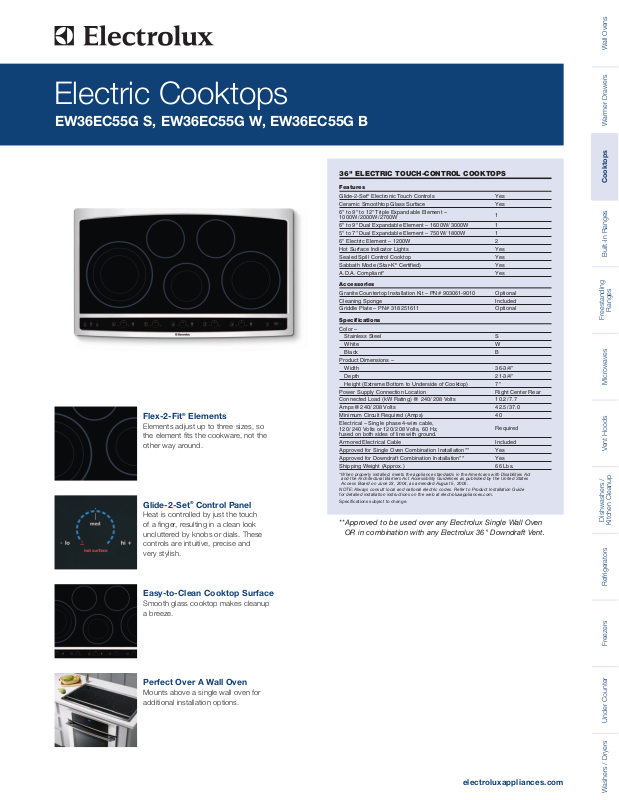

Electrolux EW36EC55GB, EW36EC55G S, EW36EC55G W Specification Sheet
Flex-2-Fit®Elements
Elements adjust up to three sizes, so
the element fits the cookware, not the
other way around.
Glide-2-Set®Control Panel
Heat is controlled by just the touch
of a finger, resulting in a clean look
uncluttered by knobs or dials. These
controls are intuitive, precise and
very stylish.
Easy-to-Clean Cooktop Surface
Smooth glass cooktop makes cleanup
a breeze.
Perfect Over A Wall Oven
Mounts above a single wall oven for
additional installation options.
Electric Cooktops
EW36EC55G S, EW36EC55G W, EW36EC55G B
36" ELECTRIC TOUCH-CONTROL COOKTOPS
Features
Glide-2-Set®Electronic Touch Controls
Ceramic Smoothtop Glass Surface
6" to 9" to 12" Triple Expandable Element –
1000W/ 2000W/ 2700W
6" to 9" Dual Expandable Element – 1600W/ 3000W
5" to 7" Dual Expandable Element – 750W/ 1800W
6" Electric Element – 1200W
Hot Surface Indicator Lights
Sealed Spill Control Cooktop
Sabbath Mode (Star-K®Certified)
A.D.A. Compliant*
Accessories
Granite Countertop Installation Kit – PN# 903061-9010
Cleaning Sponge
Griddle Plate – PN# 318251611
Specifications
Color –
Stainless Steel
White
Black
Product Dimensions –
Width
Depth
Height (Extreme Bottom to Underside of Cooktop)
Power Supply Connection Location
Connected Load (kW Rating) @ 240/ 208 Volts
Amps@ 240/208 Volts
Minimum Circuit Required (Amps)
Electrical – Single phase 4-wire cable,
120/ 240 Volts or 120/ 208 Volts, 60 Hz,
fused on both sides of line with ground.
Armored Electrical Cable
Approved for Single Oven Combination Installation**
Approved for Downdraft Combination Installation**
Shipping Weight (Approx.)
*When properly installed, meets the appliance standards in the Americans with Disabilities Act
and the Architectural Barriers Act Accessibility Guidelines as published by the United States
Access Board on June 23, 2004, as amended August 5, 2005.
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
Yes
Yes
1
1
1
2
Yes
Yes
Yes
Yes
Optional
Included
Optional
S
W
B
36-3/4"
21-3/4"
7"
Right Center Rear
10.2/ 7.7
42.5/ 37.0
40
Required
Included
Yes
Yes
66 Lbs.
**Approved to be used over any Electrolux Single Wall Oven
OR in combination with any Electrolux 36" Downdraft Vent.
electroluxappliances.com
Wall OvensRefrigerators Warmer DrawersCooktopsBuilt-In Ranges
Freestanding
Ranges
MicrowavesVent HoodsFreezersUnder CounterWashers / Dryers
Dishwashers /
Kitchen Cleanup
Electric Cooktops
EW36EC55G S, EW36EC55G W, EW36EC55G B
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
EW36EC55G 07/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
4"x 8" opening to
route armoured cable
if base is present
Plywood base
(optional)
9" min.
25"min.
36"
13"
max.
cabinet
depth
18"
min.
30" min.
for
unprotected
cabinet
24" min.
for
protected
surface
71/2" min. to nearest
combustible wall
(either side of unit)
24"
2" min. recommended
distance between rear
edge of cutout and
nearest combustible
surface above countertop
21/2" min. from
edge of cutout to front
edge of countertop
20
3
/8" min.
20
5
/8" max.
35
3
/4" min.
36" max.
345/8"
191/4"
363/4"
213/4"
7"
31/8"
Cooktop
CountertopCountertop
7"
31/2"
71/2"
Front Rear
Side View
31/8"

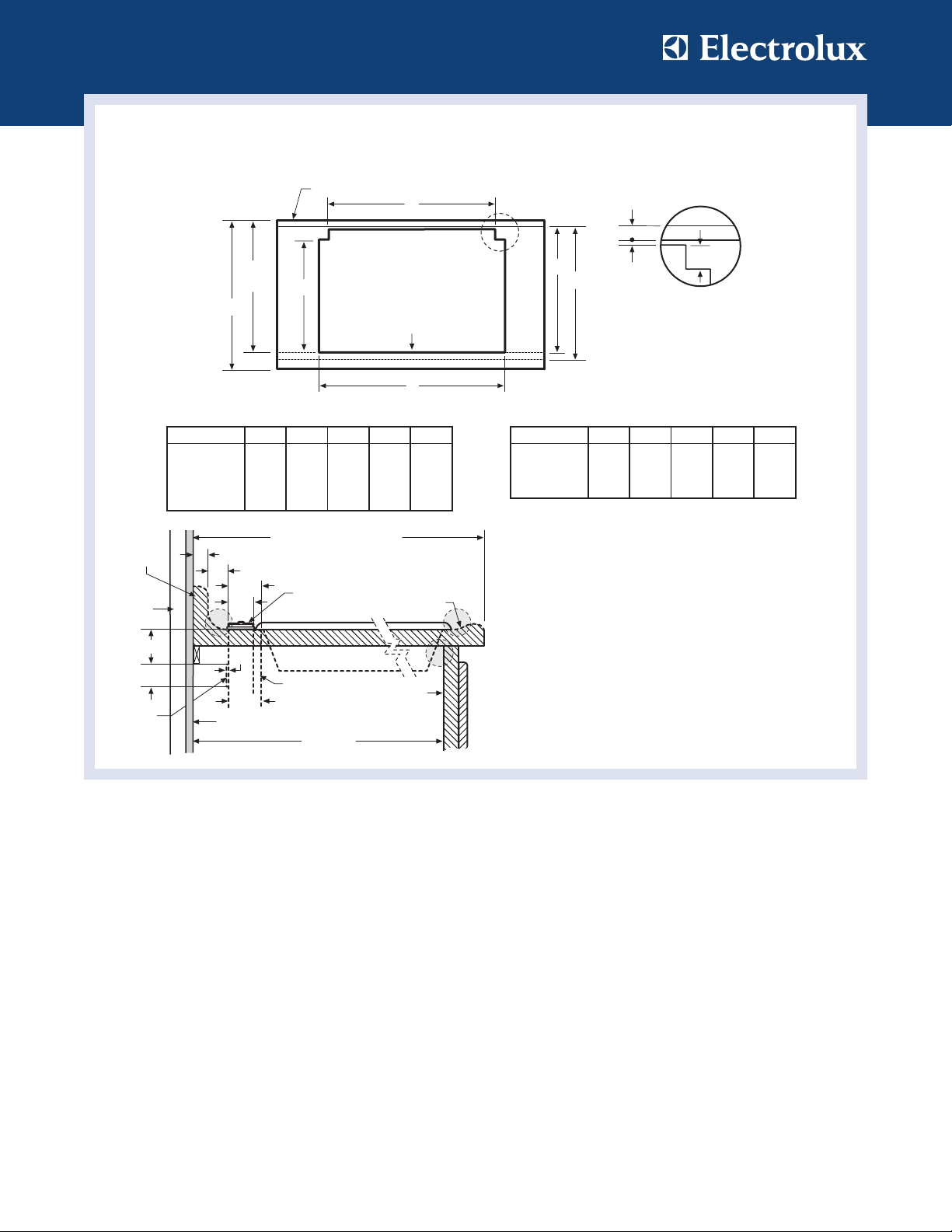

36" Electric Touch-Control Cooktop Specifications
•
Product Weight – 58 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 10.2/7.7kW
•
Amps @ 240/208 Volts = 42.5/37.0 Amps
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Allow 2" space beneath cooktop or optional platform to clear electrical
cable and allow space for installation of junction box on wall at back of
cooktop. Position center of junction box 10" inward from right side of
cooktop cutout, and 12" down from underside of countertop.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of cooktop and bottom of
unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 36".
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No. 28 MSG sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•
Allow 2" minimum clearance between rear edge of cutout and nearest
combustible surface above countertop.
•
Allow 7-1/2" minimum clearance from edge of cooktop to nearest
combustible wall on either side of unit.
•
Installation of drawers beneath cooktop requires minimum 10"
clearance beneath countertop surface and assured clearance for
electrical connection.
•
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond
bottom of cabinets.
•

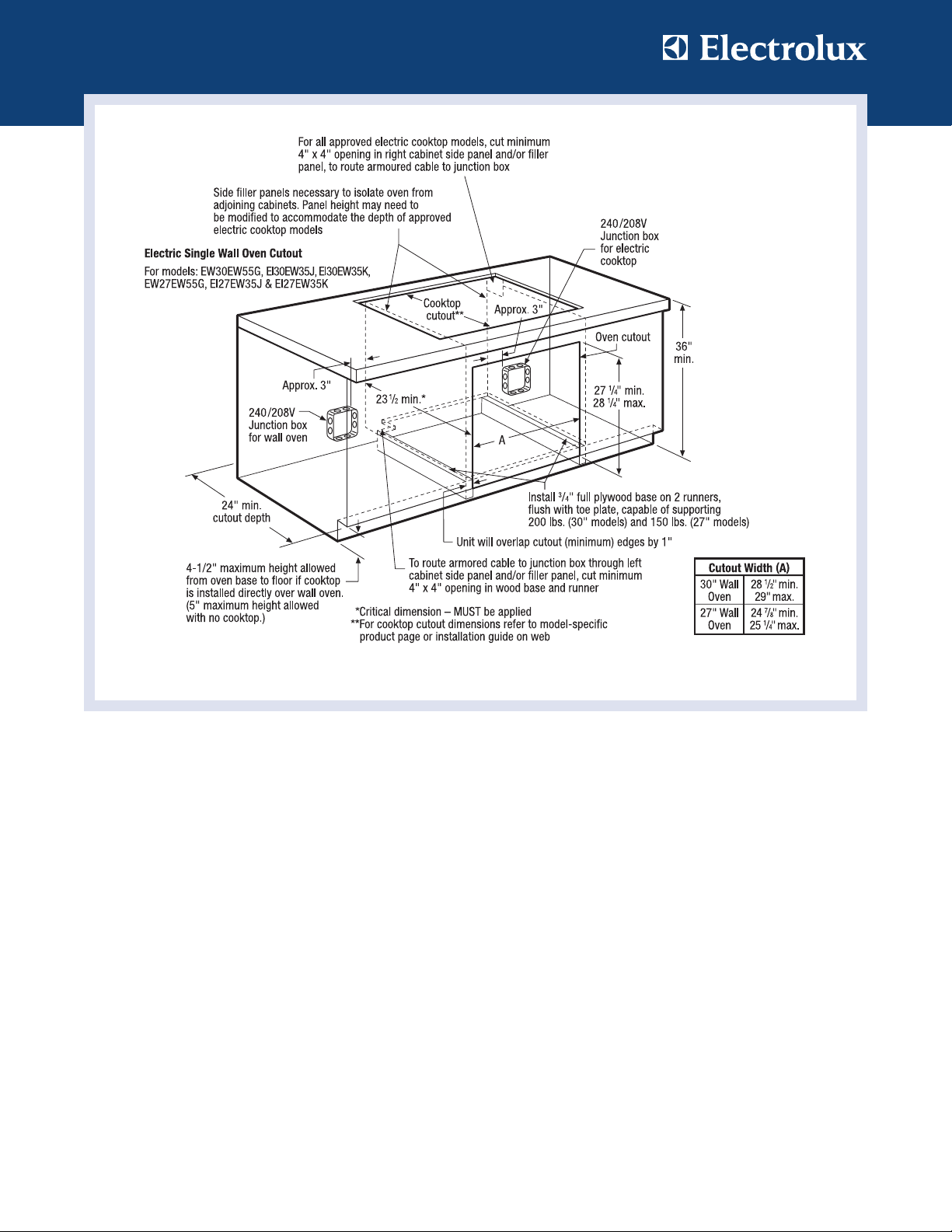

Touch-Control Cooktop model EW36EC55G is approved to be used
over any Electrolux Electric Single Wall Oven. (Refer to Electric Cooktop
Installation Over 30"/27" Electric Single Wall Oven Specifications page
on web.)
•
Touch-Control Cooktop model EW36EC55G is approved to be used in
combination with any Electrolux 36" Downdraft Vent. (Refer to model-
specific Downdraft Vent product page on web for detailed countertop
preparation specifications.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
Granite Countertop Installation Kit – (PN# 903061-9010).
•
Griddle Plate – (PN# 318251611).
