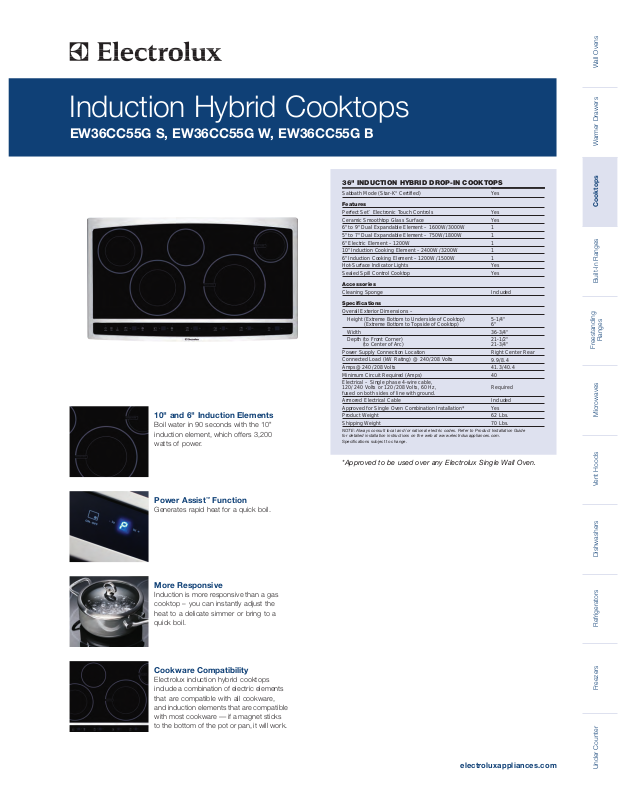

Electrolux EW36CC55GW, EW36CC55GS, EW36CC55GB User Manual
Induction Hybrid Cooktops
EW36CC55G S, EW36CC55G W, EW36CC55G B
36" INDUCTION HYBRID DROP-IN COOKTOPS
Sabbath Mode (Star-K®Certified)
Features
Perfect Set™Electronic Touch Controls
Ceramic Smoothtop Glass Surface
6" to 9" Dual Expandable Element – 1600W/ 3000W
5" to 7" Dual Expandable Element – 750W/ 1800W
6" Electric Element – 1200W
10" Induction Cooking Element – 2400W/ 3200W
6" Induction Cooking Element – 1200W/ 1500W
Hot-Surface Indicator Lights
Sealed Spill Control Cooktop
Accessories
Cleaning Sponge
Specifications
Overall Exterior Dimensions –
Height (Extreme Bottom to Underside of Cooktop)
(Extreme Bottom to Topside of Cooktop)
Width
Depth (to Front Corner)
(to Center of Arc)
Power Supply Connection Location
Connected Load (kW Rating) @ 240/ 208 Volts
Amps@ 240/ 208 Volts
Minimum Circuit Required (Amps)
Electrical – Single phase 4-wire cable,
120/ 240 Volts or 120/208 Volts, 60 Hz,
fused on both sides of line with ground.
Armored Electrical Cable
Approved for Single Oven Combination Installation*
10" and 6" Induction Elements
Boil water in 90 seconds with the 10"
induction element, which offers 3,200
watts of power.
Product Weight
Shipping Weight
NOTE: Always consult local and/ or national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at www.electroluxappliances.com.
Specifications subject to change.
Yes
Yes
Yes
1
1
1
1
1
Yes
Yes
Included
5-1/4"
6"
36-3/4"
21-1/2"
21-3/4"
Right Center Rear
9.9/ 8.4
41.3/ 40.4
40
Required
Included
Yes
62 Lbs.
70 Lbs.
Wall OvensWarmer DrawersCooktopsBuilt-In Ranges
Ranges
Freestanding
MicrowavesVent HoodsDishwashersRefrigerators
Power Assist™Function
Generates rapid heat for a quick boil.
More Responsive
Induction is more responsive than a gas
cooktop – you can instantly adjust the
heat to a delicate simmer or bring to a
quick boil.
Cookware Compatibility
Electrolux induction hybrid cooktops
include a combination of electric elements
that are compatible with all cookware,
and induction elements that are compatible
with most cookware — if a magnet sticks
to the bottom of the pot or pan, it will work.
*Approved to be used over any Electrolux Single Wall Oven.
FreezersUnder Counter
electroluxappliances.com
Induction Hybrid Cooktops
EW36CC55G S, EW36CC55G W, EW36CC55G B
13"
max.
cabinet
depth
25/8"
191/16"
4"x 8" opening to
2" min. recommended
distance between rear
edge of cutout and
nearest combustible
surface above countertop
route armoured cable
Approximate location
of junction box
363/4"
345/8"
36"
C
10"
L
12"
211/2"
Overall depth
at center of
3
arc – 21
/4"
6" min.
30" min.
for
unprotected
cabinet
24" min.
for
18"
min.
3
/4"
protected
surface
51/4"
71/2" min. to nearest
combustible wall
(either side of unit)
3
/8" min.
20
1
20
25"min.
/2" max.
24"
21/2" min. from
edge of cutout to front
edge of countertop
36" Induction Hybrid Drop-In Cooktop Specifications
•
Product Weight – 62 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120 /208 Volt, 60 Hertz,
fused on both sides of line with ground.
•
Connected Load (kW Rating) @ 240/208 Volts = 9.9/8.4 kW
•
Amps @ 240/208 Volts = 41.3/40.4 Amps
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and/or national electric codes.
•
Allow 2"space below armoured cable opening to clear electrical cable
and allow space for installation of junction box on wall at back of cooktop.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of cooktop and bottom of
unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
36" min.
1
36
/4" max.
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No. 28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•
Allow 2" minimum clearance between rear edge of cutout and nearest
combustible surface above countertop.
•
Allow 7-1/2" minimum clearance from edge of cooktop to nearest
combustible wall on either side of unit.
•
It is recommended that drawers not be used beneath cooktop.
•
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
•
Induction Hybrid Drop-In Cooktop model EW36CC55G is approved to be
used over any Electrolux Single Wall Oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
•
