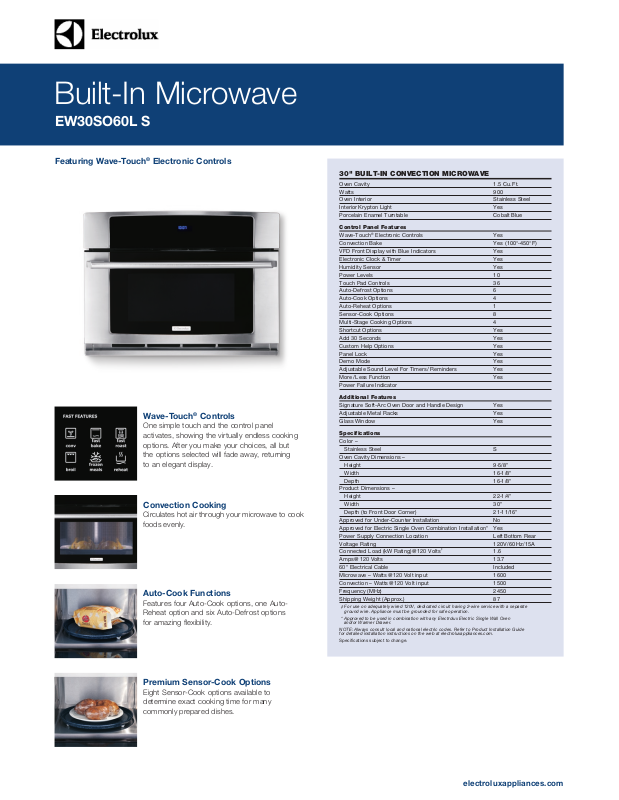

Electrolux EW30SO60LS User Manual
Built-In Microwave
EW30SO60L S
Featuring Wave-Touch® Electronic Controls
Wave-Touch® Controls
One simple touch and the control panel
activates, showing the virtually endless cooking
options. After you make your choices, all but
the options selected will fade away, returning
to an elegant display.
Convection Cooking
Circulates hot air through your microwave to cook
foods evenly.
Auto-Cook Functions
Features four Auto-Cook options, one AutoReheat option and six Auto-Defrost options
for amazing flexibility.
30" BUILT-IN CONVECTION MICROWAVE
Oven Cavity
Watts
Oven Interior
Interior Krypton Light
Porcelain Enamel Turntable
Control Panel Features
Wave-Touch
Convection Bake
VFD Front Display with Blue Indicators
Electronic Clock & Timer
Humidity Sensor
Power Levels
Touch Pad Controls
Auto-Defrost Options
Auto-Cook Options
Auto-Reheat Options
Sensor-Cook Options
Multi-Stage Cooking Options
Shortcut Options
Add 30 Seconds
Custom Help Options
Panel Lock
Demo Mode
Adjustable Sound Level For Timers / Reminders
More / Less Function
Power Failure Indicator
Additional Features
Signature Soft-Arc Oven Door and Handle Design
Adjustable Metal Racks
Glass Window
Specifications
Color –
Stainless Steel
Oven Cavity Dimensions –
Height
Width
Depth
Product Dimensions –
Height
Width
Depth (to Front Door Corner)
Approved for Under-Counter Installation
Approved for Electric Single Oven Combination Installation*
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
60" Electrical Cable
Microwave – Watts @ 120 Volt input
Convection – Watts @ 120 Volt input
Frequency (MHz)
Shipping Weight (Approx.)
‡ For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
* Approved to be used in combination with any Electrolux Electric Single Wall Oven
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
®
Electronic Controls
‡
ground wire. Appliance must be grounded for safe operation.
and/or Warmer Drawer.
1.5 Cu. Ft.
900
Stainless Steel
Yes
Cobalt Blue
Yes
Yes (100°-450° F)
Yes
Yes
Yes
10
36
6
4
1
8
4
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
S
9-5/8"
16-1/8"
16-1/8"
22-1/4"
30"
21-11/16"
No
Yes
Left Bottom Rear
120V / 60Hz / 15A
1.6
13.7
Included
1600
1500
2450
87
Premium Sensor-Cook Options
Eight Sensor-Cook options available to
determine exact cooking time for many
commonly prepared dishes.
electroluxappliances.com
Built-In Microwave
EW30SO60L S
30" Built-In Microwave Specifications
•
Product Weight – 82 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.6kW (For use on
adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @ 120 Volts = 13.7 Amps
•
Always consult local and national electric codes.
•
Allow at least 15" clearance for oven door depth when open.
•
Minimum required distance from floor is 36".
•
Minimum 20-1/8" deep oven cutout dimension is critical for proper
installation for oven and faceplate to fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable
of supporting 150 Lbs.
•
Base must be level and cabinet front must be square.
•
Grounded outlet should NOT be located in shaded area, as indicated,
unless cabinet depth is greater than 21-1/8".
•
Built-In Microwave is NOT approved to be used under counter.
•
Built-In Microwave can be built in alone or is approved to be used in
combination with any Electrolux Electric Single Wall Oven and / or Warmer
Drawer. (Refer to model-specific Combination Installation Specification
pages on web.)
•
When used in combination with another Electrolux built-in product, a
minimum clearance of 2-1/8" required from bottom of Built-In Microwave
cutout to top edge of companion product’s faceplate, leaving a 2" visible
gap between both product faceplates.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Electrolux Major Appliances, N.A.
•
USA
10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com
• 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
CANADA
EW30SO60L 11/12 © 2012 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
