36" GAS RANGE INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
36" GAS RANGE
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Canada
FOR YOUR SAFETY: Do not store or use
gasoline or other ammable vapors and liquids in the
vicinity of this or any other appliance.
Table of Contents
Important Safety Instructions .......................................2-4
Product Dimensions ....................................................... 5
Cabinet Dimensions ....................................................... 6
Cabinet Construction ...................................................... 7
Electrical Requirements...............................................7-8
Power Supply Cord......................................................... 8
Fuel Supply Requirements ............................................. 9
Connect Fuel Supply .................................................... 10
Important Notes to the Installer
1. Read all instructions contained in these installation
instructions before installing range.
2. Remove all packing material from the oven and the
drawer compartments before connecting the electrical
supply to the range.
3. The anti-tip bracket supplied with the appliance must
be installed.
4. Observe all governing codes and ordinances.
5. Be sure to leave these instructions with the consumer.
Install Oven Racks.........................................................11
Level the Range ............................................................11
Install Anti-Tip Bracket ............................................. 12-13
Prepare Burner Assemblies ..................................... 14-15
Adjust Oven Burners .................................................... 15
Check Oven Operation ................................................. 16
After Installation ............................................................ 16
Serial Plate Location (Model & Serial Number) ............ 16
Important Note to the Consumer
1. Keep these instructions with your owner's guide for
future reference.
2. When using any appliance generating heat, there are
safety precautions you must follow. These precautions
are explained in your Use and Care manual. Read
your manual carefully.
3. Be sure your appliance is installed and grounded by a
qualied installer or service technician.
Printed in the United States
P/N 809018601 (1701) Rev.A
English – pages 1-16
Español – pages 17-32
Français – pages 33-48
1
Page 2
36" GAS RANGE INSTALLATION INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
This appliance must be installed, grounded, and serviced by a qualied installer or service technician.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all
instructions given. Do not attempt to install or operate your appliance until you have read the safety precautions in this
manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type.
Warnings and important instructions appearing in this guide are not meant to cover all possible conditions and situations
that may occur. Common sense, caution, and care must be exercised with installing, maintaining, or operating your
appliance.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
Indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
IMPORTANT: Indicates installation, operation, maintenance, or valuable information that is not hazard related.
Tip Over Hazard
• A child or adult can tip the range
and be killed.
• Verify the anti-tip device has been
installed to floor or wall.
• Ensure the anti-tip device is re-engaged to floor or wall
when the range is moved.
• Do not operate the range without the anti-tip device in
place and engaged.
• Failure to follow these instructions can result in death or
serious burns to children and adults.
Range
leveling leg
Anti-tip
bracket
To check if the anti-tip bracket is installed properly, use both
arms to grasp the rear edge of the range back. Carefully
attempt to tilt range forward. When properly installed, the range
should not tilt forward.
Refer to the anti-tip bracket installation instructions supplied
with your range for proper installation.
If the information in this manual
is not followed exactly, a fire or explosion
may result causing property damage,
personal injury or death.
FOR YOUR SAFETY:
—Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
—WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch; do
not use any phone in your building.
•Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
•If you cannot reach your gas supplier,
call the fire department.
—Installation and service must be
performed by a qualified installer,
servicer or the gas supplier.
2
Page 3
36" GAS RANGE INSTALLATION INSTRUCTIONS
• Excessive Weight Hazard--Use two or more
people to move and install range. Failure to follow
this instruction can result in back or other injury.
• Storage In or On Appliance—Flammable
materials should not be stored in an oven or
microwave, near surface burners or elements, or
in the storage or warmer drawer (if equipped). This
includes paper, plastic, and cloth items, such as
cookbooks, plastic ware, and towels, as well as
ammable liquids. Do not store explosives, such as
aerosol cans, on or near the appliance.
• Do not leave children alone - Children should
not be left alone or unattended in the area where
appliance is in use. They should never be allowed
to sit or stand on any part of the appliance,
including the storage drawer, lower broiler drawer,
warmer drawer, or lower double oven.
• Do not store items of interest to children in the
cabinets above the appliance or on the backguards
of ranges. Children climbing on or near the
appliance to reach items could be seriously injured.
• Stepping, leaning, or sitting on the door or drawers
of this appliance can result in serious injuries and
also cause damage to the appliance.
• Do not use oven or warmer drawer (if equipped) for
storage.
• Never use your appliance as a space heater to
heat or warm the room. Doing so may result in
carbon monoxide poisoning and overheating of the
appliance.
• Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other
appliance.
• Never cover any slots, holes, or passages in the
oven bottom or cover an entire oven rack with any
materials, such as aluminum foil or aftermarket oven
liners. Aluminum foil and other liners may trap heat,
causing a re hazard.
• Air curtain or other overhead range hoods which
operate by blowing a downward air ow onto a
range or cooktop, shall not be used in conjunction
with gas ranges or cooktops other than when the
range or cooktop and hood have been designed,
tested, and listed by an independent test laboratory
for use in combination with each other.
IMPORTANT INSTRUCTIONS FOR UNPACKING AND
INSTALLATION
Read and follow the below instructions and precautions
for unpacking, installing, and servicing your appliance:
• Destroy the carton and plastic bags after unpacking the
appliance. Never allow children to play with packaging
material. Do not remove the wiring label and other
literature attached to the appliance. Do not remove
model/serial number plate.
• Cold temperatures can damage the electronic control.
When using this appliance for the rst time, or when the
appliance has not been used for an extended period of
time, be sure the appliance has been in temperatures
above 32ºF (0ºC) for at least 3 hours before turning on
the power to the appliance.
• Never modify or alter the construction of the appliance
by removing the leveling legs, panels, wire covers, antitip brackets/screws, or any other part of the appliance.
• Proper Installation—Be sure your appliance is properly
installed and grounded by a qualied technician. In the
United States, install in accordance with the National
Fuel Gas Code ANSI Z223.1/NPFA No. 54, latest
edition and National Electrical Code NFPA No. 70
latest edition, and local electrical code requirements.
In Canada, install in accordance with CAN/CGA
B149.1 and CAN/CGA B149.2 and CSA Standard
C22.1, Canadian Electrical code, Part 1-latest editions
and local electrical code requirements. Install only
per installation instructions provided in the literature
package for this appliance.
• The installation of appliances designed for
manufactured (mobile) home installation must
conform with Manufactured Home Construction and
Safety Standard, title 24CFR, part 3280 [Formerly
the Federal Standard for Mobile Home Construction
and Safety, title 24, HUD (part 280)] or when
such standard is not applicable, the Standard for
Manufactured Home Installation 1982 (Manufactured
Home Sites, Communities and Setups), ANSI Z225.1/
NFPA 501A-latest edition, or with local codes in United
States and with CAN/CSA-Z240 MH in Canada.
• Before installing the range in an area covered with
linoleum or any other synthetic oor covering, make
sure the oor covering can withstand heat at least
90°F (32.2°C) above room temperature without
shrinking, warping or discoloring. Do not install the
range over carpeting unless you place an insulating
pad or sheet of ¼" (0,64 cm) thick plywood between
the range and carpeting.
• Make sure the wall coverings and cabinet materials
around the range can withstand the heat generated by
the appliance.
• To eliminate the risk of burns or re by reaching over
heated surface units, cabinet storage space above the
surface unit should be avoided. If cabinet storage is to
be provided the risk can be reduce by installing a range
hood that projects horizontally a minimum of 5 inches
beyond the bottom of the cabinet.
• Do not obstruct airow at the oven vent, around
the base, or beneath the lower front panel of the
appliance. This appliance requires fresh air for proper
operation.
• Be sure to have an appropriate foam-type re
extinguisher available, visible, and easily accessible
located near the appliance.
3
Page 4
36" GAS RANGE INSTALLATION INSTRUCTIONS
SPECIAL INSTRUCTIONS FOR APPLIANCES
INSTALLED IN THE STATE OF MASSACHUSETTS
This appliance can only be installed in the State of
Massachusetts by a Massachusetts licensed plumber or
gas tter. When using a exible gas connector, it must
not exceed 3 feet (36 inches) in length. A "T" handle type
manual gas valve must be installed in the gas supply line
to this appliance.
CONVERSION TO L.P. GAS
This appliance allows for conversion to Liqueed
Petroleum (L.P.) Gas.
Personal injury or death from electrical
shock may occur if the conversion to L.P. gas is not
made by a qualied installer or electrician. Any additions,
changes or conversions required in order for this
appliance to satisfactorily meet the application needs
must be made by a qualied technician.
If L.P. conversion is needed, contact your local L.P.
Gas provider for assistance. The L.P. conversion kit is
provided with this appliance and is located on the lower
REAR (back side) panel of the range. Before installing
the kit be sure to read the L.P. Installation Instructions
and follow them carefully when making the installation.
IMPORTANT INSTRUCTIONS FOR SERVICE AND
MAINTENANCE
• Do not repair or replace any part of the appliance
unless specically recommended in the manuals. All
other servicing should be done only by a qualied
technician. This reduces the risk of personal injury
and damage to the appliance.
• Always contact your dealer, distributor, service agent,
or manufacturer about problems or conditions you do
not understand.
• Ask your dealer to recommend a qualied technician
and an authorized repair service. Know how to
disconnect the power to the appliance at the circuit
breaker or fuse box in case of an emergency.
• Remove the oven door from any unused oven if it is to
be stored or discarded.
• Do not touch a hot oven light bulb with a damp cloth.
Doing so could cause the bulb to break. Handle
halogen lights (if equipped) with paper towels or soft
gloves. Disconnect the appliance or shut off the power
to the appliance before removing and replacing the
bulb.
4
Page 5
36" GAS RANGE INSTALLATION INSTRUCTIONS
Product Dimensions
Do not install the unit in the cabinet before reading next two pages.
D
C
B
A
E
Figure 1: Product Dimensions
MODEL A. HEIGHT B. WIDTH
36" 49" (124.5cm) Max. 36" (91.4cm) 28 1/2" (72.4cm) Max. 36" (91.4cm) Max. 47 3/4" (121.3 cm)
C. DEPTH TO FRONT
OF RANGE
5
D. HEIGHT OF
COOKTOP
E. DEPTH WITH
DOOR OPEN
Page 6
36" GAS RANGE INSTALLATION INSTRUCTIONS
Cabinet Dimensions
Clearances and Dimensions
• Provide adequate clearances between the appliance and adjacent combustible surfaces.
• Location - Check location where the appliance will be installed. Check for proper electrical supply and oor
stability.
• Dimensions shown must be used. Given dimensions provide minimum clearance. Contact surface must be
solid and level.
J
H
G
I
F
Figure 2: Cabinet Dimensions
13" Max.
(33 cm Max.)
18" Min.
(45.7 cm Min.)
24" Min.
(61 cm Min.)
24½" max.
(62.2 cm Max.)
MODEL
36" 36 1/4" (92.1cm)
NOTES:
1. Do not seal the range to the side cabinets.
2. Clearance from adjacent walls or other vertical surfaces or structures such as cabinets.
3. Measurements listed are minimum clearance between the cooktop and the bottom of the cabinet.
4. 0" clearance between range and cabinets or vertical surfaces that are below the cooktop height.
5. 0" clearance between range back and rear wall or cabinet.
F. MINIMUM
CUTOUT WIDTH
G. HEIGHT OF
COUNTERTOP
36" (91.4cm) Standard
35 3/4" (90.8cm) Min.
H. CLEARANCE
FROM SIDE
WALLS
5" (12.7cm) Min. 36" (91.4cm) Min. 36" (91.4cm) Min.
6
2
I. CLEARNACE
FROM COOKTOP
AND CABINET
BOTTOM
J. CLEARANCE
WIDTH OF
3
OVERHEAD
CABINETS
Page 7
36" GAS RANGE INSTALLATION INSTRUCTIONS
Follow instructions for
the type of installation you have
Center
Line of
Range
1
Cabinet Construction
To eliminate the risk of burns or re by
reaching over heated surface units, do not have cabinet
storage space above the range. If there is cabinet storage
space above range, reduce risk by installing a range
hood that projects horizontally a minimum of 5" (12.7 cm)
beyond the bottom of the cabinet.
Figure 3: Cabinet construction
1.1
Installation: Cabinet on Both Sides
1. If range will be installed with a cabinet on both sides,
Draw a center line on the oor between the cabinets
(Figure 3).
2. If back of range will not be ush with the wall (the
location of the outlet may not allow the range to be
positioned against the wall), draw a line on the oor
where the back edge of the range will be.
3. Install anti-tip brackets (see "Anti-Tip Bracket
Installation").
2
Electrical Requirements
Electrical Shock Hazard –Electrical ground is
required on this appliance. Use only the power cord
supplied with the appliance. Improper connections and
grounding may result in electric shock, damage to the
appliance, personal injury, re or death.
Grounding Requirements
This appliance must be installed and grounded by a
qualied technician.
In the United States, install in accordance with the National
Fuel Gas Code ANSI Z223.1/NPFA No. 54, latest edition
and National Electrical Code NFPA No. 70 latest edition,
and local electrical code requirements. In Canada, install in
accordance with CAN/CGA B149.1 and CAN/CGA B149.2
and CSA Standard C22.1, Canadian Electrical code, Part
1-latest editions and local electrical code requirements.
This appliance requires a dedicated, properly grounded and
polarized branch circuit protected by a 15 amp GFI (ground
fault interrupter) circuit breaker or time delay fuse. See
serial plate for proper voltage.
1.2
Installation: Cabinet on One Side Only
1. If range will be installed with a cabinet on one side
only, move the range into nal position.
2. Draw a line on the oor along the side of the range
that is not against the cabinet. If back of range will
not be ush with the wall (the location of the outlet
may not allow the range to be positioned against the
wall), draw a line on the oor where the back edge of
the range will be.
3. Install anti-tip brackets (see "Anti-Tip Bracket
Installation").
1.3
Installation: Without Cabinet
1. If range will not be installed against a cabinet, move
range into nal position.
2. Mark on the oor along both sides of the range.
If back of range will not be ush with the wall (the
location of the outlet may not allow the range to be
positioned against the wall), draw a line on the oor
where the back edge of the range will be.
3. Install anti-tip brackets (see "Anti-Tip Bracket
Installation").
Figure 4: 3-Prong Gounded Electrical Outlet
For personal safety, this appliance must be properly
grounded. For maximum safety, the power cord must
be plugged into an electrical outlet that is the correct
voltage, is correctly polarized and properly grounded
in accordance with local codes. It is the personal
responsibility of the consumer to have the appropriate
outlet with the correct, properly grounded wall receptacle
installed by a qualied electrician.
Be sure the wall receptacle is within reach of the
appliance's nal installed location.
Do not pinch the power supply cord between the range
and the wall.
7
Page 8
36" GAS RANGE INSTALLATION INSTRUCTIONS
12”
(30.5 cm)
8”
(20.3 cm)
Recommended Wall Outlet Installation
Locations
Suggested location of the wall outlet is shown in
Figure 5. The outlet may also be located in the lower
corner of the adjacent cabinets, as shown in Figure 6.
Power Supply Cord
3
Electrical Shock Hazard –Do not attempt to install
the appliance directly to a junction box, modify the
factory-installed cord, or connect a different power
cord to the appliance. If the wall outlet is not sufcient
to support the requirements of this appliance, it is the
responsibility of the consumer to have the appropriate
outlet installed by an electrician. Improper installation
and electrical connections can result in electric shock,
damage to the appliance, personal injury, re, or death.
5" Max.
12.7 cm
7" Max.
17.8 cm
Figure 5: Outlet location behind range
8"
20.3 cm
WALL
FLOOR
This appliance is equipped with a 3-prong grounding plug
for your protection against shock hazard and should be
plugged directly into a properly grounded receptacle. Do
not cut or remove the grounding prong from this plug.
Do not, under any
circumstances, cut,
remove, or bypass
the grounding
prong.
Figure 7: Factory connected power supply cord
For personal safety, the appliance must be properly
grounded. For maximum safety, the power cord must be
plugged into an electrical outlet that is correctly polarized
and properly grounded.
If a 2-prong wall receptacle is the only available outlet,
it is the personal responsibility of the consumer to
have it replaced with a properly grounded 3-prong wall
receptacle, installed by a qualied technician.
Figure 6: Adjacent cabinet outlet location
8
Page 9
36" GAS RANGE INSTALLATION INSTRUCTIONS
Shutoff Valve -
Open position
to appliance
to gas supply line
12”
(30.5 cm)
8“
(20.3 cm)
Fuel Supply Requirements
4
This unit is designed to operate on 4"(10.16 cm) water
column (1.0 kPa) natural gas manifold pressure.
A convertible pressure regulator is connected to the
range manifold and MUST be connected in series with
the gas supply line. The regulator is located as shown on
Figure 8.
4.2
Shutoff Valve
The supply line should be equipped with an approved
shutoff valve as shown in Figure 10. This valve should
be located in the same room as the range and should
be in a location that allows ease of opening and closing.
Do not block access to the shutoff valve. The valve is for
turning on or shutting off gas to the appliance.
For proper operation, the maximum inlet pressure to
the regulator should be no more than 14" (35.56 cm) of
water column pressure (3.5 kPa).
The inlet pressure to the regulator must be at least
1" (0.25 kPa) greater than the regulator manifold
pressure setting. The regulator is set for 4" (10.16 cm)
water column (1.0 kPa) Natural gas manifold pressure;
the inlet pressure must be at least 5" (12.60 cm) water
column (1.25 kPa) Natural gas.
For operation at 2000 ft. above sea level, appliance rating
is reduced by 4 percent for each additional 1000 ft.
4.1
The gas supply piping can be through the side walls
of the adjacent cabinets. Cabinets are ideal locations
for the main shutoff valve if the appliance is installed
between cabinets.
Figure 8: Regulator location
Gas Supply Location
Figure 10: Shutoff valve
The gas supply between the shutoff valve and the
regulator may be connected by rigid piping or by A.G.A./
C.G.A.- approved exible metallic union-connected
piping where local codes permit use.
The user must know the location of the main shutoff
valve and have easy access to it.
4.3
Conversion to Liqueed Petroleum
(L.P.) Gas
This appliance allows for conversion to Liqueed
Petroleum (L.P.) Gas.
Personal injury or death from electrical
shock may occur if the conversion to L.P. gas is not
made by a qualied installer or electrician. Any additions,
changes or conversions required in order for this
appliance to satisfactorily meet the application needs
must be made by a qualied technician.
If L.P. conversion is needed, contact your local L.P.
Gas provider for assistance. The L.P. conversion kit is
provided with this appliance and is located on the lower
REAR (back side) panel of the range. Before installing
the kit be sure to read the L.P. Installation Instructions
and follow them carefully when making the installation.
For LP/Propane gas, the regulator must be set for
10"(25.4 cm) water column (2.5 kPa) manifold pressure;
the inlet pressure must be at least 11"(27.9 cm) water
column (2.75 kPa).
Figure 9: Recommended gas supply location
9
Page 10
36" GAS RANGE INSTALLATION INSTRUCTIONS
Flare
Union
Flare
Union
GAS FLOW
Manual
Shutoff
Valve
Pressure
Regulator
On
Off
Flexible
Connector
Access
Cap
Nipple Nipple
Connect Fuel Supply
5
5.1
Fuel Supply Connection
This appliance must be installed,
grounded, and serviced by a qualied installer or service
technician.
Do not make connections too tight. The
regulator is die cast. Overtightening may crack the
regulator resulting in a gas leak and possible re or
explosion.
This appliance includes a regulator. The gas supply line
requires the following parts which are not supplied with
the appliance:
• Manual shutoff valve
• 1/2" nipples (2)
• 1/2" are union adapter (2)
• Flexible connector
The gas supply line to the shutoff valve should be
1/2"(1.27 cm) or 3/4"(1.9 cm) solid pipe.
Install the gas supply pipe to the pressure regulator in
the order shown in Figure 11. All connections should be
tightened with a wrench.
5.2
Check For Leaks
Do not use a ame to check for leaks from
gas connections. Checking for leaks with a ame may
result in a re or explosion.
After connecting the range to the gas supply, check the
system for leaks with a manometer. If a manometer is not
available, turn on the gas supply and use a liquid leak
detector (or soap and water) at all joints and connections
to check for leaks. Leaks will be indicated by bubbles
appearing at the connections or joints.
All openings in the wall or oor where the range is to be
installed must be sealed.
1. Tighten all connections if necessary to prevent gas
leakage in the cooktop or supply line.
2. Disconnect this range and its individual shutoff valve
from the gas supply piping system during any pressure
testing of the system at test pressures greater than
1/2 psig (3.5 kPa or 14"(35.56 cm) water column).
3. Isolate the range from the gas supply piping system by
closing its individual manual shutoff valve during any
pressure testing of the gas supply piping system at
test pressures equal to or less than 1/2 psig (3.5 kPa
or 14"(35.56 cm) water column).
Figure 11: Fuel supply connection ow
When using exible gas conduit on the range, allow
sufcient slack to pull the range outside the cutout for
cleaning or servicing.
Use pipe-joint compound made for use with Natural and
LP/Propane gas to seal all gas connections. If exible
connectors are used, be certain connectors are not
kinked.
Do not allow the exible conduit to get pinched between
the wall and the range.
10
Page 11
36" GAS RANGE INSTALLATION INSTRUCTIONS
Install the Oven Racks
6
The oven racks are supported inside the oven cavity by
two ladder racks, installed on the oven walls.
1. Place the ladder racks hook-side up into the support
brackets located on the oven sides (see Figure 12).
Figure 12: Ladder rack supports
2. Place the at oven racks into the desired positions.
To aid installation and movement of oven racks, apply
a thin layer of cooking oil to the sides of the oven racks
that contact the ladder supports.
7
Level the Range
Level the range and set cooktop height before
installation in the cut-out opening (if applicable).
1. Install an oven rack in the center of the oven.
2. Place a level on the rack (Figure 13). Take two
readings with the level placed diagonally in one
direction and then the other.
Figure 13: Use the oven racks to level appliance
3. Level the range, if necessary, by adjusting the four
leg levelers with a wrench (Figure 14).
4. Slide range into cut-out opening and double check
for levelness. If the range is not level, pull unit out
and readjust leveling legs, or make sure oor is level.
Leg
Leveler
Raise
Lower
11
Figure 14: Adjusting appliance height
Page 12
36" GAS RANGE INSTALLATION INSTRUCTIONS
8
Install Anti-Tip Bracket
To reduce the risk of tipping the appliance,
the appliance must be secured to the oor by the properly
installed anti-tip bracket and screws packed with the
range. These parts are located in the oven. Failure to
install the anti-tip bracket will allow the range to tip over if
excessive weight is placed on an open door or if a child
climbs on it. Serious injury might result from spilled hot
liquids or from the range itself.
If range is ever moved to a different location, the antitip brackets must also be moved and installed with the
range.
Tools Required:
• Adjustable Wrench
• Ratchet
• Drill & 1/8" (0.32 cm) bit
• 5/16" (0.8 cm) Nut driver
• Level
Tip Over Hazard
• A child or adult can tip the range
and be killed.
• Verify the anti-tip device has been
installed to floor or wall.
• Ensure the anti-tip device is re-engaged to floor or wall
when the range is moved.
• Do not operate the range without the anti-tip device in
place and engaged.
• Failure to follow these instructions can result in death or
serious burns to children and adults.
Range
leveling leg
Anti-tip
bracket
8.1

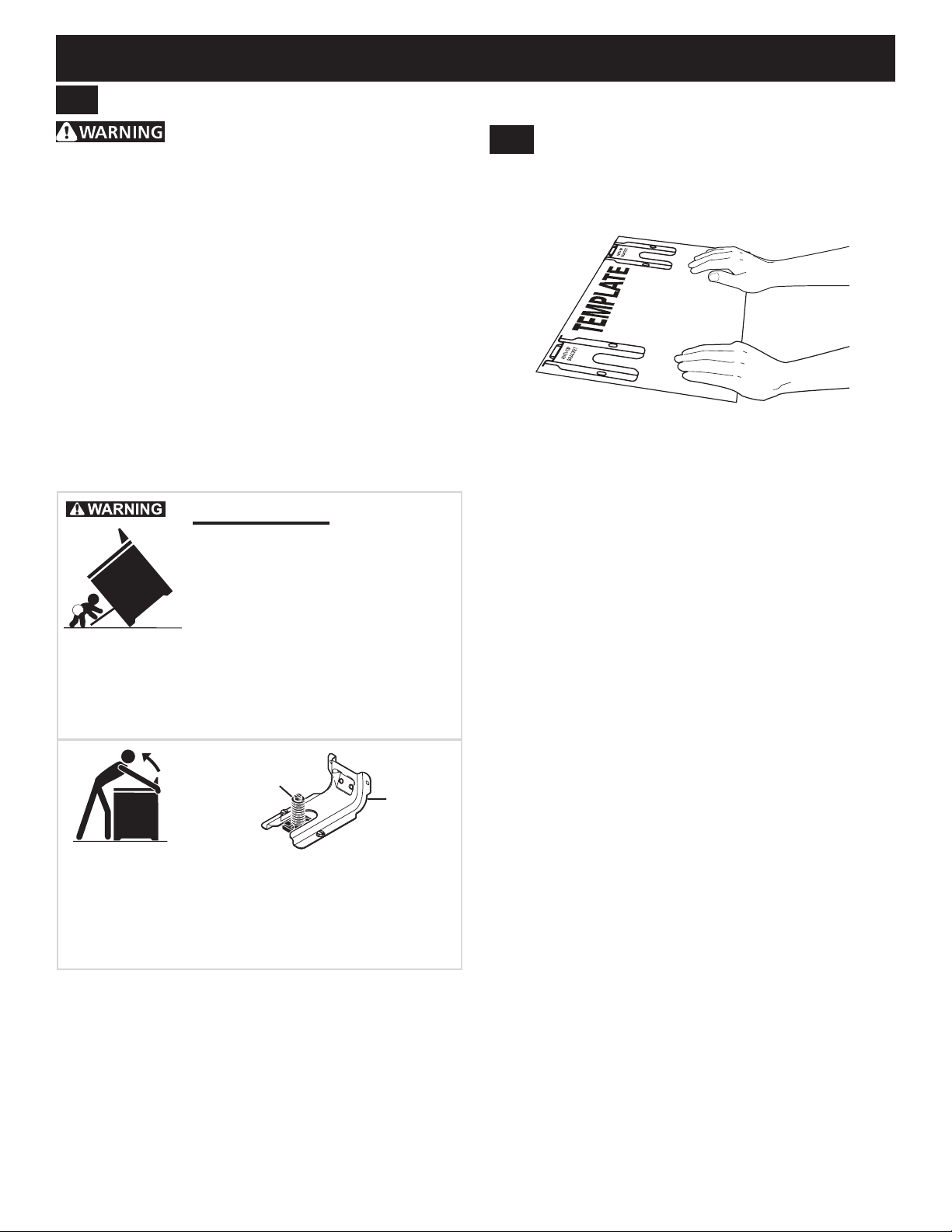

Locate the Bracket Using the Template
Bracket may be located on either the left or right side of
the range. Mark the oor or wall where left or right side of
the range will be located.
Figure 15: Bracket template
If rear of range is against the wall or no further than 1 1/4”
(3.2 cm) from wall when installed, you may use the wall
or oor mount method. If moulding is installed and does
not allow the bracket to t ush against the wall, remove
moulding or mount bracket to the oor.
For wall mount, locate the bracket by placing the back
edge of the template against the rear wall and the side
edge of template on the mark made referencing the side
of the range. Place bracket on top of template and mark
location of the screw holes in wall.
If rear of range is further than 1 1/4” (3.2 cm) from the wall
when installed, attach bracket to the oor. For oor mount,
locate the bracket by placing back edge of the template
where the rear of the range will be located.
Mark the location of the screw holes shown in template.
To check if the anti-tip bracket is installed properly, use both
arms to grasp the rear edge of the range back. Carefully
attempt to tilt range forward. When properly installed, the range
should not tilt forward.
Refer to the anti-tip bracket installation instructions supplied
with your range for proper installation.
12
Page 13
36" GAS RANGE INSTALLATION INSTRUCTIONS
Leveling Leg
Anti-Tip Bracket
Floor Mount
8.2
Drill Pilot Holes and Fasten Bracket
Drill a 1/8” pilot hole where screws are to be located.
If bracket is to be mounted to the wall, drill pilot hole at
an approximate 20° downward angle. If bracket is to
be mounted to masonry or ceramic oors, drill a 3/16”
(4.8 mm) pilot hole 1-3/4” deep.
Figure 16: Drill pilot holes
The screws provided may be used in wood or concrete
material. Use a 5/16” nut-driver or at head screwdriver to
secure the bracket in place.
8.3
Check Level and Position the Range
Check the level of the nal installation. Note: A minimum
clearance of 1/8” is required between the bottom of the
range and the levelling leg to allow room for the bracket.
Use a spirit level to check your adjustments.
1/8" Minimum
Figure 17: Fastening the bracket
Wall Mount
Figure 18: Use the oven racks to level appliance
Slide range into position.
Wall Plate
Figure 19: Slide appliance into bracket
To check if the anti-tip bracket is installed properly,
use both arms and grasp the rear edge of range back.
Carefully attempt to tilt range forward. When properly
installed, the range should not tilt forward.
If range is moved to a different location, the anti-tip
brackets must also be moved and installed with the range.
13
Page 14
36" GAS RANGE INSTALLATION INSTRUCTIONS
9
Prepare Burner Assemblies
9.1
Install Burner Caps
To prevent are-ups use the cooktop with
all burner caps properly installed.
1. Place a burner cap on each burner head, matching
the cap size to the head size (see Figure 20). The
cap for each burner has an inner locating ring which
centers the cap correctly on the burner head.
Burner cap
Locating ring
Burner head
To check for proper lighting:
1. Push in and turn a surface burner knob to the
sparking position. All electronic surface ignitors will
spark at the same time. Only the burner you are
turning on will ignite.
2. The surface burner should light once the ow of gas
reached the surface burner. Each burner should light
within four seconds in normal operation after air has
been purged from supply lines. Visually check that
burner has lit.
3. Once the burner lights, the control knob should be
turned out of the LITE position.
Turn on each of the surface burners and check to see
that they light properly and that the ames are even.
Adjust settings if necessary.
Burner cap
Burner head
Figure 20: Burner cap assembly
2. Make sure each burner cap is properly aligned and
level, as shown in Figure 21. Burners may not light or
burn evenly if the burner caps are not correctly place
on the head.
9.3
Adjusting Low Settings on
Surface Burners
To adjust the low setting of surface burners:
1. Push in and turn control to LITE until burner ignites.
2. Quickly turn knob to LOWEST POSITION.
3. If burner goes out, reset control to OFF.
4. Remove the surface burner control knob.
5. Insert a thin-bladed screwdriver into the hollow valve
stem and engage the slotted screw inside as shown in
Figure 22. Flame size can be increased or decreased
by turning the screw.
6. Adjust ame until you can quickly turn knob from the
Correct cap placement Incorrect cap placement
Figure 21: Burner cap placement
9.2
Check Ignition on Surface
Burners
Operation of electric igniters should be checked after
range and supply line connectors have been carefully
checked for leaks and range has been connected to
electric power.
Figure 22: Turn to adjust surface ame
sparking position to the lowest ame position without
extinguishing the ame. Flame should be as small as
possible without going out.
Notes:
• Air mixture adjustment is not required on surface
burners.
• Some models have two ames on a burner. The center
ame on these burners is not adjustable.
14
Page 15
36" GAS RANGE INSTALLATION INSTRUCTIONS
Adjusting Oven Burners
10
10.1
Electric Ignition Burners
Operation of electric igniters should be checked after
range and supply line connectors have been carefully
checked for leaks, and range has been connected to
electric power. The oven burner is equipped with an
electric control system as well as an electric oven burner
igniter. If your model is equipped with a waist-high broil
burner igniter, it will also have an electric burner igniter.
These control systems require no adjustment. When
the oven is set to operate, current will ow to the igniter.
It will "glow" similar to a light bulb. When the igniter
has reached a temperature sufcient to ignite gas, the
electrically controlled oven valve will open and ame will
appear at the oven burner. There is a time lapse from
30 to 60 seconds after thermostat is turned ON before
the ame appears at the oven burner. When the oven
reaches the display setting, the glowing igniter will go
off. The burner ame will go "out" in 20 to 30 seconds
after igniter goes "OFF". To maintain any given oven
temperature, this cycle will continue as long as the
display is set to operate.
After removing all packing materials and literature from
the oven:
1. Set the oven to BAKE at 300°F. See Use & Care
Guide for operating instructions.
2. Within 60 seconds the oven burner should ignite.
Check for proper ame (see 10.2), and allow the
burner to cycle once. Reset controls to off.
3. If your model is equipped with a waist-high broiler
burner, set oven to broil. See Use & Care Guide for
operating instructions.
4. Within 60 seconds the broil burner should ignite.
Check for proper ame. Reset controls to off.
Lower
Oven Burner
Bafe
(removable)
Air Shutter
Waist-High Burner
10.2
Oven Burner Flame Adjustment
The approximate oven burner ame length is 1 inch
(distinct inner cone of blue ame).
To determine if the oven burner ame is proper, remove
the oven bottom and burner bafe and set the oven to
bake at 300°F.
To remove the oven bottom, remove the oven racks
and the ladder racks. Slide the oven bottom forward to
disengage the back tab. Lift and slide back to disengage
front of oven bottom from oven front frame. Pull the oven
bottom out of the cavity. The bafe is attached to the
oven bottom and requires no further disassembly.
If the ame is yellow, increase air shutter opening size
(see "2" in Figure 24). If the entire ame is blue, reduce
the air shutter opening size.
To adjust ame loosen lock screw (see "3" in Figure 24),
reposition air shutter, and tighten lock screw. Replace
oven bottom.
Oven Burner Tube
Lock Screw
3
Air Shutter
2
Orice Hood
Figure 24: Oven Burner Adjustments
10.3
Broil Burner Flame Adjustment
The approximate ame length of the burner is 1 inch
(distinct inner cone of blue ame). To determine if the
broil burner ame is proper, set the oven to broil. If ame
is yellow, increase air shutter opening size (see "2" in
Figure 24). If the entire ame is blue, reduce the air
shutter opening size. To adjust, loosen lock screw (see
"3" in Figure 24), reposition air shutter, and tighten lock
screw.
1
Lower Oven
Bottom
Air Shutter
Figure 23: Oven Burners
removable)
15
Page 16
36" GAS RANGE INSTALLATION INSTRUCTIONS
Check Oven Operation
11
Refer to the Use and Care Guide packaged with the
range for operating instructions and for care and
cleaning of your range.
Remove all packaging from the oven before testing.
The oven is equipped with an electronic oven control.
Each of the functions has been factory checked before
shipping. However, it is suggested that you verify the
operation of the electronic oven controls once more.
Refer to the Owner's Guide for operation. Follow the
instructions for the Clock, Timer, Bake, Broil, Convection,
and Clean functions.
Bake–After setting the oven to 350°F (177°C) for baking,
the bake burner should ignite and the oor of the oven
cavity should become warm.
Broil–When the oven is set to BROIL, the upper element
in the oven should ignite.
Clean–When the oven is set for a self-cleaning cycle,
the bake burner should ignite during the preheat portion
of the cycle. The oor of the oven cavity should become
very hot.
Convection–When the oven is set to CONV. BAKE/
ROAST at 350°F (177°C), the bake burner and the
convection element cycle on and off. The convection fan
will begin to run a few minutes into the preheat cycle.
The convection fan will stop turning when the oven door
is opened during convection baking or roasting.
After Installation
12
When All Hookups are Complete
Make sure all controls are left in the OFF position.
Model and Serial Number Location
The serial plate is located on top of the range's lower
front panel, and can be clearly viewed when the door is
open. When ordering parts for or making inquiries about
your range, have the model and serial numbers ready.
(Figure 25).
Figure 25: Model, serial number location
Before You Call for Service
Read the Avoid Service Checklist and operating
instructions in your Owner's Guide. It may save you time
and expense. The list includes common occurrences that
are not the result of defective workmanship or materials
in this appliance.
Refer to the warranty and service information in your
Owner's Guide for our phone number and address.
Please call or write if you have inquiries about your
range product and/or need to order parts.
16
Loading...
