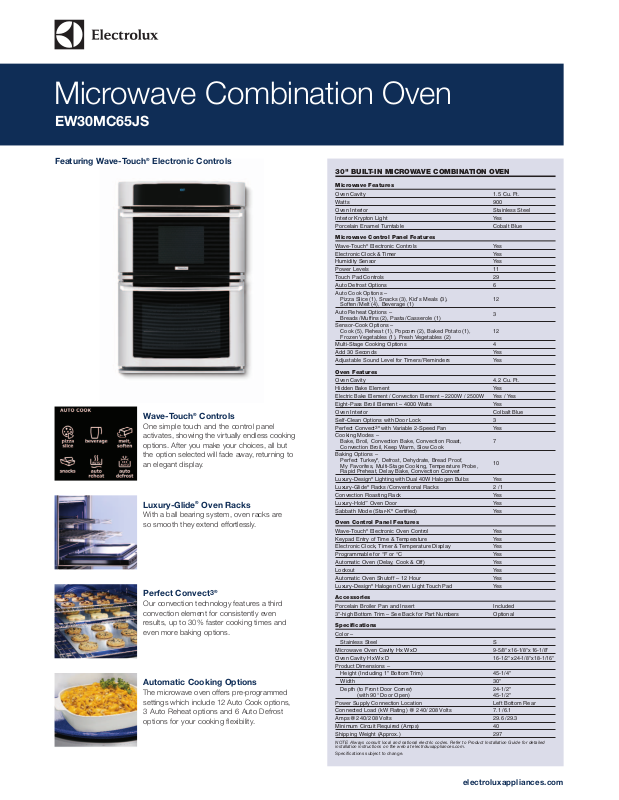

Electrolux EW30MC65JS User Manual
30" BUILT-IN MICROWAVE COMBINATION OVEN
Microwave Features
Oven Cavity
Watts
Oven Interior
Interior Krypton Light
Porcelain Enamel Turntable
Microwave Control Panel Features
Wave-Touch®Electronic Controls
Electronic Clock & Timer
Humidity Sensor
Power Levels
Touch Pad Controls
Auto Defrost Options
Auto Cook Options –
Pizza Slice (1), Snacks (3), Kid’s Meals (3),
Soften/ Melt (4), Beverage (1)
Auto Reheat Options –
Breads/ Muffins (2), Pasta / Casserole (1)
Sensor-Cook Options –
Cook (5), Rehe at (1), Popcorn (2), Baked Potato (1),
Frozen Vegetables (1), Fresh Vegetables (2)
Multi-Stage Cooking Options
Add 30 Seconds
Adjustable Sound Level for Timers/ Reminders
Oven Features
Oven Cavity
Hidden Bake Element
Electric Bake Element / Convection Element – 2200W / 2500W
Eight-Pass Broil Element – 4000 Watts
Oven Interior
Self-Clean Options with Door Lock
Perfect Convect
3
®
with Variable 2-Speed Fan
Cooking Modes –
Bake, Broil, Convection Bake, Convection Roast,
Convection Broil, Keep Warm, Slow Cook
Baking Options –
Perfect Turkey
®
, Defrost, Dehydrate, Bread Proof,
My Favorites, Multi-Stage Cooking, Temperature Probe,
Rapid Preheat, Delay Bake, Convection Convert
Luxury-Design®Lighting withDual 40W Halogen Bulbs
Luxury-Glide®Racks / Conventional Racks
Convection Roasting Rack
Luxury-Hold™Oven Door
Sabbath Mode (Star-K®Certified)
Oven Control Panel Features
Wave-Touch®Electronic Oven Control
Keypad Entry of Time & Temperature
Electronic Clock, Timer & Temperature Display
Programmable for °F or °C
Automatic Oven (Delay, Cook & Off)
Lockout
Automatic Oven Shutoff – 12 Hour
Luxury-Design®Halogen Oven Light Touch Pad
Accessories
Porcelain Broiler Pan and Insert
3"-high Bottom Trim – See Back for Part Numbers
Specifications
Color –
Stainless Steel
Microwave Oven Cavity Hx WxD
Oven Cavity Hx WxD
Product Dimensions –
Height (Including 1" Bottom Trim)
Width
Depth (to Front Door Corner)
(with 90° Door Open)
Power Supply Connection Location
Connected Load (kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide for detailed
installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
Wave-Touch®Controls
One simple touch and the control panel
activates, showing the virtually endless cooking
options. After you make your choices, all but
the option selected will fade away, returning to
an elegant display.
Luxury-Glide®Oven Racks
With a ball bearing system, oven racks are
so smooth they extend effortlessly.
Perfect Co nvect
3
®
Our convection technology features a third
convection element for consistently even
results, up to 30% faster cooking times and
even more baking options.
Automatic Cooking Options
The microwave oven offers pre-programmed
settings which include 12 Auto Cook options,
3 Auto Reheat options and 6 Auto Defrost
options for your cooking flexibility.
Microwave Combination Oven
EW30MC65JS
Featuring Wave-Touch®Electronic Controls
1.5 Cu. Ft.
900
Stainless Steel
Yes
Cobalt Blue
Yes
Yes
Yes
11
29
6
12
3
12
4
Yes
Yes
4.2 Cu. Ft.
Yes
Yes / Ye s
Yes
Colbalt Blue
3
Yes
7
10
Yes
2 / 1
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Included
Optional
S
9-5/8"x 16-1/8"x 16-1/8"
16-1/2"x 24-1/8" x 18-1/16"
45-1/4"
30"
24-1/2"
45-1/2"
Left Bottom Rear
7.1/ 6.1
29.6/ 29.3
40
297
electroluxappliances.com
Microwave Combination Oven
EW30MC65JS
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
EW30MC65J 01/14 © 2014 Electrolux Home Products, Inc.
30" Microwave Combination Oven Specifications
•
Product Weight – 250 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 7.1 / 6.1 kW
•
Amps @ 240 / 208 Volts = 29.6 / 29.3 Amps
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Suggested distance from floor is 11-1/2". Minimum required distance
is 4-1/2".
•
To adapt Microwave Combination Oven to fit cutout height between
44-1/4" and 44-7/8", add one 2"-wide wood shim of appropriate height
to each side of opening under oven side rails. Lifting oven will hide larger
cutout opening at top and oven’s 1"-high bottom trim will hide shims at
bottom. (Standard 1"-High Bottom Trim included.)
•
To adapt Microwave Combination Oven to fit cutout height between
44-7/8" and 46-5/8", optional 3"-High Bottom Trim available.
•
Minimum 23-1/2" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable of
supporting 250 Lbs.
•
Base must be level and cabinet front must be square.
•
Microwave Combination Oven is NOT approved to be used in stackable
or side-by-side installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
3"-High Bottom Trim: S – (PN # 903114-9110).
