Page 1

Use & Care Guide

Electric Slide-In Range

318 205 835 (1201) Rev. A

Page 2

Finding Information

MAKE A RECORD FOR FUTURE USE

Brand ____________________________________________________________ Purchase Date _____________________________________________________ Model Number _____________________________________________________ Serial Number _____________________________________________________

MODEL AND SERIAL NUMBER LOCATION

NOTE

The serial plate is located along the interior side trim of the oven and visible when the door is opened. See picture below.

QUESTIONS?

For toll-free telephone support in the U.S. and Canada:

1-877-4ELECTROLUX (1-877-435-3287)

For online support and internet product information:

www.electroluxappliances.com

Page 3

TABLE OF CONTENTS

Finding Information

Finding Information .............................................. 2

Make a Record for Future Use ..........................2

Model and Serial Number Location ...................2

Questions? .........................................................2

Table of Contents ............................................... 3

Safety ..................................................................... 4

Important Safety Instructions .......................... 4-7

Feature Overview .................................................. 8

Your Slide-In Range ........................................8-9

Oven Rack Supports and Oven Vents ............. 10

Removing and Replacing Oven Racks .............11

Control Pad Functions ................................12-14

Getting Started .................................................... 15

Setting Clock at Power Up ............................... 15

Control Panel Display Modes ..........................15

Temperature Visual Display .............................15

Oven Light .......................................................16

Control Lock ..................................................... 16

Setting the Kitchen Timer .................................16

Setting Surface Controls ...................................17

About the Ceramic Glass Cooktop ..................17

Use the Correct Cookware Type ......................17

Minimum Pan Size Requirements ...................17

Cookware Recommendations .......................... 18

Use Quality Cookware in Good Condition ....... 19

Setting the Cooktop ....................................20-21

Setting Power Boost Feature ........................... 22

Power Sharing ................................................. 22

Operational Noises .......................................... 22

Setting the Lower Oven .....................................23

Lower Oven Operation ..................................... 23

Cooking Modes ................................................... 24

Baking ..............................................................24

Cook Time ........................................................ 25

End Time .......................................................... 25

Broiling .............................................................26

Convection Baking ...........................................27

Convection Convert ......................................... 28

Rapid Preheat ..................................................28

Convection Roasting ........................................ 29

Convection Broiling ..........................................30

Keep Warm ......................................................31

Slow Cook ........................................................ 32

Dehydrating .....................................................33

Defrosting ........................................................33

Bread Prooﬁ ng .................................................34

Perfect Turkey .................................................. 35

Temperature Probe .......................................... 36

Multi Stage ..................................................37-38

Electronic Control Settings ............................... 39

User Preference Menu ..................................... 39

Setting the Clock - Time of day ........................ 39

Setting Clock Display - On or Off ..................... 40

Setting Time of Day - 12 or 24 hours ............... 40

Adjusting Oven Temperature ...........................40

Setting Temperature Display - °F or °C ........... 40

Audio Control ................................................... 40

Setting Continuous Bake or 12 Hour

Energy Saving .................................................41

Re-setting to Default Factory Settings ............. 41

Oven Controls ..................................................... 42

My Favorites .................................................... 42

Sabbath Feature .........................................43-44

Care & Cleaning .................................................. 45

Using the Self-Clean Feature ..........................45

Starting the Self-Clean Cycle ........................... 46

General Cleaning .............................................47

Care and Cleaning of Stainless Steel .............. 48

To Remove and Replace Oven Door ...............48

Special Door Care Instructions ........................ 48

Oven Light .......................................................49

Broiler Pan Cleaning Tips ................................ 49

Cooktop Cleaning and Maintenance ................ 50

Cleaning Recommendations for the

Ceramic Glass Cooktop ..............................50-51

Solutions to Common Problems ....................... 52

Baking Problems .............................................. 52

Solutions .....................................................53-56

Notes ...............................................................57-58

Warranty Information ......................................... 59

Page 4

Safety

IMPORTANT SAFETY INSTRUCTIONS

Tip Over Hazard

A child or adult can tip the range and be killed.• Verify the anti-tip device has been installed to ﬂ oor or wall.• Ensure the anti-tip device is re-engaged to ﬂ oor or wall when the range is moved.• Do not operate the range without the anti-tip device in place and engaged.• Failure to follow these instructions can result in death or serious burns to children • and adults.

To check if the anti-tip bracket is installed properly, use both arms and grasp the rear edge of range back. Carefully attempt to tilt range forward. When properly installed, the range should not tilt forward.

Refer to the anti-tip bracket installation instructions supplied with your range for proper installation.

This unit has been tested and found to comply with the limits for a class B digital device, pursuant to Part 18 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antennae.

• Increase the distance between the unit and receiver.

• Connect the unit into an outlet or a circuit different from that to which the receiver is

connected.

Persons with a pacemaker or similar medical device should exercise caution using or standing near an induction unit while it is in operation, as the electromagnetic ﬁ eld may affect the working of the pacemaker or similar medical device. It would be advisable to consult your Doctor or the pacemaker or similar medical device manufacturer about your particular situation.

• Remove all tape and packaging wrap before using the appliance. Destroy the carton

and plastic bags after unpacking the appliance. Never allow children to play with

packaging material.

• Proper Installation—Be sure your appliance is properly installed and grounded by

a qualiﬁ ed technician in accordance in the United States with National Electrical Code ANSI/NFP A No. 70—latest edition and local code requirements, and in Canada with CSA C22.1 PART 1—latest edition and local code requirements. Install only per

installation instructions provided in the literature package for this appliance. Ask your dealer to recommend a qualiﬁ ed technician and an authorized repair service.

Know how to disconnect the electrical power to the range at the circuit breaker or fuse box in case of an emergency.

• User Servicing—Do not repair or replace any part of the appliance unless speciﬁ cally

recommended in the manuals. All other servicing should be done only by a qualiﬁ ed

technician to reduce the risk of personal injury and damage to the appliance.

• Never modify or alter the construction of a range by removing leveling legs, panels,

wire covers, anti-tip brackets/screws, or any other part of the product.

Page 5

Safety

Stepping, leaning or sitting on the door or drawer of this appliance

can result in serious injuries and may also cause damage to the appliance. Do not

allow children to climb or play around the appliance. The weight of a child on an open door may cause the appliance to tip, resulting in serious burns or other injury. An open drawer, when hot, may cause burns.

Do not use the oven or warmer drawer (if equipped) for storage.

• Storage in or on Appliance—Flammable materials should not be stored in an oven,

near surface units or in the drawer (if equipped). This includes paper, plastic and cloth

items, such as cookbooks, plasticware and towels, as well as ﬂ ammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance. Flammable materials may explode and result in ﬁ re or property damage.

Do not store items of interest to children in the cabinets above the

appliance. Children climbing on the range to reach items could be seriously injured.

• Do not leave children alone. Children should not be left alone or unattended in the

area where an appliance is in use. They should never be allowed to sit or stand on any

part of the appliance.

• DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE UNITS, OVEN HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN OR WARMER DRAWER (if equipped). Both surface units and oven heating elements may be hot even though they

are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other ﬂ ammable materials touch these areas until they have had sufﬁ cient time to cool. Among these areas are the cooktop, surfaces facing the cooktop, the oven vent openings and surfaces near these openings, oven door and window.

• Wear Proper Apparel—Loose-ﬁ tting or hanging garments should never be worn while using the appliance. Do not let clothing or other ﬂ ammable materials contact hot

surfaces.

Never use your appliance for warming or heating the room.

• Do Not Use Water or Flour on Grease Fires—Smother the ﬁ re with a pan lid, or use baking soda, a dry chemical or foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat or grease may catch ﬁ re if allowed to

become too hot.

• Use Only Dry Potholders—Moist or damp potholders on hot surfaces may result in burns from steam. Do not let the potholders touch hot heating surface units or interior

oven elements. Do not use a towel or other bulky cloth instead of a potholder.

• Do Not Heat Unopened Food Containers—Build up of pressure may cause the container to burst and result in injury.

• Remove the oven door from any unused appliance if it is to be stored or discarded.

• IMPORTANT—Do not attempt to operate the oven during a power failure. If the power fails, always turn the oven off. If the oven is not turned off and the power resumes, the

oven may begin to operate again. Food left unattended could catch ﬁ re or spoil.

Electronic controllers can be damaged by cold temperatures. When you use your appliance for the ﬁ rst time, or if it has not been used for a long period of time, make sure that it has been exposed to a temperature above 0°C/32°F for at least 3 hours before connecting it to the power supply.

Page 6

Safety

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

• Know which knob controls each surface heating unit.

• Use Proper Pan Size—This appliance is equipped with one or more surface units of

different sizes. Select utensils having ﬂ at bottoms large enough to cover the surface unit. The use of undersized utensils will expose a portion of the surface heating unit to direct contact and may result in ignition of clothing. Proper relationship of utensil to the surface unit will also improve efﬁ ciency .

• Utensil Handles Should Be Turned Inward and Should Not Extend Over Adjacent Surface Units—To reduce the risk of burns, ignition of ﬂ ammable materials, and spillage

due to unintentional contact with the utensil. The handle of the utensil should be positioned so that it is turned inward, and does not extend over adjacent surface unit.

• Never Leave Surface Units Unattended—Boilovers cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt.

• Protective liners— Do not use aluminum foil to line oven bottom or any other part of the appliance. Only use aluminum foil as recommended for baking if used as a cover placed on the food. Any other used of protective liners or aluminum foil may result in a risk of electric shock or ﬁ re or a short circuit.

• Glazed Cooking Utensils—Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cooktop service without breaking due to the sudden change in temperature. Check the manufacturer’s recommendations for cooktop use.

• Do Not Use Decorative Surface Element Covers. If an element is accidentally turned on, the decorative cover will become hot and possibly melt. Burns will occur if the hot covers are touched. Damage may also be done to the cooktop.

FOR GLASS COOKTOPS ONLY

• Do Not Clean or Operate a Broken Cooktop —If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualiﬁ ed technician immediately.

• Clean Cooktop Glass with Caution—If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can produce harmful fumes if applied to a hot surface.

• Avoid scratching the cooktop glass with sharp objects.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

• Use Care When Opening Door or Drawer—Stand to the side of the appliance when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven/warmer drawer.

• Keep Oven Vent Ducts Unobstructed. The oven is vented at the front above the oven door (ceramic glass cooktop models) or through the right rear element (coil element models). Touching the surfaces in this area when the oven is operating may cause severe burns. Also, do not place plastic or heat-sensitive items on or near the oven vent. These items could melt or ignite.

• Placement of Oven/Warmer Drawer (if equipped) Racks. Always place oven racks in desired location while oven/drawer (if equipped) is cool. Remove all utensils from the rack before removing rack. If rack must be moved while oven is hot, use extreme caution. Use potholders and grasp the rack with both hands to reposition. Do not let potholders contact the hot oven element or interior of the oven/warmer drawer (if equipped).

Page 7

Safety

• Do not use a broiler pan without its insert. The broiler pan and grid allow dripping fat

to drain and be kept away from the high heat of the broiler.

• Do not cover your broiler or warmer drawer (if equipped) grid with aluminum foil. Exposed fat and grease could ignite.

• Do not touch a hot light bulb with a damp cloth. Doing so could cause the bulb to break. Disconnect the appliance or turn off the power to the appliance before removing and replacing light bulb.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE

• Clean the range regularly to keep all parts free of grease that could catch ﬁ re. Exhaust fan ventilation hoods and grease ﬁ lters should be kept clean. Do not allow grease to accumulate. Greasy deposits in the fan could catch ﬁ re. Refer to the hood manufacturer’s instructions for cleaning.

• Cleaners/aerosols—Always follow the manufacturer’s recommended directions for use. Be aware that excess residue from cleaners and aerosols may ignite causing damage and/or injury.

SELF-CLEANING OVENS:

• Clean in the self-cleaning cycle only the parts of the oven listed in this owner’s guide.

Before self-cleaning the oven, remove all utensils stored in the oven.

• Do not clean the oven door gasket. The door gasket is essential for a good seal. Care

should be taken not to rub, damage or move the gasket.

• Oven racks. Oven racks will be damaged if left in the oven during a self-cleaning cycle.

• Do not use oven cleaners. No oven cleaner or oven liner protective coating of any kind

should be used in or around any part of the oven.

• Remove oven racks. Oven racks will be damaged if left in the oven during a self-cleaning

cycle.

The health of some birds is extremely sensitive to the fumes given off

during the self-clean cycle of any range. Move birds to another well ventilated room.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

NOTE

Save these important safety instructions for future reference.

Page 8

Feature Overview

YOUR SLIDE-IN RANGE

CERAMIC GLASS COOKTOP

TOUCH ACTIV ATED GLASS CONTROL PANEL

LARGE METAL HANDLE

CURVED GLASS OVEN DOOR

LOWER OVEN DOOR WINDOW GLASS

OVEN VENT

OVEN DOOR LATCH

BROILING ELEMENT

OVEN RACK SUPPORT

CONVECTION FAN

HALOGEN OVEN LIGHT

SLIDEABLE OVEN RACKS

CONVECTION ROASTING RACK

BROILER PAN GRID

LOWER OVEN RACK

BROILER PAN

Page 9

Feature Overview

INDUCTION COOKTOP FEATURES

READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE COOKTOP A COOLER COOKTOP- A unique feature of the Induction Cooktop is whether turned ON

or OFF, the cooktop surface remains cooler than standard ceramic cooktops.

CAUTION

The Cooking Zones may appear to be cool while turned ON and after they have been turned OFF. The glass surface may be HOT from residual heat transferred from the cookware and burns may occur.

MAGNETIC DETECTOR- The coil sensor automatically detects whether the pan is magnetic and eliminates accidental “turn-ONs.”

PAN SIZE DETECTION- The pan recognition sensor automatically detects and adapts the Cooking Zones to the pan sizes in use.

EFFICIENT- Induction cooking heats faster while using less energy. Induction power levels are quick to boil and delicate when simmering.

7” INDUCTION ELEMENT

8” INDUCTION ELEMENT

6” INDUCTION

ELEMENT

10” INDUCTION

ELEMENT

UPPER

OVEN

LOWER

OVEN

Page 10

Feature Overview

OVEN RACK SUPPORTS & OVEN VENTS

Installing Oven Rack Supports

ALWAYS INSTALL OVEN RACK SUPPORT BEFORE TURNING ON THE OVEN (WHEN THE OVEN IS COOL).

To install oven rack support, insert the supports by pushing them downward into the two brackets on each side of the oven interior, as shown below.

To remove the oven rack support for a self-clean cycle, pull up the support to disengage them from the brackets. If the rack supports are not removed, the selfclean cycle won’t start.

Oven Rack Positions

This oven is equipped with ladder rack supports with 7 positions to accommodate precisely every mode of cooking.

Rack positions

(NON-SLIDING

RACK ONLY)

Oven Vents Location

The oven is vented above each door. When the oven is on, warm air is released through the vents. This venting is necessary for proper air circulation in the oven and good baking results.

Oven Vent

Warm Air

Page 11

Feature Overview

REMOVING AND REPLACING OVEN RACKS

Removing Sliding Oven Racks

1. With the rack in its closed position; grasp the rack and the sliders at once.

2. Slightly lift the rack and sliders and pull it to clear the ﬁ rst bracket.

3. Pull the rack and sliders until the second bracket stops the rack.

4. Lift the rack and sliders and carefully remove them from the oven.

Refer to the care and cleaning section for directions on how to clean the racks.

Replacing Sliding Oven Racks

To replace the oven racks, follow the instructions above in reverse order.

1st Bracket

TOWARD FRONT OF OVEN

2nd Bracket

Oven Rack Oven Rack Slider Oven Rack Support

Removing Non-Sliding Oven Rack

Simply pull the rack and slightly tilt it upward when the rack hits its stop position.

Replacing Non-Sliding Oven Rack

Insert the rack into the oven rack supports by inserting the rack openings into the rack supports. Be sure the rack is at the same position on each oven rack support on both sides.

TOWARD BACK OF OVEN

Always arrange the oven racks when the oven is cool (prior to operating the oven). Always use

oven mitts when using the oven.

Insert the openings

into the rack support

Page 12

Feature Overview

OVEN CONTROL PAD FUNCTIONS

Light Pad- Used to turn the oven light on and off.

Bake Pad- Used to enter the normal baking mode temperature.

Broil Pad- Used to select the variable broil mode.

Convection Bake Pad- Used to select the convection baking mode.

Convection Roast Pad- Used to select the convection roasting mode.

2 3 5 6 8 94 7

11 12 13 14 15 16 17

Convection Broil Pad- Used to select the convection broil mode.

Keep Warm Pad- Used to select the keep warm mode.

Slow Cook Pad- Used to select the slow cook mode.

Perfect Turkey Pad- Used to select the perfect turkey cooking mode.

Control Lock Pad- Used to disable all oven function.

Multi Stage Pad- Used to enter up to three subsequent modes.

Cook Options Pad- Used to light up the cooking options pads.

Cook Time Pad- Used to set a cooking duration time.

End Time Pad- Used to select the time at which the cooking will end.

Probe Pad- Used to activate the meat probe mode.

Rapid Preheat Pad- Used to preheat the oven to the desired temperature.

Conv. Convert Pad- Used to convert a standard temperature to a convection

temperature.

Page 13

Feature Overview

OVEN CONTROL PAD FUNCTIONS (CONTINUED)

22 23 24 25

26 27

Defrost Pad- Used to select the defrost mode.

Dehydrate Pad- Used to select the dehydrate mode.

Bread Proof Pad- Used to select the bread proof mode.

Clean Pad- Used to select the self-cleaning mode.

My Favorite 1 Pad- Used to save or recall the favorite 1 cooking mode.

My Favorite 2 Pad- Used to save or recall the favorite 2 cooking mode.

My Favorite 3 Pad- Used to save or recall the favorite 3 cooking mode.

Lite Pad- Used to start a 2 hours self-clean cycle.

Med Pad- Used to start a 3 hours self-clean cycle.

Heavy Pad- Used to start a 4 hours self-clean cycle.

Upper Oven Pad- Used to activate the upper oven for cooking operation.

Lower Oven Pad- Used to activate the lower oven for cooking operation.

User Preference Pad- Used to bring the user preference menu in the display.

Cancel Pad- Used to cancel any function previously entered except the time of day

and minute timer. Push Cancel pad to stop cooking.

35 36

Timer Pads- Used to set or cancel the minute timer. The minute timer does not start

or stop cooking.

Start Pad- Used to start all oven functions.

0 Thru 9 Number Pads- Used to enter temperature and times.

- lo Pad- Used to lower the temperature and times.

+ hi Pad- Used to raise the temperature and times.

Page 14

Feature Overview

COOKTOP CONTROL PAD FUNCTIONS

44 46

43 45

ON / OFF Pad- Used to toggle ON and OFF the associated induction element.

HI + Pad- Used to select the “Power Boost” temperature or raise the temperature

currently displayed.

MED Pad- Used to select the medium temperature.

LO - - Used to select the lowest temperature or lower the temperature currently

displayed.

Pan Detection Indicator Ring- Will light up when a pan made of magnetic material

is placed in a cooking zone.

Left Front Zone Controls and Display- Used to set the left front cooking zone

power levels.

Left Rear Zone Controls and Display- Used to set the left rear cooking zone

power levels.

Right Front Zone Controls and Display- Used to set the right front cooking zone

power levels.

Right Rear Zone Controls and Display- Used to set the right rear cooking zone

power levels.

Page 15

Getting Started

SETTING CLOCK AT POWER UP

When the unit is ﬁ rst plugged in, or when the power supply to the range has been interrupted, the timer in the display will ﬂ ash with “12:00”. The clock cannot be set when the oven is on. If an invalid time of day is entered, the control will triple beep to prompt you to re-enter a valid time of day.

To set the clock (example for 1:30):

1. Press

to raise or lower the actual time displayed.

2. Press START

pads to set the time of day to 1:30. The pads

to accept the changes or CANCEL to start with a time of 12:00.

can also be pressed

CONTROL PANEL DISPLAY MODES

Sleep Mode:

Your control will remain in a sleep mode when not in use. Only the clock will display during this mode. You will need to wake the control to begin any function.

Wake Mode:

T o wake the control, touch within the display panel. After 2 minutes without activity the control will beep and go back into sleep mode.

To start a cooking feature you must select either the upper oven or the lower oven. User preferences will be available during this mode as well as timers, oven light and the control lock.

TEMPERATURE VISUAL DISPLAY

Y our oven is equipped with a temperature visual display for each oven. When a cooking mode is set, the actual temperature will be shown in the display and will rise as the unit preheat. When the unit has reached its target temperature, a chime will sound to remind you to place the food in the oven. This feature will be active with some cooking modes; bake, convection bake, convection roast and perfect turkey. The cooking modes which does not feature the temperature visual display will be noted in their descriptions. NOTE: The lowest temperature that can be displayed is 100°F.

Page 16

Getting Started

OVEN LIGHT

Your appliance includes “theater” style oven lighting feature that gradually lights both the upper and lower oven interiors to full brightness. The upper oven is equipped with 2 halogen lights and the lower oven is equipped with 1 incandescent light. The oven lights will turn on automatically when the oven door is opened. The oven light may be turned on when the door is closed by using the oven light pad located on the control panel. The oven light key will toggle the lights in both ovens at the same time at full intensity.

To toggle the Oven Lights ON and OFF:

1. Press OVEN LIGHT .

CONTROL LOCK

The Control Lock feature automatically locks the upper oven door, control panel and the cooktop. The Control Lock is only allowed when the oven and the cooktop are turned OFF (not active). DOOR LOCK will ﬂ ash in the display for 20 seconds or until the door has ﬁ nished locking. Once the door has been locked, Loc message will appear in the upper display and “- -” will appear in the cooktop displays. Do not attempt to open the oven door while DOOR LOCK is ﬂ ashing.

To toggle the Control Lock ON and OFF:

1. Keep CONTROL LOCK pressed for 3 seconds.

SETTING THE KITCHEN TIMER

This unit is equipped with 2 Kitchen Timers which serves as extra timers in the kitchen that will beep when the set time has run out. It does not start or stop cooking. The Timer feature can be used during any of the other oven control functions and cooking modes.

To set the Timer (example for 5 minutes):

1. Press TIMER . “00:00” will appear in the display.

2. Press 5 pad to set the timer to 5 minutes. The pads raise or lower the actual time displayed.

3. Press again TIMER to accept and start the countdown.

4. When the set time has run out, “00:00” will be displayed and the TIMER The clock will sound a chime that will be repeated at regular intervals until the TIMER pad is pressed.

To cancel the Timer before the set time has run out:

Press TIMER . The display will return to the time of day.

can also be pressed to

pad will ﬂ ash.

Page 17

Setting Surface Controls

ABOUT THE CERAMIC GLASS COOKTOP

The ceramic cooktop has inductor elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the inductor element underneath. Make sure the diameter of the pan matches the diameter of the element outline on the cooktop. Only ﬂ at-bottom cookware should be used. Heat may be transferred from the cookware to the ceramic glass and the areas surrounding the elements may become hot enough to cause burns. The type and size of cookware, the number of inductor elements in use and the settings, are all factors that will affect the amount of heat that will spread to areas beyond the surface elements.

USE THE CORRECT COOKWARE TYPE

The magnetic Cooking Zone sensors located below the cooktop surface require the use of cookware made with magnetic material in order to start the heating process on any of the Cooking Zones.

When purchasing pans, look for cookware speciﬁ cally identiﬁ ed by the manufacturer for use with Induction cooktops. If you are not sure, use a magnet to test whether the cookware type will work. If a magnet sticks to the bottom

of the cookware, the material type is correct for Induction cooking.

It is recommended to always use heavier high quality stainless steel cookware on your Induction Cooktop surface. This will greatly reduce the possibility of developing scratches on the ceramic surface. Even quality cookware can scratch the cooktop surface, especially if cookware is slid over the ceramic cooktop surface without being lifted up. Over time sliding ANY type of cookware over the ceramic cooktop will likely alter the overall appearance of the cooktop. Eventually the buildup of scratches will make cleaning the surface difﬁ cult and degrade the overall appearance of the cooktop.

MINIMUM PAN SIZE REQUIREMENTS

USE THE CORRECT SIZE COOKWARE - The Cooking Zones available on the Induction Cooktop require a MINIMUM pan size to be used at each location. The inner ring of each Cooking Zone is your guide to the correct MINIMUM pan size. The pan bottom must FULLY cover the inner ring for proper cooking to occur.

The thicker outer ring at each Cooking Zone is helpful to determine the pan MAXIMUM size. After centering the cookware on the cooktop, make sure the cookware does not extend more than 1/2” beyond the thicker line on the Cooking Zone. The pan must make FULL contact on the glass surface without the bottom of the pan touching the metal cooktop trims.

NOTE: If a pan made of the correct material is centered properly on any of the active Cooking Zones but is TOO SMALL, the circle around the digital part of the display will stay off and the pan will not heat.

5 3/4"

145mm

7 1/4"

180mm

1/2"

13mm

NOTE: Pan bottom should not exceed 1/2” (13mm) from outer Cooking Zone (Induction) rings.

UPPER

OVEN

LOWER

OVEN

125mm

7 1/4"

180mm

Page 18

Setting Surface Controls

COOKWARE RECOMMENDATIONS

INCORRECT

• Cookware not centered on Cooking Zone surface.

• Curved or warped pan bottoms or sides.

CORRECT

• Cookware centered correctly on Cooking Zone surface.

• Flat pan bottom & straight sides.

• Pan does not meet the minimum

size required for the Cooking Zone used.

• Pan bottom rests on cooktop trim or does not rest completely on the cooktop surface.

• Heavy handle tilts pan. • Pan is properly balanced.

Fig. 1

PLEASE NOTE- ANY one of the incorrect conditions listed above in Fig. 1 may be detected by the sensors located below the ceramic cooktop surface. If the cookware does not meet any of these conditions, one or more of the Cooking Zones will not heat indicated by the turned off circle surrounding the digital display for that affected zone. Correct the problems before attempting to reactivate the cooktop.

• Pan size meets or exceeds the

recommended minimum size for the Cooking Zone.

• Pan rests completely on the Cooktop surface.

Page 19

Setting Surface Controls

USE QUALITY COOKWARE IN GOOD CONDITION

The cookware used with the Induction Cooktop should have ﬂ at bottoms that make good contact with the entire surface of the Cooking Zone. Check for ﬂ atness by rotating a ruler across the bottom of the cookware (See Fig. 1). Be sure to follow all the recommendations for using cookware.

Also remember to:

• Use cookware made with the correct material type for

Induction Cooking.

• Use quality cookware with heavier bottoms for better heat distribution allowing for more even cooking results.

• The pan size should match the amount of food being prepared.

• Do not let pans boil dry. This may cause permanent damage in the form of breakage, fusion, or marring that can affect the ceramic cooktop. (This type of damage is not covered by your warranty).

• Do not use dirty pans with grease buildup. Always use pans that are easy to clean after cooking.

Fig. 1

CAUTION

The Cooking Zones may appear to be cool while turned ON and after they have been turned OFF. The glass surface may be HOT from residual heat transferred from the cookware and burns may occur.

CAUTION

DO NOT TOUCH HOT COOKWARE or PANS directly with hands. Always use oven mitts or pot holders to protect hands from burns.

CAUTION

DO NOT SLIDE Cookware across the cooktop surface. Doing so may permanently damage the appearance of the ceramic cooktop.

Prior to using your cooktop for the ﬁ rst time, apply the recommended cooktop cleaning creme to the ceramic surface. Buff with a non-abrasive cloth or pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective ﬁ nish on the glass to help prevent scratches and abrasions.

Page 20

Setting Surface Controls

SETTING THE COOKTOP

The cooktop control provides 4 digital display windows to help set power levels for the heating zones located on the cooktop. These settings work the same way as normal knob settings except the settings are displayed in LCD style displays.

Available cooktop settings

Your control provides 23 different settings for each cooking zone. Some of these power levels include Lo (1%) Fig. 1, 5.0 (medium 50%) Fig. 2, Hi (100%) Fig. 3, Pb (Power Boost) Fig. 4.

Fig. 1 Fig. 2 Fig. 3 Fig. 4

The • ON OFF key pad is used to power-up or power-off the cooking zone. The • hi+ key pad is used to set the cooking zone at Power Boost (Fig. 4) if used after the

ON OFF key pad. It can also be used at any moment to raise the power setting of the cooking zone.

The • med key pad is used to set the cooking zone at 5.0 (Fig. 2). The • lo- key pad is used to set the cooking zone at Lo (Fig. 1) if used after the ON OFF key

pad. It can also be used at any moment to lower the power setting of the cooking zone.

The hi+ and lo- keys provide incremental adjustments for more precise control when changing settings between the lower heat levels (Lo to 3.0 power levels). Higher heat level setting changes (between 3.0 to HI) will change much faster.

Display Settings Changes

Setting / Power Incremental change

Lo to 3.0 (1-30%) 0.2

3.0 to HI (30-100%) 0.5

Page 21

Setting Surface Controls

SETTING THE COOKTOP

(CONTINUED)

Setting cooktop elements

• If needed, wake the control panel.

• Touch the ON OFF key for the desired heating zone.

• Press the desired power level key (hi+, med or lo-) or for more precise level settings use the hi+ or lo- keys to make speciﬁ c level changes.

Hot Element (HE) Message

After using any of the induction heating zones, the ceramic cooktop will become very hot from heat transferred by the cookware. Even after turning the control off, the cooktop will remain hot for some time.

The cooktop control monitors the temperature of the cooktop surface and displays a message “HE” (hot element) and ﬂ ashes the burner ring when the cooktop is still too hot to touch -Fig. 1-. If the HE message remains displayed in the LCD, the heating zone may be set again and used for cooking.

Suggested cooktop power settings

Use the chart below to determine the suggested setting for the type of food you are preparing when using the cooktop.

Fig. 1

Recommended Surface Settings Chart

Setting Type of Cooking

POWER BOOST (Pb) Start most foods; bring water to a boil and pan broiling. HIGH (8-HI) Continue a rapid boil; frying, deep fat frying. MEDIUM (6) Maintain a slow boil; thicken sauces and gravies; steaming

vegetables. MEDIUM LOW (4- 5) Keep foods cooking; poaching and stewing. LOW (Lo-3) Keep warm, melting and simmering.

CAUTION

Heat may be transferred from the cookware to the ceramic glass and the areas surrounding the elements may become hot enough to cause burns. The Hot Element Message Light will turn ON and will continue to

glow until the glass cooktop has cooled down to a moderate level. The glass surface may still be hot and burns may occur if the glass surface is touched before the indicator light has turned OFF.

Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could

catch ﬁ re if placed too close to the surface elements.

Page 22

Setting Surface Controls

SETTING POWER BOOST FEATURE

Your induction cooktop is equipped with a Power Boost feature on each cooking zone. The Power Boost feature is used to bring large quantities of water or food to cooking temperature at the fastest speed possible. The Power Boost feature will give you up to 139% power output for a maximum of 10 minutes.

To Turn ON the Power Boost Feature:

- Press the ON OFF pad to turn on the cooking zone you want to set to Power Boost.

- Press the "hi +" key pad and the PB will be shown in the display (ﬁ gure 1).

Figure 1

To set the Power Boost, press hi +

when the zone is ﬁ rst turned on.

POWER SHARING

Your cooktop is equipped with four cooking zones within two heating sections: right and left. Each section is powered by one induction inverter. The two cooking zones in the right and left section share the power of one inverter.

If you are cooking in both zones of a heating section, the last zone that began to heat will cook at the power setting you selected. The other zone will experience a slight decrease from its power setting.

POWER SHARING TIPS: Remember to select the power setting

last for the cooking zone you want to maintain at full setting heat.

UPPER

OVEN

LOWER

OVEN

Fig. 2

To maintain full setting heat for two items, place one item on a zone in one section (left side), and the other item on a zone in another section (right side).

OPERATIONAL NOISES

The electronic processes involved with Induction Cooking create some unusual background noises. These noises are normal and part of the Induction Cooking process.

Please note that these noises are more noticeable while cooking at the Power BOOST level. Very loud noises are not part of normal Induction Cooking.

Page 23

Setting the Lower Oven

LOWER OVEN OPERATION

The lower oven provides three basic modes, baking, slow cooking and warming. The lower oven is ideal for cooking foods such as pizza, casseroles, baked potatoes and frozen convenience foods. Use the keep warm feature to keep hot cooked foods at serving temperature. The lower oven can only be used with some cooking modes; Bake, Slow Cook and Keep Warm (read their sections for precise instructions).

KEEP CHILDREN AWAY FROM THE LOWER OVEN WHEN HOT.

FAILURE TO DO SO CAN RESULT IN BURNS.

Always use oven mitts when removing food from the lower oven. The lower

oven rack, compartment, cookware/plates may be hot.

Lower Oven Tips:

• The lower oven rack must always be in place when cooking or warming. Be sure that the rack is placed with the down turned sides into the drawer. This will provide for some air space between the drawer and the food.

• When placing food in the lower oven always use a baking sheet or pan with 4 raised sides to prevent food from sliding off.

• DO NOT LINE THE OVEN DRAWER WITH FOIL OR COVER THE OVEN RACK WITH FOIL. This may result in damage to your oven.

• The maximum height of foods and utensils that may be used in the lower oven is 4”. The maximum width is 15”. Pay close attention to foods that have potential to rise beyond

the recommended 4” maximum height.

• Use pans in the lower oven large enough to contain food and any juices created from the cooking process.

• Do not use plastic wrap to cover food. Plastic may

melt onto the drawer or surrounding areas and be very difﬁ cult to clean. Use a lid or aluminum foil instead.

Use only utensils and cookware in the oven drawer that are recommended for oven use in the upper oven.

• When using the lower oven, limit the number of times the

drawer is opened; this will minimize heat loss. Repeated opening of the drawer during the cooking process may increase cooking times and produce uneven cooking results. The cooking times for the lower oven may vary slightly from the upper oven.

NOTE: The lower oven will not operate when the upper oven is

set for self-cleaning or if the control lockout feature is active.

Should an oven ﬁ re occur, close the drawer and turn the lower oven OFF. If the ﬁ re continues, use a ﬁ re extinguisher. DO NOT put water or ﬂ our on the ﬁ re. Flour may be explosive.

Page 24

Cooking Modes

BAKING

This mode is best used for your standard recipes. The hidden bake element is used to heat the air and maintain temperature. The temperature probe can be used in this cooking mode. The upper oven can be programmed to bake at any temperature from 170°F to 550°F with a default temperature of 350°F . The lower oven can be programmed to bake at any temperature from 170°F to 450°F with a default temperature of 350°F.

Upper Oven Baking Tips:

• Always preheat your oven before using the bake mode.

• During preheat, the 3 elements and the convection fan are used in cycle to quickly heat the

oven.

• Use only one rack and center the pans as much as possible.

• If using two racks, place the oven racks in positions 2 and 6.

• Allow 2” to 4” (5,1 to 10,2cm) around the utensil(s) for proper air circulation.

• Be sure the pans do not touch each other, the door, sides or back of the oven.

If using multiple pans or racks, stagger as shown.

Lower Oven Baking Tips:

• Follow recommendations for lower oven cooking modes in the Lower Oven Operation

section of this manual.

To set a Bake Temperature of 350°F:

1. Arrange interior oven racks.

2. Select oven by pressing UPPER OVEN

3. Press BAKE .

4. Press START

5. Place food in the oven when the chime signals and temperature display shows that the oven has reached the set target temperature and the PRE-HEATING message disappear.

6. Cook Time, T imer and End T ime features can be set to control your cooking time in both ovens (read their sections for directions). The Temperature Probe and Rapid Preheat features can be used only with the upper oven.

7. Remove food. Always use oven mitts when removing hot pans from the oven.

8. Press CANCEL

. The oven display shows PRE-HEATING.

to stop or cancel the Bake feature at any time.

To change to a Bake Temperature of 425°F:

1. Select oven by pressing UPPER OVEN

2. Press the HI

3. Press START .

or LO

pads to get to the desired temperature.

UPPER

or LOWER OVEN

OVEN

UPPER

OVEN

or LOWER OVEN

LOWER

OVEN

LOWER

OVEN

Baking Problems

Refer to the Baking Problems Table in the Solutions to Common Problems section of this manual.

Page 25

Cooking Modes

COOK TIME

Cook Time allows the oven to be set to cook for a set length of time and shut off automatically. The time remaining will always be shown in the timer section of the display. The oven will shut off and will beep when the countdown is ﬁ nished. This feature can be used with Bake, Convection Bake, Convection Roast, Slow Cook, Keep Warm, Defrost, Bread Proof, Dehydrate and Perfect Turkey cooking modes. It can also be part of a Multi-Stage sequence.

To set a timed cooking (example is a 450°F Bake for 30 minutes):

1. Select oven by pressing UPPER OVEN

2. Press BAKE . The temperature numbers will blink in the display.

3. Enter temperature needed; 4 5 0.

4. Press COOK OPTIONS to bring up the cook options items.

5. Press COOK TIME .

6. Enter time needed; 3 0.

7. Press START . The oven will start heating. The cook time will start counting down for the set time.

8. Press CANCEL to stop the audible alarm or to cancel cooking at anytime.

UPPER

OVEN

END TIME

End Time allows the oven to be set to shut off automatically at a set time of day. The oven control will calculate the remaining time by itself. The time remaining will always be shown in the timer section of the display. The oven will shut off and will beep when the countdown is ﬁ nished. This feature can be used with Bake, Convection Bake, Convection Roast, Slow Cook, Keep Warm, Defrost, Dehydrate, Clean and Bread Proof cooking modes. This oven can be programmed with Cook Time and End Time to start and stop by itself at the right time.

To set a delayed timed cooking (example is a 450°F Bake for 30 minutes which will

end at 6:00PM):

1. Select oven by pressing UPPER OVEN

2. Press BAKE . The temperature numbers will blink in the display.

3. Enter temperature needed;

4. Press COOK OPTIONS

5. Press COOK TIME .

6. Enter time needed;

7. Press END TIME

8. Enter time of day needed; 6 0 0.

9. Press START

10. Press CANCEL

. The time remaining will be shown in the display.

to stop the audible alarm or to cancel cooking at anytime.

5 0.

to bring up the cook options items.

UPPER

OVEN

Use caution with the COOK TIME or END TIME features. Use the automatic timer when cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, ﬁ sh, meat or poultry, should be chilled in the refrigerator ﬁ rst. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in sickness from food poisoning.

Page 26

Cooking Modes

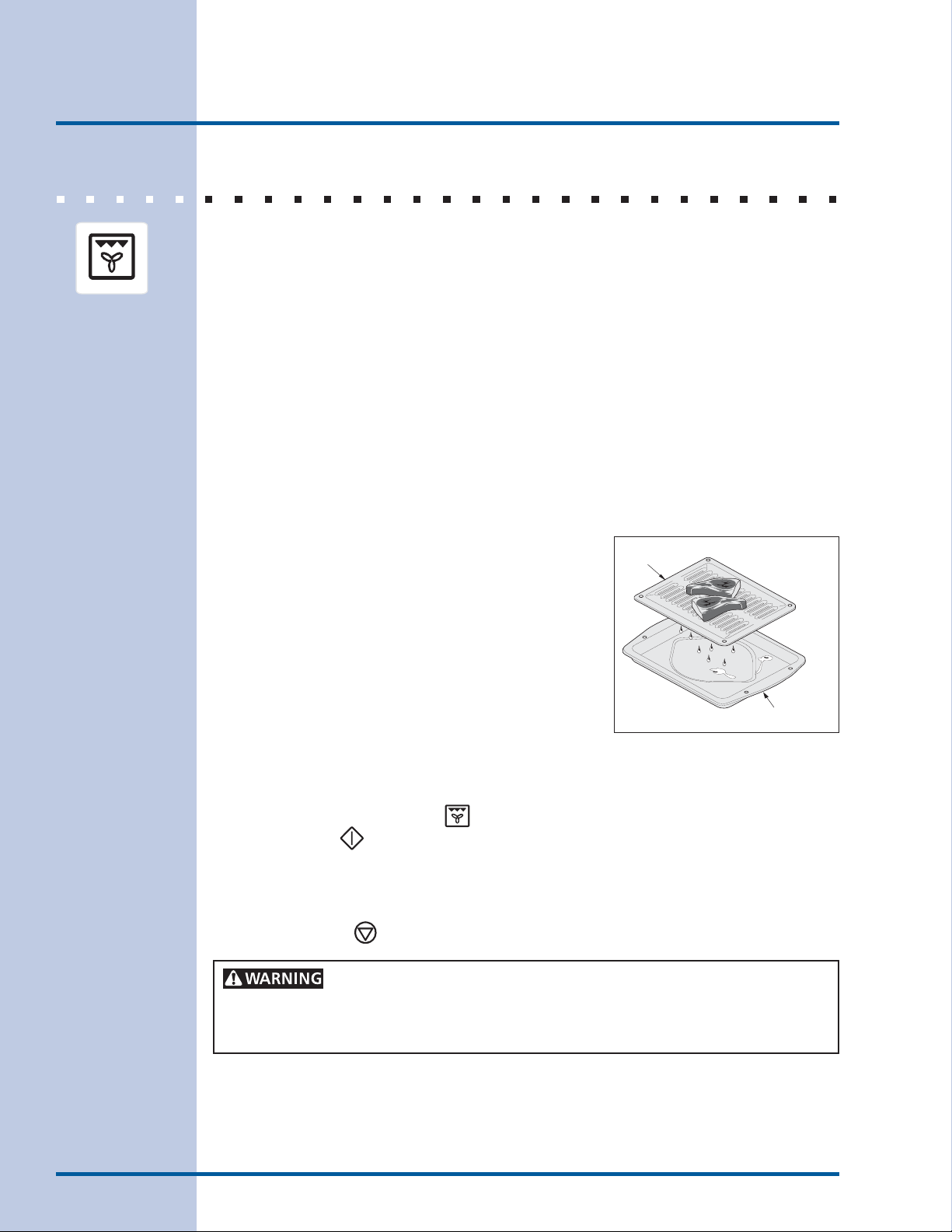

BROILING

This mode is best for meats, ﬁ sh and poultry up to 1” thick. Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven. The high heat cooks quickly and gives a rich, brown outer appearance. The temperature probe cannot be used with this mode. The oven can be programmed to broil at any temperature from 300°F to 550°F with a default temperature of 550°F.

Broiling Tips:

• For optimum browning, preheat the broil element for 2 minutes.

• Broil one side until the food is browned; turn and cook on the second side. Season and

serve.

• Always pull the rack out to the “stop” position before turning or removing food.

• Always use the broiler pan and its grid when broiling. It allows the dripping grease to be

kept away from the high heat of the broil element (see Figure 1).

• For best broiling results, broil with the oven door slightly open.

• DO NOT use the broil pan without the insert. DO NOT cover the broil pan insert with foil. The exposed grease could catch ﬁ re. DO NOT use the roasting rack when broiling.

To set a Broil Temperature of 550°F:

Grid

1. Arrange interior oven racks.

2. Select oven by pressing UPPER OVEN

3. Press BROIL .

4. Press START .

5. Place food in the oven after 2 minutes.

6. Turn food when the top side is browned and cook on the second side.

7. Remove food. Always use oven mitts when removing hot pans from the oven.

8. Press CANCEL to stop or cancel the Broil feature at any time.

UPPER

OVEN

Figure 1

Broiler Pan

Broiling Times

Electric Wall Oven Broiling Table Recommendations

Food Rack Temp Cook Time Item Position Setting 1st side 2nd side Doneness

Steak 1” thick 7 550° F 6:00 4:00 Rare 7 550° F 7:00 5:00 Medium Pork Chops 3/4” thick 7 550° F 8:00 6:00 Well Chicken - Bone In 5 450° F 20:00 10:00 Well Chicken - Boneless 7 450° F 8:00 6:00 Well Fish 7 500° F 13:00 0:00 Well Shrimp 5 550° F 5:00 0:00 Well Hamburger 1” thick 7 550° F 9:00 7:00 Medium 5 550° F 10:00 8:00 Well

Should an oven ﬁ re occur, close the oven door and turn off the oven. If the ﬁ re continues, throw baking soda on the ﬁ re or use a ﬁ re extinguisher. DO NOT put water or ﬂ our on the ﬁ re. Flour may be explosive and water can cause a grease ﬁ re to spread and cause personal injury.

Page 27

Cooking Modes

CONVECTION BAKING

This mode of cooking enables you to obtain the best culinary results when baking with multiple pans and racks. Multiple rack baking may slightly increase cook time for some foods but the overall result is time saved. Most foods cooked in a standard oven will cook faster and more evenly with Convection Bake. Convection baking uses the three elements and a fan to circulate the oven’s heat evenly and continuously within the oven. The temperature probe can be used in this cooking mode. The oven can be programmed for Convection baking at any temperature between 170°F to 550°F with a default temperature of 350°F.

Convection Bake Air Flow

Convection Baking Tips:

• Always preheat your oven before using the Convection Bake mode.

• If your recipe cooking temperature has already been converted for convection baking there is no need to reduce your oven temperature. If your recipe has not had the temperature converted for convection baking you can easily reduce the temperature using the Convection Convert feature. Please see Convection Convert section on next page for further instruction on temperature conversion.

• Use tested recipes with times adjusted for convection baking when using this mode. With single rack convection baking some foods may have as much as a 25% reduction in cook time; check food at minimum time. Time reductions will vary depending on the amount and type of food to be cooked.

• When using Convection Bake with a single rack, place oven rack in position 3 or 4. If cooking on multiple racks, place the oven racks in positions 2 and 6 or 1, 4 and 7.

• Most bakeries (except cakes) should be baked on pans with no sides or very low sides to allow heated air to circulate around the food.

• Food baked on pans with a dark ﬁ nish will cook faster.

To set a Convection Bake Temperature of 350°F:

1. Arrange interior oven racks.

2. Select oven by pressing UPPER OVEN

3. Press CONVECTION BAKE .

4. Press START . The oven display shows PRE-HEATING.

5. Place food in the oven when the chime signals and temperature display shows that the oven

has reached the set target temperature and the PRE-HEATING message disappear.

6. The Temperature Probe, Cook Time, Timer, End Time and Rapid Preheat features can

be set to control your cooking time (read their sections for directions).

7. Remove food. Always use oven mitts when removing hot pans from the oven.

8. Press CANCEL to stop or cancel the Convection Bake feature at any time.

UPPER

OVEN

Page 28

Cooking Modes

CONVECTION CONVERT

The Convection Convert pad is used to automatically convert a standard baking recipe for convection baking. When set properly , this feature is designed to display the actual converted (reduced) temperature in the display. Convection Convert may ONLY be used with a Convection Bake cooking mode. It can be used with the features End Time and Cook Time (see their sections for directions). If convection conversion is used with the cook time and end time features, “CF” (check food) will be displayed when 75% of the bake time is complete. At this time the oven control will sound 3 long beeps at regular intervals until baking had ﬁ nished. When the bake time has completely ﬁ nished the control will beep at regular interval until the

CANCEL pad is pressed. NOTE: To use this feature with the COOK TIME option, the COOK TIME pad must be pressed before the CONVECTION CONVERT pad.

Changing from a normal bake temperature to a convection bake temperature:

1. Select oven by pressing UPPER OVEN

2. Press CONVECTION BAKE .

3. Press COOK OPTIONS . The cook options items will light up.

4. Press CONVECTION CONVERT . The temperature displayed will be 25°F lower than what it used to be.

5. Press START to begin the convection baking (see Convection Baking section for more informations).

UPPER

OVEN

RAPID PREHEAT

The Preheat feature will bring the oven up to temperature faster than a regular preheat and then indicate when to place the food in the oven. Preheating is not necessary when roasting or cooking casseroles. The oven can be programmed to preheat at any temperature between 170°F to 550°F with some of the cooking modes; Bake, Convection Bake and Convection Roast.

IMPORTANT: The rapid preheat feature is for single rack ONLY. The heat distribution with

multiple rack will be uneven.

To set a rapid preheat (example is for a 350°F Bake):

1. Select oven by pressing UPPER OVEN

2. Press BAKE .

3. Press COOK OPTIONS . The cook options items will light up.

4. Press RAPID PREHEAT .

5. Press START to begin the baking with the rapid preheat feature enabled.

6. Place food in the oven when the chime signals and temperature display shows that the oven has reached the set target temperature.

UPPER

OVEN

Page 29

Cooking Modes

CONVECTION ROASTING

This mode is best for cooking tender cuts of beef, lamb, pork and poultry. Use this mode when cooking speed is desired. The Convection Roasting gently browns the exterior and seals in the juices. Convection roasting uses the hidden bake element, the hidden convection element, the broil element and a fan to circulate the oven’s heat evenly and continuously within the oven. The temperature probe can be used in this cooking mode. The oven can be programmed for Convection Roasting at any temperature between 170°F to 550°F with a default temperature of 350°F.

Convection Roasting Tips:

• Use the broiler pan and grid, and the roasting rack (Figure 1). The broiler pan will catch grease spills and the grid will help prevent spatters. The roasting rack will hold the meat.

• Place an oven rack on rack position 2 (next-bottom).

• Make sure the roasting rack is securely seated on the grid in the broiler pan. The roasting

rack ﬁ ts on the grid allowing the heated air to circulate under the food for even cooking and helps to increase browning on the underside.

• There is no need to reduce the convection temperature or to use the Convection Convert feature with this cooking mode.

• DO NOT use the broiler pan without the grid or cover the grid with aluminum foil.

• Always pull the rack out to the stop position before removing food.

• Position food (fat side up) on the roasting rack.

Roasting

To set a Convection Roast Temperature of 350°F:

1. Arrange interior oven racks.

2. Select oven by pressing UPPER OVEN

3. Press CONVECTION ROAST .

4. Press START .

5. The Temperature Probe, Cook Time, Timer, End Time and Rapid Preheat

features can be set to control your cooking time (read their sections for directions).

6. Remove food. Always use oven mitts when removing hot pans from the

oven.

7. Press CANCEL to stop or cancel the Convection Roast feature at any

time.

UPPER

OVEN

Rack

Grid

Figure 1

Broiler Pan

Convection Roasting Chart

Meat Weight Oven Temp Internal T emp Min per lb. Beef Standing rib roast 4 to 6 lbs. 350° F * 25-30

Rib eye roast 4 to 6 lbs. 350° F * 25-30 Tenderloin roast 2 to 3 lbs. 400° F * 15-25 Poultry Turkey, whole** 12 to 16 lbs. 325° F 180° F 8-10 Turkey, whole** 16 to 20 lbs. 325° F 180° F 10-15 Turkey, whole** 20 to 24 lbs. 325° F 180° F 12-16 Chicken 3 to 4 lbs. 350-375° F 180° F 12-16 Pork Ham roast, fresh 4 to 6 lbs. 325° F 160° F 30-40 Shoulder blade roast 4 to 6 lbs. 325° F 160° F 20-30 Loin 3 to 4 lbs. 325° F 160° F 20-25 Pre-cooked ham 5 to 7 lbs. 325° F 160° F 30-40

* For beef: med rare 145°F, med 160°F, well done 170°F ** Stuffed turkey requires additional roasting time. Shield legs and breast with foil to prevent overbrowning and dying of the skin.

Page 30

Cooking Modes

CONVECTION BROILING

Use this mode for thicker cuts of meat, ﬁ sh and poultry. The Convection Broiling gently browns the exterior and seals in the juices. Convection broiling uses the broil element and a fan to circulate the oven’s heat evenly and continuously within the oven. The temperature probe cannot be used in this cooking mode. The oven can be programmed for Convection Broiling at any temperature between 300°F to 550°F with a default temperature of 550°F.

Convection Broiling Tips:

• For optimum browning, preheat the broil element for 2 minutes.

• Broil one side until the food is browned; turn and cook on the second side. Season and

serve.

• Always pull the rack out to the “stop” position before turning or removing food.

• Always use the broiler pan and its grid when broiling. It allows the dripping grease to be

kept away from the high heat of the broil element (see Figure 1).

• DO NOT use the broil pan without the insert. DO NOT cover the broil pan insert with foil. The exposed grease could catch ﬁ re. DO NOT use the roasting rack when broiling.

• Convection broiling is generally faster than conventional broiling. Check for doneness at the minimum recommended time.

Figure 1

IMPORTANT: Always use this cooking mode with the oven door closed or the fan will not turn on.

Grid

Broiler Pan

To set a Convection Broil Temperature of 550°F:

1. Arrange interior oven racks.

2. Select oven by pressing UPPER OVEN

3. Press CONVECTION BROIL .

4. Press START

5. Place food in the oven after 2 minutes.

6. Turn food when the top side is browned and cook on the second side.

7. Remove food. Always use oven mitts when removing hot pans from the oven.

8. Press CANCEL to stop or cancel the Convection Broil feature at any time.

oven. If the ﬁ re continues, throw baking soda on the ﬁ re or use a ﬁ re extinguisher. DO NOT put water or ﬂ our on the ﬁ re. Flour may be explosive and water can cause a grease ﬁ re to spread and cause personal injury.

Should an oven ﬁ re occur, leave the oven door closed and turn off the

UPPER

OVEN

Page 31

Cooking Modes

KEEP WARM

This mode is best for keeping oven baked foods warm for serving after cooking has ﬁ nished. The Keep Warm feature uses the hidden bake element to maintain the temperature within the oven. The Keep Warm feature may be used with Multi-Stage (refer to its section for directions) if you wish to have the Keep Warm feature turn ON automatically when cooking has ﬁ nished. The oven can be programmed for Keep Warm at any temperature between 150°F to 190°F with a default temperature of 170°F.

Keep Warm Tips for Upper Oven:

• Always start with hot food.

• Do not use the Keep Warm feature to heat cold food.

• Food in heat-safe glass and glass ceramic containers may need higher temperature

settings compared to food in regular containers.

• Avoid repeated openings of the oven, it will allow hot air to escape and the food to cool.

• Aluminum foil may be used to cover food to increase moisture content.

Keep Warm Tips for Lower Oven:

• Follow recommendations for lower oven cooking modes in the Setting Lower Oven

section of this manual.

To set a Keep Warm Temperature of 170°F:

1. Arrange interior oven racks (for upper oven only).

2. Select oven by pressing UPPER OVEN

3. Press KEEP WARM .

4. Press START .

5. The Multi-Stage, Cook Time, Timer and End Time features can be set to control your warming time (read their sections for directions).

6. Remove food. Always use oven mitts when removing hot pans from the oven.

7. Press CANCEL to stop or cancel the Keep Warm feature at any time.

UPPER

or LOWER OVEN

OVEN

LOWER

OVEN

Page 32

Cooking Modes

SLOW COOK

This mode may be used to cook foods more slowly , at lower oven temperatures and provide cooking results much the same way as a Slow Cooker or Crock-Pot. The Slow Cook feature is ideal for roasting beef, pork & poultry. Slow Cooking meats may result in the exterior of meats becoming dark but not burnt. This is normal. The Slow Cook mode uses the hidden bake element to maintain a low temperature in the oven. The temperature probe cannot be used in this cooking mode. There are 2 settings available, high (HI) or low (LO). The maximum cook time for the Slow Cook feature is 12 hours unless the oven control has been changed to the Continuous Bake mode or the Sabbath mode has been activated.

Slow Cook Tips:

• Completely thaw all frozen foods before cooking with the Slow Cook feature.

• When using a single rack, position it in the center of the oven.

• Position multiple racks to accommodate size of cooking utensils when cooking multiple food items.

• Do not open the oven door often or leave the door open when checking foods. If the oven heat escapes often, the Slow Cook time may need to be extended.

• Cover the foods to keep them moist or use a loose or vented type cover to allow foods to turn crisp or brown.

• Cook times will vary; depending on the weight, fat content, bone & the shape of the meat.

• Use the recipe’s recommended food temperature and a food thermometer to determine when the food is done.

• Preheating the oven will not be necessary when using the Slow Cook feature.

• Add any cream or cheese sauces during the last hour of cooking.

To set a Slow Cook:

1. Arrange interior oven racks and place food in the oven.

2. Select oven by pressing UPPER OVEN

3. Press SLOW COOK .

4. Press

5. Press START

6. The Cook Time, Timer and End Time features can be set to control your Slow Cook time

(read their sections for directions).

7. Remove food. Always use oven mitts when removing hot pans from the oven.

8. Press CANCEL to stop or cancel the Slow Cook feature at any time.

for high (HI) setting or

low (Lo) setting.

UPPER

or LOWER OVEN

OVEN

LOWER

OVEN

Page 33

Cooking Modes

DEHYDRATING

This mode dries foods with heat from the bake and the convection element. The heat is circulated throughout the oven by the convection fan. Dehydrating is used to dry and/or preserve foods such as fruits, meats, vegetables and herbs. This mode holds an optimum low temperature while circulating the heated air to slowly remove moisture. The oven can be programmed for Dehydrating at any temperature between 100°F to 225°F with a default temperature of 120°F.

Dehydrating Tips:

• Do not preheat the oven.

• Multiple racks can be used simultaneously.

• Drying times vary depending on the moisture and sugar content of the food, the size of

the pieces, the amount being dried and the humidity in the air.

• Check food at the minimum drying time.

• Treat fruits with antioxidants to avoid discoloration.

• Consult a food preservation book or a library for additional information.

To set a Dehydrate Temperature of 120°F:

1. Arrange interior oven racks and place food.

2. Select oven by pressing UPPER OVEN

UPPER

OVEN

3. Press DEHYDRATE .

4. Press START to begin dehydrating.

5. Remove food. Always use oven mitts when removing hot pans from the oven.

6. Press CANCEL to stop or cancel the Dehydrate feature at any time.

DEFROSTING

Use the defrost feature to thaw small portions of delicate items such as cream cakes, frozen cream pies and cheesecake, at room temperature. While in the defrost mode, the convection fan will operate to circulate room temperature air around the food slowly, accelerating the natural defrosting of the food without heat.

To set a Defrost:

1. Arrange interior oven racks and place food in the oven.

2. Select oven by pressing UPPER OVEN

3. Press DEFROST .

4. Press START to start the defrosting. A “dEF” message is displayed when active.

5. The Cook Duration, End Time and T imer features can be set to control your Defrost time (read their sections for directions).

6. Press CANCEL to stop or cancel the Defrost feature at any time.

UPPER

OVEN

Note: This feature is not meant for thawing frozen meats, poultry, seafood or other foods that need to be cooked before serving. Follow USDA recommendations for thawing foods. Only frozen foods that can be defrosted and served without cooking should be used with this feature.

Page 34

Cooking Modes

BREAD PROOFING

Prooﬁ ng bread prepares the dough for baking by activating the yeast. This feature is ideal for prooﬁ ng, or rising bread dough. The oven can be programmed for Bread Prooﬁ ng at any temperature between 85°F to 100°F with a default temperature of 100°F. The temperature visual display is not available for this function.

Bread Prooﬁ ng Tips:

• No need to preheat for this feature.

• Proof bread until dough has doubled in bulk.

• For best results, place a shallow pan with 1 to 3 cups of boiling hot water on the lowest rack position to keep the air moist inside the oven cavity.

• Allow at least 1” between edge of pan and walls of the oven.

• Limit frequent door openings to prevent losing heat and lengthening prooﬁ ng time.

To set a Bread Proof temperature of 100°F:

1. Arrange interior oven racks and place bread dough in the oven.

2. Select oven by pressing UPPER OVEN

UPPER

OVEN

3. Press BREAD PROOF .

4. Press START to begin the bread prooﬁ ng.

5. The Cook Time, T imer and End T ime features can be set to control your Bread Proof time

(read their sections for directions).

6. Remove food.

7. Press CANCEL to stop or cancel the Bread Proof feature at any time.

To change a Bread Proof temperature while the function is active:

1. Select oven by pressing UPPER OVEN

2. Press the HI

3. Press START to continue the bread prooﬁ ng with the new setting.

or LO

pads to get to the desired temperature.

UPPER

OVEN

Page 35

Cooking Modes

PERFECT TURKEY

This mode uses the temperature probe to control precisely the cooking of a perfect turkey. The convection system gently browns the turkey’s exterior and seals in the juices. The temperature probe is required with this cooking mode (read its section on next page for more details). The oven can be programmed for Perfect T urkey at any temperature between 170°F to 550°F with a default temperature of 325°F. The probe default temperature for the perfect turkey feature is 180°F.

Perfect Turkey Tips:

• Thaw the turkey in the refrigerator at least 24 hours per 5 lbs before cooking the bird.

• Use the broiler pan and grid, and the roasting rack. The broiler pan will catch grease spills and the grid will help prevent spatters. The roasting rack will hold the turkey.

• Place an oven rack on rack position 2 (next-bottom).

• Make sure the roasting rack is securely seated on the grid in the broiler pan. The roasting rack ﬁ ts on the grid allowing the heated air to circulate under the food for even cooking and helps to increase browning on the underside.

To set a Perfect Turkey of 325°F:

1. Arrange interior oven racks and place food in the oven.

2. Insert the meat probe into the bird and connect it in the oven (read the probe section on

next page for more details).

3. Select oven by pressing UPPER OVEN

4. Press PERFECT TURKEY . A temperature can be entered if another value than the

default is needed. Optional : Press PROBE if you wish to change the probe target temperature (see PROBE section).

5. Press START .

6. Remove food from the oven when the temperature probe chime signals that the oven

has reached the set target temperature.

7. Press CANCEL to stop or cancel the Perfect Turkey feature at any time.

Perfect Turkey Chart

Weight Oven Temp Internal Temp Min per lb. Poultry Turkey, whole* 12 to 16 lbs. 325° F 180° F 8-10

Turkey, whole* 16 to 20 lbs. 325° F 180° F 10-15 Turkey, whole* 20 to 24 lbs. 325° F 180° F 12-16 Chicken 3 to 4 lbs. 350-375° F 180° F 12-16

UPPER

OVEN

* Stuffed turkey requires additional roasting time. Shield legs and breast with foil to prevent overbrowning and dying of the skin.

Page 36

Cooking Modes

TEMPERATURE PROBE

For many foods, especially roasts and poultry, testing the internal temperature is the best method to insure properly cooked food. The Temperature Probe gets the exact temperature you desire without having to guess. This feature can be used with Bake, Convection Bake, Convection Roast and Perfect Turkey cooking modes. The oven can be programmed for Probe at any temperature between 130°F to 210°F with a default temperature of 170°F. This unit is equipped with one temperature probe entry in the upper oven.

IMPORTANT:

1. Use only the probe supplied with your appliance; any other may result in damage to the probe or the appliance.

2. Handle the Temperature Probe carefully when inserting and removing it from the food and outlet.

3. Do not use tongs to pull the cable when inserting or removing the Probe. It could damage the Probe.

4. Defrost your food completely before inserting the Probe to avoid breaking it.

5. Never leave or store the Temperature Probe inside the oven when not in use.

6. To prevent the possibility of burns, carefully unplug the Temperature Probe using hot pads.

Proper Temperature Probe Placement:

1. Always insert the probe so that the tip rests in the center of the thickest part of the meat. Do not allow probe to touch bone, fat, gristle or pan.

2. For bone-in ham or lamb, insert the Probe into the center of the lowest large muscle or joint. For dishes such as meat loaf or casseroles, insert the Probe into the center of the food. When cooking ﬁ sh, insert the Probe from just above the gill into the meatiest area, parallel to the backbone.

3. For whole poultry (chicken, turkey, etc.), insert the probe into the thickest part of the inner thigh from below and parallel to the leg (see ﬁ gure 1).

Figure 1

Setting the Oven when using the Temperature Probe:

1. Insert the Temperature Probe into the food (see Proper Temperature Probe Placement above).

2. Plug the Temperature Probe into its outlet in the oven. (The outlet is located on the top left hand side of the cavity wall, near front of the oven). Always insert the probe into a cool oven. Make sure it is pushed all the way into the outlet. Close the oven door.

3. Select oven by pressing either UPPER OVEN

4. Select a cooking mode. A target temperature must be set to trigger the buzzer when the food reaches the set temperature. Press COOK OPTIONS to bring up the cook options items and press PROBE pad to enter the temperature. Adjust temperature to the desired setting using the numeric pads or just press ST ART to use the default target temperature of 170°F. The pads temperature setting will be accepted after the ST ART pad is pressed.

5. At any time during the cooking, the PROBE pad can be pressed once to display the actual meat temperature or pressed twice to display the target temperature. When on the target temperature display, a new temperature can be entered. After 5-8 seconds, the display will go back to showing the oven temperature.

6. When the food reach the target temperature, the oven will go into a KEEP W ARM mode until you press CANCEL .

can also be pressed to raise or lower the temperature. The target

The probe can be damaged by very high temperature. T o protect the probe against this damage, the oven control will not allow you to start a self-clean, broil or convection broil while the probe is connected.

UPPER

OVEN

Page 37

Cooking Modes

MULTI STAGE

This feature enables you to perform sequential cooking at the touch of a button. Its purpose is to program a queue of up to three cooking modes with individual cooking time and temperatures in a sequence. This feature can be used with most cooking modes; Baking, Broiling, Convection Baking, Convection Roasting, Convection Broiling, Keep Warm and Bread Proof. A Cook Time can be programmed with your cooking mode and then queued. An auto-suggested set temperature outputs in the display as a default value during the set temperature programming. Any stage programmed with Broil or Convection Broil cannot last longer than 10 minutes. A proper cook time and a set temperature are required for every stage programming. At least two stages must be programmed before a Multi-Stage cooking operation starts. During stage 1 cooking the electronic control provides temperature visual output in the display . During stage 2 and 3, the electronic control displays the set temperature only.

To set a Multi Stage sequence (Timed Convection Bake, Timed Broil, Keep Warm):

1. Arrange interior oven racks and place food.

2. Select oven by pressing UPPER OVEN

3. Press MULTI STAGE .

UPPER

OVEN

Stage 1

4. Press CONVECTION BAKE . “350” will ﬂ ash in the display prompting to enter a temperature.

5. Enter a temperature using the numeric pads 0 to 9.

6. Press START . “00:00” will start ﬂ ashing in the display prompting to enter a cook time.

7. Enter a cook time using the numeric pads 0 to 9.

8. Press START . The Multi-Stage indicator will now display the 2nd stage.

Stage 2

9. Press BROIL . “550” will start ﬂ ashing in the display prompting to enter a temperature.

10. Enter a temperature using the numeric pads 0 to 9.

11. Press START . “00:00” will start ﬂ ashing in the display prompting to enter a cook time.

12. Enter a cook time using the numeric pads 0 to 9.

13. Press START . The Multi-Stage indicator will now display the 3rd stage. If a third stage is not needed, press START a second time. This will start the cooking sequence.

Read next page for stage 3 and canceling details

Page 38

Cooking Modes

MULTI STAGE

14. Press KEEP WARM . “170” will start ﬂ ashing in the display prompting to enter a temperature.

15. Enter a temperature using the numeric pads 0 to 9.

16. Press START . “00:00” will start ﬂ ashing in the display prompting to enter a cook time.

17. Enter a cook time using the numeric pads 0 to 9.

18. Press START . The cooking sequence will begin.

19. At the end of the sequence, the display will show “End” and a chime will sound.

20. Remove food.

21. Press CANCEL to stop or cancel the Multi-Stage sequence at any time (see below for further details).

(CONTINUED)

Stage 3

Canceling

To cancel a Multi Stage sequence:

A multi stage cooking can be canceled any time while it is in progress (or during its programming) by the Cancel key.

If the key is pressed during a multi-stage programming, the electronic control returns to Idle mode.

Page 39

Electronic Control Settings

USER PREFERENCES

The User Preferences menu includes all user deﬁ ned options. This feature enables you to control the various options of the electronic controls. This menu features the Time of Day, Celsius or Fahrenheit display mode, Continuous Bake or 12 Hour Energy Saving modes, Clock display or No-Clock display, 12 Hours Time of Day or 24 Hours Time of Day, Audio Control, and Adjusting the oven temperature. The User Preferences menu is only available when the oven is not being used (not cooking).

To browse through the User Preferences menu:

1. Press USER PREF to bring up the User Preferences menu.

2. Press USER PREF again to browse through the menu pages.

3. Press

4. Press START while the chosen option is on display to change.

5. Press CANCEL when ﬁ nished to get back to the standard oven display.

to toggle between the available options.

User Preferences menu items:

• CLO 12:00; Setting the clock.

• CLO on; Clock on/off.

• CLO 12hr; 12/24 hour time of day display.

•

UPO; Adjusting oven temperature.

• F-C F ; Fahrenheit / Celcius display.

• AUd ; Audio on/off and volume.

• E S on ; 12 hour Energy Saving on/off.

• rSt ; Reset to default factory settings.

SETTING THE CLOCK - TIME OF DAY

The clock may be set for 12 or 24 hour time of day operation (see advanced settings section). The clock has been preset at the factory for the 12 hour operation. When the range is ﬁ rst plugged in, or when the power supply to the range has been interrupted, the display will show “CLO 12:00”. The clock must be set before the oven can be used.

When power to the unit has been interrupted, “12:00” appears and ﬂ ashes in the display. To set the Clock in this case, skip step 1 in the example below and follow steps 2 and 3.

To set the clock (example for 1:30):

1. Press USER PREF until you get to the CLO 12:00 menu page.

2. Press to raise or lower the actual time displayed.

pads to set the time of day to 1:30. The pads

can also be pressed

3. Press START to accept the changes and go back to user preferences menu display.

Page 40

Electronic Control Settings

USER PREFERENCES

(CONTINUED)

SETTING CLOCK DISPLAY — ON OR OFF

The oven control can be programmed to display the time of day or not. The oven has been preset at the factory to display the time of day.

Changing clock display between ON and OFF:

1. Press USER PREF until you get to the CLO on menu page.

2. Press

3. Press START to accept the changes and go back to user preferences menu display.

to toggle between displaying or hiding the clock.

SETTING TIME OF DAY DISPLAY — 12 OR 24 HOURS

The oven control can be programmed to display time of day in 12 hours or 24 hours mode. The oven has been preset at the factory to display in 12 hours mode.

Changing between 12 or 24 hour time of day display:

1. Press USER PREF until you get to the CLO 12hr menu page.

2 Press

to toggle the display of the clock in 12 or 24 hours.

3. Press START to accept the changes and go back to user preferences menu display.

4. Remember to set your clock after changing the time of day display mode.

ADJUSTING OVEN TEMPERATURE

The temperature in the oven has been pre-set at the factory. When ﬁ rst using the oven, be sure to follow recipe times and temperatures. If you think the oven is too hot or too cool, the temperature in the oven can be adjusted. Before adjusting, test a recipe by using a temperature setting that is higher or lower than the recommended temperature. The baking results should help you to decide how much of an adjustment is needed. Each oven can be individually adjusted.

To adjust the oven temperature:

1. Press USER PREFERENCES until you get to the UPO menu page.

2. To select the oven you want to adjust, press USER PREFERENCES again to toggle between the upper and the lower display.

3. Enter the temperature by pressing the adjusted by ± 35°F.

4. Press START to accept the changes and go back to user preferences menu display.

pads. The temperature can only be

Page 41

Electronic Control Settings

USER PREFERENCES

(CONTINUED)

SETTING TEMPERATURE DISPLAY — FAHRENHEIT OR CELSIUS

The oven control can be programmed to display temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to display in Fahrenheit.

To change display from Fahrenheit to Celsius or Celsius to Fahrenheit:

1. Press USER PREF until you get to the F-C F menu page.

2. Press

3. Press START to accept the changes and go back to user preferences menu display.

to toggle between the °C and °F display options.

AUDIO CONTROL

The Audio Control feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the control can be programmed for silent operation and later returned to operating with all the default sounds and beeps. The volume of the beeps can also be adjusted.

To change the audio mode or audio volume:

1. Press USER PREF until you get to the AUd menu page.

2. Press volume setting to AUd 1 for the lowest volume. AUd OFF to disable the beeps.

3. Press START to accept the changes and go back to user preferences menu display.

to toggle between the available volume settings. AUd 5 for the highest

SETTING CONTINUOUS BAKE OR 12 HOUR ENERGY SAVING

The oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous Baking.

Changing between 12 hour energy saving and continuous bake:

1. Press USER PREF until you get to the E S menu page.

2. Press

3. Press START to accept the changes and go back to user preferences menu display.

to toggle the energy saving setting on and off.

RE-SETTING TO DEFAULT FACTORY SETTINGS

The oven control can be set to return to its original factory settings. This includes: Setting the Clock ON/OFF to ON, Setting the clock display mode to 12h, Display mode to Fahrenheit, Setting the oven temperature adjustment to zero, Setting audio level to 5 and Enabling the 12h energy saving mode. Reseting the control also erase the My Favorite recipes.

To reset the oven control to its original settings:

1. Press USER PREF until you get to the rSt no menu page.

2. Press

3. Press START to reset to default factory settings.

to select YES.

Page 42

Oven Controls

MY FAVORITES

The Favorites settings allows you to save your most frequently used or most complex cooking sequences. This feature will save the cooking mode, the target temperature and the cooktime (if any). The oven can recall up to six cooking sequences from its internal memory, three for each oven, which are easily accessible from a one touch button. These functions can be used with all cooking modes and features.

To save a Favorite (example is a 450°F Bake for 30 minutes):

- Saving a Favorite can only be done for an oven which is currently in operation.

1. Select oven by pressing either UPPER OVEN

2. Press BAKE . The default temperature will appear in the display.

UPPER

or LOWER OVEN

OVEN

LOWER

OVEN

3. Enter temperature needed;

4. Press COOK OPTIONS to bring up the cook options items.

5. Press COOK TIME .

6. Enter time needed;

7. Press START .

8. Press and hold for 3 seconds any MY FAVORITE pad. Notice that the red indicator above the key will light up.

To recall a Favorite:

- Recalling a Favorite can only be done for an oven which is not currently in operation.

1. Select oven by pressing either UPPER OVEN

2. Press any MY FAVORITE pad which is currently lighted up.

3. Press START .

UPPER

or LOWER OVEN

OVEN

LOWER

OVEN

To overwrite a Favorite:

1. T o overwrite a My Favorite simply start a new cooking sequence and save it into the same My Favorite location (1, 2 or 3) for the selected oven as shown in example above. The new My Favorite settings will overwrite the old ones.

To delete a Favorite:

1. Select oven by pressing either UPPER OVEN

2. Press the currently lighted up MY FAVORITE pad you wish to delete for 3 seconds.

UPPER

or LOWER OVEN

OVEN

LOWER

OVEN

Page 43

Oven Controls

SABBATH FEATURE (FOR USE ON THE JEWISH SABBATH & HOLIDAYS)

The HI only be used with the BAKE pad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly show or provide any audible tones indicating whether the change occurred correctly. Once the oven is properly set using Bake with the Sabbath feature active, the oven will remain continuously ON until cancelled. This will override the factory preset 12-Hour Energy Saving feature. If the oven light will be needed during the Sabbath, press OVEN LIGHT before activating the Sabbath feature. Once the oven light is turned ON and the Sabbath feature is active, the oven light will remain ON until the Sabbath feature is turned OFF. If the oven light needs to be OFF, be sure to turn the oven light OFF before activating the Sabbath feature.

IMPORTANT NOTES: It is not advised to attempt to activate any other program feature other than BAKE while the Sabbath feature is active. ONLY the following key pads will function after setting the Sabbath feature; CANCEL , HI

ALL OTHER KEYPADS will not function once the Sabbath feature is properly activated.

and LO

pads are used to set the Sabbath feature. The Sabbath feature may

and LO

To Program the Upper Oven to Begin Baking Immediately & Activate the Sabbath feature (example: baking at 350°F)

1. Place the food in the oven.

2. Select oven by pressing either UPPER OVEN

3. Press BAKE .

4. If you desire to set the oven control for a COOK TIME do so at this time. If not, skip this step and continue to step 5. Refer to their section for complete instructions. Remember the oven will shut down after using COOK TIME and therefore may only be used once during the Sabbath/Jewish Holidays.

5. Press START .

6. The oven will turn ON and begin heating immediately.

7. Press and hold both the HI the oven display and Sb in the cooktop displays. Once SAb appears in the display the oven control will no longer beep or display any further changes and the oven is properly set for the Sabbath feature.

and LO

pads for at least 3 seconds. SAb will appear in

UPPER

or LOWER OVEN

OVEN

LOWER

OVEN

Page 44

Oven Controls

SABBATH FEATURE

Note: You may change the oven temperature once baking has started. The HI increase the temperature by 5°F (2°C) at each key press. The LO

temperature by 5°F (2°C) at each key press. Remember that the oven control will no longer beep or display any further changes once the oven is set for the Sabbath feature.

8. The oven may be turned OFF at any time by pressing CANCEL pad (this will turn the oven OFF only). To turn OFF the Sabbath feature press and hold both the HI

pads for at least 3 seconds. SAb will disappear from the display. Should you experience a power failure or interruption, the oven will shut off. When power is

returned the oven will not turn back on automatically. SF (Sabbath Failure) will be displayed in the oven control display and the surface element displays. The oven will remember that it is set for the Sabbath and the food may be safely removed from the oven while still in the Sabbath feature, however the oven cannot be turned back on until after the Sabbath. After the

Sabbath observance turn OFF the Sabbath feature. Press and hold both the HI pads for at least 3 seconds. SAb will disappear from the display and the oven may be used with all normal functions. For further assistance, guidelines for proper usage, and a complete list of models with the Sabbath feature, please visit the web at http:\\www.star-k.org.

(CONTINUED)

key pad will

key pad will decrease the

and LO

Notes for the use of the cooktop in Sabbath mode:

• No Sabbath mode is available for induction cooktops. When Sabbath mode is enabled, the

cooktop will lock and it will not be possible to turn a cooking zone ON. If a cooking zone is ON when Sabbath is set, it will turn off.

Page 45

Care & Cleaning

USING THE SELF-CLEAN FEATURE

Adhere to the Following Cleaning Precautions:

• Allow the oven to cool before cleaning.

• Wear rubber gloves when cleaning any exterior parts of the oven manually.

During the self-cleaning cycle, the outside of the oven can become very hot to the touch. DO NOT leave small children unattended near the appliance.

Before cleaning any part of the oven, be sure the oven is turned off or else push CANCEL

pad. Wait until the oven is cool.

DO NOT use commercial oven cleaners or oven protective coatings in or around any part of the self-cleaning oven. DO NOT clean the oven door gasket. The gasket on the oven door is essential for a good seal. Care should be taken not to rub, damage or move the gasket. DO NOT use any cleaning materials on the gasket. Doing so could damage it. DO NOT use aluminum foil to line the oven bottom. This may affect cooking or foil could melt and damage the oven surface.

Preparing the Oven for Self-Cleaning:

1. Remove any excess spillovers in the oven cavity before starting the self-cleaning

cycle. To clean, use hot soapy water and a cloth. Large spillovers can cause smoke or a ﬁ re when subjected to high temperatures. DO NOT allow food spills with a high sugar or acid content (such as tomatoes, sauerkraut, fruit juices or pie ﬁ lling) to remain on the surface as they may leave a dull spot even after cleaning.

2. Clean any soil from the oven frame and

the door liner (see illustration). These areas heat sufﬁ ciently during a self-clean to burn soil on. Clean with hot soapy water.

3. Remove the broiler pan and insert, all

utensils and any foil. These items can not withstand high cleaning temperatures.

4. Oven racks and oven rack supports must

be removed. If they are not removed the self-cleaning cycle can not start and Remove Racks will appear in the display indicating that you must remove the racks and racks supports. When the cycle has ﬁ nished and the door can be opened replace the oven rack supports and oven racks.

Do NOT Hand Clean Door Gasket

Do Hand Clean Door Area outside of the Door Gasket

Do Hand Clean Frame

The health of some birds is extremely sensitive to the fumes given off

during the self-clean cycle of any wall oven. Move birds to another well ventilated room.

Page 46

Care & Cleaning

STARTING SELF-CLEAN CYCLE

A self-cleaning oven cleans itself with high temperatures (well above cooking temperatures) which eliminate soil completely or reduce it to a ﬁ ne powdered ash you can whisk away with damp cloth. If you are planning to use the oven directly after a self-clean cycle remember to allow time for the oven to cool down and the oven door to unlock. This normally takes about one hour.

To set the controls for a Self-Cleaning cycle:

1. Remove the oven racks and the racks supports.

2. Be sure the clock is set with the correct time of day and the oven door is closed.

3. Press CLEAN .

4. Press LITE HEAVY for 4 hours.

5. Press START

6. As soon as the control is set, the motor driven oven door lock will begin to close automatically. Once the door has been locked the “DOOR ” indicator light will stop

ﬂ ashing and remain on.

Note: Allow about 15 seconds for the oven door lock to close.

for a 2 hour self-clean, or press MEDIUM for 3 hours, or press

. The “DOOR ” icon will ﬂ ash.

To set the controls for a delayed Self-Cleaning cycle:

1. Follow the instructions above.

2. Press COOK OPTIONS to bring up the cook options items.

3. Press END TIME .

4. Enter time of day needed for the end of the cycle (example for “6:00”;

5. Press START .

0 0

When the Self-Clean Cycle is Completed:

1. The time of day and “DOOR ” will remain ON.

2. The display will show an “Hot” message while the oven is still too hot to open door.

3. Once the oven has cooled down for 1 HOUR, and the “DOOR ” icon is no longer displayed, the oven door can then be opened.

Stopping or Interrupting a Self-Cleaning Cycle:

If it becomes necessary to stop or interrupt a self-cleaning cycle due to excessive smoke:

1. Press CANCEL .

2. Once the oven has cooled down for approximately 1 HOUR and the “DOOR ” icon is no longer displayed, the oven door can then be opened.

During the self-cleaning cycle, the outside of the wall oven can become very hot to the touch. DO NOT leave small children unattended near the appliance; they may be burned if they touch the hot oven door surfaces.

DO NOT force the oven door open. This can damage the automatic door locking system. Use care when opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or steam to escape. The oven may still be VERY HOT.

Page 47

Care & Cleaning

GENERAL CLEANING

Cleaning Various Parts of Your appliance

Before cleaning any part of the appliance, be sure all controls are turned OFF and the appliance is COOL. REMOVE SPILLOVERS AND HEA VY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCE THE NUMBER OF MAJOR CLEANINGS LATER

Surfaces How to Clean

Glass, Painted and Plastic Body Parts and Decorative Trim

Control Panel Before cleaning the control panel, turn all controls to OFF . Lightly

Porcelain Enamel

Broiler Pan and Grid

Stainless Steel, Chrome

Decorative Trim, Oven Racks, Oven Racks Support

Oven Racks

For general cleaning, use hot, soapy water and a cloth. For more difﬁ cult soils and built-up grease, apply a liquid detergent directly

onto the soil. Leave on soil for 30 to 60 minutes. Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of these materials; they can scratch.

spray the control panel with a liquid cleaner. Wipe with a soft cloth or paper towel. DO NOT use abrasive cleaners or scouring pads. These can permanently damage the control panel surface.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If necessary, cover difﬁ cult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a soap-ﬁ lled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become damaged during future heating.

Clean with hot, soapy water and a dishcloth. Rinse with clean water and a cloth. Cover stubborn spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse. Cleaners made especially for stainless steel are recommended. Be sure to rinse the cleaners as bluish stains may occur during heating and cannot be removed.

Oven racks and oven rack supports must be removed from the oven during the self-clean cycle for cleaning. If they are not removed, the self-clean cycle will not start. Clean them as described above.

Oven Door To clean oven door, wash with hot, soapy water and a clean

cloth. DO NOT immerse the door in water or clean the oven door gasket

Oven Door Gasket The oven gasket located on the inner frame of the door and visible

when the door is opened is essential for a good seal. Care should be taken not to rub, damage or remove the gasket.

Lower Oven To remove burned-on fat on oven walls, moisten soiled parts

with household ammonia, using a wet cloth. Complete cleaning with a damp cloth and use a ﬁ ne steel wool scouring agent if necessary.

Page 48

Care & Cleaning

CARE AND CLEANING OF STAINLESS STEEL

Special care and cleaning are required for maintaining the appearance of stainless parts. Please refer to the table provided at the beginning of the General Care & Cleaning section in this Use & Care Manual.

TO REMOVE AND REPLACE OVEN DOOR

1. Open the door to the fully opened position.

2. Pull up the lock located on each hinge support toward front of range. You may have to apply a little upward pressure on the lock to pull it up.

3. Grasp the door by the sides, pull the bottom of the door up and toward you to disengage the hinge supports.

Keep pulling the bottom of the door toward you while rotating the top of the door toward

the appliance to completely disengage the hinge levers.

4. Proceed in reverse to re-install the door. Make sure the hinge supports are fully engaged before unlocking the hinge levers.

Removal of the Oven Door

Lock in normal position

SPECIAL DOOR CARE INSTRUCTIONS

Most oven doors contain glass that can break. Read the following recommendations:

1. Do not close the oven door until all the oven racks are fully in place.

2. Do not hit the glass with pots, pans, or any other object.

3. Scratching, hitting, jarring or stressing the glass may weaken its structure causing an increased risk of breakage at a later time.

Lock engaged for door removal

HINGE SLOT - Door removed from the appliance

Page 49

Care & Cleaning

OVEN LIGHT

An interior oven light will turn on automatically when the oven door is opened. The oven light may be turned on when the door is closed by using the oven light switch located on the control panel. The lamp is covered with a glass shield. The glass shield can be remove to be cleaned manually or to change the oven light.

THIS GLASS SHIELD MUST BE IN PLACE WHENEVER THE OVEN IS IN USE.

To replace the light bulb:

CAUTION: BE SURE THE OVEN IS COOL.

1. Turn the power off at the main source.

2. Wear a leather-faced glove for protection against possible broken glass.

3. To remove the glass shield, pull the back side of the shield toward the inside of the oven in a manner to lift it up from the oven side.

4. The glass shield should come out easily by pushing a little toward front of the wall oven.

5. Replace halogen light appliance bulb taking care to not touch the bulb. Touching the halogen bulb with bare ﬁ ngers can damage it and also burn it.

6. To replace glass shield, proceed in reverse.

Lift backside of glass shield and remove it.

Halogen Light Bulb

BROILER PAN CLEANING TIPS

To make cleaning easier, line the bottom of the broiler pan with aluminum foil. DO NOT cover the broiler grid with foil.

To prevent grease from baking on, remove the broiler pan from the oven as soon as cooking is completed. Use hot pads because the broiler pan is extremely hot. Pour off grease. Soak the pan in HOT, soapy water.

Clean the broiler pan as soon as possible after each use. If necessary, use soapﬁ lled steel wool pads. Heavy scouring may scratch the grid.

Grid

Broiler Pan

Page 50

General Care & Cleaning

COOKTOP CLEANING AND MAINTENANCE

Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop

Prior to using your cooktop for the ﬁ rst time, apply the recommended Cleaning Creme to the ceramic surface. A sample of that cleaning creme is supplied with your cooktop and it is available in most hardware stores. Clean and buff with a paper towel. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective ﬁ nish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the cooktop surface. Do not slide anything metal or glass across the cooktop. Do not use your cooktop as a cutting board or work surface in the kitchen. Do not cook foods directly on the cooktop surface without a pan. Do not drop heavy or hard objects on the glass cooktop, they may cause it to crack or break.

CLEANING RECOMMENDA TIONS FOR THE CERAMIC GLASS COOKTOP

CAUTION

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

WARNING

DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can chemically damage the ceramic-glass surface.

For light to moderate soil:

Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel to clean the entire cooktop surface. Make sure the cooktop

is cleaned thoroughly, leaving no residue. Do not use the towel you use to clean the cooktop for any other purpose.

For heavy, burned on soil:

First, clean the surface as described above. Then, if soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper at a 30 degree angle to the surface. Remove loosened soils with cooktop cleaning cream and buff surface clean.

Page 51

General Care & Cleaning

CLEANING RECOMMENDA TIONS FOR THE CERAMIC

GLASS COOKTOP

(CONTINUED)

CAUTION

Damage to the ceramic glass cooktop may occur if you use scrub pad.

Plastic or foods with a high sugar content:

These types of soils must be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent damage (such as pitting of the cooktop surface) may occur if not removed immediately. After turning the surface elements OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as illustrated on previous page). Allow the cooktop to cool, and use the same method for heavy or burned on soils.

Do not use the following on the ceramic glass cooktop:

• Do not use abrasive cleaners and scouring pads, such as metal

and some nylon pads. They may scratch the cooktop, making it more difﬁ cult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or

oven cleaners, as they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can

leave soil or lint on the cooktop which can burn and cause discoloration.

Special Caution for Aluminum Foil and Aluminum Cooking Utensils

• Aluminum foil - Use of aluminum foil will damage the cooktop. Do not

use thin aluminum cooking utensils or allow foil to touch the ceramic cooktop under ANY circumstances.

• Aluminum utensils - The melting point of aluminum is much lower than that of other metals.

Care must be taken when aluminum pots or pans are used on the cooktop. If allowed to boil dry , not only will the utensil be destroyed, but it may fuse to, break or mark the ceramic glass surface, permanently damaging the cooktop surface.

Page 52

Solutions to Common Problems

Baking Problems

For best cooking results pre-heat the oven when baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meats or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previous appliance.

Baking Problems and Solutions Chart

Baking Problems Causes Solutions

Cookies and biscuits burn on the bottom.

Cakes too dark on top or bottom.

• Cookies and biscuits put into the oven before the preheating time is completed.

• Oven rack overcrowded or rack position too low.

• Dark pan absorbs heat too fast. • Use a medium-weight aluminum baking sheet.

• Cakes put into the oven before preheating time is completed.

• Rack position too high or low • Use proper rack position for baking needs.

• Oven too hot. • Set oven temperature 25°F/12°C lower than

• Allow oven to preheat to the selected temperature before placing food in oven.

• Choose pan sizes that will permit 5.1 cm to 10.2 cm (2” to 4”) of air space on all sides when placed in the oven.

• Allow oven to preheat to the selected temperature before placing food in the oven.

recommended.

Cakes not done in the center.

Cakes not level.

Foods not done when cooking time is up.

• Oven too hot. • Set oven temperature 25°F/12°C lower than recommended.

• Incorrect pan size. • Use pan size suggested in recipe.

• Pan not centered in oven. • Use proper rack position and place pan so there is

5.1 cm to 10.2 cm (2” to 4”) of space on all sides of pan.

• Range not level. • Place a marked glass measuring cup ﬁ lled with water on the center of the oven rack. If the water level is uneven, refer to the installation instructions for leveling the range.

• Pan too close to oven wall or rack

overcrowded.

• Pan warped • Do not use pans that are dented or warped.

• Oven too cool. • Set oven temperature 25°F/12°C higher than

• Oven overcrowded. • Be sure to remove all pans from the oven except the

• Oven door opened too frequently. • Open oven door only after shortest recommended

• Be sure to allow 5.1 cm to 10.2 cm (2” to 4”) of clearance on all sides of each pan in the oven.

suggested and bake for the recommended time.

ones to be used for baking.

baking time.

Page 53

Solutions to Common Problems

IMPORTANT

Before calling for service, review this list. It may save you both time and expense. This list includes common experiences that are not the result of defective workmanship or material in your cooktop.

OVEN CONTROL BEEPS AND DISPLAYS AN “F” ERROR CODE

• Electronic control has detected a fault condition. Push CANCEL pad to clear the display and stop the display from beeping. Reprogram the oven. If a fault reoccurs, record the fault number, push the CANCEL pad and contact an authorized servicer.

INSTALLATION

• Place oven rack in center of oven. Place a level on the oven rack. Contact installing agent if rack and cabinet cutout ﬂ ooring are not level.

• Kitchen cabinet misalignment may make range appear to be not level. Be sure cabinets are square and level. Contact cabinet maker to correct problem.

ENTIRE RANGE DOES NOT OPERATE

• When the range is ﬁ rst plugged in, or when the power supply to the oven has been interrupted, the display will ﬂ ash. The range cannot be programmed until the clock is set.

• Be sure electrical cord is securely connected into the electrical junction box.

• Cord/plug is not installed and/or connected. Cord is not supplied with range. Contact your dealer, installing agent or authorized servicer.

• Service wiring not complete. Contact your dealer, installing agent or authorized servicer.

• Power outage. Check house lights to be sure. Call your local electric company.

• Short in cord/plug. Replace cord/plug.

• Controls are not set properly. See instructions to set the controls.

• House fuse has blown or circuit breaker has tripped immediately following installation.

• House fuse may not be fully engaged. Check fuse and screw or engage circuit breaker securely.

OVEN LIGHT DOES NOT WORK

• Burned-out or loose bulb. Follow the instructions under Oven Light to replace or tighten the bulb.

Page 54

Solutions to Common Problems

SELF-CLEANING CYCLE DOES NOT WORK

• Make sure the oven door is closed.

• Make sure you have removed the oven racks and the oven rack supports from the oven.

• Controls not set properly. Follow instructions under “Using the Self-Clean Feature”.

OVEN SMOKES EXCESSIVELY DURING BROILING

• Meat too close to the broiler element. Reposition the rack to provide more clearance between the meat and the broiler. Preheat broil element for quick searing operation.

• Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges to prevent curling, but do not cut into the lean.

• Grid on broiler pan wrong side-up. Grease does not drain into broiler pan. Always place the grid on the broiler pan with the ribs up and the slots down to allow grease to drip into the pan.

• Broiler pan used without grid or grid cover with aluminum foil. DO NOT use the broiler pan without the grid or cover the grid with aluminum foil.

• Oven needs to be cleaned. Grease has built up on oven surfaces. Regular cleaning is necessary when broiling frequently. Grease or food spatters cause excessive smoking.

SOIL NOT COMPLETELY REMOVED AFTER SELF-CLEANING CYCLE IS COMPLETED

• Failure to clean bottom, from top of oven, frame of oven or door area outside oven seal. These areas are not in the self-cleaning area, but get hot enough to burn on residue. Clean these areas before the self-cleaning cycle is started. Burned on residue can be cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket.

• Excessive spillovers in oven. Set the self-clean cycle for longer cleaning time.

POOR COOKING RESULTS

• Many factors affect baking results. See Baking for hints, causes and corrections. See Adjusting Oven Temperature.

• Many factors affect cooking results. Adjust the recipe’s recommended power levels or cooking times.

• Cookware is too lightweight or warped. Use heavier quality cookware so foods being prepared may cook more evenly.

FLAMES INSIDE OVEN OR SMOKE FROM VENT

• Excessive spillovers in oven. This is normal, especially for high oven temperatures, pie spillovers or for large amounts of grease on bottom of oven. Wipe up excessive spillovers.

Page 55

Solutions to Common Problems

SURFACE ELEMENT DOES NOT HEAT

• No power to appliance. Check/reset breaker or replace fuse. If the problem is a circuit

overload, or improper connection of the armored cable supplied with the appliance, have this situation corrected by a qualiﬁ ed electrician.

• Too low heat setting. Turn control to a slightly higher setting until element comes on.

• Incorrect control is ON. Be sure to use correct control for the element needed.

• No cookware was placed on the induction cooking zones or the cookware material type is

incorrect for induction cooking.

SURFACE ELEMENT TOO HOT OR NOT HOT ENOUGH

• Incorrect control setting. Raise or lower setting until proper amount of heat is obtained. Dial

markings are an indicator of relative heat settings and will vary slightly.

• Lightweight or warped pans being used. Use only ﬂ at, evenly balanced, medium or

heavyweight cookware.

• Voltage is incorrect. Be sure appliance is properly connected to the speciﬁ ed power

source.

• Use only ﬂ at bottom, evenly balanced, medium or heavyweight cookware. Pans having a

ﬂ at bottom heat better than warped pans. Cookware material affects heating. Heavy and medium weight pans heat evenly . Because lightweight pans heat unevenly , foods may burn easily.

FOOD NOT HEATING EVENLY

• Improper cookware. Select ﬂ at-bottomed cookware of a proper size to ﬁ t element.

• Incorrect control setting. Raise or lower setting until proper amount of heat is obtained.

SCRATCHES OR ABRASIONS ON CERAMIC GLASS COOKTOP SURFACE

• Coarse particles (such as salt or sand) are between cooktop and utensil. Be sure cooktop

surface and bottom of utensils are clean before use. Small scratches do not affect cooking and will become less visible with use.

• Cleaning materials not recommended for glass ceramic cooktop have been used. See

Ceramic-Glass Cooktop section in this Owner’s Guide.

• Cookware with rough bottom has been used. Use ﬂ at-bottomed, smooth utensils. See

Selecting Surface Cooking Utensils in this Owner’s Guide.

Page 56

Solutions to Common Problems

BROWN STREAKS AND SPECKS ON CERAMIC GLASS COOKT OP SURFACE

• Boilovers have cooked onto surface. Use razor blade scraper to remove soil. See instructions

under General Care & Cleaning.

• Cleaning materials not recommended for ceramic-glass cooktop have been used. Use

recommended cleaners and cleaning method. See Ceramic-Glass Cooktop section in this Owner’s Guide.

AREAS OF DISCOLORATION ON CERAMIC GLASS COOKTOP SURFACE

• Mineral deposits from water and food. Wet surface with water and sprinkle on a cooktop

cleaning creme. Scrub with a clean damp paper towel until the stain disappears. Wipe remaining paste away, then apply a small amount of cooktop cleaning creme and polish with a clean paper towel. Use cookware with clean, dry bottoms. See Ceramic-Glass Cooktop section in this Owner’s Guide.

METAL MARKS ON CERAMIC GLASS COOKTOP SURFACE

• Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on

cooktop surface. Use a mildly abrasive cleanser to remove marks.

Page 57

Warranty Information

Y our appliance is covered by a one year limited warranty . For one year from your original date of purchase, Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions. In addition, the glass cooktop or radiant surface element of your appliance (excluding built-in and free-standing range appliances) is covered by a two through ﬁ ve year limited warranty. During the 2nd through 5th years from your original date of purchase, Electrolux will provide a replacement glass cooktop or radiant surface element for your appliance which has proven to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions.

Exclusions This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air ﬁ lters, water ﬁ lters, other consumables, or knobs, handles, or other cosmetic parts.

11. Labor or in-home service costs during the additional limited warranty periods beyond the ﬁ rst year from your original date of purchase.

12. Pickup and delivery costs; your appliance is designed to be repaired in the home.

13. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

14. Damages to the ﬁ nish of appliance or home incurred during transportation or installation, including but not limited to ﬂ oors, cabinets, walls, etc.

15. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, ﬁ res, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REP AIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING W ARRANTIES OF MERCHANTABILITY

OR FITNESS FOR A P ARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW , BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENT AL

DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMIT ATION OF INCIDENT AL OR CONSEQUENTIAL DAMAGES, OR LIMIT A TIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMIT ATIONS OR EXCLUSIONS MA Y NOT APPLY T O YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below. This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty . Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company . Product features or speciﬁ cations as described or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Home Products, Inc., 10200 David Taylor Drive Charlotte, NC 28262

Canada 1-800-265-8352

Electrolux Canada Corp. 5855 Terry Fox Way Mississauga, Ontario, Canada L5V 3E4

Page 58

Notes

Page 59

Notes

Page 60

Electrolux EW30IS65JS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
