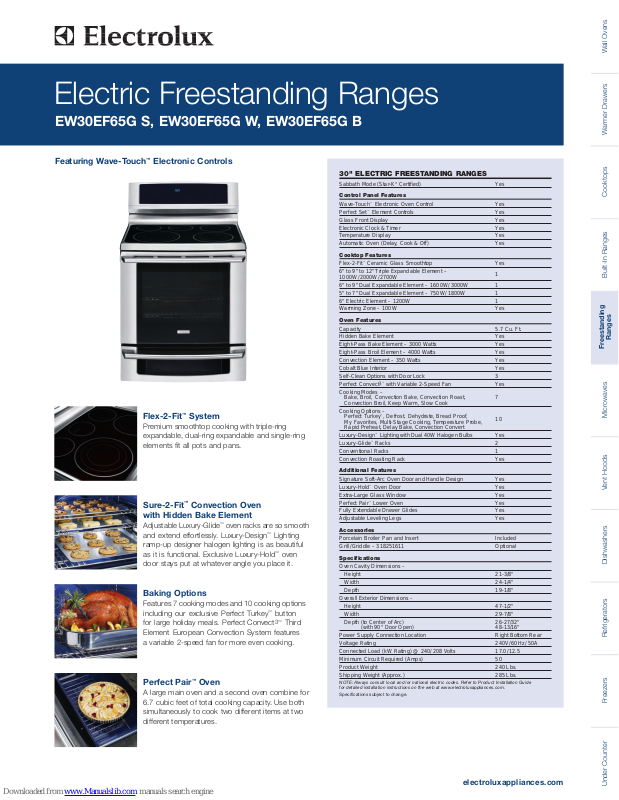

Page 1
Electric Freestanding Ranges
EW30EF65G S, EW30EF65G W, EW30EF65G B
Featuring Wave-Touch™Electronic Controls
30" ELECTRIC FREESTANDING RANGES
Sabbath Mode (Star-K®Certified)
Control Panel Features
Wave-Touch™Electronic Oven Control
Perfect Set™Element Controls
Glass Front Display
Electronic Clock & Timer
Temperature Display
Automatic Oven (Delay, Cook & Off)
Cooktop Features
Flex-2-Fit™Ceramic Glass Smoothtop
6" to 9" to 12" Triple Expandable Element –
1000W/ 2000W/2700W
6" to 9" Dual Expandable Element – 1600W/ 3000W
5" to 7" Dual Expandable Element – 750W/ 1800W
6" Electric Element – 1200W
Warming Zone – 100W
Oven Features
Capacity
Hidden Bake Element
Eight-Pass Bake Element – 3000 Watts
Eight-Pass Broil Element – 4000 Watts
Convection Element – 350 Watts
Cobalt Blue Interior
Flex-2-Fit™System
Premium smoothtop cooking with triple-ring
expandable, dual-ring expandable and single-ring
elements fit all pots and pans.
Sure-2-Fit™Convection Oven
with Hidden Bake Element
Adjustable Luxury-Glide™oven racks are so smooth
and extend effortlessly. Luxury-Design
ramp-up designer halogen lighting is as beautiful
as it is functional. Exclusive Luxury-Hold
door stays put at whatever angle you place it.
™
Lighting
™
oven
Baking Options
Features 7cooking modes and 10 cooking options
including our exclusive Perfect Turkey
for large holiday meals. Perfect Convect
Element European Convection System features
a variable 2-speed fan for more even cooking.
™
button
™
3
Third
Perfect Pair™Oven
A large main oven and a second oven combine for
6.7 cubic feet of total cooking capacity. Use both
simultaneously to cook two different items at two
different temperatures.
Self-Clean Options with Door Lock
Perfect Convect
Cooking Modes –
Bake, Broil, Convection Bake, Convection Roast,
Convection Broil, Keep Warm, Slow Cook
Cooking Options –
Perfect Turkey
My Favorites, Multi-Stage Cooking, Temperature Probe,
Rapid Preheat, Delay Bake, Convection Convert
Luxury-Design™LightingwithDual 40W Halogen Bulbs
Luxury-Glide™Racks
Conventional Racks
Convection Roasting Rack
Additional Features
Signature Soft-Arc Oven Door and Handle Design
Luxury-Hold™Oven Door
Extra-Large Glass Window
Perfect Pair™Lower Oven
Fully Extendable Drawer Glides
Adjustable Leveling Legs
Accessories
Porcelain Broiler Pan and Insert
Grill/ Griddle – 318251611
Specifications
Oven Cavity Dimensions –
Height
Width
Depth
Overall Exterior Dimensions –
Height
Width
Depth (to Center of Arc)
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 240/ 208 Volts
Minimum Circuit Required (Amps)
Product Weight
Shipping Weight (Approx.)
NOTE: Always consult local and/ or national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at www.electroluxappliances.com.
Specifications subject to change.
™
3
with Variable 2-Speed Fan
™
, Defrost, Dehydrate, Bread Proof,
(with 90° Door Open)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1
1
1
1
Yes
5.7 Cu. Ft.
Yes
Yes
Yes
Yes
Yes
3
Yes
7
10
Yes
2
1
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Included
Optional
21-3/8"
24-1/4"
19-1/8"
47-1/2"
29-7/8"
26-27/32"
48-13/16"
Right Bottom Rear
240V/ 60Hz/50A
17.0/ 12.5
50
240 Lbs.
285 Lbs.
Wall OvensWarmer DrawersCooktopsBuilt-In Ranges
Ranges
Freestanding
MicrowavesVent HoodsDishwashersRefrigerators
FreezersUnder Counter
electroluxappliances.com
Page 2
Electric Freestanding Ranges
EW30EF65G S, EW30EF65G W, EW30EF65G B
Side
25"
13 "
max.
24"
30"min.
C
L
1
30
/8"
11"
22"
6"
Area allows for flush
installation of rear
wall electrical outlet
Note: All dimensions for
electrical outlet location
are maximum
25/8"
34"
min.
18"min.
1" min.
to nearest
combustible
wall (either
side of unit)
above 36"
height
36"
stand.
Overall depth
including oven
door in 90°open
position – 4813/16"
Front
115/8"
357/8"
Adjustable
to
361/8"
285/8"
471/2"
263/8"
Power supply
location
(right bottom
rear)
7
29
/8"
30" Electric Freestanding Range Specifications
•
Product Weight – 240 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120 /208 Volt, 60 Hertz,
fused on both sides of line with ground.
•
Connected Load (kW Rating) @ 240/208 Volts = 17.0/12.5 kW
•
Amps @ 240/208 Volts = 41.7/ 34.2 Amps
•
Recommended Circuit Breaker – 50 Amps
•
Always consult local and/or national electric codes.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between rangetop and bottom of
unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
•
USA
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
CANADA
EW30EF65G 01/08 © 2008 Electrolux Major Appliances, NA Printed in the U.S.A.
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No. 28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•
Allow 1" minimum clearance from edge of rangetop to nearest
combustible wall on either side of unit.
•
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
Grill/Griddle – (318251611).
•
electroluxappliances.com
High standards of quality at Electrolux Major Appliances mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
