Electrolux EW30DF65GBA, EW30DF65GBB, EW30DF65GBC, EW30DF65GBD, EW30DF65GSA Installation Guide

Installation Instructions

lnstrucciones para instalar

' -<............ O_!/s D _: _ 30

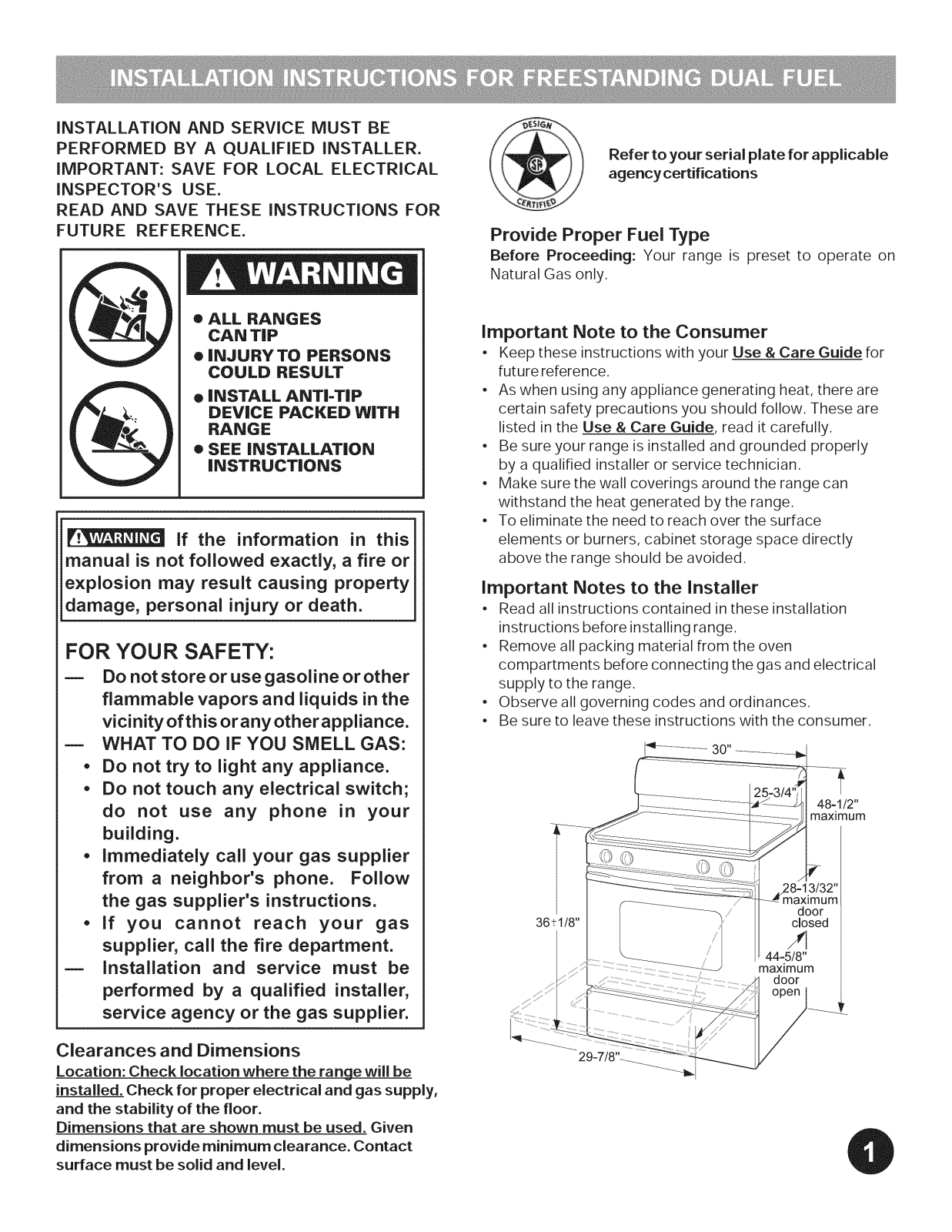

iNSTALLATiON AND SERVICE MUST BE
PERFORMED BY A QUALiFiED iNSTALLER.

iMPORTANT: SAVE FOR LOCAL ELECTRICAL
iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR
FUTURE REFERENCE.

• ALL RANGES
CAN TiP

• INJURYTO PERSONS
COULD RESULT

• iNSTALL ANTI-TIP
DEVICE PACKED WiTH

RANGE

e SEE iNSTALLATiON

INSTRUCTIONS

if the information in this I

manual is not followed exactly, a fire or I
explosion may result causing property I

damage, personal injury or death, j

FOR YOUR SAFETY:

m Do not store or use gasoline or other

flammable vapors and liquids in the
vicinity ofth isorany other appliance.

WHAT TO DO iF YOU SMELL GAS:

, Do not try to light any appliance.
, Do not touch any electrical switch;

do not use any phone in your
building.

, immediately call your gas supplier

from a neighbor's phone. Follow
the gas supplier's instructions.

, if you cannot reach your gas

supplier, call the fire department.

installation and service must be
performed by a qualified installer,

service agency or the gas supplier.

Refer to your serial plate for applicable

agency certifications

Provide Proper Fuel Type

Before Proceeding: Your range is preset to operate on

Natural Gas only.

Important Note to the Consumer
, Keep these instructions with your Use & Care Guide for

future reference.

, As when using any appliance generating heat, there are

certain safety precautions you should follow. These are
listed in the Use & Care Guide, read it carefully.

, Be sure your range is installed and grounded properly

by a qualified installer or service technician.

, Make sure the wall coverings around the range can

withstand the heat generated by the range.

, To eliminate the need to reach over the surface

elements or burners, cabinet storage space directly
above the range should be avoided.

Important Notes to the Installer
, Read all instructions contained in these installation

instructions before installing range.

, Remove all packing material from the oven

compartments before connecting the gas and electrical
supply to the range.

, Observe all governing codes and ordinances.
, Be sure to leave these instructions with the consumer.

48-1/2"

maximum

/

36±1/8"

door

closed

44-5/8"

maximum

door

Clearances and Dimensions

Location: Check location where the range will be
installed. Check for proper electrical and gas supply,
and the stability of the floor.

Dimensions that are shown must be used. Given
dimensions provide minimum clearance. Contact

surface must be solid and level.

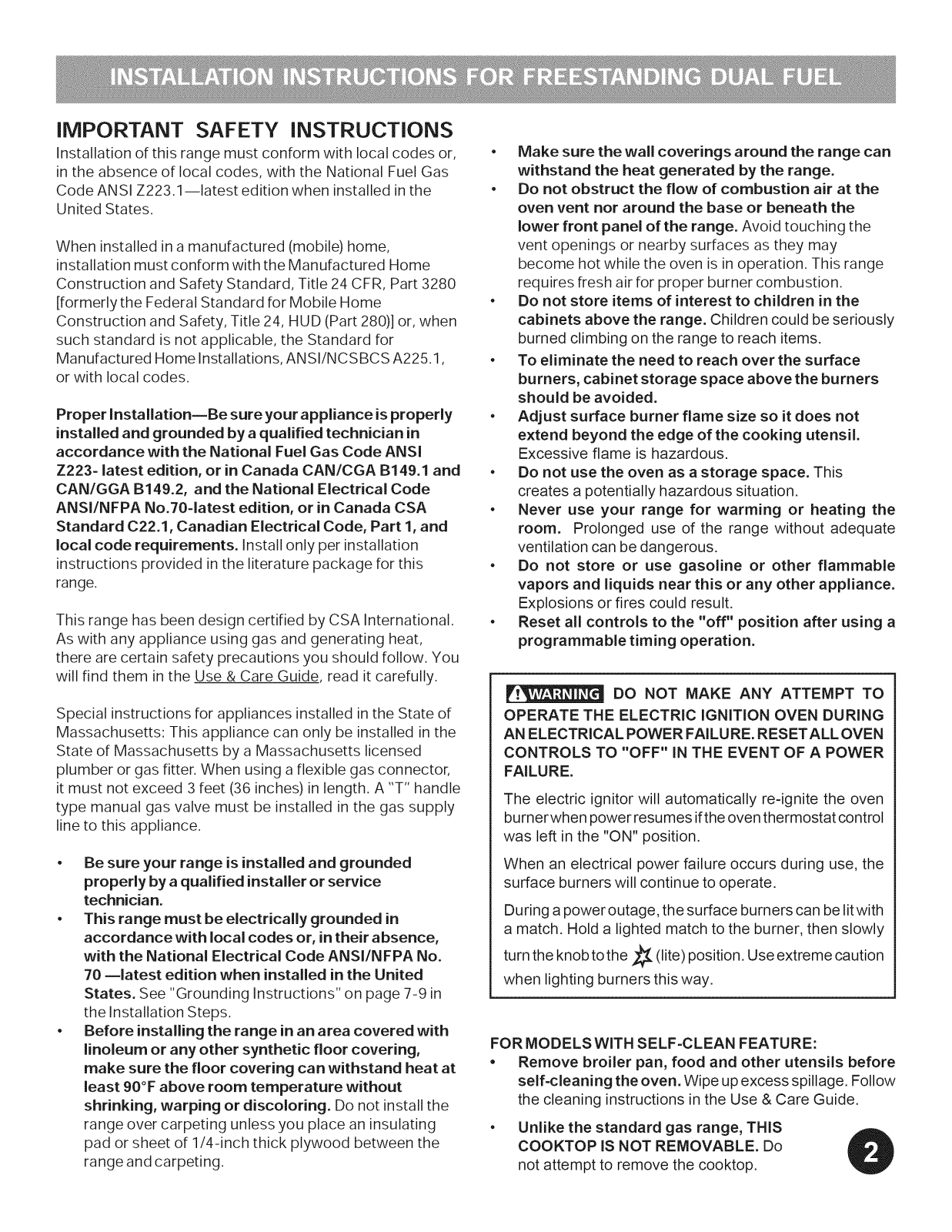

iMPORTANT SAFETY iNSTRUCTiONS

Installation of this range must conform with local codes or,
in the absence of local codes, with the National Fuel Gas

Code ANSI Z223.1--1atest edition when installed in the
United States.

When installed ina manufactured (mobile) home,
installation must conform with the Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280
[formerly the Federal Standard for Mobile Home
Construction and Safety, Title 24, HUD (Part 280)] or, when
such standard is not applicable, the Standard for

Manufactured Home Installations, ANSI/NCSBCS A225.1,
or with local codes.

Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in

accordance with the National Fuel Gas Code ANSI
Z223- latest edition, or in Canada CAN/CGA B149.1 and
CAN/GGA B149.2, and the National Electrical Code
ANSI/NFPA No.70-latest edition, or in Canada CSA

Standard C22.1, Canadian Electrical Code, Part 1, and
local code requirements. Install only per installation
instructions provided in the literature package for this

range.

This range has been design certified by CSA International.
As with any appliance using gas and generating heat,
there are certain safety precautions you should follow, You
will find them in the Use & Care Guide, read it carefully.

Special instructions for appliances installed in the State of
Massachusetts: This appliance can only be installed in the
State of Massachusetts by a Massachusetts licensed
plumber or gas fitter, When using a flexible gas connector,
it must not exceed 3 feet (36 inches) in length. A "T" handle
type manual gas valve must be installed in the gas supply
line to this appliance.

• Be sure your range is installed and grounded
properly by a qualified installer or service

technician.

• This range must be electrically grounded in
accordance with local codes or, intheir absence,

with the National Electrical Code ANSI/NFPA No.
70 --latest edition when installed in the United

States. See "Grounding Instructions" on page 7-9 in
the Installation Steps,

• Before installing the range in an area covered with
linoleum or any other synthetic floor covering,
make sure the floor covering can withstand heat at
least 90°F above room temperature without
shrinking, warping or discoloring. Do not install the
range over carpeting unless you place an insulating
pad or sheet of 1/4-inch thick plywood between the
range and carpeting.

. Make sure the wall coverings around the range can

withstand the heat generated by the range.

. Do not obstruct the flow of combustion air at the

oven vent nor around the base or beneath the
lower front panel of the range. Avoid touching the

vent openings or nearby surfaces as they may
become hot while the oven is in operation. This range
requires fresh air for proper burner combustion.

• Do not store items of interest to children in the
cabinets above the range. Children could be seriously

burned climbing on the range to reach items.

• To eliminate the need to reach over the surface
burners, cabinet storage space above the burners

should be avoided.

• Adjust surface burner flame size so it does not
extend beyond the edge of the cooking utensil.

Excessive flame is hazardous.

• Do not use the oven as a storage space. This
creates a potentially hazardous situation.

• Never use your range for warming or heating the
room. Prolonged use of the range without adequate
ventilation can be dangerous.

• Do not store or use gasoline or other flammable
vapors and liquids near this or any other appliance.

Explosions or fires could result.

• Reset all controls to the "off" position after using a
programmable timing operation.

DO NOT MAKE ANY ATTEMPT TO

OPERATE THE ELECTRIC IGNITION OVEN DURING
AN ELECTRICAL POWER FAILURE. RESETALL OVEN
CONTROLS TO "OFF" IN THE EVENT OF A POWER
FAILURE.

The electric ignitor will automatically re-ignite the oven
bumerwhen power resumes ifthe oven thermostat control
was left in the "ON" position.

When an electrical power failure occurs during use, the
surface burners will continue to operate.

During apower outage, the surface burners can be litwith
a match. Hold a lighted match to the burner, then slowly

turn the knob to the _ (lite) position. Use extreme caution

i

when lighting burners this way.

FOR MODELSWITH SELF-CLEAN FEATURE:

• Remove broiler pan, food and other utensils before
self-cleaning the oven. Wipe upexcess spillage. Follow
the cleaning instructions in the Use & Care Guide.

• Unlike the standard gas range, THIS
COOKTOP IS NOT REMOVABLE. Do

not attempt to remove the cooktop.

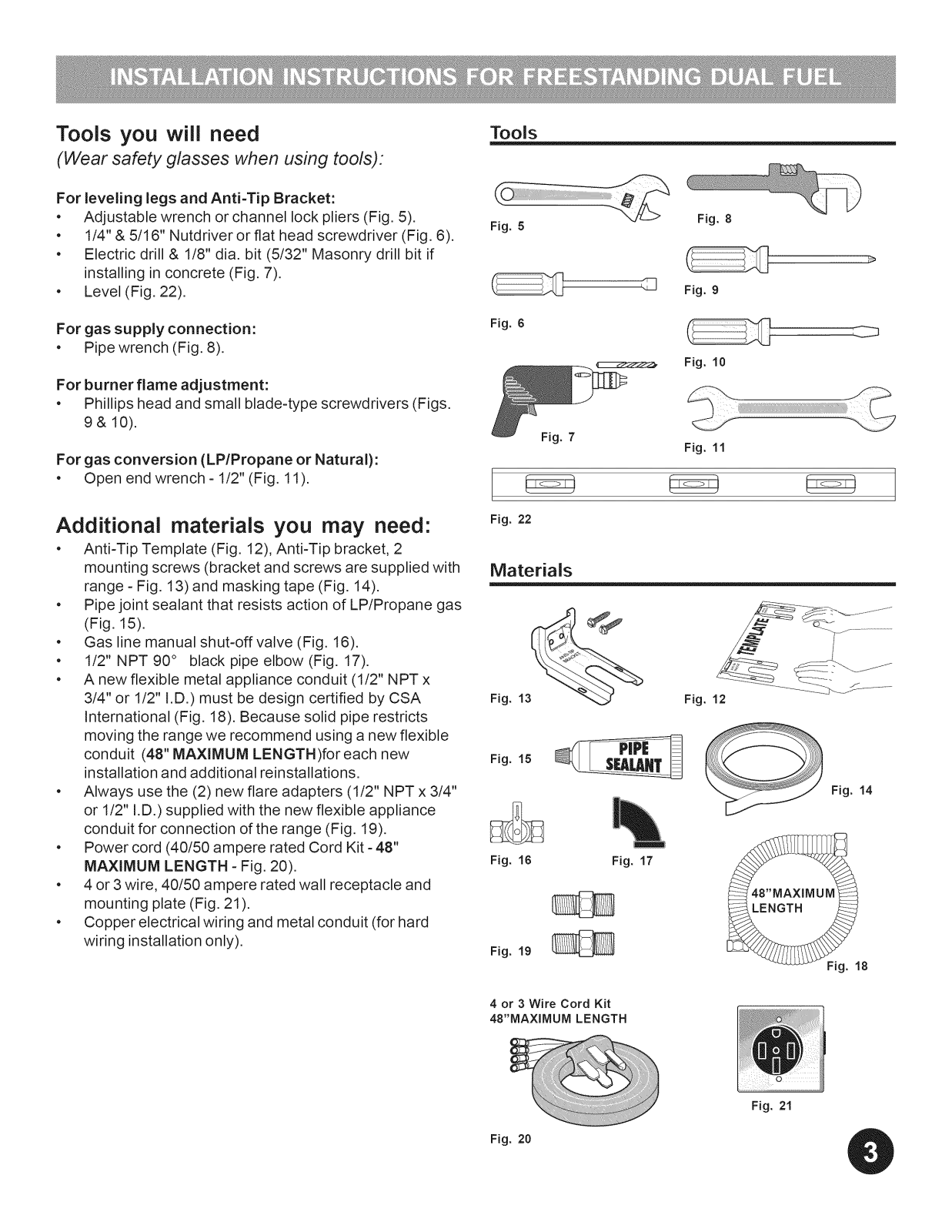

Tools you will need

(Wear safety glasses when using tools):

For leveling legs and Anti-Tip Bracket:

• Adjustable wrench or channel lock pliers (Fig. 5).

• 1/4" & 5/16" Nutdriver or flat head screwdriver (Fig. 6).

• Electric drill & 1/8" dia. bit (5/32" Masonry drill bit if

installing in concrete (Fig. 7).

• Level (Fig. 22).

Tools

For gas supply connection:

• Pipe wrench (Fig. 8).

For burner flame adjustment:

• Phillips head and small blade-type screwdrivers (Figs.
9 & 10).

For gas conversion (LP/Propane or Natural):

• Open end wrench - 1/2" (Fig. 11).

Additional materials you may need:

• Anti-Tip Template (Fig. 12), Anti-Tip bracket, 2
mounting screws (bracket and screws are supplied with
range - Fig. 13) and masking tape (Fig. 14).

• Pipe joint sealant that resists action of LP/Propane gas
(Fig. 15).

• Gas line manual shut-off valve (Fig. 16).

• 1/2" NPT 90 ° black pipe elbow (Fig. 17).

• A new flexible metal appliance conduit (1/2" NPT x
3/4" or 1/2" I.D.) must be design certified by CSA
International (Fig. 18). Because solid pipe restricts
moving the range we recommend using a new flexible
conduit (48" MAXIMUM LENGTH)for each new

installation and additional reinstallations.

• Always use the (2) new flare adapters (1/2" NPT x 3/4"
or 1/2" I.D.) supplied with the new flexible appliance
conduit for connection of the range (Fig. 19).

• Power cord (40/50 ampere rated Cord Kit - 48"
MAXIMUM LENGTH - Fig. 20).

• 4 or 3 wire, 40/50 ampere rated wall receptacle and

mounting plate (Fig. 21).

• Copper electrical wiring and metal conduit (for hard
wiring installation only).

Fig. 6

Fig. 22

Materials

Fig. 13_

Fig. 15

Fig. 16

Fig. 19

Fig. 7

Fig. 10

Fig. 11

©

Fig. 12

Fig. 14

Fig. 17

ig.

18

4 or 3 Wire Cord Kit
48"MAXIMUM LENGTH

Fig. 20

Fig. 21

To eliminate the risk of burns
or fire by reaching over

heated surface units, cabinet
storage space located above

the surface units should be
avoided, if cabinet storage is

to be provided, the risk can
be reduced by installing a
range hood that projects
horizontally a minimum of 5"
beyond the bottom of the

cabinets.

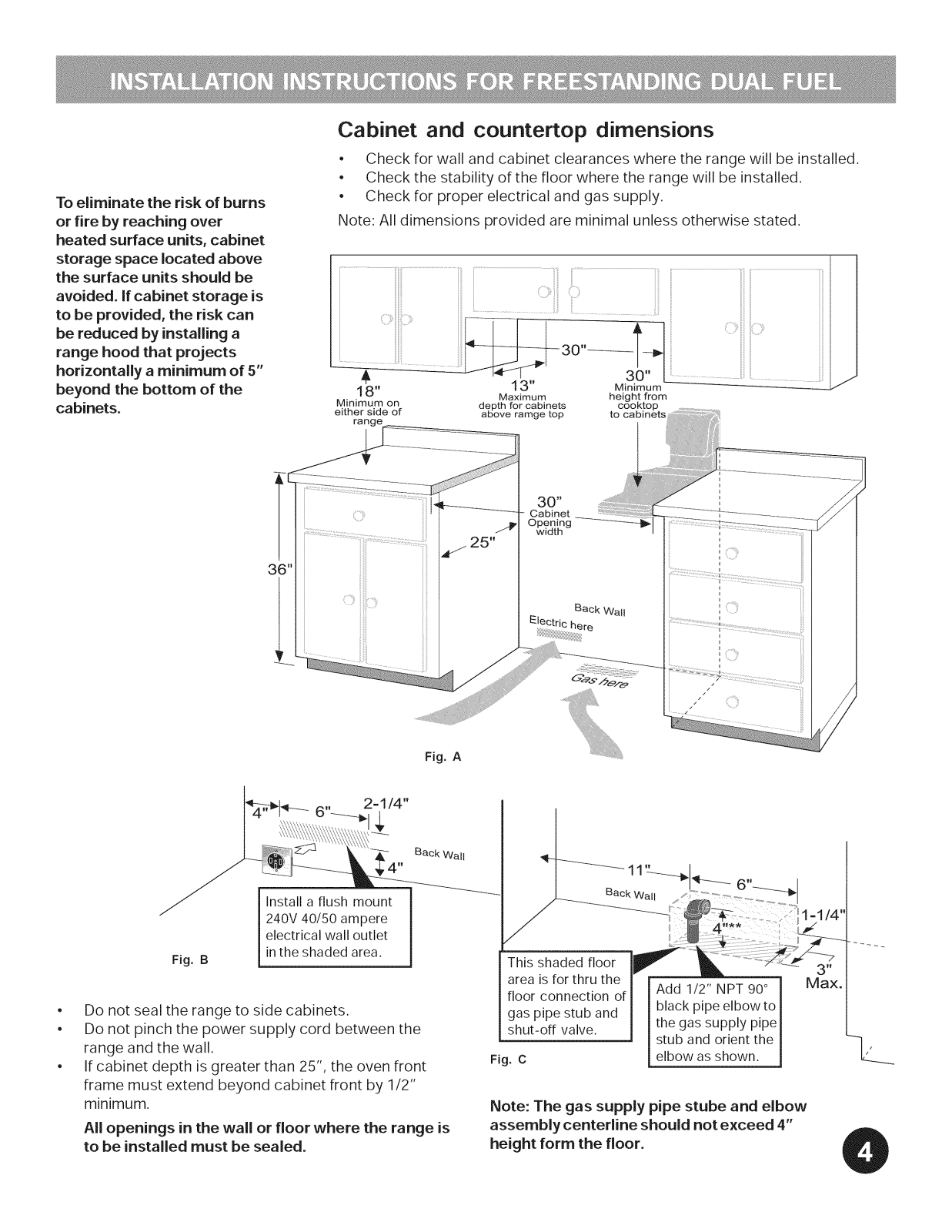

Cabinet and countertop dimensions

• Check for wall and cabinet clearances where the range will be installed.

• Check the stability of the floor where the range will be installed.

• Check for proper electrical and gas supply.
Note: All dimensions provided are minimal unless otherwise stated.

18" 13" Minimum

J

2=1/4"

Install a flush mount
240V 40/50 ampere

electrical wall outlet

Fig. B

in the shaded area.

. Do not seal the range to side cabinets.
. Do not pinch the power supply cord between the

range and the wall,

. If cabinet depth is greater than 25", the oven front

frame must extend beyond cabinet front by 1/2"
minimum.

All openings in the wall or floor where the range is
to be installed must be sealed.

Fig. A

Back Wall

t1"

-----_1 "I---_ 6"

BackWal " "'_" -,........

4"** L_

ThiSareashadedisfor thrufl°°rthe_ ..............

floor connection of I M_x.

.... black pipe elbow to I

gas pipes[uD an(] . M
shut-off valve. I

Add 1/2 NPT 90

the gassupply pipe
stub and orient the

Fig. C elbow as shown, j

Note: The gas supply pipe stube and elbow
assembly centerline should not exceed 4"
height form the floor.
