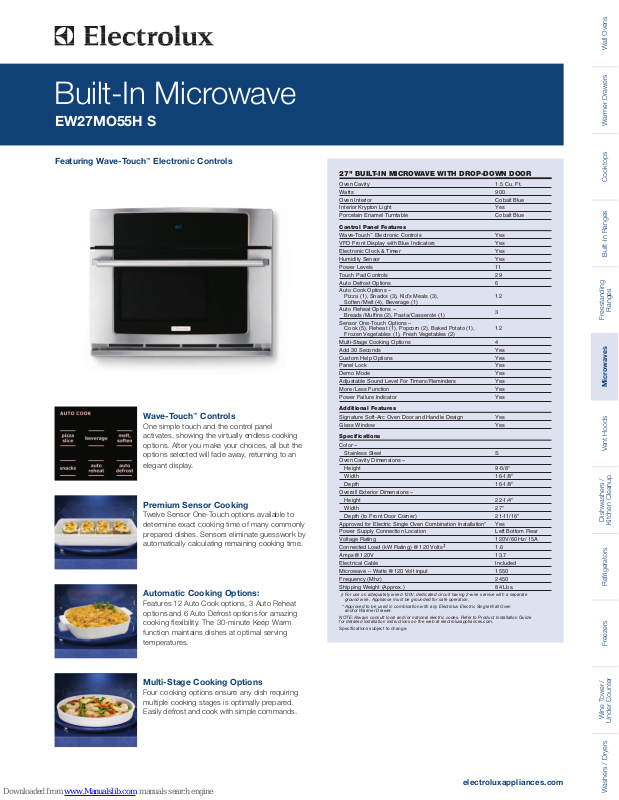

Page 1
electroluxappliances.com
Wave-Touch™Controls
One simple touch and the control panel
activates, showing the virtually endless cooking
options. After you make your choices, all but the
options selected will fade away, returning to an
elegant display.
Premium Sensor Cooking
Twelve Sensor One-Touch options available to
determine exact cooking time of many commonly
prepared dishes. Sensors eliminate guesswork by
automatically calculating remaining cooking time.
Automatic Cooking Options:
Features 12 Auto Cook options, 3 Auto Reheat
options and 6 Auto Defrost options for amazing
cooking flexibility. The 30-minute Keep Warm
function maintains dishes at optimal serving
temperatures.
Multi-Stage Cooking Options
Four cooking options ensure any dish requiring
multiple cooking stages is optimally prepared.
Easily defrost and cook with simple commands.
27" BUILT-IN MICROWAVE WITH DROP-DOWN DOOR
Oven Cavity
Watts
Oven Interior
Interior Krypton Light
Porcelain Enamel Turntable
Control Panel Features
Wave-Touch™Electronic Controls
VFD Front Display with Blue Indicators
Electronic Clock & Timer
Humidity Sensor
Power Levels
Touch Pad Controls
Auto Defrost Options
Auto Cook Options –
Pizza (1), Snacks (3), Kid’s Meals (3),
Soften/ Melt (4), Beverage (1)
Auto Reheat Options –
Breads/ Muffins (2), Pasta/Casserole (1)
Sensor One-Touch Options –
Cook (5), Reheat (1), Popcorn (2), Baked Potato (1),
Frozen Vegetables (1), Fresh Vegetables (2)
Multi-Stage Cooking Options
Add 30 Seconds
Custom Help Options
Panel Lock
Demo Mode
Adjustable Sound Level For Timers/ Reminders
More/ Less Function
Power Failure Indicator
Additional Features
Signature Soft-Arc Oven Door and Handle Design
Glass Window
Specifications
Color –
Stainless Steel
Oven Cavity Dimensions –
Height
Width
Depth
Overall Exterior Dimensions –
Height
Width
Depth (to Front Door Corner)
Approved for Electric Single Oven Combination Installation*
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @120 Volts
‡
Amps@ 120V
Electrical Cable
Microwave – Watts @120 Volt input
Frequency (Mhz)
Shipping Weight (Approx.)
‡ For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
* Approved to be used in combination with any Electrolux Electric Single Wall Oven
and/or Warmer Drawer.
NOTE: Always consult local and/ or national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
1.5 Cu. Ft.
900
Cobalt Blue
Yes
Cobalt Blue
Yes
Yes
Yes
Yes
11
29
6
12
3
12
4
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
S
9-5/8"
16-1/8"
16-1/8"
22-1/4"
27"
21-11/16"
Yes
Left Bottom Rear
120V/ 60Hz /15A
1.6
13.7
Included
1550
2450
84 Lbs.
Built-In Microwave
EW27MO55H S
Featuring Wave-Touch™Electronic Controls
Wall OvensRefrigerators Warmer DrawersCooktopsBuilt-In Ranges
Freestanding
Ranges
MicrowavesVent HoodsFreezers
Wine Tower/
Under Counter
Washers / Dryers
Dishwashers /
Kitchen Cleanup
Page 2
Built-In Microwave
EW27MO55H S
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
EW27MO55H 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.

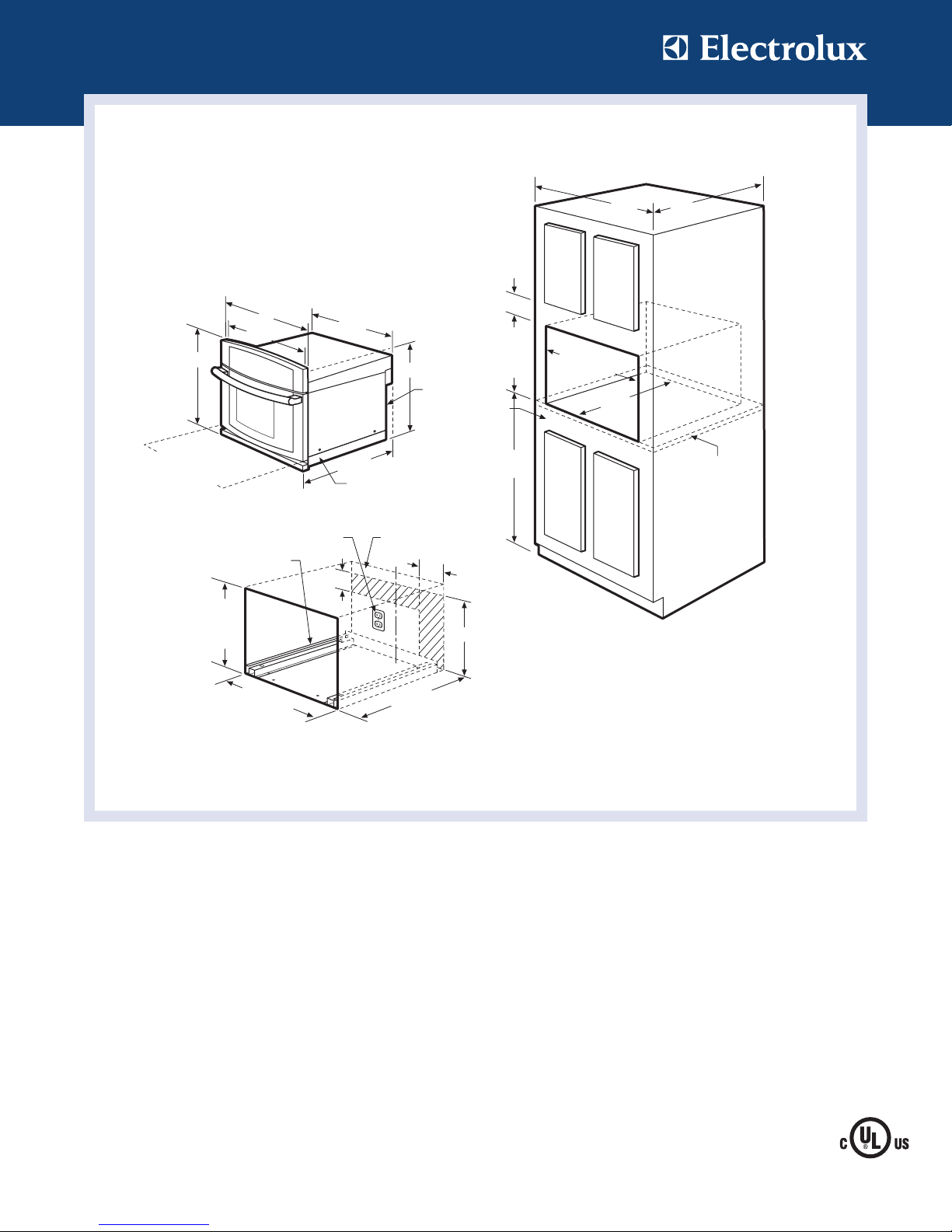

*Note: When used in combination with
another Electrolux built-in product, a
minimum clearance of 2
1
/8" required from
bottom of Built-In Microwave cutout to top
edge of companion product’s faceplate,
leaving a 2"visible gap between both
product faceplates.
231/2"
21
11
/16"
Allow at least
15" clearance
for door depth
when open
22 1/4"
24 7/8"
27"
Bottom Duct Assembly
Power
supply
location
(left
bottom
rear)
203/4"
C
L
120V/60Hz
grounded outlet
Outlet should NOT
be located within
shaded area
201/8" min.
251/8"min.
25
5
/8"max.
21"
min.
21
1
/2"
max.
Bottom Duct Assembly
4"
6"
18"
201/8"
min.
36"
min.
21"
min.
21
1
/2"
max.
Full plywood
base required
to support
150 lbs.
2"
min.
25
1
/8"min.
25
5
/8"max.
2"
(visible
gap)*
24"
min.
27"
min.
27" Built-In Microwave Specifications
•
Product Weight – 79 Lbs.
•
Voltage Rating –120V /60Hz/ 15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.6 kW (For use on
adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @120 Volts = 13.7 Amps
•
Always consult local and/or national electric codes.
•
Allow at least 15" clearance for oven door depth when open.
•
Minimum required distance from floor is 36".
•
Minimum 20-1/8" deep oven cutout dimension is critical for proper
installation for oven and faceplate to fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable
of supporting 150 Lbs.
•
Base must be level and cabinet front must be square.
•
Grounded outlet should NOT be located in shaded area, as indicated.
•
Built-In Microwave is NOT approved to be used under counter.
•
Built-In Microwave can be built in alone or is approved to be used in
combination with any Electrolux Electric Single Wall Oven and/ or Warmer
Drawer. (Refer to model-specific Combination Installation Specification
pages on web.)
•
When used in combination with another Electrolux built-in product, a
minimum clearance of 2-1/8" required from bottom of Built-In Microwave
cutout to top edge of companion product’s faceplate, leaving a 2" visible
gap between both product faceplates.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Page 3

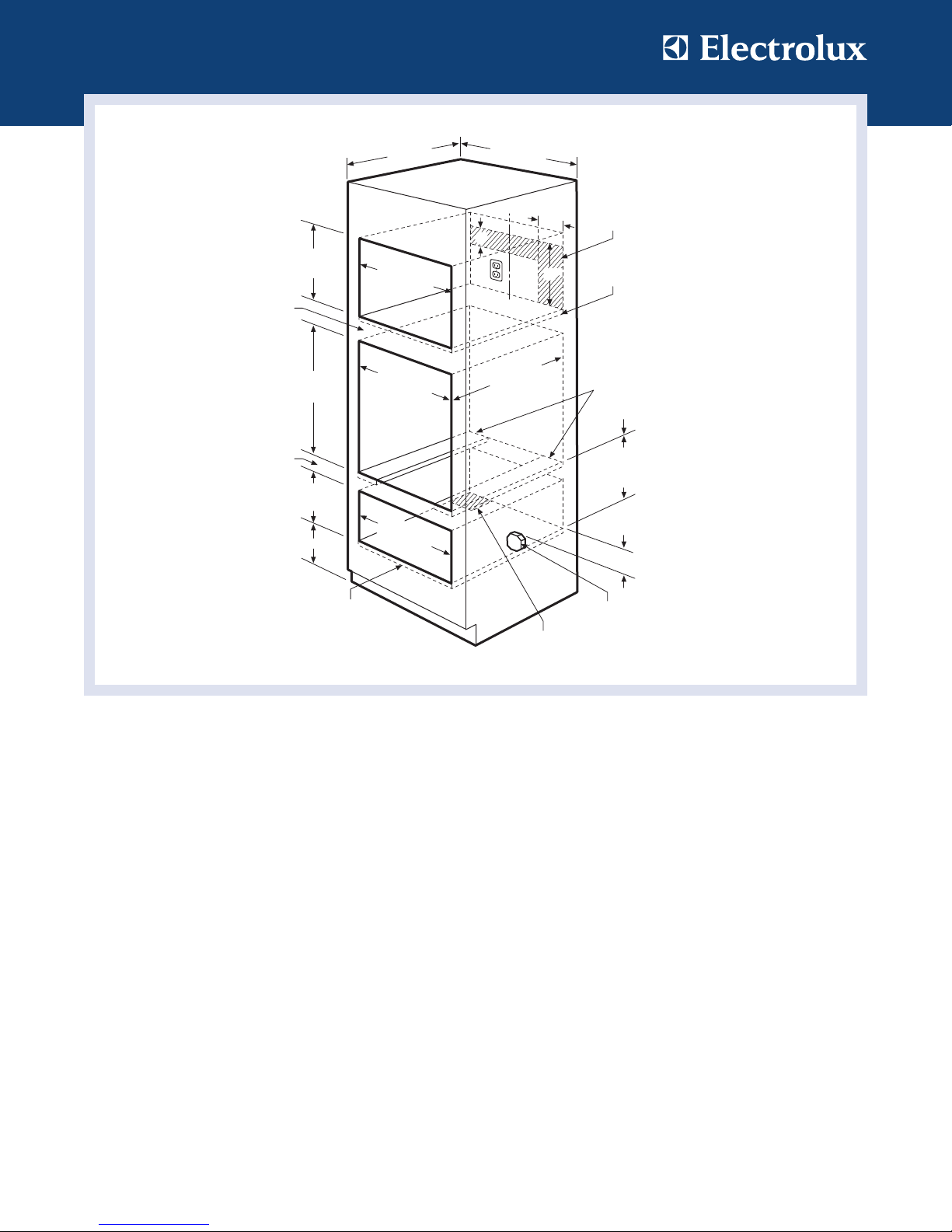

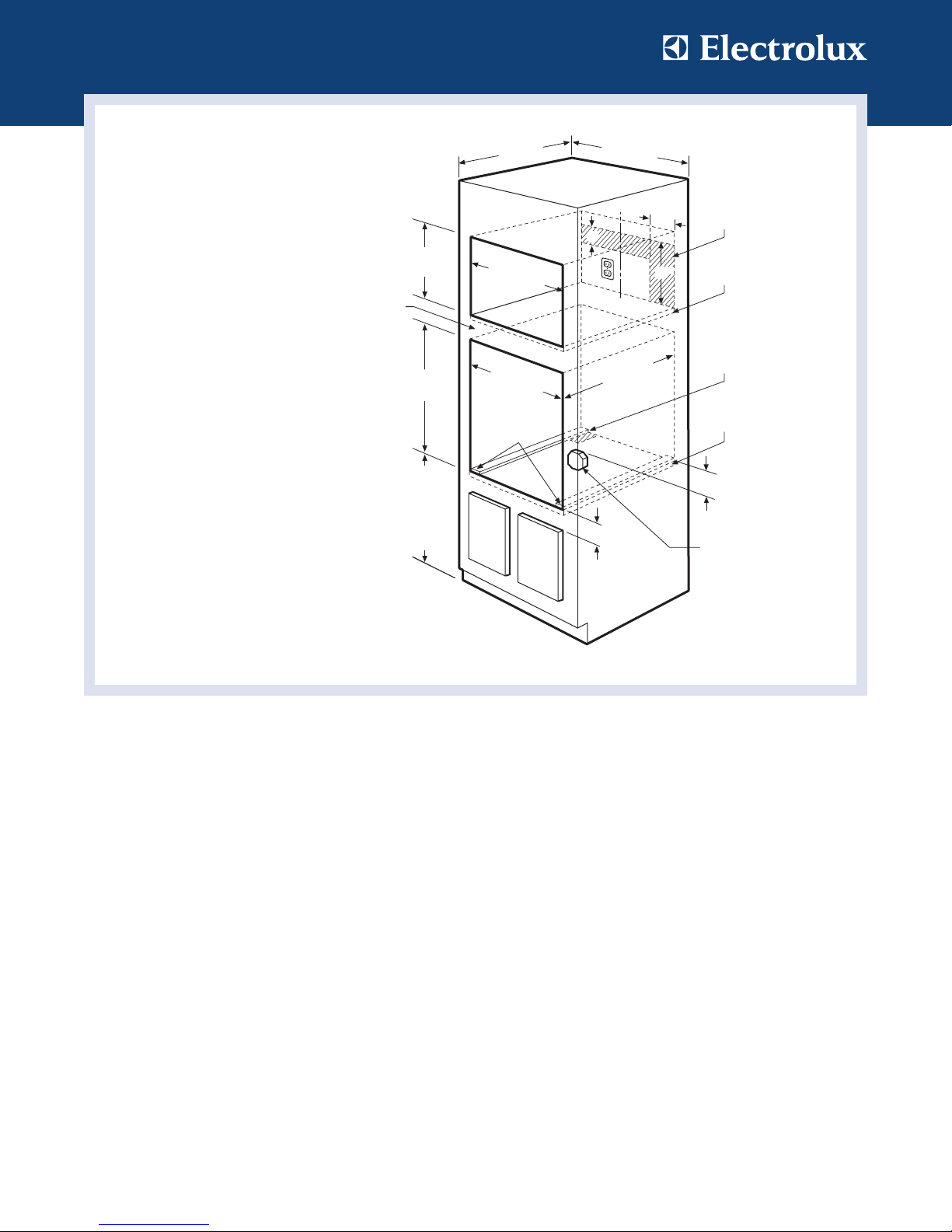

27" Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31" suggested.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
27" Built-In Microwave Specifications
•
Product Weight – 79 Lbs.
•
Voltage Rating –120V /60Hz/ 15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.6 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts = 13.7 Amps
•
Full oven base of solid plywood or similar material required, capable
of supporting 150 Lbs.
•
Minimum 2-1/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
27" Electric Single Wall Oven Specifications
•
Product Weight – 150 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120 /208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 3.4/2.6kW
•
Amps @ 240/208 Volts =14.2/12.6 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.
•
To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
•
To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
27" Combination Installation –
Built-In Microwave/Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
MODD_EW 27INST EL 01/09 © 2009 Electrolux Major Appliances, NA Printed in the U.S.A.
* Minimum 21/8" clearance required from bottom
of Built-In Microwave cutout to top edge of
Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
** Critical dimension – MUST be applied
†
For cutout height between 275/8" and 281/4"
add one 2"-wide wood shim of appropriate
height to each side of opening under oven
side rails. Lifting oven will hide larger cutout
opening at top and oven’s 1"-high bottom trim
will hide shims at bottom.
(Optional 3"-high
bottom trim available for cutout height
between 281/4" and 30".)
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
27" Electric Single
Wall Oven Cutout
For model:
EW27EW55GS
27" Built-In
Microwave Cutout
For model:
EW27MO55HS
Full plywood base
required to support
150 lbs.
120V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
21"min.
21
1
/2"max.
C
L
6"
18"
4"
251/8"min.
255/8"max.
24"min.
3"
271/4"min.
275/8"max.
4"x 4" opening
to route armoured
cable
231/2"min.**
(critical
dimension)
2" min.
31"
suggested
distance
4
1
/2"
min.
required
Full base required
to support 150 lbs.
Electrical junction
box location
2"
(visible
gap)*
271/8" min.
247/8"min.
25
1
/4"max.
2"-wide
wood spacers
(if needed)
†
Page 4
27" Combination Installation Specifications
•
Always consult local and/or national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
27" Built-In Microwave Specifications
•
Product Weight – 79 Lbs.
•
Voltage Rating –120V /60Hz/ 15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.6 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts = 13.7 Amps
•
Full oven base of solid plywood or similar material required, capable
of supporting 150 Lbs.
•
Minimum 2-1/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
27" Electric Single Wall Oven Specifications
•
Product Weight – 150 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120 /208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 3.4/2.6kW
•
Amps @ 240/208 Volts =14.2/12.6 Amps
•
To support Wall Oven when using in combination with Warmer Drawer,
two 3"-wide x 3/4"-thick planks must be installed as a base, capable of
supporting 150 Lbs. Do NOT use full base, since planks are necessary
to allow for proper air displacement.
27" Warmer Drawer Specifications
•
Product Weight – 55 Lbs.
•
Voltage Rating –120V /450W/60 Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
27" Combination Installation –
Built-In Microwave/Single Wall Oven/Warmer Drawer
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
MODD_EW_WD 27INST EL 01/09 © 2009 Electrolux Major Appliances, NA Printed in the U.S.A.
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
24"min.
3"max.
††
271/8" min.
97/8"min.
101/4"max.
2"
min.
†
Full plywood base
required to support
100 lbs.
271/4"min.
275/8"max.
247/8"min.
25
1
/4"max.
Two 3" wide
by 3/4" thick
planks must be
installed, capable
of supporting
150 lbs.
4"x 4" opening to route
armoured cable
251/2" min.
253/4" max.
41/2"min.
required
235/8"min.**
(critical
dimension)
Electrical junction
box location
Bottom of
oven cutout
117/8"min.**
(critical
dimension)
* Minimum 21/8"
clearance required
from bottom of
Built-In Microwave
cutout to top edge of
Wall Oven’s faceplate,
leaving a 2"visible
gap between both
product faceplates.
** Critical dimension –
MUST be applied
†
Maximum height
depends on critical
dimension (117/8")
††
Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
27" Warmer
Drawer Cutout
For model:
EW27WD55G
2"
(visible
gap)*
27" Electric Single
Wall Oven Cutout
For model:
EW27EW55G
27" Built-In
Microwave Cutout
For model:
EW27MO55H
Full plywood base
required to support
150 lbs.
120V/60Hz
grounded electrical
outlet should NOT
be located within
shaded area
21"min.
21
1
/2"max.
C
L
6"
18"
4"
251/8"min.
25
5
/8"max.
Loading...
