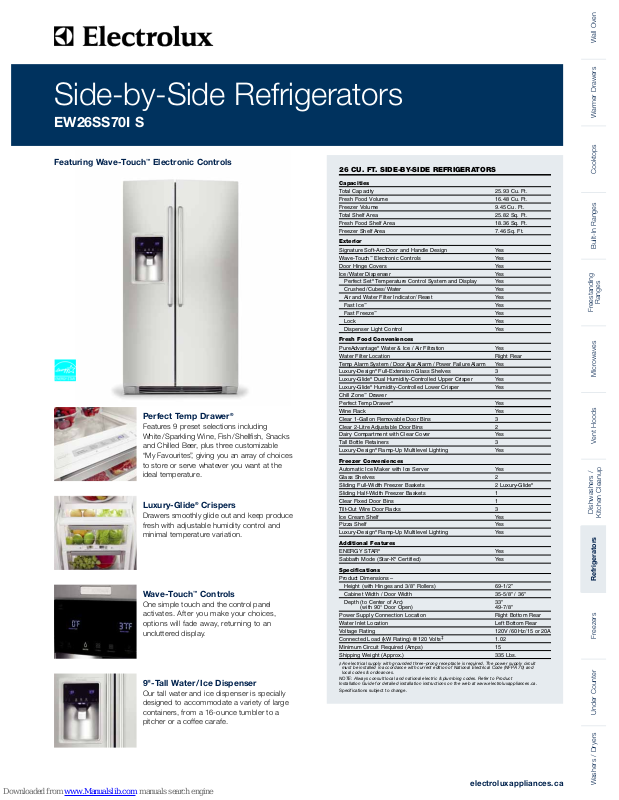

Electrolux EW26SS70IS - 25.9 cu. Ft. Refrigerator, EW26SS70I S Specifications

Perfect Temp Drawer

®

Features 9 preset selections including
White/Sparkling Wine, Fish/ Shellfish, Snacks
and Chilled Beer, plus three customizable
“My Favourites”, giving you an array of choices
to store or serve whatever you want at the
ideal temperature.

Luxury-Glide®Crispers

Drawers smoothly glide out and keep produce
fresh with adjustable humidity control and
minimal temperature variation.

Wave-Touch™Controls

One simple touch and the control panel
activates. After you make your choices,
options will fade away, returning to an
uncluttered display.

9"-Tall Water/ Ice Dispenser

Our tall water and ice dispenser is specially
designed to accommodate a variety of large
containers, from a 16-ounce tumbler to a
pitcher or a coffee carafe.

Side-by-Side Refrigerators

EW26SS70I S

Featuring Wave-Touch™Electronic Controls

electroluxappliances.ca

Wall Ovens

Refrigerators Warmer DrawersCooktopsBuilt-In Ranges

Freestanding

Ranges

MicrowavesVent HoodsFreezersUnder CounterWashers / Dryers

Dishwashers /

Kitchen Cleanup

26 CU. FT. SIDE-BY-SIDE REFRIGERATORS

Capacities

Total Capacity
Fresh Food Volume
Freezer Volume
Total Shelf Area
Fresh Food Shelf Area
Freezer Shelf Area

Exterior

Signature Soft-Arc Door and Handle Design
Wave-Touch™Electronic Controls
Door Hinge Covers
Ice / Water Dispenser

Perfect Set®Temperature Control System and Display
Crushed / Cubes / Water
Air and Water Filter Indicator / Reset
Fast Ice

™

Fast Freeze

™

Lock
Dispenser Light Control

Fresh Food Conveniences

PureAdvantage®Water & Ice / Air Filtration
Water Filter Location
Temp Alarm System / DoorAjar Alarm / Power Failure Alarm
Luxury-Design®Full-Extension Glass Shelves
Luxury-Glide®Dual Humidity-Controlled Upper Crisper
Luxury-Glide®Humidity-Controlled Lower Crisper
Chill Zone™Drawer
Perfect Temp Drawer

®

Wine Rack
Clear 1-Gallon Removable Door Bins
Clear 2-Litre Adjustable Door Bins
Dairy Compartment with Clear Cover
Tall Bottle Retainers
Luxury-Design®Ramp-Up Multilevel Lighting

Freezer Conveniences

Automatic Ice Maker with Ice Server
Glass Shelves
Sliding Full-Width Freezer Baskets
Sliding Half-Width Freezer Baskets
Clear Fixed Door Bins
Tilt-Out Wire Door Racks
Ice Cream Shelf
Pizza Shelf
Luxury-Design®Ramp-Up Multilevel Lighting

Additional Features

ENERGY STAR

®

Sabbath Mode (Star-K®Certified)

Specifications

Product Dimensions –

Height (with Hinges and 3/8" Rollers)
Cabinet Width / Door Width
Depth (to Center of Arc)

(with 90° Door Open)
Power Supply Connection Location
Water Inlet Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts

‡

Minimum Circuit Required (Amps)
Shipping Weight (Approx.)

‡An electrical supply with grounded three-prong receptacle is required. The power supply circuit

must be installed in accordance with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.

NOTE: Always consult local and national electric & plumbing codes. Refer to Product
Installation Guide for detailed installation instructions on the web at www.electroluxappliances.ca.

Specifications subject to change.

25.93 Cu. Ft.

16.48 Cu. Ft.

9.45 Cu. Ft.

25.82 Sq. Ft.

18.36 Sq. Ft.

7.46 Sq. Ft.

Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes

Yes
Right Rear
Yes
3
Yes
Yes

Yes
Yes
3
2
Yes
3
Yes

Yes
2
2 Luxury-Glide

®

1
1
3
Yes
Yes
Yes

Yes
Yes

69-1/2”
35-5/8" / 36"
33"

49-7/8"
Right Bottom Rear
Left Bottom Rear
120V / 60 Hz / 15 or 20A

1.02
15
335 Lbs.

Side-by-Side Refrigerators

EW26SS70I S

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

CANADA

•

5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352

•

electroluxappliances.ca

EW26SS70IS 12/10 © 2010 Electrolux Home Products, Inc. Printed in Canada

Side-by-Side Refrigerator Specifications

•

Product Weight – 325 Lbs.

•

An electrical supply with grounded three-prong receptacle is required.The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (NFPA 70) and local codes & ordinances.

•

Voltage Rating –120V / 60 Hz / 15 or 20 Amps

•

Connected Load (kW Rating) @ 120 Volts = 1.02 kW

•

Amps @ 120 Volts = 8.5 Amps

•

Always consult local and national electric & plumbing codes.

•

Floor should be level surface of hard material, capable of supporting fully
loaded refrigerator.

•

When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2" minimum

clearance will ONLY allow for 90° door swing which will provide
drawer/ crisper access with restricted removal.)

•

To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.

•

For proper ventilation, front grille MUST remain unobstructed.

•

Recess electrical outlet when possible.

•

Water recess on rear wall recommended to prevent water line damage.

•

Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).

•

Copper tubing with 1/4" O.D. recommended for water supply line with
length equal to distance from rear of unit to household water supply line
plus 7 additional feet. Optional Water Supply Installation Kits available.

•

Adjustable front rollers to assist with door alignment.

“Built-In Look” Specifications

•

Minimum opening of 70-1/4"H x 36" W x 28-7/8" D required to allow for
ease of installation, proper air circulation, and plumbing / electrical
connections.

•

Remove all wall / floor molding prior to installation.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.ca for detailed instructions.
