Page 1
EVY6800AA
................................................ .............................................
EN MICROWAVE OVEN USER MANUAL
Page 2
CONTENTS
1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7. CLOCK FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
8.
AUTOMATIC PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9. USING THE ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10.
ADDITIONAL FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
11. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
12.
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
13. WHAT TO DO IF… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
14.

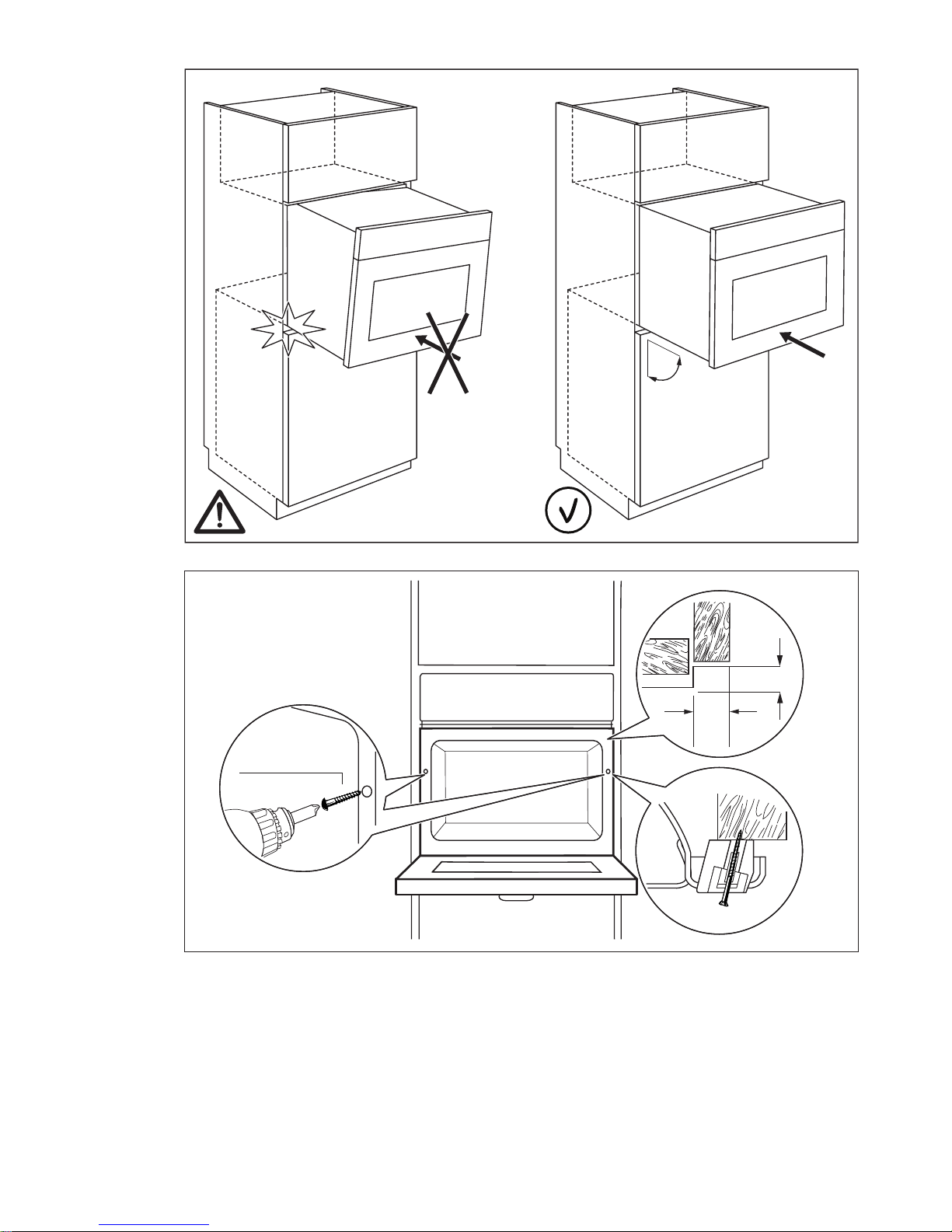

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
15. GREAT BRITAIN & IRELAND - GUARANTEE/CUSTOMER SERVICE . . . . . . . . . . . . . . . . 31
16. EUROPEAN GUARANTEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.RegisterElectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2
www.electrolux.com
Page 3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance. Children under 3 years must not be left unsupervised in the vicinity
of the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years.
1.2 General Safety
• Only a qualified person must install this appliance and
replace the cable.
• Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the
ENGLISH 3
Page 4
appliance. Always use oven gloves to remove or put in
accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.
• Before maintenance cut the power supply.
• If the door or door seals are damaged, the appliance
must not be operated until it has been repaired by a
competent person.
• Only a competent person can carry out any service or
repair operation that involves the removal of a cover
which gives protection against exposure to microwave
energy.
• Do not heat liquids and other foods in sealed containers. They are liable to explode.
• Only use utensils that are suitable for use in microwave
ovens.
• When heating food in plastic or paper containers, keep
an eye on the appliance due to the possibility of ignition.
• The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar
may lead to risk of injury, ignition or fire.
• If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed
eruptive boiling. Care must be taken when handling the
container.
• The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should
not be heated in the appliance since they may explode,
even after microwave heating has ended.
• The appliance should be cleaned regularly and any
food deposits removed.
4
www.electrolux.com
Page 5
• Failure to maintain the appliance in a clean condition
could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
• To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite sequence.
• If the supply cord is damaged, it must be replaced by
the manufacturer, an authorized Service or similarly
qualified persons in order to avoid a hazard.
• Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
2.
SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction sup-
plied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Contact the Service or an electrician to
change a damaged mains cable.
• Do not let mains cables to come in
touch with the appliance door, specially
when the door is hot.
• The shock protection of live and insulated parts must be fastened in such a
ENGLISH 5
Page 6
way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation. Make sure that there is access to
the mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
2.2 Use
WARNING!
Risk of injury, burns or electric
shock or explosion.
• Use this appliance in a household environment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Always keep the appliance door closed
when the appliance is in operation.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other objects
in the appliance directly on the bottom.
– do not put aluminium foil directly on
the bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no effect on the performance of the appliance. It is not a defect in the sense of
the warranty law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be permanent.
2.3 Care and Cleaning
WARNING!
Risk of injury, fire or damage to
the appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged. Contact the Service.
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Remaining fat or food in the appliance
can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents.
• If you use an oven spray, obey the safety instructions on the packaging.
6
www.electrolux.com
Page 7
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.
2.4 Internal light
• The type of light bulb or halogen lamp
used for this appliance, is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same specifications.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.
3. PRODUCT DESCRIPTION
1 2
7
4
3
1
2
6
3
4
5
1
Control panel
2
Electronic programmer
3
Heating element
4
Microwave generator
5
Lamp
6
Shelf support, removable
7
Shelf positions
3.1 Accessories
Wire shelf
For cookware, cake tins, roasts.
4. BEFORE FIRST USE
WARNING!
Refer to the Safety chapters.
4.1 Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
Refer to chapter "Care and Cleaning".
ENGLISH 7
Page 8
4.2 First Connection
When you connect the appliance to the
mains or after the power cut, you have to
set the language, the display contrast, the
display brightness and the time of the
day. Press
or to set the value.
Press OK to confirm.
5. CONTROL PANEL
5.1 Electronic programmer
1 10
11
2 43 8 95 6 7
Use the sensor fields to operate the appliance
Num-
ber
Sensor
field
Function Comment
1
ON / OFF To activate and deactivate the
appliance.
2
Heating Functions or
Assisted Cooking
To set a heating function or an
Assisted Cooking function. To set
the necessary function, touch the
sensor field one or two times after you activate the appliance. To
activate or deactivate the lamp,
touch and hold the sensor field
for 3 seconds.
3
Home key To go back one level in the
menu. To show the main menu,
touch the field for 3 seconds.
4
Temperature selection To set the temperature or show
the temperature in the appliance.
5
Microwave function To activate the microwave func-
tion (you can also use it after you
deactivate the appliance).
When you use the Microwave
function with the Duration function for more than 7 minutes and
in Combi mode, the Microwave
power cannot be more than 600
W.
6
Up key To move up in the menu.
8
www.electrolux.com
Page 9
Num-
ber
Sensor
field
Function Comment
7
Down key To move down in the menu.
8
Time and additional
functions
To set different functions. When a
heating function operates, touch
the sensor field to set the timer,
Function Lock , Set + Go , Heat
+ Hold or Favourite Programme
memory.
9
Minute Minder To set the Minute Minder .
10
OK / Microwave Quick
Start
To confirm the selection or settings. To activate the microwave
function (you can also use it after
you deactivate the appliance).
11
-
Display It shows the settings of the appli-
ance.
5.2 Display
A
DE
B C
A)
Oven or microwave function
B)
Current time
C)
Heat-up indicator
D)
Temperature or power of the microwave
E)
Duration time or end time of a function
Other indicators in the display
Symbol Function
Minute Minder The function is active.
Time The display shows the current time.
Duration It shows the time required for the cooking cycle.
End Time It shows when the cooking cycle ends.
Time Indication It shows how long the heating function operates.
Press
and at the same time to reset the
time.
Heat-up indicator It shows the temperature level in the oven.
Weight Automatic The automatic weight system is active, or weight
can be changed.
Heat + Hold The function operates.
ENGLISH 9
Page 10
6. DAILY USE
WARNING!
Refer to the Safety chapters.
6.1 Navigating the menus
1.
Activate the appliance.
2.
Press or to select the menu
option.
3.
Press OK to move to the submenu or
accept the setting.
At each point you can go back to the
main menu with
.
6.2 The menus in overview
Main menu
Symbol Menu item Application
Grilling A heating function to grill flat food
items in the middle of the shelf. To
make toast.
Assisted Cooking
Contains a list of automatic cooking programmes.
Basic Settings Contains a list of other settings.
Favourite Programme
Contains a list of favourite cooking
programmes made by the user.
Submenus for: Basic Settings
Symbol Submenu Description
Set Time of Day Sets the current time on the clock.
Time Indication
When ON, the display shows the
current time when you deactivate
the appliance.
SET + GO
When ON, you can choose the
SET + GO function in the Select
Options window.
Heat + Hold
When ON, you can choose the
Heat + Hold function in the Select
Options window.
Extra time
Activates and deactivates the
Time Extension function.
Display Contrast
Adjusts the display contrast by
degrees.
Display Brightness
Adjusts the display brightness by
degrees.
Set Language Sets the language for the display.
Buzzer Volume
Adjusts the volume of press-tones
and signals by degrees.
10
www.electrolux.com
Page 11
Symbol Submenu Description
Key Tones
Activates and deactivates the tone
of the touch fields. It is not possible to deactivate the tone of the
ON / OFF touch field.
Alarm/Error Tones
Activates and deactivates the
alarm tones.
Service
Shows the software version and
configuration.
Factory Settings
Resets all settings to factory settings.
6.3 Activating a heating function
1.
Activate the appliance.
2.
Select the Heating Functions menu.
Press OK to confirm.
3.
Set a heating function. Press OK to
confirm.
4.
Set the temperature. Press OK to
confirm.
Press to go directly to the Heating Functions menu. You can use
it when the appliance is activated.
6.4 Heat-up indicator
When you activate a heating function, the
bar on the display comes on. The bar
shows that the temperature increases.
Residual heat
When you deactivate the appliance, the
display shows the residual heat. You can
use the heat to keep the food warm.
6.5 Energy saving
The appliance contains features which help you save energy during everyday cooking:
• Residual heat:
– When the heating function or pro-
gramme operates, the heating elements are deactivated 10% earlier
(the lamp and fan continue to operate). For this feature to operate, the
cooking time must be longer than 30
minutes or you must use the clock
functions ( Duration , End Time ).
– When the appliance is off, you can
use the heat to keep food warm. The
display shows the remaining temperature.
• Cooking with the lamp off - touch
and hold
for 3 seconds to deactivate
the lamp during cooking.
• Eco functions - refer to section "Heating Functions" (for selected models only).
• When you use the Eco functions, the
lamp deactivates. The lamp activates
again when you touch
for 3 seconds.
6.6 Microwave
Information about operation
General:
• After you deactivate the appliance, let
the food stand for some minutes (refer
to “Microwave Tables: standing time”).
• Remove the aluminium foil packaging,
metal containers, etc. before you prepare the food.
Cooking:
• If possible, cook food covered with material suitable for use in the microwave.
Only cook food without a cover if you
want to keep a crust.
• Do not overcook the dishes by setting
the power and time too high. The food
can dry out, burn or catch fire in some
places.
• Do not use the appliance to cook eggs
in their shells and snails, because they
can burst. With fried eggs, pierce the
yolks first.
ENGLISH 11
Page 12
• Prick food with "skin" or "peel", such as
potatoes, tomatoes, sausages, with a
fork several times before cooking so
that the food does not burst.
• For chilled or frozen food, set a longer
cooking time.
• Dishes which contain sauce must be
stirred from time to time.
• Vegetables that have a firm structure,
such as carrots, peas or cauliflower,
must be cooked in water.
• Turn larger pieces after half the cooking
time.
• If possible, cut vegetables into similarsized pieces.
• Use flat, wide dishes.
• Do not use cookware made of porcelain, ceramic or earthenware with small
holes, e. g. on handles or unglazed bottoms. Moisture going into the holes can
cause the cookware to crack when it is
heated.
Defrosting meat, poultry, fish:
• Put the frozen, unwrapped food on a
small upturned plate with a container
below it, or on a defrosting rack or plastic sieve so that the defrosting liquid
can run off.
• Turn the food after half the defrosting
time. If possible, divide and then re-
move the pieces that have started to
defrost.
Defrosting butter, portions of gateau,
quark:
• Do not fully defrost in the appliance, but
let them defrost at room temperature.
This gives a more even result. Fully remove all metal or aluminium packaging
or parts before defrosting.
Defrosting fruit, vegetables:
• Do not fully defrost fruit and vegetables,
which are to be further prepared while
raw, in the appliance. Let them defrost
at room temperature.
• You can use a higher microwave power
to cook fruit and vegetables without defrosting them first.
Ready meals:
• Ready meals in metal packaging or
plastic trays with metal covers can only
be defrosted or heated in the microwave if they are expressively designated as suitable for use in the microwave.
• You must follow the manufacturer's instructions printed on the packaging (e.
g. remove the metal cover and pierce
the plastic film).
Suitable cookware and materials
Cookware / Material Microwave Grilling
Defrosting
Heating
Cooking
Ovenproof glass and porcelain (with
no metal components, e. g. Pyrex,
heat-proof glass)
X X X X
Non-ovenproof glass and porcelain
1)
X -- -- --
Glass and glass ceramic made of
ovenproof/frost-proof material (e. g.
Arcoflam), grill shelf
X X X X
Ceramic 2), earthenware
2)
X X X --
Heat-resistant plastic up to 200 °C
3)
X X X --
Cardboard, paper
X -- -- --
Clingfilm X -- -- --
12
www.electrolux.com
Page 13
Cookware / Material Microwave Grilling
Defrosting
Heating
Cooking
Roasting film with microwave safe
closure
3)
X X X --
Roasting dishes made of metal, e.
g. enamel, cast iron
-- -- -- X
Baking tins, black lacquer or siliconcoated
3)
-- -- -- X
Baking tray X X X X
Browning cookware, e. g. Crisp pan
or Crunch plate
-- X X --
Ready meals in packaging
3)
X X X X
1)
With no silver, gold, platinum or metal plating/decorations
2)
Without quartz or metal components, or glazes which contain metals
3)
You must follow the manufacturer’s instructions about the maximum temperatures.
X suitable
-- not suitable
Other things to think about…
• Food items have different shapes and
qualities. They are prepared in different
quantities. Because of this, the necessary time and power for defrosting,
heating or cooking can vary. As a rough
guide: double the quantity = almost
double the time.
• The microwave creates the heat directly
in the food. Because of this, all places
cannot be heated at the same time.
You must stir or turn the heated dishes,
especially with larger quantities of food.
•The standing time is given in the ta-
bles. Let the food stand, in the appliance or outside it, so that the heat is
distributed more equally.
• You get better results for rice if you use
flat, wide dishes.
6.7 Microwave functions
Functions Description
Microwave Creates the heat directly in the food. Use it to heat pre-pre-
pared meals and drinks, to defrost meat or fruit, and to cook
vegetables and fish.
Combi Use it to operate the oven function and the microwave mode
together (selected models only). Use it to cook food in a
shorter time and brown it at the same time.
6.8 Setting the Microwave
function
1.
If it is necessary, touch to deactivate the appliance.
2.
Touch to activate the Microwave
function.
3.
Touch . The Duration function is
set to 30 seconds and the microwaves starts to operate.
Each touch of adds 30 seconds to the Duration time.
ENGLISH 13
Page 14
If you do not touch , the appliance deactivates after 20 seconds.
4.
Touch to set the Duration function
(refer to "Setting the clock functions").
When the Duration time is longer
than 7 minutes the Microwave
power is decreased to 600 W.
The maximum setting of the Duration time is 90 minutes.
You can change the microwave
power (touch
and then or
) and the Duration ( ) any
time when the Microwave function
operates.
5.
When the set time ends, an acoustic
signal sounds for 2 minutes. The Microwave function deactivates automatically. Touch a sensor field to stop
the acoustic signal.
To deactivate the Microwave
function, touch
If you touch or open the door,
the function stops. To start it
again, touch
.
6.9 Setting the Combi function
1.
If necessary, touch to deactivate
the appliance.
2.
Activate a heating function. Refer to
“Activating a heating function”.
3.
Touch and do the same steps as
when you set the Microwave function.
The functions End Time , Set +
Go and Heat + Hold are not available for the Combi function.
6.10 Setting the Quick Start
function
1.
If necessary, touch to deactivate
the appliance.
2.
Touch to activate the Quick Start
function.
Each touch of
adds 30 seconds
to the Duration time.
You can change the microwave
power (refer to “Setting the Microwave function”).
3.
Touch to set the Duration time (refer to "Setting the clock functions").
6.11 Examples of cooking
applications for power settings
The data in the table is for guidance only.
Power setting Use
• 1000 Watt
•900 Watt
•800 Watt
•700 Watt
• Heating liquids
• Searing at the start of the cooking
process
•Cooking vegetables
• Melting gelatine and butter
•600 Watt
•500 Watt
• Defrosting and heating frozen meals
• Heating one-plate meals
• Simmering stews
• Cooking egg dishes
•400 Watt
•300 Watt
•200 Watt
• Continuing to cook meals
• Cooking delicate food
• Heating baby food
• Simmering rice
• Heating delicate food
• Melting cheese
14
www.electrolux.com
Page 15
Power setting Use
•100 Watt • Defrosting meat, fish, bread
• Defrosting cheese, cream, butter
• Defrosting fruit and cakes (gateaux)
• Raising yeast dough
• Heating up cold dishes and drinks
7. CLOCK FUNCTIONS
7.1 Clock functions
Symbol Function Description
Minute Minder
To set a countdown (maximum: 2 hours, 30 minutes). This function has no effect on the operation
of the appliance. Touch
to activate the function.
Touch
or to set the minutes and OK to start.
Duration
To set the length of an operation (maximum: 23
hours, 59 minutes).
End Time
To set the switch-off time for a heating function
(maximum: 23 hours, 59 minutes).
If you set the time for a clock function, the
time starts to count down after 5 seconds.
If you use the clock functions Duration and End Time , the appliance deactivates the heating elements after 90% of the set time.
The appliance uses the residual
heat to continue the cooking procedure until the time ends. The residual heat can last from 3 to 20
minutes.
Setting the clock functions:
1.
Set a heating function.
2.
Touch again and again until the
display shows the necessary clock
function and the related symbol.
3.
Touch or to set the necessary
time. Touch OK to confirm.
When the time ends, an acoustic signal sounds. The appliance deactivates. The display shows a message.
4.
Touch a sensor field to stop the signal.
Useful information:
• With Duration and End Time , the appliance deactivates automatically.
• With Duration and End Time , you must
set the heating function and the temperature first. Then you can set the
clock function.
• You can use Duration and End Time at
the same time if you want to automatically activate and deactivate the appliance at a given time later.
7.2 Heat + Hold
The Heat + Hold function keeps prepared
food warm at 80 °C for 30 minutes. It activates after the baking or roasting procedure ends.
• You can activate or deactivate the function in the Basic Settings menu.
• Conditions for the function:
– The set temperature is more than 80
°C.
– The function Duration is set.
ENGLISH 15
Page 16
Activating the function
1.
Activate the appliance.
2.
Select the heating function.
3.
Set the temperature above 80 °C.
4.
Press again and again until the
display shows Heat + Hold . Press
OK to confirm.
When the function ends, an acoustic signal sounds.
The Heat + Hold function stays on if you
change the heating functions.
7.3 Extra Time
The Extra Time makes the heating function continue after the Duration ends.
• It is applicable for all heating functions
with Duration or Weight Automatic.
Activating the function:
1.
When the cooking time ends, an
acoustic signal sounds. Press a sensor field.
2.
The display shows the message for
Extra Time for one minute.
3.
Press to activate (or to cancel).
4.
Set the Extra Time period. Press OK
to confirm.
8. AUTOMATIC PROGRAMMES
WARNING!
Refer to the Safety chapters.
You can find the recipes for the
automatic programmes specified
for this appliance on our website.
To find the proper Recipe Book
check the PNC number on the
rating plate on the front frame of
the appliance cavity.
8.1 Assisted Cooking with
Recipe Automatic
This appliance has a set of recipes you
can use. The recipes are fixed and you
cannot change them.
Activating the function:
1.
Activate the appliance.
2.
Select the Assisted Cooking menu.
Press OK to confirm.
3.
Select the category and dish. Press
OK to confirm.
4.
Select Recipe Automatic . Press OK
to confirm.
When you use the Manual function, the appliance uses the automatic settings. You can change
them as with other functions.
9. USING THE ACCESSORIES
WARNING!
Refer to the Safety chapters.
16
www.electrolux.com
Page 17
9.1 Inserting the accessories
Baking tray (if applicable):
Push the baking tray between the guide
bars of the shelf support.
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
• All accessories have small indentations
at the top of the right and left side to increase safety. The indentations are also
anti-tip devices.
• The high rim around the shelf is a device which prevents cookware from
slipping.
10. ADDITIONAL FUNCTIONS
10.1 Favourite Programme
menu
You can save your favourite settings, like
duration, temperature or heating function.
They are available in the Favourite Programme menu. You can save 20 programmes.
Saving a programme
1.
Activate the appliance.
2.
Set a heating function or an Assisted
Cooking function.
3.
Touch again and again until the
display shows " SAVE ". Press OK to
confirm.
4.
The display shows the first free memory position. Press OK to confirm.
5.
Enter the name of the programme.
The first letter flashes. Touch
or
to change the letter. Press OK.
6.
Touch or to move the cursor
to the right or to the left. Press OK.
The next letter flashes. Do steps 5
and 6 again as necessary.
7.
Press and hold OK to save.
Useful information:
• You can overwrite a memory position.
When the display shows the first free
memory position, touch
or and
press OK to overwrite an existing programme.
ENGLISH 17
Page 18
• You can change the name of a programme in the menu Edit Programme
Name .
Activating the programme
1.
Activate the appliance.
2.
Select the Favourite Programme
menu. Press OK to confirm.
3.
Select your favourite programme
name. Press OK to confirm.
10.2 Child Lock
The Child Lock prevents an accidental
operation of the appliance.
Activating and deactivating the Child
Lock function:
1.
Activate the appliance.
2.
Touch and at the same time
until the display shows a message.
10.3 Function Lock
The Function Lock prevents an accidental
change of the heating function. You can
activate the Function Lock only when the
appliance operates.
Activating the Function Lock :
1.
Activate the appliance.
2.
Set a heating function or setting.
3.
Press again and again until the
display shows Function Lock .
4.
Press OK to confirm.
Deactivating the Function Lock :
1.
Press .
2.
Press OK to confirm.
10.4 SET + GO
The SET + GO function lets you set a
heating function (or programme) and use
it later with one press of the sensor field.
Activating the function:
1.
Activate the appliance.
2.
Set a heating function.
3.
Press again and again until the
display shows Duration .
4.
Set the time.
5.
Press again and again until the
display shows SET + GO .
6.
Press OK to confirm.
To start SET + GO , press a sensor field
(except for
). The set heating function
starts.
When the heating function ends, an
acoustic signal sounds.
Useful information:
• When the heating function operates,
the function Function Lock is on.
• You can activate and deactivate the
SET + GO function in the Basic Settings menu.
10.5 Automatic switch-off
For safety reasons the appliance deactivates after some time:
• If a heating function operates.
• If you do not change the oven tempera-
ture.
Temperature Switch-off time
30 °C - 115 °C 12.5 h
120 °C - 195 °C 8.5 h
200 °C - 230 °C 5.5 h
The automatic switch-off works
with all functions except Light ,
Duration and End Time .
10.6 Brightness of the display
There are two modes of display
brightness:
• Night brightness - when the appliance
is deactivated, the brightness of the
display is lower between 10 PM and 6
AM.
• Day brightness:
– When the appliance is activated.
– If you touch a sensor field during the
night brightness (apart from ON /
OFF), the display goes back to the
day brightness mode for the next 10
seconds.
18
www.electrolux.com
Page 19
– If the appliance is deactivated and
you set the function Minute Minder .
When the function ends, the display
goes back to the night brightness.
10.7 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you deactivate the appliance, the cooling fan can
continue to operate until the appliance
cools down.
11. HELPFUL HINTS AND TIPS
The temperature and baking times
in the tables are guidelines only.
They depend on the recipes and
the quality and quantity of the ingredients used.
11.1 Grilling
Always grill with the maximum temperature setting.
CAUTION!
Always grill with the oven door
closed.
Always preheat the empty oven
with the grill functions for 5 minutes.
• Set the shelf in the shelf level as recommended in the grilling table.
• Always set the pan to collect the fat into
the first shelf level.
• Grill only flat pieces of meat or fish.
Grilling
Food to be
grilled
Temperature
(°C)
Shelf posi-
tion
Grilling time (min)
1st side 2nd side
Roast beef,
medium
210 - 230 1 30 - 40 30 - 40
Filet of beef,
medium
230 1 20 - 30 20 - 30
Back of pork 210 - 230 1 30 - 40 30 - 40
Back of veal 210 - 230 1 30 - 40 30 - 40
Back of lamb 210 - 230 1 25 - 35 20 - 35
Whole Fish,
500 - 1000 g
210 - 230 1 15 - 30 15 - 30
ENGLISH 19
Page 20
Microwave Cooking Table
Defrosting meat
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Standing
time (min)
Comments
Whole cuts of
meat
500 200 10 - 12 10 - 15
Turn halfway
through
Steak 200 200 3 - 5 5 - 10
Turn halfway
through; remove
defrosted parts
Mixed minced
meat
500 200 10 - 15 10 - 15
Turn halfway
through; remove
defrosted parts
Goulash 500 200 10 - 15 10 - 15
Turn halfway
through; remove
defrosted parts
Defrosting poultry
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Standing
time (min)
Comments
Chicken 1000 200 25 - 30 10 - 20
Turn halfway
through; cover
defrosted parts
with aluminium
foil
Chicken
breast
100 -
200
200 3 - 5 10 - 15
Turn halfway
through; cover
defrosted parts
with aluminium
foil
Chicken
thighs
100 -
200
200 3 - 5 10 - 15
Turn halfway
through; cover
defrosted parts
with aluminium
foil
Duck 2000 200 45 - 60 20 - 30
Turn halfway
through; cover
defrosted parts
with aluminium
foil
20
www.electrolux.com
Page 21
Defrosting fish
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Stand-
ing time
(min)
Comments
Whole Fish 500 100
10 -
15
15 - 20
Turn halfway
through
Fish fillets 500 100
10 -
12
15 - 20
Turn halfway
through
Defrosting sausage
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Stand-
ing time
(min)
Comments
Sliced sausage 100 100 2 - 4 20 - 40
Turn halfway
through
Defrosting dairy products
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Stand-
ing time
(min)
Comments
Quark 250 100
10 -
15
25 - 30
Remove aluminium
parts, turn halfway
through
Butter 250 100 3 - 5 15 - 20
Remove aluminium
parts, turn halfway
through
Cheese 250 100 3 - 5 30 - 60
Remove aluminium
parts, turn halfway
through
Cream 200 100 7 - 12 20 - 30
Remove aluminium
top, stir halfway
through
Defrosting cakes / pastries
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Stand-
ing time
(min)
Comments
Yeast dough 1 piece 100 2 - 3 15 - 20
Turn plate halfway
through
ENGLISH 21
Page 22
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Stand-
ing time
(min)
Comments
Cheesecake 1 piece 100 2 - 4 15 - 20
Turn plate halfway
through
Cake (gateau) 1 piece 100 1 - 2 15 - 20
Turn plate halfway
through
Dry cake (e. g.
Pound cake)
1 piece 100 2 - 4 15 - 20
Turn plate halfway
through
Fruit cake 1 piece 100 1 - 2 15 - 20
Turn plate halfway
through
Bread 1000 100
15 -
20
10 - 15
Turn halfway
through
Sliced bread 500 100 8 - 12 10 - 15
Turn halfway
through
Bread rolls 4 rolls 100 5 - 8 5 - 10
Turn halfway
through
Defrosting Fruit
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Stand-
ing time
(min)
Comments
Strawberries 300 100 8 - 12 10 - 15
Defrost covered,
stir halfway
through
Plums, cherries,
raspberries, blackcurrants, apricots
250 100 8 - 10 10 - 15
Defrost covered,
stir halfway
through
Cooking / Melting
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Stand-
ing time
(min)
Comments
Chocolate / Chocolate coating
150 600 2 - 3 ---
Stir halfway
through
Butter 100 200 2 - 4 ---
Stir halfway
through
22
www.electrolux.com
Page 23
Defrosting heating
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Stand-
ing time
(min)
Comments
Baby food in jars 200 300 2 - 3 ---
Stir halfway
through; check
temperature!
Baby milk (bottle,
180 ml)
200 1000
0:20 -
0:40
---
Put spoon into
bottle, stir and
check tempera-
ture!
Convenience food 400 - 500 600 4 - 6 5
Remove any alu-
minium lids, turn
halfway through
Frozen ready
meals
400 - 500 400
14 -
20
5
Remove any alu-
minium lids, turn
halfway through
Milk
1 cup approx. 200
ml
1000
1:15 -
1:45
---
Put spoon in the
container
Water
1 cup approx. 200
ml
1000
1:30 -
2
---
Put spoon in the
container
Sauce 200 ml 600 1 - 2 ---
Stir halfway
through
Soup 300 ml 600 2 - 4 ---
Stir halfway
through
Cooking table
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Stand-
ing time
(min)
Comments
Whole fish 500 500 8 - 10 ---
Cook covered,
turn container sev-
eral times during
cooking
Fish fillets 500 500 6 - 8 ---
Cook covered,
turn container sev-
eral times during
cooking
Vegetables, short
cooking time, fresh
1)
500 600
12 -
16
---
Add approx. 50 ml
water, cook covered, stir halfway
through
ENGLISH 23
Page 24
Food
Microwave
Weight
(g)
Power
(Watts)
Time
(min)
Stand-
ing time
(min)
Comments
Vegetables, short
cooking time, frozen
1)
500 600
14 -
18
---
Add approx. 50 ml
water, cook covered, stir halfway
through
Vegetables, long
cooking time, fresh
1)
500 600
14 -
20
Add approx. 50 ml
water, cook covered, stir halfway
through
Vegetables, long
cooking time, frozen
1)
500 600
18 -
24
---
Add approx. 50 ml
water, cook covered, stir halfway
through
Potatoes in their
jacket
800 g +
600 ml
1000 5 - 7
300 W /
15 - 20
Cook covered, stir
halfway through
Rice
300 g +
600 ml
1000 4 - 6 ---
Cook covered, stir
halfway through
Popcorn - 1000 3 — 4 -
Put the popcorn
on a plate on the
bottom level
1)
Cook all vegetables with a cover on the container. The times given are guidelines only and
depend upon the type and qualities of the foodstuffs.
Combi-Function Table
(for selected models only)
Cooking functions: Grilling
+ mi-
crowave
Preheat Crostino plate: 4 minutes at 700
Watt
Food
Baking / roasting
dishes
Tem
p.
(°C)
Micro-
wave
(Watt)
Shel
f po-
si-
tion
Time
(min)
Comments
2 chicken
halves (
2 x 600 g)
Glass dish with
strainer
220 300 2 40
Turn after
20 min.,
standing
time 5 min.
au gratin
potatoes (1
kg)
Gratin dish 200 300 2 40
10 min.
standing
time
Roast pork
neck
(1100 g)
Glass dish with
strainer
200 300 1 70
Turn in be-
tween, 10
min. stand-
ing time
24
www.electrolux.com
Page 25
Food
Baking / roasting
dishes
Tem
p.
(°C)
Micro-
wave
(Watt)
Shel
f po-
si-
tion
Time
(min)
Comments
Apple cake
Crostino plate on
bottom glass. with
pastry max. 5 min. /
preheat 1000 Watt,
turn 1 x
220 400 - 25
Turn in be-
tween
Cheese
cake, frozen
(2 x 70 g)
Crostino plate on
bottom glass. Max. 4
min. / preheat at 700
Watt, turn 1 x
230 200 - 25
Turn in be-
tween
Ham and
cheese
toast, frozen (2 x 100
g)
Crostino plate on
bottom glass. Max. 4
min. / preheat at 700
Watt, turn 1 x
230 200 - 20
Turn after
15 min.
Hamburger
frozen (2 x
90 g)
Crostino plate on
bottom glass. Max. 4
min. / preheat at 700
Watt, turn 1 x
230 300 - 20
Turn after
12 min.
Pizza frozen
Ø 28 cm
(320 g)
Crostino plate on
bottom glass. Max. 4
min. / preheat at 700
Watt, turn 1 x
230 200 - 15
Turn in be-
tween
The cooking times and temperatures are
guidelines only and depend upon the type
and qualities of the foodstuffs.
Tips for the microwave
Result Remedy
You cannot find details for the
amount of food prepared.
Look for a similar food. Increase or shorten
the length of the cooking times according to
the following rule: Double the amount = al-
most double the timeHalf the amount =
half the time
The food has got too dry. Set shorter cooking time or select lower mi-
crowave power.
The food is still not defrosted, hot
or cooked after the time has
elapsed.
Set longer cooking time or select higher microwave power. Please note that taller
dishes need longer.
After the cooking time has
elapsed, the food is overheated at
the edge but is still not ready in the
middle.
Next time select a lower power and a longer
time. Stir liquids, e. g. soup, halfway
through.
ENGLISH 25
Page 26
12. CARE AND CLEANING
WARNING!
Refer to the Safety chapters.
Notes on cleaning:
• Clean the front of the appliance with a
soft cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the appliance interior after each
use. Then you can remove dirt more
easily and it does not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a dishwasher. It can cause damage to the
nonstick coating.
12.1 Shelf support
Removing the shelf support
You can remove the shelf support to
clean the side walls.
2
3
1
1.
Carefully pull the supports up and out
of the front catch.
2.
Lightly move the supports on the front
catch inwards.
3.
Pull the supports out of the rear
catch.
Installing the shelf support
To install the shelf support follow the procedure in the opposite order.
12.2 Lamp
WARNING!
There is a risk of electrical shock.
The lamp and the lamp glass cover can be hot.
Before you change the lamp:
• Deactivate the appliance.
• Remove the fuses from the fuse box or
deactivate the circuit breaker.
CAUTION!
Put a cloth on the bottom of the
interior of the appliance. It prevents damage to the lamp glass
cover and the cavity.
Always use the same lamp type.
Replacing the lamp at the cavity
ceiling:
1.
Turn the lamp glass cover counterclockwise to remove it.
2.
Clean the glass cover.
3.
Replace the lamp with a suitable 300
°C heat-resistant lamp.
4.
Install the glass cover.
13. WHAT TO DO IF…
WARNING!
Refer to the Safety chapters.
Problem Possible cause Remedy
The appliance does
not heat up.
The appliance is deactivated.
Activate the appliance.
26
www.electrolux.com
Page 27
Problem Possible cause Remedy
The appliance does
not heat up.
The clock is not set. Set the clock.
The appliance does
not heat up.
The necessary settings are
not set.
Check the settings.
The appliance does
not heat up.
The Child Lock is activated. Refer to "Activating and de-
activating the Child Lock
function".
The appliance does
not heat up.
The door is not closed correctly.
Fully close the door.
The appliance does
not heat up.
The fuse is released. Make sure that the fuse is
the cause of the malfunction. If the fuse releases
again and again, contact a
qualified electrician.
The lamp does not
operate.
The lamp is defective. Replace the lamp.
If you cannot find a solution to the problem yourself, contact your dealer or the
service centre.
The necessary data for the service centre
is on the rating plate. The rating plate is
on the front frame of the appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
14. INSTALLATION
WARNING!
Refer to the Safety chapters.
The built-in unit must meet the
stability requirements of DIN
68930.
The oven is designed to be connected to
230 - 240V ~ (50Hz) electricity supply.
The oven has an easily accessible terminal block which is marked as follows:
Letter L - Live terminal
Letter N - Neutral terminal
- Earth terminal
CAUTION!
This oven must be earthed!
The cable used to connect the oven to
the electrical supply must comply to the
specifications given below.
For UK use only
Connection via Min. size Cable/
flex
Cable/flex type Fuse
Cooker Control
Circuit
2,5 mm² PVC / PVC twin
and earth
min: 15 A
max: 20 A
It is necessary that you install a double
pole switch between the oven and the
electricity supply (mains), with a minimum
gap of 3 mm between the switch contacts
and of a type suitable for the required
load in compliance with the current regulations.
ENGLISH 27
Page 28
The switch must not break the yellow and
green earth cable at any point.
After installation and connecting,
the cable must be placed so that
it cannot at any point reach a temperature of more than 50°C above
the ambient temperature.
Before the oven is connected,
check that the main fuse and the
domestic installation can support
the load; and that the power supply is properly earthed.
The manufacturer declines any responsibility should these safety
measures not be carried out.
446
548
567
594
455
21
450
min. 550
min. 20
min. 560
4
5
446
min.
567
594
455
455
450
548
550
450
min. 560
21
114
114
5
4
min. 20
28
www.electrolux.com
Page 29
446
4
446
450
450
450
446
455
455
455
5
567
594
548
21
min.
550
min. 560
min. 20
114
ENGLISH 29
Page 30
90°
13
20
2x3,5x25
30
www.electrolux.com
Page 31
15.
GB
IE GREAT BRITAIN & IRELAND - GUARANTEE/
CUSTOMER SERVICE
15.1 Standard guarantee
conditions:
We, Electrolux, undertake that if within 12
months of the date of the purchase this
Electrolux appliance or any part thereof is
proved to be defective by reason only of
faulty workmanship or materials, we will,
at our option repair or replace the same
FREE OF CHARGE for labour, materials
or carriage on condition that:
• Appliance has been correctly installed
and used only on the electricity supply
stated on the rating plate.
• Appliance has been used for normal
domestic purposes only, in accordance
with manufacturer's instructions.
• Appliance hasn't been serviced, maintained, repaired, taken apart or tampered with by person not authorised by
us.
• Electrolux Service Force Centre must
undertake all service work under this
guarantee
• Any appliance or defective part replaced shall become the Company's
property.
• This guarantee is in addition to your
statutory and other legal rights.
Exclusions
• Damage, calls resulting from transport,
improper use, neglect, light bulbs, removable parts of glass, plastic.
• Costs for calls to put right appliance
which is improperly installed, calls to
appliances outside United Kingdom.
• Appliances found to be in use within a
commercial environment, plus those
which are subject to rental agreements.
• Products of Electrolux manufacturer
that are not marketed by Electrolux
Service and Spare Parts.Please contact
your local Service Force Centre: 08445
616 616(Call will be routed to Service
Force Centre covering your postcode
area). For address of local Service Force
Centre and further information, please visit: www.serviceforce.co.uk Before calling out an engineer, please ensure you
have read the details under the heading
"What to do if... / Troubleshooting". When
you contact the Service Force Centre you
will need to give the following details: Your
name, address and postcode, your telephone number, clear concise details of
the fault, model and serial number of the
appliance (found on the rating plate), the
purchase date. Please note a valid purchase receipt or guarantee documentation is required for in guarantee service
calls.
Customer Care.Please contact our Customer Care Department: Electrolux Major
Appliances, Addington Way, Luton, Bedfordshire, LU4 9QQ or visit our website at
www.electrolux.co.uk
Customer Care
Department,
Tel: (Calls may be recorded for training purposes)
Electrolux 08445 613 613
AEG-
Electrolux
08445 611 611
ZanussiElectrolux
08445 612 612
For Customer Service in The
Republic of Ireland please
contact us at the address
below:
Electrolux Group (Irl) Ltd, Long Mile Road,
Dublin 12, Republic of Ireland
Tel: +353 (0)1 4090751, Email: serv[email protected]
ENGLISH 31
Page 32
16. EUROPEAN GUARANTEE
GB
This appliance is guaranteed by Electrolux in each of the countries listed at the
back of this user manual, for the period
specified in the appliance guarantee or
otherwise by law. If you move from one of
these countries to another of the countries listed, the appliance guarantee will
move with you subject to the following
qualifications:-
• The appliance guarantee starts from the
date you first purchased the appliance
which will be evidenced by production
of a valid purchase document issued by
the seller of the appliance.
• The appliance guarantee is for the
same period and to the same extent for
labour and parts as exists in your new
country of residence for this particular
model or range of appliances.
• The appliance guarantee is personal to
the original purchaser of the appliance
and cannot be transferred to another
user.
• The appliance is installed and used in
accordance with instructions issued by
Electrolux and is only used within the
home, i.e. is not used for commercial
purposes.
• The appliance is installed in accordance
with all relevant regulations in force
within your new country of residence.
The provisions of this European Guarantee do not affect any of the rights granted
to you by law.
17. WWW.ELECTROLUX.COM
Albania +355 4 261 450 Rruga “Kavajës”, ish-parku auto-
buzëve, Tiranë
Belgique/België/Belgien
+32 2 7162444 Raketstraat 40, 1130 Brussel/
Bruxelles
Česká Republika +420 261 302 261 Budějovická 3, Praha 4, 140 21
Danmark +45 70 11 74 00 Strevelinsvej 38-40, 7000 Frederi-
cia
Deutschland +49 180 32 26 622 Fürther Str. 246, 90429 Nürnberg
Eesti +37 2 66 50 030 Pärnu mnt. 153, 11624 Tallinn
España +34 902 11 63 88 Carretera M-300, Km. 29,900 Al-
calá de Henares Madrid
France 08 92 68 24 33
(0.34€/min)
www.electrolux.fr
Great Britain +44 8445 616 616 Addington Way, Luton, Bedford-
shire LU4 9QQ
Hellas +30 23 10 56 19 70 4, Limnou Str., 54627 Thessalo-
niki
Hrvatska +385 1 63 23 338 Slavonska avenija 3, 10000 Zagreb
Ireland +353 1 40 90 753 Long Mile Road Dublin 12
Italia +39 (0) 434 558500 Corso Lino Zanussi, 30 - 33080
Porcia (PN)
32
www.electrolux.com
Page 33
Latvija +371 67313626 Kr. Barona iela 130/2, LV-1012, Riga
Lietuva +370 5 278 06 03 Ozo 10a, LT-08200 Vilnius
Luxembourg +352 42 431 301 Rue de Bitbourg, 7, L-1273
Hamm
Magyarország (06-1)467-3205
+361 252 1773
H-1142 Budapest XIV, Erzsébet Kirá‐
lyné útja 87
Nederland +31 17 24 68 300 Vennootsweg 1, 2404 CG - Al-
phen aan den Rijn
Norge +47 81 5 30 222 Risløkkvn. 2 , 0508 Oslo
Österreich 0810 955030 Herziggasse 9, 1230 Wien
Polska +48 22 43 47 300 ul. Kolejowa 5/7, 01–217 Warszawa
Portugal +35 12 14 40 39 39 Quinta da Fonte - Edifício Gon-
çalves Zarco - Q 35 -2774-518
Paço de Arcos
Romania +40 21 451 20 30 Str. Garii Progresului 2, S4, 040671
RO
Schweiz - Suisse Svizzera
0848 848 111 Industriestrasse 10, CH-5506
Mägenwil
Slovenija +38 61 24 25 731 Gerbičeva ulica 110, 1000 Ljubljana
Slovensko +421 2 32 14 13 34-5 Electrolux Slovakia s.r.o., Electrolux
Domáce spotrebiče SK, Galvaniho 17/
B, 821 04 Bratislava
Suomi 030 600 5200
Lankapuhelinverkosta 0,0828€/puhelu+0,032€/min Matkapuhelinverkosta 0,192€/min
Sverige +46 (0)771 76 76 76 Electrolux Service, S:t Göransga-
tan 143, S-105 45 Stockholm
Türkiye +90 21 22 93 10 25 Tarlabaşı caddesi no : 35 Taksim İstan‐
bul
Россия 8-800-200-3589 129090 Москва, Олимпийский
проспект, 16, БЦ "Олимпик"
Україна +380 44 586 20 60 04074 Київ, вул.Автозаводська, 2а,
БЦ "Алкон"
18. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol
ENGLISH 33
Page 34
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
34
www.electrolux.com
Page 35
ENGLISH 35
Page 36
www.electrolux.com/shop
892956487-B-302013
Loading...
