EUF2500AOW
EUF2900AOW
.................................................. ...............................................
EN FREEZER USER MANUAL
Page 2
CONTENTS
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
WHAT TO DO IF… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
NOISES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed with
you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results
every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2
www.electrolux.com
Page 3
SAFETY INFORMATION
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through
its life will be properly informed on appliance use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for
damages caused by omission.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent playing children to suffer electric
shock or to close themselves into it.
• If this appliance featuring magnetic door
seals is to replace an older appliance
having a spring lock (latch) on the door
or lid, be sure to make that spring lock
unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
GENERAL SAFETY
WARNING!
Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear
of obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.
• Do not use a mechanical device or any
artificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of refrigerating appliances, unless they are
approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-
tion
– thoroughly ventilate the room in which
the appliance is situated
• It is dangerous to alter the specifications
or modify this product in any way. Any
damage to the cord may cause a shortcircuit, fire and/or electric shock.
WARNING!
Any electrical component (power
cord, plug, compressor) must be
replaced by a certified service
agent or qualified service personnel
to avoid hazard.
1.
Power cord must not be lengthened.
2.
Make sure that the power plug is not
squashed or damaged by the back
of the appliance. A squashed or
damaged power plug may overheat
and cause a fire.
3.
Make sure that you can come to the
mains plug of the appliance.
4.
Do not pull the mains cable.
ENGLISH 3
Page 4
5.
If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.
6.
You must not operate the appliance
without the lamp cover (if foreseen)
of interior lighting.
• This appliance is heavy. Care should be
taken when moving it.
• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin
abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
• Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only.
They are not suitable for household room
illumination.
DAILY USE
• Do not put hot pot on the plastic parts in
the appliance.
• Do not store flammable gas and liquid in
the appliance, because they may explode.
• Do not place food products directly
against the air outlet on the rear wall. (If
the appliance is Frost Free)
• Frozen food must not be re-frozen once
it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's
instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks
in the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
CARE AND CLEANING
• Before maintenance, switch off the appliance and disconnect the mains plug
from the mains socket.
• Do not clean the appliance with metal
objects.
• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.
• Never use a hair drier or other heating
appliances to speed up defrosting. Excessive heat may damage the plastic interior, and humidity could enter the electric system making it live.
INSTALLATION
For electrical connection carefully
follow the instructions given in specific paragraphs.
• Unpack the appliance and check if there
are damages on it. Do not connect the
appliance if it is damaged. Report possible damages immediately to the place
you bought it. In that case retain packing.
• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ventilation follow the instructions relevant to
installation.
• Wherever possible the back of the product should be against a wall to avoid
touching or catching warm parts (compressor, condenser) to prevent possible
burn.
• The appliance must not be located close
to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If
a water connection is foreseen).
SERVICE
• Any electrical work required to do the
servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.
4
www.electrolux.com
Page 5
ENVIRONMENT PROTECTION
This appliance does not contain
gasses which could damage the
ozone layer, in either its refrigerant
circuit or insulation materials. The
appliance shall not be discarded
together with the urban refuse and
rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according
to the applicable regulations to obtain from your local authorities.
Avoid damaging the cooling unit,
especially at the rear near the heat
exchanger. The materials used on
this appliance marked by the sym-
bol
are recyclable.
ENGLISH 5
Page 6
CONTROL PANEL
1 2 3
45
1
Temperature indicators
2
Action Freeze light
3
Alarm light
4
Alarm reset button /
Action Freeze button
5
ON/OFF /
Temperature set button
SWITCHING ON
Insert the plug into the wall socket.
If the Temperature indicator is not illuminated, press ON/OFF button.
If the temperature inside the appliance is
too warm the Alarm light will flash and the
Alarm buzzer starts.
Press the Alarm reset button to switch off
the Alarm buzzer.
SWITCHING OFF
1.
Press the ON/OFF button for few seconds.
2.
All Temperature indicators will light up
and then count down in 3 steps.
3.
Disconnect the mains plug from the
mains socket to disengage the appliance completely.
TEMPERATURE REGULATION
1.
Press the Temperature set button.
The temperature indicator will flash.
2.
Select a new temperature by pressing
the Temperature set button repeatedly.
3.
The Temperature indicator will stop
flashing after a while.
The temperature indicator shows the set
temperature.
The set temperature will be reached within
24 hours.
Keep in mind that the temperature inside
the appliance also depends on:
• room temperature
• how often the door is opened
• quantity of food stored
• location of the appliance.
ACTION FREEZE FUNCTION
1.
Press the Action Freeze button.
2.
The Action Freeze light will light up.
This function stops automatically
after approx. 52 hours.
It is possible to deactivate the function at any time by pressing the Action Freeze button.
The Action Freeze light will switch
off.
HIGH TEMPERATURE ALARM
Temperature increase in the freezer compartment (for example due to an earlier
power failure or door is open) is indicated
by:
• Alarm light flashing.
6
www.electrolux.com
Page 7
• sounding of buzzer.
The buzzer can be switched off by pressing
the Alarm reset button.
When normal conditions are restored the
Alarm light will stop flashing and the buzzer
turn off automatically.
ENGLISH 7
Page 8
DAILY USE
FREEZING FRESH FOOD
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze small amount of fresh foods it is
not necessary to change the present setting.
To freeze fresh food activate the Action
Freeze function 24 hours before placing the
food to be frozen in the freezer compartment.
Place the fresh food to be frozen in the two
top compartments.
The maximum amount of food that can be
frozen in 24 hours is specified on the rat-
ing plate, a label located on the inside of
the appliance.
The freezing process lasts 24 hours: during
this period do not add other food to be frozen.
STORAGE OF FROZEN FOOD
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours.
The freezer baskets ensure that it is quick
and easy to find the food package you
want. If large quantities of food are to be
stored, remove all drawers except for the
bottom basket which needs to be in place
to provide good air circulation. On all
shelves it is possible to place food that protrude 15 mm from the door.
In the event of accidental defrosting, for example due to a power
failure, if the power has been off for
longer that the value shown in the
technical characteristics chart under "rising time", the defrosted food
must be consumed quickly or
cooked immediately and then refrozen (after cooling).
THAWING
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer: in this case,
cooking will take longer.
CLEANING THE INTERIOR
Before using the appliance for the first time,
wash the interior and all internal accessories with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.
Do not use detergents or abrasive
powders, as these will damage the
finish.
REMOVAL OF FREEZING BASKETS FROM THE FREEZER
2
1
The freezing baskets have a limit stop to
prevent their accidental removal or falling
out. At the time of its removal from the
freezer, pull the basket towards yourself
and, upon reaching the end point, remove
the basket by tilting its front upwards.
At the time of putting it back, slightly lift the
front of the basket to insert it into the freezer. Once you are over the end points, push
the baskets back in their position.
8
www.electrolux.com
Page 9
HELPFUL HINTS AND TIPS
HINTS FOR FREEZING
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No
further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable
it to be rapidly and completely frozen
and to make it possible subsequently to
thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages
are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the latter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be
freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to enable
you to keep tab of the storage time.
HINTS FOR STORAGE OF
FROZEN FOOD
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer
in the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly
and cannot be refrozen;
• do not exceed the storage period indicated by the food manufacturer.
ENGLISH 9
Page 10
CARE AND CLEANING
CAUTION!
Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.
PERIODIC CLEANING
The equipment has to be cleaned regularly:
• clean the inside and accessories with
lukewarm water and some neutral soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Do not pull, move or damage any
pipes and/or cables inside the cabinet.
Never use detergents, abrasive
powders, highly perfumed cleaning
products or wax polishes to clean
the interior as this will damage the
surface and leave a strong odor.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve
the performance of the appliance and save
energy consumption.
Take care of not to damage the
cooling system.
When moving the cabinet, lift it by
the front edge to avoid scratching
the floor.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason use a soft cloth rinsed in warm water and neutral soap emulsion for cleaning
external surfaces.
Do not use detergents or abrasive
paste as these will damage the
paint, or stainless steel anti finger
print coating.
After cleaning, reconnect the equipment to
the mains supply.
DEFROSTING THE FREEZER
A certain amount of frost will always form
on the freezer shelves and around the top
compartment.
Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.
To remove the frost, follow the instructions
below:
• switch off the appliance and pull out the
plug from the wall socket
• remove any stored food, wrap it in several layers of newspaper and put it in a
cool place

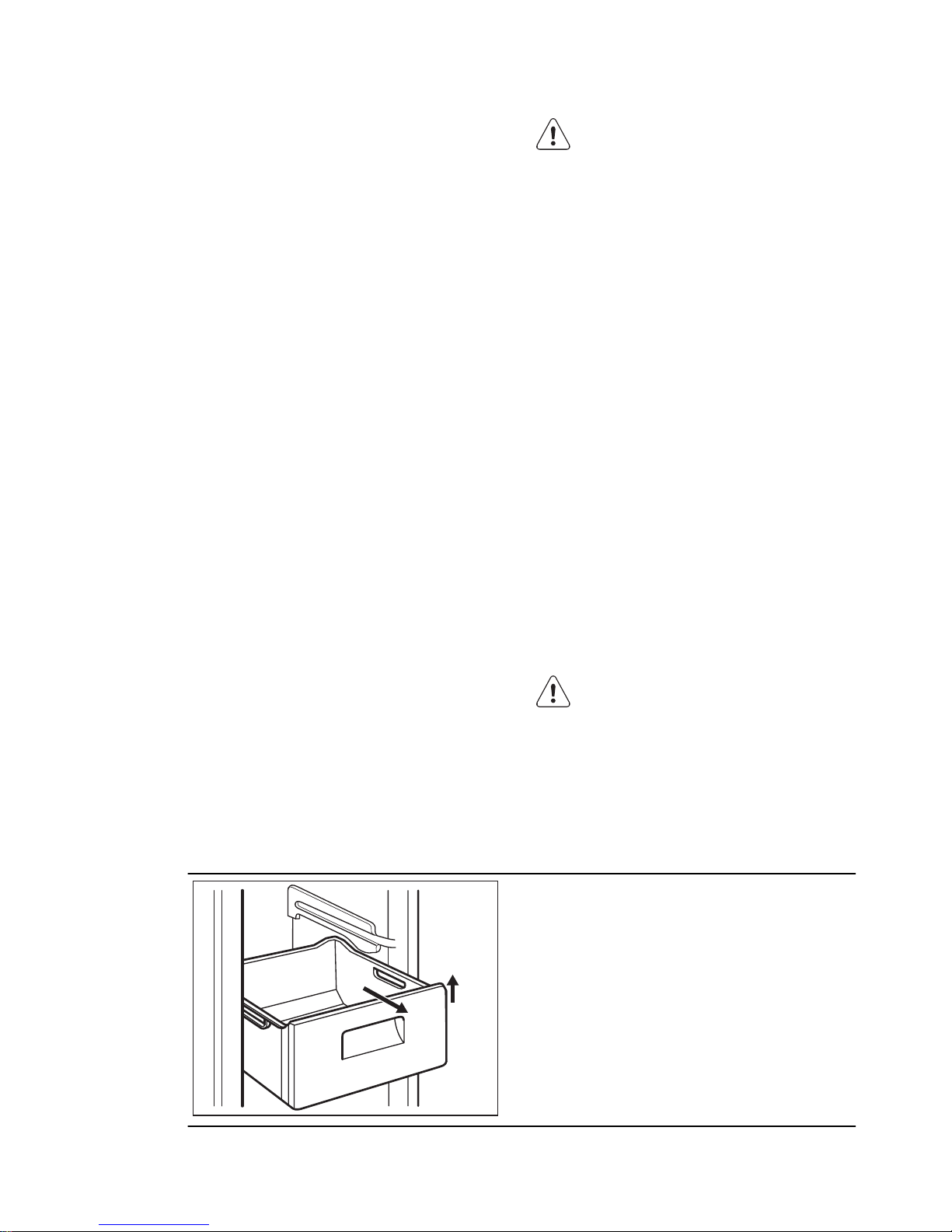

• remove the freezer drawers
• put insulating material around the drawers, e.g. blankets or newspapers.
Defrosting can be accelerated by placing
bowls with hot water (not boiling) inside the
freezer.
• Loosen the drainage channel from its
resting position, push it in according to
the illustration and collect a water container.
• carefully scrape off the ice when it starts
to thaw. Use a wood or a plastic scraper
• when all the ice has melted, clean and
wipe the cabinet dry, then put the drainage channel back in place.
• switch on the cabinet, insert the plug into
the wall socket and replace the frozen
foodstuff.
10
www.electrolux.com
Page 11
Never use sharp metal tools to
scrape off frost from the evaporator
as you could damage it. Do not
use a mechanical device or any artificial means to speed up the
thawing process other than those
recommended by the manufacturer. A temperature rise of the frozen
food packs, during defrosting, may
shorten their safe storage life.
PERIODS OF NON-OPERATION
When the appliance is not in use for long
periods, take the following precautions:
1.
disconnect the appliance from electricity supply
2.
remove all food
3.
defrost and clean the appliance and all
accessories
4.
leave the door/doors open to prevent
unpleasant smells.
If the cabinet will be kept on, ask
somebody to check it once in a
while to prevent the food inside
from spoiling in case of a power
failure.

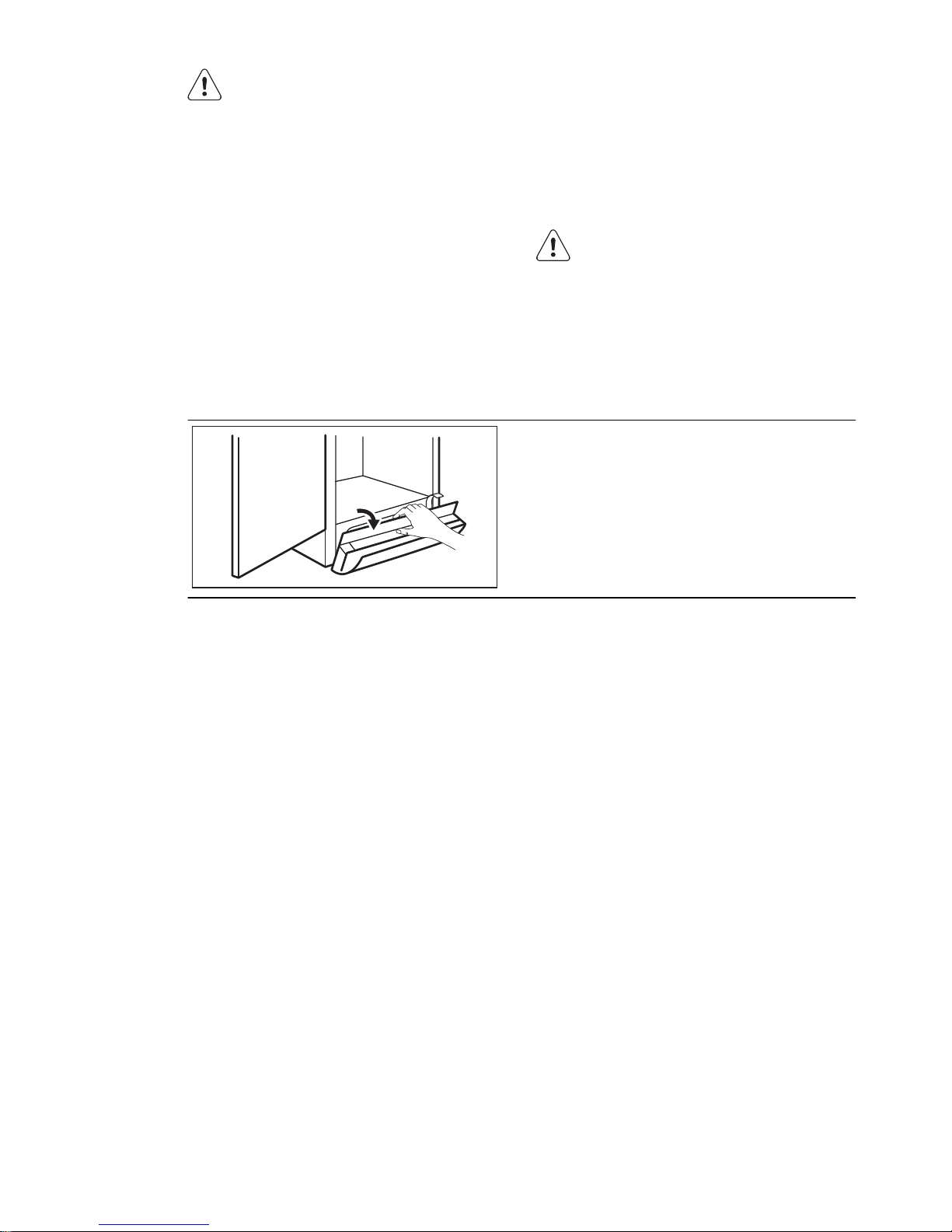

CLEANING THE VENTILATION GRILLE
The ventilation grille can be removed for
washing.
Make sure the door is open and then:
• Loosen the upper edge of the grille by
pulling outward/downward.
• Pull the grille straight out to completely
remove it.
• Vacuum clean under the cabinet.
ENGLISH 11
Page 12
WHAT TO DO IF…
During operation of the appliance some
smaller but annoying trouble can often occur, which does not require calling a technician out. In the following chart information
is given about them to avoid unnecessary
charges on service.

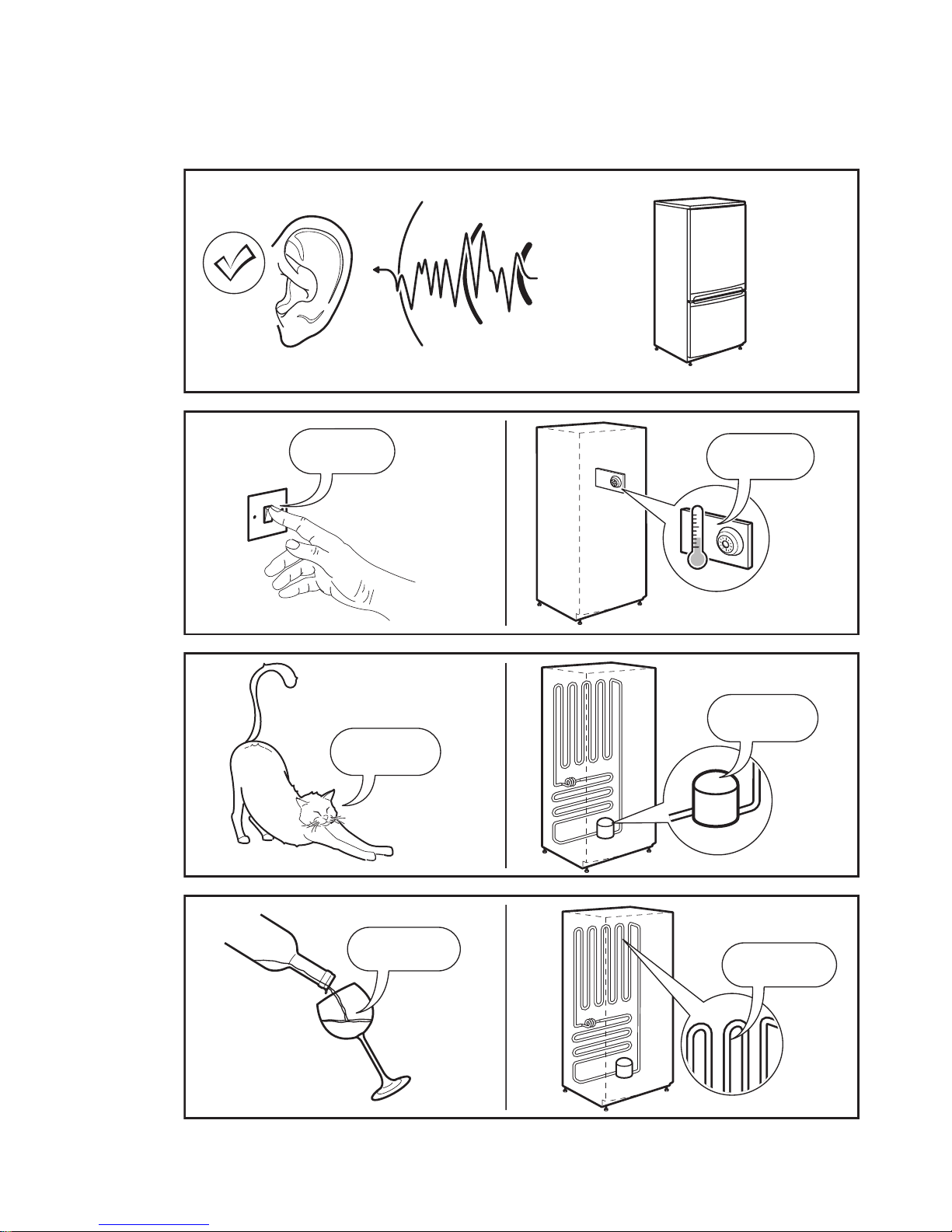

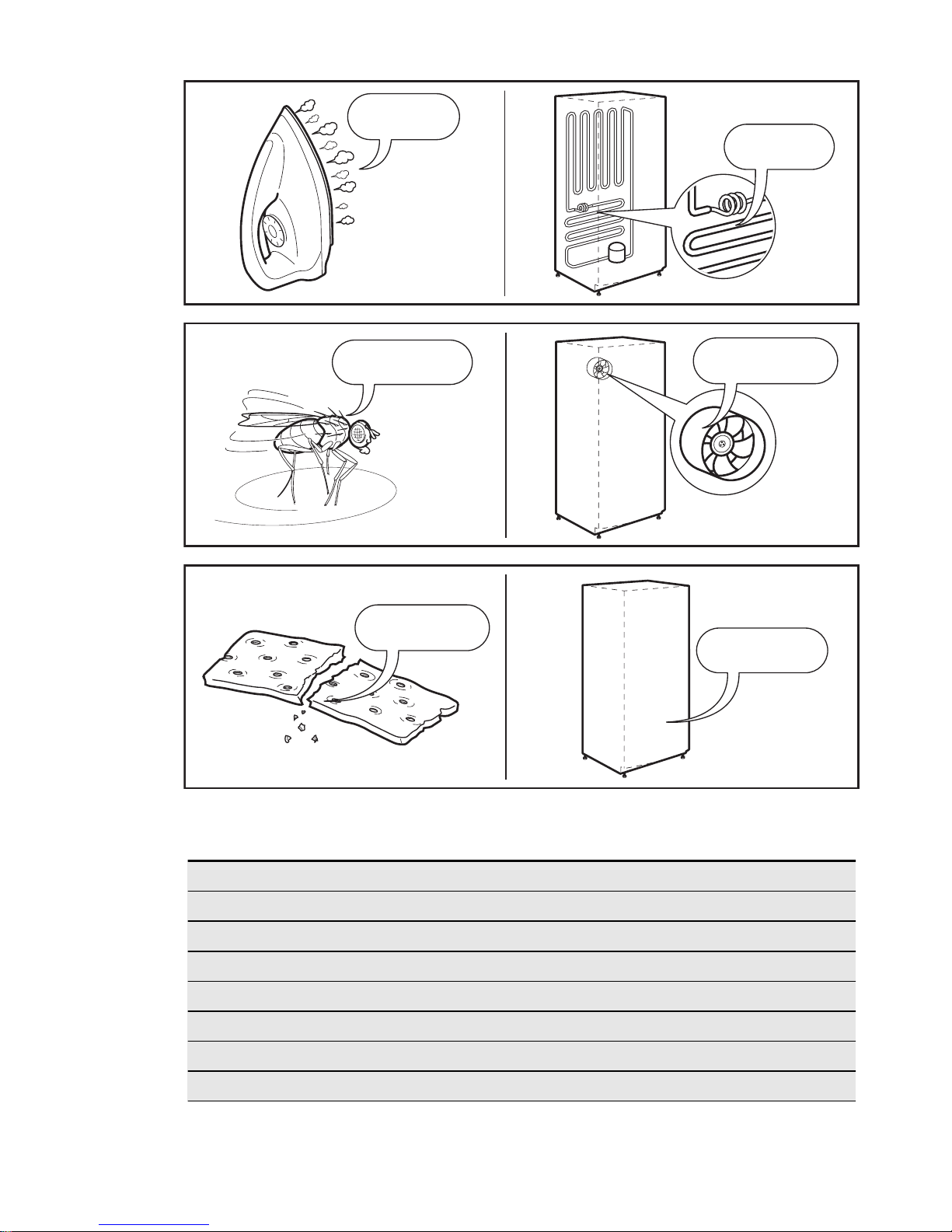

The operation of the appliance
goes with certain sounds (compressor and circulating sound). This
not means a trouble, but a normal
operation.
The appliance operates discontinuously, so the stopping of compressor does not mean being no current. That is why you must not
touch the electrical parts of the appliance before breaking the circuit.
Problem Possible cause Solution
The appliance is
noisy.
The appliance is not supported properly.
Check if the appliance
stands stable (all feet and
wheels should be on the
floor). Refer to "Levelling".
The buzzer sounds.
The Alarm light
flashing.
The temperature in the
freezer is too high.
Refer to "Temperature
Alarm"
Three Temperature
indicators flashing.
An error has occurred in
measuring the temperature.
Call your service representative (the cooling system will
continue to keep food products cold, but temperature
adjustment will not be possible).
The compressor
runs continuously.
The Temperature regulator
may be set incorrectly.
Set a warmer temperature.
The door is not closed cor-
rectly.
Refer to "Closing the door".
The door has been opened
too frequently.
Do not keep the door open
longer than necessary.
The food temperature is too
high.
Let the food temperature decrease to room temperature
before storage.
The room temperature is
too warm.
Decrease the room temperature.
There is too much
frost and ice.
The door is not closed correctly.
Refer to "Closing the door".
The door gasket is de-
formed or dirty.
Refer to "Closing the door".
The temperature in
the appliance is too
cold.
The Temperature regulator
may be set incorrectly.
Set a warmer temperature.
12
www.electrolux.com
Page 13
Problem Possible cause Solution
The temperature in
the appliance is too
warm.
The Temperature regulator
may be set incorrectly.
Set a lower temperature.
The door is not closed cor-
rectly.
Refer to "Closing the door".
The food temperature is too
high.
Let the food temperature decrease to room temperature
before storage.
The temperature in
the freezer is too
warm.
Food is too near to each
other.
Store food so that there is
cold air circulation.
Large quantities of food to
be frozen were put in at the
same time.
Insert smaller quantities of
food to be frozen at the
same time.
The appliance does
not operate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con-
nected to the mains socket
correctly.
Connect the mains plug to
the mains socket correctly.
The appliance has no pow-
er. There is no voltage in
the mains socket.
Connect another electrical
appliance to the mains socket. Check fuse. Contact a
qualified electrician.
Door interferes with
ventilation grill.
The appliance is not levelled.
Refer to "Levelling".
Misaligned door The appliance is not level-
led.
Refer to "Levelling".
As much as the advice does not lead to result, call the nearest brand-mark service.
CLOSING THE DOOR
1.
Clean the door gaskets.
2.
If necessary, adjust the door. Refer to
"Installation".
3.
If necessary, replace the defective door
gaskets. Contact the Service Center.
ENGLISH 13
Page 14
INSTALLATION
WARNING!
Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.
POSITIONING
Install this appliance at a location where the
ambient temperature corresponds to the
climate class indicated on the rating plate
of the appliance:
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
ELECTRICAL CONNECTION
Before plugging in, ensure that the voltage
and frequency shown on the rating plate
correspond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact for this purpose. If the domestic power
supply socket is not earthed, connect the
appliance to a separate earth in compliance with current regulations, consulting a
qualified electrician.
The manufacturer declines all responsibility
if the above safety precautions are not observed.
This appliance complies with the E.E.C. Directives.

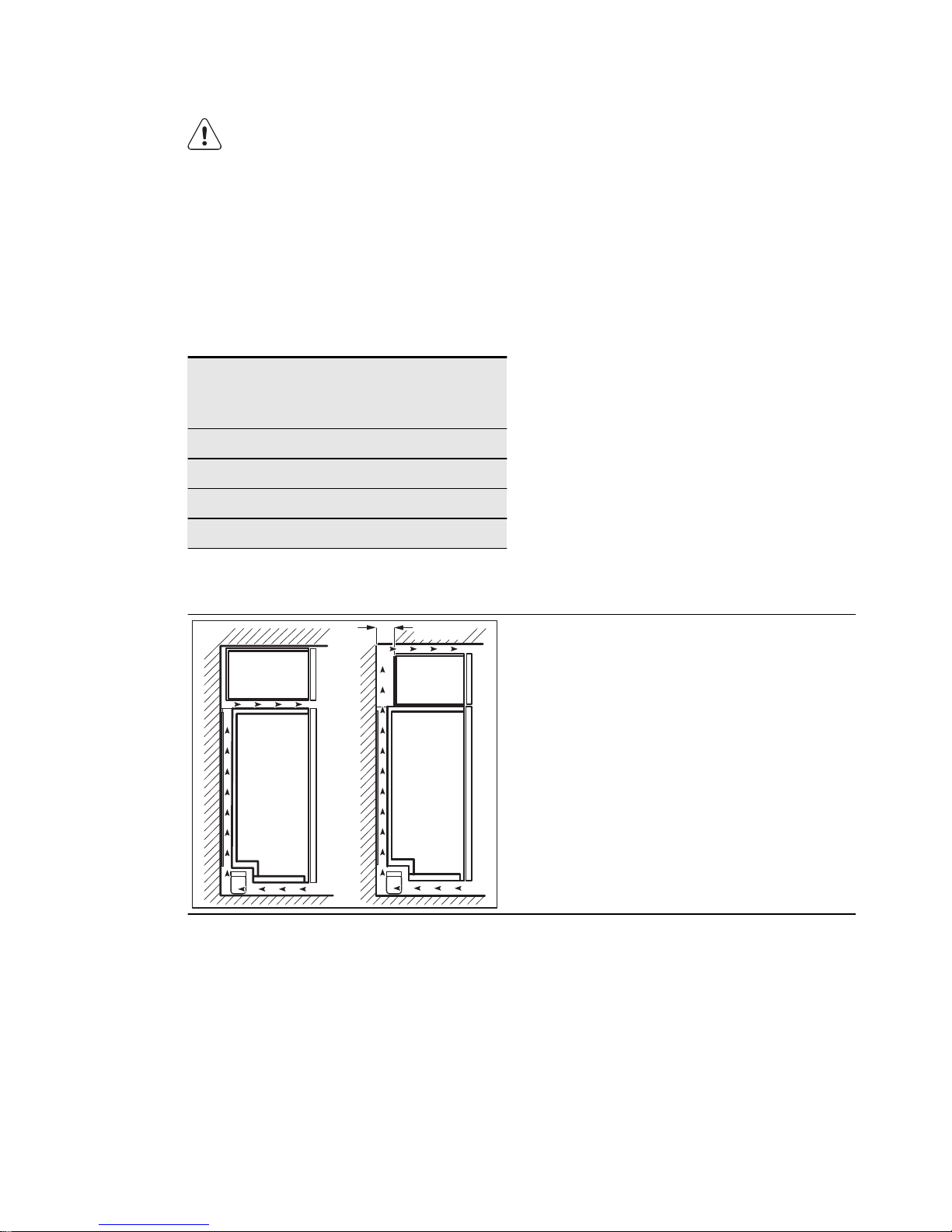

LOCATION
50 mm
To ensure best performance, if the appliance is positioned below an overhanging
wall unit, the minimum distance between
the top of the cabinet and the wall unit
must be at least 40 mm. Ideally, however,
the appliance should not be positioned below overhanging wall units.
The ventilation space can be:
• directly above the appliance
• behind and above the top cupboard.
In this case, the space behind the top
cupboard must be at least 50 mm deep.
14
www.electrolux.com
Page 15
REMOVING THE TRANSPORT SUPPORT
2
3

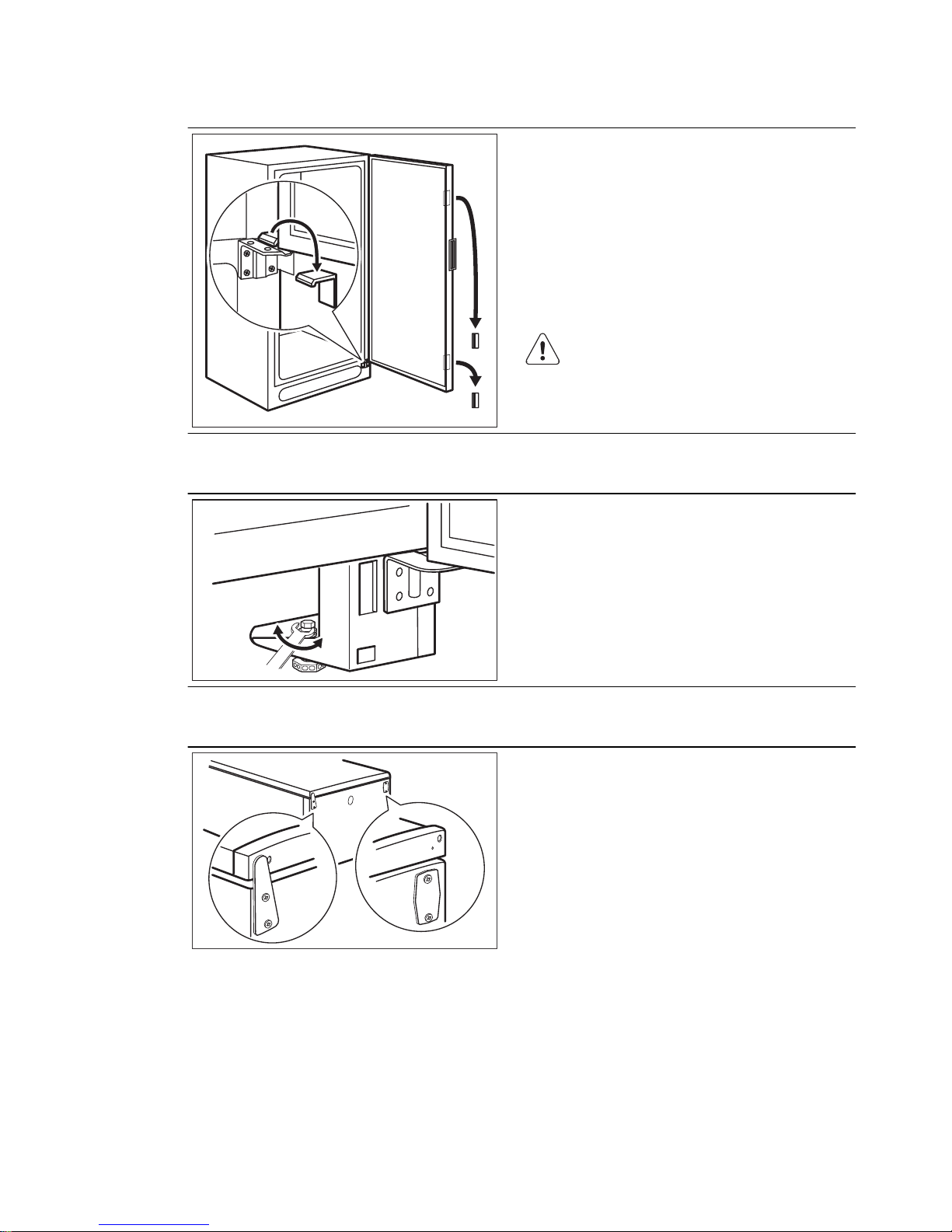

Your appliance is equipped with transport
support to secure the door during transportation.
To remove them do these steps:
• Open the door.
• Remove the transport support from the
door sides.
• Remove the transport support from the
lower hinge (some models).

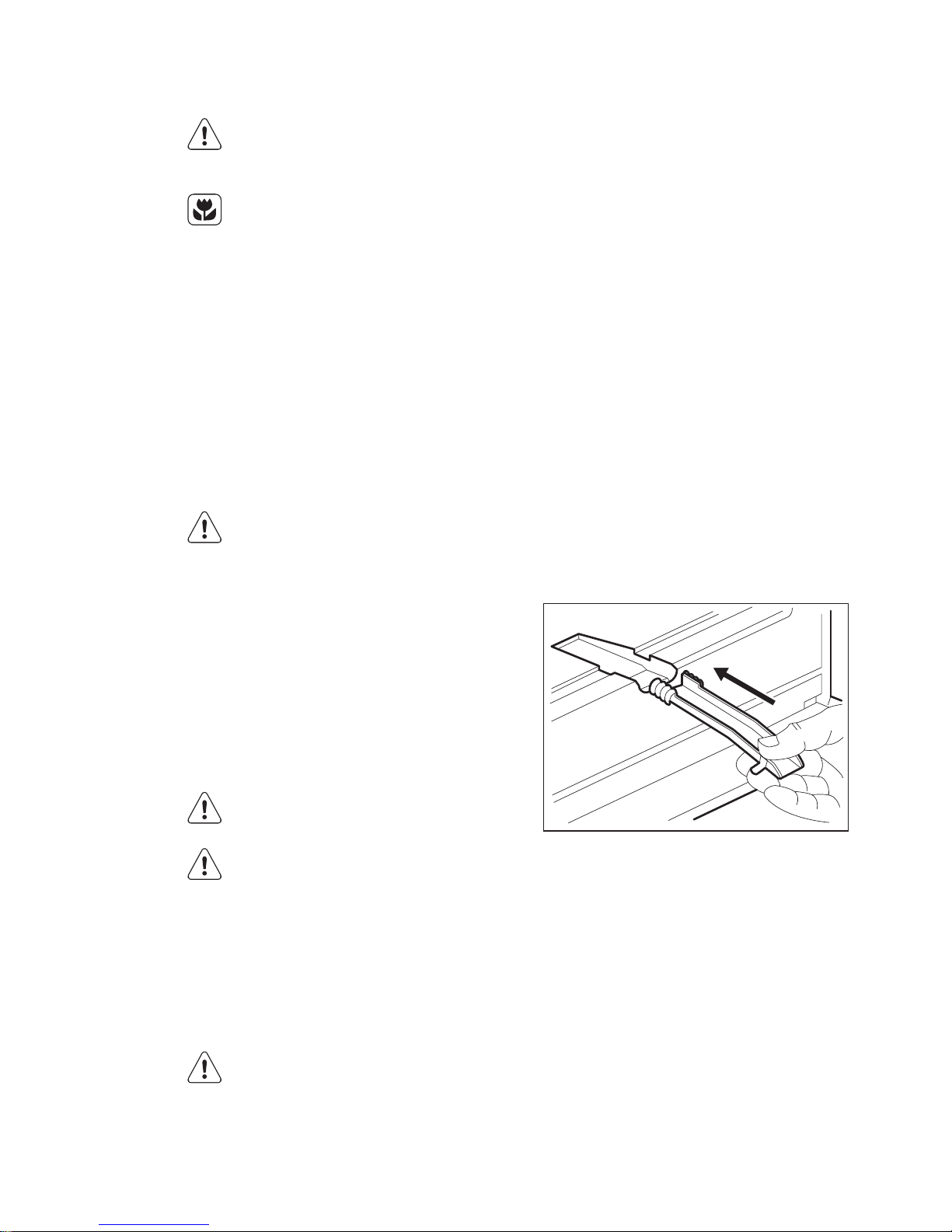

Some models are fitted with a silencing pad under the cabinet. Do
not remove this pad.
LEVELLING
When placing the appliance ensure that it
stands level. If necessary adjust the feet using the adjustment spanner supplied.
DOOR REVERSIBILITY
A2
A1
To change the opening direction of the
door, do these steps:
• Remove the plug from the power socket.
• Remove the ventilation grille. Remove the
filling and install it on the opposite side of
the grille.
• Lay down the appliance back side down
on a wooden support.
• Unscrew the upper hinge (A1) and the
cover washer (A2) and install this on the
opposite side.
ENGLISH 15
Page 16

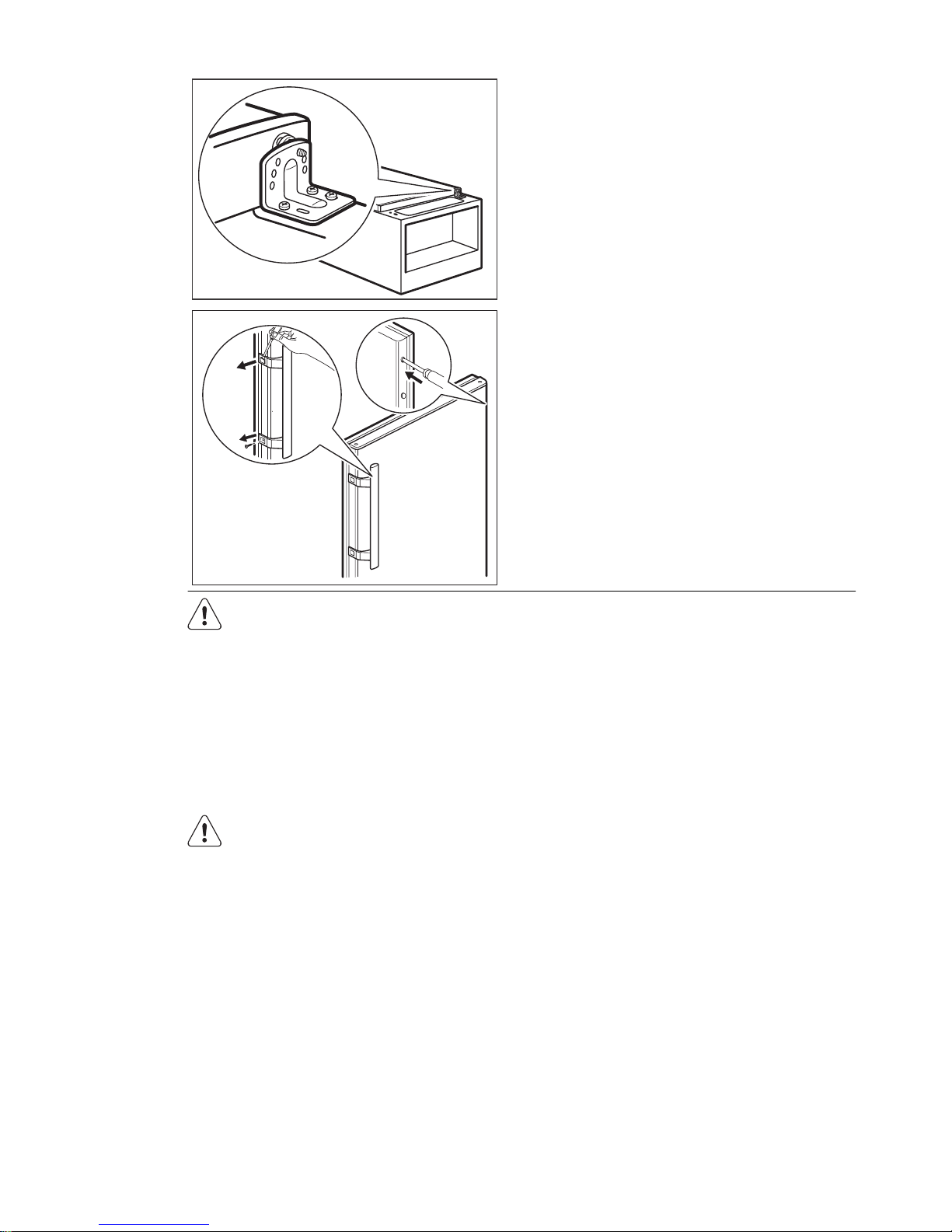

• Unscrew the lower hinge. Change the
position of the pin and buffert. Screw the
lower hinge on the opposite side.
• Tighten the pin with the adjustment
spanner supplied.
• Raise the appliance and install the ventilation grille.
• Remove the covers on the handles carefully with a small screwdriver.
• Unscrew the handle.
• On the opposite side remove the hole
covers by driving a 3-4 mm drift or drill
into them.
• Install the handle.
• Install the covers on the handle.
• Install the hole covers provided within the
accessory bag.
• Put the cabinet in position.
WARNING!
Reposition, level the appliance,
wait for at least four hours and then
connect it to the power socket.
Do a final check to make sure that:
•All screws are tightened.
• The magnetic seal adheres to the cabinet.
• The door opens and closes correctly.
WARNING!
If the ambient temperature is cold
(i.e. in Winter), the gasket may not
fit perfectly to the cabinet. In that
case, wait for the natural fitting of
the gasket.
16
www.electrolux.com
Page 17
NOISES
There are some sounds during normal running (compressor, refrigerant circulation).
BRRR!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRRR!
OK
CLICK!
CLICK!
BRRR!
BRRR!
BLUBB!
BLUBB!
ENGLISH 17
Page 18
HISSS!
HISSS!
SSSRRR!
SSSRRR!
CRACK!
CRACK!
TECHNICAL DATA
EUF2500AOW EUF2900AOW
Dimension
Height 1550 mm 1750 mm
Width 595 mm 595 mm
Depth 623 mm 623 mm
Rising Time 18 h 18 h
Voltage 230 V 230 V
Frequency 50 Hz 50 Hz
The technical information are situated in the
rating plate on the internal left side of the
appliance and in the energy label.
18
www.electrolux.com
Page 19
ENVIRONMENT CONCERNS
Recycle the materials with the symbol
.
Put the packaging in applicable containers
to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol
with
the household waste. Return the product
to your local recycling facility or contact
your municipal office.
ENGLISH 19
Page 20
www.electrolux.com/shop 298376985-A-482011
Loading...
