Undercounter dishwashers
Page 2
Undercounter dishwashers
Undercounter dishwashers are the ideal solution for demanding
customers requiring high performance with low running costs.
Electrolux offers the maximum in washing results while providing reliable
dishwashing operation.

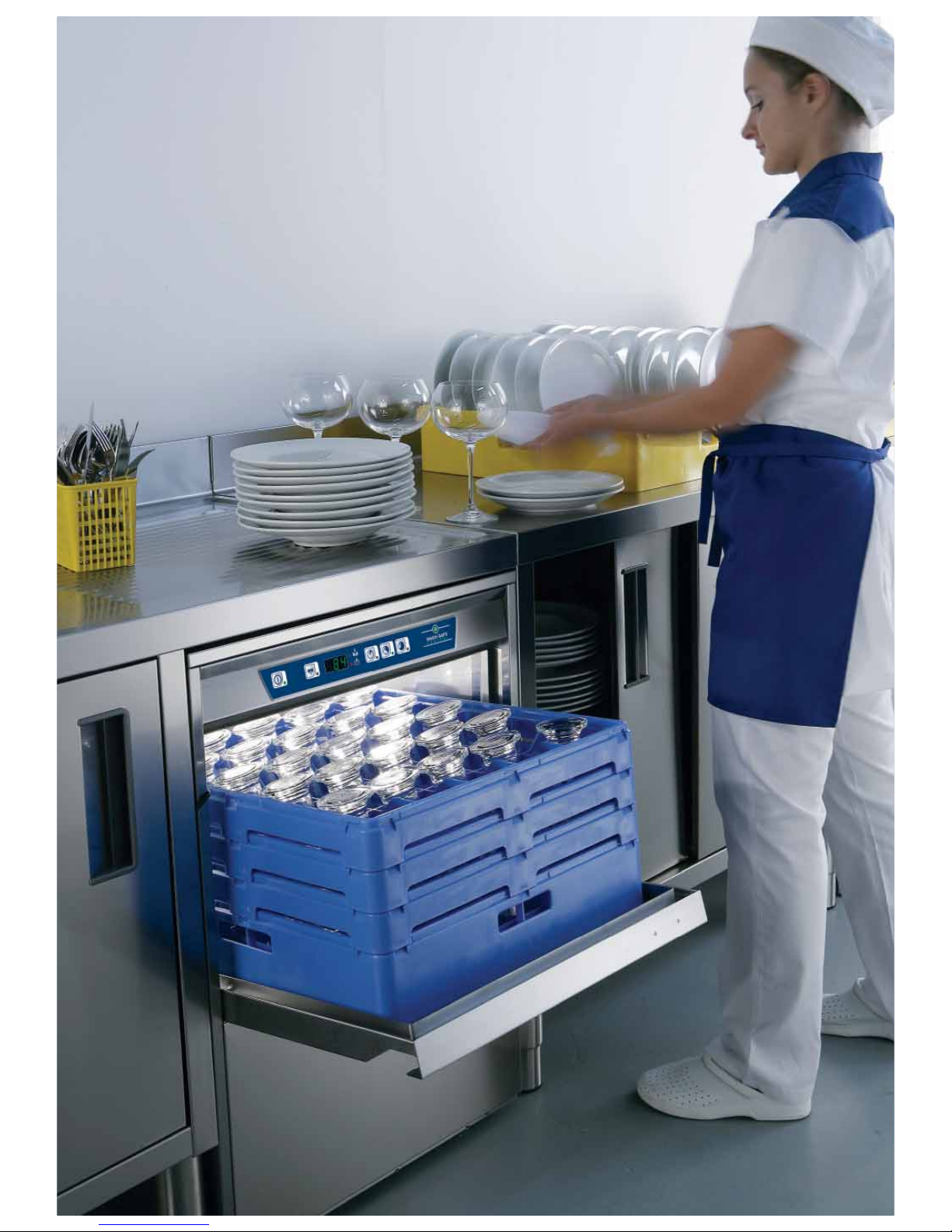

Small and medium sized restaurants
High performing dishwashers, the perfect choice for
restaurants with a large turnover of customers needing to
provide rapid quality service.
Small and medium sized hotels
The ideal solution for small and medium sized kitchens
which have to satisfy various customer requirements from
room service to fi ne dining.
Quick service restaurants, pubs and bars
Ideal when a quick and dynamic service is required for
kitchens that have a limited time to prepare and serve
meals.
2 electrolux dishwashers
Page 3
GREEN
Less water, energy, detergent
and rinse aid consumption for
lower running costs and less
impact on environment.
CLEAN
Best-in-class washing and
rinsing performance with
total detergent removal.
SILENT
Best-in-class for low noise
level thanks to the double
skin insulated wall.
SAFE
Unique WASH•SAFE CONTROL
device for a constant nominal
rinsing temperature of 84°C.
green&clean
dishwashers
Page 4

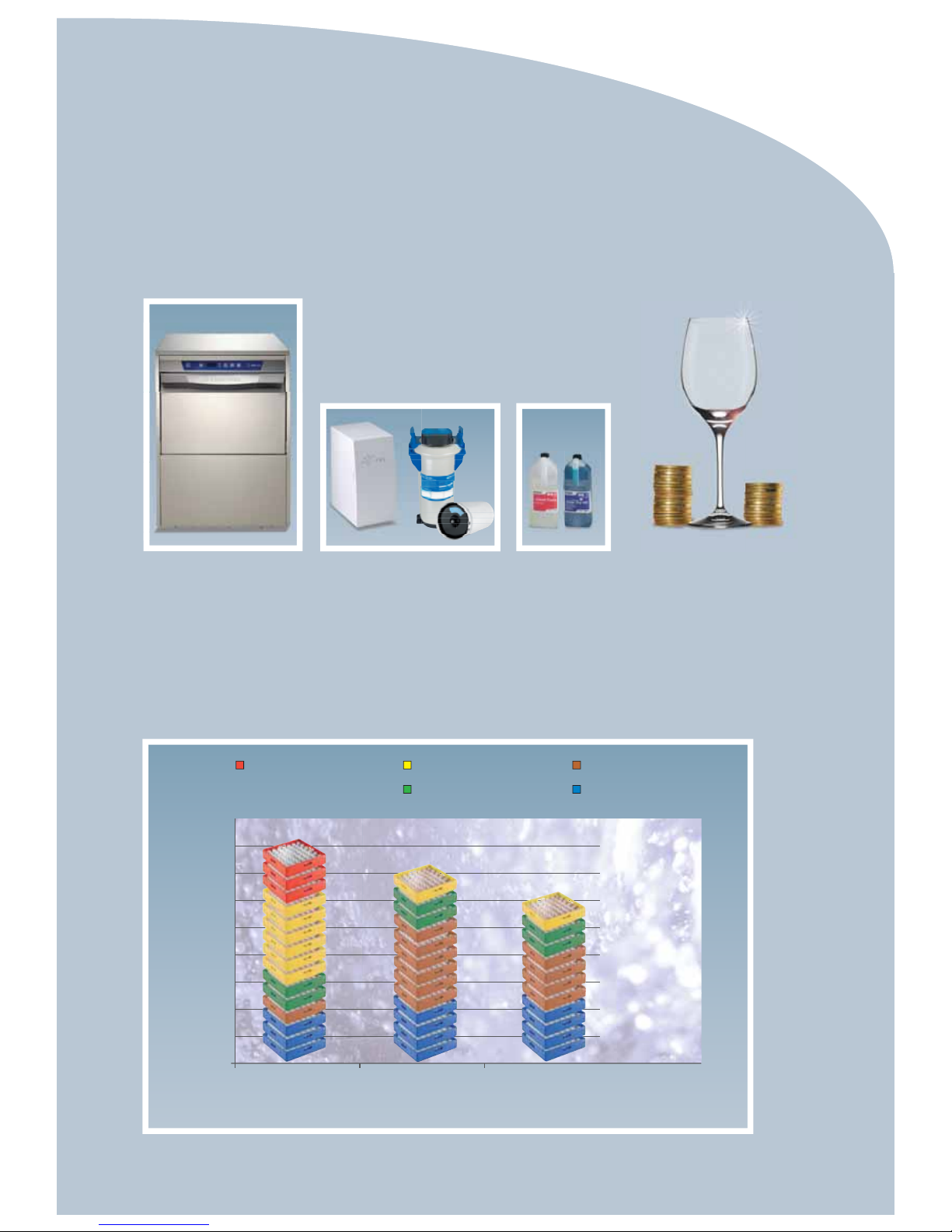

Enjoy the 300€* per year in your pocket thanks to the savings
made in water, energy, detergent and rinse aid and still
guarantee best-in-class performance:
Low water consumption: 3lt/cycle of fresh water are used for
rinsing with standard water inlet conditions
Low energy consumption: drops by 20-25% since less
water is used for rinsing
Less Detergent and Rinse aid consumption: much smaller
quantities are needed
The double skin insulated wall ensures a low noise level and a
reduction in heat loss from the machine
•
–
–
–
•
Low running costs
Experience the 20% running costs reduction versus standard machines in
the market and share the commitment of the latest generation of Electrolux
Undercounter dishwashers for a better environment.
* Comparison with standard machine: 70 cycles per day, 300 annual working days. 15°C inlet water
Do you know why 3 liters are better than 2 or 4 liters?
high running costs
with adequate performance
4 lt.
green&clean:
the perfect balance between
optimum performance and
low running costs
3 lt.
lowest running costs but with
inadequate performance
2 lt.
4 electrolux
green&clean
dw
300€
per year
Page 5
5electrolux
green&clean
dw
Best-in-class performance
Excellent washing and rinsing performance with a total detergent removal.
The ideal dishwasher for cleaning plates, cups, utensils, trays, gastronorm
containers and cutlery.
Washing

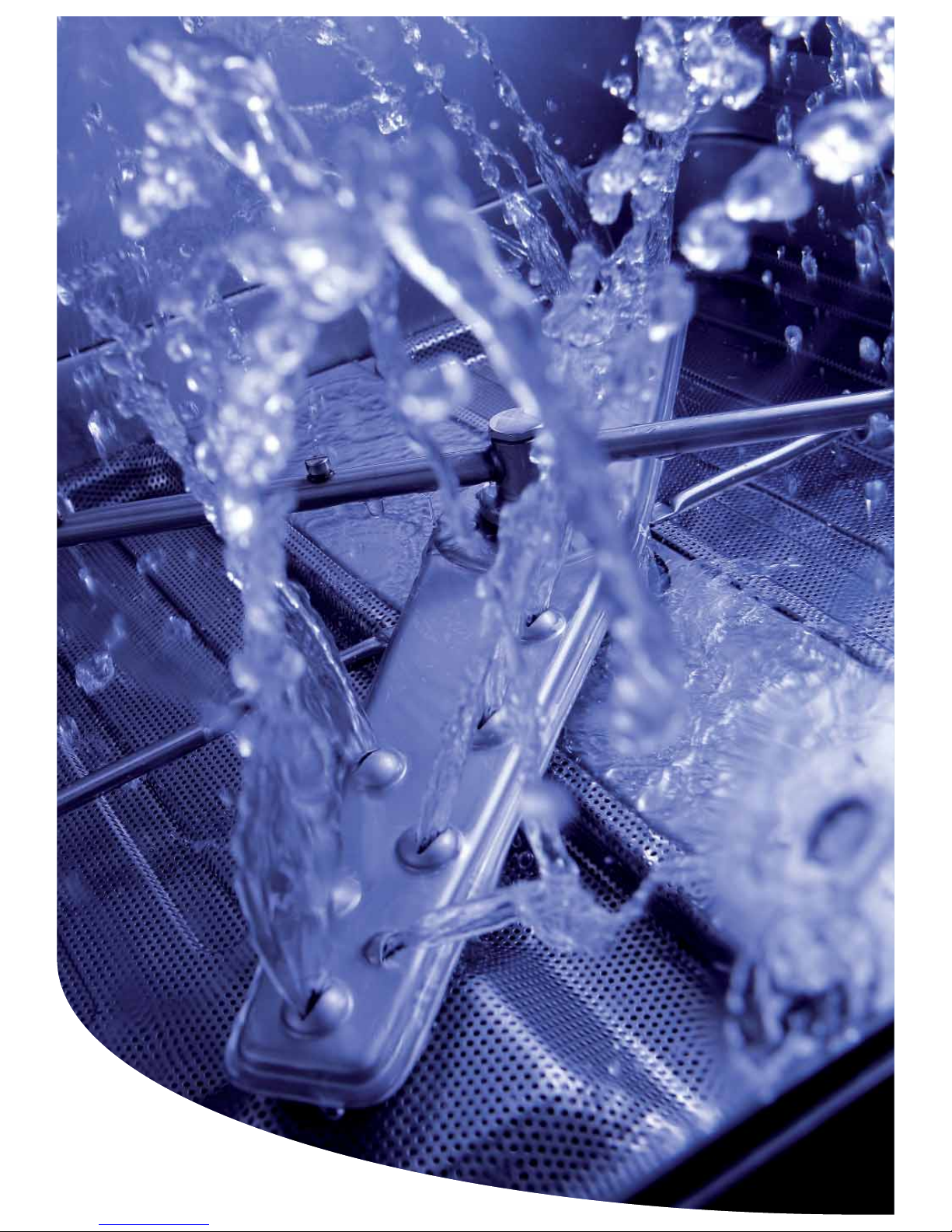

The powerful washing circuit fully exploits the shape of
the spraying nozzles and the rotating arms both from
the top and from the bottom of the washing chamber
to deliver best-in-class results
•
Electrolux Undercounter dishwashers guarantee clean items*.
Standard Undercounter dishwashers fail to remove all dirt/food
on the plates at the same washing conditions*.
Electrolux Undercounter dishwashers guarantee perfect rinsing
performance*
Rinsing
The atmospheric boiler is equipped with solenoid
valve, air break, waiting boiler device and rinse booster
pump. It ensures constant high temperature and
constant strong pressure of water during the rinse
phase. Therefore, regardless of inlet water condition,
the rinsing quality is always achieved
•
Thanks to the 4-second pause after washing and
before rinsing, no drops of water used for washing will
fall on the cleaned items
•
Standard machines do not remove all detergent on the plates
after rinsing*
No area in the washing chamber remains uncovered by
the water blades generated by the nozzles
•
*Result of standard testing procedure made by Electrolux using multiple layer chemical sensors. Black strips remaining on the plates
indicate that washing was not performed perfectly.
Electrolux Undercounter dishwashers
Other Undercounter dishwashers
Electrolux Undercounter dishwashers Other Undercounter dishwashers
* Result of standard testing procedure made by Electrolux using chemical sensors. Violet colour appears as reaction between residual
detergent and phenolphthalein.
Page 6
... and safety!
WASH•SAFE CONTROL: the rinse quality is guaranteed thanks to the
constant rinsing temperature of 84°C and the water pressure which is
independent from the mains.
Spot-free glasses and cutlery

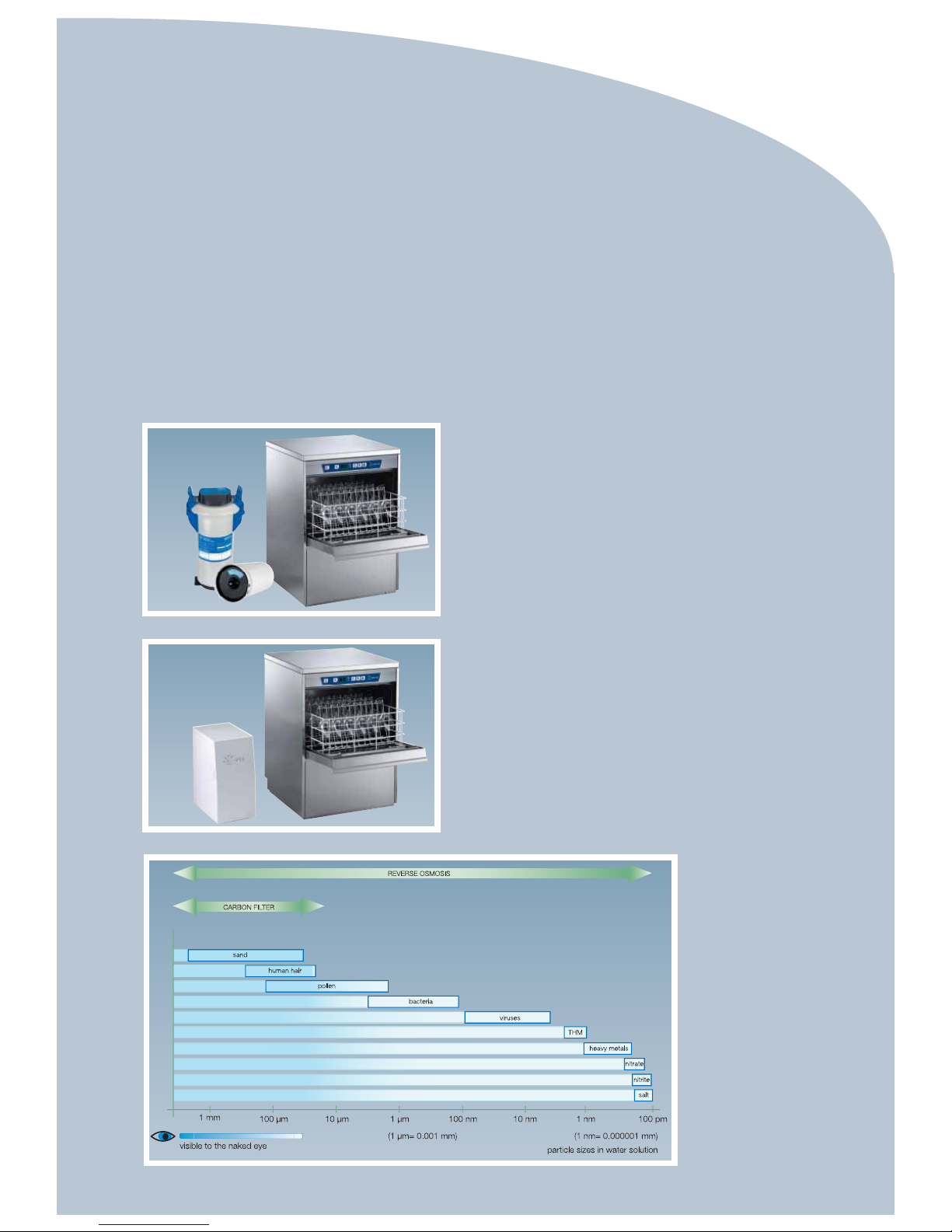

Models equipped with Continuous Water Softener (CWS) guarantee non-stop
dishwashing because workfl ow is not interrupted for resin regeneration thanks
to two resin containers installed in the back: the electronic control uses one of the
containers to soften the water and at the same time regenerates the resins in the
other one
100% of the water entering the dishwasher is softened providing spot-free results
and reducing scale build-up
The water softener is integrated with the atmospheric rinse system, maintaining high
rinse water pressure and a constant high temperature during the rinse phase
All models are equipped with external salt fi lling cap, so the operator can easily
load the container without having to access the internal chamber
A sensor advises the operator when the salt container needs to be refi lled
•
•
•
•
•
Perfect rinsing performance
Sanitized plates are the best guarantee for hygiene and Electrolux Professional knows the importance of providing a total
detergent removal in the rinsing phase to fulfi l best-in-class safety requirements.
The most dangerous groups of bacteria fi nd their ideal conditions for growth in an environment with a temperature
between 20° and 60° (max 75°). Therefore, the constant rinsing temperature of 84°C (see below) assures perfect
hygienic conditions.
The air-break prevents water
from fl owing back into the mains
in case of machine failure
The atmospheric boiler
provides a large quantity of
hot water at a constant high
temperature
The boiler waiting device
ensures that rinsing starts only
when the water reaches the right
temperature
The rinse booster pump pushes
water at constant high pressure.
Detergent removal is granted
even with low water inlet pressure
The solenoid valve allows water
from the mains to enter the
machine to fi ll the boiler
1
2
3
4
5
1. Water inlet, water enters
at a pressure from 0,5 to 7 bar
(depending on water supply)
2. Air gap exit, water pressure
reaches 0,9-1 bar (depending
on the installation location) while
temperature remains constant at
inlet conditions
3. Boiler exit, water reaches
84°C while pressure remains
constant at 0,9-1 bar
4. Rinse booster pump exit,
water pressure reaches 6 bar while
temperature remains at 84°C
5. Rinse nozzle exit, at each
nozzle the pressure drops to 0,40,5 bar while temperature remains
at 84°C
6 electrolux
green&clean
dw
The WASH•SAFE CONTROL light turns green to
guarantee rinsing has been performed perfectly
with a constant temperature over 84°C.
Page 7
Page 8

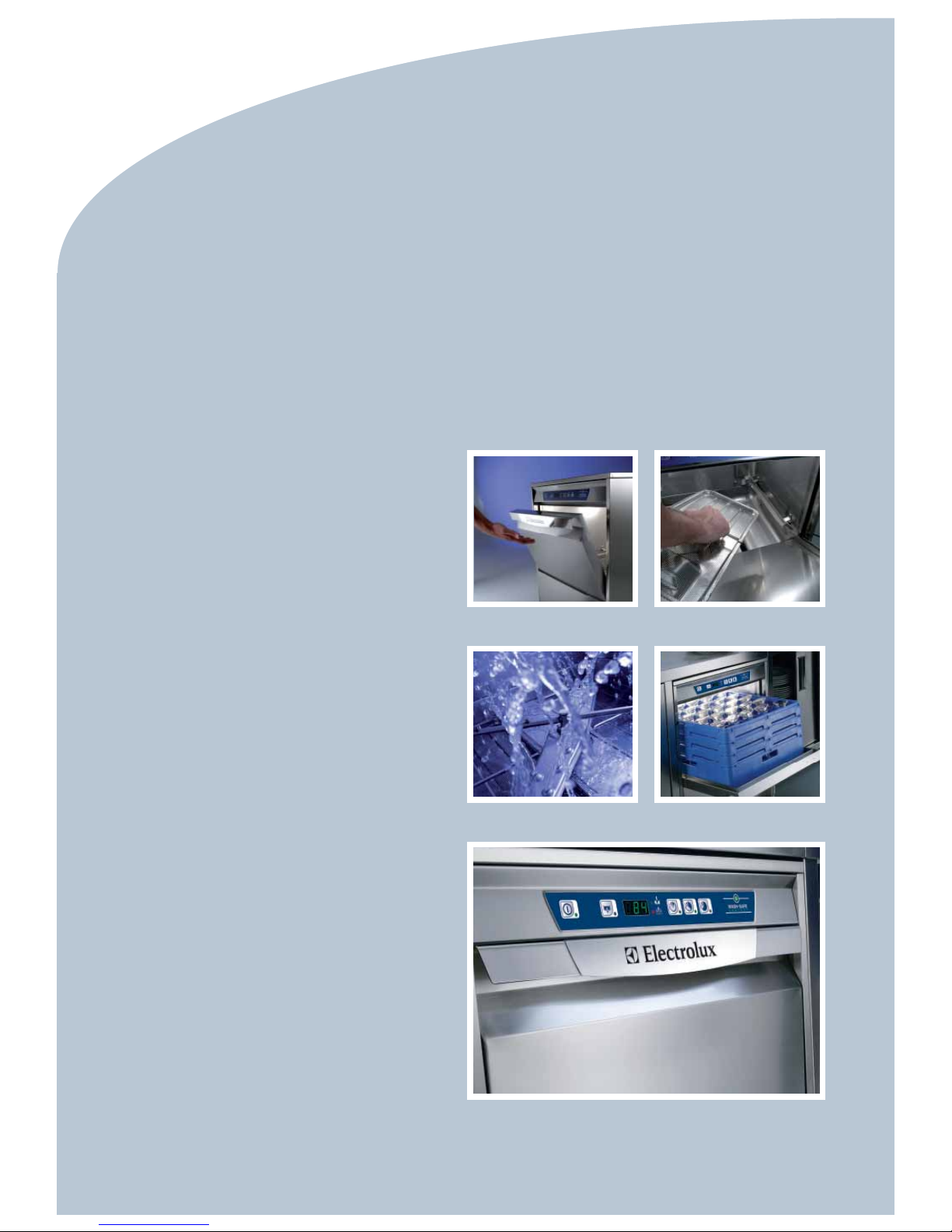

Ergonomics
The counterbalanced door is equipped with
springs to lighten the impact of opening and
closing
Wash tank fi lters can be easily removed without
having to remove the washing and rinsing arms
Flexibility
Three standard cycles are available to wash any
kind of residue
The washing and rinsing cycle times and
temperatures can be fully customised to meet
specifi c customer requirements
The “Soft start” feature prevents accidental
damage to glassware and crockery by reducing
the power of the jets of water at the start of the
wash cycle
The concentration of detergent and rinse aid can
be set directly through the electronic board to get a
perfect washing result in all conditions
All models are pre-arranged to accept external
dosing equipment to avoid a service engineer from
damaging the machine during installation

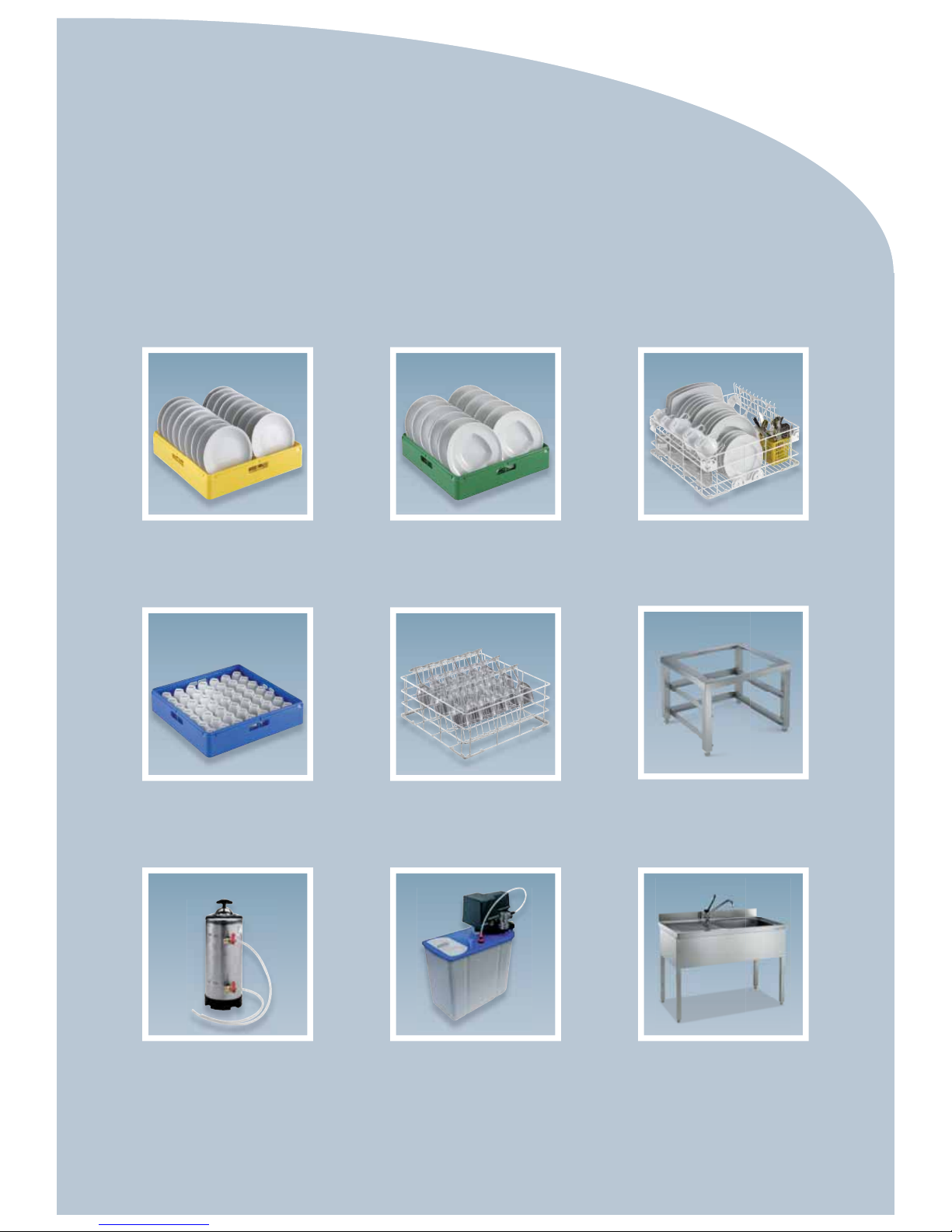

Several types of baskets are available to suit
every washing need. Specifi c solutions for balloon,
crystal and beer glasses have been developed by
the Electrolux Dishwashing R&D department to
deliver spot-free results
The external electric box allows rapid on-site
changing from single to three phase connections
and viceversa
•
•
•
•
•
•
•
•
•

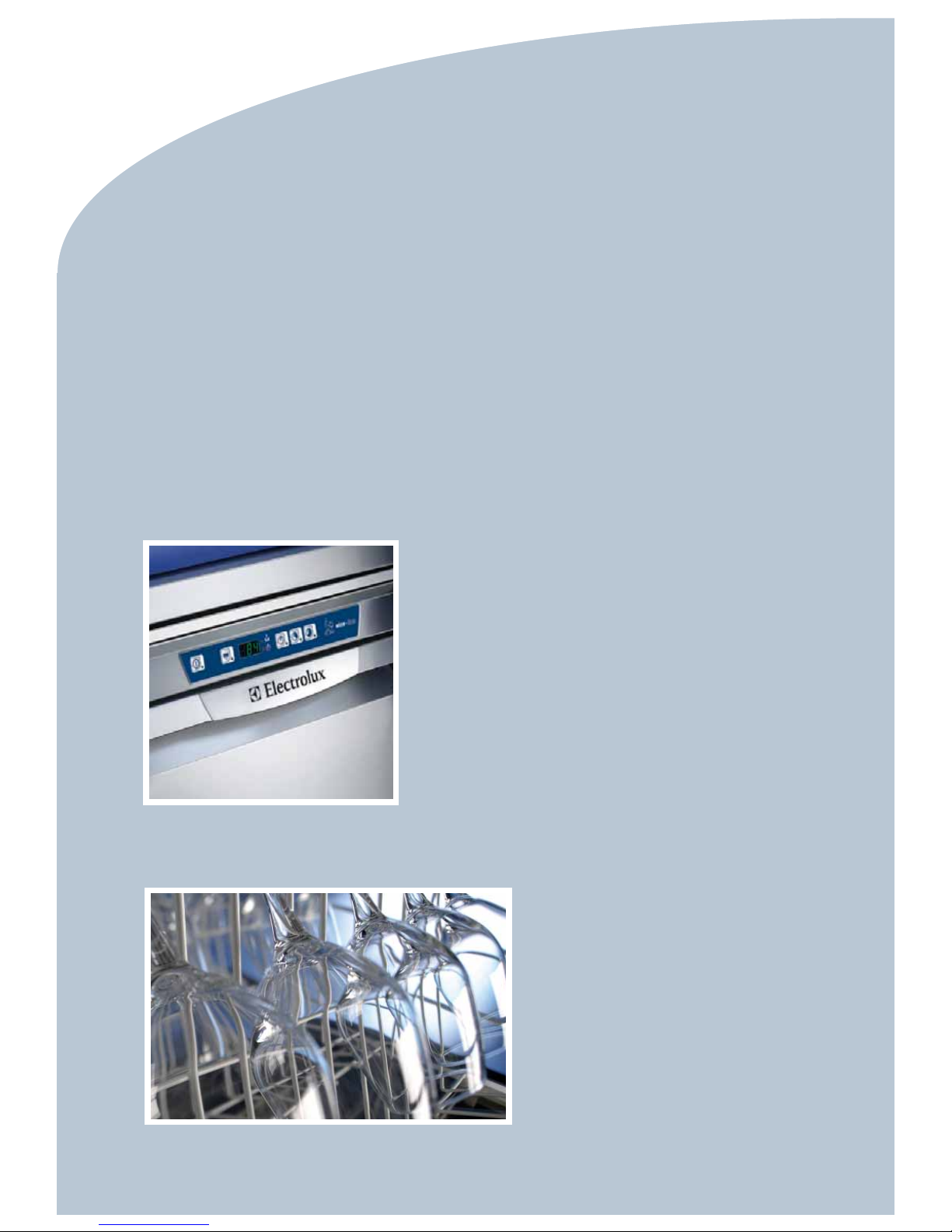

The best performance ever
thanks to these additional
benefi ts
Filter easily removableCounterbalanced door
Control panel
Special basket solution for
beer glasses
Soft start
8 electrolux
green&clean
dw
Page 9

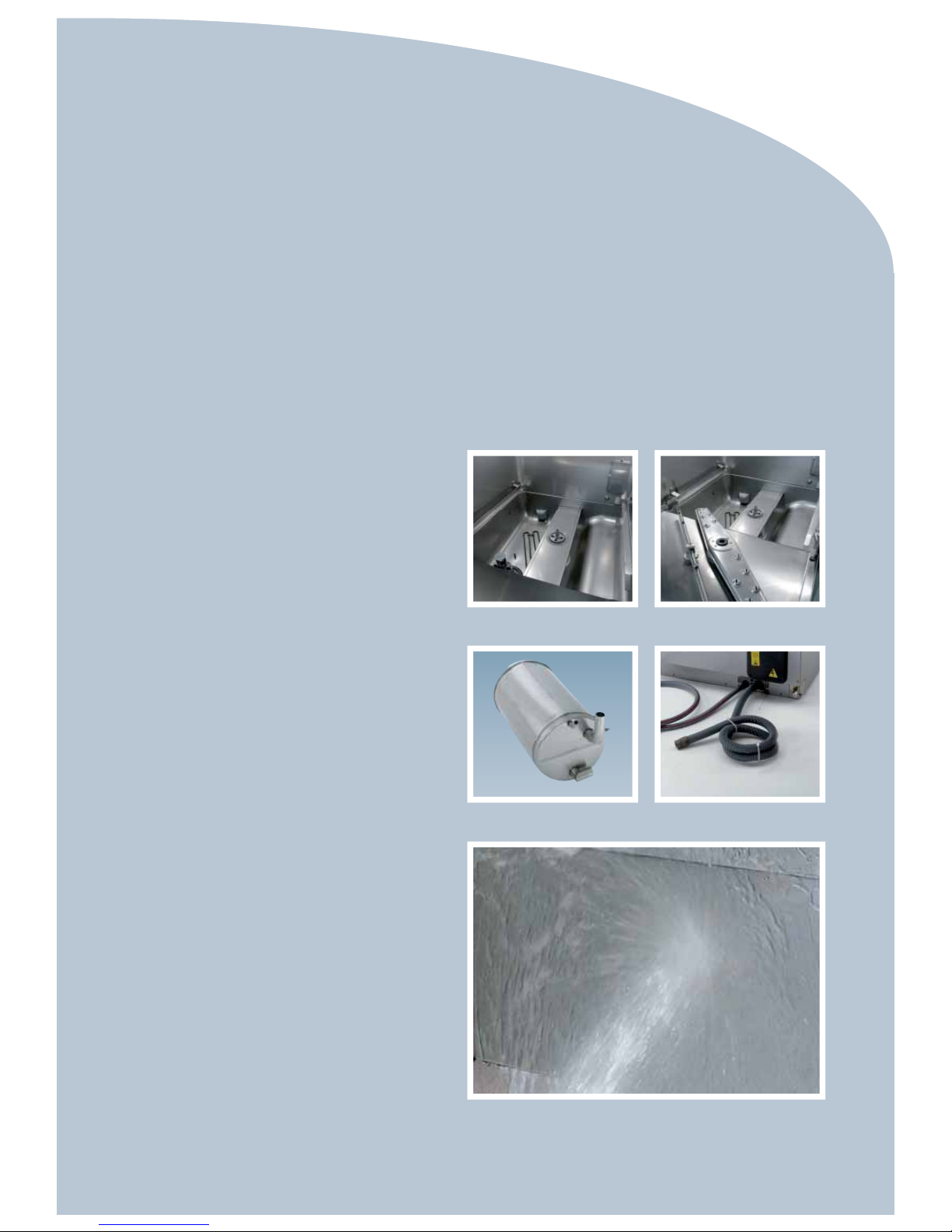

Hygiene
The wash tank has round corners to avoid dirt
traps
Both tank fi lter and wash/rinse arms are easily
removable for cleaning
The fully automatic self-cleaning cycle sanitizes
the washing chamber with hot water and then
completely empties the boiler to avoid bacteria
proliferation when the machine is not in use
Reliability
All components in contact with water and
chemicals are made of A304 stainless steel
guaranteeing long-lasting operation
The boiler, being made of A304L, is resistant
to chlorinated water and is welded in an inert
atmosphere to avoid contamination during the
production process
The water supply hose has metal connections
to withstand high water pressure and accidental
shocks during installation
All models are certifi ed IPX4 for water protection
and therefore can be washed even with jets of
water
A very low noise level assures the best working
environment
•
•
•
•
•
•
•
•
Water supply hose Boiler resistant to chlorinated
water
Round corners Wash/rinse arms easily
removable
IPX4 water protection
9electrolux
green&clean
dw
Page 10

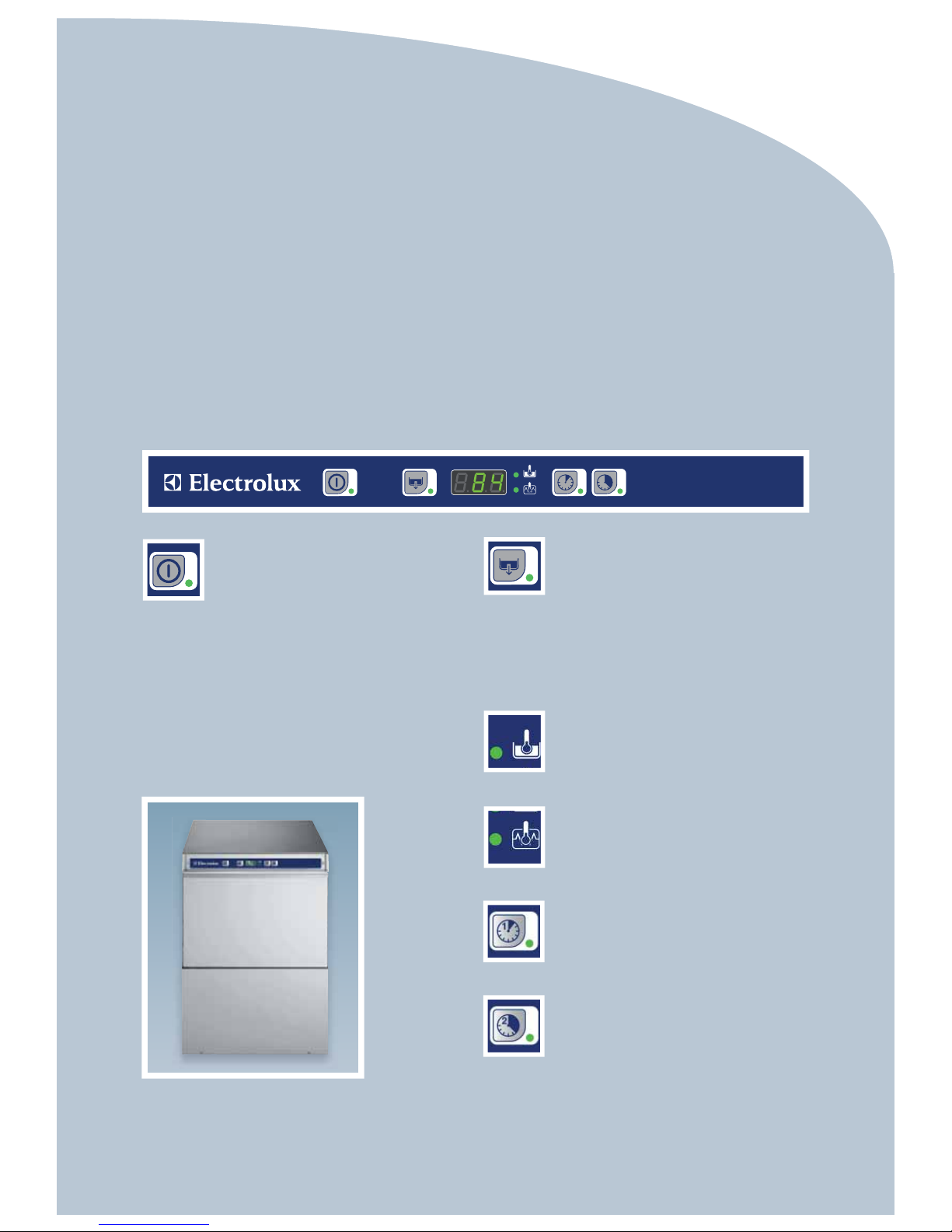

2 aesthetics and 27 models
to suit all your needs

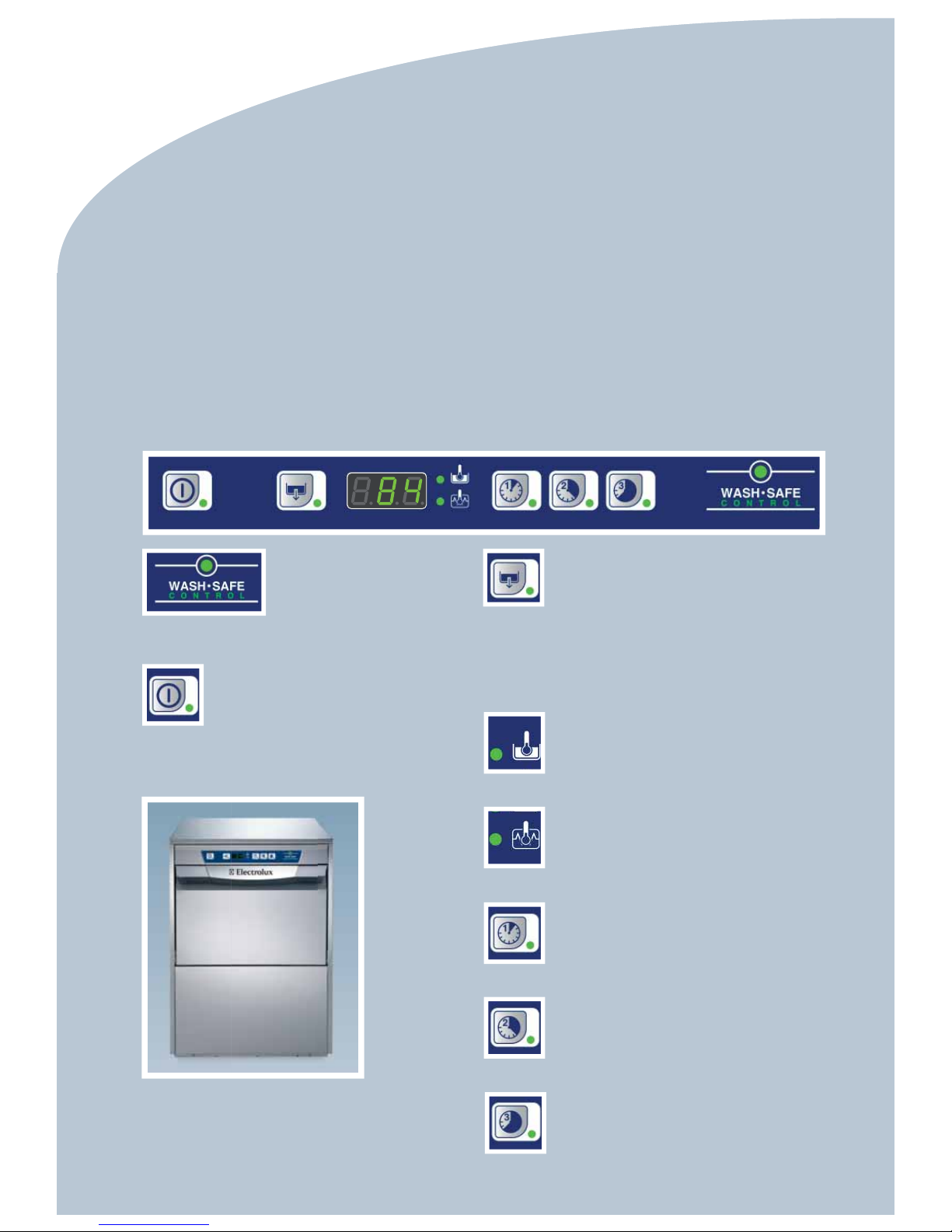

User friendly control panel with clear icons puts everyone at ease.
Self cleaning
Once the tank fi lter and overfl ow pipe
have been removed, pressing this button
will activate the emptying of the wash tank
and the wash pump. After that, four rinse
cycles will start to sanitize the washing
chamber. When completed, the water
from rinsing is drained completely to avoid
bacteria proliferation.
On /Off button
Washing Temperature indicator
When lit, it indicates that the washing
cycle is in operation at the temperature
shown on the display.
Rinsing Temperature indicator
When lit, it indicates that the rinsing cycle
is in operation at the temperature shown
on the display.
Cycle 1
Short wash cycle (90 sec) recommended
for lightly soiled items and glasses.
Cycle 2
Medium wash cycle (120 sec)
recommended for medium soiled items.
Cycle 3
Long wash cycle (240 sec) recommended
for heavily soiled items.
The WASH•SAFE CONTROL
light turns green to guarantee
rinsing has been performed
perfectly with a constant
temperature over 84°C.
green&clean undercounter dishwasher
green&clean
undercounter
dishwasher aesthetic
double skin insulated wall for a quiet
working environment
10 electrolux
green&clean
dw

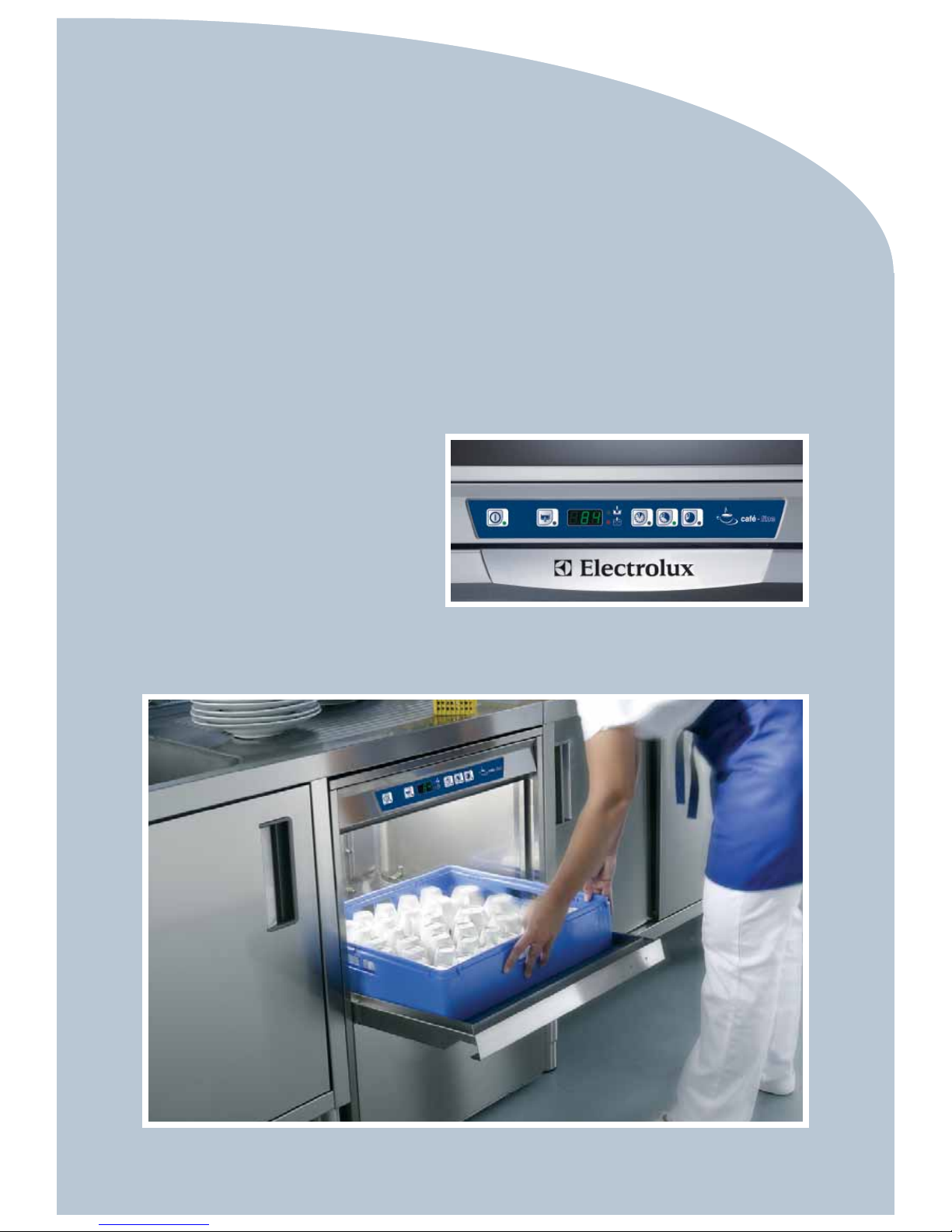

Page 11
21
On /Off button
Self cleaning
Once the tank fi lter and overfl ow pipe
have been removed, pressing this button
will activate the emptying of the wash tank
and the wash pump. After that, four rinse
cycles will start to sanitize the washing
chamber. When completed, the water
from rinsing is drained completely to avoid
bacteria proliferation.
Washing Temperature indicator
When lit, it indicates that the washing
cycle is in operation at the temperature
shown on the display.
Rinsing Temperature indicator
When lit, it indicates that the rinsing cycle
is in operation at the temperature shown
on the display.
Cycle 1
Short wash cycle (120 sec) recommended
for lightly soiled items and glasses.
Cycle 2
Medium wash cycle (180 sec)
recommended for medium soiled items.
Undercounter dishwasher
Undercounter dishwasher
aesthetic
11electrolux dishwashers
Page 12
Wine-
line
:
the Electrolux solution for
glass washing
Shiny glasses are the best presentation for restaurants and wine bars.
Electrolux together with the main detergent producer and leaders in water
treatment systems has developed a full solution for best glass washing and
spot free drying results.
Wine-
line
Undercounter:
the gentle solution for your crystal glasses
The Wine-
line
Undercounter is able to dramatically reduce the
damage that standard commercial glass washers cause to crystal
and glass surfaces. Optimal washing conditions have been
defi ned together with “Stazione Sperimentale del Vetro” (leading
Italian Glass Research Institution) and the main European crystal
producers.
Reduce crystal glass damage and avoid glass breakage, thanks to:
The lower washing temperature of 50-55°C
The atmospheric boiler that guarantees a constant rinsing
temperature and pressure in order to eliminate any detergent
residue
The soft start wash pump
•
•
•
Wine-
line
basket
The “Wine-
line
” basket has been designed to
improve washing results, reduce drying time
and ease glass handling:
• Glass rim is kept far from the basket
base allowing more accurate washing and
rinsing of the internal surface
• Hung and tilted glass position secures
the drying phase and reduces glass
breakage
• Designed to fi t all types of long stem
glasses up to 270 mm long and 104 mm
wide
12 electrolux Wine
-line
Page 13
Spot free drying
Using either the Demineralizer or Reverse Osmosis to fi lter the incoming water avoids any deposit of impurities on
the washed surfaces, thus resulting in excellent drying, low chemical and energy consumption, and eliminating
the need for further polishing.
The close collaboration between Electrolux and the leaders in water treatment devices has allowed for the
optimization of the water treatment solutions of any kind of water, thus always guaranteeing excellent rinsing and spot
free drying. Based on the degree of hardness of the incoming water, Partial Demineralization, Total Demineralization or
Reverse Osmosis are the core options for perfect result.
BRITA demineralizer fi lters (partial and total)
DOMETIC reverse osmosis fi lters
Impurities in water and fi ltering system
BRITA Demineralizers* will either partially or totally extract
minerals infl uencing the wash result:
Partial demineralization only removes the scale
(temporary hardness) from the water
Total demineralization removes all major salts (total
hardness) from the water guaranteeing an excellent
wash result regardless of water supply condition
•
•
For a perfect washing result, DOMETIC Reverse
Osmosis* is recommended especially if bacteria and
viruses should be fi ltered.
Effi cient thanks to the membrane which removes all salts
from the water and fi lters some types of bacteria. Reverse
Osmosis is the best solution when sparkling washing results
with no manual polishing are required.
*Leader in water treatment system
The best solutions
for any need
Carbon fi lter (standard
fi lter on the market)
removes all visible
particels. For a deeper
removal use reverse
osmosis.
13electrolux Wine
-line
Page 14

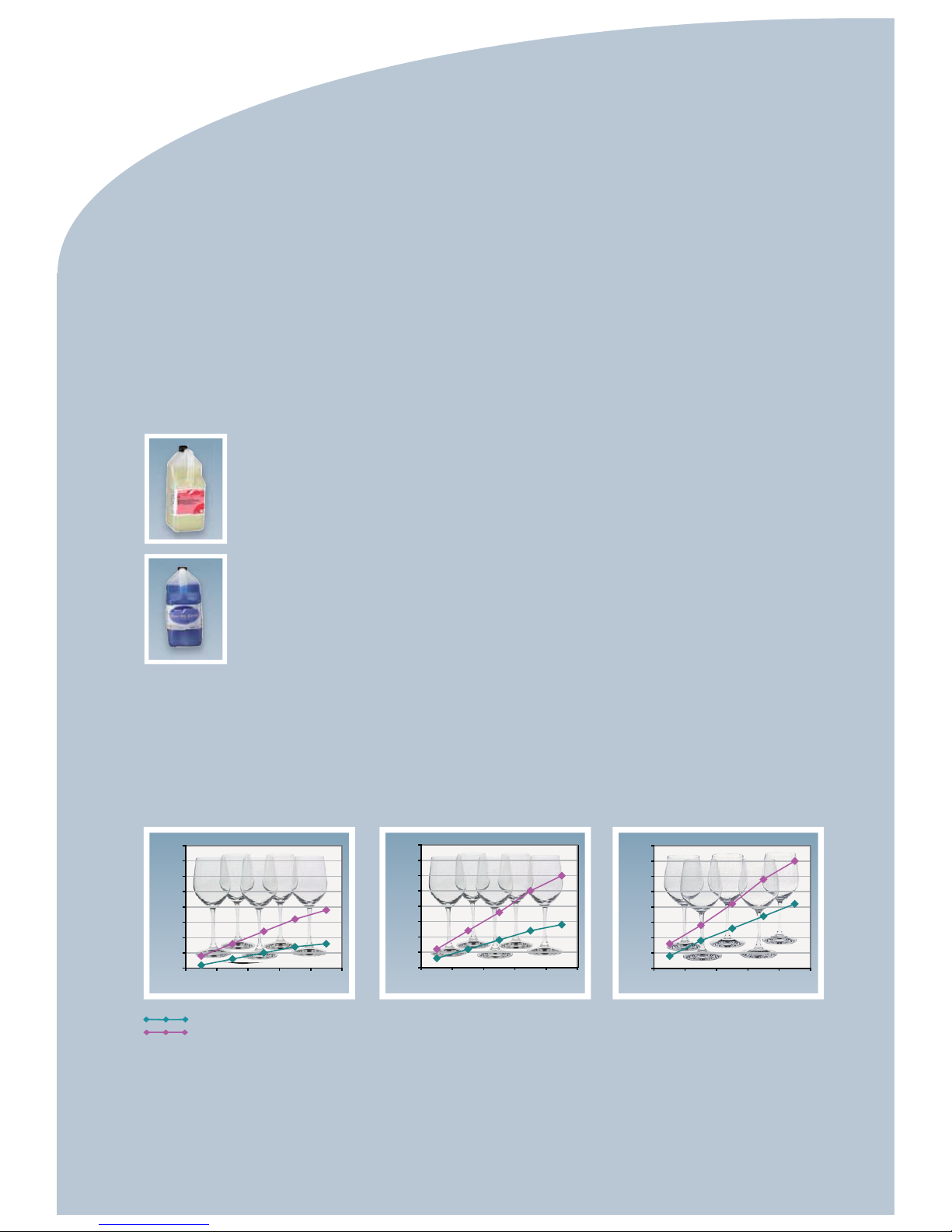

Chemical solutions
To get the best washing results, you need to choose not only the right machine and a matching water treatment
system, but also a specifi c detergent and rinse aid.
Using inappropriate detergent and/or rinse aid, not only compromises a perfect washing result but also increases the risk
of damaging glasses in a shorter time. By using specifi c chemicals i.e. Ecolab* Topmatic Crystal detergent & Clear Dry
Classic rinse aid, the life of the glasses is extended since they are not worn by the chemical aggression of a standard
detergent and rinse aid.
ECOLAB* –TOPMATIC CRYSTAL: Detergent specifi c for glassware
Without phosphate and chlorine, it is safe for sensitive tableware like crockery, glass and
aluminium
It provides hygienically clean, sparkling and shiny tableware eliminating the need to re-wash
the items saving time and reducing the consumption of energy and water.
ECOLAB* - CLEAR DRY CLASSIC: Rinse aid specifi c for glassware
It is a highly concentrated formula with a perfect drying capacity on all surfaces with either soft
or medium hard water conditions
It gives sparkling shiny, spot free results
It ensures a faster drying of tableware compared to a standard rinse aid.
•
•
•
•
•
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
1000 2000 3000 4000 5000
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
1000 2000 3000 4000 5000
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
1000 2000 3000 4000 5000
Soda-lime (the most common glass) Crystal (crystal glass) Lead crystal (best quality glass)
Glass weight loss using Electrolux recommended solutions (Ecolab* Topmatic Crystal detergent and Clear Dry Classic rinse aid)
Glass weight loss using standard chemicals
Washing cycle
Washing cycle Washing cycle
Glass weight loss %
Glass weight loss %
Glass weight loss %
*Main detergent producer
Did you know that your glasses loose “weight” each cycle and become more and
more fragile?
Protect them with the perfect solution!
14 electrolux Wine
-line
Page 15
Lowest running costs
The Electrolux solution also guarantees the lowest running costs for clients thanks to less glass breakage,
optimum and economical use of detergent and rinse aid, and no manual polishing needed.
Labour (extra)
manual polishing)
Glass breakage
Detergent
Water treatment
Dishwasher cost
12% less than
competitors
30% less than
multi-purpose,
standard
glasswasher
competitors
specic
glasswasher
Electrolux
Wine-line
glasswasher
multi-purpose,
standard
glasswasher
Y
EARLY
RUNNING
COSTS
€ 0
€ 1.000
€ 2.000
€ 3.000
€ 4.000
€ 5.000
€ 6.000
€ 7.000
€ 8.000
€ 9.000
Electrolux
Wine-
line
glasswasher
Electrolux
recommended
water treatments
Electrolux
recommended
chemicals
The most brilliant
glasses
at the lowest
running costs
The perfect solution
++=
15electrolux Wine
-line
Page 16
Technical data Filter for partial
demineralization
Filter for total
demineralization
Reverse osmosis for
atmospheric boiler
WxDxH 288x255x550 288x255x550 225x466x460
Water supply require
Min/Max
2/6 bar
4 - 60°C
2/6 bar
4 - 60°C
2/10 bar
2 - 30°C
Flow rate up to 300 lt./h up to 300 lt./h up to 5 lt./min
Filter capacity 12.000 lt. at 18°fH (10°dH)
total hardness (capacity can
increase by adjusting the
by-pass)
3.100 lt. at 18°fH (10°dH)
total hardness (capacity can
increase by adjusting the
by-pass)
65 lt. are purifi ed over
100lt treated. A drain pipe
is needed for water not
purifi ed
Water inlet hardness
Max. 62°fH (35°dH) Max. 62°fH (35°dH)
• Max. 45°fH (22°dH), if
hardness > 45°fH, water
softener is recommended
before reverse osmosis
• Max chlorinated
concentration is 900mg/lt.
For higher concentration,
an external carbon fi lter is
recommended
Remarks Can be converted into
a total demineralizer by
replacing the cartridge
Can be converted into a
partial demineralizer by
replacing the cartridge
Water treatment system
Technical data TOPMATIC CRYSTAL
Detergent specifi c for glassware
CLEAR DRY CLASSIC
Rinse aid specifi c for glassware
Package 4 canister x 5 lt. 2 canister x 5 lt.
Recommended
useconcentration
1.5-4.0 g/lt.
(depending on soil level, water quality and
type of tableware)
0.1-0.15 g/lt.
(depending on soil level, water quality and
type of tableware)
Storage conditions 0°C – 40°C
Store only in the original container
0°C – 40°C
Store only in the original container
Safety • Wear protective gloves and safety glasses
when changing the empty container with a
new one
• Do not mix with any other product
• Wear protective gloves and safety glasses
when changing the empty container with a
new one
• Do not mix with any other product
Chemical solutions
16 electrolux Wine
-line
Page 17
Café-
line
Café-
line
is the Electrolux tailored offer for pubs and coffee shops where
a quick and dynamic service is required while maintaining the highest
hygiene results.
“Café-
line
” dishwashers are equipped with
high powered 9 kW boilers which guarantee
a constant high rinse temperature and a
wash cycle independent from the inlet water
temperature. Even cold water can be used!
Café-
line
undercounter dishwasher is positioned
on wheels to facilitate cleaning both behind
and underneath the machine
The automatic loading of rinse aid and
detergent from fi rst to last cycle guarantees
perfect results while minimizing service and
maintenance. Detergent dispenser is included
•
•
•
17electrolux Café
-line
Page 18

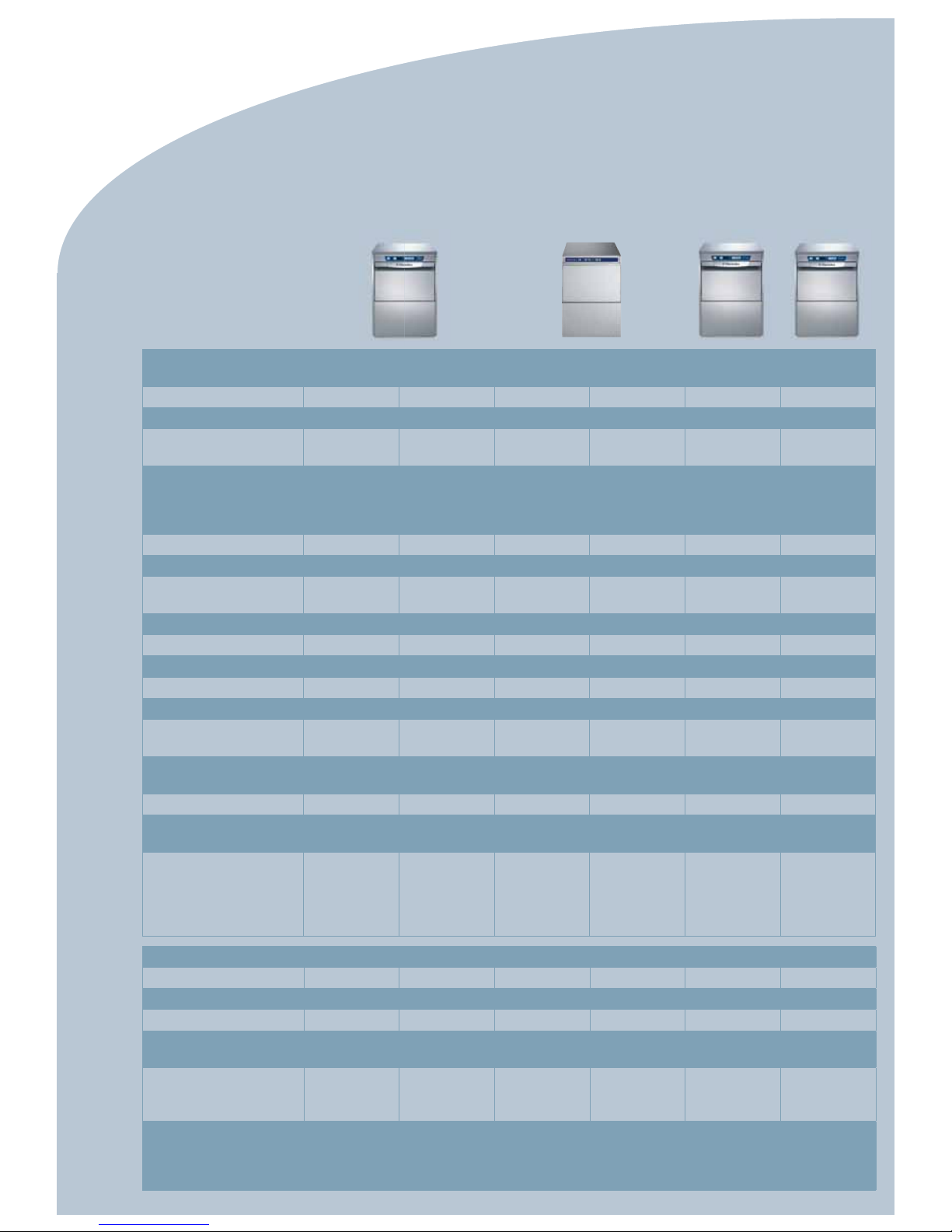

Range
Description EUCAI
green&clean
EUCI
green&clean
EUC1 EUC3 EUCAIWL
Wine-
line
EUCAICL
Café-
line
WASH•SAFE CONTROL •
Atmospheric boiler •••
Double skin
insulated wall
•• ••
Electrical connection
400V/3N/50Hz,
convertible on
site to 230V/1N
or 230V/3/50Hz
400V/3N/50Hz,
convertible on
site to 230V/1N
or 230V/3/50Hz
230V/1N/50Hz 400V/3N/50Hz,
convertible on
site to 230V/1N
or 230V/3/50Hz
400V/3N/50Hz,
convertible on
site to 230V/1N
or 230V/3/50Hz
400V/3N/50Hz,
convertible on
site to 230V/1N
or 230V/3/50Hz
No. of cycles 332233
Capacity (dishes/hour) 720 720 540 540 216 720
External dimensions
(WxDxH)
600x612x850 600x612x850 600x600x820 600x612x820 600x612x850 600x612x850
Basket dimension (mm) 500x500 500x500 500x500 500x500 500x500 500x500
Wash tank capacity (lt.) 23 23 33 33 23 23
Wash pump power (kW) 0,736 0,736 0,736 0,736 0,736 2
Boiler capacity (lt.) 12 12 5,8 5,8 12 12
Boiler power (kW)
4,5 4,5 2,8 4,5 6 9
Water consumption
(lt./cycle)
3
3
at 2 bar
3,3
at 2 bar
3,3
at 2 bar
3,8 3
Rinse temperature/
time
84°C/
12 sec.
80-90°C/
16 sec.
80-90°C/
16 sec.
80-90°C/
16 sec.
84°C/
16 sec.
84°C/
12 sec.
Total power (kW) 5,35 5,35 3,65 5,35 6,85 9,85
Built-in rinse aid
dispenser
••••••
Included baskets
1 basket for
18 plates + 1
basket for cups
+ 2 cutlery
containers
1 basket for
18 plates + 1
basket for cups
+ 2 cutlery
containers
1 basket for
18 plates + 1
cutlery
container
1 basket for
18 plates + 1
cutlery container
1 basket for
cups +
1 basket for wine
glasses
1 basket for
18 plates + 1
basket for cups
+ 2 cutlery
containers
Additional versions
60Hz ••
Built-in drain pump •••••
Built-in water softener ••
Built-in drain pump &
water softener
•••
Built-in drain pump,
detergent dispenser &
open air gap (WRC)
•
Built-in drain pump,
detergent dispenser,
water softener & open air
gap (WRC)
•
18 electrolux dishwashers
Page 19
Accessories
8 lt. external automatic
water softener
12 lt. external manual
water softener
Basket for 49 small cups
Stand for undercounter
dishwasher
Basket for 18 dinner plates
Basket for 12 soup bowls
Wine-line basket
Multi-purpose basket
500x500x190 mm
Full range of sinks units available
...for additional baskets and other accessories consult our price list
19electrolux dishwashers
Page 20
www.electrolux.com/foodservice
Share more of our thinking at www.electrolux.com
The Company reserves the right to change specifications without notice.
9JEDPU
Loading...
