IMPORTANT SAFETY INFORMATION

It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of safety.You MUST read it carefully before installing
or using the appliance.

Installation

• This appliance is heavy. Care should be taken when
moving it.

• It is dangerous to alter the specifications or attempt
to modify this product in any way.

• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from the
manufacturer or its service agent.

• Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.

• Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.

• The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.

Child Safety

• Do not allow children to tamper with the controls or
play with the product.

• Keep all packaging well away from children.

General Safety

• Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.

• The appliance must not be located close to
radiators or boilers.

• Avoid prolonged exposure of the appliance to
direct sunlight.

• Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances, unless they are approved for this
purpose by the manufacturer.

During Use

• This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.

• Frozen food must NOT be re-frozen once it has
thawed out.

• Do not place carbonated or fizzy drinks in the
freezer.

• Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.

• Ice lollies can cause ‘frost/freezer burns’ if
consumed straight from the freezer.

• Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.

• The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.

Maintenance and Cleaning

• Switch off and unplug the appliance before
carrying out any cleaning or maintenance work.

Servicing

• This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.

• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Electrolux Service Force Centre and always insist
on genuine spare parts.

At the end of the Appliance
Life

• When disposing of your appliance, use an
authorised disposal site.

• Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.

15

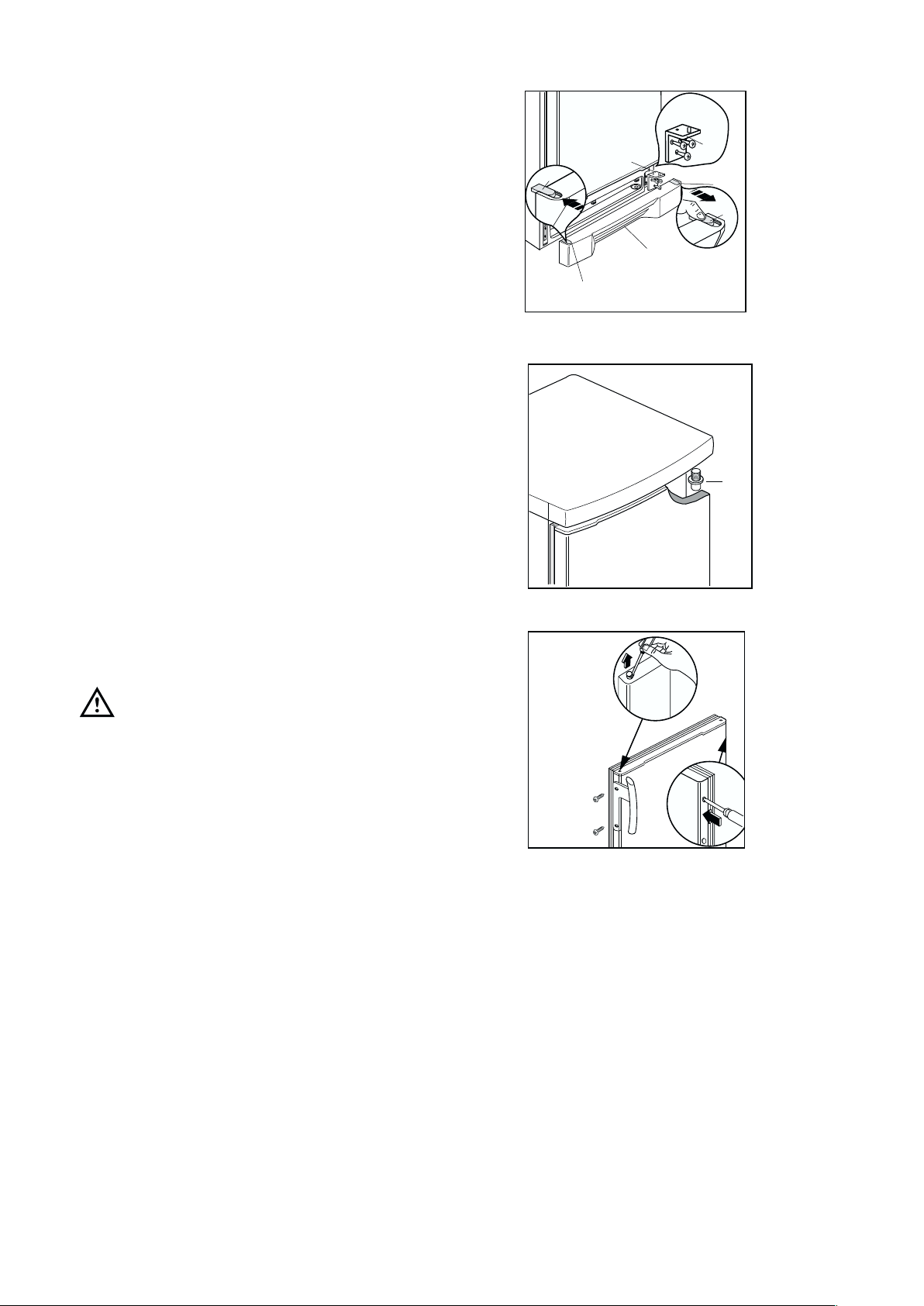

Door reversal directions

1. Disconnect from the electricity supply.

2. Gently lay the fridge on its back with the top held
away from the floor by 5-8 cm (2-3 inches) of
packing;

3. Remove the ventilation grill (D).

4. remove the bottom hinge (E) by unscrewing its
three fixing screws;

5. Slide out the fridge door from pin (G), unscrew
the latter and then refit it on the opposite side;

6. remove the two plugs of the door (where
available), discovering the holes for the hinge
pins, assemble them on the opposite side;

7. reassemble the door;

8. using a 10 mm spanner, unscrew the hinge pin
(E) and reassemble it on the opposite side of the
hinge;

9. reassemble the lower hinge (E) on the opposite
side, using the screws previously removed. Slide
the hole cover (F) out of the ventilation grille (D)
by pushing it in the direction of the arrow and
reassemble it on the opposite side;

10.refit the ventilation grille (D), clipping it into place;

11. Unscrew the handle. Refit it on the opposite side
after having pierced the plugs with a punch.
Cover the holes left open with the plugs supplied
in the documentation pack.

Important

After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdryer on a low setting.

F

F

D

F

F

E

E

G

3

CONTENTS

Instructions for the User

Important Safety Information

2

Operation

4

Before using 4

Control panel 4

Temperature control 4

Freezing fresh food 4

Frozen food storage 5

Thawing 5

Making ice cubes 5

Normal operating sounds 6

Cold accumulators 6

Health and Safety Guidelines

6

Maintenance and Cleaning

7

Internal cleaning 7

External cleaning 7

When the appliance is not in use 7

Defrosting 7

Something Not Working

9

Service and Spare Parts

10

Customer Care Department

10

Guarantee Conditions

11

Instructions for the
Installer

Technical Specification

12

Installation

13

Positioning 13

Rear Spacers 13

Electrical Connection

14

Door Reversal

15

4

OPERATION

Before using

Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).

Do not use soap or detergent as the smell may
linger. Dry thoroughly.

Control Panel

A - Alarm light - Red

B - Fast freeze light - Amber

C - Fast freeze switch

D - Pilot light - Green

E - Thermostat control knob

Temperature control

The temperature within the freezer is controlled by
the thermostat situated at the top of the cabinet.

To operate the freezer proceed as follows:

Turn the thermostat control knob beyond the «

■»

position.

When you first start the freezer, we suggest that you
turn the thermostat control to a medium setting. For
easier turning of this control, use a small coin.The
internal temperature of the freezer is automatically
adjusted by the thermostat to ensure safe food
storage.

However, if the appliance is working in unfavourable
room conditions such as

- poor ventilation,

- high temperature,

- frequent door openings,

it may be necessary to select a more suitable
setting.

To obtain a colder temperature, turn the thermostat
control towards max; to obtain a warmer temperature
turn the control towards min.

Control Panel

A. Alarm light

If the alarm light (A) illuminates, it indicates that the
temperature within the freezer has reached a level
where the safe food storage is no longer ensured.

When the freezer is first switched on, the alarm light
will stay on until the temperature has dropped to a
safe level for the storage of frozen food.

B. Fast freeze light

The fast freeze light is illuminated, to show that the
fast freeze function is working.

C. Fast freeze control switch

When you place fresh food in the appliance, press
the fast freeze control switch.

D. Pilot light

The operation light is illuminated continuously, to
show that the appliance is on.

E. Thermostat control knob

Turn the thermostat control knob clockwise to
required setting.

Freezing fresh food

In any 24 hour period you can freeze up to 20 kg of
fresh food.

When you first start the freezer or after a period of
non-use, press the fast freeze switch 12 hours before
you want to freeze your food (the yellow light (B)
illuminates).

If the freezer is already in operation, the fast-freeze
knob should be activated about 2-3 hours before
freezing fresh food.

This time can be shortened, depending on the
quantity of food to be frozen. After the time has
elapsed place the food to be frozen in the
compartments of the freezer (see the diagram) as
these are the coldest parts.

13

INSTALLATION

Positioning

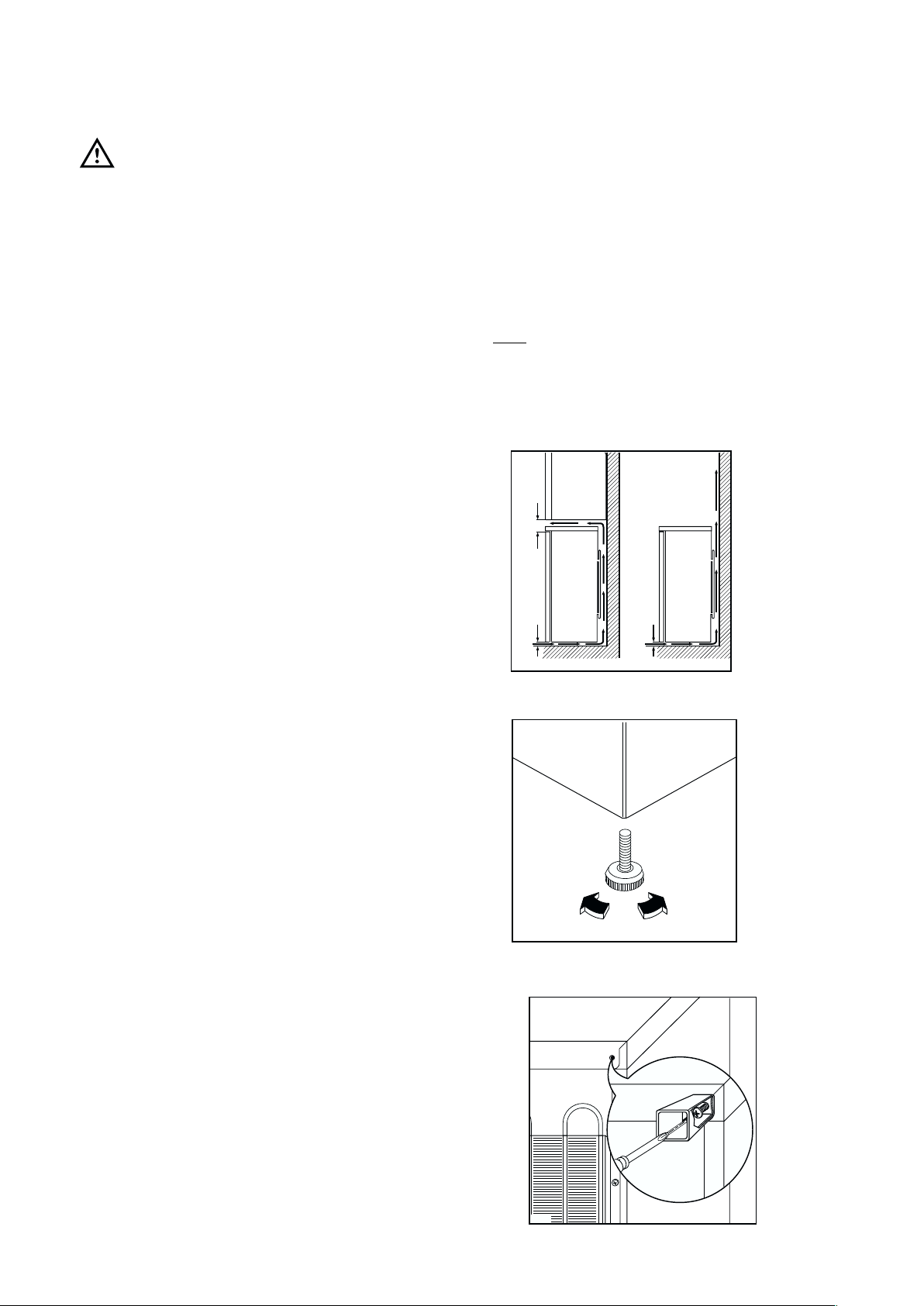

This appliance should only be installed at a location
where the ambient temperature corresponds to the
climate classification indicated on the rating plate,
which is located at the left on the inside of the
appliance.

The following table shows which ambient
temperature is correct for each climate classification:

SN +10°C to + 32°C

N +16°C to + 32°C

ST +18°C to + 38°C

T +18°C to + 43°C

It should be located in a dry atmosphere, out of
direct sunlight and away from extreme temperature
e.g. not next to a boiler or radiator, or in a very cold
room e.g. an outhouse, where the temperatures may
fall below 10°C (50°F). If these temperatures are
exceeded i.e. colder or warmer, then the appliance
may not operate correctly.

You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
must also be at least 100 mm (4”) distance between
the top of the cabinet and any overhanging kitchen
furniture (A). Ideally, the appliance should not be
positioned beneath overhanging furniture (B).

There should also be a gap of 25 mm either side of
the appliance. Do not obstruct the space
underneath. The back of the cabinet may be placed
close to the wall but must not touch it. DO NOT
install in places with restricted ventilation.

Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet
using your fingers.

D200

100 mm10 mm

10 mm

A

B

NP006

Warning

IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.

Important

It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.

Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on “Door reversal directions” paragraph.

D594

Rear spacers

In the bag with the documentation, there are two
spacers which must be fitted as shown in the figure.

Slacken the screws and insert the spacer under the
screw head, then re-tighten the screws.

A B C

MAX

ONSUPERALARM

min

D

E

5

In order to freeze the quantity indicated on the rating
plate, arrange the food directly in contact with the
cooling surfaces. If the food is frozen in the baskets,
the maximum quantity that can be frozen is slightly
less.
Once the food is completely frozen (which could take
up to 24 hours) press again the fast freeze switch;
the yellow light (B) goes off.

Distribute the frozen food packages in the other
compartments, so that the top compartments can be
used for a further freezing operation.

- The food to be frozen must be fresh and of the

best quality.

- Do not allow fresh food to touch food which is

already frozen.

- During the freezing process, ensure that the

freezer door remains closed.

10 kg

10 kg

Frozen food storage

When you first start the freezer or if the freezer has
been out of use for some time, we advise you to run
your appliance for at least two hours in the «fast
freeze» mode before storing frozen food.

To obtain the best performance from this appliance,
you should:
If large quantities of food are to be stored, remove all
drawers and baskets from appliance (except for the
last one at the bottom) and place food on the cooling
shelves.
Pay careful attention not to exceed load limit stated
on the side of the upper section (where
applicable).

Do not exceed the storage period indicated by the
manufacturer.

Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.

Important

Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.

Ice Iollies, if consumed immediately after removal
from the freezer, can possibly result in a low
temperature skin burn.

Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
“frost/freezer burns”.

Important

In the event of a power cut do not open the door. The
food in the freezer will not be affected if the power
cut is short and if the freezer is full. Should the food
begin to thaw, it must be consumed quickly and must
not be re-frozen.

Making ice cubes

The appliance is provided with one or more plastic
ice cube trays.

Fill the tray(s) 3/4 full to give the ice space to expand
and place them in one of the freezer compartment.

To release the ice cubes simply give the tray a slight
twist. Do not use sharp or metallic instruments to
remove the trays from the freezer.

Thawing

Frozen food, prior to being used, can be thawed in
the fridge or at room temperature depending on the
time available. Small food items may even be cooked
from frozen; in this case cooking will take longer.

Any frozen food which is allowed to thaw accidentally
should either be eaten as soon as possible or thrown
away. Alternatively, if the food is uncooked and has
not been completely defrosted it can be cooked and
then refrozen.

Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.

Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.

A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food: follow the
oven instructions, particularly regarding the
placement of aluminium wrapping or containers in
the oven.

Defrosted cooked food must never be refrozen.
