Electrolux EU 6938 C User Manual

freezer

INSTRUCTION BOOK

2222 128-95

EU 6938 C

IMPORTANT SAFETY INFORMATION

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of safety. You MUST read it carefully before installing or using the appliance.

Installation

¥ This appliance is heavy. Care should be taken

when moving it.

¥ It is dangerous to alter the specifications or attempt

to modify this product in any way.

¥ Care must be taken to ensure that the appliance

does not stand on the electrical supply cable. Important: if the supply cable is damaged, it must be replaced by a special cable available from your local Electrolux Service Force Centre.

¥ Any electrical work required to install this appliance

should be carried out by a qualified electrician or competent person.

¥ Parts which heat up should not be exposed.

Whenever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.

¥ The appliance should be left for 2 hours after instal-

lation before it is turned on, in order to allow the refrigerant to settle.

Child Safety

¥ Do not allow children to tamper with the controls or

play with the product.

¥ Keep all packaging well away from children.

General Safety

¥ Take utmost care when handling your appliance

so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

¥ The appliance must not be located close to radi-

ators or boilers.

¥ Avoid prolonged exposure of the appliance to

direct sunlight.

¥ Do not use other electrical appliances (such as

ice cream makers) inside of refrigerating appliances.

During Use

¥ This appliance is designed for domestic use only,

specifically for the storage of edible foodstuffs only.

¥ Frozen food must NOT be re-frozen once it has

thawed out.

¥ Do not place carbonated or fizzy drinks in the freez-

er.

¥ Do not remove items from the freezer if your

hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

¥ Ice lollies can cause Ôfrost/freezer burnsÕ if con-

sumed straight from the freezer.

¥ ManufacturersÕ storage recommendations should

be strictly adhered to. Refer to relevant instructions.

¥ The cooling plate or refrigerated freezer shelves

in this appliance contain channels through which the refrigerant passes. If these are punctured this will cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See Defrost Instructions.

Maintenance and Cleaning

¥ Switch off and unplug the appliance before carry-

ing out any cleaning or maintenance work.

Servicing

¥ This product should be serviced by an authorised

engineer and only genuine spare parts should be used.

¥ Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Electrolux Service Force Centre and always insist on genuine spare parts.

At the end of the Appliance Life

¥ When disposing of your appliance, use an autho-

rised disposal site.

¥ Remove the plug and ensure that any locks or

catches are removed, to prevent young children being trapped inside.

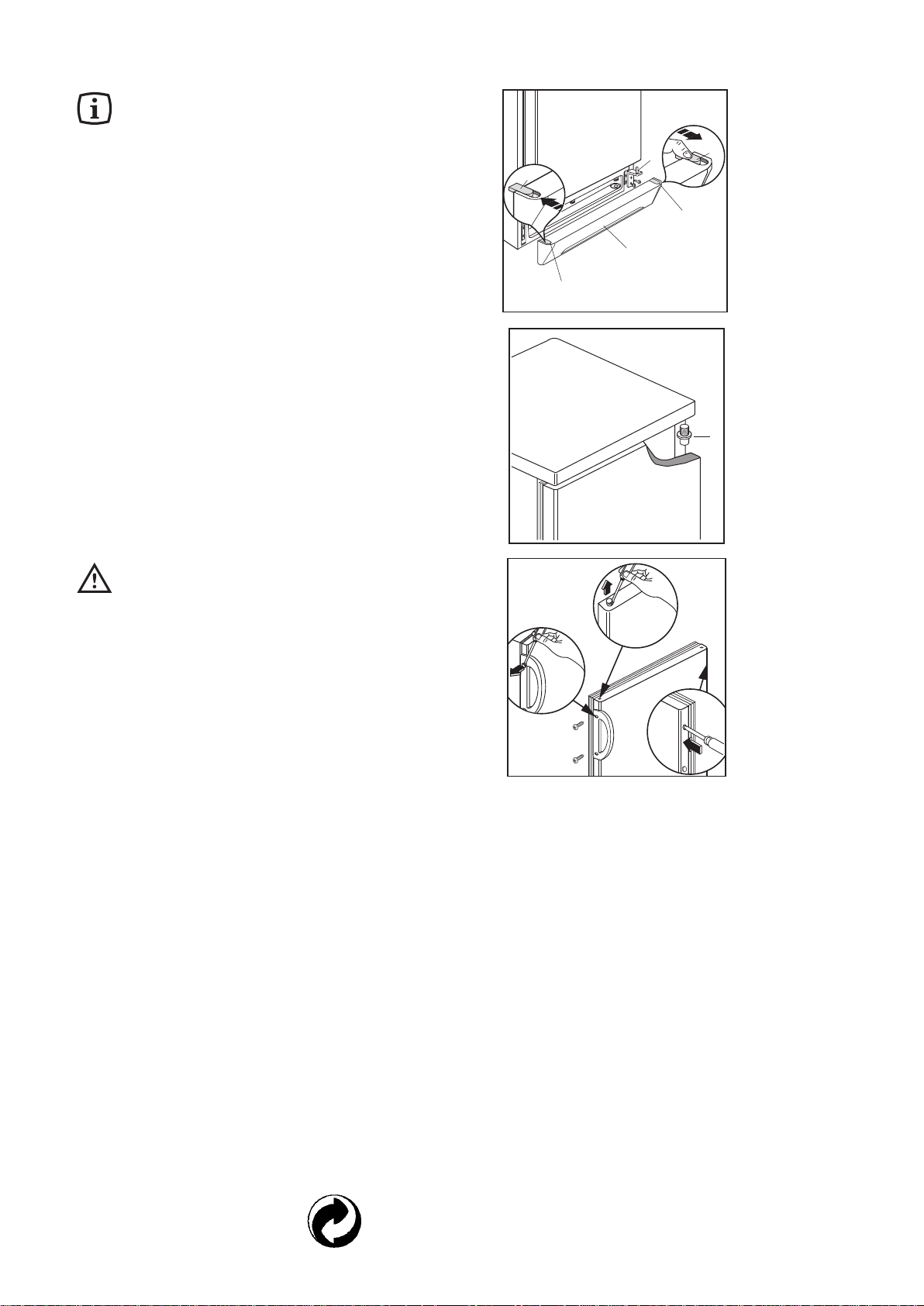

Door reversal directions

1. Disconnect from the electricity supply.

2. Gently lay the fridge/freezer on its back with the top held away from the floor by 5-8 cm (2-3 inch- es) of packing;

3. Remove the ventilation grill (D).

4. Unscrew the bottom hinge (E).

5. Slide out the fridge door from pin (G), unscrew the latter and then refit it on the opposite side;

6. Remove the two screws which mask the holes for fixing the hinge from the left hand side;

7. Replace the door and bottom hinge (E) on the opposite side.

8. Remove the plug (F) from the ventilation grill (D) and replace it on the opposite side. Re-assemble the ventilation grill (D).

9. Unscrew the handle. Refit it on the opposite side after having pierced the plugs with a punch. Cover the holes left open with the plugs con- tained in the documentation pack.

Attention

After completion of the door reversiing operation, check that the door gasket adheres to the cabinet. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdryer on a low setting.

PR228

Printed on recycled paper

CONTENTS

2222 128-95

Instructions for the User

Important Safety Information

Description of the Appliance

Operation

Before use 5

Control panel 5

Start your appliance 5

Temperature control 5

Freezing fresh food 5

Frozen food storage 6

Thawing 6

Making ice cubes 6

Cold accumulator 6

Hints and Tips

Maintenance and Cleaning

Internal cleaning 8

External cleaning 8

When the appliance is not in use 8

Defrosting 8

Something Not Working

Service and Spare Parts

Customer Care Department

Guarantee Conditions

Instructions for the Installer

Technical Specification

Installation

Positioning 13

Rear Spacers 13

Electrical Connection

Door Reversal

A - Freezer controls

B - Pizza box drawer

C - Freezing fresh foods

D - Frozen food storage

10-10-10-10-3-3-3-3-3-41-

ONSUPERALARM

MAX

min

DESCRIPTION OF THE APPLIANCE

INSTALLATION

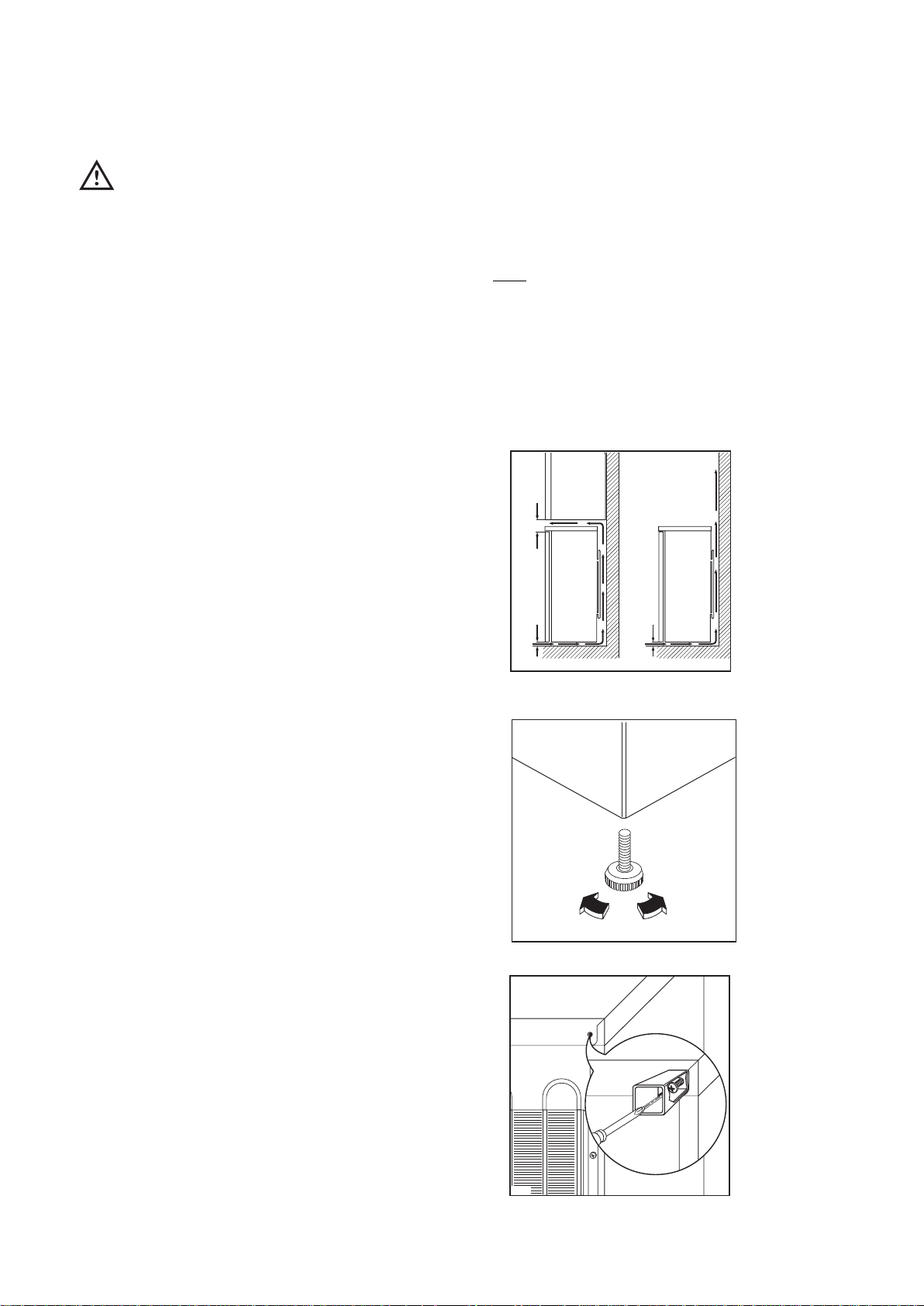

Positioning

This appliance is designed to operate in ambient temperatures between 10¡C (50¡F) and 38¡C (100¡F). It should be located in a dry atmosphere, out of direct sunlight and away from extreme temperature e.g. not next to a boiler or radiator, or in a very cold room e.g. an outhouse, where the temperatures may fall below 10¡C (50¡F). If these temperatures are exceeded i.e. colder or warmer, then the appliance may not operate correctly.

You should also ensure that air can circulate freely around the back and the top of the cabinet. There must also be at least 100 mm (4Ó) distance between the top of the cabinet and any overhanging kitchen furniture (A). Ideally, the appliance should not be positioned beneath overhanging furniture (B).

There should also be a gap of 25 mm either side of the appliance. Do not obstruct the space underneath. The back of the cabinet may be placed close to the wall but must not touch it. DO NOT install in places with restricted ventilation.

Adjust the level of the appliance by screwing out the adjustable foot, or feet, at the bottom of the cabinet using your fingers.

D200

D594

100 mm10 mm

10 mm

NP006

Warning

IF YOU ARE DISCARDING AN OLD APPLIANCE THAT HAS A LOCK OR CATCH ON THE DOOR, YOU MUST ENSURE THAT IT IS MADE UNUSABLE TO PREVENT YOUNG CHILDREN BEING TRAPPED INSIDE.

Depending upon the position which you choose for your appliance, you may wish to reverse the way in which the door opens. To do this, refer to instructions on ÒDoor reversal directionsÓ paragraph.

Rear spacers

In the bag with the documentation, there are two spacers which must be fitted as shown in the figure.

Slacken the screws and insert the spacer under the screw head, then re-tighten the screws.

Important

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

OPERATION

Before using

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water).

Do not use soap or detergent as the smell may linger. Dry thoroughly.

Control Panel

A - Alarm light

B - Fast freeze light

C - Fast freeze switch

D - Operation light

E - Thermostat control

Start your appliance

Insert the plug into the wall socket. The pilot light (D) will light up to show that the appliance is on.

Temperature control

The temperature within the freezer is controlled by the thermostat situated at the top of the cabinet.

To operate the freezer proceed as follows: Turn the thermostat control beyond the Ç■È position.

When you first start the freezer, we suggest that you turn the thermostat control to a medium setting, although the temperature will be affected by:

- Room temperature

- How often the door is opened

- How much food is stored

- Position of the appliance

In determining the correct temperature control setting all these factors have to be considered and some experimentation may be necessary.

When altering the temperature setting, allow 24 hours for the temperature to stablise before making further changes

To obtain a lower temperature, turn the thermostat control towards max; to obtain a higher temperature turn the control towards min. For easier turning of this control, use a small coin.

Control Panel

A. Alarm light

If the alarm light illuminates, it indicates that the temperature within the freezer has reached a level where the safe food storage is no longer ensured.

When the freezer is first switched on, the alarm light will stay on until the temperature has dropped to a safe level for the storage of frozen food.

B. Fast freeze light

The fast freeze light is illuminated, to show that the fast freeze function is working.

C. Fast freeze button

When you place fresh food in the appliance, press the fast freeze button.

D. Operation light

The operation light is illuminated continuously, to show that the appliance is on.

E. Thermostat control

When you first start the freezer we suggest that you turn the thermostat to a medium setting by using a coin that fits the groove.

Min = lowest setting, minimum cold

Max = highest setting, maximum cold

Freezing fresh food

In any 24 hour period you can freeze up to 22 kg of fresh food.

When you first start the freezer or after a period of non-use, press the fast freeze switch before you want to freeze your food (the yellow light (B) lights up).
