Page 1

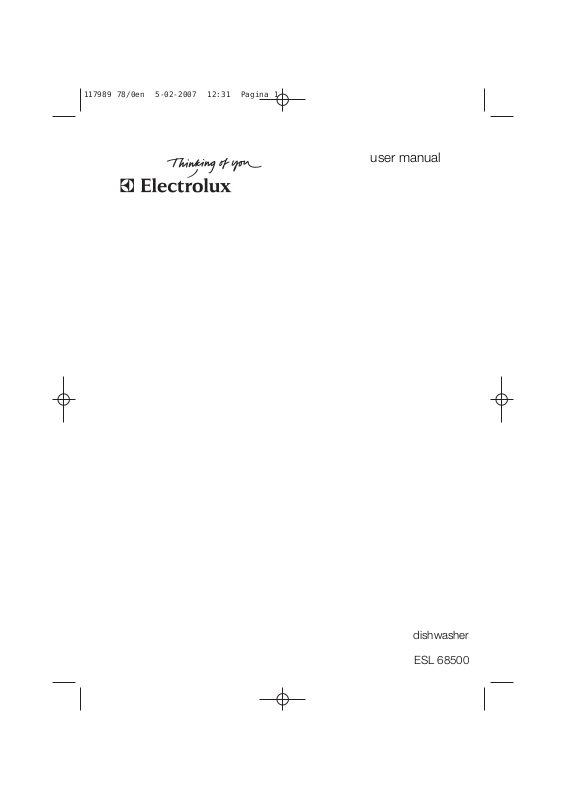

user manual

ESL 68500

dishwasher

Page 2

We were thinking of you

when we made this product

Page 3

welcome to the world of Electrolux electrolux 3

You’ve chosen a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You can look at some examples on the cover in this manual. But now it’s time to study this manual and start using and enjoying the benefits from your new machine. We promise that it’ll make your life a little easier. Good luck!

Welcome to the world of Electrolux

Page 4

Safety information 5 Product description 7 Control panel 8 Display 11 First use 12 Daily use 17 Washing programmes 28 Care and cleaning 30 Something not working 32 Technical data 35 Hints for test institutes 37 Installation 38 Environment concerns 42 Guarantee/Customer Service 43

Contents

The following symbols are used in this manual:

Important information concerning your personal safety and information on how to avoid damaging the appliance.

General information and tips

Environmental information

4 electrolux contents

Page 5

safety information electrolux 5

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

Correct use

● This dishwasher is only intended

for washing household utensils suitable for machine washing.

● Do not put any solvents in the

dishwasher. This could cause an explosion.

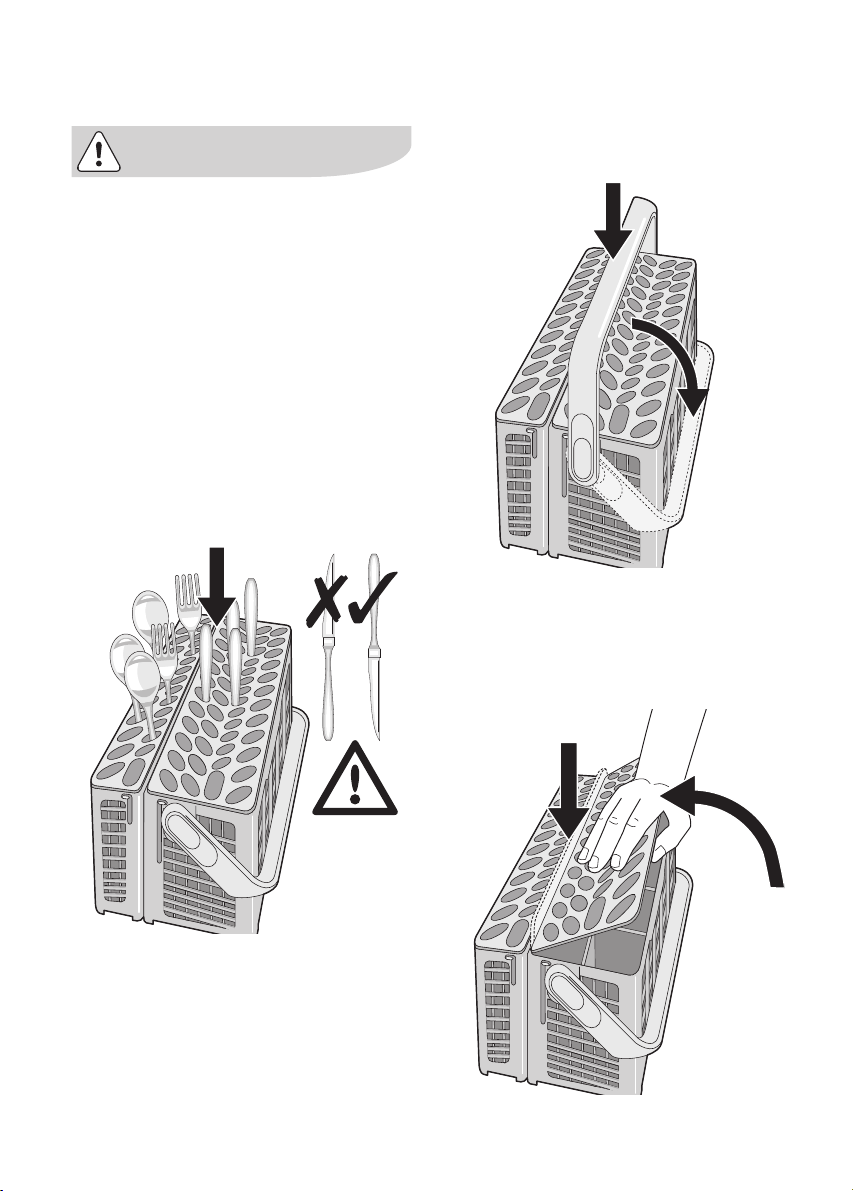

● Knives and other items with sharp

points must be loaded in the cutlery basket with their points down or placed in a horizontal position in the upper basket.

● Only use products (detergent, salt

and rinse aid) suitable for dishwashers.

● Avoid opening the door whilst the

appliance is in operation, hot steam may escape.

Safety information

● Do not take any dishes out of the

dishwasher before the end of the dishwashing cycle.

● After use, isolate the appliance

from the power supply and turn off the water supply.

● This product should be serviced

only by an authorised service engineer, and only genuine spare parts should be used.

● Under no circumstances should

you attempt to repair the machine yourself. Repairs carried out by inexperienced persons will cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

General safety

● Dishwasher detergents can cause

chemical burns to eyes, mouth and throat. Could endanger life! Comply with the safety instructions of the dishwasher detergent manufacturer.

● The water in your dishwasher is

not for drinking. Detergent residues may still be present in your machine.

● Ensure that the door of the

dishwasher is always closed when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.

● Do not sit or stand on the open

door.

Page 6

6 electrolux safety information

Child safety

● This appliance is designed to be

operated by adults. Don’t allow children to use the dishwasher unsupervised.

● Keep all packaging well away from

children. There is risk of suffocation.

● Keep all detergents in a safe place

out of children’s reach.

● Keep children well away from the

dishwasher when the door is open.

Installation

● Check your dishwasher for any

transport damage. Never connect a damaged machine. If your dishwasher is damaged contact your supplier.

● All packaging must be removed

before use.

● Any electrical and plumbing work

required to install this appliance must be carried out by a qualified and competent person.

● For safety reasons it is dangerous

to alter the specifications or attempt to modify this product in any way.

● Never use the dishwasher if the

electrical supply cable and water hoses are damaged; or if the control panel, work top or plinth area are damaged such that the inside of the appliance is freely accessible. Contact your local Service Force centre, in order to avoid hazard.

● All sides of the dishwasher must

never be drilled to prevent damage to hydraulic and electric components.

For electrical and water connection carefully follow the instructions given in specific paragraphs.

Page 7

product description electrolux 7

Product description

Upper basket Water hardness dial Salt container Detergent dispenser Rinse aid dispenser Rating plate Filters Lower spray arm Upper spray arm

This dishwasher has an internal light that turns on and off when the opening and closing of the dishwasher’s door occurs.

Internal light equipped with led lamp CLASS 1 in accordance with EN 60825-1: 1994 + A1:2002 + A2:2001

In case that this light has to be replaced, please contact your local Service Force Centre.

Page 8

8 electrolux control panel

Control panel

On/Off button

Up and down scrolling buttons (+ -)

Display

OK button

Option button

A sequence of displayed and vocal messages will guide you in the setting of the appliance and the selection of a washing programme and available options.

In this fully integrated appliance the controls are located on the top of the door. When operating with the controls the door needs to be open.

Page 9

control panel electrolux 9

OK button

Is necessary to:

● confirm / memorize any option,

● start a washing programme.

Up and down scrolling buttons (+ -)

These 2 buttons have a double function:

● selecting within ‘programme

menu’,

● selecting within ’option menu’ and

‘submenu’.

The OK and Option buttons if pressed simultaneously can:

● cancel a washing programme in

progress,

● cancel the setting of an option.

It is also possible to return to the factory setting for the following options:

- LANGUAGE

- BRIGHTNESS (factory setting

level 10)

In setting mode press for about 6 seconds these 2 buttons simultaneously; the default language message will appear in the display.

2. Press one of the up and down

scrolling buttons until desired option is displayed:

DELAY START SETTINGS 3 IN 1

3. Press OK to confirm and enter

submenu.

4. Press up and down scrolling buttons until required submenu is displayed.

5. Press OK to confirm.

6. To exit from the menu press Option button.

Option button

press this button to enter a menu of options; press again to exit from the menu:

How to set the options

1. Press Option button.

Switching on for the first time setting the language

1. Press On/Off button.

2. In the display appears the default

language message. If you want to confirm the default

language press OK.

3. If you want to set a different language; use the up and down scrolling buttons until the required language appears in the display.

Press OK to confirm.

Page 10

10 electrolux control panel

Option menu

DELAY START

Option submenu

Allows the start of the washing programme to be delayed from 1 hour up to 19 hours. The countdown will decrease with steps of 1 hour. Only in the last hour the decrease is in minutes. Once the countdown has elapsed the washing programme will start automatically.

SETTINGS

Allows you to view and hear messages in the required language.

LANGUAGE

WATER HARDNESS

Allows you to set electronically the water softener.

SOUND VOLUME

Allows you to adjust the volume of the audible signals and vocal messages (from 0 to 5). Level 0 means the deactivation of the volume and the corresponding symbol appears in the display.

Note: selecting level 0 will not exclude the alarm signals that are active when a malfunction occurs to the machine).

BRIGHTNESS

Allows you to increase or decrease the brightness of the background of the display, 10 different levels can be selected.

RINSE AID

Allows you to activate or deactivate the rinse aid dispenser.

ON OFF

activated deactivated

3 IN 1 Set the dishwasher for the use of conventional detergents or

combi detergent tablets (3 in 1 - 4 in 1 - 5 in 1 etc...). See ‘3 in 1 function’

function activated. Use combi detergent tablets. The 3 in 1 symbol appears in the display.

function deactivated. Use conventional detergents.

OFF

Page 11

display electrolux 11

Display

Symbols:

indicate the various options

Washing phases: during the progress of the programme these little bars indicate the phase of the washing programme: prewash - main wash - rinses - drying

In this row several details are displayed:

- Setting mode: guide to the selection of the washing programme - duration time of the programme, options (when together with the washing programme one or more options are set, the update of the programme duration will occur automatically).

- Once the programme has started indicates the sequence of the running phase and the running time of the programme in progress.

The symbols have the following meaning:

Delay start: fixed in setting mode; flashing when countdown in progress 3 in 1: is illuminated when the function for the use of the ‘3 in 1’ combi

detergents is active. Sound volume: exclusion of the volume for audible signals and vocal

messages. (Except for alarm signals).

Page 12

12 electrolux first use

Before using your dishwasher for the first time:

● Ensure that the electrical and

water connections comply with the installation instructions

● Remove all packaging from inside

the appliance

● Set the water softener

● Pour 1 litre of water inside the salt

container and then fill with dishwasher salt

● Fill the rinse aid dispenser

If you want to use combi detergent tablets such as: ‘3 in 1’, ‘4 in 1’, ‘5 in 1’ etc... set the 3 in 1 function (see ‘3 in 1 function’).

First use

Set the water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

Water hardness is measured in equivalent scales, Clarke degrees, French degrees (°TH) and mmol/l (millimol per litre - international unit for the hardness of water).

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

The water softener must be set in both ways: manually, using the water hardness dial and electronically, using one of the up and down scrolling buttons on the control panel

Setting manually The dishwasher is factory set at

position 2.

1. Open the dishwasher door.

2. Remove the lower basket from the dishwasher.

3. Turn the water hardness dial to position 1 or 2 (see table).

4. Replace the lower basket.

Page 13

first use electrolux 13

no salt is necessary

Water hardness

Clarke °TH mmol/l manually electronically

Adjusting the water

hardness setting

Use of

salt

64 - 88 91 - 125 9.0 - 12.5 2 level 10 yes 53 - 63 76 - 90 7.6 - 8.9 2 level 9 yes

46 - 52 65 - 75 6.5 - 7.5 2 level 8 yes 36 - 45 51 - 64 5.1 - 6.4 2 level 7 yes

28 - 35 40 - 50 4.0 - 5.0 2 level 6 yes 23 - 27 33 - 39 3.3 - 3.9 2 level 5 yes

18 - 22 26 - 32 2.6 - 3.2 1 level 4 yes 13 - 17 19 - 25 1.9 - 2.5 1 level 3 yes

5 - 12 7 - 18 0.7 - 1.8 1 level 2 yes

< 5 < 7 < 0.7 1 level 1 no

Setting electronically

The dishwasher is factory set at level

Option menu ➞ Settings ➞ Water hardness

With the help of the below chart, set the level of the water softener according to the hardness of the water in your area.

Page 14

14 electrolux first use

Filling with dishwasher salt

Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been spilt, remaining on the bottom of the machine for any period of time, which may cause corrosion.

To fill:

1. Open the door, remove the lower basket and unscrew the cap of the salt container by turning it anticlockwise.

2. Pour 1 litre of water inside the container (this is necessary only

before filling with salt for the first time).

3. Using the funnel provided, pour in the salt until the container is full.

4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.

5. Replace the cap tightly turning it clockwise until it stops with a click.

Do not worry if water overflows from the unit when filling with salt, this is quite normal.

The salt container will require topping up periodically.

You are reminded of this by a displayed message: REFILL SALT.

This occurs only at the start and at the end of the washing programme; during the running of the programme the indication for salt refilling is not active.

The refilling salt message can remain visible for 2-6 hours after the salt has been replenished, assuming the dishwasher remains switched on. If you are using salts that take longer to dissolve then this can take longer. The function of the machine is not affected.

Page 15

first use electrolux 15

Filling with rinse aid

Rinse aid ensures thorough rinsing, and spot and streak free drying.

Rinse aid is automatically added during the last rinse.

1. Open the container by pressing the release button (A).

2. Add the rinse aid in the container. The maximum level for filling is indicated by "max".

The dispenser holds about 110 ml of rinse aid, which is sufficient for between 16 and 40 dishwashing cycles, depending upon the dosage setting.

According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (position 1 minimum dosage, position 6 maximum dosage).

The dose is factory set in position 4. Increase the dose if there are drops of

water or lime spots on the dishes after washing.

Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife blades.

3. Ensure that the lid is closed after every refill.

The rinse aid container will require topping up periodically.

You are reminded of this by a displayed message: REFILL RINSE AID.

This occurs only at the start and at the end of the washing programme; during the running of the programme the indication for rinse aid refilling is not active.

Page 16

16 electrolux first use

Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash.

Only use branded rinse aid for dishwashers.

Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.

Page 17

daily use electrolux 17

● Check if it’s necessary to refill with

dishwasher salt or rinse aid

● Load cutlery and dishes into the

dishwasher.

● Fill with dishwasher detergent .

● Select a wash programme suitable

for the cutlery and dishes.

● Start the wash programme.

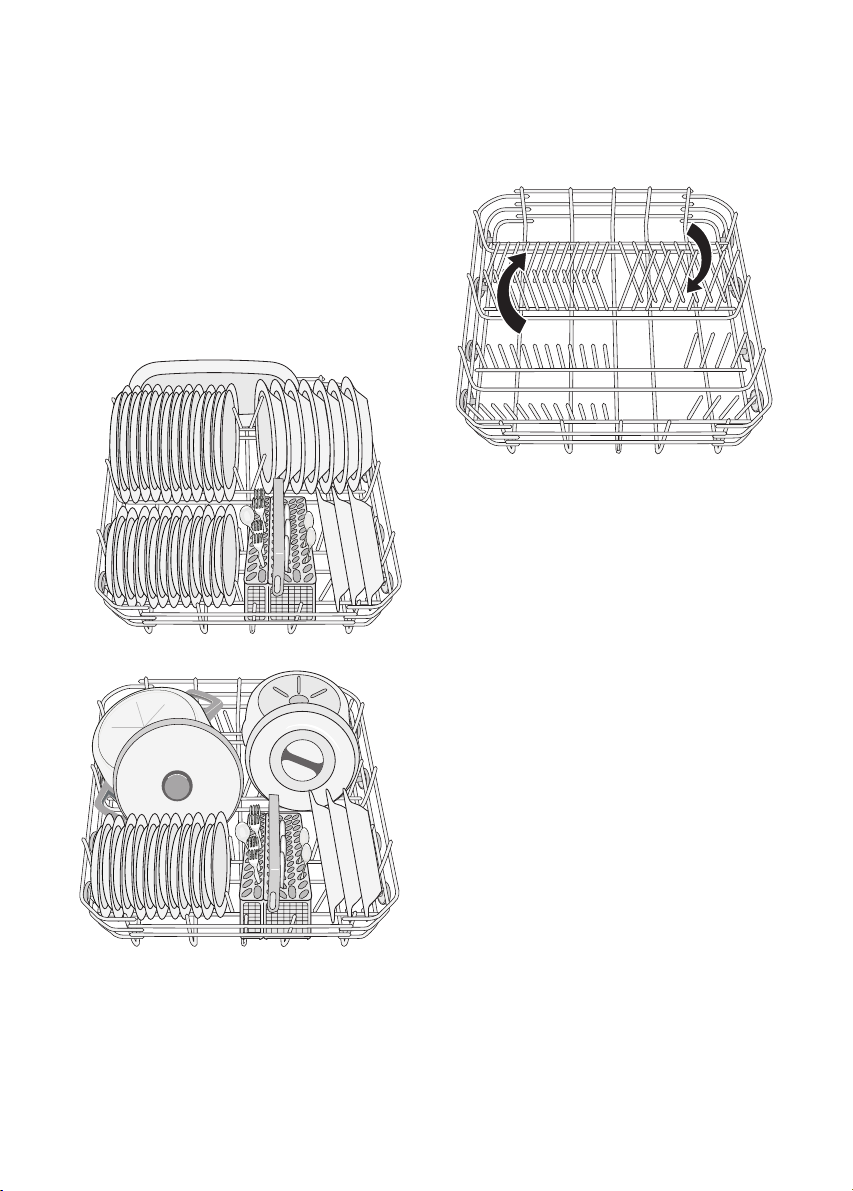

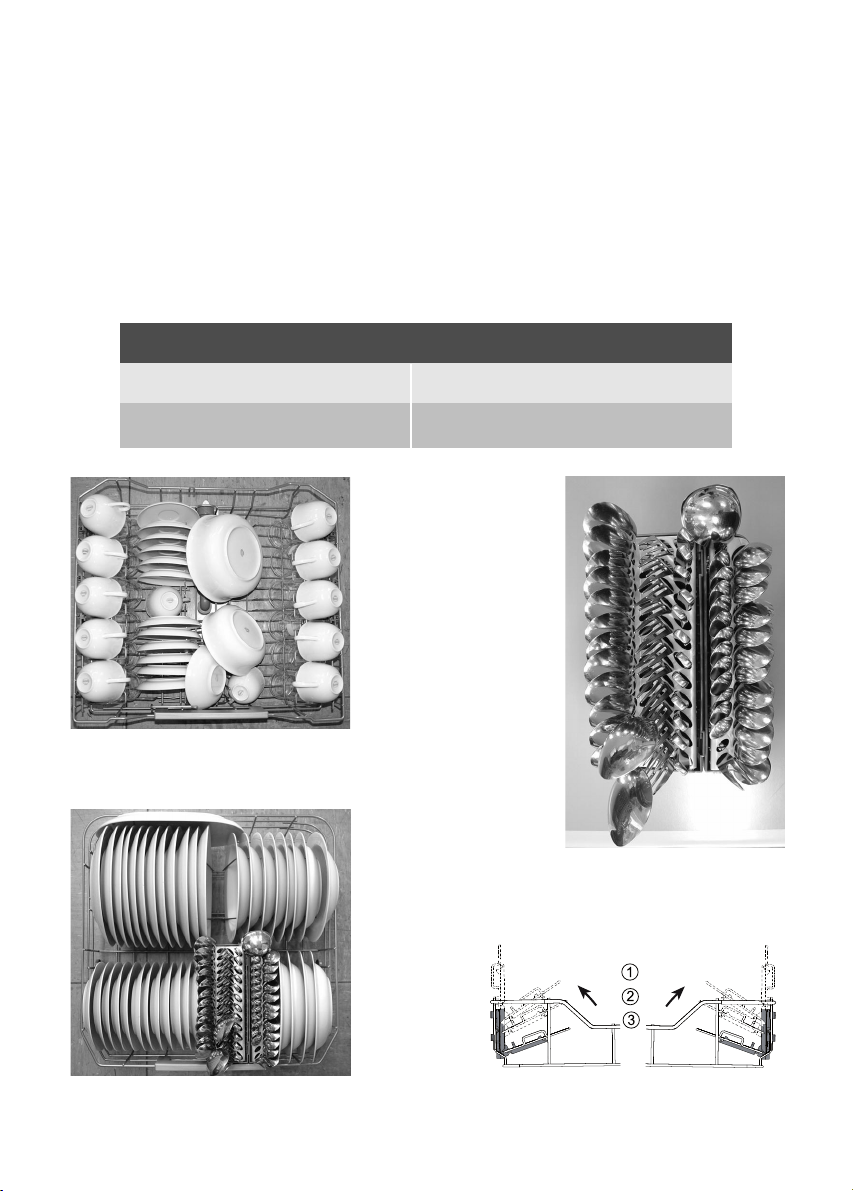

Loading cutlery and dishes

Sponges, household cloths and any object that can absorb water may not be washed in the dishwasher.

● Before loading the dishes, you

should:

- Remove all left over food and debris.

- Soften remnants of burnt food in pans

● When loading the dishes and

cutlery, please note:

- Dishes and cutlery must not impede the rotation of the spray arms .

- Load hollow items such as cups, glasses, pans, etc. with the opening downwards so that water cannot collect in the container or a deep base.

- Dishes and items of cutlery must not lie inside one another, or cover each other.

- To avoid damage to glasses, they must not touch.

Daily use

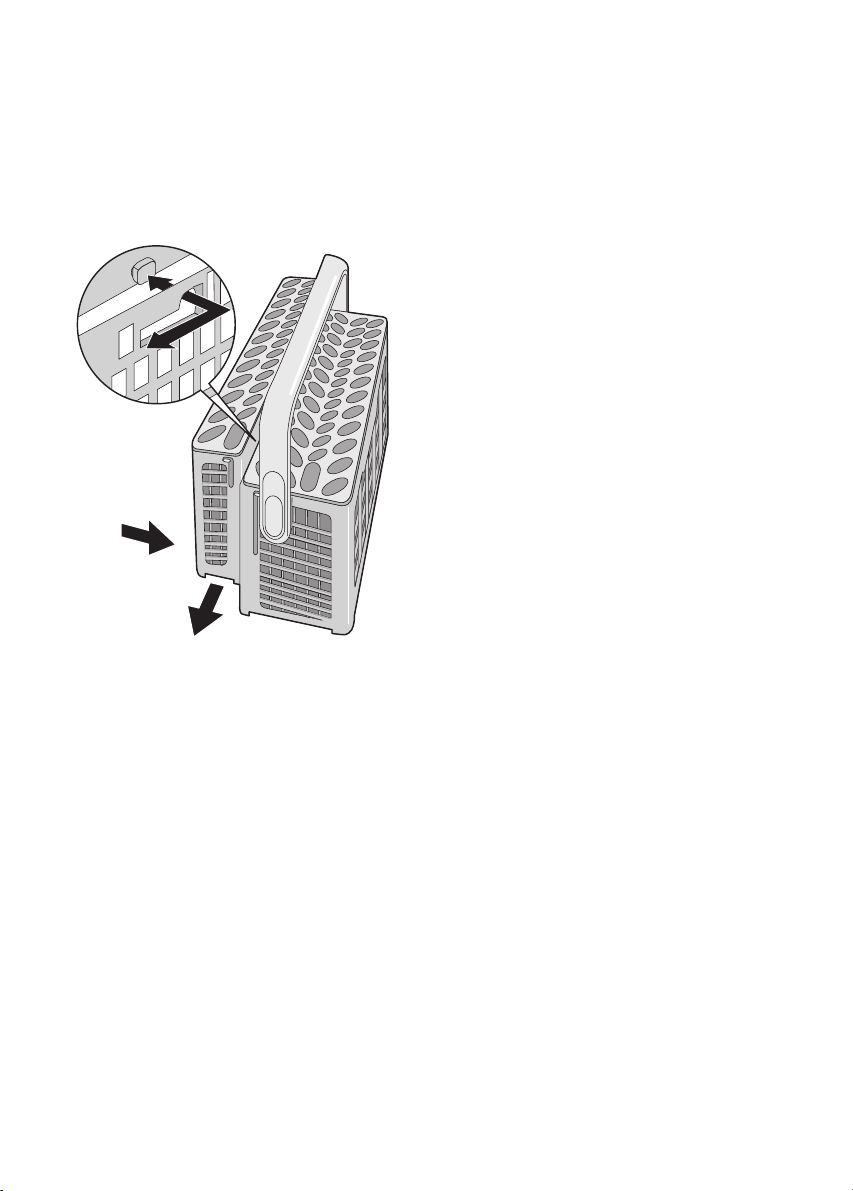

- Lay small objects in the cutlery basket.

● Plastic items and pans with non

stick coatings have a tendency to retain water drops; these items will not dry as well as porcelain and steel items.

● Light items (plastic bowls etc.)

must be loaded in the upper basket and arranged so they do not move.

Page 18

18 electrolux daily use

For washing in the dishwasher the following cutlery and dishes

are not suitable: - Cutlery with wooden, horn, china or

mother-of-pearls handles.

- Plastic items that are not heat resistant.

- Older cutlery with glued parts that are not temperature resistant.

- Bonded cutlery items or dishes.

- Pewter or copper items.

- Lead crystal glass.

- Steel items prone to rusting.

- Wooden platters.

- Items made from synthetics fibres.

are of limited suitability:

- Only wash stoneware in the dishwasher if it is specially marked as being dishwasher-safe by the manufacturer.

- Glazed patterns may fade if machine washed frequently.

- Silver and aluminium parts have a tendency to discolour during washing: Residues, e.g. egg white, egg yolk and mustard often cause discolouring and staining on silver. Therefore always clean left-overs from silver immediately, if it is not to be washed straight after use.

Page 19

daily use electrolux 19

Open the door and slide out the baskets to load the dishes.

The lower basket

The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc.

Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the spray arms can turn freely.

The two rows of prongs on the lower basket can be easily lowered to allow you to load pots, pans and bowls.

Page 20

20 electrolux daily use

To make loading of the cutlery basket easier, lower the cutlery basket handle (fig.2).

For best results we recommend you to use the cutlery grids.

If the size and dimensions of the cutlery do not allow the use of the grids, they can be easily hidden (fig. 3).

The cutlery basket

Long bladed knives stored in an upright position are a potential hazard.

Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

Take care when loading or unloading sharp items such as knives.

Forks and spoons should be placed in the removable cutlery basket with the handles facing downwards and the knives with their handles facing upwards (fig.1).

If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards.

Mix spoons with other cutlery to prevent them from sticking together.

fig. 1

fig. 2

fig. 3

Page 21

daily use electrolux 21

The cutlery basket is in two parts which can be separated to give greater loading flexibility. To separate the two parts, slide them horizontally in opposite directions and pull them apart (fig. 4).

To reassemble, reverse the procedure.

fig. 4

Page 22

22 electrolux daily use

The central rows of prongs can be easily lowered to improve loading flexibility.

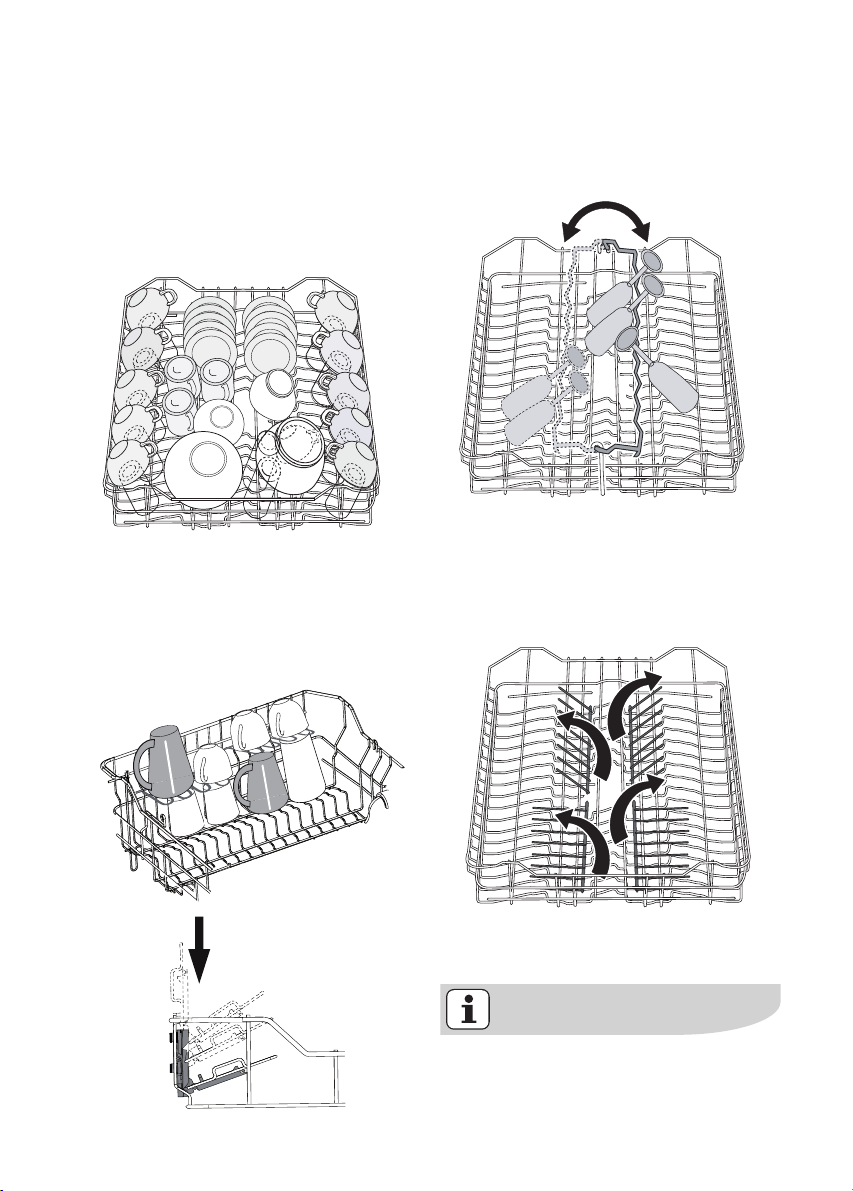

The upper basket

The upper basket is designed for saucers, salad bowls, cups, glasses, pots and lids.

Arrange items on and underneath the cup racks so that water can reach all surfaces.

Glasses with long stems can be placed upside down in the cup racks.

The cup racks can be adjusted in three different positions to improve loading flexibility.

Before closing the door, ensure that the spray arms can rotate freely.

For glasses with long stems (according to the size and dimensions), set the glass holder to the left or right position.

Page 23

daily use electrolux 23

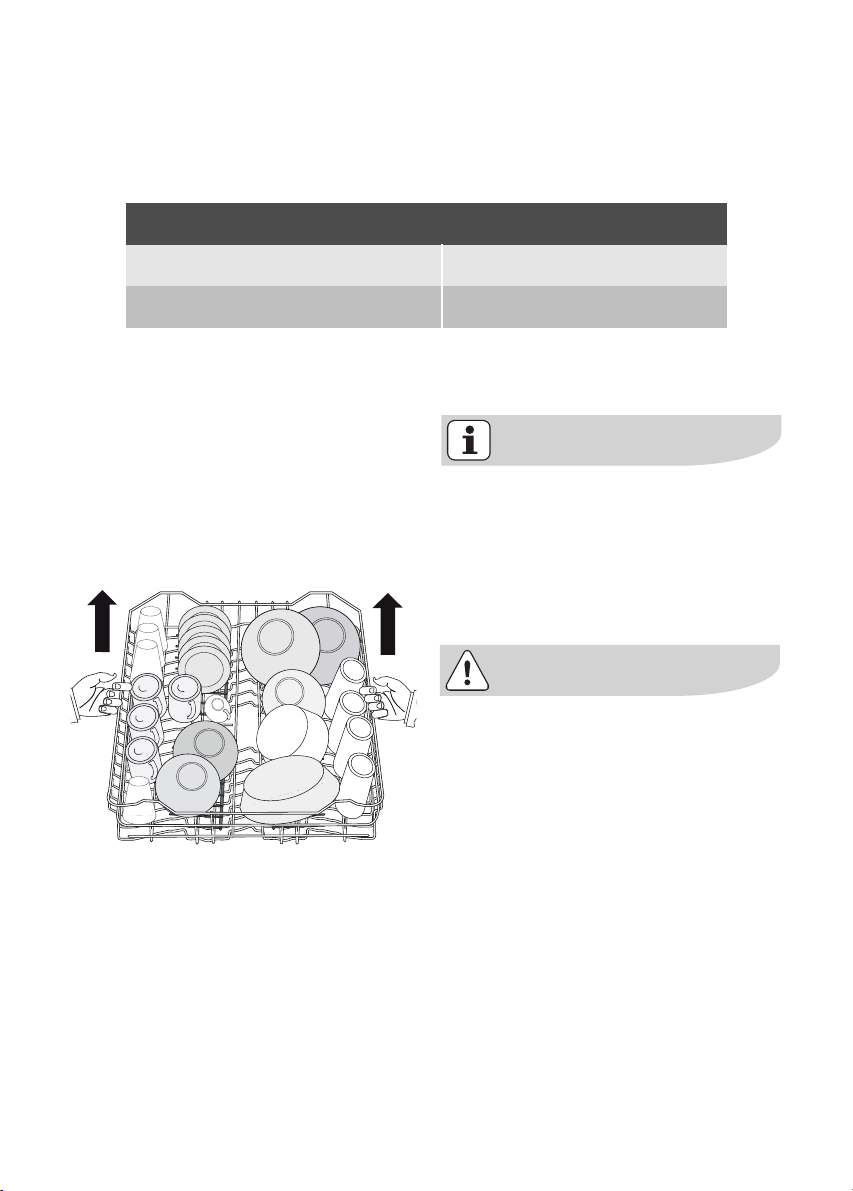

Adjusting the height of the upper basket

If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position.

To move to the higher position proceed as follows:

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards until the mechanism is engaged and the basket is stable.

To lower the basket to the original position proceed as follows:

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards and then allow the mechanism to drop back down slowly, keeping hold of it.

Never lift or lower the basket on one side only

With the upper basket raised we recommend to adjust the cup racks in the lowest position.

After loading your machine always close the door, as an open door can be a hazard.

Maximum height of the dishes in the lower basket

31 cm

With upper basket raised

27 cm

With upper basket lowered

Page 24

24 electrolux daily use

Use of detergent

Only use detergents specifically designed for use in dishwashers.

Please observe the manufacturer’s dosing and storage recommendations as stated on the detergent packaging.

Using no more than the correct amount of detergent contributes to reducing pollution.

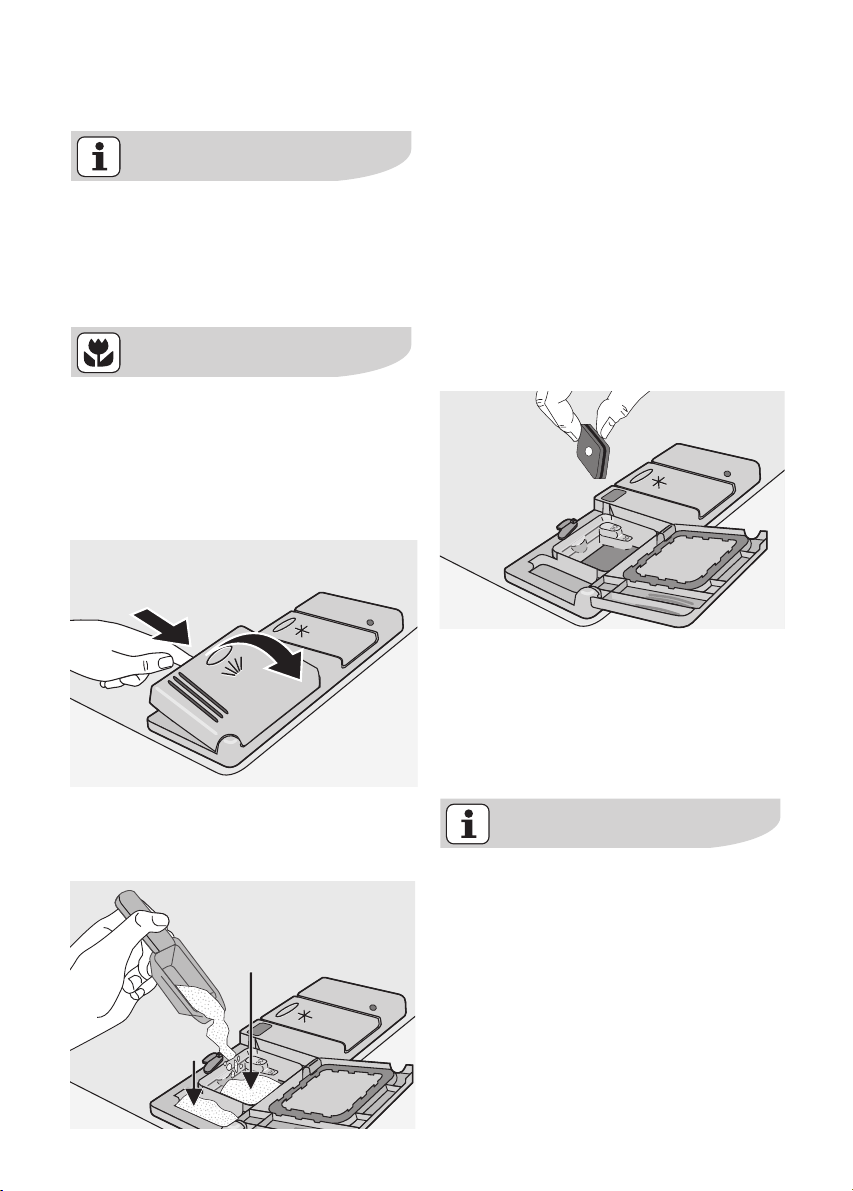

Fill with detergent

1. Open the lid.

2. Fill the detergent dispenser (1) with detergent. The marking indicates the dosing levels:

20 = approximately 20 g of detergent

30 = approximately 30 g of detergent

3. All programmes with prewash need an additional detergent dose (5/10 g) that must be placed in the prewash detergent chamber (2). This detergent will take effect during the prewash phase.

When using detergent tablets; place the tablet in compartment (1)

4. Close the lid and press until it locks in place.

Detergent tablets

Detergent tablets from different manufactures dissolve at different rates. For this reason, some detergent tablets do not attain their full cleaning power during short washing programmes. Therefore, please use long washing programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

Page 25

daily use electrolux 25

If you decide to turn back to the use of the standard detergent system we advise that you:

1. Deactivate the 3 in 1 function.

2. Fill up the dispensers for salt and rinse aid again.

3. Adjust the water hardness setting to the highest setting and perform 1 normal washing programme without loading any dishes.

4. Adjust the water hardness setting according to the hardness of the water in your area.

5. Adjust the rinse aid dosage.

3 in 1 function

This appliance is equipped with the 3 in 1 function, that allows the use of the ‘3 in 1’ combi detergent tablets.

These products are detergents with a combined cleaning, rinsing and salt functions. They can also contain other different agents depending on which kind of tablets you choose (‘3 in 1’, ‘4 in 1’, ‘5 in 1’ etc...)

Check whether these detergents are suitable for your water hardness. See the manufacturers instructions.

Once this function is selected it will remain active also for the following washing programmes.

With the selection of this function the inflow of rinse aid and salt from each respective supply container is automatically deactivated and also the displayed messages for salt and rinse aid are deactivated.

Select the 3 in 1 function before the start of a washing programme.

With the use of the 3 in 1 function, the cycle durations may change. In this case, in the display, the indication of the time is automatically updated.

Once the programme is running, the 3 in 1 function can NO longer be changed. If you want to exclude the 3 in 1 function you have to cancel the programme setting and then deactivate the 3 in 1 function. In this case you have to set a washing programme (and desired options) again.

If the drying results are not satisfactory we recommend that you:

1. Fill up the rinse aid dispenser with rinse aid.

2. Activate the rinse aid dispenser.

3. Set the rinse aid dosage to position 2.

● The activation/deactivation of the

rinse aid dispenser can only be possible with the 3 in 1 function active.

Page 26

26 electrolux daily use

Set and start a washing programme

1. Check that the baskets have been loaded correctly and that the spray arms are free to rotate

2. Check that the water tap is opened

3. Press the On/Off button.

4. Select the washing programme.

5. If required, postpone the start/end time of the washing programme.

6. Set, if required, available options.

7. Press the OK button and close the door, the washing programme will start automatically.

If the delay start has been set, the countdown will start automatically. Once the delay start has elapsed the programme will start automatically.

The opening of the door will interrupt the countdown. Close the door; the countdown will continue from the point at which it was interrupted.

If the delay start is cancelled, also the washing programme will be cancelled.

If a new washing programme will be set, check that there is detergent in the detergent dispenser.

Interrupt or cancel a washing programme in progress ONLY if it’s absolutely necessary. Attention! Hot steam may escape when the door is opened. Open the door carefully.

Interrupt a washing programme in progress:

● Open the dishwasher door; the

programme will stop. The message PLEASE CLOSE DOOR is displayed.

Close the dishwasher door; the programme will continue from the point at which it was interrupted.

Cancel a washing programme or a delay start in progress

● Open the dishwasher door.

● Press simultaneously both Option

and OK buttons.

● The message CONFIRM

CANCEL? is displayed.

● Press OK button to confirm.

● The appliance returns to setting

mode and the message CHOOSE PROGRAMME is displayed.

Once the washing programme has started, a point-shaped optical signal appears on the floor beneath the dishwasher’s door.

This optical signal will remain illuminated for all the duration of the washing programme.

If the appliance has been installed higher up with a furniture door mounted flush, the optical signal will be no longer visible.

Page 27

daily use electrolux 27

End of the washing programme

● The dishwasher will automatically

stop and a vocal message informs you of the end of the washing programme.

The dishwasher’s drying system is provided with a device that allows air to circulate inside the dishwasher to prevent residual steam recondensing on the dishes as water droplets.

Once the washing programme has ended this device operates

intermittently for other 20 minutes, as long as the dishwasher is switched on.

If the On/Off button is pressed or the door is opened during these 20 minutes, the device will be automatically cancelled.

When the washing programme has ended, the optical signal on the floor beneath the dishwasher’s door will turn off.

● Open the door.

● The messages PROGRAMME

END alternated with PLEASE SWITCH OFF are displayed.

● Press the On/Off button.

● Leave the door ajar and wait a few

minutes before removing the dishes; in this way they will be cooler and the drying will be improved.

Unloading the dishwasher

● Hot dishes are sensitive to knocks.

The dishes should therefore be allowed to cool down before removing from the appliance.

● Empty the lower basket first and

then the upper one; this will avoid water dripping from the upper basket onto the dishes in the lower one.

● Water may appear on the sides

and the door of the dishwasher as the stainless steel will eventually become cooler than the dishes.

When the washing programme has finished, it is recommended that the dishwasher is unplugged and the water tap turned off.

Page 28

28 electrolux washing programmes

Washing programmes

Programme

70° Intensive

Heavy soil

Crockery, cutlery, pots and pans

Prewash Main wash up to 70°C 2 intermediate rinses Final rinse Drying

Prewash

Any. Partial load (to be completed later in the day).

1 cold rinse (to avoid food scraps from sticking together). This programme does not require the use of detergent.

Plate

Warmer

This is a programme both designed to heat plates before serving or remove dust from dishes which have not been used for a long time.

1 hot rinse This programme does not

require the use of detergent.

Automatic

(1)

Normal soil

Crockery, cutlery, pots and pans

Prewash Main wash up to 45°C or 70°C 1 or 2 intermediate rinses Final rinse Drying

Degree of

soil

Type of load Programme description

Energy

(3)

Normal soil

Crockery and cutlery

Prewash Main wash up to 50°C 1 intermediate rinse Final rinse Drying

60° Quick

(2)

Normal or

light soil

Crockery and cutlery

Main wash up to 60°C Final rinse

55° Quick

Normal soil

Crockery and cutlery

Main wash up to 55°C 1 intermediate rinse Final rinse

45° Glass

Normal soil

Main wash up to 45°C 1 intermediate rinse Final rinse Drying

Delicate crockery and glassware

Page 29

washing programmes electrolux 29

Washing programmes information

(1) During the "Automatic" washing

programme the amount of soil on the dishes is determined by how cloudy the water is.

The programme duration, water and energy consumption levels can vary; this depends upon if the appliance is fully or partially loaded and if the dishes are lightly or heavily soiled.

The temperature of the water is automatically adjusted between 45°C and 70°C.

(2) Ideal for washing a partially

loaded dishwasher. This is the perfect daily programme, made to meet the needs of a family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.

(3) Test programme for test

institutes.

Page 30

30 electrolux washing programmes

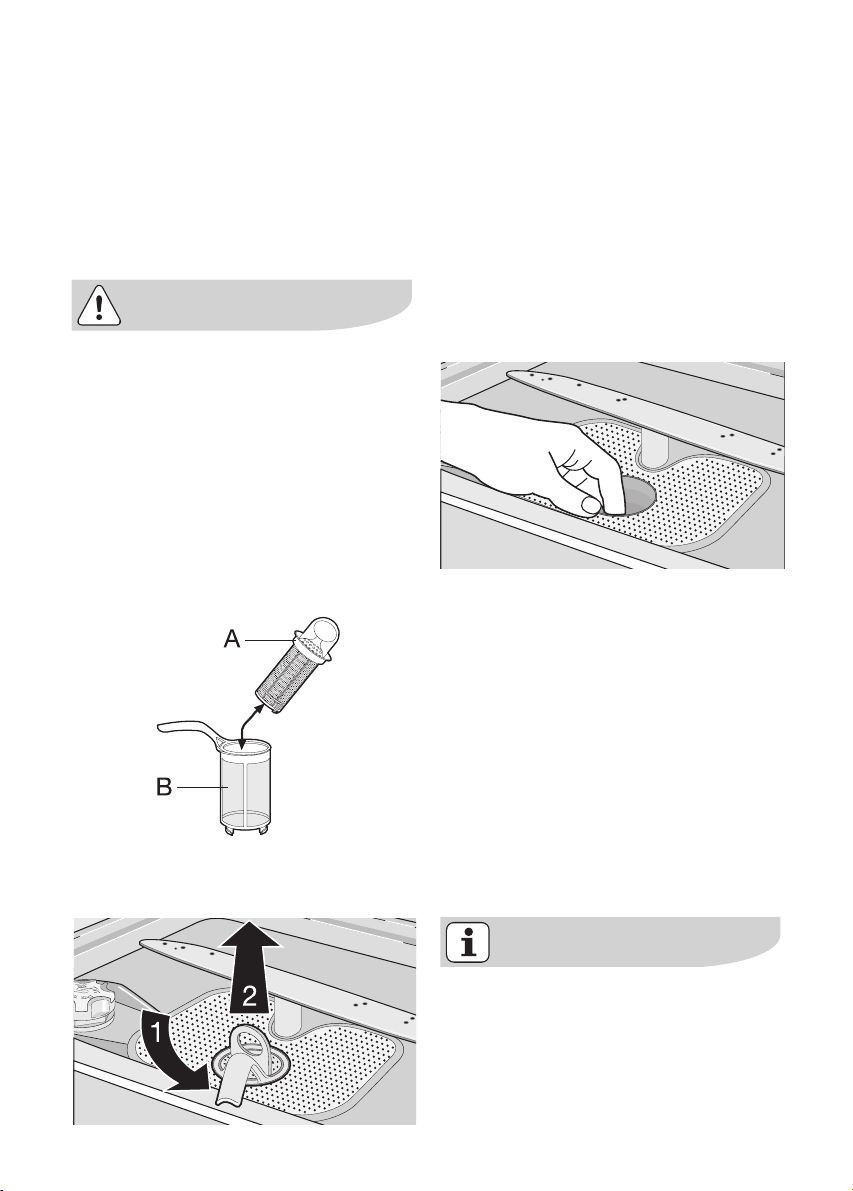

Cleaning the filters

The filters must be checked and cleaned from time to time. Dirty filters will degrade the washing result.

1. Open the door, remove the lower

basket.

2. The dishwasher filter system

comprises a coarse filter (A), a microfilter (B) and a flat filter. Unlock the filter system using the handle on the microfilter, and remove.

3. Turn the handle about

/4a turn

anticlockwise and remove.

Before cleaning the filters ensure that the machine is switched off.

4. Take hold of the coarse filter (A) by the handle with the hole and remove from the microfilter (B).

5. Clean all filters thoroughly under running water.

6. Remove the flat filter from the base of the washing compartment and clean both faces thoroughly.

7. Put the flat filter back in the base of the washing compartment and ensure that it fits perfectly.

8. Place the coarse filter (A) in the microfilter (B) and press together.

9. Put the filter combination in place and lock by turning the handle clockwise to the stop. During this process ensure that the flat filter does not protrude above the base of the washing compartment.

Care and cleaning

NEVER use the dishwasher without filters. Incorrect repositioning and fitting of the filters will produce poor washing results and may result in damage to the appliance.

Page 31

care and cleaning electrolux 31

NEVER try to remove the spray arms.

If residues of soil have clogged the holes in the spray arms, remove them with a cocktail stick.

Frost precautions

Avoid placing the machine in a location where the temperature is below 0°C. If this is unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe and empty it.

Moving the machine

If you have to move the machine

(moving house etc....):

1. Unplug it.

2. Turn the water tap off.

3. Remove the water inlet and discharge hoses.

4. Pull the machine out together with the hoses.

Avoid over tilting the machine during transportation.

External cleaning

Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene

etc....).

Internal cleaning

Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth.

We recommend every 3 months to run the wash programme for heavy soiled dishes using detergent but without dishes.

Prolonged periods of nonoperation

If you are not using the machine for any prolonged period of time you are advised to:

1. Unplug the appliance and then turn off the water.

2. Leave the door ajar to prevent the formation of any unpleasant smells.

3. Leave the inside of the machine clean.

Page 32

32 electrolux something not working

The dishwasher will not start or stops during operation. Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the indications described in the chart, without calling out an engineer.

Open the door and carry out the following suggested corrective actions.

Something not working

Remember to switch off the appliance before carrying out any corrective action.

Displayed message and

malfunction

Possible cause and solution

● message OPEN THE TAP displayed,

● point-shaped optical signal is flashing,

The dishwasher does not fill with water

● The water tap is blocked or furred with

limescale. Clean the water tap.

● The water inlet hose has not been

correctly laid or it is bent or squashed. Check the water drain hose connection.

● The filter (where present) in the threaded

hose fitting at the water inlet valve is blocked. Clean the filter in the threaded hose.

● The water tap is turned off.

Turn the water tap on.

● message DRAIN BLOCKED displayed,

● point-shaped optical signal is flashing,

The dishwasher will not drain

● The sink spigot is blocked.

Clean out the sink spigot.

● The water drain hose has not been

correctly laid or it is bent or squashed. Check the water drain hose connection.

● appears in the display,

● point-shaped optical signal is flashing,

Anti-flood device is activated

● Close the water tap and contact your

local Service Force Centre.

The flashing of the point-shaped optical signal on the floor beneath the dishwasher’s door will not be visible if the appliance has been installed higher up with a furniture door mounted flush.

Page 33

something not working electrolux 33

Malfunction Possible cause and solution

The programme does not start

● The dishwasher’s door has not been

properly closed. (Message PLEASE CLOSE DOOR displayed)

Close the door.

● The main plug is not plugged in.

Insert the main plug.

● Delay start has been set.

If dishes are to be washed immediately, cancel the delay start.

● The fuse has blown out in the household

fuse box. Replace the fuse.

Once these checks have been carried out; switch on the appliance and close the dishwasher door.

The programme will continue from the point at which it was interrupted.

If the message reappears in the display contact the Service Force Centre.

For other messages not described in the chart, please contact your Service Force Centre.

Contact your local Service Force Centre, quoting the model (Mod.), product number (PNC) and serial number (S.N.). This information can be found on the rating plate located on the side of the dishwasher door.

So that you always have these numbers at hand, we recommend you to make a note of them here:

Mod. : . . . . . . . . . . . . . . . . . . . . . . .

PNC :. . . . . . . . . . . . . . . . . . . . . . . .

S.N. :. . . . . . . . . . . . . . . . . . . . . . . .

Page 34

34 electrolux something not working

If after all these checks, the problem persists, contact your local Service Force Centre.

The wash results are not satisfactory

The dishes are not clean

●The wrong washing programme has been selected.

●The dishes are arranged in such a way as to stop water

reaching all parts of the surface. The baskets must not be overloaded.

●The spray arms do not rotate freely due to incorrect

arrangement of the load.

●The filters in the base of the washing compartment are

dirty or incorrectly positioned.

●Too little or no detergent has been used.

●Where there are limescales deposits on the dishes; the

salt container is empty or the incorrect level of the water softener has been set.

●The drain hose connection is not correct.

●The salt container cap is not properly closed.

The dishes are wet and dull

●Rinse aid was not used.

●The rinse aid dispenser is empty.

There are streaks, milky spots or a bluish coating on glasses and dishes

●Decrease rinse aid dosing.

Water drops have dries onto glasses and dishes

●Increase rinse aid dosing.

●The detergent may be the cause. Contact the detergent

manufacturer’s consumer care line.

Page 35

technical data electrolux 35

Technical data

Dimensions Width 59.6 cm

81.8 - 87.8 cm

55.5 cm

Height Depth

Water supply pressure Minimum 0.05 MPa

0.8 MPa

Maximum

Capacity 12 place settings Max. weight 45 kg Noise level 42 dB (A)

Electrical connection Voltage - Overall power Fuse

Information on the electrical connection is given on the rating plate on the inner edge of the dishwasher’s door

Subject to change without notice

Page 36

36 electrolux technical data

The consumption values are intended as a guide and depends on the pressure and the temperature of the water and also by the variations of the power supply and the amount of dishes.

Consumption values

Programme

duration

(in minutes)

Programme Energy

consumption

(in kWh)

Water

consumption

(in litres)

70° Intensive 1.8 - 2.0 23 - 25

Automatic 1.1 - 1.5 12 - 23

60° Quick 0.9 9

Plate Warmer 0.8 4

55° Quick 1.0 - 1.2 11 - 12

Energy

(Test programme for test institutes)

1.05 14

45° Glass 0.8 - 0.9 14 - 15

Prewash 0.1 4

The programme duration is visible in the display when the washing programme is selected.

Page 37

hints for test institutes electrolux 37

Hints for test institutes

Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Consumption values").

Test in accordance with EN 50242 must be carried out when the salt container and rinse aid dispenser have been filled with salt and rinse aid respectively and using the test programme (see "Consumption values").

Full load: 12 standard place settings

Amount of detergent required: 5 g + 25 g (Type B) Rinse aid setting: position 4 (Type III)

Arrangement upper basket

(take off the glass holder)

Arrangement lower basket

Arrangement cutlery

basket

Cup racks: position 2

Page 38

38 electrolux installation

Any electrical and/or plumbing work required to install this appliance should be carried out by a qualified electrician and/or plumber or competent person.

Remove all packaging before positioning the machine.

If possible, position the machine next to a water tap and a drain.

This dishwasher is designed to be fitted under a kitchen counter or worksurface.

Attention! Carefully follow the instructions on the enclosed template for building in the dishwasher and fitting the furniture panel.

No further openings for the venting of the dishwasher are required, but only to let the water fill and drain hose and power supply cable pass through.

The dishwasher incorporates adjustable feet to allow the adjustment of the height.

During all operations that involve accessibility to internal components the dishwasher has to be unplugged.

When inserting the machine, ensure that the water inlet hose, the drain hose and the supply cable are not kinked or squashed.

Installation

Water supply connections

This dishwasher may be fed with either hot (max. 60°) or cold water. Nevertheless we advise you a cold water supply.

A hot water supply is not always efficient with very soiled crockery as it shortens the washing programmes a lot.

For making the connection itself, the coupling nut fitted to the machine’s supply hose is designed to screw onto a 3/4" gas thread spout or to a purpose made quick-coupling tap such as the Press-block.

The water pressure must be within the limits given in the "Technical specifications". Your local Water Authority will advise you on the average mains pressure in your area.

The water inlet hose must not be kinked, crushed, or entangled when it is being connected.

The dishwasher features fill and drain hoses which can be turned either to the left or the right to suit the installation by means of the locknut.

The locknut must be correctly fitted to avoid water leaks.

Levelling

Good levelling is essential for correct closure and sealing of the door. When the appliance is correctly levelled, the door will not catch on either side of the cabinet. If the door does not close correctly, loosen or tighten the adjustable feet until the machine is perfectly level.

Fixing to the adjacent units

The dishwasher must be secured against tilting. Therefore make sure that the counter it is fixed under, is suitably secured to a fixed structure (adjacent kitchen units cabinets, wall).

Page 39

installation electrolux 39

This appliance has been fitted with safety features which will prevent the water used in the appliance from returning back into the drinking water system. This appliance complies with the applicable plumbing regulations.

(Attention! NOT all models of dishwashers have fill and drain hoses provided with locknut. In this case, this kind of facility is not possible).

If the machine is connected to new pipes or pipes which have not been used for a long time, you should run the water for a few minutes before connecting the inlet hose.

DO NOT use connection hoses which have previously been used for an old appliance.

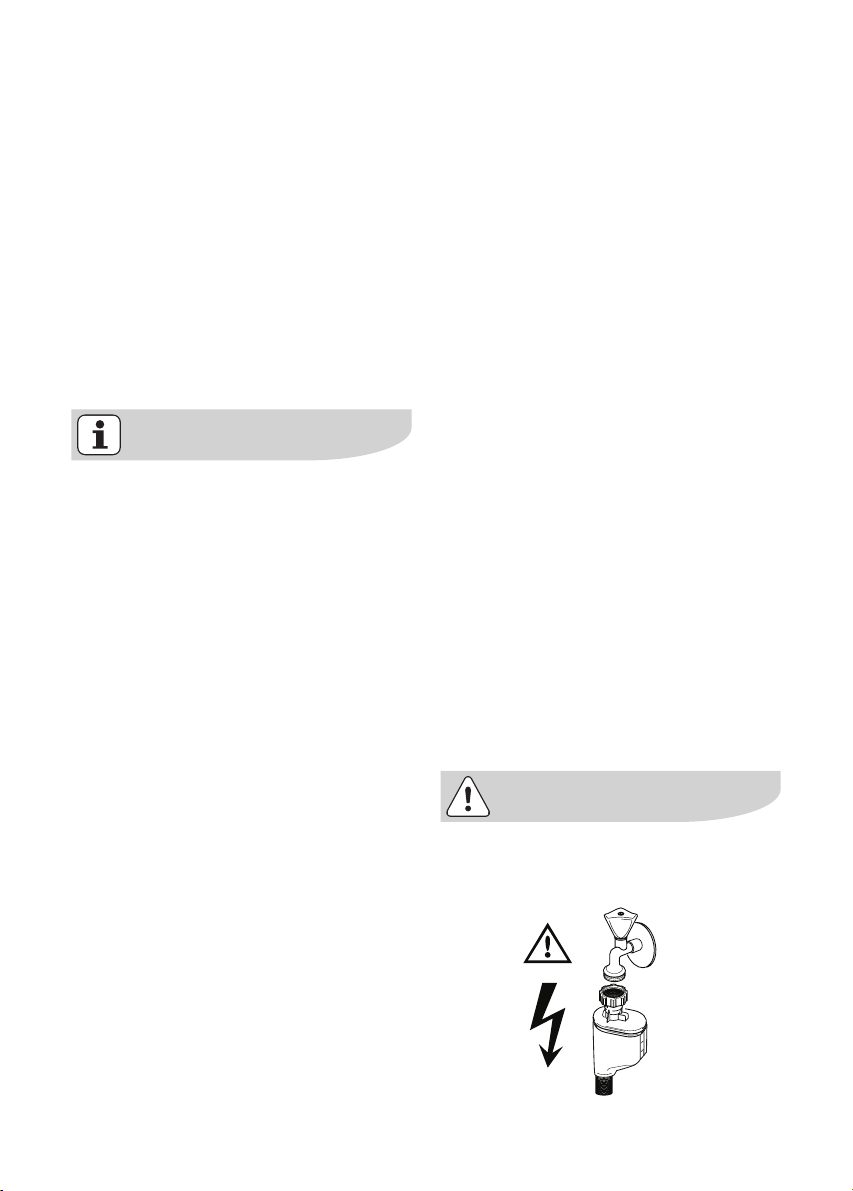

Water inlet hose with safety valve

After connecting the double-walled water inlet hose, the safety valve is next to the tap. Therefore the water inlet hose is only under pressure while the water is running. If the water inlet hose starts to leak during this operation, the safety valve cuts off the running water.

Please take care when installing the water inlet hose:

● The electrical cable for the safety

valve is in the double-walled water inlet hose. Do not immerse the water inlet hose or the safety valve in water.

● If water inlet hose or the safety

valve is damaged, remove the mains plug immediately.

● A water inlet hose with safety valve

must only be replaced by a specialist or by the Service Force Centre.

● Place the water inlet hose in such

a way that it is never higher than the bottom edge of the safety valve.

Warning! Dangerous voltage

Page 40

40 electrolux installation

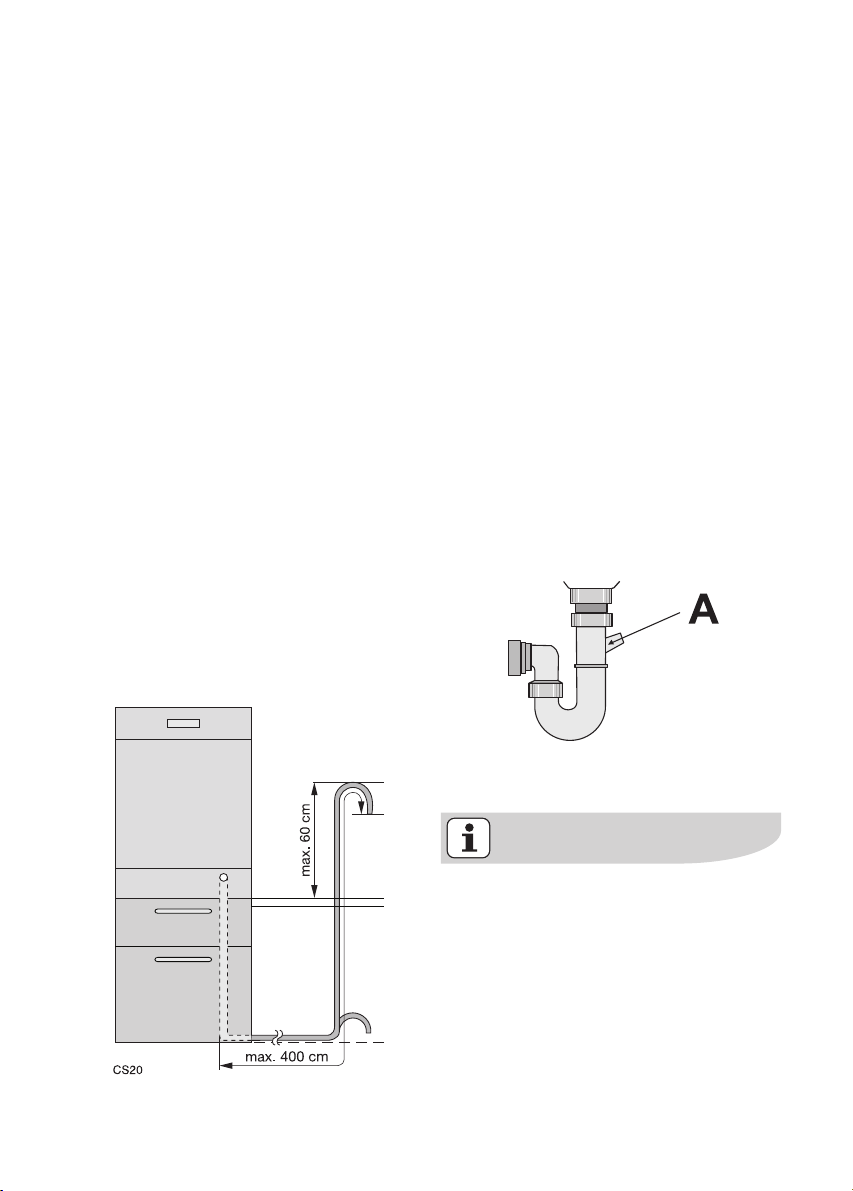

Water outlet hose connection

The end of the drain hose can be connected in the following ways:

1. To the sink outlet spigot, securing

it to the underside of the work surface. This will prevent waste water from the sink running into the machine.

2. To a stand pipe provided with vent-

hole, minimum internal diameter 4 cm.

The waste connection must be at a maximum height of 60 cm from the bottom of the dishwasher.

The drain hose can face either to the right or left of the dishwasher

Ensure the hose is not bent or squashed as this could prevent or slow down the discharge of water.

The sink plug must not be in place when the machine is draining as this could cause the water to syphon back into the machine.

The total length of the drain hose, including any extension you might add, must be no longer than 4 metres. The internal diameter of the extension hose must be no smaller than the diameter of the hose provided.

Likewise the internal diameter of the couplings used for connections to the waste outlet must be no smaller than the diameter of the hose provided.

Our appliances are supplied with a security device to protect against the return of dirty water back into the machine. If the spigot of your sink has a "no return valve" incorporated this can prevent the correct draining of your dishwasher. We therefore advise you to remove it.

When connecting the drain hose to an under sink trap spigot, the entire

plastic membrane (A) must be removed. Failure to remove all the

membrane will result in food particles building up over time eventually blocking the dishwasher drain hose spigot

Page 41

installation electrolux 41

Electrical connection

Safety standards require the appliance to be earthed.

Prior to using the appliance for the first time, ensure that the rated voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed. The fuse rating is also to be found on the rating plate.

Always plug the mains plug into a correctly installed shockproof socket.

Multi-way plugs, connectors and extension cables must not be used. This could constitute a fire hazard through overheating.

If necessary, have the domestic wiring system socket replaced. In case that the electrical cable has to be replaced, contact your local Service Force centre.

The plug must be accessible after the appliance has been installed.

Never unplug the appliance by pulling on the cable. Always pull the plug.

The manufacturer accepts no liability for failure to observe the above safety precautions.

Page 42

42 electrolux environment concerns

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

When a unit is no longer being used:

- Pull the plug out of the socket.

- Cut off the cable and plug and

dispose of them.

- Dispose of the door catch. This

prevents children from trapping themselves inside and endangering their lives.

Environment concerns

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Page 43

guarantee/customer service electrolux 43

Guarantee/Customer Service

Standard guarantee conditions

We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

● The appliance has been correctly

installed and used only on the electricity supply stated on the rating plate.

● The appliance has been used for

normal domestic purposes only, and in accordance with the manufacturer's instructions.

● The appliance has not been

serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

● Electrolux Service Force Centre

must undertake all service work under this guarantee

● Any appliance or defective part

replaced shall become the Company's property.

● This guarantee is in addition to

your statutory and other legal rights.

Exclusions

● Damage or calls resulting from

transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

● Costs incurred for calls to put right

an appliance which is improperly installed or calls to appliances outside the United Kingdom.

● Appliances found to be in use

within a commercial environment, plus those which are subject to rental agreements.

● Products of Electrolux

manufacturer that are not marketed by Electrolux.

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning

0870 5 929 929

Your telephone call will be automatically routed to the Service Force Centre covering your postcode area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at

www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading ‘Something not working’

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and postcode.

2. Your telephone number.

3. Clear concise details of the fault.

Page 44

44 electrolux guarantee/customer service

4. The model and Serial number of

the appliance (found on the rating plate).

5. The purchase date.

Please note a valid purchase receipt or guarantee documentation is required for in guarantee service calls.

Customer Care

For general enquiries concerning your Electrolux appliance, or for further information on Electrolux products please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk

Customer Care Department Electrolux Major Appliances Addington Way Luton Bedfordshire, LU4 9QQ

Tel: 08705 950 950 (*)

(*) Calls may be recorded for training purposes

For Customer Service in The Republic of Ireland please contact us at the address below:

Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland

Tel: + 353 (0)1 40 90 753 Email: [email protected]

European guarantee

This appliance is guaranteed by Electrolux, in each of the countries listed in the following page, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of these countries the appliance guarantee will move with you subject to the following qualifications:

● The appliance guarantee starts

from the date you first purchased the appliance which will be evidenced by production of a valid purchase document issued by seller of the appliance.

● The appliance guarantee is for the

same period and to the same extent for labour and parts as exists in your country of residence for this particular model or range of appliances.

● The appliance guarantee is

personal to the original purchaser of the appliance and cannot be transferred to another user.

● The appliance is installed and

used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.

● The appliance is installed in

accordance with all relevant regulations in force within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

Page 45

guarantee/customer service electrolux 45

www.electrolux.com

Albania +35 5 4 261 450 Rr. Pjeter Bogdani Nr. 7 Tirane Belgique/België/Belgien +32 2 363 04 44 Bergensesteenweg 719, 1502 Lembeek

Danmark +45 70 11 74 00 Sjællandsgade 2, 7000 Fredericia

Eesti +37 2 66 50 030 Mustamäe tee 24, 10621 Tallinn

France www.electrolux.fr

Hellas +30 23 10 56 19 70 4 Limnou Str., 54627 Thessaloniki

Ireland +353 1 40 90 753 Long Mile Road Dublin 12

Latvija +37 17 84 59 34 Kr. Barona iela 130/2, LV-1012, Riga

Luxembourg +35 2 42 43 13 01 Rue de Bitbourg, 7, L-1273 Hamm

Nederland +31 17 24 68 300 Vennootsweg 1, 2404 CG - Alphen aan den Rijn

Österreich +43 18 66 400 Herziggasse 9, 1230 Wien

Schweiz/Suisse/Svizzera +41 62 88 99 111 Industriestrasse 10, CH-5506 Mägenwil

Portugal +35 12 14 40 39 39 Quinta da Fonte - Edificio Gonçalves Zarco -

Q 35 - 2774 - 518 Paço de Arcos

Hrvatska +385 1 63 23 338 Slavonska avenija 3, 10000 Zagreb

Italia +39 (0) 434 558500 C.so Lino Zanussi, 26 - 33080 Porcia (PN)

Lietuva +370 5 27 80 609 Verki˜ 29, LT-09108 Vilnius

Magyarország +36 1 252 1773 H-1142 Budapest XIV, Erzsébet királyné útja 87

Norge +47 81 5 30 222 Risløkkvn. 2, 0508 Oslo

Polska +48 22 43 47 300 ul. Kolejowa 5/7, Warsaw

Romania +40 21 451 20 30 Str. Garii Progresului 2, S4, 040671 RO

Slovenija +38 61 24 25 731 Electrolux Ljubljana, d.o.o.

Gerbičeva, 1000 Ljubljana

Slovensko +421 2 43 33 43 22 Electrolux Slovakia s.r.o., Electrolux

Domáce spotrebiče SK, Seberíniho 1, 821 03 Bratislava

Deutschland +49 180 32 26 622 Muggenhofer Str. 135, 90429 Nürnberg

España +34 902 11 63 88 Carretera M-300, Km. 29,900

Alcalá de Henares Madrid

Great Britain +44 8705 929 929 Addington Way, Luton, Bedfordshire

LU4 9QQ

Česká republika +420 2 61 12 61 12 Budějovická 3, Praha 4, 140 21

Suomi www.electrolux.fi Sverige +46 (0)771 76 76 76 Electrolux Service, S:t Göransgatan 143,

S-105 45 Stockholm

–ÓÒÒËˇ +7 495 9377837 129090 ГУТН‚‡, ŒОЛПФЛИТНЛИ ФУТФВНЪ,

16 ¡ч СŒОЛПФЛНо

Türkiye +90 21 22 93 10 25 Tarlabaﬂ› caddesi no : 35 Taksim Istanbul

Page 46

46 electrolux

Notes

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 47

Page 48

117989 78/0-00-03022007

www.electrolux.com

www.electrolux.co.uk
