Page 1

Dishwasher

Instruction book

Model ESI 9112

www.video.uk.electrolux.com

08/05

Page 2

Safety instructions 3 Disposal 3 Economical and ecological dishwashing 3 Description of the appliance 4 The control panel 5

Audible signals 6 Prior to using for the first time 7

The water softener 7 Filling with dishwasher salt 8 Rinse aid 8

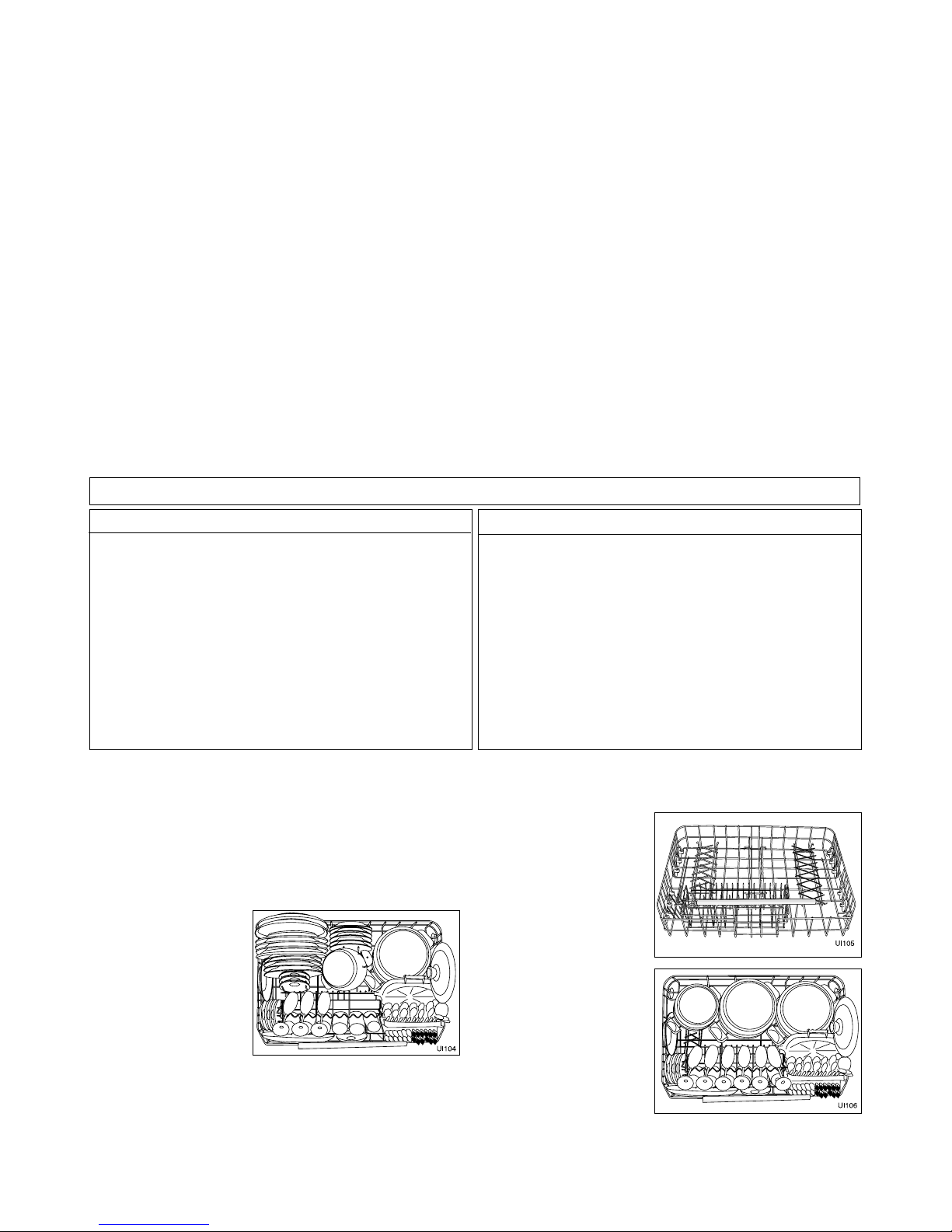

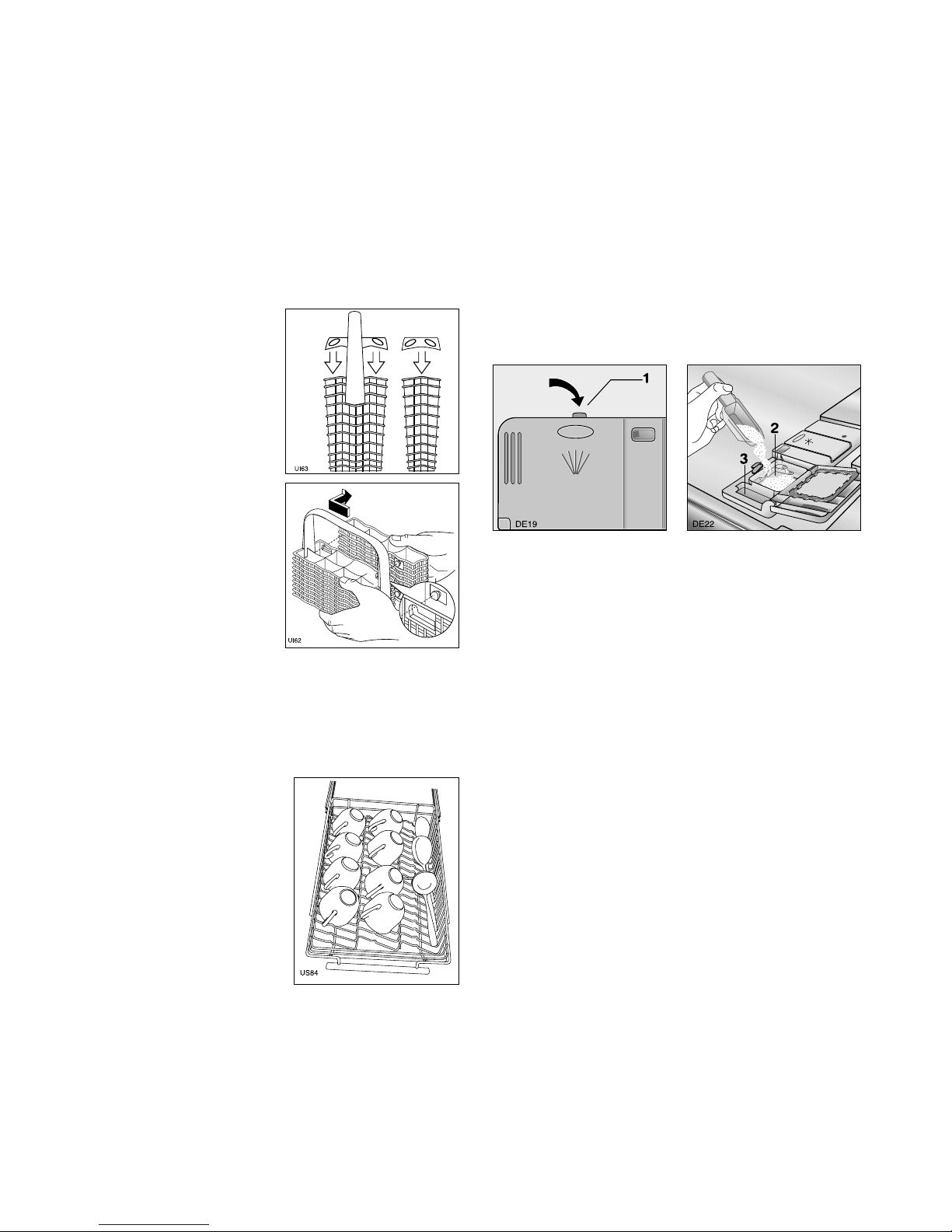

In daily use 9 Loading cutlery and dishes 9 The lower basket 9 The cutlery basket 10 The upper basket 10 Use of detergent 10

Different kinds of detergent 11 Washing programmes 12 Starting a washing programme 13 Maintenance and cleaning 14

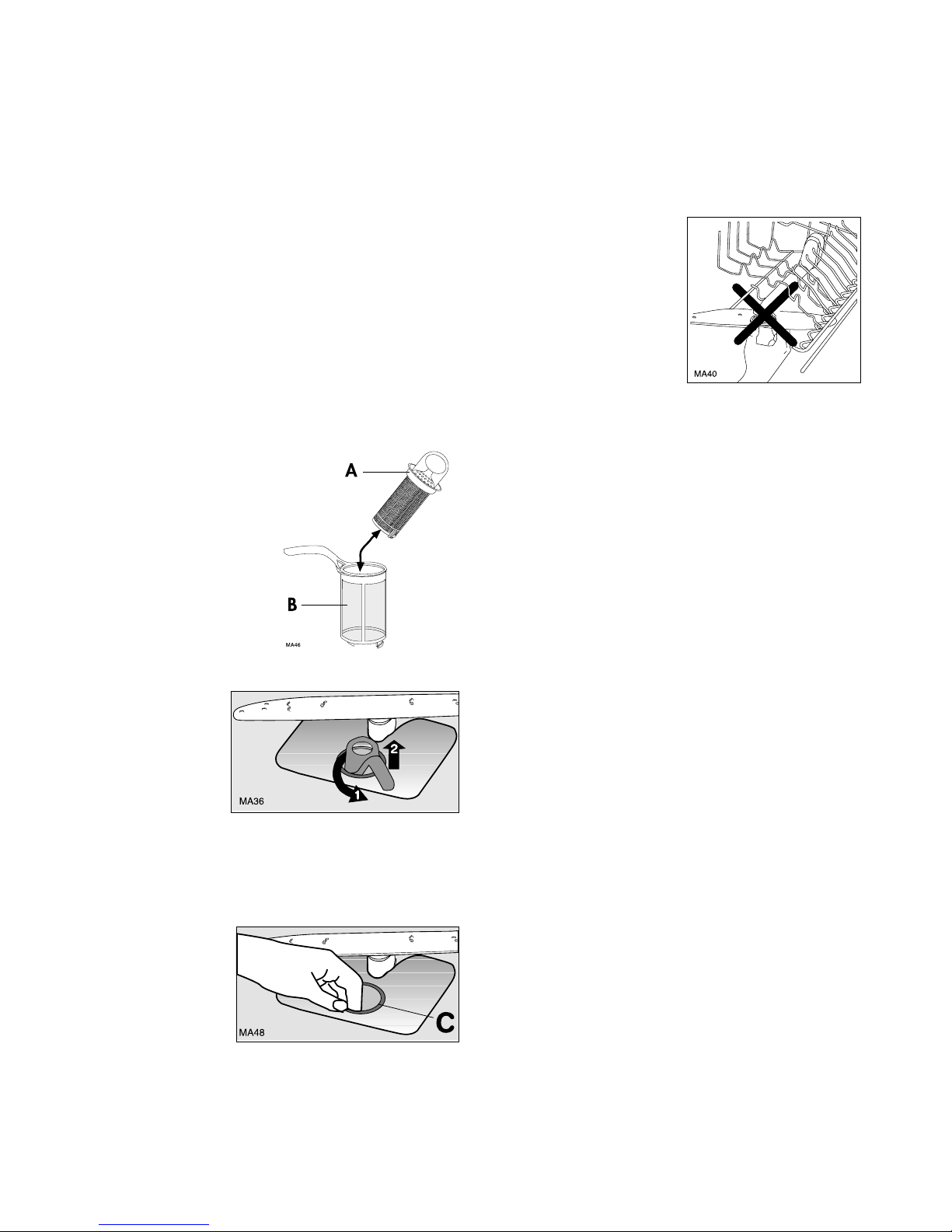

Cleaning the filters 14 Prolonged periods of non-operation 14 Frost precautions 14 Moving the machine 14

Something not working 15 Service and Spare Parts 17 Customer Care Department 17 Guarantee Conditions 18

Installation instructions 19

Building-in 19 Levelling 19 Fixing to the adjacent units 19 Water supply connections 19 Water inlet hose with safety valve 19 Water outlet hose connection 20 Electrical connection 20

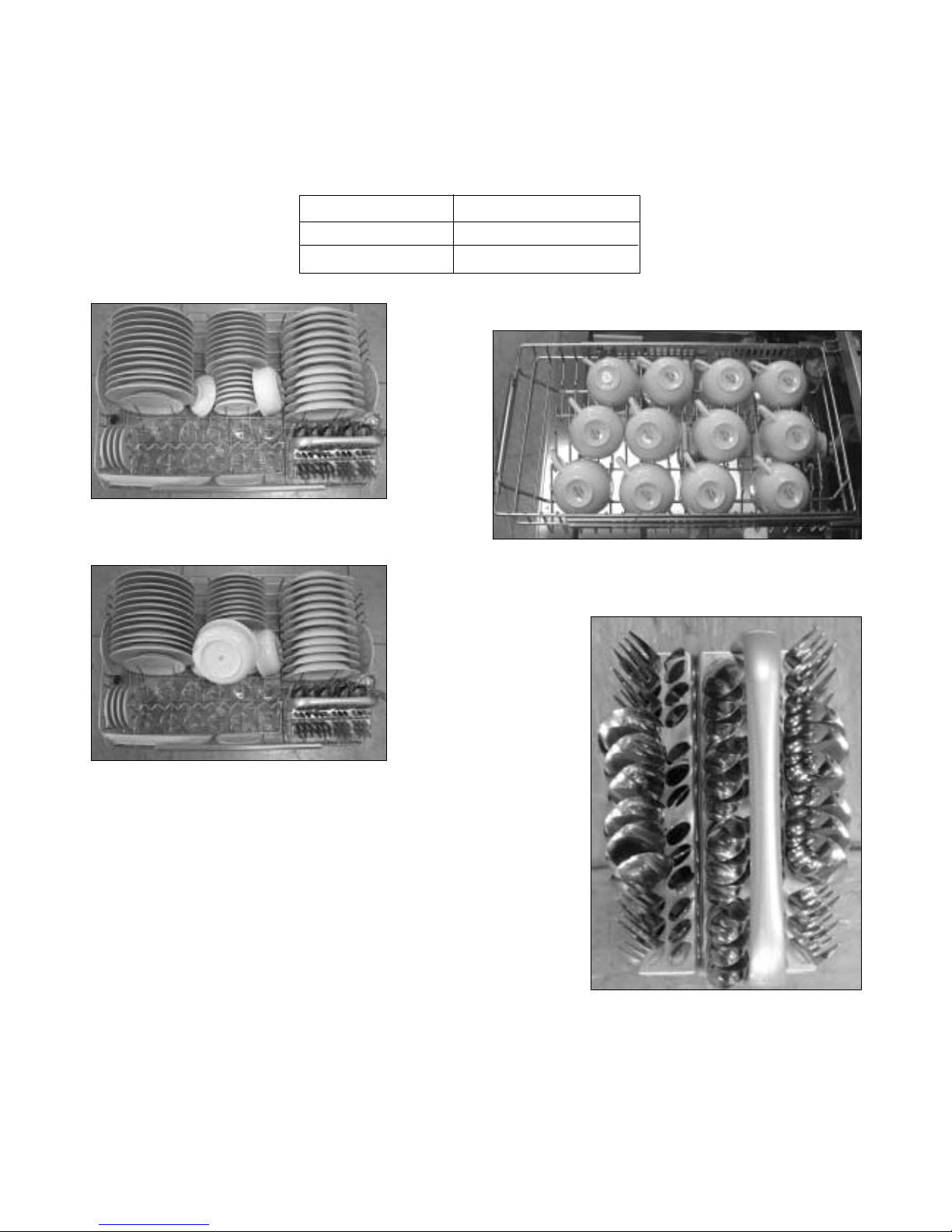

Hints for test centres 21

Contents

Dimensions Width 89.7 cm

Height 69.8 - 73.3 cm Max depth 57.8 cm Max depth with open door 105 cm Max weight of the dishwasher without load 74 kg

Electrical connection: Information on the electrical connection is given on the rating plate on the Voltage inner edge of the dishwasher’s door. Overall power Fuse

Water supply pressure Minimum 50 kPa (0.5 bar)

Maximum 800 kPa (8 bar)

Capacity 12 place settings

Technical specifications

This appliance complies with the following E.E.C. Directives:

- 73/23 or 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 or 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Page 3

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the appliance.

If you are unsure about any aspect of the information in this book, please contact our customer care department on 08705 950 950

Installation

● Check your dishwasher for any transport damage. Never

connect a damaged machine. If your dishwasher is damaged, you should contact your supplier.

● For safety reasons it is dangerous to alter the specifications

or attempt to modify this product in any way.

● Any electrical and plumbing work required to install this

appliance should be carried out by a qualified and competent person.

● Care must be taken to ensure that the appliance does not

stand on the electrical supply cable.

● The sides of the dishwasher must never be drilled to

prevent damage to hydraulic components.

Child safety

● This appliance is designed to be operated by adults.

● Children should not be allowed to tamper with the controls

or play with the product.

● Ensure the packaging materials for this appliance are kept

away from children so as to prevent the risk of injury or suffocation.

● The water in your dishwasher is not for drinking. Detergent

residues may still be present in your machine. Keep children well away from your dishwasher when the door is open.

● Keep all detergents in a safe place out of children's reach.

Your dishwasher in day-to-day use

● Items that are contaminated by petrol, paint, steel or iron

debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.

● Under no circumstances should you open the door whilst

the appliance is in operation, especially during the washing phase, hot water may escape. However, if the door is opened, a safety device ensures that the machine stops.

● Only use products (detergent, salt and rinse aid) specifically

designed for use in dishwashers.

● Long bladed knives stored in an upright position are a

potential hazard.

● Long and/or sharp items of cutlery such as carving knives

must be positioned horizontally in the upper basket.

● Ensure that the door of the dishwasher is always closed

when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.

● When finishing loading or unloading close the door, as an

open door can be a hazard.

● Do not sit or stand on the open door.

● Isolate the appliance from the power supply and turn off the

water supply after use.

● This product should be serviced by an authorised service

engineer, and only genuine spare parts should be used.

● Under no circumstances should you attempt to repair the

machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

Disposal

Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled.

Plastic parts are marked with standard international abbreviations:

>PE< for polyethylene, e.g. sheet wrapping material. >PS< for polystyrene, e.g. padding material (always CFC-

free).

>POM< for polyoxymethylene, e.g. plastic clips. Cardboard packaging is manufactured from recycled paper

and should be deposited in the waste paper collection for recycling.

As and when you cease to use your dishwasher and withdraw it from service, your should render it unserviceable before having it disposed of.

Warning! Children at play could lock themselves in your dishwasher or otherwise endanger their lives. Therefore cut off the power supply cable and make the door closing device unusable to prevent children from being trapped inside.

For the disposing of the appliance please take it to a recycling centre or to your dealer who may, for a small contribution to the costs, dispose it for you.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Economical and ecological dishwashing

● Ensure that the water softener is correctly adjusted.

● Do not pre-wash under running water.

● Select the wash programme to suit the nature and degree of

the soiling on the dishes.

● Do not use more detergent, dishwasher salt and rinse aid

than is recommended in these operating instructions and by the manufacturer of the respective product.

Safety instructions

Page 4

Description of the appliance

1. Internal lights

2. Upper basket

3. Water hardness dial

4. Salt container

5. Detergent dispenser

6. Rinse aid dispenser

7. Control panel

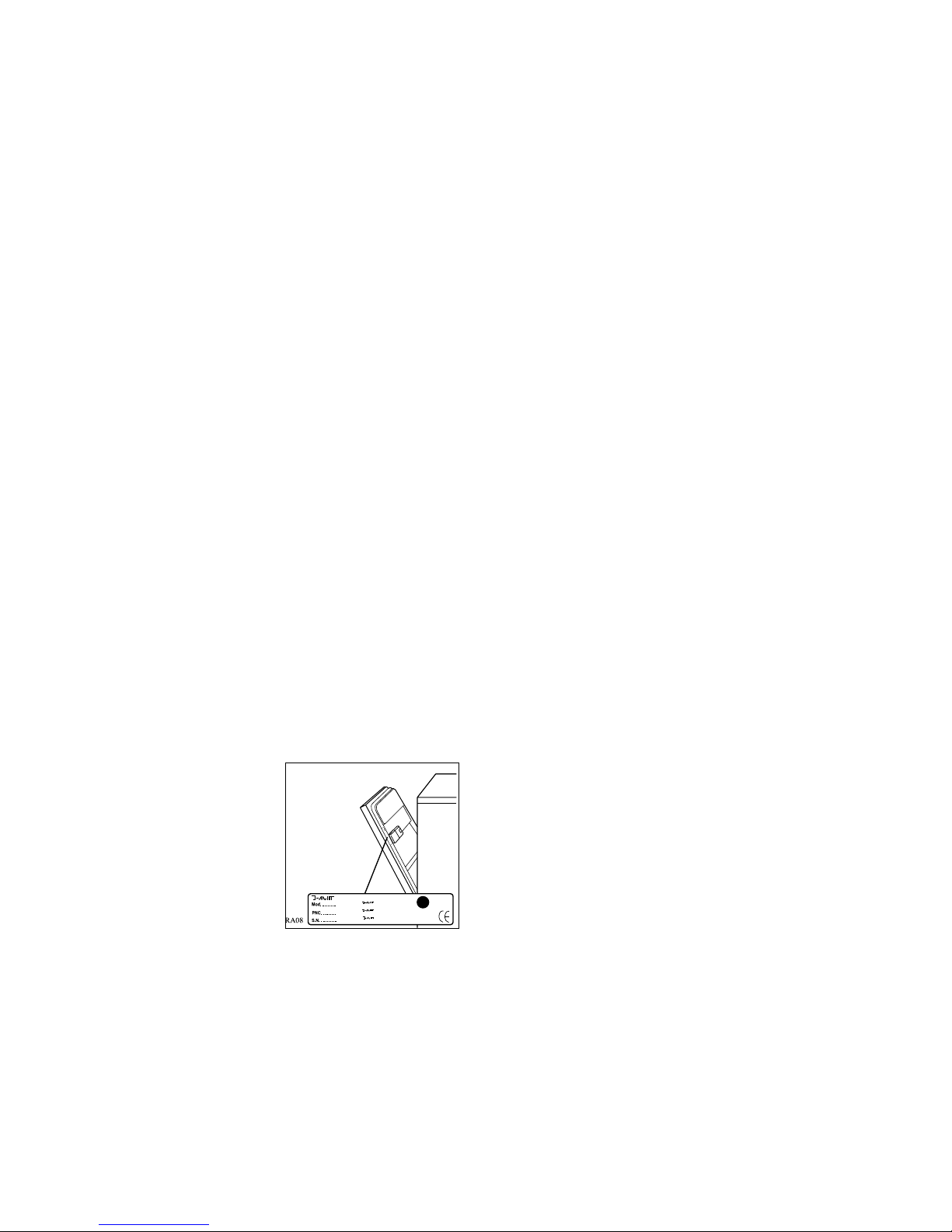

8. Rating plate

9. Filters

10. Lower spray arms

11. Upper spray arm

NOTE: this dishwasher has internal lights

that turn on and off when the opening and closing of the dishwasher’s door occurs. In the case that these lights have to be replaced, please contact your local Service Force Centre.

Page 5

The control panel

Function buttons: in addition to the selection of the

washing programme, "half load" option and "delay start" option, the following functions can also be set with the help of these buttons:

- the setting of the water softener,

- activation/deactivation of the rinse aid dispenser,

- deactivation/activation of the audible signals.

"Programme selection" button: allows the selection

of the desired washing programme (see "Washing programmes" chart).

"Delay start" button: this option allows the start of the

programme to be delayed from 1 to 19 hours.

The digital display indicates:

- the level of hardness to which the water softener is set,

- if the rinse aid dispenser is activated/deactivated,

- if the audible signals are activated/deactivated,

- the number corresponding to the selected washing programme,

- the approximate remaining time of the washing programme,

- the end of the programme (a zero will appear in the digital display),

- the countdown of the delay start,

- fault codes concerning malfunction of the dishwasher.

"Cancel" button: it allows to cancel:

- a washing programme in progress,

- a delay start in progress.

"Half load" button: this option is useful and economical

when only a few dishes need washing reducing the consumption of water and energy. This option must be linked to the selection of a washing programme.

Remember to load both baskets. With the use of this function, the cycle durations change. In

this case, in the digital display, the indication of the running time of the programme is automatically updated.

With only some programmes this option is available (See

"Washing programmes" chart).

"Extra rinse" button : this option allows to add another

rinse before the last hot rinsing phase. Using this function will increase the consumption of water of about 3,5 - 3 litres.

With the use of this function, the cycle durations change. In this case, in the digital display, the indication of the running time of the programme is automatically updated.

This option is only available with some washing programmes (see Washing programmes chart).

Indicator lights: have the following meanings:

"Half load" option - button activated available - indicator light on

"Half load" option - button deactivated not available - indicator light off

"Extra rinse" option - button activated available - indicator light on

"Extra rinse" option - button deactivated not available - indicator light off

salt refilling indicator light: illuminates when the salt

has run out rinse aid refilling indicator light: illuminates when

the rinse aid has run out end of programme indicator light: illuminates when

the washing programme has ended

3 in 1 button

Function buttons

Indicator lights

Digital display

Programme selection button

On/Off button

Half load button

Delay start button

Extra rinse button

Cancel button

Page 6

3 in 1 button: This appliance is equipped with the 3 in 1

function, that allows the use of the "3 in 1" combi detergent

tablets. This function can be selected with all washing programmes. With the selection of this function the inflow of rinse aid and

salt from each respective supply container is automatically deactivated and also the indicator lights for salt and rinse aid are deactivated.

Select the 3 in 1 function before the set of a washing programme.

Once selected this function (button indicator light illuminated) it will remain active also for the following washing programmes, to deactivate the function, press the button (button indicator light off).

With the use of the 3 in 1 function, the cycle durations may change. In this case, in the digital display, the indication of the running time of the programme is automatically updated.

NOTE: Once the programme is running, the 3 in 1 function

can NO longer be changed. If you want to exclude the 3 in 1 function you have to cancel the programme setting (see

chapter "Starting a washing programme" - "Cancel a washing programme in progress") and then deactivate the 3 in 1 function. In this case you have to set a washing programme (and eventual options) again.

NOTE: With the use of this function together with programme

Plate Warmer, the drying results may not be optimum.

NOTE: if the drying results are not satisfactory we suggest to

reactivate the rinse aid dispenser. The activation/deactivation of the rinse aid dispenser can only be possible with the 3 in 1 function active.

Activation/deactivation of the rinse aid dispenser

(The dishwasher must be switched off)

When the rinse aid dispenser has been activated, also the rinse aid indicator light on the control panel is automatically activated.

1. Press the On/Off button. The indicator light of the

programme selection button will illuminate and 2 horizontal lines (--) are visible in the digital display (setting mode).

If the number of a programme (1 - 2 - 3 etc..) is visible in the display , this means that a washing programme is set. The programme must be cancelled: press the button cancel for about 2 seconds. 2 horizontal lines will appear in the digital display, this means that the set washing programme has been cancelled and the machine is now in setting mode.

2. Press simultaneously function buttons 2 and 3, the indicator

lights of the function buttons 1, 2 and 3 start flashing.

3. Press function button 2, the indicator lights of function

buttons 1 and 3 turn off while the indicator light of the button 2 goes on flashing, the digital display indicates the current setting.

4. To change the setting, press again function button 2, the

digital display indicates the new setting.

5. To memorise the operation, switch off the dishwasher by

pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode.

Audible signals

Audible signals have been introduced to help indicate which operations the dishwasher is performing:

- setting of the water softener

- end of programme

- intervention of an alarm due to malfunction

Deactivation/activation of the audible signals

(The dishwasher must be switched off)

Factory setting: audible signals activated

1. Press the On/Off button. The indicator light of the

programme selection button will illuminate and 2 horizontal lines (--) are visible in the digital display (setting mode).

2. Press simultaneously function buttons 2 and 3, the indicator lights of the function buttons 1, 2 and 3 start flashing.

3. Press function button 3, the indicator lights of function buttons 1 and 2 turn off while the indicator light of the button 3 goes on flashing, the digital display indicates the current setting.

4. To change the current setting, press again function button 3, the digital display will indicate the new setting.

5. To memorise the operation, switch off the dishwasher by pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode.

Audible signals deactivated

Audible signals activated (factory set)

Rinse aid dispenser deactivated

Rinse aid dispenser activated

Page 7

Before using your dishwasher for the first time:

1. Ensure that the electrical and water connections comply with the installation instructions

2. Remove all packaging from inside the appliance

3. Set the water softener

4. Pour 1 litre of water inside the salt container and then fill

with dishwasher salt

5. Fill the rinse aid dispenser

NOTE:

If you want to use the "3 in 1" combi detergents, read carefully the informations given in "Different kinds of detergents".

The water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

Water hardness is measured in equivalent scales, Clarke degrees, French degrees (°TH) and mmol/l (millimol per litre international unit for the hardness of water).

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

The water softener must be set in both ways: manually, using the water hardness dial and electronically, using the function buttons on the control panel.

a) Setting manually

1. Open the dishwasher door.

2. Remove the lower basket from the dishwasher.

3. Turn the water hardness dial to position 1 or 2 (see table).

4. Replace the lower

basket.

The dishwasher is factory set at position 2.

b) Setting electronically

(The dishwasher must be switched off)

NOTE: the electronic setting of the water softener is

possible ONLY with the 3 in 1 function deactivated. The dishwasher is factory set at level 5.

1. Press the On/Off button. The indicator light of the programme selection button will illuminate and 2 horizontal lines (--) are visible in the digital display (setting mode).

2. Press simultaneously function buttons 2 and 3, until the

indicator lights of the function buttons 1, 2 and 3 start flashing.

3. Press function button 1, the indicator lights of function

buttons 2 and 3 turn off while the indicator light of the button 1 goes on flashing, the digital display indicates the current level and a sequence of intermittent audible signals are heard. The current level is indicated by the number visible in the display and the number of intermittent audible signals heard.

Example:

displayed + 5 audible signals = level 5.

4. To change the level, press function button 1. Each time the

button is pressed the level changes. (For the selection of the new level see the chart).

Examples:

if the current level is 5, by pressing button 1 once, level 6 is selected. if the current level is 10, by pressing button 1 once, level 1 is selected.

5. To memorise the operation, switch off the dishwasher by pressing the On/Off button or wait about 60 seconds after which the dishwasher will automatically return to setting mode.

Prior to using for the first time

Clarke

°TH mmol/l Range

manually

electronically

64 - 88 53 - 63 46 - 52 36 - 45 28 - 35 23 - 27 18 - 22 13 - 17

5 - 12

< 5

9,0 - 12,5

7,6 - 8,9 6,5 - 7,5 5,1 - 6,4 4,0 - 5,0 3,3 - 3,9 2,6 - 3,2 1,9 - 2,5 0,7 - 1,8

< 0,7

IV IV IV IV IV III III

I/II

91 - 125

76 - 90 65 - 75 51 - 64 40 - 50 33 - 39 26 - 32 19 - 25

7 - 18

< 7

2 2 2 2 2 2 1 1 1 1

level 10

level 9 level 8 level 7 level 6 level 5 level 4 level 3 level 2 level 1

yes yes yes yes yes yes yes yes yes

9 8 7 6 5 4 3 2 1

Water hardness Adjusting the water

hardness setting

Level indicated

in the

digital display

Use

of salt

Number of

audible signals

Page 8

Filling with dishwasher salt

Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been spilt, remaining on the bottom of the machine for any period of time, which may cause corrosion.

To fill:

1. Open the door, remove the lower basket and unscrew the

cap of the salt container by turning it anticlockwise.

2. Pour 1 litre of water inside the container (this is necessary only before filling with salt for the first time).

3. Using the funnel provided,

pour in the salt until the container is full.

4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.

5. Replace the cap tightly turning it clockwise until it stops with a click.

The salt container will require topping up periodically. You are reminded of this by the salt indicator light on the control panel which comes on when the salt has finished.

The salt indicator light on the control panel can remain illuminated for 2-6 hours after the salt has been replenished, assuming the dishwasher remains switched on. If you are using salts that take longer to dissolve then this can take longer. The function of the machine is not affected.

Do not worry if water over flows from the unit when filling with salt, this is quite normal.

Rinse aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for between 16 and 40 dishwashing cycles, depending upon the dosage setting.

Filling with rinse aid

1. Open the container by pressing the release button (A).

2. Add the rinse aid until the container is completely full. The

maximum level for filling is indicated by "max".

Ensure that the lid is closed after every refill. Clean up any rinse aid spilt during filling with an

absorbent cloth to avoid excess foaming during the next wash.

Only use branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.

Adjusting the dose

According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (position 1 minimum dosage, position 6 maximum dosage).

The dose is factory set in position 4.

Increase the dose if there are drops of water or lime spots on the dishes after washing.

Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife blades.

Top up the rinse aid when the indicator light on the control panel illuminates.

Page 9

● Check if it’s necessary to refill with dishwasher salt or rinse

aid

● Load cutlery and dishes into the dishwasher.

● Fill with dishwasher detergent .

● Select a wash programme suitable for the cutlery and

dishes.

● Start the wash programme.

Loading cutlery and dishes

Sponges, household cloths and any object that can absorb water may not be washed in the dishwasher.

● Before loading the dishes, you should:

- Remove large left-overs.

- Soften remnants of burnt food in pans

● When loading the dishes and cutlery, please note:

- Dishes and cutlery must not impede the rotation of the spray arms .

- Load hollow items such as cups, glasses, pans, etc. with the opening downwards so that water cannot collect in the container or a deep base.

- Dishes and items of cutlery must not lie inside one another, or cover each other.

- To avoid damage to glasses, they must not touch.

- Lay small objects in the cutlery basket.

● Plastic items and pans with teflon have a tendency to

retain water drops; these items will not dry as well as porcelain and steel items.

Open the door and slide out the baskets to load the dishes.

The lower basket

The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc.

Arrange serving dishes and large lids (up to 33 cm in diameter) on the left-hand side of the basket, ensuring that the spray arms can turn freely.

The rows of prongs can be easily lowered to allow you to load pots, pans and bowls.

In daily use

For washing in the dishwasher the following cutlery/dishes

are of limited suitability:

- Only wash stoneware in the dishwasher if it is specifically marked as being dishwasher-safe by the manufacturer.

- Glazed patterns may fade if machine washed frequently

- Silver and aluminium parts have a tendency to discolour during washing. Residues, e.g. egg white, egg yolk and mustard often cause discolouring and staining on silver. Therefore always clean left-overs from silver immediately, if it is not to be washed straight after use.

- Some types of glass can become dull after a large number of washes

are not suitable:

- Cutlery with wooden, horn, china or mother-of-pearl handles

- Plastic items that are not heat resistant

- Older cutlery with glued parts that are not temperature resistant

- Bonded cutlery items or dishes

- Pewter or copper items

- Lead crystal glass

- Steel items prone to rusting

- Wooden platters

- Items made from synthetic fibres

Page 10

The cutlery basket

Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Take care when loading or unloading sharp items such as knives.

Forks and spoons should be placed in the removable cutlery basket with the handles facing downwards and the knives with their handles facing upwards. If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards.

Mix spoons with other cutlery to prevent them from sticking together.

For best results we recommend you to use the cutlery grids provided (if the size and dimensions of the cutlery allow it).

The cutlery basket is in two parts which can be separated to give greater loading flexibility. To separate the two parts, slide them horizontally in opposite directions and pull them apart. To reassemble, reverse the procedure.

The upper basket

The upper basket is designed for cups, long and/or sharp items of cutlery such as carving knives.

Before closing the door, ensure that the spray arms can rotate freely.

Use of detergent

Only use detergents specifically designed for use in dishwashers.

We recommend the use of Finish detergents. Using no more than the correct amount of detergent

contributes to reducing pollution. Please observe the manufacturer’s dosing and storage

recommendations as stated on the detergent packaging.

Fill with detergent

1. If the lid is closed: press release button (1). The lid springs

open.

2. Fill the detergent dispenser (2) with detergent. The marking indicates the dosing levels: 20 = approximately 20 g of detergent 30 = approximately 30 g of detergent

3. All programmes with prewash need an additional detergent dose (5/10 g) that must be placed in the prewash detergent chamber (3). This detergent will take effect during the prewash phase.

4. Close the lid and press until it locks in place.

Page 11

Detergent tablets

Detergent tablets from different manufactures dissolve at different rates. For this reason, some detergent tablets do not attain their full cleaning power during short washing programmes. Therefore please use long washing programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

Concentrated detergent

Today’s detergents for dishwashers are almost exclusively lowalkaline concentrated detergents with natural enzymes in tablet form.

Using 50°C washing programmes in conjunction with these concentrated detergents reduces pollution and is good for your dishes, as these washing programmes are specially matched to the dirt-dissolving properties of the enzymes in concentrated detergents. It is for this reason that using 50°C washing programmes in conjunction with concentrated detergents can achieve the same cleaning results that can otherwise only be achieved using 65°C washing programmes.

Use of "3 in 1" combi detergents

These products are detergents with a combined cleaning, rinsing and salt function.

1. Check whether these detergents are suitable for your water hardness. Follow the manufacturers instructions.

2. Set the "3 in 1" function.

3. Before the start of the washing programme put the "3 in 1"

detergent in the detergent dispenser.

NOTE: If the drying results are not satisfactory we recommend that you:

1. Fill up the rinse aid dispenser with rinse aid.

2. Activate the rinse aid dispenser and set the rinse aid

dosage to position 2.

If you decide to turn back to the use of the standard detergent system we advise that you:

● Deactivate the "3 in 1" function.

● Fill up the dispensers for salt and rinse aid again.

● Adjust the water hardness setting to the highest setting

perform up to 3 normal washing programmes without loading any dishes.

● Adjust the water hardness setting according to the

hardness of the water in your area.

● Adjust the rinse aid dosage.

NOTE: When using 4 in 1 detergents that integrate also anti-

glass corrosion agent into "3 in 1" formula, please follow the same instruction as given for "3 in 1" detergents above.

Different kinds of detergent

BRILLIANT

RILLIANT

FOR A

SHINE

RINSE

CONCENTRATED DISHWASHER DETERGENT

CTIO

DOUBLE

LIQUID GEL

POWDER

EASY

POURING

PACK

Page 12

Washing programmes

Programme

Degree of soil

and

type of load

Options available

with the

programme

Heavy soil. Crockery, cutlery, pots and pans

Any. Partial load (to be completed later in the day).

Normal soil. Crockery and cutlery

Fresh soil. Crockery and cutlery

Normal soil. Crockery and cutlery

Cycle

description

(3) Consumption values

1 cold rinse (to avoid food scraps from sticking together).

This programme does not require the use of detergent.

Hot prewash Main wash up to 70°C 2 warm rinses 1 hot rinse Drying

(1) Ideal for washing crockery and cutlery of breakfast and dinner (fresh soil). This is the perfect daily programme, made to meet the needs of a

family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.

(2) Testing programme for EN 50242 (see "Hints for Test Centres). This programme, developed for the use of detergents with enzymes, allows you

to achieve, with reduced consumption of energy the same cleaning results that would otherwise be obtained only with the 65°C programmes and conventional detergents. To compensate the lower temperature, the duration of washing and drying have been extended.

(3) The consumption values are intended as a guide and depends on the pressure and the temperature of the water and also by the variations of

the power supply. The programme duration is visible in the digital display when the selection of the washing programme occurs.

Note:

With the set of the half load option, programmes 2 (Intensive 70°C), 3 (Normal 65°C with prewash) 5 (Intensive 65°C) and 8 (Delicate 55°C with prewash) the prewash phase is automatically excluded. (In this case the detergent dose for the prewash phase is no longer necessary).

With programme 7 (Economy 50°C) the duration of the washing phase will be reduced. When using this option we recommend to reduce the dose of detergent that is normally used for a complete load.

Intensive 70°C

Normal 65°C

no prewash

8. Delicate 55°C with prewash

Rinse and Hold

Normal soil. Delicate china, delicate crockery and glassware

Economy 50°C

(2)

11.

Glass 45°C

Energy

consumption

(in kWh)

Water

consumption

(in litres)

0,1

1,4

Light soil. Crockery , cutlery, pots and pans

1,0 14

This is a programme both designed to heat plates before serving or remove dust from dishes which have not been used for a long time

12.

Plate Warmer

1,0 4

1,0 10

1,3

2,2 - 2,5 25

2,0

half load

3 in 1

extra rinse

Normal soil. Crockery and cutlery

Cold prewash Main wash up to 65°C 2 warm rinses 1 hot rinse Drying

Hot prewash Main wash up to 65°C 2 warm rinses 1 hot rinse Drying

Cold prewash Main wash up to 50°C 1 cold rinse 1 hot rinse Drying

Cold prewash Main wash up to 55°C 1 cold rinse 1 hot rinse Drying

1 hot rinse. This programme does not

require the use of detergent.

Main wash up to 45°C 1 warm rinse 1 hot rinse Drying

Main wash up to 60°C 1 hot rinse

Main wash up to 65°C 2 warm rinses 1 hot rinse Drying

Normal 65°C

with prewash

2,0

half load

3 in 1

extra rinse

half load

3 in 1

extra rinse

Normal soil. Crockery, cutlery, pots and pans

Intensive 65°C

Quick Wash 60°C

(40 minutes)

(1)

2,2 24

half load

3 in 1

extra rinse

half load

3 in 1

extra rinse

3 in 1

extra rinse

half load

3 in 1

extra rinse

9. Delicate 55°C

no prewash

1,4

Light soil. Crockery and cutlery

Main wash up to 55°C 1 cold rinse 1 hot rinse Drying

half load

3 in 1

extra rinse

10.

Quick Wash 50°C

1,3 12

Light soil. Crockery and cutlery

Main wash up to 50°C 1 hot rinse

3 in 1

extra rinse

3 in 1

extra rinse

Page 13

In this fully integrated appliance the controls are located on the top of the door. When selecting a programme, the door needs to be open.

1. Check that the baskets have been loaded correctly and that the spray arms can rotate freely

2. Turn on the water tap

3. Press the On/Off button

The indicator light of the programme selection button will illuminate and 2 horizontal lines (--) are visible in the digital display.

4. Setting and starting the programme

To select a programme, press the programme selection button until the number of the desired programme appears in the digital display (see "Washing programmes" chart for the number of the programme).

Select, at the need, the options available with the selected programme (see "Washing programmes" chart for available options).

Close the dishwasher’s door, the programme will start automatically.

Setting and starting the programme with the delay start

Once selected the washing programme (and options) press the delay start button, the corresponding indicator light will illuminate and in the digital display appears 1 h.

Press the delay start button until in the digital display will appear the number of hours desired (from 1 hour up to 19 hours).

Close the dishwasher’s door, the countdown starts automatically and will decrease with steps of 1 hour.

The opening of the door will not modify or interrupt the countdown.

Once the delay start has elapsed the programme will start automatically.

NOTE: The start of the programme o the countdown of

the delay start will occur only after the closure of the door, until this moment you can modify the set made.

5. To interrupt or cancel a washing

programme in progress

Interrupt or cancel a washing programme in progress ONLY if it’s absolutely necessary

Attention! Hot steam may escape when the door is opened. Open the door carefully.

Interrupt a washing programme in progress

Open the dishwasher door; the programme will stop. Close the door; the programme will start from the point at which it was interrupted.

Cancel a washing programme in progress

Open the dishwasher door. Press for about 2 seconds the button cancel, the indicator

light of the programme selection button will illuminate and in the digital display will appear two horizontal lines (--) indicating that the running programme has been cancelled and that the machine has returned to setting mode.

It is now possible to select and start a new washing programme. (If a new washing programme is to be

selected, check that there is detergent in the detergent dispenser).

6. To cancel a delay start in progress

To cancel a delay start in progress you have to reset the dishwasher; follow the same instructions given in "Cancel a washing programme in progress".

Cancelling a delay start involves also the cancelling of the set washing programme (and eventual options).

In this case you have to set the washing programme (and options) again.

7. End of the washing programme

The dishwasher will automatically stop and an audible signal informs you of the end of the washing programme.

If the door is not immediately opened at the end of the programme, air will circulate inside the dishwasher to prevent residual steam recondensing on the dishes as water droplets.

This device operates intermittently for about 20 minutes, as long as the dishwasher is switched on.

If the On/Off button is pressed or the door is opened during these 20 minutes, the device will be automatically cancelled.

Open the dishwasher’s door, leave it ajar and wait a few minutes before removing the dishes; in this way they will be cooler and the drying will be improved.

In the digital display is visible 0 (remaining running time). The end of programme indicator light is illuminated. Switch off the dishwasher by pressing the On/Off button.

8. Unloading the dishwasher

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down before removing from the appliance.

Empty the lower basket first and then the upper one; this will avoid water dripping from the upper basket onto the dishes in the lower one.

Water may appear on the sides and the door of the dishwasher as the stainless steel will eventually become cooler than the dishes.

When the washing programme has finished, it is recommended that the dishwasher is unplugged and the water tap turned off.

Starting a washing programme

Page 14

Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or

solvent (acetone, trichloroethylene etc....).

Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth.

We recommend the use of Finish Dishwasher Cleaner every 3 months or run a 65°C wash programme without dishes using detergent.

Regular use of Finish Dishwasher Cleaner cleans inaccessible parts, eliminates unpleasant food odours and helps prevent the build-up of limescale.

Cleaning the filters

The filters must be checked and cleaned from time to time. Dirty filters will degrade the washing result.

1. Open the door, remove the lower basket.

2. The dishwasher filter system comprises a coarse filter (A),

a microfilter (B) and a flat filter (C). Unlock the filter system using the handle on the microfilter, and remove.

3. Turn the handle about

/4a turn anticlockwise and remove.

4. Take hold of the coarse filter ( A) by the handle with the hole

and remove from the microfilter (B).

5. Clean all filters thoroughly under running water.

6. Remove the flat filter (C) from the base of the washing

compartment and clean both faces thoroughly.

7. Put the flat filter (C) back in the base of the washing

compartment.

8. Place the coarse filter (A) in the microfilter (B) and

press together.

9. Put the filter combination in place and lock by turning the

handle clockwise to the stop. During this process ensure that the flat filter does not protrude above the base of the washing compartment.

Attention!

Under no circumstances may the dishwasher be used without filters. Incorrect repositioning and fitting of the filters will produce poor washing results.

NEVER try to remove the upper spray arm.

If residues of soil have clogged the holes in the upper spray arm, remove them with a cocktail stick.

Prolonged periods of non-operation

If you are not using the machine for any period of time you are advised to:

1. Unplug the appliance and then turn off the water.

2. Leave the door ajar to prevent the formation of any

unpleasant smells.

3. Leave the inside of the machine clean.

Frost precautions

Avoid placing the machine in a location where the temperature is below 0°C. If this is unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe and empty it.

Moving the machine

If you have to move the machine (moving house etc....):

1. Unplug it.

2. Turn the water tap off.

3. Remove the water inlet and discharge hoses.

4. Pull the machine out together with the hoses.

Avoid over tilting the machine during transportation.

Maintenance and cleaning

Page 15

Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the instructions given here, without calling out an engineer.

Important: If you call out an engineer to a fault listed below or to repair a fault caused by incorrect use or installation a charge will be made, even if the appliance is in guarantee.

Something not working

...a flashing fault code appears

The dishwasher will not start or stops during operation and a sequence of intermittent audible signals are heard. Open the dishwasher’s door. The intervention of an alarm is indicated by:

- the continuous flashing of the programme selection button,

- a fault code (as described in the chart) is visible in the digital display.

Carry out the following suggested corrective actions.

Once the checks have been carried out, to continue the programme, press the programme selection button and close the door. The programme will continue from the point at which it was interrupted. If the fault code reappears contact your local Service Force Centre.

For other combinations of fault codes not described in the above chart will appear, please contact your local Service Force Centre.

appears in the digital

display

The machine does not fill with water.

appears in the digital

display

The dishwasher will not drain.

appears in the digital

display

Fault code / malfunction Possible cause Solutions

The water tap is blocked or furred with limescale.

The water tap is turned off. The filter (where present) in the threaded hose

fitting at the water inlet valve is blocked. The water inlet hose has not been correctly laid

or it is bent or squashed.

Clean the water tap.

Turn the water tap on. Clean the filter in the threaded hose

fitting. Check the water inlet hose connection.

The sink spigot is blocked. Clean out the sink spigot. The water drain hose has not been correctly laid

or it is bent or squashed.

Check the water drain hose connection.

Anti-flood device is activated.

Close the water tap and contact your local Service Force Centre.

...there are problems when operating the dishwasher

The programme does not start

There is a whistling noise during washing

Malfunction Possible cause Solutions

The dishwasher door has not been properly closed.

The main plug is not plugged in. The fuse has blown in the household fuse box.

Close the door.

Insert the mains plug. Replace the fuse.

For dishwasher models with delay start option:

Delay start has been selected.

If dishes are o be washed immediately, cancel the delay start.

Use a different brand of detergent.

The whistling is not a cause for concern.

Page 16

...the wash results are not satisfactory

The dishes are not clean

● The wrong washing programme has been selected.

● The dishes were arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded.

● The spray arms do not rotate freely due to wrong arrangement of the load.

● The filters in the base of the washing compartment are dirty or incorrectly positioned.

● Too little or no detergent has been used.

● Where there are limescale deposits on the dishes; the salt container is empty or the wrong level of the water softener has been

selected.

● The drain hose connection is not correct.

● The salt container cap is not properly closed.

The dishes are wet and dull

● Rinse aid was not used.

● The rinse aid dispenser is empty.

There are streaks, milky spots or a bluish coating on glasses and dishes

● Decrease rinse aid dosing.

Water drops have dried onto glasses and dishes

● Increase rinse aid dosing.

● The detergent may be the cause. Contact the detergent manufacturer’s consumer care line.

If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model (Mod.), product number (PNC) and serial number (S.N.). This information can be found on the rating plate located on the side of the dishwasher door (see picture).

So that you always have these numbers at hand, we recommend you to make a note of them here:

Mod. : . . . . . . . . . . . . . . . . . .

PNC : . . . . . . . . . . . . . . . . . .

S.N. : . . . . . . . . . . . . . . . . . .

This product should be serviced by an authorised service engineer, and only genuine spare parts should be used. Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

Page 17

In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Service Force Centre by telephoning:

08705 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at

www

.serviceforce.co.uk

Before calling out an engineer, please ensure you read the details under the heading "Something not working".

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of the fault

4. The model and serial number of the appliance (found on the

rating plate)

5. The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

For Customer Service in The Republic of Ireland please contact us at the address below:

Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland

Tel: + 353 (0)1 4090751 Email: [email protected]

Customer Care Department

For general enquiries concerning your Electrolux appliance or for further information on Electrolux products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at:

www

.electrolux.co.uk

Customer Care Department

Major Appliances

Electrolux Addington Way Luton Bedfordshire LU4 9QQ Tel: 08705 950950 (

)

calls to this number may be recorded for training purposes

To buy accessories, consumables and spare parts at our online shop please visit: http://www.electrolux.co.uk

Service and Spare Parts

Page 18

Standard Guarantee Conditions

We, Electrolux, undertake that if within 12 months of the date of purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

● The appliance has been correctly installed and used only on

the electricity supply stated on the rating plate.

● The appliance has been used for normal domestic purposes

only, and in accordance with the manufacturer’s instructions.

● The appliance has not been serviced, maintained repaired,

taken apart or tampered with by any person not authorised by us.

● All service work under this guarantee must be undertaken by

a Service Force Centre.

● Any appliance or defective part replaced shall become the

Company’s property.

● This guarantee is in addition to your statutory and other legal

rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

● Damage or calls resulting from transportation, improper use

or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

● Costs incurred for calls to put right an appliance which is

improperly installed or calls to appliances outside the United Kingdom.

● Appliances found to be in use within a commercial

environment, plus those which are subject to rental agreements.

● Products of Electrolux manufacture which are not marketed

by Electrolux.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

● The guarantee starts from the date you first purchased your

product.

● The guarantee is for the same period and to the same extent

for labour and parts as exists in the new country of use for this brand or range of products.

● This guarantee relates to you and cannot be transferred to

another user.

● Your new home is within the European Community (EC) or

European Free Trade Area.

● The product is installed and used in accordance with our

instructions and is only used domestically, i.e. a normal household.

● The product is installed taking into account regulations in

your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliance.

France Senlis +33 (0) 344 62 20 13 Germany Nurenberg +49 (0) 800 234 7378 Italy Pordenone +39 (0) 800 11 7511 Sweden Stockholm +46 (0) 20 78 77 50 UK Luton +44 (0) 8705 950950 Ireland Dublin +353 (0)1 4090753

Guarantee Conditions

Page 19

Any electrical and/or plumbing work required to install this appliance should be carried out by a qualified electrician and/or plumber or competent person.

Remove all packaging before positioning the machine. If possible, position the machine next to a water tap and a

drain.

Building-in

This dishwasher is designed to be fitted under a kitchen counter or worksurface.

Attention!

Carefully follow the instructions on the enclosed template for building in the dishwasher and fitting the furniture panel.

No further openings for the venting of the dishwasher are required, but only to let the water fill and drain hose and power supply cable pass through.

The dishwasher incorporates adjustable feet to allow the adjustment of the height.

During all operations that involve accessibility to internal components the dishwasher has to be unplugged.

When inserting the machine, ensure that the water inlet hose, the drain hose and the supply cable are not kinked or squashed.

Levelling

Good levelling is essential for correct closure and sealing of the door.

When the appliance is correctly levelled, the door will not catch on either side of the cabinet.

If the door does not close correctly, loosen or tighten the adjustable feet until the machine is perfectly level.

Fixing to the adjacent units

The dishwasher must be secured against tilting. Therefore make sure that the counter it is fixed under, is suitably secured to a fixed structure (adjacent kitchen units cabinets, wall).

Water supply connections

This dishwasher must be plumbed into a cold water supply. For making the connection itself, the coupling nut fitted to the

machine’s supply hose is designed to screw onto a 3/4" inch gas thread spout.

The water pressure must be within the limits given in the "Technical specifications". Your local Water Authority will advise you on the average mains pressure in your area.

The water inlet hose must not be kinked, crushed, or entangled when it is being connected.

The inlet hose must hang down vertically from the supply tap. The dishwasher features fill and drain hoses which can be

turned either to the left or the right to suit the installation by means of the locknut. The locknut must be correctly fitted

to avoid water leaks. (Attention! NOT all models of dishwashers have fill and drain hoses provided with locknut. In this case, this kind of facility is not possible).

If the machine is connected to new pipes or pipes which have not been used for a long time, you should run the water for a few minutes before connecting the inlet hose.

Do not use, for connection, old hoses which have been used with another appliance.

The dishwasher is fitted with safety devices that prevent the wash water returning into the drinking water system and comply with the applicable plumbing regulations.

Water inlet hose with safety valve

After connecting the double-walled water inlet hose, the safety valve is next to the tap. Therefore the water inlet hose is only under pressure while the water is running. If the water inlet hose starts to leak during this operation, the safety valve cuts off the running water.

Please take care when installing the water inlet hose:

- The electrical cable for the safety valve is in the doublewalled water inlet hose. Do not immerse the water inlet hose or the safety valve in water.

- If water inlet hose or the safety valve is damaged, remove the mains plug immediately.

- Awater inlet hose with safety valve must only be replaced by a specialist or by the Service Force Centre.

- Place the water inlet hose in such a way that it is never higher than the bottom edge of the safety valve.

Installation instructions

Page 20

Water outlet hose connection

The end of the drain hose can be connected in the following ways:

1. To the sink outlet spigot, securing it to the underside of the work surface. This will prevent waste water from the sink running into the machine.

2. To a stand pipe provided with vent-hole, minimum internal diameter 4 cm.

The waste connection must be at a maximum height of 60 cm from the bottom of the dishwasher.

The drain hose can face either to the right or left of the dishwasher

Ensure the hose is not bent or squashed as this could prevent or slow down the discharge of water.

The sink plug must not be in place when the machine is draining as this could cause the water to syphon back into the machine.

The total length of the drain hose, including any extension you might add, must be no longer than 4 metres. The internal diameter of the extension hose must be no smaller than the diameter of the hose provided.

Likewise the internal diameter of the couplings used for connections to the waste outlet must be no smaller than the diameter of the hose provided.

Attention!

Our appliances are supplied with a security device to protect against the return of dirty water back into the machine. If the spigot of your sink has a "no return valve" incorporated this can prevent the correct draining of your dishwasher. We advise you therefore to remove it.

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any responsibility

should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for the socket, it must be cut off and the appropriate plug fitted.

Important

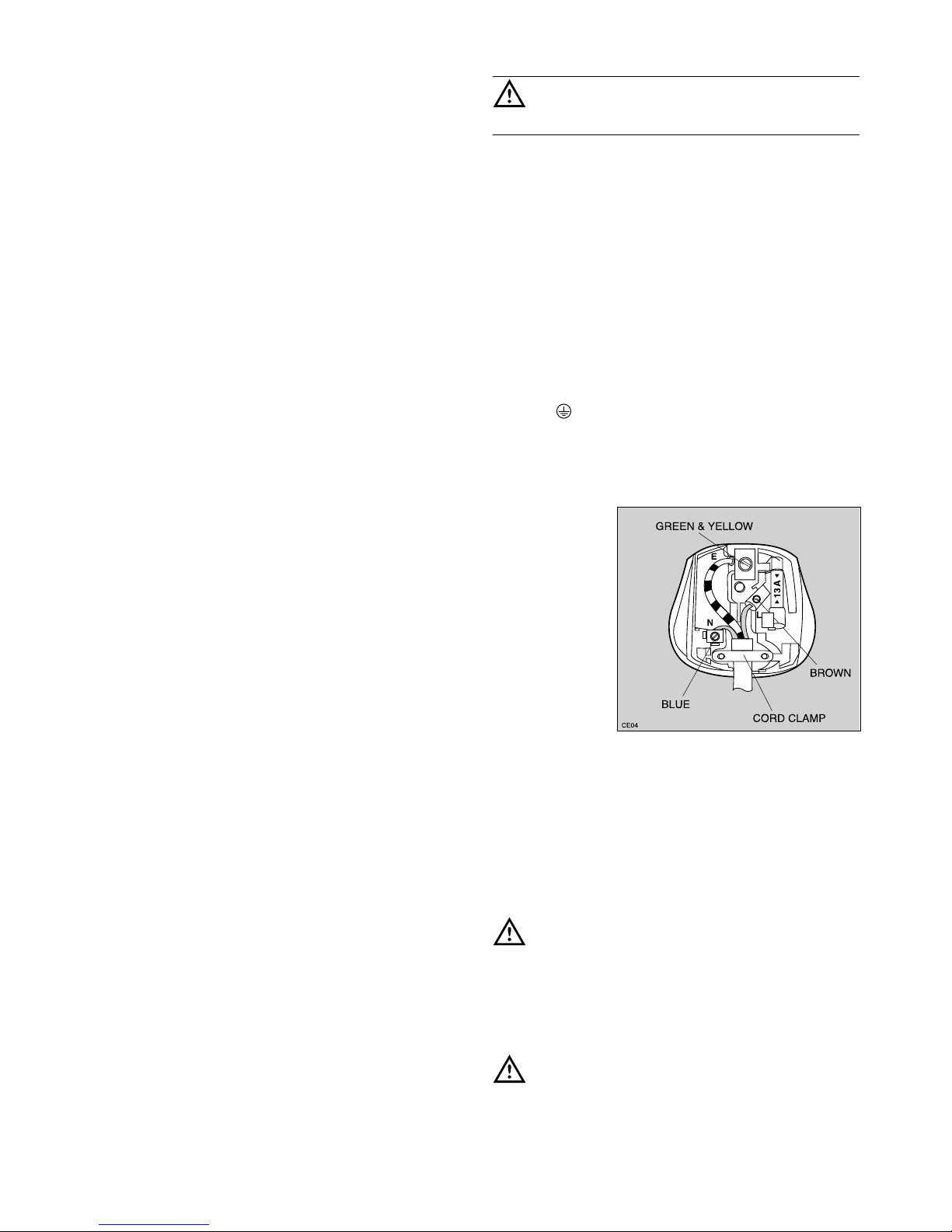

The wires on the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth Blue - Neutral Brown - Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug.

Proceed as follows:

1. Connect the Green and Yellow (earth) wire to the terminal

in the plug which is marked with the letter "E" or the earth symbol or coloured green and yellow.

2. Connect the Blue (neutral) wire to the terminal in the plug which is marked with the letter "N" or coloured black.

3. Connect the Brown (live) wire to the terminal in the plug which is marked with the letter "L" or coloured red.

The plug moulded onto the lead incorporates a 13amp BSI362 fuse. Only ASTAor BSI fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.

A replacement cover/carrier must be obtained from your local Service Force Centre.

To isolate the dishwasher from mains, remove the mains plug.

Important! The plug must still be accessible after the appliance has been installed.

The appliance should not be connected to the electrical supply by means of an extension cable.

In case that the electrical cable has to be replaced, please contact your local Service Force Centre.

Warning! A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that it is disposed of safely.

Page 21

Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Washing programmes" chart).

Test in accordance with EN 50242 must be carried out when the salt container and rinse aid dispenser have been filled with salt and rinse aid respectively and using the test programme (see "Washing programmes" chart).

Hints for test centres

Load: 12 standard place settings Rinse aid setting: position 4 (Type III) Detergent dosage : 30 g (Type B)

Arrangement upper basket

Arrangement lower basket

(without salad-bowl)

Arrangement lower basket

(with salad-bowll)

Arrangement cutlery basket

Page 22

Page 23

Page 24

152953 13/2

Subject to change without notice

Electrolux plc 2005

The Electrolux Group. The World’s No.1 choice.

The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. 14 billion USD in more than 150 countries around the world.

Electrolux - Major Appliances Addington Way Luton Bedfordshire LU4 9QQ
