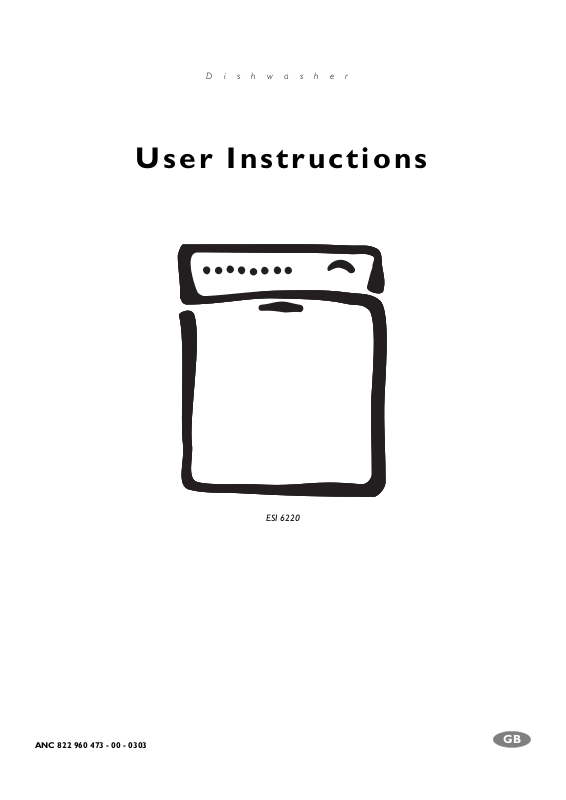

Page 1

Dishwasher

User Instructions

ANC 822 960 473 - 00 - 0303

ESI 6220

Page 2

Dear customer,

Please read these user instructions carefully. Above all please observe the safety instructions on the first few pages ofthese user instructions! Please keep these user instructions for later reference. Pass them on to any subsequent owner of the appliance.

In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the "What to do, if..." section. If these instructions are insufficient, please contact your nearest Service Force Centre. In this respect please read the "Service and Spare Parts"section at the rear of these user instructions.

The warning triangle and/or specific words (Warning!, Caution!, Important!) are used to highlight instructions that are important for your safety or for the function of the appliance. It is imperative that these instructions are observed. Numbered instruction steps lead you step by step through the operation of the appliance.

Next to this symbol you receive additional information and practical tips on using the appliance.

Tips and instructions for the economical and environmentally conscious use of the appliance are marked with a clover leaf.

You r dishwasher is fitted with the new "PULSE WASH" With this wash system, the motor speed and spray pressure are varied during the wash programme to improve the cleaning of the dishes. It is for this reason that the noise level changes during the wash programme.

wash system.

Page 3

Contents

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Economical and Ecological Dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Appliance Features and Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Adjusting the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Filling with Special Salt for the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

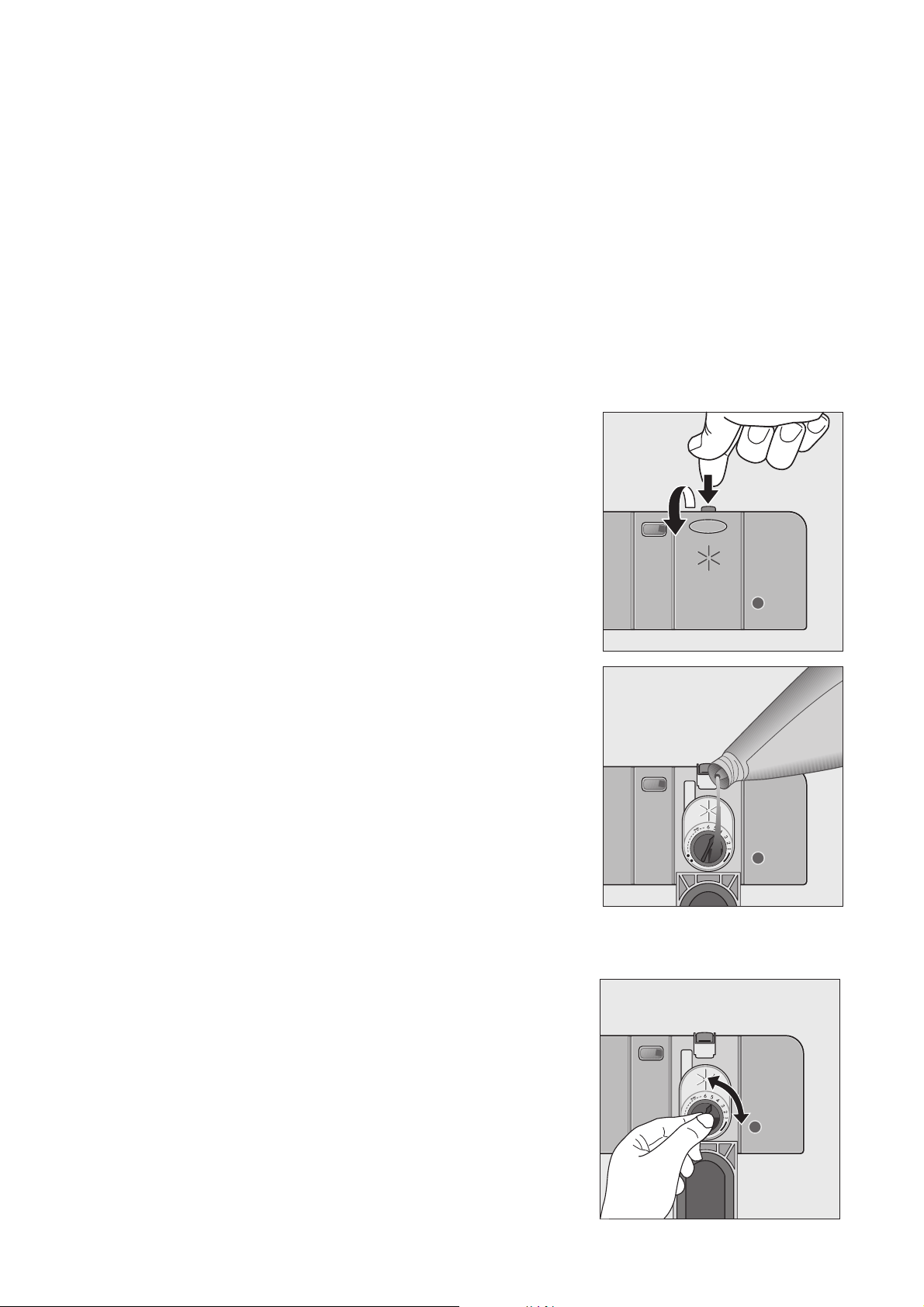

Filling with Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

In Daily Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Loading cutlery and dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

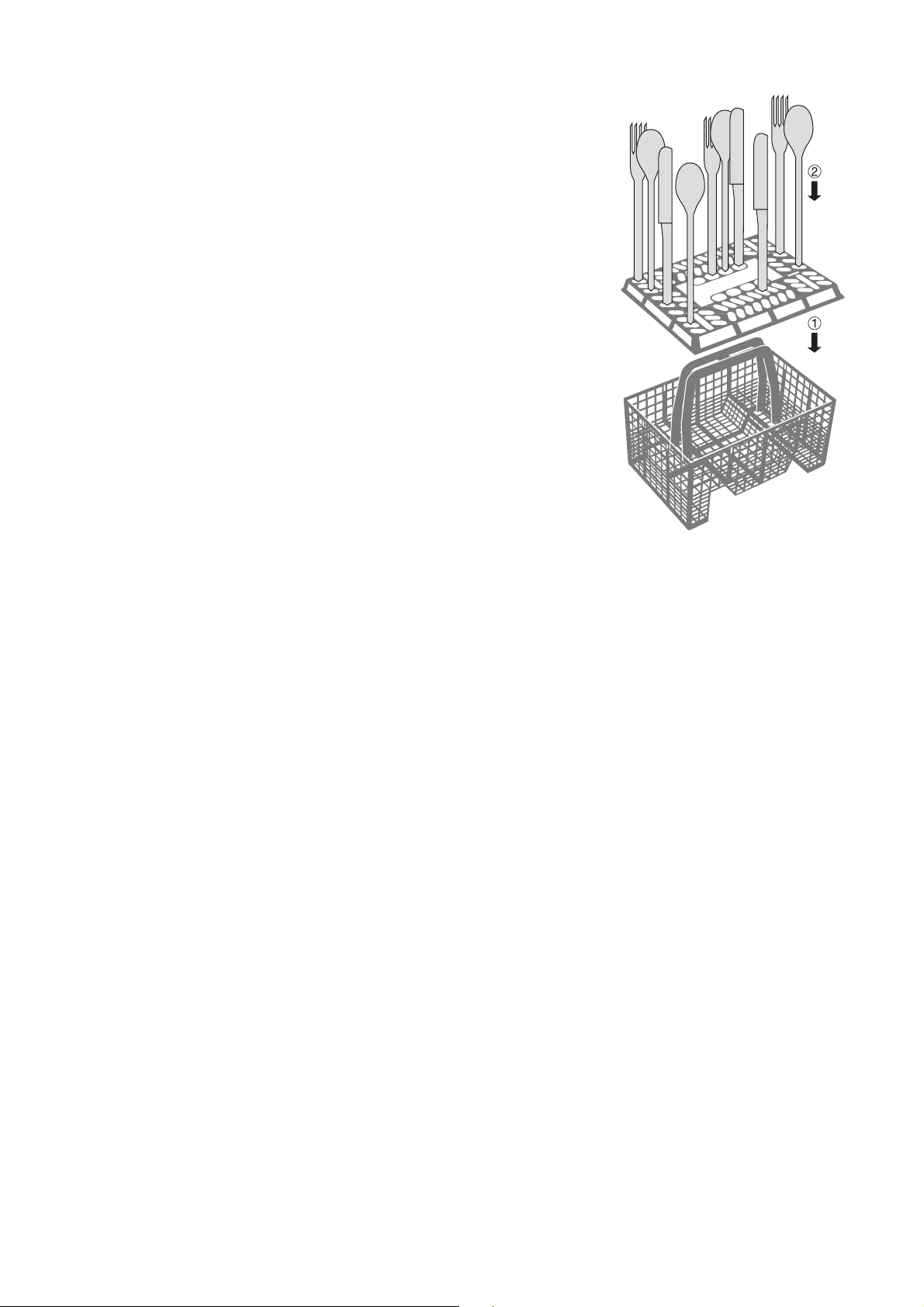

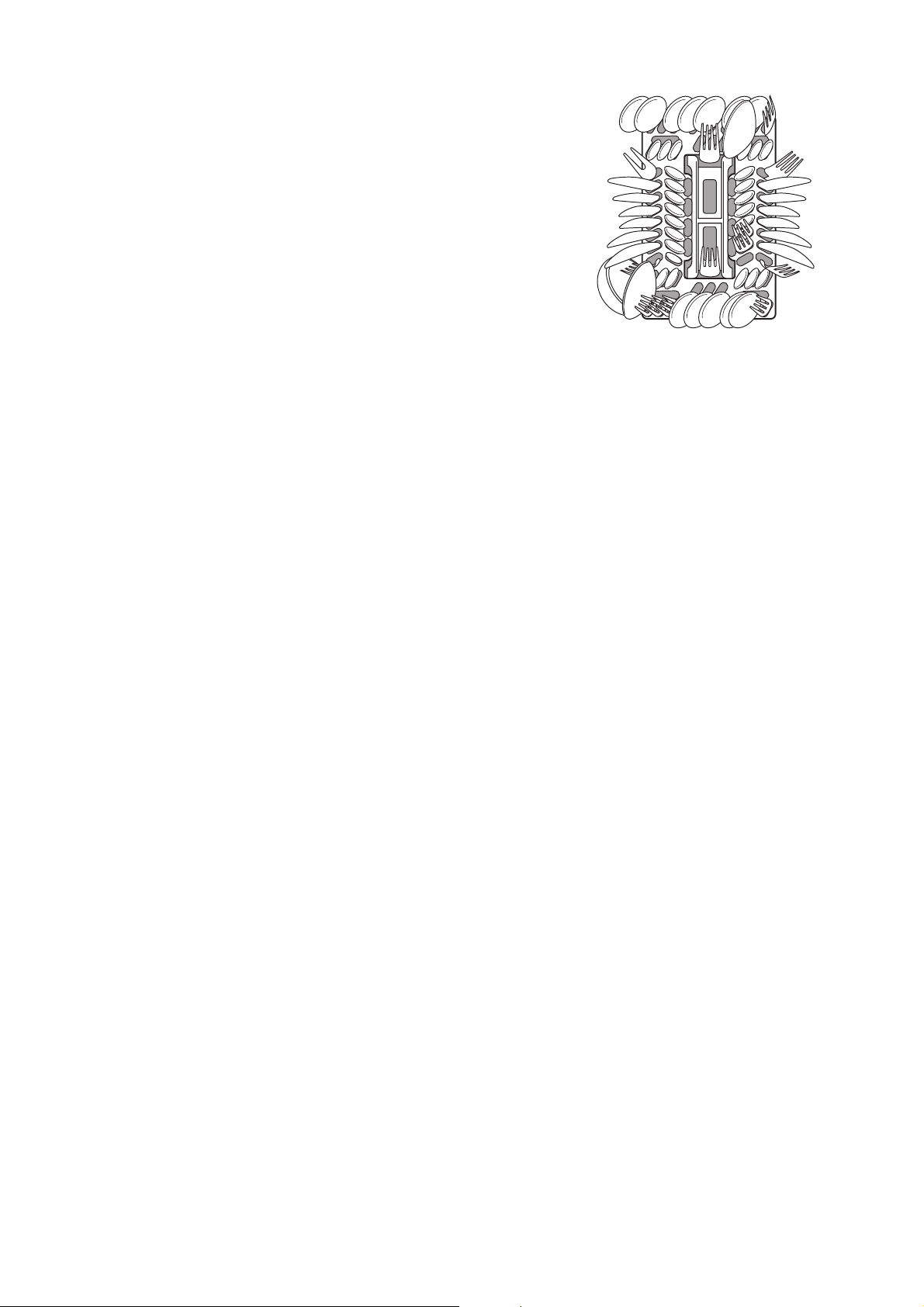

Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

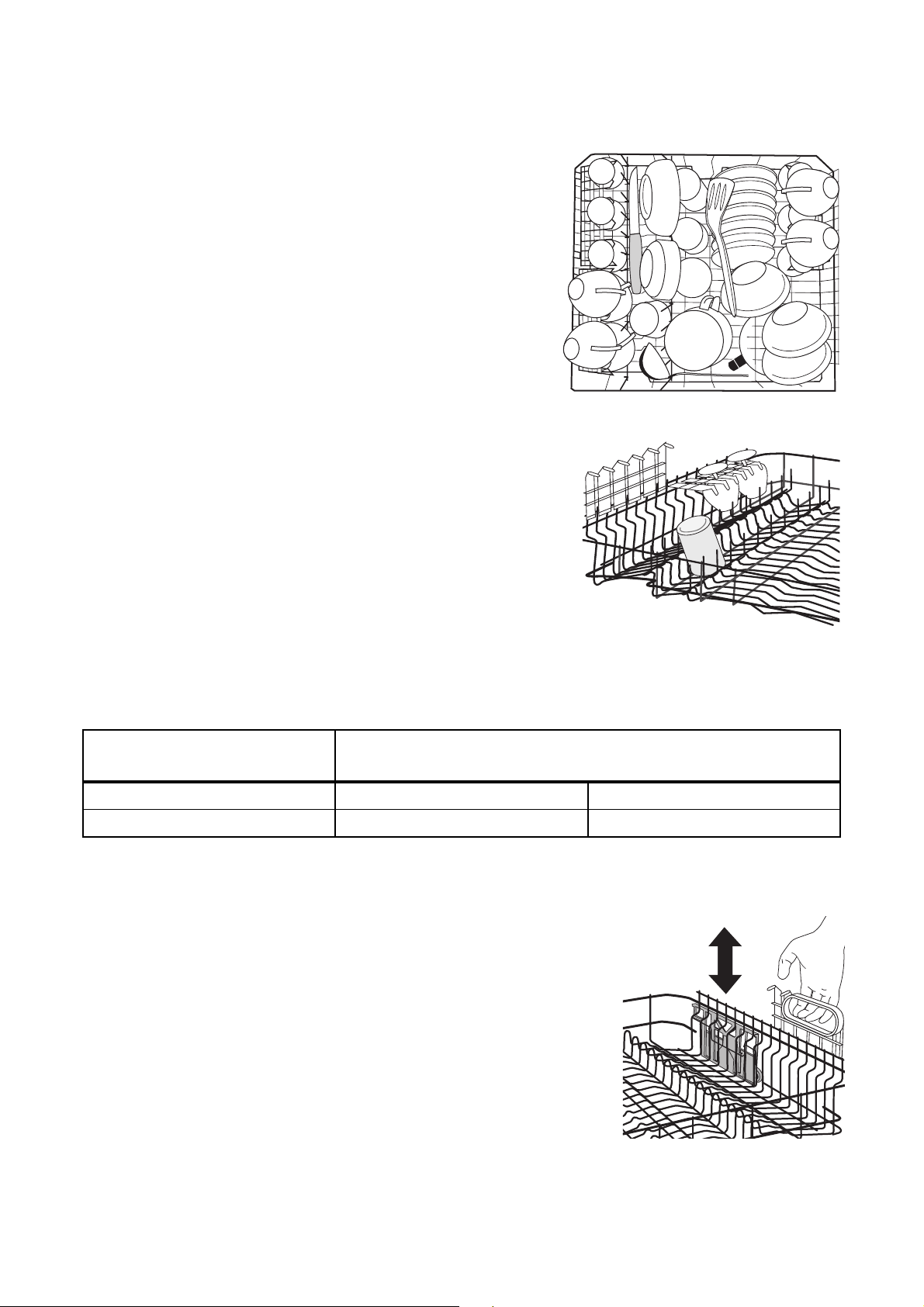

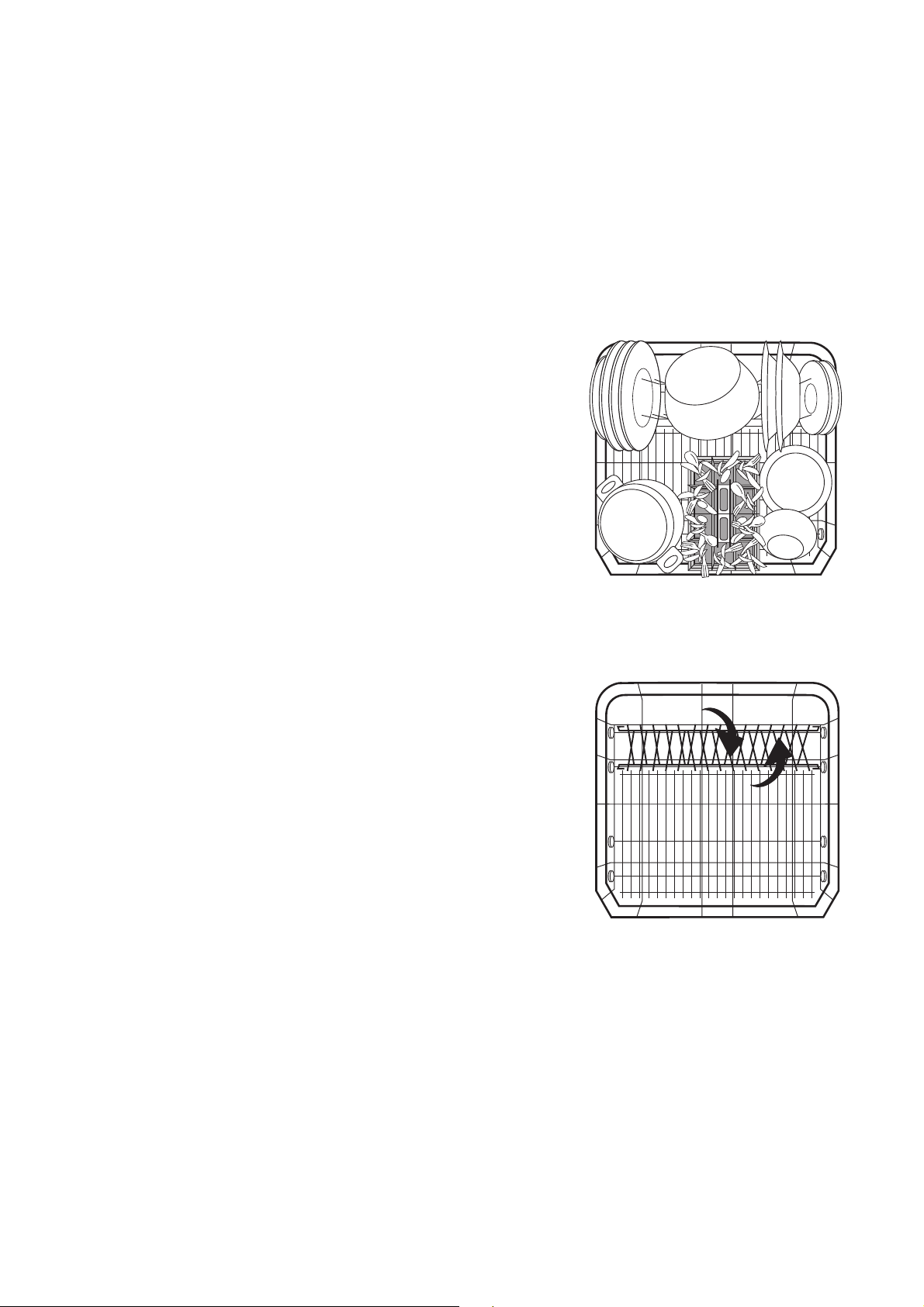

Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adjusting the Height of the Upper Basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Use of "3 in 1"/ Combi Detergent Tablets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Concentrated Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Start the wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Interrupting or ending the wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Pause function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Load Sensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Switching Off the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

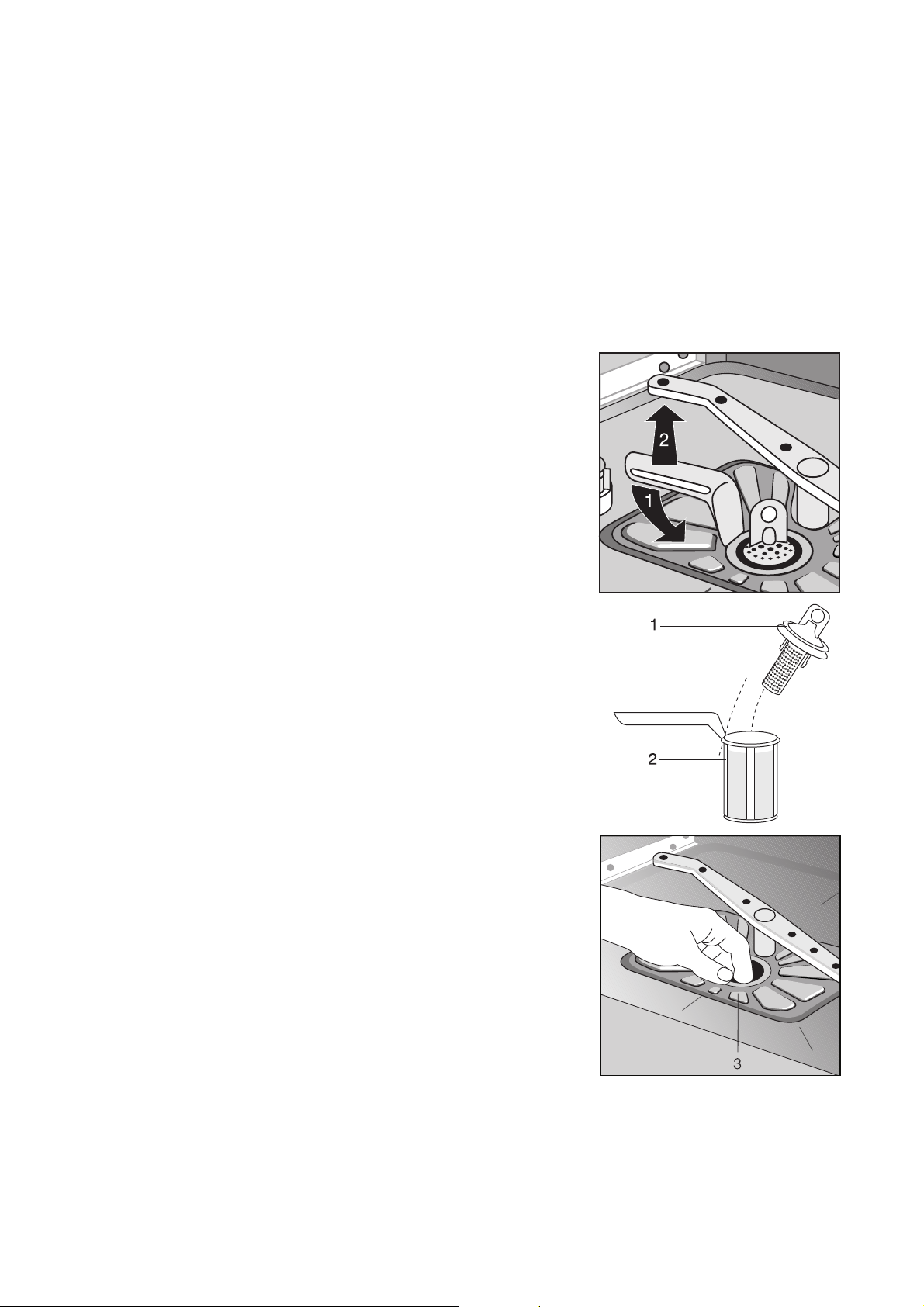

Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

...Fault warnings are displayed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

...there are problems operating the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

...the wash results are unsatisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

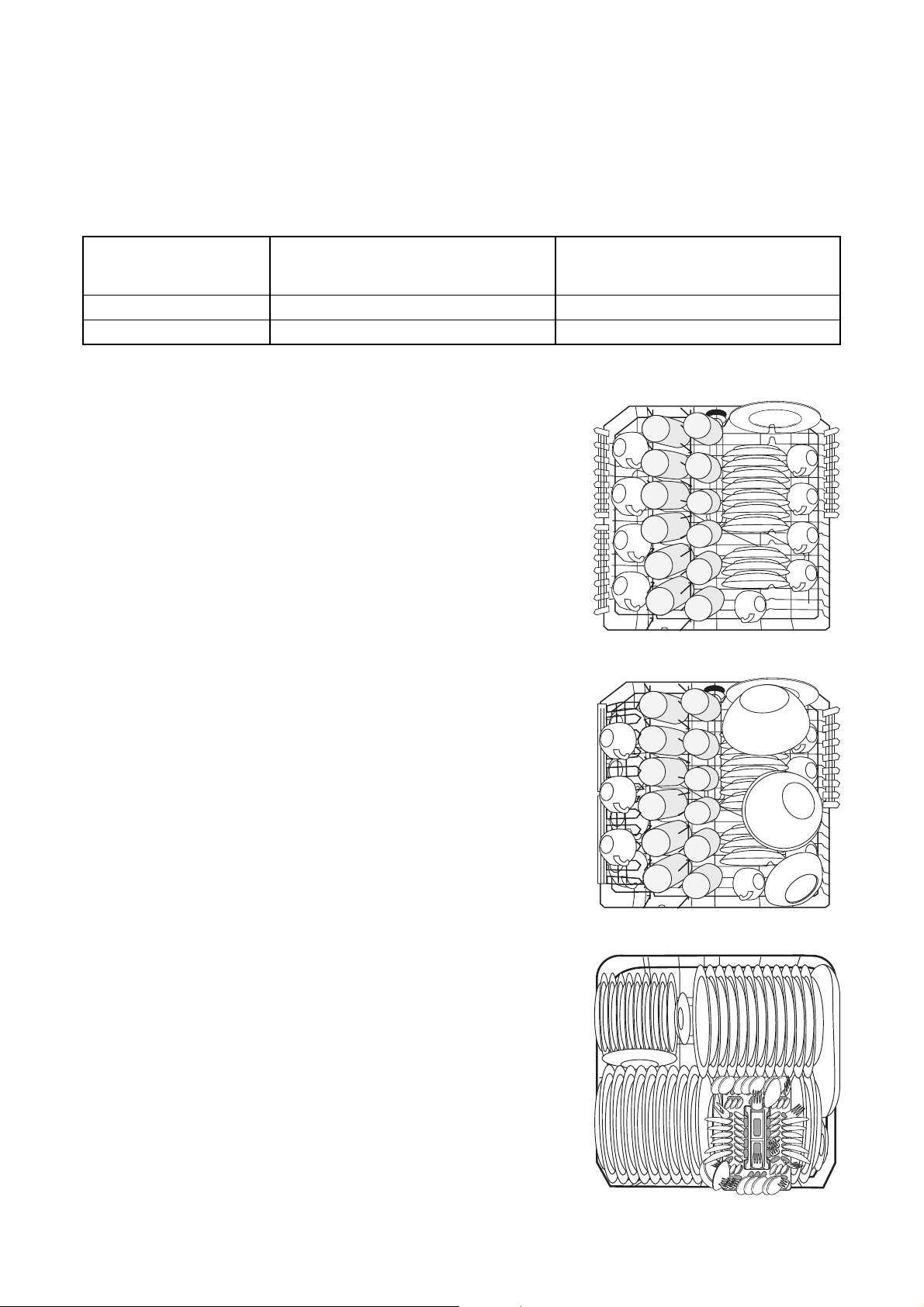

Notes for Test Institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Page 4

Contents

Installation and Connection Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Installing the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Dishwashers That Can Be Integrated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

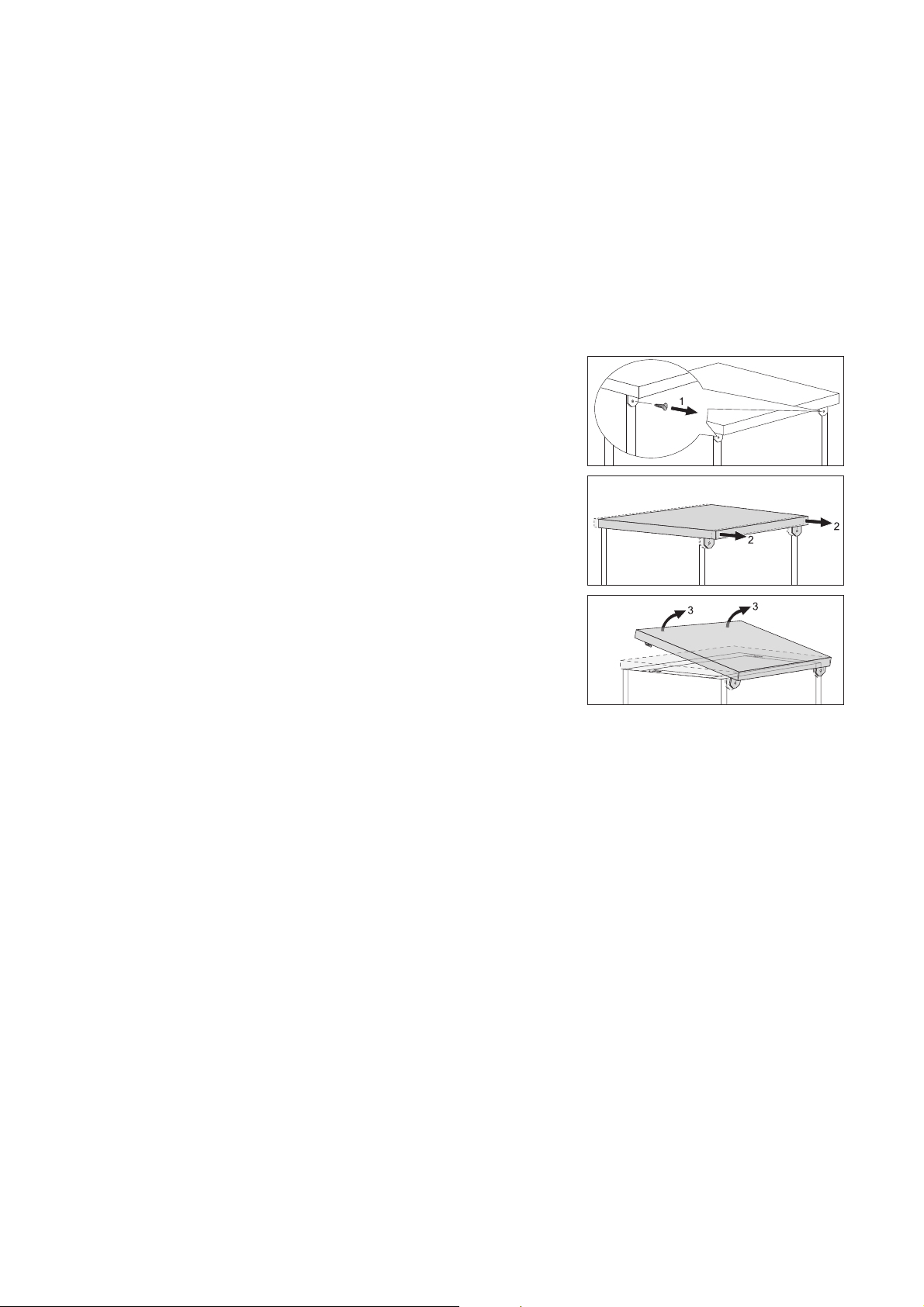

Built-In Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Free-Standing Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Connecting the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Leak Prevention System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Page 5

1 Safety Instructions

The safety aspects of ELECTROLUX electrical appliances comply with accepted technical standards and the German Appliance Safety Law. Nevertheless, as a manufacturer we consider it our obligation to make you aware of the following safety information:

Installation, Connection and Placing into Operation

• The dishwasher may only be transported upright.

• Check the dishwasher for transport damage. Do

not in any circumstances connect an appliance

that is damaged. In the case of damage, please

contact your supplier.

• Prior to placing the appliance in operation, ensure

that the nominal voltage and type of supply on the

rating plate match that of the supply where the

appliance is to be installed. The fuse rating is also

to be found on the rating plate.

• For information on how to correctly install and

connect up your dishwasher, please read the

“Installation“ section. Multiway plugs / connectors

and extension cables must not be used. This

could constitute a safety hazard.

Child Safety

• Children often do not recognise the hazards asso-

ciated with the use of electrical appliances. It is

therefore important that you ensure children are

adequately supervised and that you do not allow

children to play with the dishwasher – there is a

risk that children can shut themselves inside the

appliance (risk of suffocation!).

• Packaging materials (e.g. films, styrofoam) can be

dangerous for children. Risk of suffocation! Keep

packaging away from children.

• Detergents can cause burns to the eyes, mouth,

and throat, or even cause choking! Please

observe the manufacturer's safety instructions for

cleaners and detergents.

• The water in your dishwasher is not suitable for

drinking. If there are still remnants of detergent in

the appliance, there is a risk of burns!

• When disposing of the dishwasher: unplug from

the mains, cut off and dispose of the mains cable.

Break the door lock so that the door no longer

shuts.

General Safety

• Repairs to the dishwasher are only to be carried

out by qualified service engineers. Improper

repairs can give rise to significant hazards for the

user. If your appliance needs repairing, please

contact customer service or your dealer.

• Never place the dishwasher in operation if the mains cable, water inlet or drain hose is damaged; or the control panel, work top or plinth area is damaged such that the inside of the appliance is freely accessible.

• If the mains lead is damaged, or is to be replaced for a longer lead, the cable (obtainable from ELECTROLUX Service Force) must be changed by a service engineer authorised by ELECTROLUX.

• Never unplug the appliance by pulling on the cable, always pull the plug.

• Additions or modifications to the dishwasher are not permitted for safety reasons.

• Ensure that the door of the dishwasher is always closed when it is not being loaded or unloaded. In this way you will avoid anybody tripping over the open door and hurting themselves.

• Sharp knives and items of cutlery with sharp edges must be placed in the cutlery tray or in the upper basket.

Correct Use

• Only wash household dishes using the dishwasher. If the appliance is used for other purposes, or is used incorrectly, the manufacturer cannot accept any liability for any damage caused.

• Prior to use, ensure that the manufacturers of the special salt, detergent, and rinse aid employed specifically permit the usage of their products in household dishwashers.

• Do not put any solvents in the dishwasher. There is a risk of an explosion!

• The anti-flood system provides dependable protection against damage due to leaks. For this system to function correctly, the following preconditions must be met: – The appliance must remain connected to the

mains even when it is switched off. – The dishwasher must be correctly installed. – Always shut off the water supply at the tap

when the dishwasher is not to be used for

longer periods, e.g. when you are away on hol-

iday.

• Do not sit or stand on the open door, the appliance may tip over.

• In the event of a fault, first close the tap, then switch off the appliance and unplug it from the mains. If the appliance is permanently wired to the mains: switch off the fuse(s) or unscrew them.

Page 6

2 Disposal

Disposing of the Packaging Material

Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless to the environment and can be recycled.

• Plastic parts are marked with standard international abbreviations: – >PE< for polyethylene, e.g. sheet wrapping

material

– >PS< for polystyrene, e.g. padding mate-

rial (always CFC-free)

– >POM< for polyoxymethylene, e.g. plastic

clips

• Cardboard packaging is manufactured from recycled paper and should be deposited in the waste paper collection for recycling.

Disposal of old appliances

As and when you cease to use your dishwasher, please take it to a recycling centre or to your dealer who will, for a small contribution to the costs, dispose of it for you.

2 Economical and Ecological Dishwash-

ing

• Only connect the dishwasher to the cold watersupply.

• Ensure that the water softener is correctly adjusted.

• Do not pre-rinse dishes under running water.

• When you wash a small load, the load sensor calculates the amount of water necessary and shortens the programme. It is more economical to always wash with a full load.

• Select the wash programme to suit the nature and degree of the soiling on the dishes.

• Do not use more detergent, special salt or rinse aid than is recommended in these operating instructions and by the manufacturer of the respective product.

Page 7

Appliance Features and Control Panel

Top Spray Nozzle

Rubber Seal for Connecting the Water Feed to the Spray Arm

Spray Arms

Water hardness switch

Container for Special Salt

Container for Detergent

Container for Rinse Aid

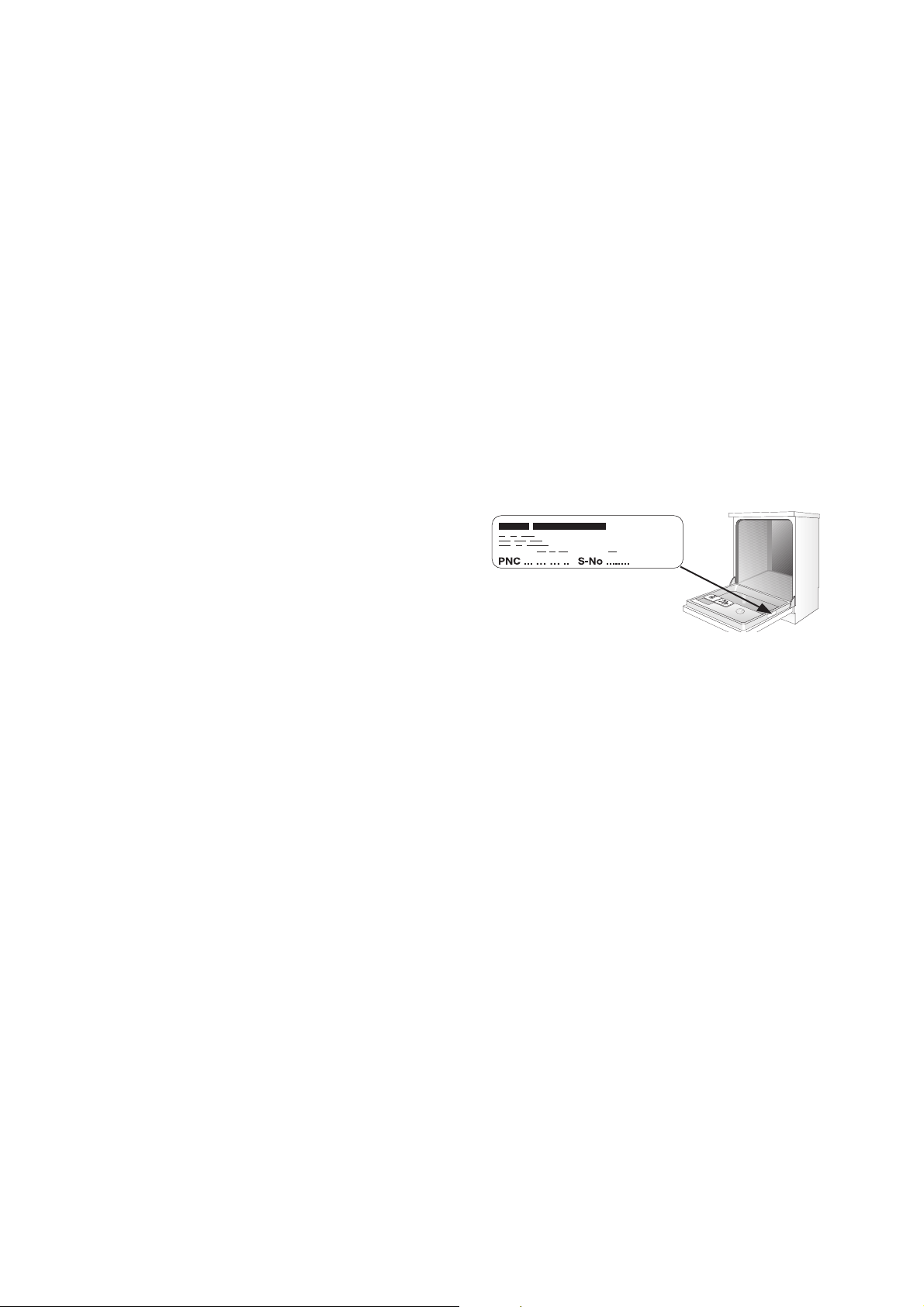

Rating Plate

Filters

Page 8

Control Panel

Water softener button

Water softener and function button: In addition to the indicated wash programme, the dishwasher water softener can be set using a combination of these buttons.

The 3 lights on the

multidisplay

can display :

• the current stage of the wash programme selected.

• which fault has occurred in the dishwasher.

Function button

Wash programme buttons

Multidisplay

Control indicator

: Top light

: Middle light

: Bottom light

Door handle

The indicator has the following meaning:

The control indicator never illuminates while a wash programme is running.

ON / OFF button

Refill with special salt

Prior to using for the first time

Prior to using for the first time, remove all the clips with which the dish baskets are secured for transport. Then perform the following steps:

1. Adjust the water softener

2. Filling with Special Salt for the Water Softener

3. Filling with Rinse Aid

Page 9

Adjusting the Water Softener

To prevent the build up of scale on dishes and in the dishwasher, the dishes must be washed with soft, i.e. low lime content water. For this reason the dishwasher is fitted with a water softener in which tap water from a hardness of 4 °d (German degree) is softened with the aid of special salt.

Water Hardness Hardness Setting

in °d1) in inPPM2) Range

41 - 50 730 - 900 IV

30 - 40 530 - 720 IV 4 4

19 - 29 330 - 520 III/IV

4 - 18 70 - 320 I/II/III 2 2

less than 4 less than 70 I

1)(°d) German degree, measure of the hardness of water

2)(PPM), Parts Per Million, international units of water hardness *factory setting

Adjust the water softener to the setting given in the table that corresponds to the hardness of the water in the area where you live.

1. The dishwasher must be switched off.

2. Manual setting:

3. Remove the lower basket from the dishwasher.

4. Turn the water hardness switch to 0 or 1.

5. Re-position the lower basket.

6. Electronic setting:

7. In addition press the ON/OFF button.

8. The LED indicator for the water-softener button

9. Press the water-softener button again.

10.Each time you press the water-softener button the

It is only possible to adjust the water hardness setting when there is no programme running. If you have inadvertently started a programme (an LED indicator is constantly illuminated), then the programme must be cancelled by pressing the appropriate button.

Open the door on the dishwasher.

Press the water-softener and function buttons simultaneously and keep them pressed.

flashes.

– The LED indicator for the water-softener button

will be illuminated continuously for an initial 5 seconds and then begin to flash.

– The number of flashes corresponds to the

hardness setting.

– The sequence of flashes is repeated several

times after a 5 second pause.

hardness setting will go up by 1. (Exception: Hardness setting 1 follows hardness setting 5).

The water softener can be set manually using the water hardness switch; it can also be set electronically using the buttons on the control panel.

Manual Electronic

Your local water authority can advise you on the hardness of the water in the area where you live.

3* 3

no salt necessary

Number of

Flashes

Page 10

– If the hardness setting is changed, the LED

indicator for the water-softener button will confirm the change by remaining illuminated continuously for 5 seconds and then flashing again.

– The number of flashes corresponds to the new

hardness setting.

– The sequence of flashes is repeated several

times after a 5 second pause.

11.Once the hardness setting is correct press the ON/OFF switch. The hardness setting is then saved.

Page 11

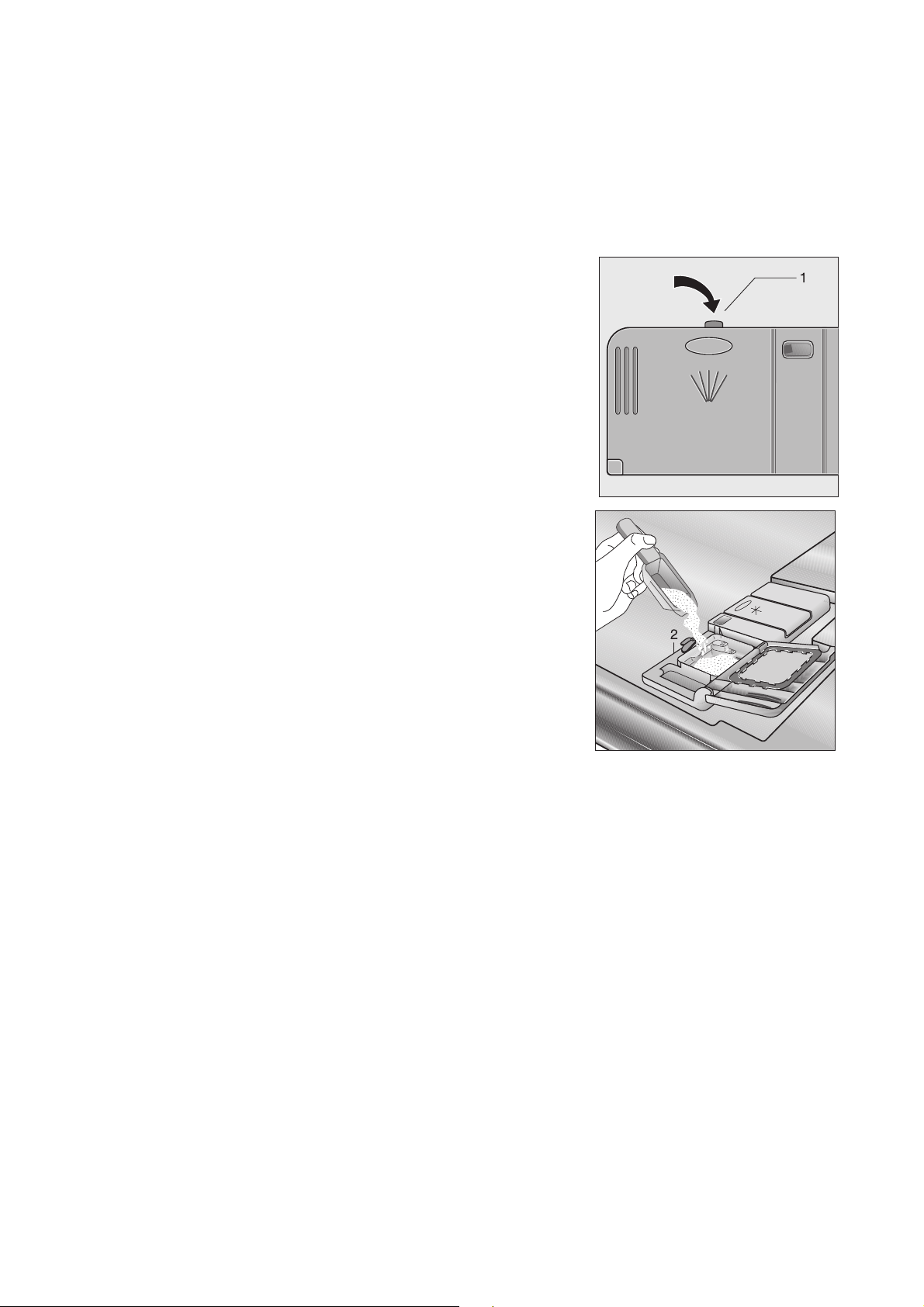

Filling with Special Salt for the Water Softener

Use only special salt for dishwashers. Never fill the salt container with any another type of salt (e.g. culinary salt) or dishwasher detergent. This would irreparably damage the water softener. Prior to filling with salt, please check each time that you really do have a packet of special salt in your hand.

Fill with special salt:

• Prior to using the dishwasher for the first time

• When the SALT indicator panel is illuminated.

1. Open the door, remove the lower basket.

2. Undo the lid on the salt container by turning it anti-

3. Only when using for the first time:

4. Place the funnel supplied on the container open-

5. Clean any salt remnants on the container open-

6. Turn the lid clockwise to the stop, otherwise spe-

If the water hardness in your area is less than 4 °d, you do not need to use special salt.

clockwise.

fill the salt container with water.

ing. Fill the container with special salt through the funnel; the capacity of the container is approx. 1.0-

1.5 kg depending on the grain size. Do not overfill the salt container with special salt.

The water expelled by filling the salt container with special salt runs out of the salt container onto the base of the washing compartment. This is not a cause for concern, the water will be pumped out at the start of the next wash programme.

ing.

cial salt will leak into the wash water, this could lead to poor wash results. To avoid this run a rinse programme after filling the salt container with special salt. This will wash away salt water and any salt crystals that have been spilt.

Depending on the size of the salt grains, it can take several hours for the salt to dissolve in the water and the special salt indicator

t on the control

t to extinguish.

The setting of the water softener and thus the consumption of salt are dependent on the hardness of the local water.

SALE

SALT

SALZ

SEL

Page 12

Filling with Rinse Aid

Rinse aid ensures that your dishes gleam and are free from spots, and that you glasses are clear.

Fill with rinse aid:

• Prior to using the dishwasher for the first time.

• When a dark point surrounded by a light ring is to

The rinse aid compartment is on the inside of the dishwasher door.

1. Open the door.

2. Press the rinse aid compartment release button

3. Fully open the rinse aid compartment lid.

Use only branded rinse aid for dishwashers. Never fill the rinse aid container with any another substance (e.g. concentrated vinegar). This would damage the appliance.

be seen in the indicator window on the container. If there is rinse aid in the container, the indicator window is uniformly dark.

with your finger.

4. Fill with rinse aid exactly up to the level marked “max”; this corresponds to a quantity of approx. 140 ml.

5. Close the lid and press until it locks into place.

6. Wipe up any spilt rinse aid with a cloth. Otherwise

too much foam will be formed during the wash.

Adjusting Rinse Aid Dosing

1. Open the door of the dishwasher.

2. Press the rinse aid compartment release button

3. Fully open the rinse aid compartment lid.

4. Set the dose level.

5. Close the lid and press until it locks into place.

6. If rinse aid has run out, wipe up with a cloth.

As the dishes are washed rinse aid is released from the dispenser into the wash water. The dose is factory set at 4, and can be adjusted from 1 to 6. Only change the setting if streaks, milky spots or dried on water marks are visible on glasses or crockery.

with your finger.

Page 13

In Daily Use

• Is it necessary to refill with special salt or rinse aid?

• Load cutlery and dishes into the dishwasher

• Fill with dishwasher detergent

• Select a wash programme suitable for the cutlery and dishes

• Start the wash programme

Loading cutlery and dishes

• Before loading the dishes, you should:

• When loading the dishes and cutlery, please note:

Sponges, household cloths and any object that can absorb water may not be washed in the dishwasher

– Cutlery with wooden, horn,

china or mother of pearl handles – Plastic items that are not heat resistant – Older cutlery with cement that is not tempera-

ture resistant – Bonded cutlery items or dishes – Pewter or copper items – Lead crystal glass – Steel items subject to rusting – Wooden platters – Items made from synthetic fibres

– Remove large left-overs. – Soften remnants of burnt food in pans.

– Dishes and cutlery must not impede the rota-

tion of the spray arms.

– Load hollow items such as cups, glasses,

pans, etc. with the opening downwards so that water cannot collect in the container or a deep base.

– Dishes and items of cutlery must not lie inside

one another, or cover each other.

– To avoid damage to glasses, they must not

touch.

– Do not lay small objects (e.g. lids) in the cutlery

basket.

For washing in the dishwasher the following cutlery/dishes

are not suitable: are of limited suitability:

– Only wash stoneware in the dishwasher if it is spe-

cifically marked as being dishwasher-safe by the manufacturer.

– Glazed patterns may fade if machine washed fre-

quently.

– Silver and aluminium parts have a tendency to dis-

colour during washing. Left-overs, e.g. egg white, egg yolk and mustard often cause discolouring and staining on silver. Therefore always clean left-overs from silver immediately, if it is not to be washed straight after use.

– Some types of glass can become dull after a large

number of washes.

Page 14

Loading Cutlery

To ensure that all items of cutlery are completely washed, you should

1. Place the grid insert on the cutlery basket.

2. Place short knives, forks and spoons in the grid

Some models of dishwasher have cutlery baskets without a cutlery grid.

Long bladed knives stored in an upright position are a potential hazard.

Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

Take care when loading or unloading sharp items such as knives.

insert with their handles pointing downwards.

Page 15

Loading Pans, Frying Pans and Large Plates

Load large and heavily soiled dishes in the lower basket (Plates up to 29cm in diameter).

Your dishwasher has one of the following two types of lower basket:

Type 1: The rear plate insert in the lower basket can be removed

To make it easier to load large dishes, it is possible

- to remove the plate inserts from the lower basket.

- to move the cutlery basket sideways.

Type 2: The rear plate insert in the lower basket can be folded on its side

To ease the loading of large items,

- the two rows of prongs in the rear plate insert can be folded across one another.

- the cutlery basket in the lower basket can be moved to the side.

Page 16

Loading Cups, Glasses and Coffee Services

Load small, delicate items and long pointed cutlery in the upper basket.

• Arrange plates and dishes offset on and under the folding cup racks so that washing water can reach all items.

• The cup racks can be folded up out of the way for tall items.

• Lay or hang wine, champagne, and brandy glasses in the cut outs on the cup racks.

• Glasses, beakers, etc. can also be placed on the two rows of prongs on the left of the upper basket.

Adjusting the Height of the Upper Basket

Maximum Height of the Dishes in the

Upper Basket Lower Basket

With upper basket raised 22 cm 30 cm

With upper basket lowered 24 cm 29 cm

Lowering the Upper Basket:

1. Pull the upper basket out completely.

2. Holding the upper basket by the handle, lift it as

Raising the Upper Basket:

1. Pull the upper basket out completely.

2. Holding the upper basket by the handle, lift it as

The height of the basket can also be adjusted when it is loaded.

far as it will go and then lower it vertically. The upper basket will engage in the lower position.

far as it will go and then lower it vertically. The upper basket will engage in the higher position.

Page 17

Filling with Detergent

Only use dishwasher detergent.

Fill with detergent:

Prior to the start of a wash programme (not for the pre wash programme). The detergent is released into the wash water during the programme.

The detergent compartment is on the inside of the dishwasher door.

1. If the lid is closed:

2. Fill the detergent dispenser with detergent. The

3. Close the lid and press until it locks into place.

Please observe the manufacturer's dosing and storage recommendations as stated on the detergent packaging.

press release button (1). The lid springs open.

markings indicate the dosing levels: “20” corresponds to approx. 20 ml of detergent, “30” corresponds to approx. 30 ml of detergent.

If the dishes are very heavily soiled put additional detergent into the adjacent chamber (2). This detergent will take effect during the pre wash.

Page 18

Use of "3 in 1"/ Combi Detergent Tabl ets

General Advice

These products are tablets with combined detergent/ rinse-aid and salt functions.

1. Before using these products you should first check that the water hardness in your supply is compatible with the use of these products as per the detergent manufacturers instructions (on the product packaging).

2. These products should be strictly used according to the detergent manufacturers instructions.

3. If you encounter problems when using "3 in1"

Special Advice

When using combination products, the rinse-aid and salt lights are no longer useful. It may be helpful therefore to switch the rinse aid off - please note that only some dishwashers have this facility - and selecting the lowest possible setting for water hardness.

Do not place the tablets in the tub or the cutlery basket as this will result in poorer wash results. The tablets should be placed in the detergent dispenser.

products for the first time then please contact the detergent manufacturers care line (the telephone number is given on the product packaging).

Concentrated Detergent

Based on their chemical composition, dishwasher detergents can be split into two basic types:

– conventional, alkaline detergents with caus-

tic components.

– low alkaline concentrated detergents with

natural enzymes.

The use of 50 °C wash programmes in conjunction with concentrated detergents reduces pollution and is good for your dishes; these wash programmes are specially matched to the dirt-dissolving properties of the enzymes in the concentrated detergent. For this reason 50 °C wash programmes in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using 65 °C programmes.

Detergent Tablets

Detergent tablets of different makes dissolve at different speeds. For this reason some detergent tablets cannot develop their full cleaning power during short programmes. Therefore please use wash programmes with pre wash when using detergent tablets.

For more information please refer to your instruction manual.

If you decide to switch to the use of a standard detergent system we advise that you:

• Refill both the salt and rinse aid compartments.

• Switch the waterhardness setting to the highest possible position and run for three normal cycles without a load.

• Readjust the waterhardness setting again according to the conditions for your region (as per the instruction manual).

Page 19

Selecting the Wash Programme (Programme Table)

Choose the most suitable wash programme with the aid of this table:

Type of Dishes: Dinner service and Pans

in addition: –

Type of Soiling:

Suitable Wash Programme:

Press programme button:

Programme Sequence

normal soiling; dried onleft-overs

Pre wash

Main wash 2 rinsing Final rinse Drying

   

with dishes that are sensitive to changes in tem-

perature

normal soiling

concentrated detergents are used.

3 )

Pre wash Main wash Rinsing Final rinse Drying

normal soiling

particularly suitable when

dishes that have just been used, normal to slight soiling

îï

– Main wash Rinsing Final rinse Drying

– Main wash – Final rinse –

Dishes

without Pans

–

Consumption Figures:

Duration 105 - 115 minutes 120 - 130 minutes 75 - 85 minutes 30 minutes

Energy 1,75 - 1,95 kWh 0,95 - 1,05 kWh 1,05 - 1,24 kWh 0,8 kWh

Water 16 - 18 litres 14 - 16 litres 10 - 12 litres 8 liter

The various stages in the wash programme have different sounds because the dishes are washed more intensely for short

periods during certain stages of the wash programme to improve cleaning.

The consumption figures were determined under standard conditions. They are intended as a guide only and depend on

the loading. Variations can occur during normal usage.

Test programme.

This programme is not suitable when left-overs have dried on.

   

Page 20

Start the wash programme

1. Check that when the dishes and cutlery are

loaded in the dishwasher the spray arms are free to rotate.

2. Open the tap fully.

3. Shut the door.

4. Press the On/Off button. The On/Off button indica-

tor lights up.

5. Press the programme button for the required programme (see “Programme Table”). The programme indicator lights up. One or two lights will flash in the multidisplay. During this time it is possible to reselect the programme. The selected wash programme will start after about 6 seconds. The current wash programme stage will always be shown in the multidisplay.

If the top light and/or the middle light in the multidisplay flash after the programme has started please read the section “What to do if...”.

Interrupting or ending the wash programme

Interrupt the wash programme by opening the door.

1. Open the door of the dishwasher. The wash pro-

2. Lights are flashing in the multidisplay.

3. Shut the door. The wash programme continues.

Only interrupt a wash programme that is running if it is absolutely necessary. After the appliance has been closed again the air that has entered will be greatly heated and expand. As a result water may penetrate the base of the appliance and trigger the antiflood system.

Hot steam can escape from the appliance when the door is opened. (deleted by the reviewer) Open the door carefully.

gramme will stop.

Using the pause function the dishwasher can be temporarily stopped.

1. Press the On/Off button. The wash programme will stop.

2. All indicators will go out.

3. When after a short time the wash programme is to

continue, press the On/Off button again. The wash programme will continue.

The wash programme should not be stopped for a prolonged period or the cooled water will need to be reheated resulting in increased energy consumption.

Load Sensing

If a wash programme is started even though there are only a few dishes in the upper and/or lower basket, an intelligent electronic system adjusts the amount of water and the duration of the wash programme to the number of dishes. By this means it is possible to wash only a few dishes quickly and economically. At half load (6 place settings), up to 2 litres of water and

0.2 kWh of electricity are saved.

Switching Off the Dishwasher

Switch off the dishwasher when w is illuminated on

the programme progress display.

1. Press the ON/OFF button

M indicator extinguishes.

ton

2. Open the door carefully.

Hot steam may escape from the appliance when opening the door immediately after the end of the programme. Therefore:

Emptying the Dishwasher

M. The ON/OFF but-

Ending the wash programme

1. Press the button for the wash programme that is

running and hold it down until the programme indicator for the wash programme goes out.

2. Release the programme button; the wash programme has been ended.

Pause function

The pause function can only be initiated before the drying section of the programme. If the pause function is initiated during the drying section of the programme the wash programme is ended.

• Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down before removing them from the appliance.

• Leave the dishes in the dishwasher for approx. 15 minutes after the end of the programme so that they dry better and can cool down.

• First empty the lower basket, and then the upper rack. By using this procedure you will avoid any water that may be remaining in the upper basket, dripping onto the dishes in the lower basket and leaving water marks.

Page 21

Care and Cleaning

• If necessary, clean the controls only with a soft

• Occasionally check the internal containers, door

Do not under any circumstances use furniture care products or aggressive cleaners.

cloth and pure warm water.

seal, and water inlet for soiling, clean if necessary.

Cleaning the Filter

1. Open the door, remove the lower basket.

2. The dishwasher filter system comprises a coarse/

3. Turn the handle about ¼ a turn anticlockwise and

4. Take hold of the coarse/fine filter (1) by the handle

5. Clean all filters thoroughly under running water.

6. Remove the flat filter (3) from the base of the

7. Put the flat filter back in the base of the washing

8. Place the coarse/fine filter in the microfilter and

9. Put the filter combination in place and lock by

The filters in the base of the washing compartment are to a large extent self-cleaning. Nevertheless the filters should be checked and cleaned from time to time. Dirty filters will degrade the washing result.

fine filter, microfilter and a flat filter. Unlock the filter system using the handle on the microfilter, and remove.

remove.

with the hole and remove from the microfilter (2).

washing compartment and clean both faces thoroughly.

compartment.

press together.

turning the handle clockwise to the stop. During this process ensure that the flat filter does not protrude above the base of the washing compartment.

Under no circumstances may the dishwasher be used without filters.

Page 22

What to do if ...

Try to rectify minor faults on the dishwasher with the aid of the instructions given here. If you call in customer service to resolve one of the malfunctions listed here, or rectify an error made in the operation of the appliance, the customer service engineer’s visit is not free of charge, even during the period of guarantee.

...Fault warnings are displayed.

• If the top or middle light in the display is flashing you can probably rectify the fault yourself. Once the fault has been rectified press the On/ Off- button. The wash programme will continue. If

Symptom Possible Cause Solution

The top light in the

multidisplay is flashing.

There is no water

entering the dishwasher

The middle light is flashing

in the multidisplay.

The top and the

middle light are flashing in

the multidisplay.

Tap is blocked or furred with lime-scale. Clean tap.

The filter (where present) in the threaded hose fitting is blocked.

The water inlet hose is connected wrongly.

The sink outlet is blocked. Clean the sink outlet.

The water drain hose is connected wrongly.

The anti-flood system has been triggered.

the fault is displayed again, contact your local Service Force Centre.

• If other lights in the multidisplay flash, please contact Service Force and let them know which fault indicator is flashing.

Clean the filter in the threaded hose fitting.

Check hose installation.

Close the tap and contact Service Force.

Page 23

...there are problems operating the dishwasher.

Symptom Possible Cause Solution

The dishwasher door has not been closed properly.

The programme does not start.

Spots of rust are visible in the washing compartment.

There is a whistling noise during washing.

The mains plug is not plugged in. Insert mains plug.

House fuse is faulty. Replace fuse.

For dishwasher models with delay start timer: Delay start has been selected.

The washing compartment is made of anticorrosive stainless steel. Any spots of rust inside the washing compartment stem from other sources (flakes of rust from the water pipe or from pans, cutlery etc.) Remove such spots with a commercially available stainless steel cleaner.

The whistling is not a cause for concern. Use a different brand of detergent.

...the wash results are unsatisfactory.

The dishes are still dirty.

• The wrong wash programme was selected.

• The dishes were arranged in such a way as to stop the water reaching all parts of the surface. The dish racks must not be overloaded.

• The filters in the base of the washing compartment are dirty or incorrectly positioned.

• Too little or no detergent was used.

• Where there are limescale deposits on the dishes: The salt dispenser is empty or the water softener unit is set wrongly.

• The drain hose is incorrectly connected.

The dishes are wet and dull.

• Rinse aid was not used.

• The rinse aid container is empty.

There are streaks, milky spots or a bluish coating on glasses and dishes.

• Decrease rinse aid dosing.

There are dried water drops on the glasses and dishes.

• Increase rinse aid dosing.

• The detergent may be the cause. Contact the detergent manufacturer's consumer advisor.

Shut the door.

If dishes are to be washed immediately cancel delay start timer.

Only wash cutlery and dishes that are suitable for dishwasher use.

Close the salt dispenser lid securely.

Page 24

Technical Data

Capacity: 12 place settings including serving dishes

Permitted Water Pressure:

Electrical Connection: Information on the electrical connection is given on the rating plate on the inner edge

Dishwasher: Free-Standing Appliances

Dimensions: 850 x 600 x 600 (H x B x D in mm)

Max. Weight: 54 Kg

Dishwashers that Can Be Integrated, Built-In Dishwashers

Dimensions: 820 – 880 x 596 x 570 (H x W x D in mm)

Max. Weight: 50 Kg

Dishwashers that Can Be Fully Integrated

Dimensions: 820 – 880 x 596 x 546 - 550 (H x W x D in mm)

Max. Weight: 50 Kg

;

This appliance conforms with the following EU Directives:

• 73/23/EWG dated 19. 02. 1973 – Low Voltage Directive

• 89/336/EWG dated 03. 05. 1989 (including Directive Amendment 92/31/ EWG) – EMC Directive

1-10 bar (=10-100 N/cm2 = 0.1-1.0 MPa)

of the dishwasher door on the right.

Page 25

Notes for Test Institutes

Testing in accordance with EN 60704 must be carried out with the appliance fully loaded and using the test programme (see Programme Table). Tests in accordance with EN 50242 must be carried out when the salt dispenser and rinse aid container have been filled with salt and rinse aid respectively and using the test programme (see Programme Table).

Full Load:

12 place settings incl. serving dishes

Detergent Dosing: 5g + 25g (Type B) 20g (Type B)

Rinse Aid Setting: 4 (Type III) 4 (Type III)

Half Load:

6 place settings incl. serving dishes, leaving alternate positions free

Sample loading arrangement: Upper basket

Sample loading arrangement: Lower basket

Page 26

Sample loading arrangement: Cutlery basket

Some dishwasher models have cutlery baskets without a grid insert.

Page 27

INSTALLATION AND CONNECTION INSTRUCTIONS

Installing the Dishwasher

• The dishwasher must be installed on a firm floor and adjusted to ensure that it is stable and level.

• To compensate for unevenness in the floor and to match the height of the appliance to that of surrounding units extend the threaded feet by unscrewing : – use a screwdriver.

• For built-in, integrated and fully integrated dishwashers, the rear feet should be adjusted from the front of the appliance using a screwdriver.

• The drain hose, inlet hose and mains cable must not be kinked or crushed when the dishwasher is in position.

• The dishwasher must also be screwed on tightly to the work surface or to the adjoining units. This is essential to ensure the diswasher does not tip.

Depending on type, the dishwasher is to be installed as follows:

Dishwashers That Can Be Integrated

(see installation template supplied)

Width: 591 – 594 mm

Thickness: 16 – 24 mm

Height: (variable)

Weight: max. 8 kg

The door of the appliance can be fitted with a wooden furniture door with the following dimensions

dependent on - Recess height

- Plinth height

- The adjustment so that the unit matches the height of the adjoining units The exact height of the adjoining units must be measured at the place of installation.

If the facing panel is longer than 600 mm, the door of the appliance cannot be opened completely (the facing panel bumps against the plinth). If this is the case, the plinth must be cut out (see installation template) or the brace adapter for the extra long door BLT 60 must be used. You can obtain this with the E No. 911 239 008.

Page 28

Built-In Dishwasher

(see enclosed installation instructions)

Free-Standing Appliances

If the dishwasher is installed underneath a kitchen work surface, the original work surface of the dishwasher is to be removed as follows:

1. Unscrew the screws from the positioning plates on

2. Slide the appliance's work surface approx. 1 cm to

3. Lift the work surface at the front (3) and remove.

can be set up as stand-alone without additional installation. If the dishwasher is set up next to a cooker, a heat-insulating, non-flammable plate must be mounted between the dishwasher and the cooker, flush to the top edge of the work surface (depth 57.5 cm). The plate should have aluminium foil on the side facing the cooker.

the back (1).

the rear (2).

If the dishwasher is later used as a freestanding appliance, the original work surface must be re-mounted.

The plinth on free-standing appliances is not adjustable.

Page 29

Connecting the Dishwasher

Water Connection

The dishwasher is fitted with safety devices that prevent the wash water returning into the drinking water system and comply with the applicable plumbing regulations.

• The dishwasher can be connected to cold and hot water supplies up to max. 60 °C.

• The dishwasher must not be connected to open hot water appliances or instantaneous water heaters.

Permitted water pressure

Lowest permitted water pressure: 1 bar (=10 N/cm

Highest permitted water pressure: 10 bar (=100 N/cm

=100 kPa)

=1 MPa)

Consult your installer if the water pressure is less than 1 bar.

In the case of a water pressure greater than 10 bar, a pressure reduction valve must be used (available from your dealer).

Connect the inlet hose

• If you need a longer water inlet hose than that

The water inlet hose must not be kinked, crushed or entangled when it is being connected up.

Connect the threaded hose fitting (ISO 228-1:2000) on the water inlet hose to a tap with an external thread (¾ inch). Tighten the threaded hose fitting hand tight only.

In order that access to the tap in the kitchen is not limited by the use of the dishwasher, we recommend the installation of an additional tap, or fitting a two way adapter to the existing tap.

supplied, VDE approved complete hose sets are to be used. These are available from your local Service Force Centre.

Page 30

The following section is only applicable to dishwashers that have a safety valve on the threaded hose fitting for the tap:

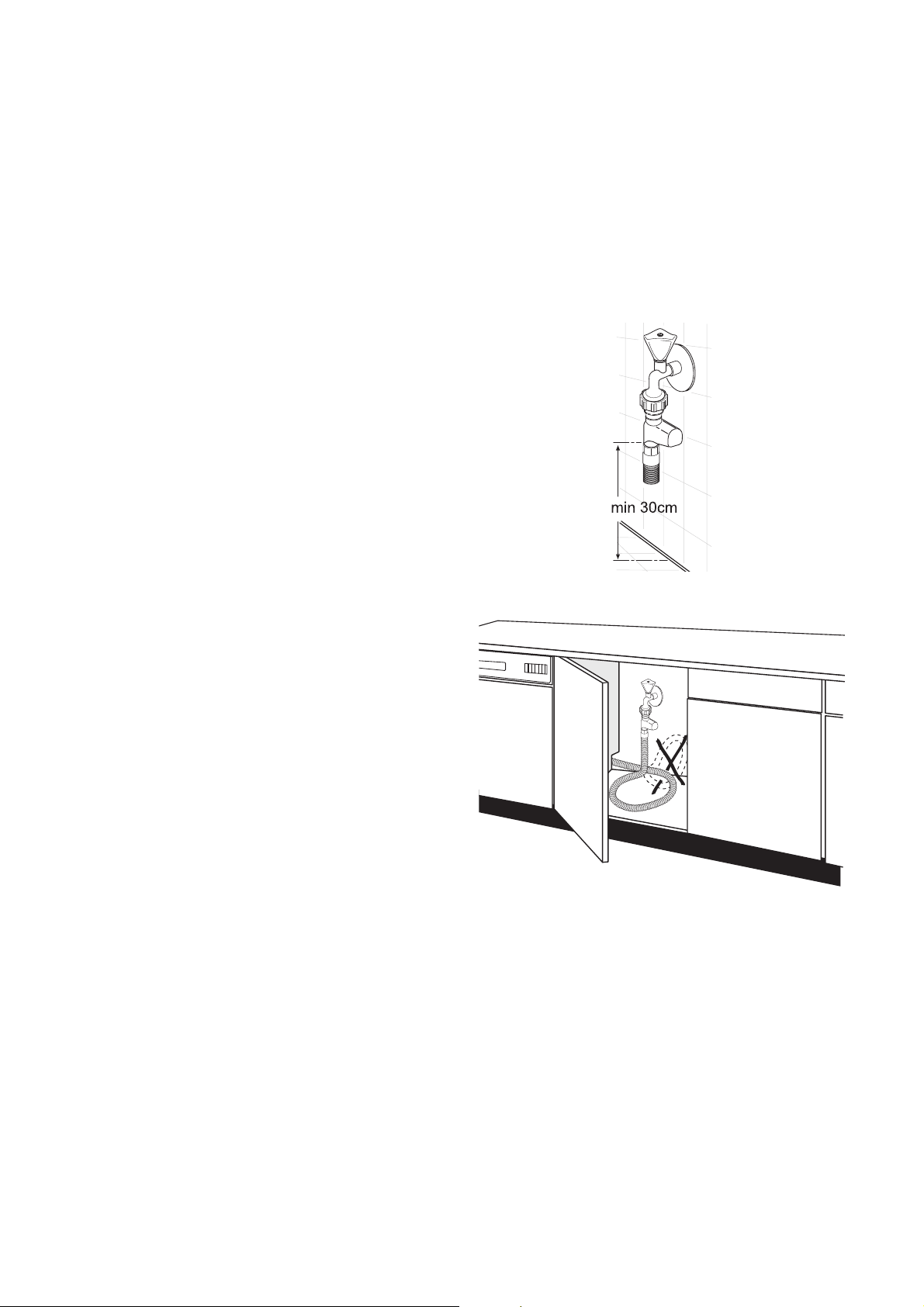

Water inlet hose with safety valve

After connecting the double-walled water inlet hose, the safety valve is next to the tap. Therefore the water inlet hose is only under pressure while the water is running. If the water inlet hose starts to leak during this operation, the safety valve cuts off the running water and the draining pump in the dishwasher is switched on.

Please take care when installing the water inlet hose:

– The distance between the bottom edge of the

safety value and the floor on which the dishwasher is standing must be at least 30 cm:

– The electrical cable for the safety valve is in the

double-walled water inlet hose. Do not immerse the water inlet hose or the safety valve in water.

– If the water inlet hose or the safety valve is

damaged, remove the mains plug immediately.

– A water inlet hose with safety valve must only

be replaced by a specialist or Customer Services.

– Place the water inlet hose in such a way that it

is never higher than the bottom edge of the safety valve.

Page 31

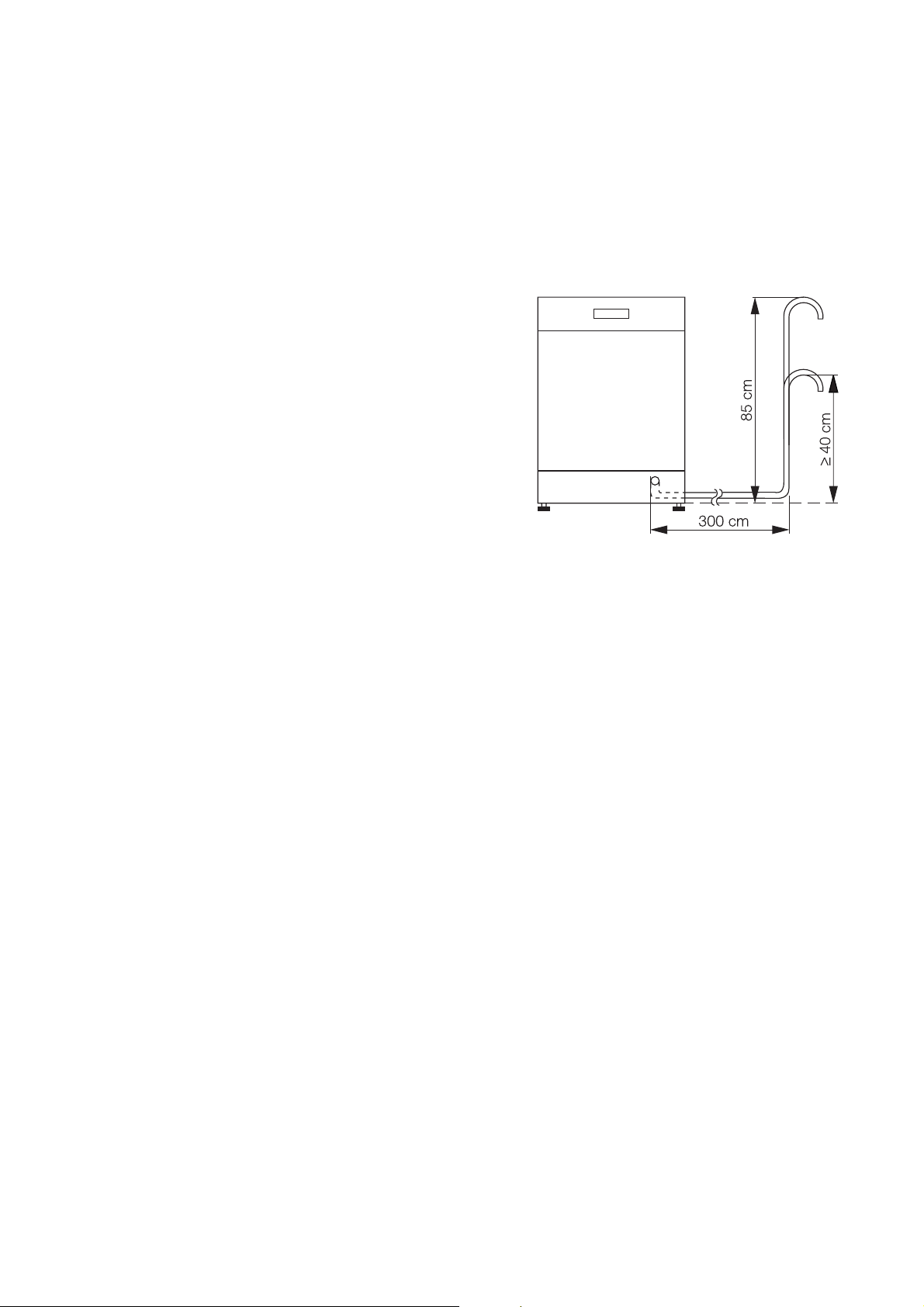

Water drain

Drain hose

• Connecting the drain hose:

The drain hose must not be kinked, crushed or entangled.

– Maximum permitted height: 1 metre. – Minimum required height 40 cm above the

lower edge of the machine.

Extension hoses

• Extension hoses are available from your dealer or customer service. The internal diameter of the extension hoses must be 19 mm to ensure that the function of the appliance is not impeded.

• Extension hoses may be laid a maximum of 3 metres horizontally; the maximum permitted height for the connection for the drain hose is then 85 cm.

Siphon connection

• The outlet of the drain hose (ø 19 mm) fits all commonly available siphon types. The outer diameter of the siphon connection must be at least 15 mm.

• The drain hose must be fixed to the siphon connection using the hose clamp supplied.

If the dishwasher is fitted at a high position

If the dishwasher is installed at a high level, and the drainhose connection is less than 30 cm from the bottom of the appliance, adapter kit ET 111099520 must be fitted. This is available from Customer Service.

Water drain into wash basins (only possible with free-standing appliances)

In the case that you wish to hang the drain hose in a wash basin, use a detachable hose elbow. You can obtain this from customer service under spare part number ET 646 069 190.

1. Fit the elbow to the drain hose.

2. Secure the drain hose against sliding off the edge

of the wash basin. Pass a piece of cord through the hose elbow and fix it to the wall or the tap.

Leak Prevention System

For protection from damage due to water leaks, the dishwasher is equipped with a leak prevention system. In the event of a fault, the safety valve in the water inlet hose immediately interrupts the supply of water to the appliance and the drain pump is activated. The remaining water in the appliance is automatically pumped out.

The leak prevention system also works when the appliance is switched off.

Page 32

Electrical Connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Before switching on make sure the electricity supply voltage is the same as that indicated on the appliance rating plate.

To isolate the dishwasher from the mains, remove the mains plug. Important: The plug must still be accessible after the appliance has been installed.

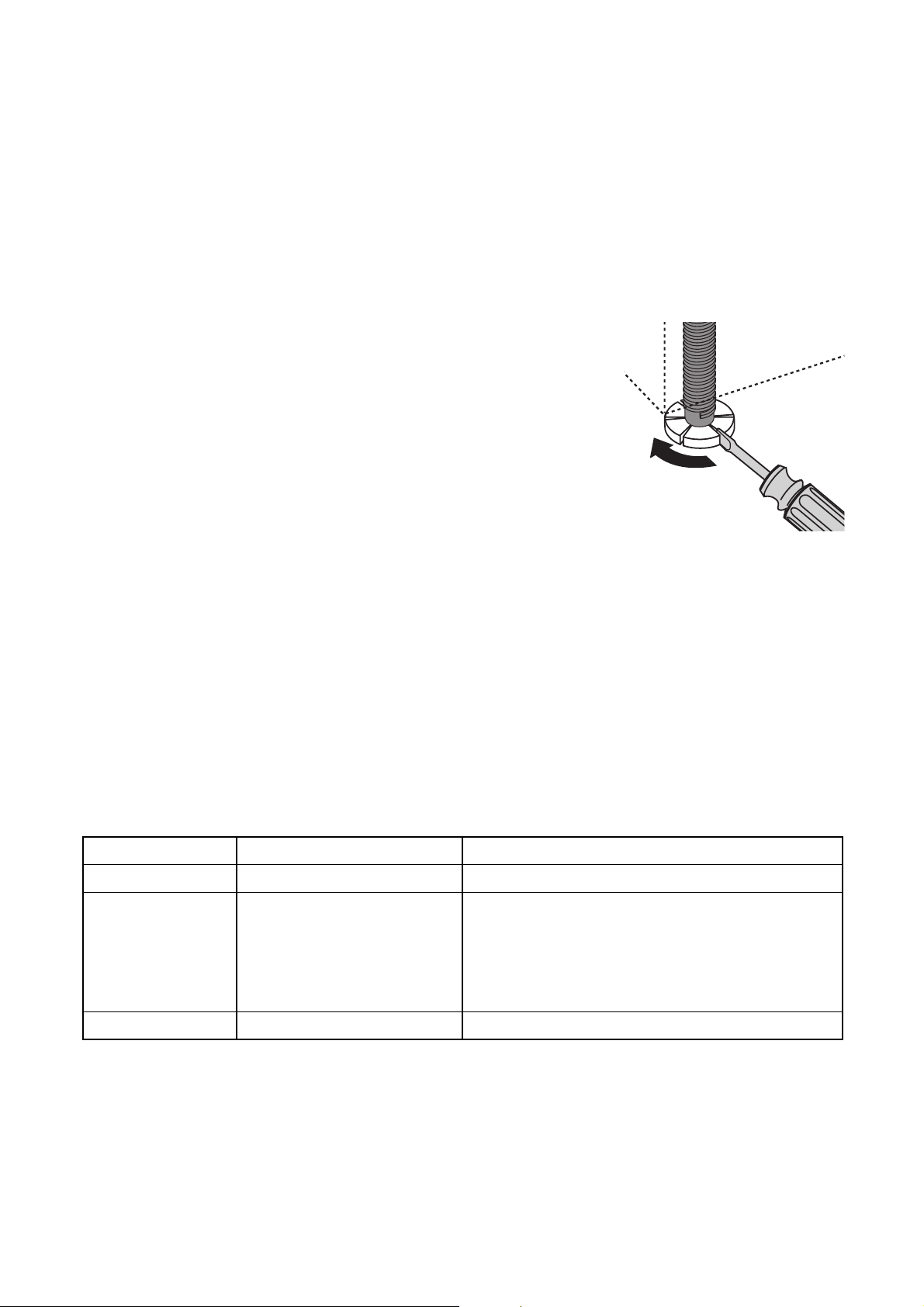

Changing a fuse

The appliance is supplied with a 13amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13amp ASTA approved (BS 1363A) fuse must be used.

WARNING - This appliance must be earthed. The manufacturer declines any responsibility should these safety measures not be observed.

Should the plug need to be replaced for any reason, proceed as described below.

The wires on the mains lead are coloured in accordance with the following code.

Green and Yellow : Earth

Blue : Neutral

Brown : Live

• The wire coloured green and yellow must be connected to the terminal marked with the letter “E“ or by the earth symbol or coloured green and yellow.

• The wire coloured blue must be connected to the terminal “N“ or coloured black.

• The wire coloured brown must be connected to the terminal marked “L“ or coloured red.

• Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

WARNING! A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that, if it is necessary to cut off the plug, it is disposed of safely and not retained.

Blue

Green & Yellow

Brown

Cord Clamp

Page 33

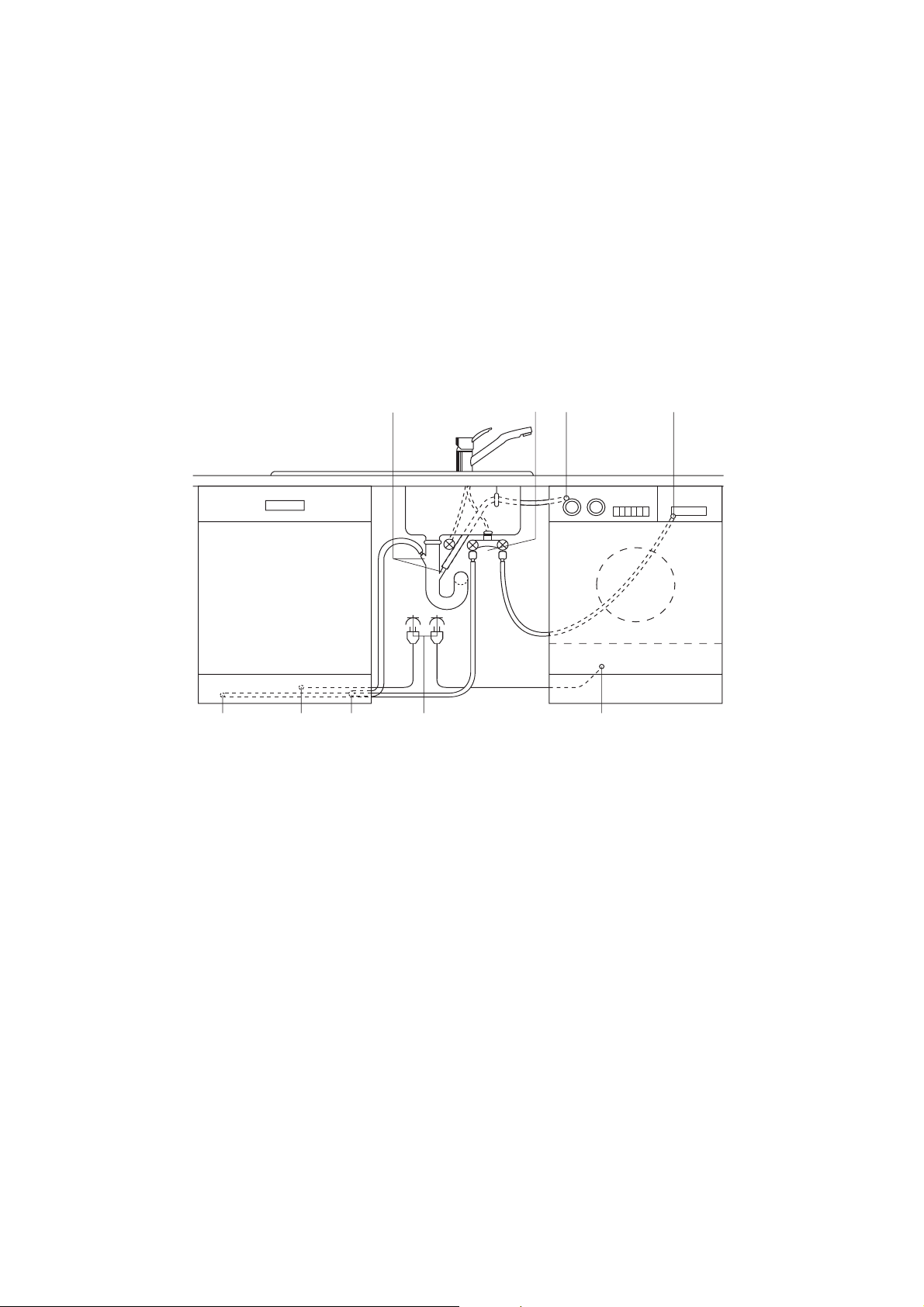

Connections

The water inlet and drain hoses, as well as the mains cable must be connected beside the dishwasher because there is no space for them behind the appliance. The example plumbing and electrical installation given below can only be regarded as a recommendation; the actual situation where the dishwasher is to be installed will define the exact installation (available connections, local electricity and water board regulations for connecting up appliances, etc.).

Two 45° or Straight Connections,Outer ø 19 mm, Length 30 mm

Water inlet Mains cable

Water drain

Mains socket

Double tap

Water drain

Mains cable

Water inlet

Page 34

Guarantee Conditions

Standard guarantee conditions

We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s instructions.

• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

• All service work under this guarantee must be undertaken by a Service Force Centre.

• Any appliance or defective part replaced shall become the Company’s property.

• This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

• Your new home is within the European Community (EC) or European Free Trade Area.

• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.

• The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis +33 (0) 3 44 62 20 13

Germany Nürnberg +49 (0) 800 234 7378

Italy Pordernone +39 (0) 800 11 7511

Sweden Stockholm +46 (0) 20 78 77 50

UK Slough +44 (0) 1753 219898

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.

• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.

• Products of Electrolux manufacture which are not marketed by Electrolux.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.

• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.

• This guarantee relates to you and cannot be transferred to another user.

Page 35

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact Service Force by telephoning:

08705 929 929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading

„What to do if.....“

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code.

2. Your telephone number

3. Clear and concise details of the fault.

4. The model and serial number of the appliance

(found on the rating plate).

5. The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

Customer Care

For general enquiries concerning your Electrolux appliance or for further information on Electrolux products please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk.

Customer Care Department Electrolux 55-77 High Street Slough Berkshire, SL1 1DZ Tel. 08705 950950(*) (*) Calls may be recorded for training purposes

Page 36

Electrolux plc 2002

822 960 473 - 00 - 0303 Subject to change without notice

The Electrolux Group. The world´s No.1 choice.

The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
