Electrolux ESI604W, ESI604B User Manual

Dishwasher

INSTRUCTION BOOK

152991 81/0

0/0398

Model ESI 604

Important safety information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of safety. You MUST read it carefully before installing or using the appliance.

Installation

■ This appliance is heavy. Care should be taken when

moving it.

■ It is dangerous to alter the specifications or attempt

to modify this product in any way.

■ Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

■ Any electrical work required to install this

appliance should be carried out by a qualified electrician or competent person.

■ Any plumbing work required to install this

appliance should be carried out by a qualified plumber or competent person.

Child Safety

■ This appliance is designed to be operated by adults.

Children should not be allowed to tamper with the controls or play with the product.

■ Keep all packaging well away from children.

■ Keep all detergents in a safe place out of children's

reach.

During Use

■ Items that are contaminated by petrol, paint,steel or

iron debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.

■ Under no circumstances should you open the door

whilst the appliance is in operation. Always turn off the appliance before opening the door.

■ Only use detergent specifically designed for use in

dishwashers.

■ Long blades knives stored in an upright position are

a potential hazard.

■ Long and/or sharp items of cutlery such as carving

knives must be positioned horizontally in the upper basket.

■ When finishing loading or unloading close the

door, as an open door can be a hazard.

■ Do not sit or stand on the open door.

■ Isolate the appliance from the power supply and

turn off the water supply after use.

■ Care should be taken when cleaning the bottom

door seal and hinge area as any exposed metal edges may cut if care is not taken.

■ This product should be serviced by an authorised

Service engineer, and only genuine spare parts should be used.

■ Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

Conservation

In the interest of the environment:

■ Materials marked with the symbol are

recyclable.

■ Check with your local Council or Environmental

Health Office to see if there are facilities in your area for re-cycling this appliance.

■ When the appliance is to be scrapped, cut off the

power supply cable and make the door closing device unusable to prevent young children from being trapped inside.

■ Help to keep your country tidy - use authorised

disposal sites for your old appliance.

PSI01UK

Contents

For the user

Important safety information 2 Guide to use the instruction book 3 Description of the appliance 4 The control panel 5 Before use 6

Setting the water softener 6 Rinse aid 8 Use of detergent 9

Using your appliance 10 Loading your appliance 10 Adjusting the height of the upper basket 12

Hints and tips 13 Washing programmes 14 Operating sequence 15 Maintenance and cleaning 16

Internal cleaning 16 Cleaning the central filters 16 Cleaning the large filter 16 External cleaning 17 Prolonged periods of non-operation 17 Frost precautions 17 Moving the machine 17

For the installer

Installation instruction 23 Technical specifications 23 Water supply connections 24 Water outlet connection 25 Electrical connection 26

Building-in 27 Levelling 27 The furniture door 28 Adjusting the door balance 29 Securing under a counter 29 Kitchen plinth adjustment 30

Something not working 18 Service and spare parts 19

Guarantee Conditions 20 Electrolux Service Force 21

Guide to use the instruction book

The following symbols will be found in the text to guide you throughout the instructions:

☞

Safety instructions

Step by step instructions

Hints and tips

Environmental information

PCO02UK

Description of the appliance

Water hardness adjustment

Levelling spacers

Upper basket stop

Large filter

Salt container

Upper basket

Upper spray arm

Lower spray arm

Detergent dispenser

IN46

Central filters

Lower basket

Cutlery basket

Rating plate

Control panel

Rinse aid dispenser

PDA02UK

The control panel

12 3 4

1.On/Off indicator light

2.On/Off pushbutton

By depressing this button the machine starts operating and, at the same time the On/Off indicator light illuminates.

Off

When the washing programme has finished, the machine stops automatically and the indicator light remains on.

To switch the indicator light off or to stop the machine at any time, press this button.

3.Door handle

To open the door press the catch in the top of the recess and pull toward you at the same time.

To close the door simply push it.

4.Programme selector dial

To select a programme, turn the programme selector dial clockwise, making sure that the marker on the knob corresponds with the programme you wish to select.

At the end of the programme the machine will stop automatically and the On/Off indicator light remains on until the On/Off pushbutton is depressed.

PCP03UK

Before use

Before using your dishwasher for the first time:

☞

ensure that the electrical and water connections comply with the installation instructions

☞

remove all packaging from inside the appliance

☞

set the water softener

☞

fill the salt container

☞

fill the rinse aid dispenser.

Setting the water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these salts, the harder your water is. Water hardness is measured in equivalent scales, Clarke degrees and French degrees. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. The dishwasher is factory set at level 2. If this level is not suitable for your area the softener should be adjusted.

* factory setting

hardness

Clarke

degrees

0 - 10 11 - 27 28 - 35 36 - 49 50 - 63

Water

French

degrees

0 - 14 15 - 39 40 - 50 51 - 70 71 - 90

Level

1 2

3 4 5

Water

softener

adjustment

NO NO

YES

Adjustment

on the

machine

NO NO

NO YES YES

☞

To adjust the water softener:

Level 1

If your water is "level 1" it is already soft and therefore there is no need to use salt.

Levels 3 and 5

(water softener adjustment)

If your water is level 3 or 5, proceed as follows:

- slide out the lower basket and unscrew the cap of the salt container;

- turn the two-position selector anticlockwise from position - to position + with the aid of a knife or screwdriver.

Levels 4 and 5

(adjustment on the machine)

If your water is level 4 or 5, open the door and drill membrane (A) on the upper left-hand corner of the machine.

With a water hardness of level 5 both adjustments must be made.

AA02

AA04

PBU02UK

Filling with salt

Salt must be used from level 2 upward.

Only use salt specifically designed for use in dishwasher. All other types of salt not specifically designed for use in dishwasher, specifically table salt, will damage the water softener.

Only fill with salt just before starting one of the complete washing programmes (not the Rinse and Hold programme). This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

To fill:

☞

1. To fill with salt, unscrew the cap of the salt

container.

2. Pour about 1 litre of water inside the container,

or until it is full (this is necessary only before filling with salt for the first time).

3. Then using the funnel provided, pour in the salt

until the container is full (approx. 1.5 - 1.8 kg). Do not worry if water over flows from the unit

when filling with salt, this is quite normal.

4. Replace the cap making sure that there is no

trace of salt on the screw thread or on the gasket.

5. Screw on the cap tightly.

SALT

SR07

The salt container will require topping up periodically. The salt cap has a refill indicator window in the centre. A green float is clearly visible when there is salt inside

the container, and almost disappears when the salt has finished, (ie. every 30 - 50 washes depending on the setting of the water softener) reminding you to add salt.

SR11

PFS02UK

Rinse aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.

Filling with Rinse Aid:

1. Open the container by turning the lid (A)

anticlockwise.

2. Add the rinse aid until the container is

completely full (approx. 110 ml). The indicator (B) will be completely dark.

3. Top up the rinse aid when the indicator (B)

becomes clear.

BR01

Ensure that the lid is closed after every refill.

Do not put liquid detergent in the rinse aid department. Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash.

Adjusting the dose

According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (C) (position 1 minimum dosage, position 6 maximum dosage). (Start from position 3). Gradually increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish streaks on the dishes.

BR02

BR03

PFR01UK

Use of detergent

Only use detergents specifically designed for use in dishwashers.

We recommend the use of Finish detergents which are available in the following options:

Finish Double Action Tablets. Each tablet has the exact amount of detergent required, simply place in the dispenser.

Finish Powder recommended for every day use. Finish liquid Gel ideal for every day use. As the gel is

extra gentle is it recommended for fine bone china.

To fill the dishwasher with detergent proceed as follows:

1. Open the dispenser lid by pulling the catch (D).

2. Add the detergent according to the

recommendations in the programme chart. As all detergents are not the same, you should also consult the instructions on the packet. To help correctly dose the right amount of detergent, inside the container there are two reference marks:

- MIN = 15 ml

- MAX = 30 ml

DE07

DE02

MIN

MAX

3. Always close the lid.

4. If the programme has a prewash add the

required detergent over the lid of the dispenser.

Insufficient quantities of detergent will produce poor washing results, whereas an excessive amount of detergent will not improve washing results and is also wasteful. Using no more than the correct amount also contributes to reducing pollution.

PUD01UK

Using your appliance

Loading your appliance

Before placing dishes in the machine, remove any scraps of food, to avoid clogging the filters and consequently reducing the performance.

Do not load very small items which can fall through the baskets.

Open the door and slide out the baskets to load the dishes.

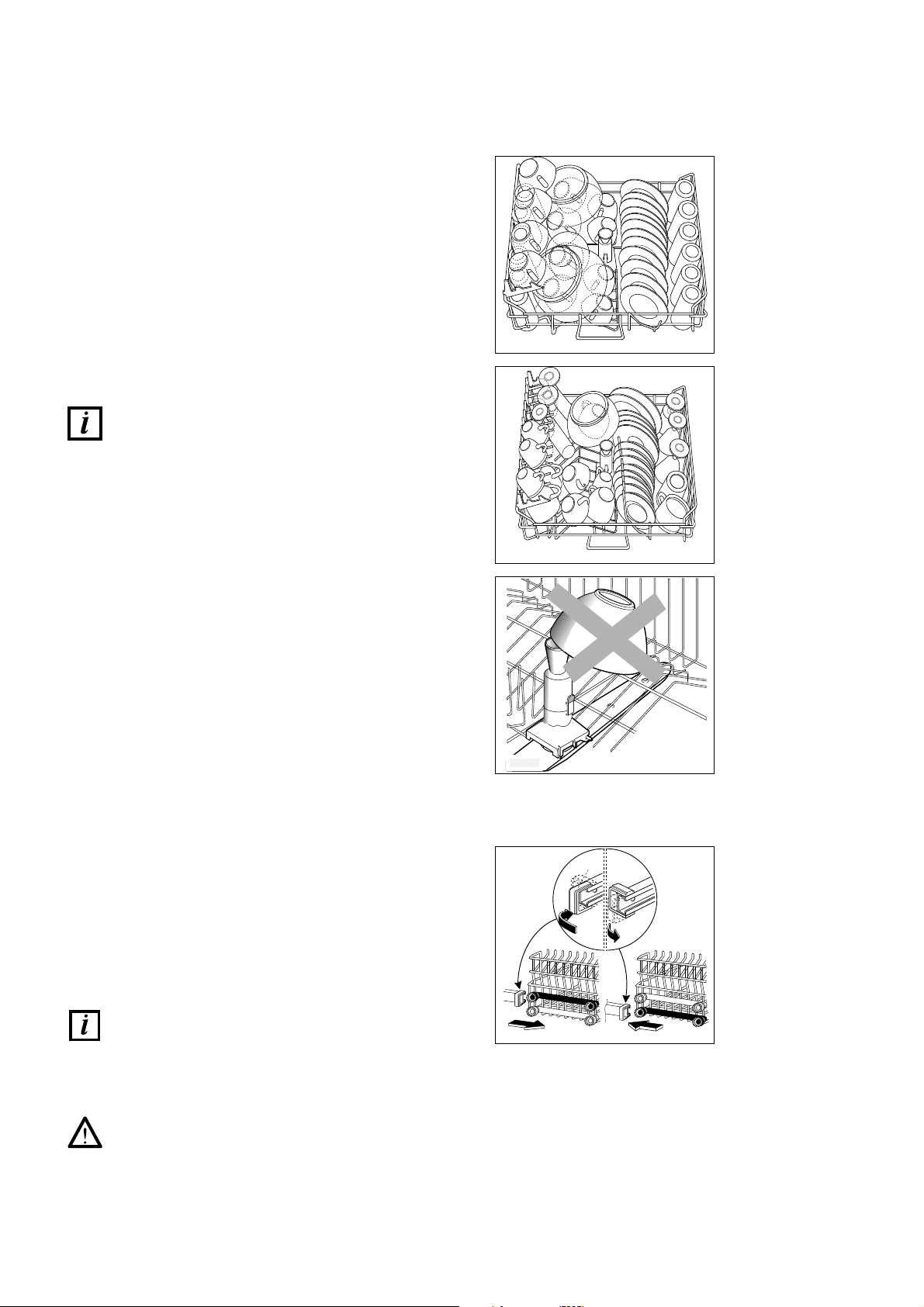

The lower basket

The lower basket is designed to take saucepans, lids, plates (up to 27 cm in diameter), salad bowls, cutlery etc.

Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the upper spray arm can turn freely.

UI33

The two rear rows of prongs on the lower basket can be easily lowered to allow you to load pots, pans and bowls.

IEC 436 / DIN 44990

To lower the prongs:

☞

Slightly pull them upward and let them drop down (see picture)

To bring them back to the standing position, just pull them up again.

UI19

UI18

PBA05UK
