Page 1
Dishwasher
Instruction book
Model ESI 602
UK
3 02/02
Page 2
2
Important safety information 3
Hints and tips 3
Description of the appliance 4
The control panel 4
Before use 5
Setting the water softener 5
Filling with salt 5
Rinse aid 6
Use of detergent 6
Using your appliance 7

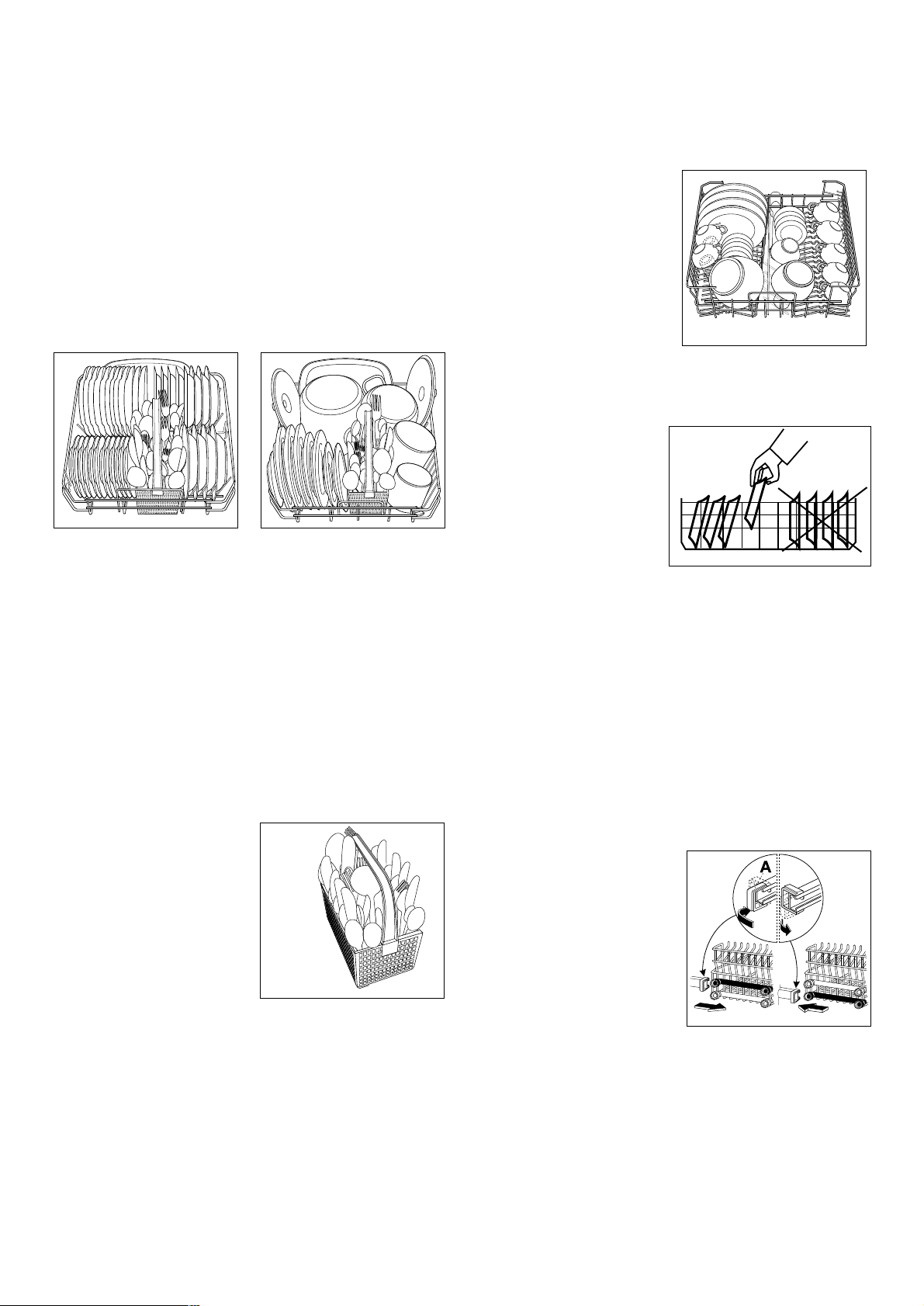

Loading your appliance 7
The lower basket 7
The cutlery basket 7
The upper basket 7
Adjusting the height of the upper basket 7
Washing programmes 8
Operating sequence 9
Maintenance and cleaning 10
Internal cleaning 10

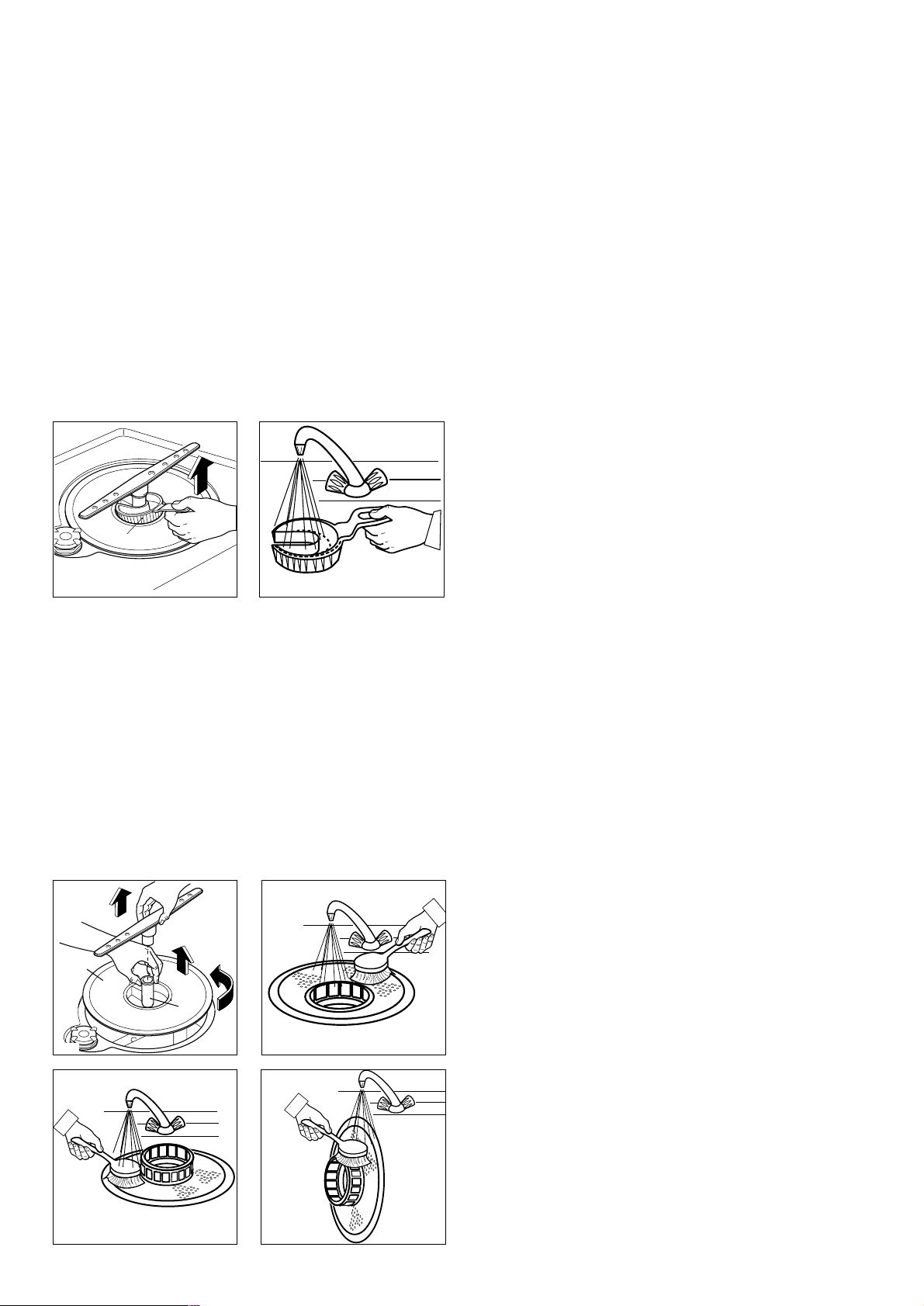

Cleaning the filters 10
External cleaning 10
Prolonged periods of non-operation 10
Frost precautions 10
Moving the machine 10

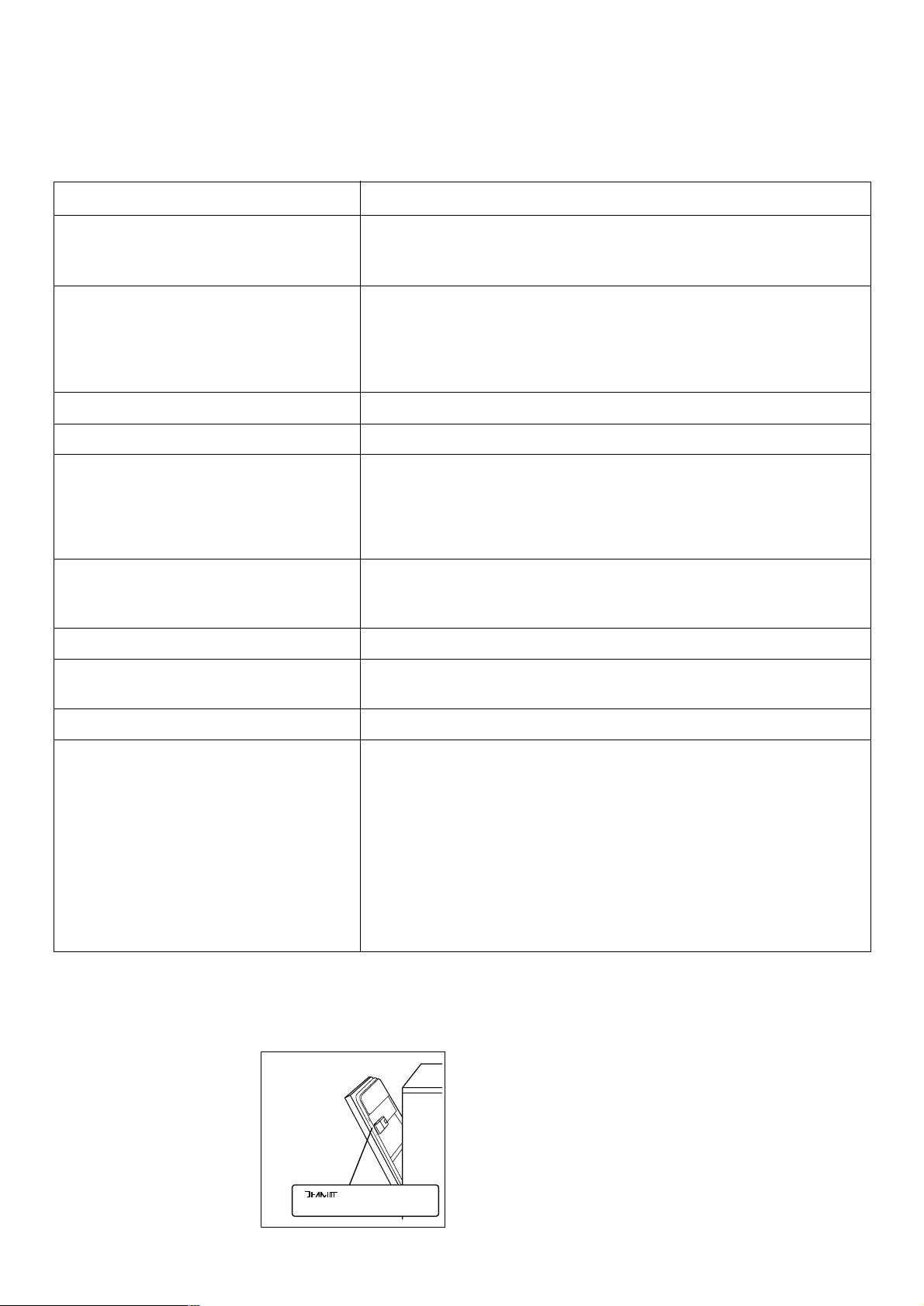

Something not working 11
Service and Spare Parts 12
Customer Care Department 12
Guarantee Conditions 12
Installation instructions 13
Water supply connections 13

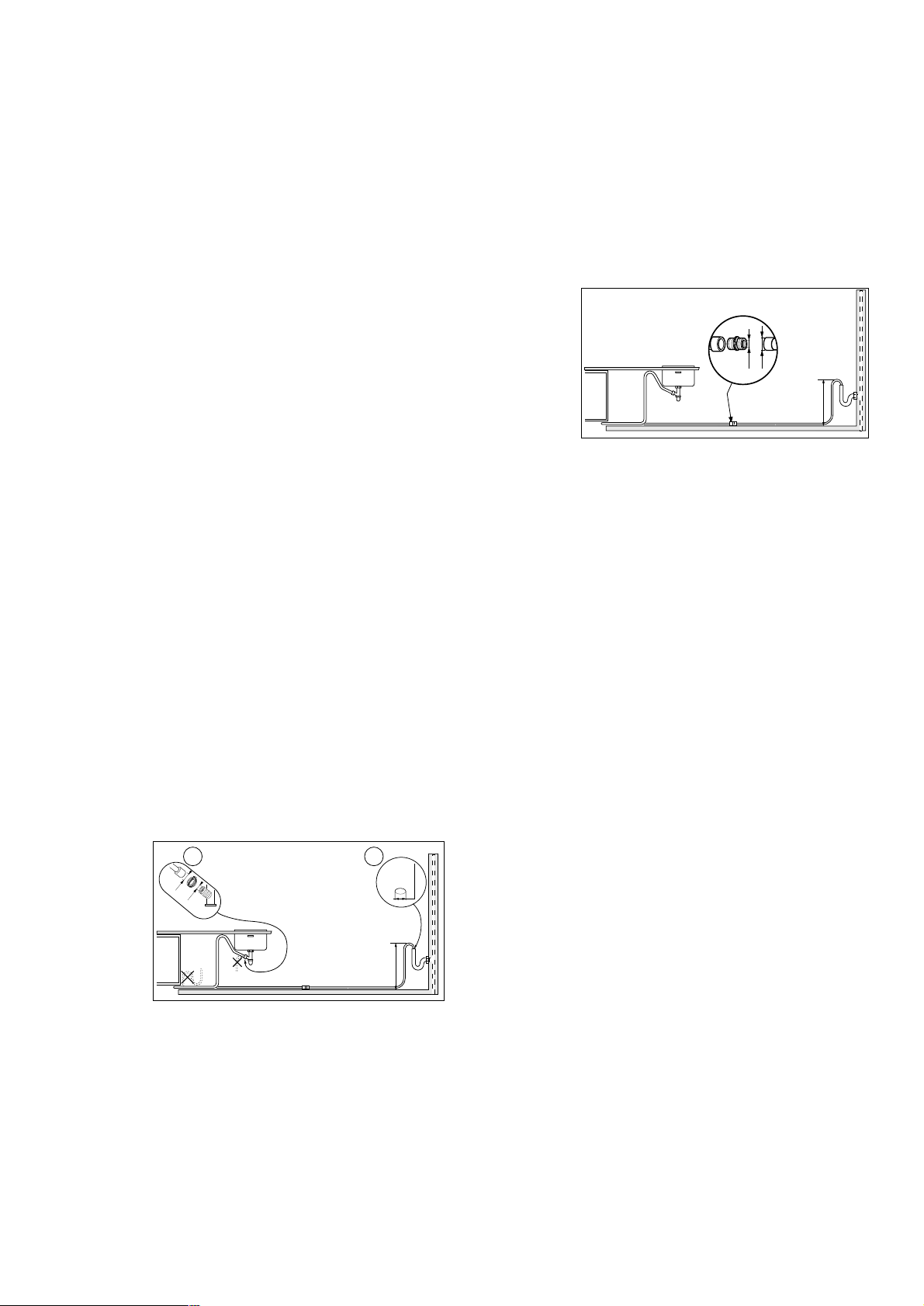

Water outlet hose connection 13
Electrical connection 14

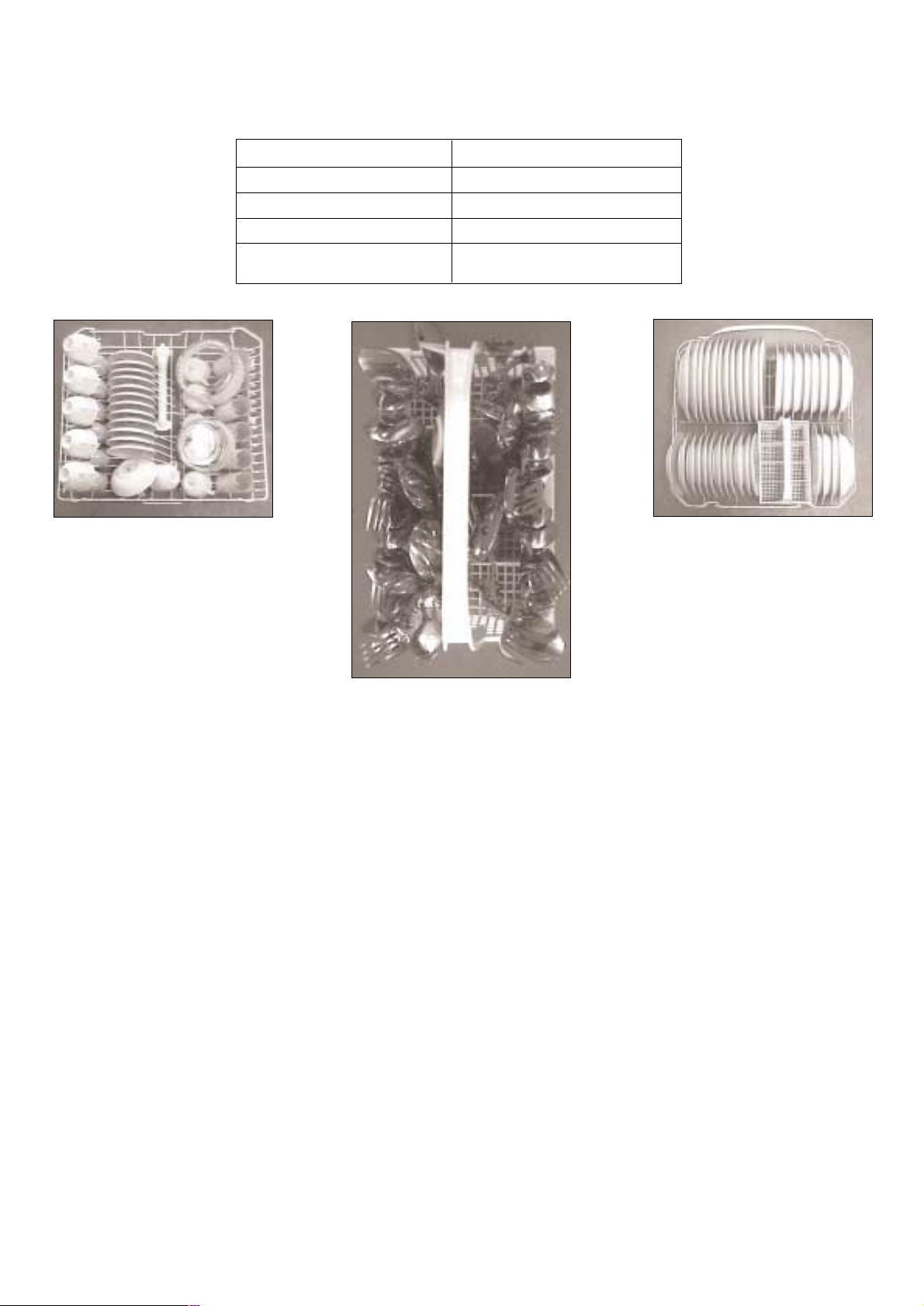

Hints for test centres 15
Contents
Dimensions Width 59.6 cm
Height 81.8 - 87.8 cm
Max depth 57.5 cm
Max depth with open door 111.4 cm
Electrical connection Voltage 220/240 V - 50 Hz
Motor rating during wash 200 W
Power of heating element 2100 W
Overall power 2300 W
Water supply pressure Minimum 50 kPa (0.5 bar)
Maximum 800 kPa (8 bar)
Capacity 12 place settings
Technical specifications
Page 3
3
Installation
● This appliance is heavy. Care should be taken when moving
it.
● It is dangerous to alter the specifications or attempt to modify
this product in any way.
● Care must be taken to ensure that the appliance does not
stand on the electrical supply cable.
● Any electrical work required to install this appliance should
be carried out by a qualified electrician or competent person.
● Any plumbing work required to install this appliance should
be carried out by a qualified plumber or competent person.
Child Safety
● This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the controls or
play with the product.
● Keep all packaging well away from children.
● Keep all detergents in a safe place out of children's reach.
During Use
● Items that are contaminated by petrol, paint, steel or iron
debris, corrosive, acidic or alkaline chemicals must not be
washed in this dishwasher.
● Under no circumstances should you open the door whilst the
appliance is in operation. Always turn off the appliance
before opening the door.
● Only use detergent specifically designed for use in
dishwashers.
● Long bladed knives stored in an upright position are a
potential hazard.
● Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
● When finishing loading or unloading close the door, as an
open door can be a hazard.
● Do not sit or stand on the open door.
● Isolate the appliance from the power supply and turn off the
water supply after use.
● Care should be taken when cleaning the bottom door seal
and hinge area as any exposed metal edges may cut if care
is not taken.
● This product should be serviced by an authorised Service
engineer, and only genuine spare parts should be used.
● Under no circumstances should you attempt to repair the
machine yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning. Contact
your local Service Force Centre. Always insist on genuine
spare parts.
Conservation
In the interest of the environment:
● Materials marked with the symbol are recyclable.
● Check with your local Council or Environmental Health Office
to see if there are facilities in your area for re-cycling this
appliance.
● When the appliance is to be scrapped, cut off the power
supply cable and make the door closing device unusable to
prevent young children from being trapped inside.
● Help to keep your country tidy - use authorised disposal sites
for your old appliance.
Important safety information
It is most important that this instruction book should be retained with the appliance for future reference. Should the
appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that
the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the
relevant safety information.
This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the
appliance.
To save energy
Place dishes in the machine immediately after every meal and
wait until the dishwasher is full before washing.
If necessary run the Rinse and Hold programme (see
"Washing Programmes" chart) so that any food scraps do not
become caked on the dishes while you are waiting to run the
complete wash programme.
Do not prewash dishes under running water.
For best washing and drying results
Before loading, remove all scraps of food and soak very
heavily soiled pots and pans.
Arrange saucepans, cups and glasses etc. upside-down.
Tilt items with convex or concave surfaces so that the water
drains off easily.
Avoid contact between the dishes as far as possible.
Items not suitable for dishwashers
The following items should not be washed in the
dishwasher (unless they are sold as dishwasher proof):
- Cutlery with wooden or horn handles or glued parts
- bronze cutlery
- saucepans with wooden handles
- aluminium ware
- crystal ware
- leaded glass
- plastic items
- antique or fine decorated china
Certain types of decoration can discolour when washed in a
dishwasher.
Crystal-ware and plastic objects, if not guaranteed dishwasher
proof should be washed by hand.
Certain types of glass can also become opaque after being
washed several times in a dishwasher.
A chemical reaction can occur between silver cutlery and
stainless steel cutlery. As a precaution, do not wash together.
Iron and cast iron objects can rust and stain other items.
Aluminium tends to go black, copper, pewter and brass tend to
stain.
If in doubt check with manufacturer of the item.
When buying new dishes, ensure that they are dishwasher
proof.
Hints and tips
Page 4
4
1. Water hardness adjustment
2. Levelling spacers
3. Upper basket stop
4. Salt container
5. Lower spray arm
6. Detergent dispenser
7. Control panel
8. Rating plate
9. Rinse aid dispenser
10. Large filter
11. Central filter
12. Upper spray arm
13. Upper basket
1. MAINS ON indicator light
2. On/Off push button
3. Door handle
4. Programme selector dial
Description of the appliance
The control panel
1
2
3
4
5
6
13
12
11
10
9
8
7
IN85
Page 5
5
Before using your dishwasher for the
first time:
1. Ensure that the electrical and water connections comply
with the installation instructions
2. Remove all packaging from inside the appliance
3. Set the water softener
4. Pour 1 litre of water inside the salt container and then fill
with salt
5. Fill the rinse aid dispenser.
6. Run a "Rinse and Hold" programme.
Setting the water softener
The dishwasher is equipped with a water softener designed to
remove minerals and salts from the water supply, which would
have a detrimental or adverse effect on the operation of the
appliance.
The higher the content of these salts, the harder your water is.
Water hardness is measured in equivalent scales, Clarke,
French degrees and PPM (parts per Million).
The softener should be adjusted according to the hardness of
the water in your area. Your local Water Authority can advise
you on the hardness of the water in your area.
The dishwasher is factory set at level 2.
If this level is not suitable for your area the softener should be
adjusted.
If your water is level 0 it is already soft and therefore there
is no need to use salt.
In this case adjust the water softener on level 1 without
using salt.
To adjust the water softener
With a screwdriver turn the selector on the upper front corner
of the machine until the level required corresponds with the
marker.
Filling with salt
Only use salt specifically designed for use in
dishwashers.
All other types of salt not specifically designed for use in
a dishwasher, especially table salt, will damage the water
softener.
Only fill with salt just before starting one of the complete
washing programmes. This will prevent any grains of salt
or salty water, which may have been spilled, remaining on
the bottom of the machine for any period of time, which
may cause corrosion.
To fill:
1. To fill with salt, unscrew the cap of the salt container.
2. Pour 1 litre of water inside the container (this is
necessary only before filling with salt for the first time).
3. Using the funnel provided,
pour in the salt until the
container is full.
Do not worry if water over
flows from the unit when
filling with salt, this is quite
normal.
4. Replace the cap making
sure that there is no trace
of salt on the screw thread
or on the gasket.
5. Screw on the cap tightly.
The salt container will require topping up periodically.
The salt cap has a refill indicator window in the centre.
A green float is clearly visible when there is salt inside the
container, and almost disappears when the salt has finished
reminding you to add salt.
Before use
Level
Use of
salt
French
degrees
(°TH)
PPM
(Parts per
Million)
Clarke
degrees
0
1
2
3
4
5
NO
YES
YES
YES
YES
YES
0 - 6
7 - 14
15 - 28
29 - 42
43 - 56
57 - 63
0 - 8
9 - 20
21 - 40
41 - 60
61 - 80
81 - 90
0 - 80
81 - 200
201 - 400
401 - 600
601 - 800
801 - 900
Water hardness
SR06
SALE
SALT
SALZ
SEL
3
4
5
2
1
2
AA05
SR11
Page 6
6
Rinse aid
Rinse aid is automatically added during the last rinse, ensuring
thorough rinsing, and spot and streak free drying. The
dispenser, which is positioned inside the door, holds about 110
ml of rinse aid, which is sufficient for 16 - 40 dishwashing
programmes, depending upon the dosage setting.

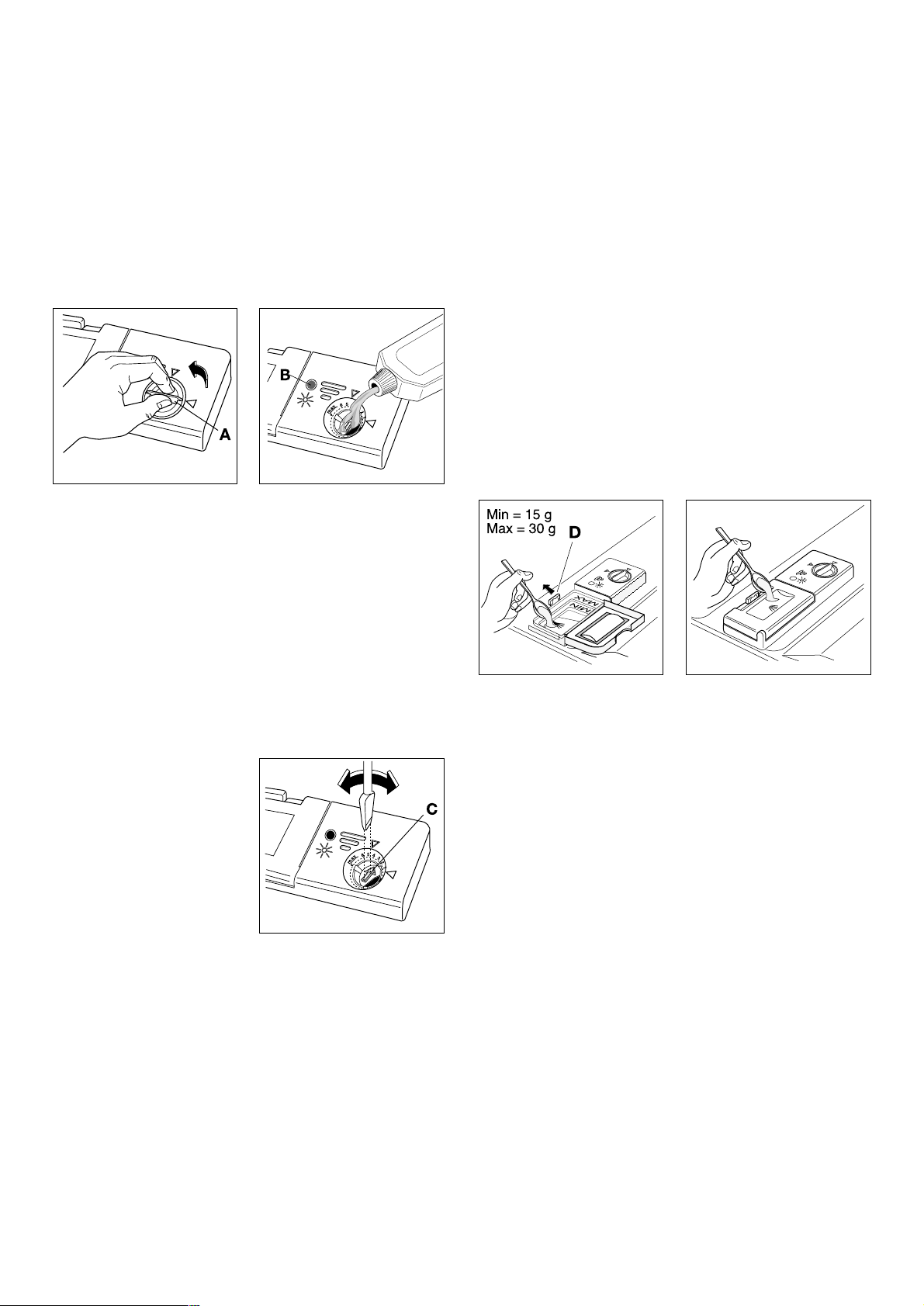

Filling with rinse aid
1. Open the container by turning the lid (A) anticlockwise.
2. Add the rinse aid until the container is completely full.
The indicator (B) will be completely dark.
3. Top up the rinse aid when the indicator (B) becomes clear.
Ensure that the lid is closed after every refill.
Do not put liquid detergent in the rinse aid compartment. Clean
up any rinse aid spilt during filling with an absorbent cloth to
avoid excess foaming during the next wash.
Adjusting the dose
According to the finish and drying results obtained, adjust the
dose of rinse aid by means of the 6 position selector (C)
(position 1 minimum dosage, position 6 maximum dosage).
Increase the dose if there are drops of water or lime spots on
the dishes after washing. Reduce it if there are sticky whitish
streaks on the dishes.
Use of detergent
Only use detergents specifically designed for use in
dishwashers.
We recommend the use of Finish detergents which are
available in the following options:
Finish Double Action Tablets. Each tablet has the exact
amount of detergent required, simply place in the dispenser.
Finish Powder recommended for every day use.
Finish Liquid Gel ideal for every day use. As the gel is extra
gentle it is recommended for fine bone china.
If using powder detergents proceed as follows:
1. Open the dispenser lid by pulling the catch (D).
2. Add the detergent according to the recommended quantity
given in the "Washing programmes" chart.
As all detergents are not the same, you should also consult
the instructions on the packet.
3. Always close the lid.
4. If the programme has a prewash add a little amount of
detergent over the lid of the dispenser
Follow the recommended quantity of detergent given in the
"Washing programmes" chart.
If using detergent in tablets proceed as follows:
1. For all programmes; place 1 tablet inside the detergent
dispenser.
2. Always close the lid.
3. For all programmes with prewash; place a portion of a
further tablet on the lid of the detergent dispenser.
Insufficient quantities of detergent will produce poor
washing results, whereas an excessive amount of
detergent will not improve washing results and is also
wasteful.
Using no more than the correct amount also contributes
to reducing pollution.
Compact detergents with enzymes
In these low-alkaline compact powders the environmentally
unfriendly components have been replaced by natural
enzymes and other more biodegradable substances.
These new compact powders are generally phosphate-free.
BR01
BR03
BR02
DE17
DE02
Page 7
7
Loading your appliance
Before placing dishes in the machine, remove any scraps of
food, to avoid clogging the filters and consequently reducing
the performance.
Do not load very small items which can fall through the
baskets.
The lower basket
The lower basket is designed to take saucepans, lids, plates,
salad bowls, cutlery etc.
Serving dishes and large lids should be arranged around the
edge of the basket, ensuring that the upper spray arm can turn
freely.
The cutlery basket
Long bladed knives stored in an upright position are a
potential hazard.
Long and/or sharp items of cutlery such as carving knives
must be positioned horizontally in the upper basket.
Take care when loading or unloading sharp items such as
knives.
Cutlery should be placed in the removable cutlery basket with
the handles facing downwards.
If the handles protrude from the bottom of the basket,
obstructing the lower spray arm, load the cutlery with the
handles facing upwards.
Mix spoons with other cutlery to prevent them from sticking
together.
The upper basket
The upper basket is designed for plates (dessert plates,
saucers, dinner plates of up to 25 cm in diameter), salad
bowls, cups and glasses.
Arrange items on and
underneath the cup racks so
that water can reach all
surfaces.
Light items (plastic bowls
etc.) should be loaded in the
upper basket and arranged
so they do not move.
Before closing the door,
ensure that the spray arms
can rotate freely.
In case that plates are loaded in the upper
basket:
load them starting from
the rear positions of the
basket; tilting them slightly
forwards and avoiding the
front positions near the
door.
Adjusting the height of the upper basket
If washing very large plates (over 27 cm and up to 32 cm in
diameter) you can load them in the lower basket after moving
the upper basket to the higher position.
To move to the higher position proceed as
follows:
1. Move the front runner stops (A) of the upper basket
outwards and slide the basket out.
2. Refit the basket in the higher position and replace the stops
(A) in their original position.
When the top basket is in the higher position it will only
take plates up to 20 cm in diameter and you will not be
able to use the cup racks.
After loading your machine always close the door, as an
open door can be a hazard.
Using your appliance
UI49
UI19
US64
UI04
US71
RC01
Page 8
12
Washing programmes
Programme Degree of soil
and
type of load
Required
push button
Recommended
quantity of detergent
wash
prewash
Starting position
of the programme
selector
Heavy soil.
Crockery, cutlery,
pots and pans
Normal soil.
Crockery and
cutlery
Light soil.
Crockery and
party crockery
Any.
Partial load (to be
completed later in
the day).
Cycle
description
*
Power Wash
65°
Normal Wash
65°
**
Eco Wash
Rinse and Hold
Cold prewash
Main wash up to 65°C
1 cold rinse
1 hot rinse
Drying
Main wash up to 65°C
1 cold rinse
1 hot rinse
Main wash up to 65°C
1 cold rinse
1 hot rinse
Drying
1 cold rinse (to avoid
food scraps from
sticking together).
*
Testing programme for EN 50242 (see "Hints for Test Centres").
**
This is a special programme for quick washing a full load of lightly soiled dishes, glasses and crockery (except pots) so that you
may re-use them promptly.
On/Off
On/Off
On/Off
On/Off
POWER WASH
65°
NORMAL WASH
65°
ECO WASH
RINSE & HOLD
25 g 5 g
30 g /
30 g /
//
LIQUID GEL
POWDER
EASY
POURING
PACK
For best results we recommend the use of Finish detergents, rinse aid and salt.
EW
N
N
IO
T
E
C
L
A
B
U
O
D
CONCENTRATED DISHWASHER DETERGENT
DE15
FOR A
BRILLIANT
SHINE
RINSE
Page 9
9
1. Check the filters
Ensure they are clean and properly positioned (see
"Maintenance and cleaning").
2. Check that there is rinse aid and salt
3. Load the dishes
Remove any scraps of food.
Pull the lower basket out and arrange the saucepans,
plates and cutlery in it.
Pull the upper basket out and arrange the plates,
saucers, glasses and cups etc. in it.
Slide the baskets back into the machine.
4. Ensure that the spray arms can
rotate freely.
5. Measure out detergent
Add the required amount of detergent into the
dispenser according to the dosage quantity
given in the "Washing programmes" chart.
Close the detergent dispenser lid.
6. Close the dishwasher door
7. Set the programme
Turn the programme selector dial clockwise until the
programme marker on the knob corresponds with the
programme you wish to select.
8. Start the programme
Depress the On/Off push button.
The "Mains On" indicator light will come on and the
machine will start.
If you wish to interrupt the washing programme at any
time press this button again.
9. At the end of the washing
programme
At the end of the programme the dishwasher will
automatically stop.
The "Mains On" indicator light remains on until the On/Off
push button is depressed.
10. Switch off the dishwasher
Switch off the dishwasher by pressing the On/Off push
button and open the door.
Wait a few minutes before removing the dishes; in this
way they will be cooler and the drying will be improved.
Empty the lower basket first and then the upper one; this
will avoid water dripping from the upper basket onto the
dishes in the lower one.
When the washing programme has finished, it is
recommended that the dishwasher is unplugged and the
water tap turned off.
In general it is not advisable to open the door while the
machine is working; if the door is opened however, a
safety device ensures that the machine stops.
Important!
Care must be taken if the door is opened during the hot
phase or immediately after a programme has finished, as
steam may escape.
Operating sequence
Page 10
10
Internal cleaning
Ensure that the seals around the door, the detergent and rinse
aid dispensers are cleaned regularly with a damp cloth.
We recommend the use of Finish Dishwasher Cleaner every
3 months or run a 65°C wash without dishes using detergent.
Regular use of Finish Dishwasher Cleaner cleans
inaccessible parts, eliminates unpleasant food odours and
helps prevent the build-up of limescale.
Cleaning the central filter
(After each wash)
Scraps of food may accumulate in the drain filter (A) and
should be removed by rinsing the filter under running water.
To remove the drain filter
- simply pull it out by the handle.
Once cleaned, refit the filter by pushing it back to its original
position until it engages.
Cleaning the large filter
(Every week)
If necessary clean the large filter (B) on both sides under
running water, using a brush.
To remove the large filter
1. Remove the spray arm by pulling it upwards on one side.
2. Turn the column (C) anticlockwise by 90° and then slide out
the filter.
3. Once cleaned refit it following the above instructions in
reverse order.
4. Ensure the filter is in its original position, the handle of the
drain filter should be pointing towards the front of the
appliance.
The dishwasher must not be used without filters.
Incorrect repositioning and fitting of the filters will
produce poor washing results.
Cleaning the filters is vital to ensure correct operation of
the machine.
External cleaning
Clean the external surfaces of the machine and control panel
with a damp soft cloth. If necessary use only neutral
detergents. Never use abrasive products, scouring pads or
solvent (acetone, trichloroethylene etc....).
Prolonged periods of non-operation
If you are not using the machine for any period of time you
are advised to:
1. Unplug the appliance and then turn off the water.
2. Fill the rinse aid dispenser.
3. Leave the door ajar to prevent the formation of any
unpleasant smells.
4. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where the temperature
is below 0°C. If this is unavoidable, empty the machine, close
the appliance door, disconnect the water inlet pipe and empty
it.
Moving the machine
If you have to move the machine (moving house etc....):
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
Maintenance and cleaning
A
MA04
MA19
90°
B
C
MA05
MA21
MA20
MA18
Page 11
11
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer.
Before contacting your local Service Force Centre, please carry out the checks listed below.
Important: If you call out an engineer to a fault listed below or to repair a fault caused by incorrect use or installation a charge will
be made even if the appliance is in guarantee.
Something not working
Symptom Solution
The machine will not start ● The door has not been properly closed.
● The plug is not properly inserted in the power socket.
● There is a power failure.
The machine does not fill
● Ensure the water tap is open.
with water
● Ensure the mains water supply has not been cut off.
● The inlet hose may be squashed or bent. Reposition the hose.
● The inlet hose may be blocked. Switch off the water supply and clean the
filter.
The filters are blocked ● Clean the filters (refer to "Maintenance and cleaning").
The spray arms are not rotating
● Ensure the crockery is loaded correctly.
The dishwasher will not drain ● The drain hose may be squashed or bent. Reposition the hose.
● The sink may be blocked. Clear any blockages.
● The drain hose extension is not correct. Follow the instructions for connecting
to the waste.
● There is no vent in the end of the drain hose.
The machine is noisy
● Dishes are rattling against each other, refer to “Loading your machine”.
● The spray arms are knocking against the dishes. Refer to "Loading your
machine".
The door is difficult to close
● The dishwasher is not level, or not properly built-in.
Visible lime deposits or white
● Check that there is salt and that the salt cap is tight.
film on the dishes
● Check that the right level of the water softener is set.
The dishes are not quite dry
● The rinse aid has run out or too little is being used.
The dishes are not clean
● The baskets are too full.
(poor wash)
● The dishes have not been arranged properly.
● The spray arms do not rotate
● The spray arms are clogged.
● The filters are clogged.
● The filters are not in the correct position.
● Not enough detergent has been used or it is unsuitable.
● The detergent is old or has gone hard.
● The salt container cap is not properly closed.
● The washing programme selected is too gentle.
If after all these checks, the problem persists, contact your
local Service Force Centre, quoting the model and serial
number. This information can be found on the rating plate
located on the right hand side of the dishwasher door (see
picture).
This product should be serviced by an authorised Service
engineer, and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the
machine yourself.
Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Force Centre.
Always insist on genuine spare parts.
Prod.No.
........
Ser. No.
.........
Mod.
........
RA01
Page 12
12
In the event of your appliance requiring service, or if you wish to
purchase spare parts please contact your local Service Force
Centre by telephoning:
08705 929929
Your telephone call will be automatically routed to the Service
Force centre covering your post code area.
For the address of your local Service Force Centre and further
information about Service Force, please visit the website at
www
.serviceforce.co.uk
Before calling out an engineer, please ensure you read the details
under the heading Something not working.
When you contact the Service Force Centre you will need to give
the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number (found on the rating plate)
5. The purchase date
Please note that a valid purchase receipt or guarantee
documentation is required for in-guarantee service calls.
Customer Care
Department
For general enquiries concerning your Electrolux appliance or for
further information on Electrolux products please contact our
Customer Care Department by letter or telephone at the address
below or visit our website at www.electrolux.co.uk
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel: 08705 950950 (*)
*
calls to this number may be recorded for training purposes
Guarantee Conditions
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of
purchase this Electrolux appliance or any part thereof is proved to
be defective by reason only of faulty workmanship or materials, we
will, at our option repair or replace the same FREE OF CHARGE
for labour, materials or carriage on condition that:
● The appliance has been correctly installed and used only on the
electricity supply stated on the rating plate.
● The appliance has been used for normal domestic purposes
only, and in accordance with the manufacturer’s instructions.
● The appliance has not been serviced, maintained repaired,
taken apart or tampered with by any person not authorised by
us.
● All service work under this guarantee must be undertaken by a
Electrolux Service Force Centre.
● Any appliance or defective part replaced shall become the
Company’s property.
● This guarantee is in addition to your statutory and other legal
rights.
Home visits are made between 8.30am and 5.30pm Monday to
Friday. Visits may be available outside these hours in which case a
premium will be charged.
Exclusions
This guarantee does not cover:
● Damage or calls resulting from transportation, improper use or
neglect, the replacement of any light bulbs or removable parts
of glass or plastic.
● Costs incurred for calls to put right an appliance which is
improperly installed or calls to appliances outside the United
Kingdom.
● Appliances found to be in use within a commercial environment,
plus those which are subject to rental agreements.
● Products of Electrolux manufacture which are not marketed by
Electrolux.
European Guarantee
If you should move to another country within Europe then your
guarantee moves with you to your new home subject to the
following qualifications:
● The guarantee starts from the date you first purchased your
product.
● The guarantee is for the same period and to the same extent
for labour and parts as exists in the new country of use for this
brand or range of products.
● This guarantee relates to you and cannot be transferred to
another user.
● Your new home is within the European Community (EC) or
European free Trade Area.
● The product is installed and used in accordance with our
instructions and is only used domestically, i.e. a normal
household.
● The product is installed taking into account regulations in your
new country.
Before you move please contact your nearest Customer Care
centre, listed below, to give them details of your new home. They
will then ensure that the local service Organisation is aware of
your move and able to look after you and your appliances.
France Senlis +33 (0) 3 44 62 20 13
Sweden Stockholm +46 (0) 20 78 77 50
Germany Nurnberg +49 (0) 800 234 7378
UK Slough +44 (0) 1753 219898
Italy Pordenone +39 (0) 800 117511
Ireland Dublin +353 (0) 14090753
Service and Spare Parts
Page 13
13
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Any plumbing work required to install this appliance
should be carried out by a qualified plumber or competent
person.
Remove all packaging before positioning the machine.
If possible, position the machine next to a water tap and a
drain.
Attention!
Carefully follow the instructions on the enclosed template
for building in the dishwasher and fitting the furniture panel.
Water supply connections
This dishwasher must be plumbed into a cold water supply.
The water pressure must be within the limits given in the
technical specifications.
Your local Water Authority will advise you on the average
mains pressure in your area.
The dishwasher features fill and drain hoses which can be
turned either to the left or the right to suit the installation. The
locknut must be correctly fitted to avoid water leaks.
Avoid bends or kinks in the hose which could prevent or slow
down the water supply.
If the machine is connected to new pipes or pipes which have
not been used for a long time, you should run the water for a
few minutes before connecting the inlet hose. This will prevent
deposits of sand or rust clogging the inlet hose filter.
Do not use, for the connection, old hoses which have
been used in another appliance.
Water outlet hose connection
The end of the drain hose can be connected in the following
ways:
1. To the sink outlet spigot, securing it if necessary with a clip.
2. To a stand pipe provided with vent-hole, minimum internal
diameter 4 cm.
The waste connection must be at a height of between 30 cm
(minimum) and 100 cm (maximum) from the bottom of the
dishwasher.
The drain hose can face either to the right or left of the
dishwasher
Ensure the hose is not bent or squashed as this could prevent
or slow down the discharge of water.
If you use a drain hose extension it must be no longer than 2
metres and its internal diameter must be no smaller than the
diameter of the hose provided.
Likewise the internal diameter of the couplings used for
connections to the waste outlet must be no smaller than the
diameter of the hose provided.
The sink plug must not be in place when the machine is
draining as this could cause the water to siphon back into
the machine.
Attention!
Our appliances are supplied with a security device to
protect against the return of dirty water back into the
machine.
If the spigot of your sink has a "no return valve"
incorporated this can prevent the correct draining of your
dishwasher.
We advise you therefore to remove it.
Installation instructions
Ø 18
Ø 21
min 30 cm
CS14
+ 2 m max
max 100 cm
1 2
Ø 21
Ø 18
CS13
min 4 cm
min 30 cm
max 100 cm
Page 14
14
Electrical connection
This appliance must be earthed.
The manufacturer declines any responsibility should this
safety measure not be observed.
If the plug that is fitted to your appliance is not suitable for the
socket, it must be cut off and the appropriate plug fitted.

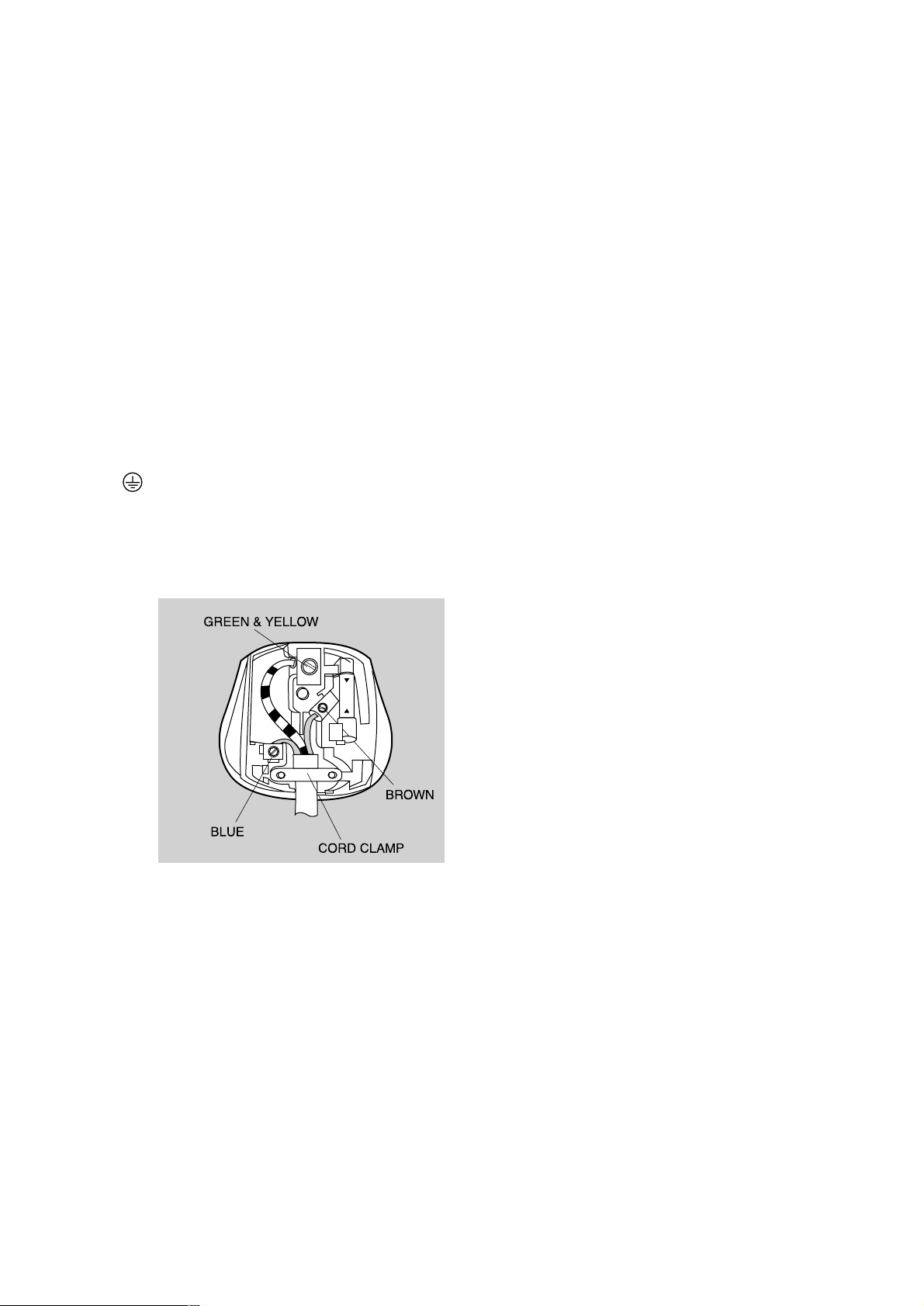

Important
The wires on the mains lead are coloured in accordance with
the following code:
Green and Yellow -Earth
Blue -Neutral
Brown -Live
If you fit your own plug, the colours of the wires in the mains
lead of your appliance may not correspond with the markings
identifying the terminals in your plug.
Proceed as follows:
1. Connect the Green and Yellow (earth) wire to the terminal in
the plug which is marked with the letter "E" or the earth
symbol or coloured green and yellow.
2. Connect the Blue (neutral) wire to the terminal in the plug
which is marked with the letter "N" or coloured black.
3. Connect the Brown (live) wire to the terminal in the plug
which is marked with the letter "L" or coloured red.
The plug moulded onto the lead incorporates a 13amp BSI362
fuse. Only ASTAor BSI fuses should be used.
The plug must not be used if the fuse cover/carrier is lost. The
cover/carrier is indicated by the coloured insert at the base of
the plug.
A replacement cover/carrier must be obtained from your local
Service Force Centre.
This appliance complies with the following E.E.C.
Directives:
- 73/23 or 19.2.73 (Low Voltage Directive) and subsequent
modifications;
- 89/336 or 3.5.89 (Electromagnetic Compatibility Directive)
and subsequent modifications.
E
13A
N
CE04
L
Page 15
15
Hints for test centres
Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse aid dispenser.
Test standard EN 50242
Reference programme: Power Wash 65°
Load: 12 standard place settings
Rinse aid selector: position 5
Detergent dosage : 25 g in the dispenser
5 g on the dispenser lid
Arrangement upper basket
Arrangement cutlery basket
Arrangement lower basket
Page 16
The Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux Group products (such as
refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year
to a value of approx. 14 billion USD in more than 150 countries around the world.
152983 63/3
Subject to change without notice
©
Electrolux Household Appliances Limited 2002
Loading...
