Electrolux ESI, ESII User Manual

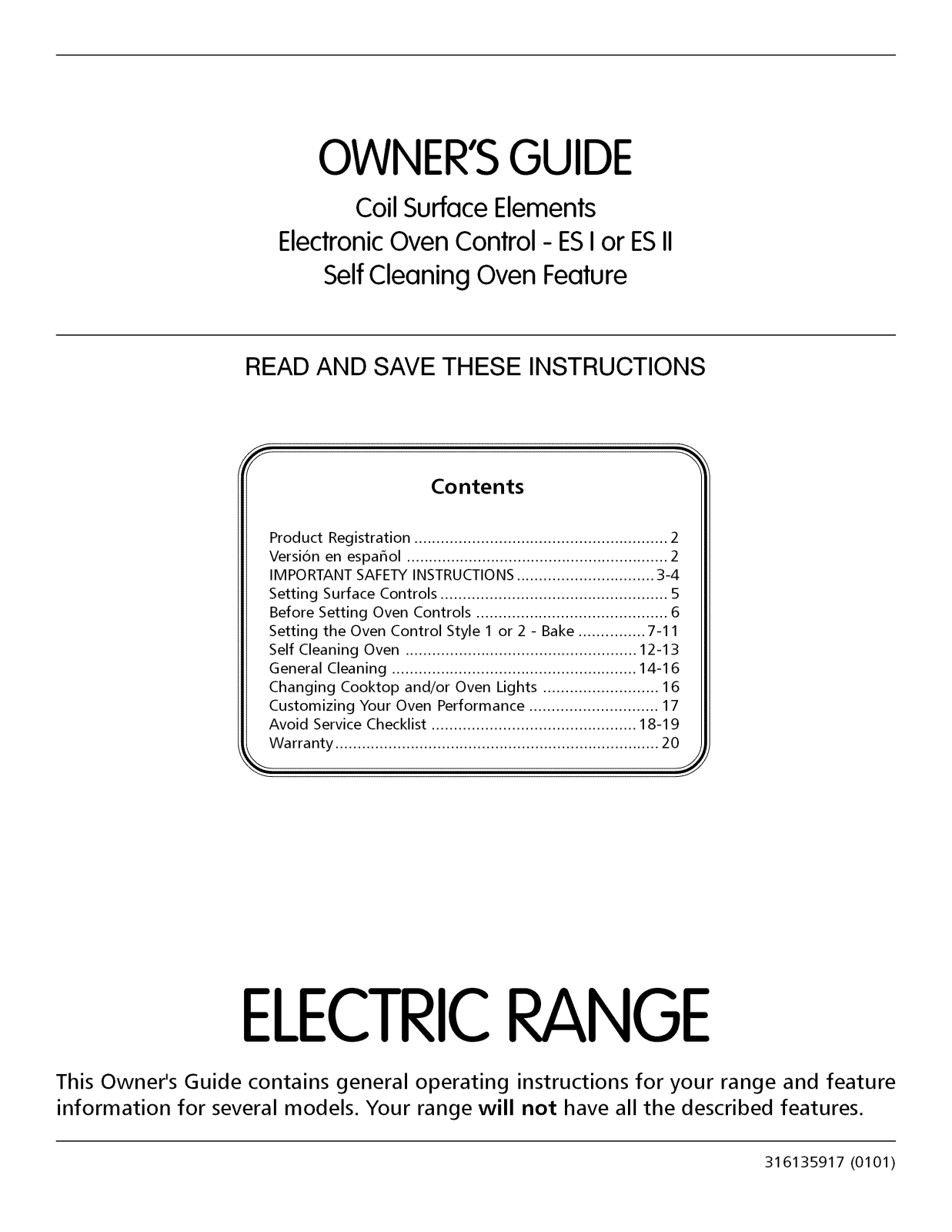

OWNER'SGUIDE
Coil SurfaceElements
ElectronicOven Control - ESIor ESII
Self Cleaning Oven Feature
READ AND SAVE THESE INSTRUCTIONS
Contents
Product Registration ......................................................... 2
Version en espa6ol ........................................................... 2
IMPORTANT SAFETY INSTRUCTIONS ............................... 3-4

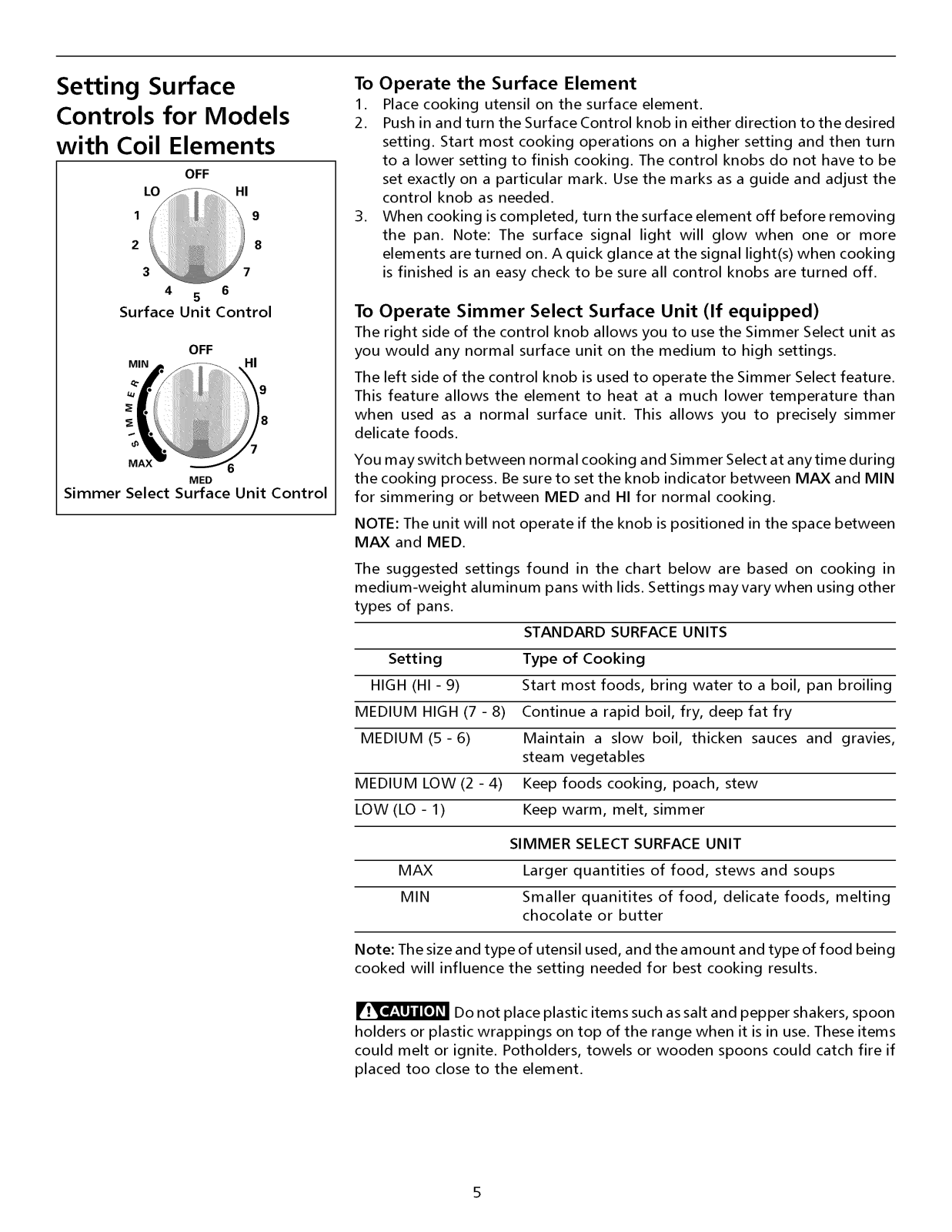

Setting Surface Controls ................................................... 5

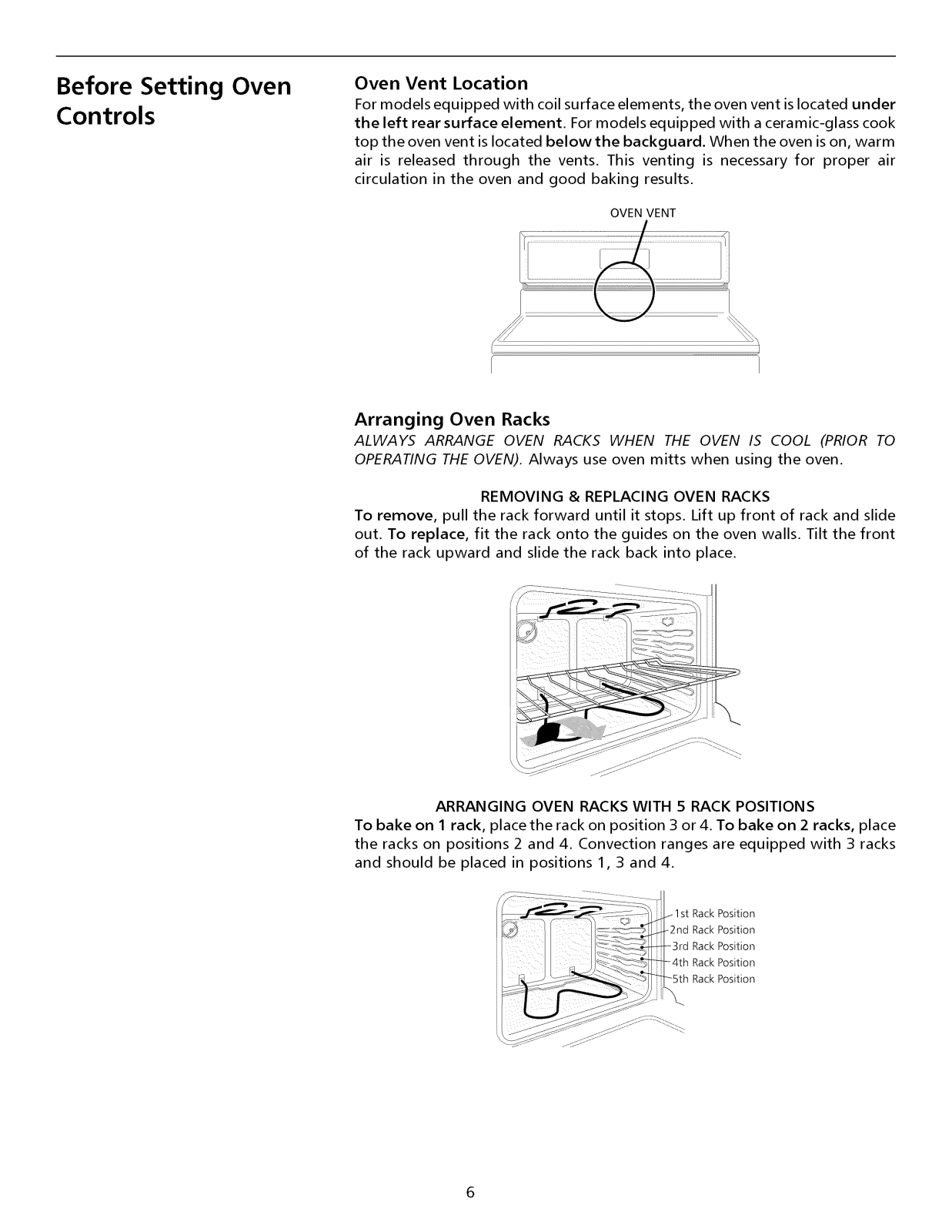

Before Setting Oven Controls ........................................... 6

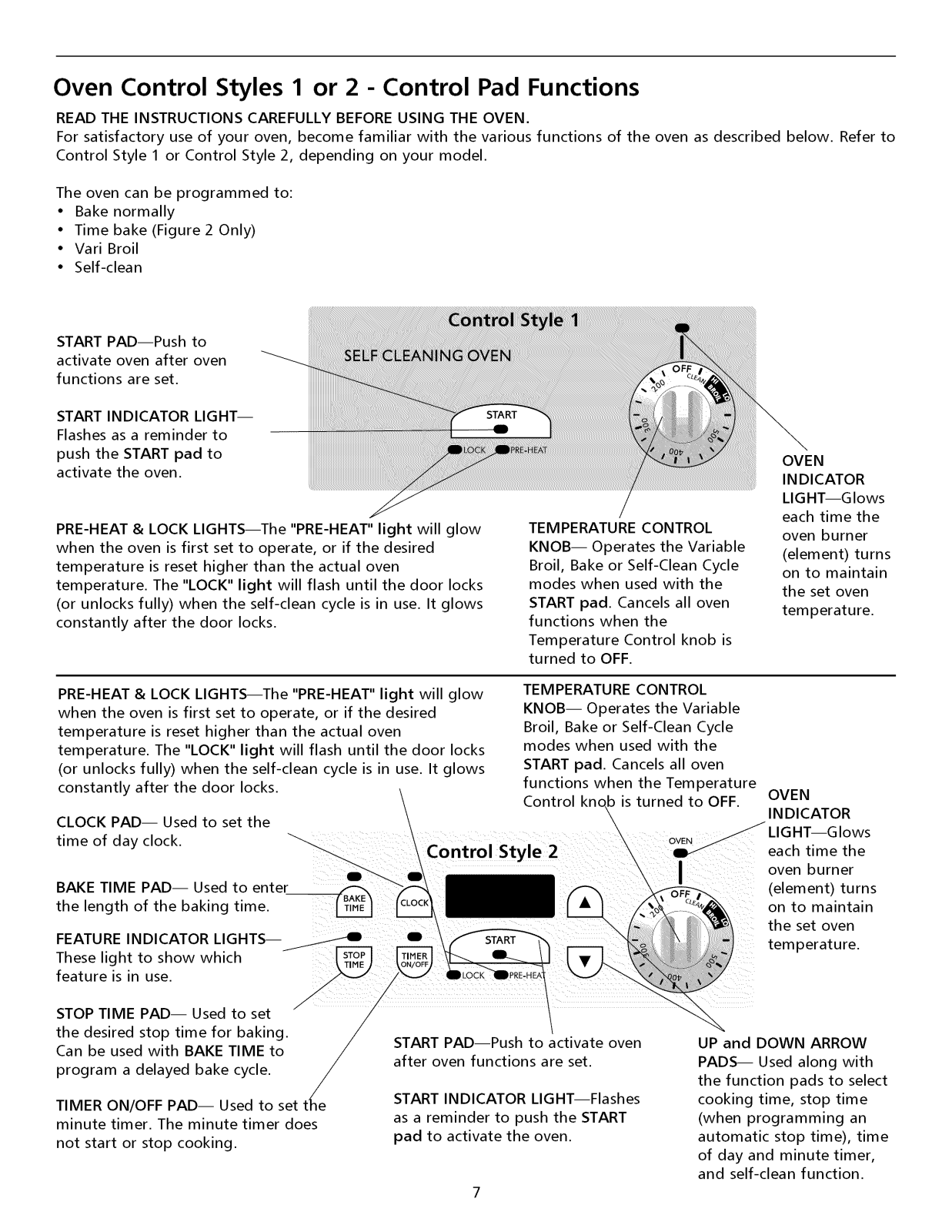

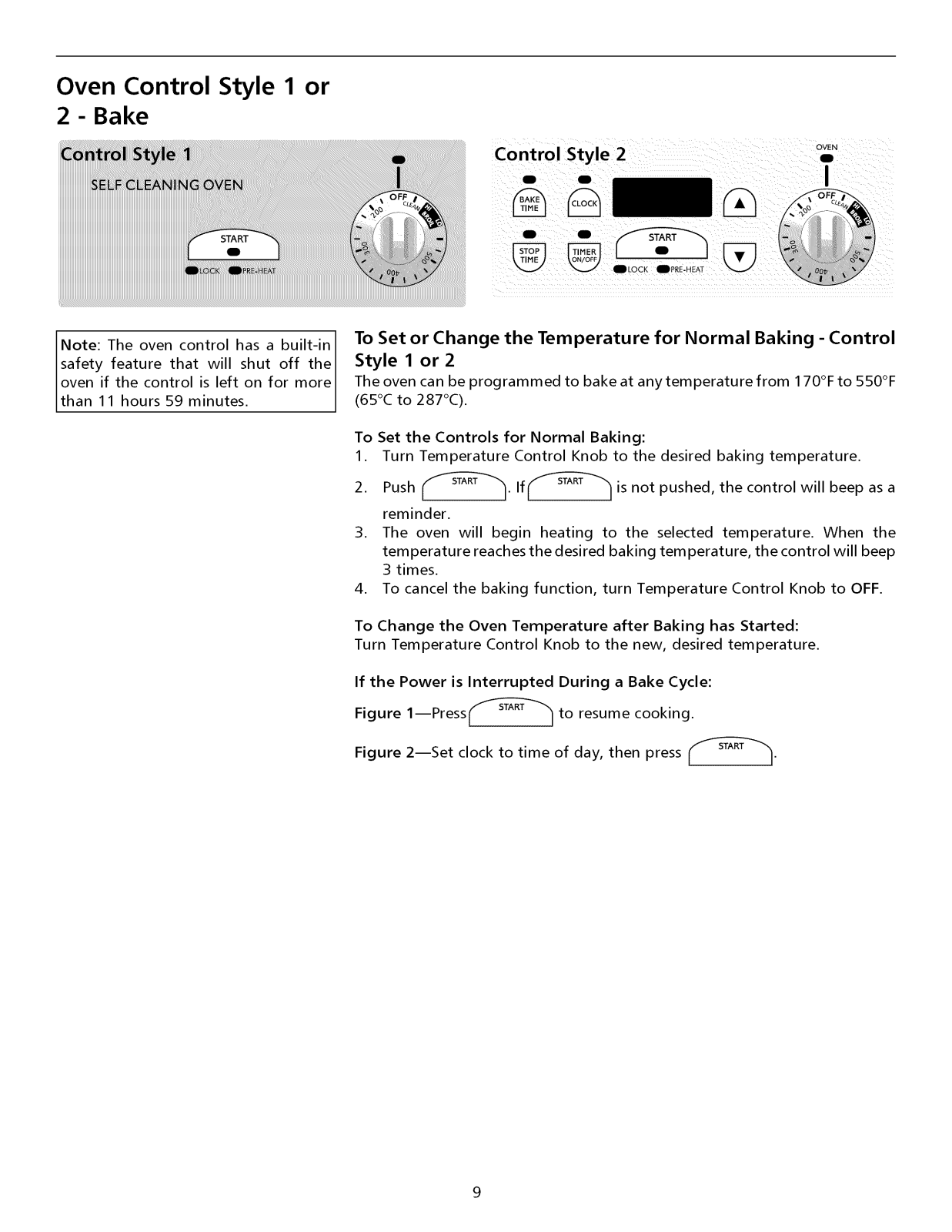

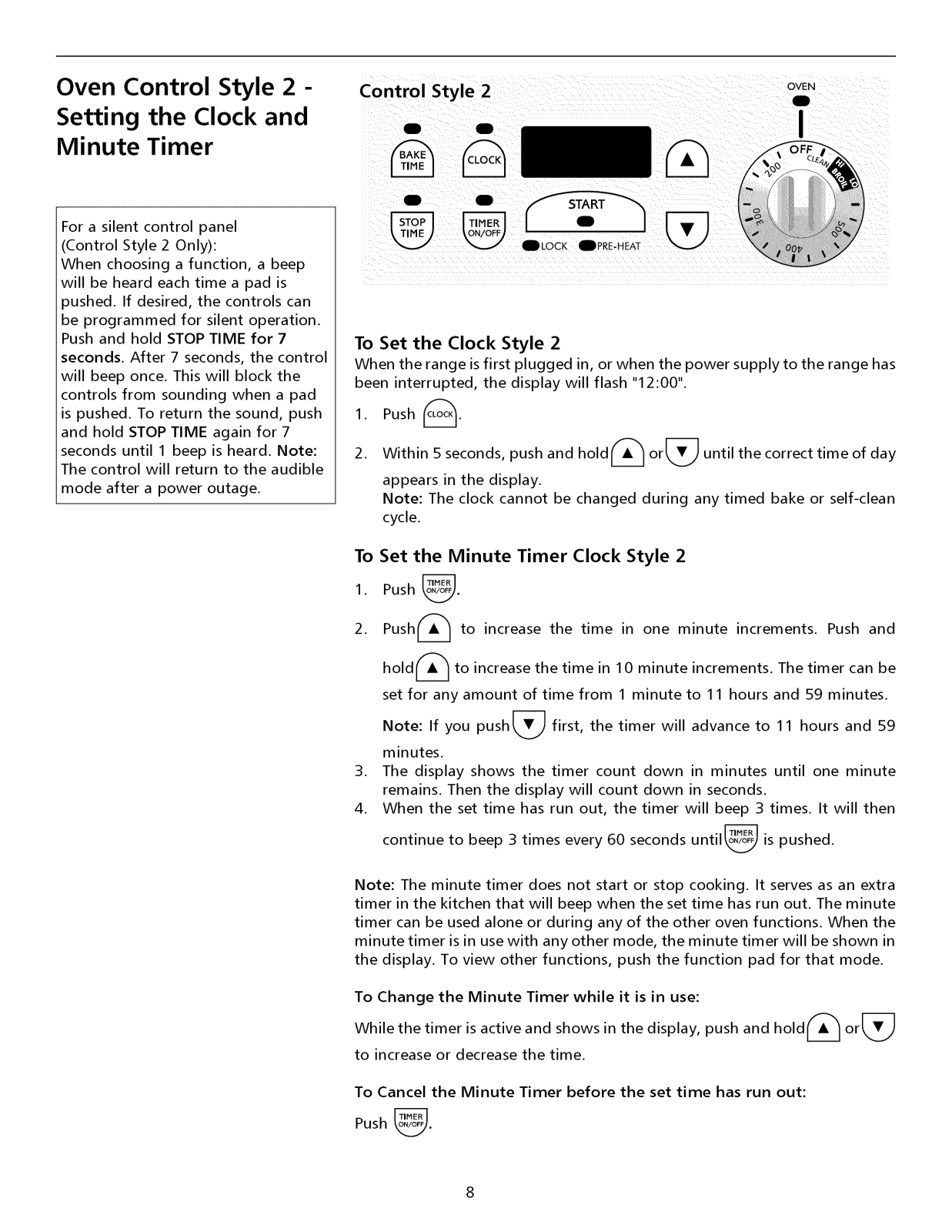

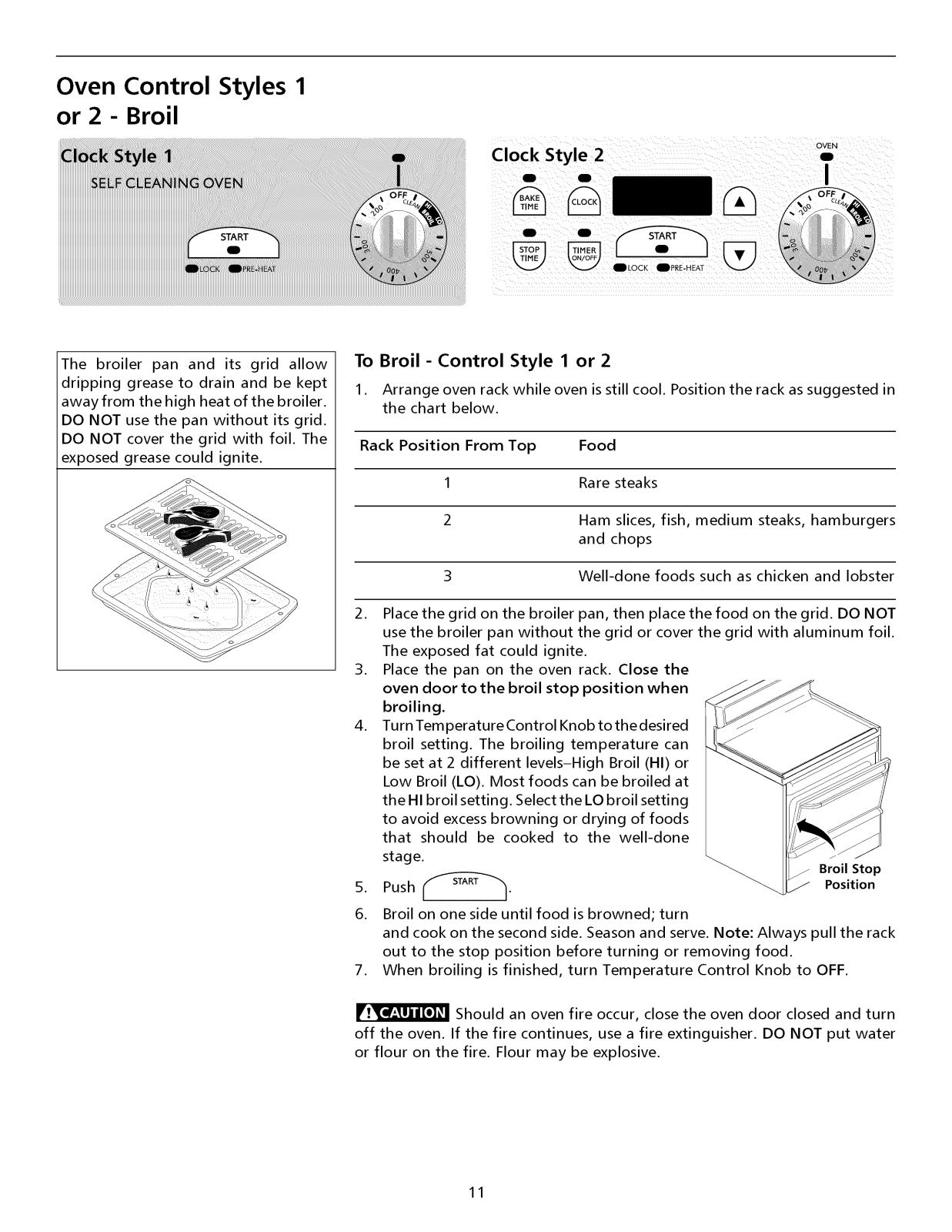

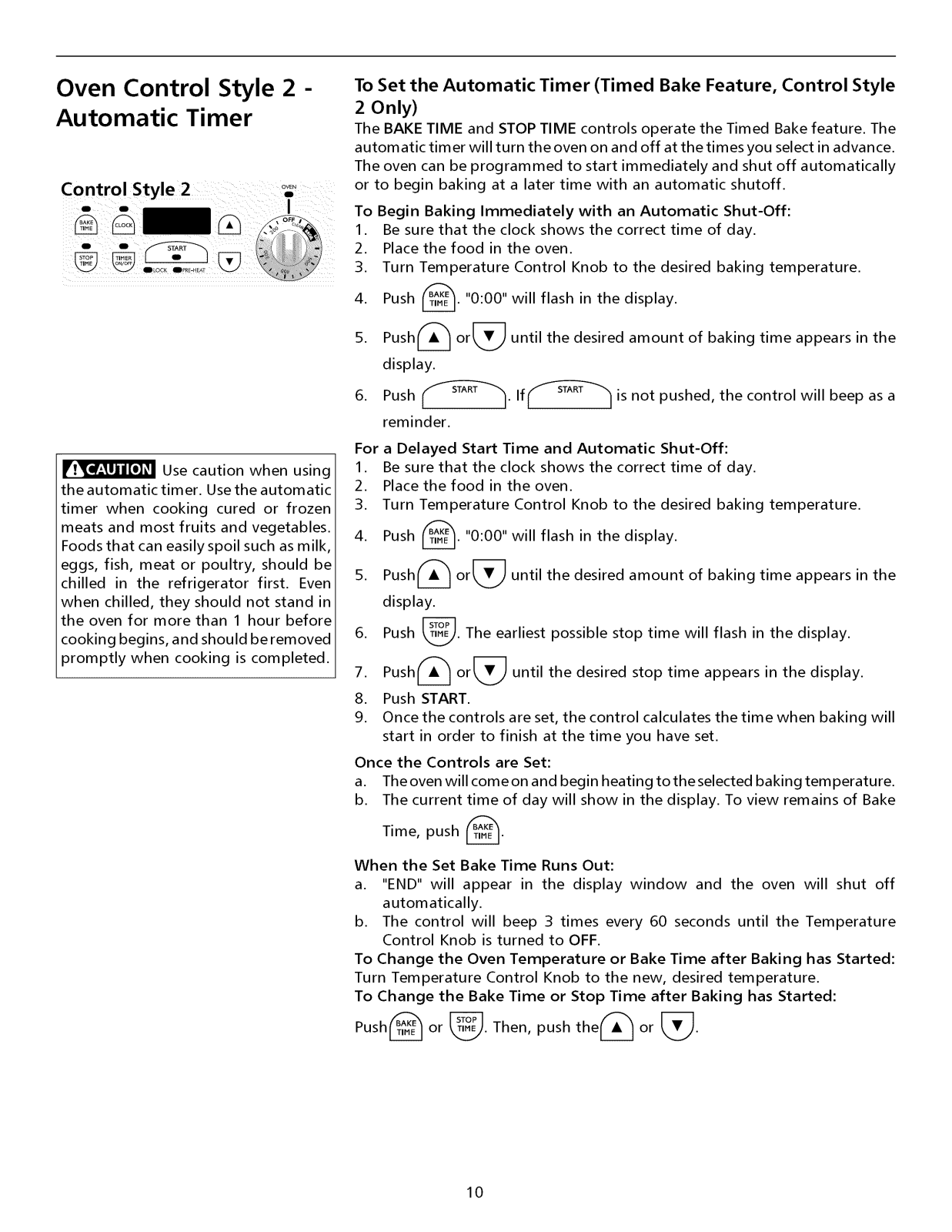

Setting the Oven Control Style 1 or 2 - Bake ............... 7-11

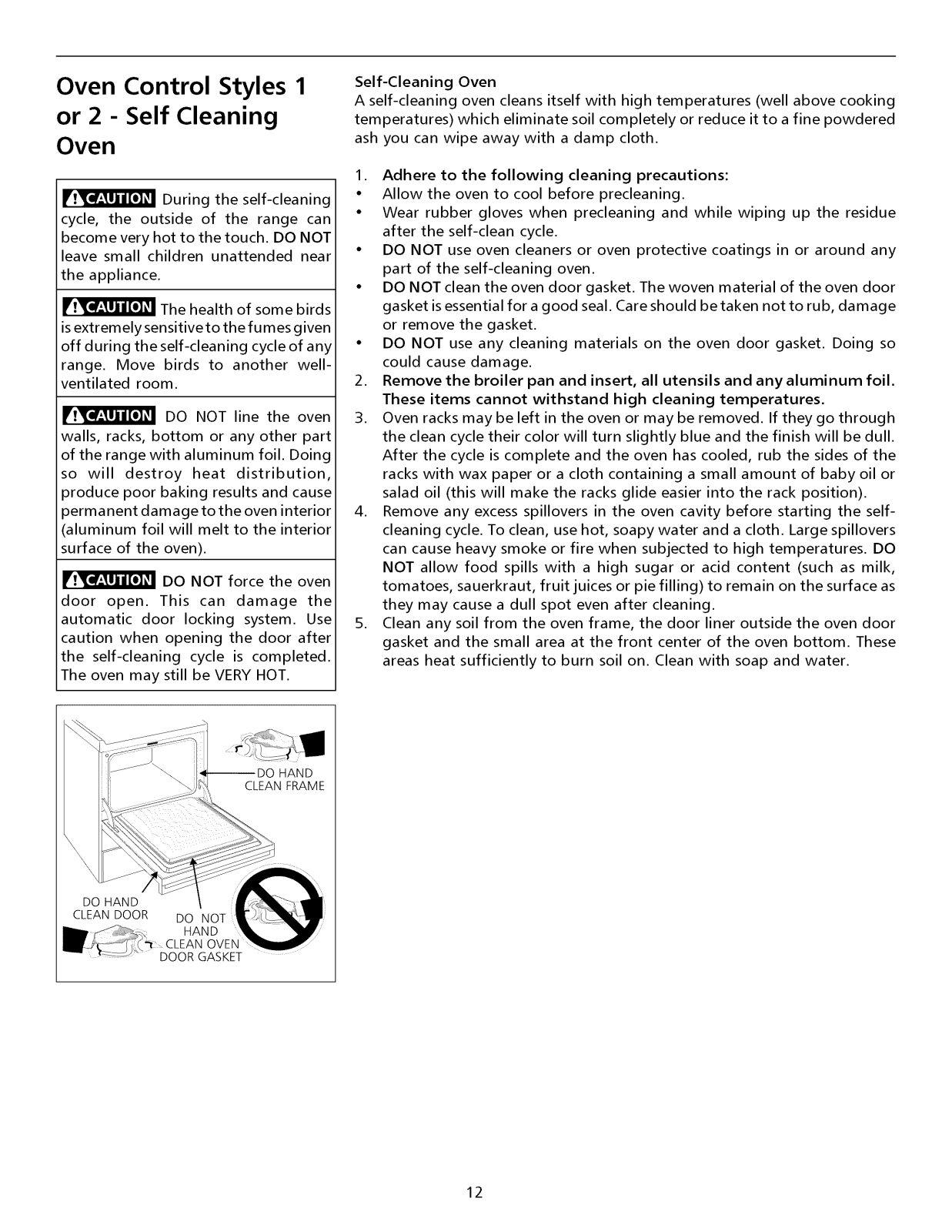

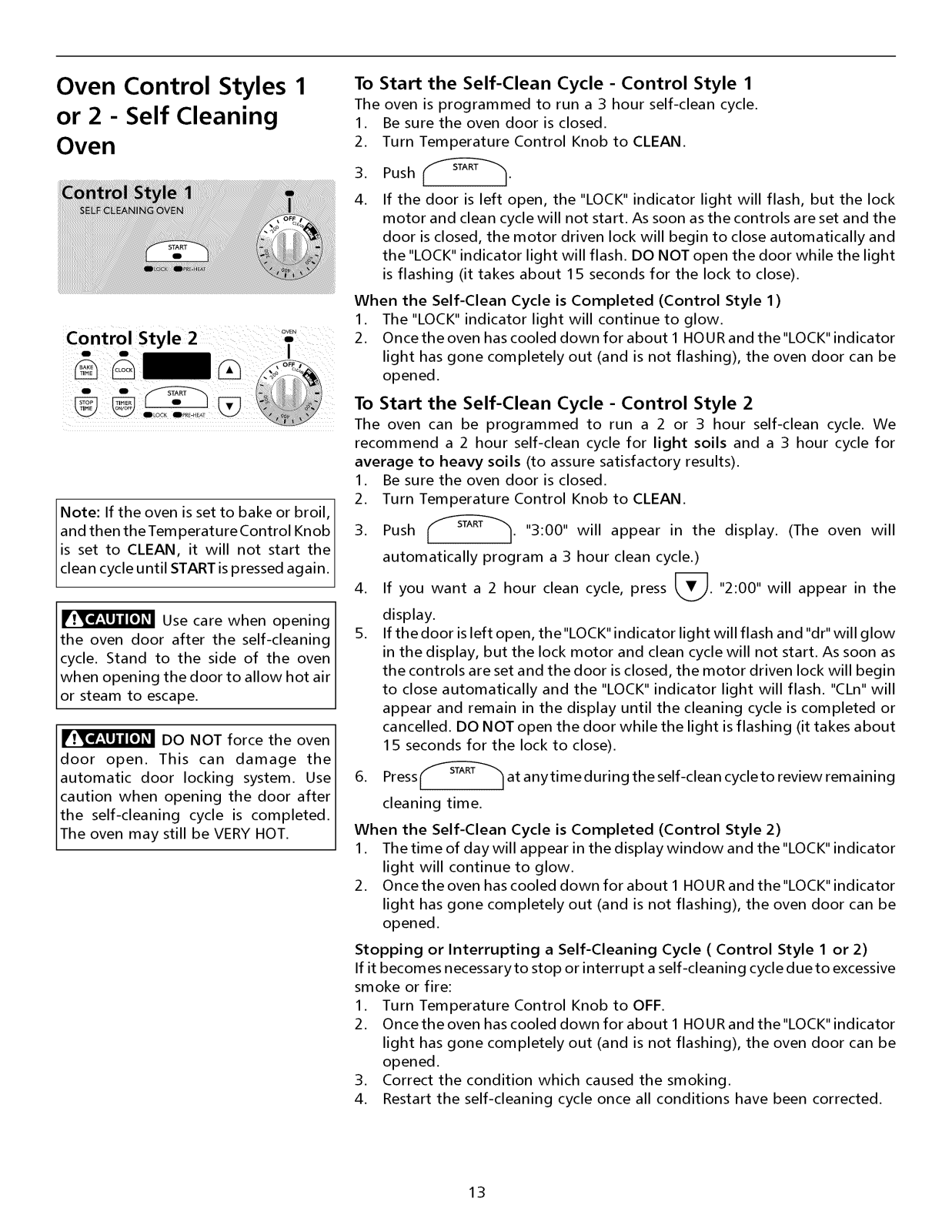

Self Cleaning Oven .................................................... 12-13

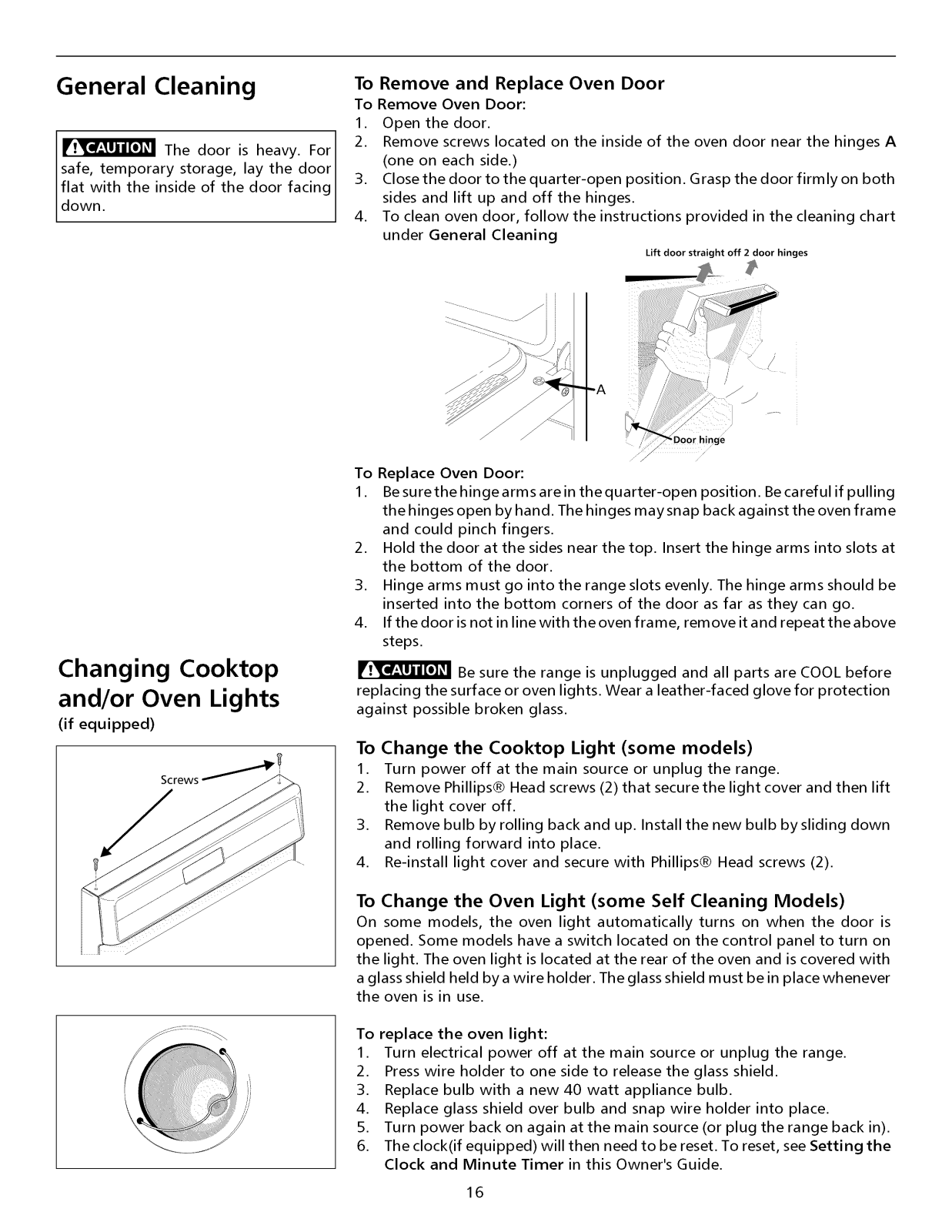

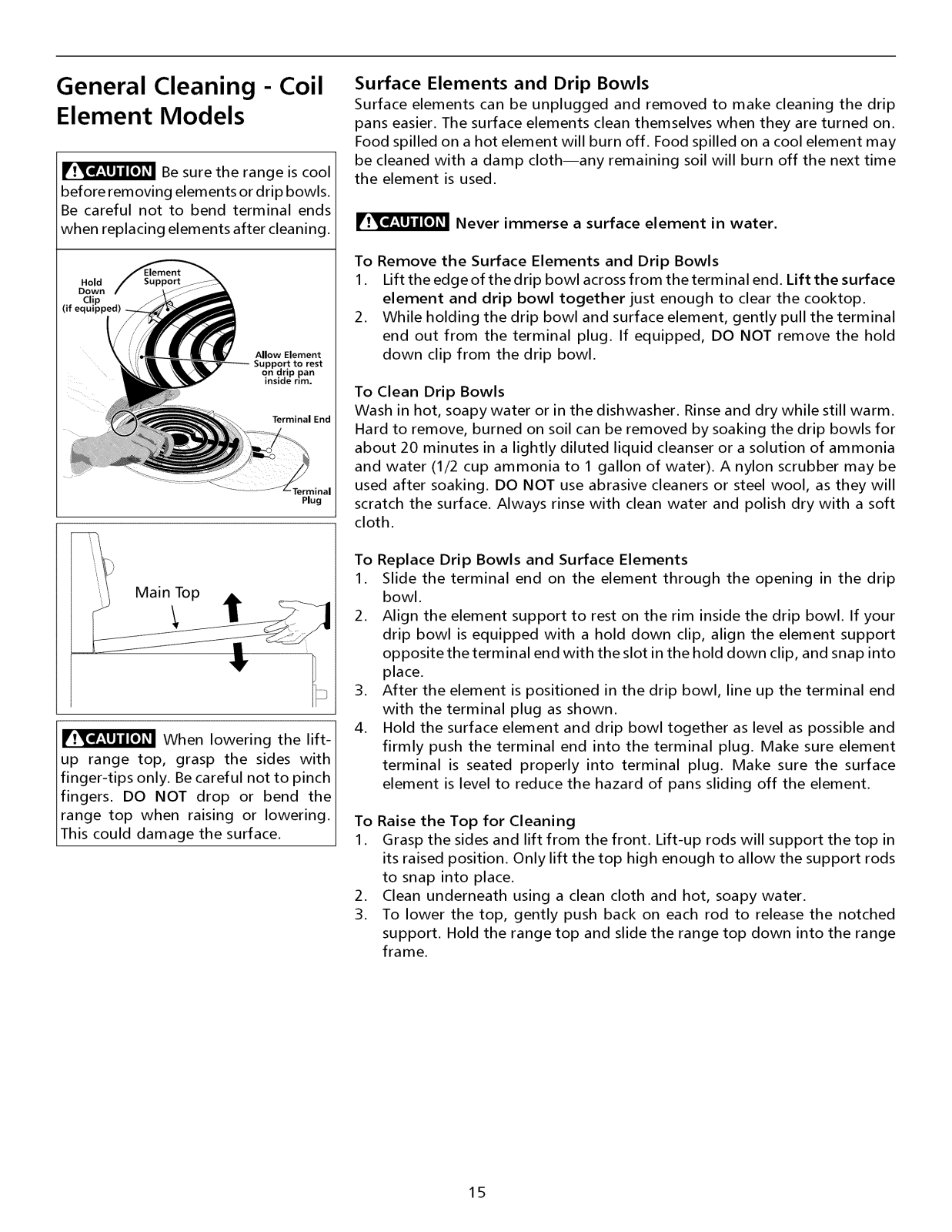

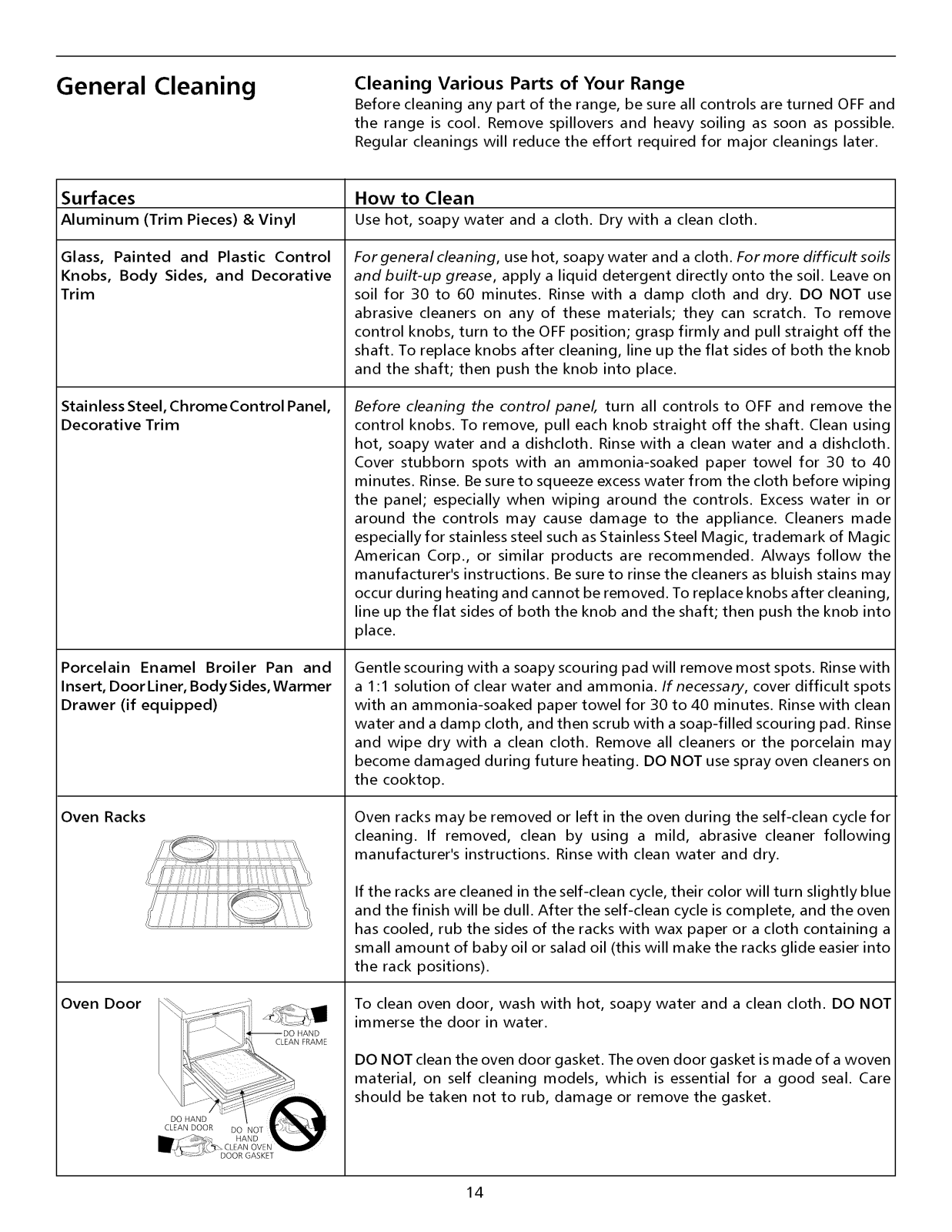

General Cleaning ....................................................... 14-1 6
Changing Cooktop and/or Oven Lights .......................... 16

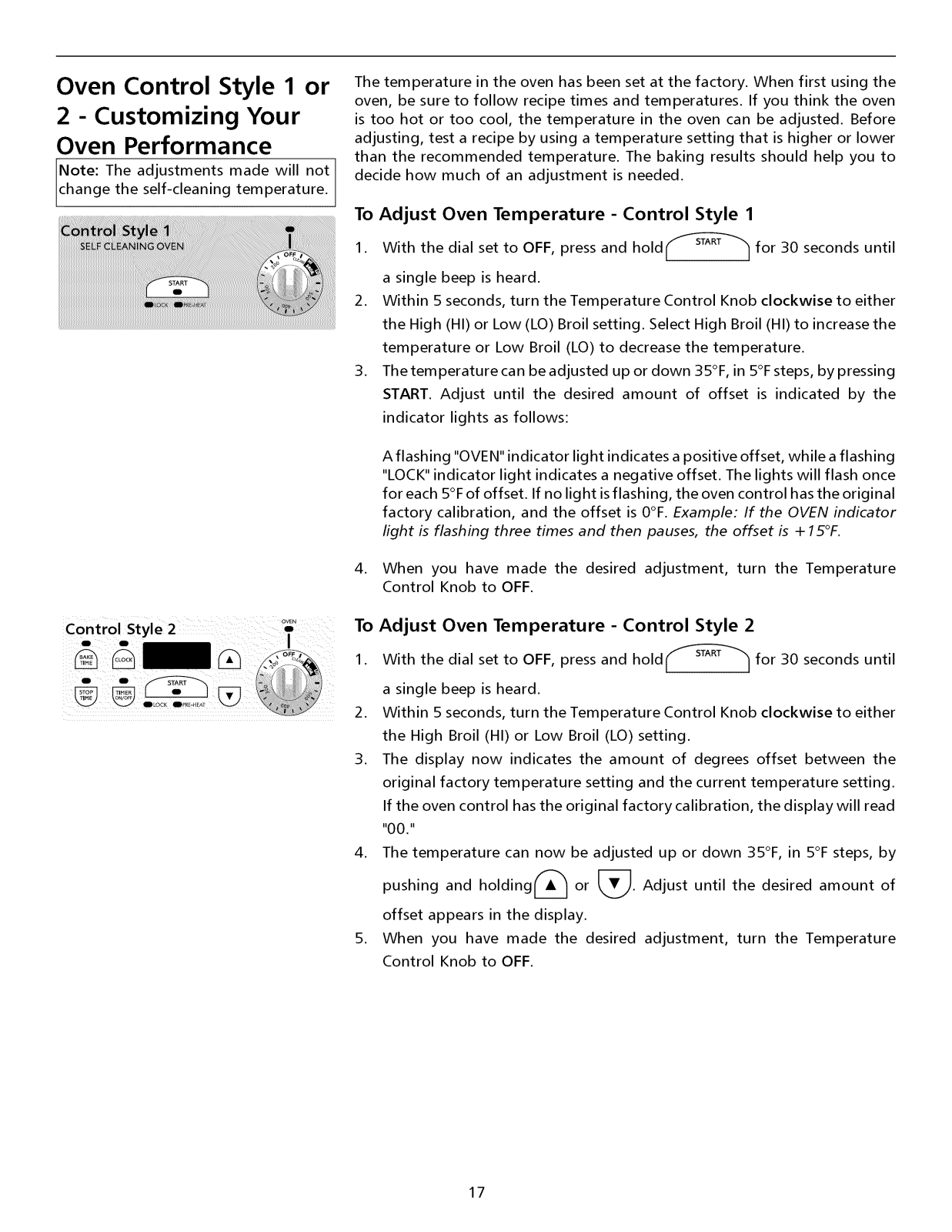

Customizing Your Oven Performance ............................. 17

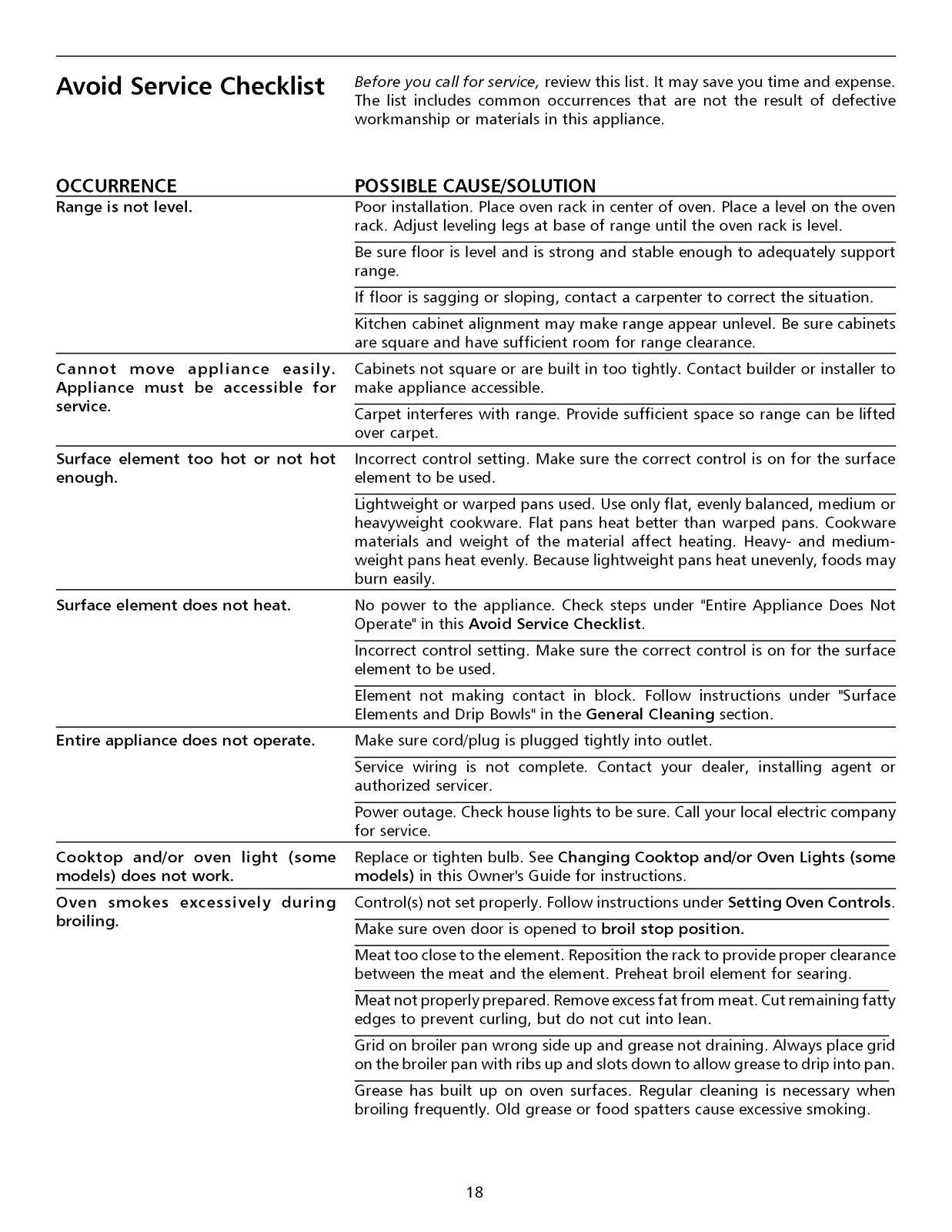

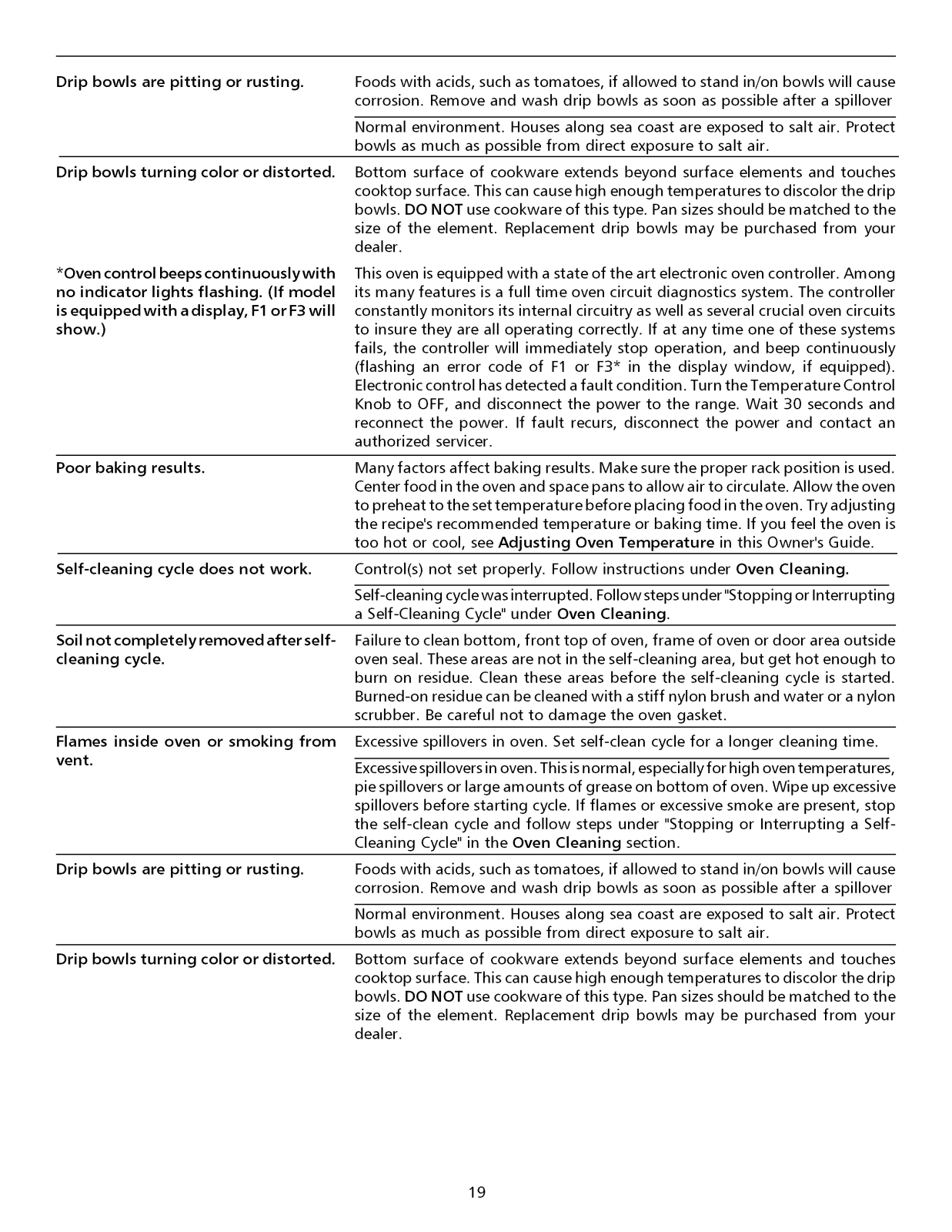

Avoid Service Checklist .............................................. 18-19

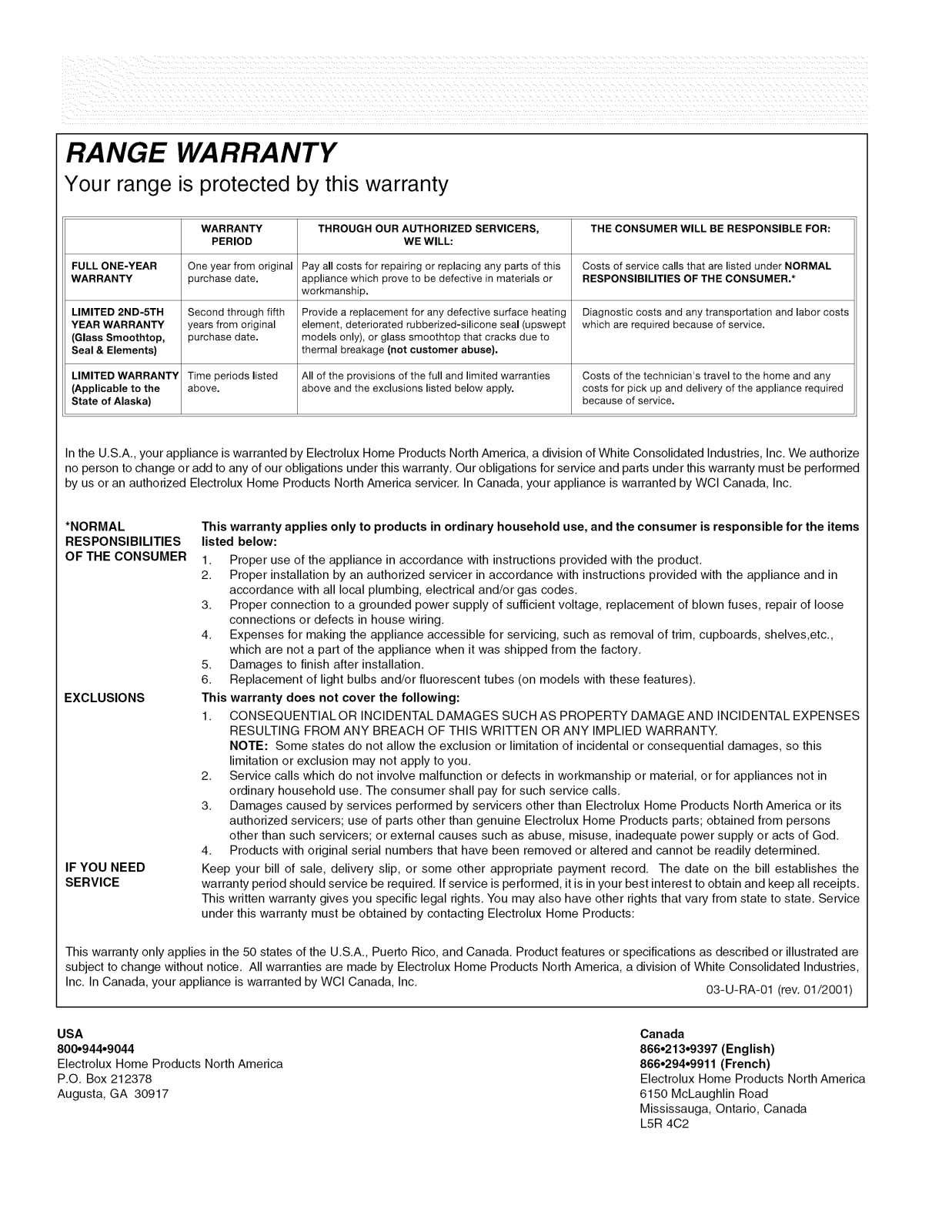

Warranty ......................................................................... 20
ELECTRICRANGE
This Owner's Guide contains general operating instructions for your range and feature
information for several models. Your range will not have all the described features.
316135917 (0101)

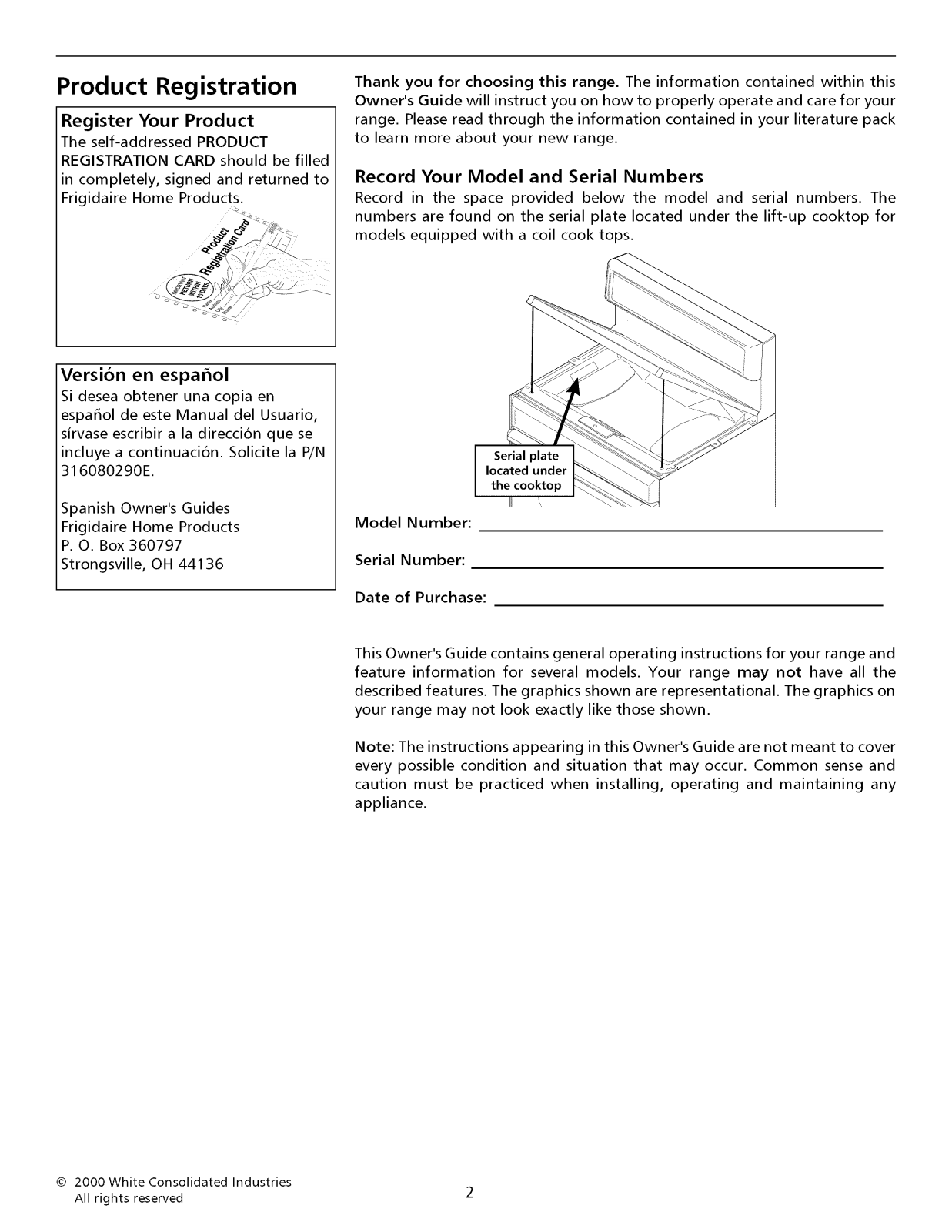

Product Registration
Register Your Product
The self-addressed PRODUCT
REGISTRATION CARD should be filled
in completely, signed and returned to
Frigidaire Home Products.
Version en espa6ol
Si desea obtener una copia en
espa6ol de este Manual del Usuario,
sirvase escribir a la direccion que se
incluye a continuacion. Solicite la P/N
316080290E.
Spanish Owner's Guides
Frigidaire Home Products
P. O. Box 360797
Strongsville, OH 44136
Thank you for choosing this range. The information contained within this
Owner's Guide will instruct you on how to properly operate and care for your
range. Please read through the information contained in your literature pack
to learn more about your new range.
Record Your Model and Serial Numbers
Record in the space provided below the model and serial numbers. The
numbers are found on the serial plate located under the lift-up cooktop for
models equipped with a coil cook tops.
Serial plate
located under
the cooktop
Ili:
Model Number:
Serial Number:
Date of Purchase:
This Owner's Guide contains general operating instructions for your range and
feature information for several models. Your range may not have all the
described features. The graphics shown are representational. The graphics on
your range may not look exactly like those shown.
Note: The instructions appearing in this Owner's Guide are not meant to cover
every possible condition and situation that may occur. Common sense and
caution must be practiced when installing, operating and maintaining any
appliance.
© 2000 White Consolidated Industries
All rights reserved 2

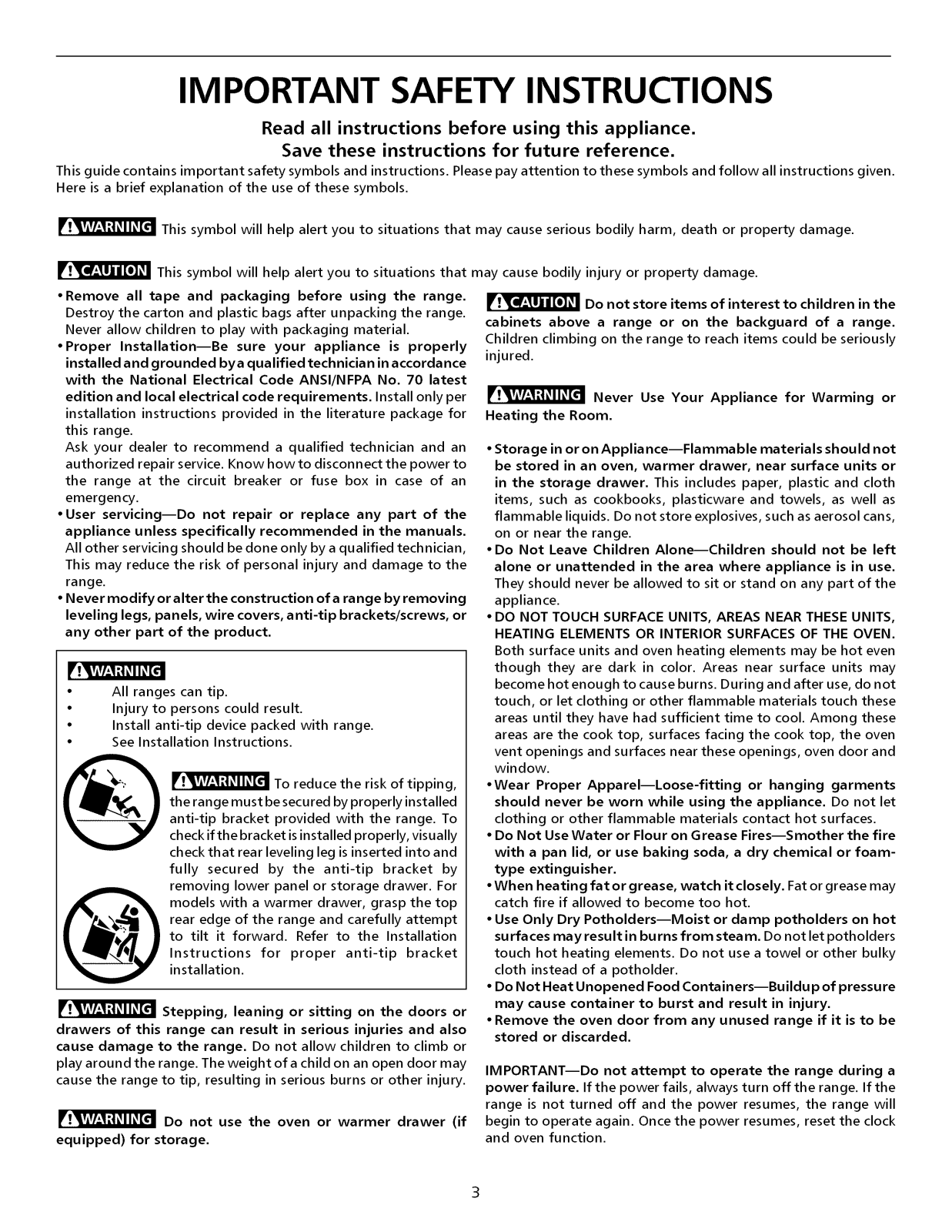

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
This guide contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
Here is a brief explanation of the use of these symbols.
This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
This symbol will help alert you to situations that
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the range.
Never allow children to play with packaging material.
• Proper Installation--Be sure your appliance is properly
installed and grounded bya qualified technician in accordance
with the National Electrical Code ANSl/NFPA No. 70 latest
edition and local electrical code requirements. Install only per
installation instructions provided in the literature package for
this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power to
the range at the circuit breaker or fuse box in case of an
emergency.
• User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified technician,
This may reduce the risk of personal injury and damage to the
range.
• Never modify or alter the construction of a range by removing
leveling legs, panels, wire covers, anti-tip brackets/screws, or
any other part of the product.
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed with range.
See Installation Instructions.
To reduce the risk of tipping,
the range must be secured by properly installed
anti-tip bracket provided with the range. To
check if the bracket is installed properly, visually
check that rear leveling leg is inserted into and
fully secured by the anti-tip bracket by
removing lower panel or storage drawer. For
models with a warmer drawer, grasp the top
rear edge of the range and carefully attempt
to tilt it forward. Refer to the Installation
Instructions for proper anti-tip bracket
installation.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or
play around the range. The weight of a child on an open door may
cause the range to tip, resulting in serious burns or other injury.
Do not use the oven or warmer drawer (if
equipped) for storage.
may cause bodily injury or property damage.
Do not store items of interest to children in the
cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be seriously
injured.
Never Use Your Appliance for Warming or
Heating the Room.
• Storage in or on Appliance--Flammable materials should not
be stored in an oven, warmer drawer, near surface units or
in the storage drawer. This includes paper, plastic and cloth
items, such as cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as aerosol cans,
on or near the range.
• Do Not Leave Children Alone--Children should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of the
appliance.
• DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE UNITS,
HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN.
Both surface units and oven heating elements may be hot even
though they are dark in color. Areas near surface units may
become hot enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials touch these
areas until they have had sufficient time to cool. Among these
areas are the cook top, surfaces facing the cook top, the oven
vent openings and surfaces near these openings, oven door and
window.
• Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
• Do Not Use Water or Flour on Grease Fires--Smother the fire
with a pan lid, or use baking soda, a dry chemical or foam-
type extinguisher.
• When heating fat or grease, watch it closely. Fat or grease may
catch fire if allowed to become too hot.
• Use Only Dry Potholders--Moist or damp potholders on hot
surfaces may result in burns from stea m. Do not let potholders
touch hot heating elements. Do not use a towel or other bulky
cloth instead of a potholder.
• Do Not Heat Unopened Food Containers--Buildu p of pressure
may cause container to burst and result in injury.
• Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANT--Do not attempt to operate the range during a
power failure. If the power fails, always turn off the range. If the
range is not turned off and the power resumes, the range will
begin to operate again. Once the power resumes, reset the clock
and oven function.

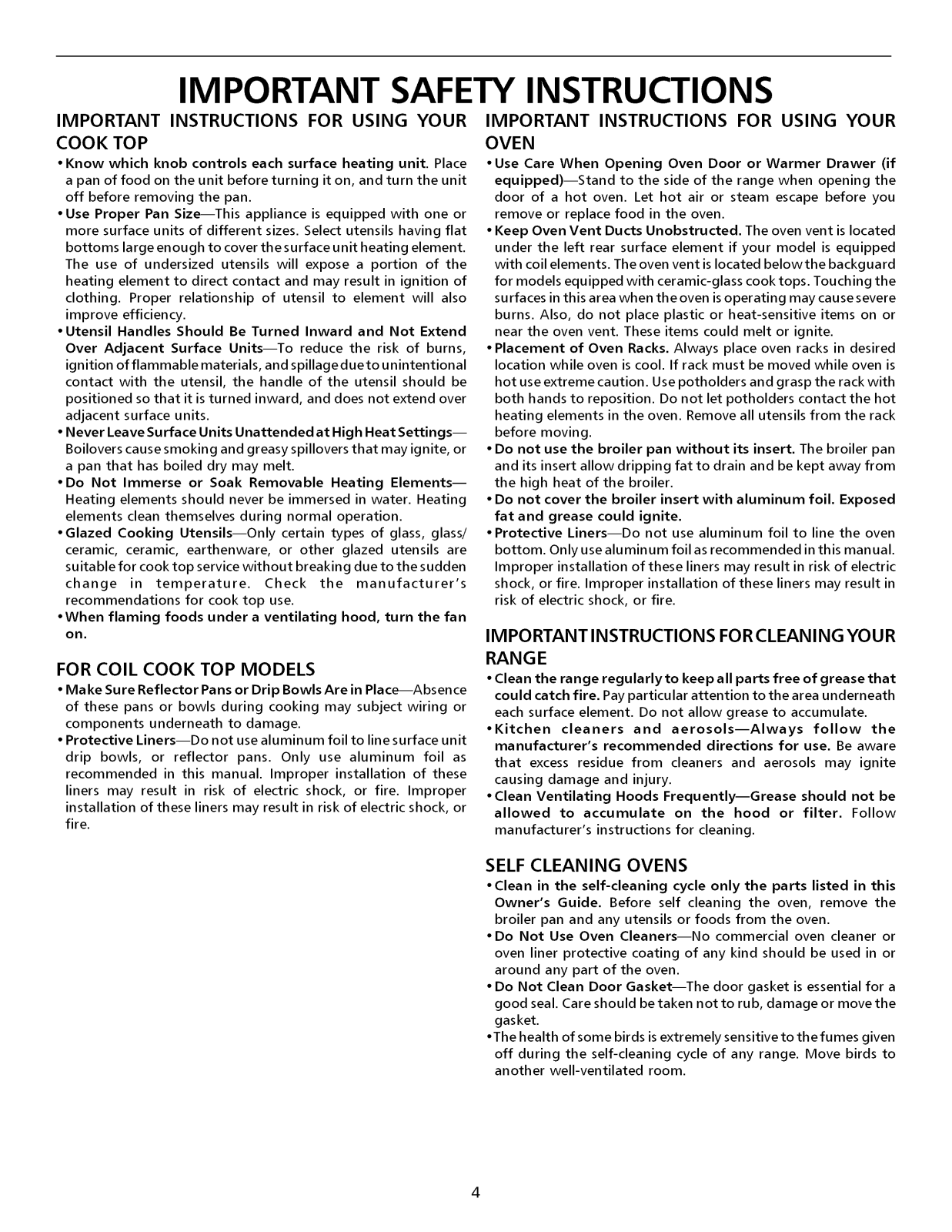

IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOK TOP
• Know which knob controls each surface heating unit. Place
a pan of food on the unit before turning it on, and turn the unit
off before removing the pan.
• Use Proper Pan Size--This appliance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition of
clothing. Proper relationship of utensil to element will also
improve efficiency.
• Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface Units--To reduce the risk of burns,
ignition of flammable materials, and spillagedueto unintentional
contact with the utensil, the handle of the utensil should be
positioned so that it is turned inward, and does not extend over
adjacent surface units.
• Never Leave Surface Units Unattended at High Heat Settings--
Boilovers cause smoking and greasy spillovers that may ignite, or
a pan that has boiled dry may melt.
• Do Not Immerse or Soak Removable Heating Elements--
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
• Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden
change in temperature. Check the manufacturer's
recommendations for cook top use.
• When flaming foods under a ventilating hood, turn the fan
on,
FOR COIL COOK TOP MODELS
• Make Sure Reflector Pans or Drip Bowls Are in Place--Absence
of these pans or bowls during cooking may subject wiring or
components underneath to damage.
• Protective Liners--Do not use aluminum foil to line surface unit
drip bowls, or reflector pans. Only use aluminum foil as
recommended in this manual. Improper installation of these
liners may result in risk of electric shock, or fire. Improper
installation of these liners may result in risk of electric shock, or
fire.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
• Use Care When Opening Oven Door or Warmer Drawer (if
equipped)--Stand to the side of the range when opening the
door of a hot oven. Let hot air or steam escape before you
remove or replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is located
under the left rear surface element if your model is equipped
with coil elements. The oven vent is located belowthe backguard
for models equipped with ceramic-glass cook tops. Touching the
surfaces in this area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items on or
near the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with
both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The broiler pan
and its insert allow dripping fat to drain and be kept away from
the high heat of the broiler.
• Do not cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
• Protective Liners--Do not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of electric
shock, or fire. Improper installation of these liners may result in
risk of electric shock, or fire.
IMPORTANT INSTRUCTIONS FORCLEANING YOUR
RAN G E
• Clean the range regularlyto keep all parts free of grease that
could catch fire. Pay particular attention to the area underneath
each surface element. Do not allow grease to accumulate.
• Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
• Clean Ventilating Hoods Frequently--Grease should not be
allowed to accumulate on the hood or filter. Follow
manufacturer's instructions for cleaning.
SELF CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in this
Owner's Guide. Before self cleaning the oven, remove the
broiler pan and any utensils or foods from the oven.
• Do Not Use Oven Cleaners--No commercial oven cleaner or
oven liner protective coating of any kind should be used in or
around any part of the oven.
• Do Not Clean Door Gasket--The door gasket is essential for a
good seal. Care should be taken not to rub, damage or move the
gasket.
• The health of some birds is extremely sensitive to the fumes given
off during the self-cleaning cycle of any range. Move birds to
another well-ventilated room.
Setting Surface
Controls for Models
with Coil Elements
)FF
LO
1
2
3
4
5
Surface Unit Control
OFF
Simmer Select Surface Unit Control
MED
9
8
HI
8
To Operate the Surface Element
1. Place cooking utensil on the surface element.
2. Push in and turn the Surface Control knob in either direction to the desired
setting. Start most cooking operations on a higher setting and then turn
to a lower setting to finish cooking. The control knobs do not have to be
set exactly on a particular mark. Use the marks as a guide and adjust the
control knob as needed.
3. When cooking is completed, turn the surface element off before removing
the pan. Note: The surface signal light will glow when one or more
elements are turned on. A quick glance at the signal light(s) when cooking
is finished is an easy check to be sure all control knobs are turned off.
To Operate Simmer Select Surface Unit (If equipped)
The right side of the control knob allows you to use the Simmer Select unit as
you would any normal surface unit on the medium to high settings.
The left side of the control knob is used to operate the Simmer Select feature.
This feature allows the element to heat at a much lower temperature than
when used as a normal surface unit. This allows you to precisely simmer
delicate foods.
You may switch between normal cooking and Simmer Select at anytime during
the cooking process. Be sure to set the knob indicator between MAX and MIN
for simmering or between MED and HI for normal cooking.
NOTE: The unit will not operate if the knob is positioned in the space between
MAX and MED.
The suggested settings found in the chart below are based on cooking in
medium-weight aluminum pans with lids. Settings mayvary when using other
types of pans.
STANDARD SURFACE UNITS
Setting Type of Cooking
HIGH (HI - 9) Start most foods, bring water to a boil, pan broiling
MEDIUM HIGH (7 - 8) Continue a rapid boil, fry, deep fat fry
MEDIUM (5- 6) Maintain a slow boil, thicken sauces and gravies,
steam vegetables
MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew
LOW (LO - 1) Keep warm, melt, simmer
SIMMER SELECT SURFACE UNIT
MAX Larger quantities of food, stews and soups
MIN Smaller quanitites of food, delicate foods, melting
chocolate or butter
Note: The size and type of utensil used, and the amount and type of food being
cooked will influence the setting needed for best cooking results.
Do not place plastic items such as salt and pepper shakers, spoon
holders or plastic wrappings on top of the range when it is in use. These items
could melt or ignite. Potholders, towels or wooden spoons could catch fire if
placed too close to the element.
Before Setting Oven
Controls
Oven Vent Location
For models equipped with coil surface elements, the oven vent is located under
the left rear surface element. For models equipped with a ceramic-glass cook
top the oven vent is located below the backguard. When the oven is on, warm
air is released through the vents. This venting is necessary for proper air
circulation in the oven and good baking results.
OVEN VENT
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO
OPERATING THE OVEN). Always use oven mitts when using the oven.
REMOVING & REPLACING OVEN RACKS
To remove, pull the rack forward until it stops. Lift up front of rack and slide
out. To replace, fit the rack onto the guides on the oven walls. Tilt the front
of the rack upward and slide the rack back into place.
\
ARRANGING OVEN RACKS WITH 5 RACK POSITIONS
To bake on 1 rack, place the rack on position 3 or 4. To bake on 2 racks, place
the racks on positions 2 and 4. Convection ranges are equipped with 3 racks
and should be placed in positions 1, 3 and 4.
Rack Position
-2nd Rack Position
Rack Position
-4th Rack Position
Rack Position
Loading...
