ELECTROLUX ERT14001 User Manual

user manual

notice d'utilisation

bruksanvisning

Refrigerator

Réfrigérateur

Kylskåp

ERT14001W8

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 2
Operation 4
First use 4
Daily use 5
Helpful hints and tips 5

SAFETY INFORMATION

In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and acci­dents, it is important to ensure that all peo­ple using the appliance are thoroughly fa­miliar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through its
life will be properly informed on appliance
use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for
damages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, un­less they have been given supervision or
instruction concerning use of the appli­ance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.

• Keep all packaging well away from chil­dren. There is risk of suffocation.

• If you are discarding the appliance pull
the plug out of the socket, cut the con­nection cable (as close to the appliance
as you can) and remove the door to pre­vent playing children to suffer electric
shock or to close themselves into it.

• If this appliance featuring magnetic door
seals is to replace an older appliance
having a spring lock (latch) on the door or

Care and cleaning 7
What to do if… 8
Technical data 10
Installation 10
Environmental concerns 13

Subject to change without notice

lid, be sure to make that spring lock un­usable before you discard the old appli­ance. This will prevent it from becoming a
death trap for a child.

General safety

Warning!

Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of
obstruction.

• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.

• Do not use a mechanical device or any
artificial means to speed up the thawing
process.

• Do not use other electrical appliances
(such as ice cream makers) inside of re­frigerating appliances, unless they are ap­proved for this purpose by the manufac­turer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is con­tained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit be­come damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of igni-

tion

– thoroughly ventilate the room in which

the appliance is situated

electrolux 3

• It is dangerous to alter the specifications
or modify this product in any way. Any
damage to the cord may cause a short­circuit, fire and/or electric shock.

Warning! Any electrical component
(power cord, plug, compressor) must
be replaced by a certified service agent
or qualified service personnel to avoid
hazard.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not

squashed or damaged by the back
of the appliance. A squashed or
damaged power plug may overheat
and cause a fire.

3. Make sure that you can come to the

mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do

not insert the power plug. There is a
risk of electric shock or fire.

6. You must not operate the appliance

1)

without the lamp cover

of interior

lighting.

• This appliance is heavy. Care should be
taken when moving it.

• Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin abra­sions or frost/freezer burns.

• Avoid prolonged exposure of the appli­ance to direct sunlight.

•

Bulb lamps

2)

used in this appliance are
special purpose lamps selected for
household appliances use only. They are
not suitable for household room illumina­tion.

Daily Use

• Do not put hot pot on the plastic parts in
the appliance.

• Do not store flammable gas and liquid in
the appliance, because they may ex­plode.

• Do not place food products directly
against the air outlet on the rear wall.

3)

• Frozen food must not be re-frozen once
it has been thawed out.

1) If the lamp cover is foreseen.

2) If the lamp is foreseen.

3) If the appliance is Frost Free.

• Store pre-packed frozen food in accord­ance with the frozen food manufacturer's
instructions.

• Appliance's manufacturers storage rec­ommendations should be strictly adhered
to. Refer to relevant instructions.

• Do not place carbonated or fizzy drinks in
the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.

• Ice lollies can cause frost burns if con­sumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appli­ance and disconnect the mains plug from
the mains socket.

• Do not clean the appliance with metal
objects.

• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.

• Regularly examine the drain in the refrig­erator for defrosted water. If necessary,
clean the drain. If the drain is blocked,
water will collect in the bottom of the ap­pliance.

Installation
Important! For electrical connection

carefully follow the instructions given in
specific paragraphs.

• Unpack the appliance and check if there
are damages on it. Do not connect the
appliance if it is damaged. Report possi­ble damages immediately to the place
you bought it. In that case retain packing.

• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.

• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ven­tilation follow the instructions relevant to
installation.

• Wherever possible the back of the prod­uct should be against a wall to avoid
touching or catching warm parts (com­pressor, condenser) to prevent possible
burn.

4 electrolux

• The appliance must not be located close
to radiators or cookers.

• Make sure that the mains plug is accessi­ble after the installation of the appliance.

•

Connect to potable water supply only.

Service

• Any electrical work required to do the
servicing of the appliance should be car­ried out by a qualified electrician or com­petent person.

• This product must be serviced by an au­thorized Service Centre, and only genu­ine spare parts must be used.

Environment Protection

This appliance does not contain gasses
which could damage the ozone layer,

4)

OPERATION

Switching on

Insert the plug into the wall socket.
Turn the Temperature regulator clockwise
to a medium setting.

Switching off

To turn off the appliance, turn the Tempera­ture regulator to the "O" position.

Temperature regulation

The temperature is automatically regulated.
To operate the appliance, proceed as fol­lows:

• turn the Temperature regulator toward
lower settings to obtain the minimum
coldness.

• turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.

in either its refrigerant circuit or insula­tion materials. The appliance shall not
be discarded together with the urban
refuse and rubbish. The insulation foam
contains flammable gases: the appli­ance shall be disposed according to
the applicable regulations to obtain
from your local authorities. Avoid dam­aging the cooling unit, especially at the
rear near the heat exchanger. The ma­terials used on this appliance marked

by the symbol

A medium setting is generally the most
suitable.

However, the exact setting should be chos­en keeping in mind that the temperature in­side the appliance depends on:

• room temperature

• how often the door is opened

• the quantity of food stored

• the location of the appliance.
Important! If the ambient temperature is

high or the appliance is fully loaded, and the
appliance is set to the lowest temperatures,
it may run continuously causing frost to
form on the rear wall. In this case the dial
must be set to a higher temperature to
allow automatic defrosting and therefore
reduced energy consumption.

are recyclable.

FIRST USE

Cleaning the interior

Before using the appliance for the first time,
wash the interior and all internal accesso­ries with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.

4) If a water connection is foreseen.

Important! Do not use detergents or abra­sive powders, as these will damage the fin­ish.

DAILY USE

Freezing fresh food

The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh foods it is not necessary to
change the medium setting.
However, for a faster freezing operation,
turn the temperature regulator toward high­er settings to obtain the maximum cold­ness.

Important! In this condition, the refrigerator
compartment temperature might drop
below 0°C. If this occurs reset the
temperature regulator to a warmer setting.

Storage of frozen food

When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours on the higher settings.

Important! In the event of accidental
defrosting, for example due to a power
failure, if the power has been off for longer
than the value shown in the technical
characteristics chart under "rising time", the
defrosted food must be consumed quickly
or cooked immediately and then re-frozen
(after cooling).

Thawing

Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature, de­pending on the time available for this opera­tion.
Small pieces may even be cooked still fro­zen, directly from the freezer: in this case,
cooking will take longer.

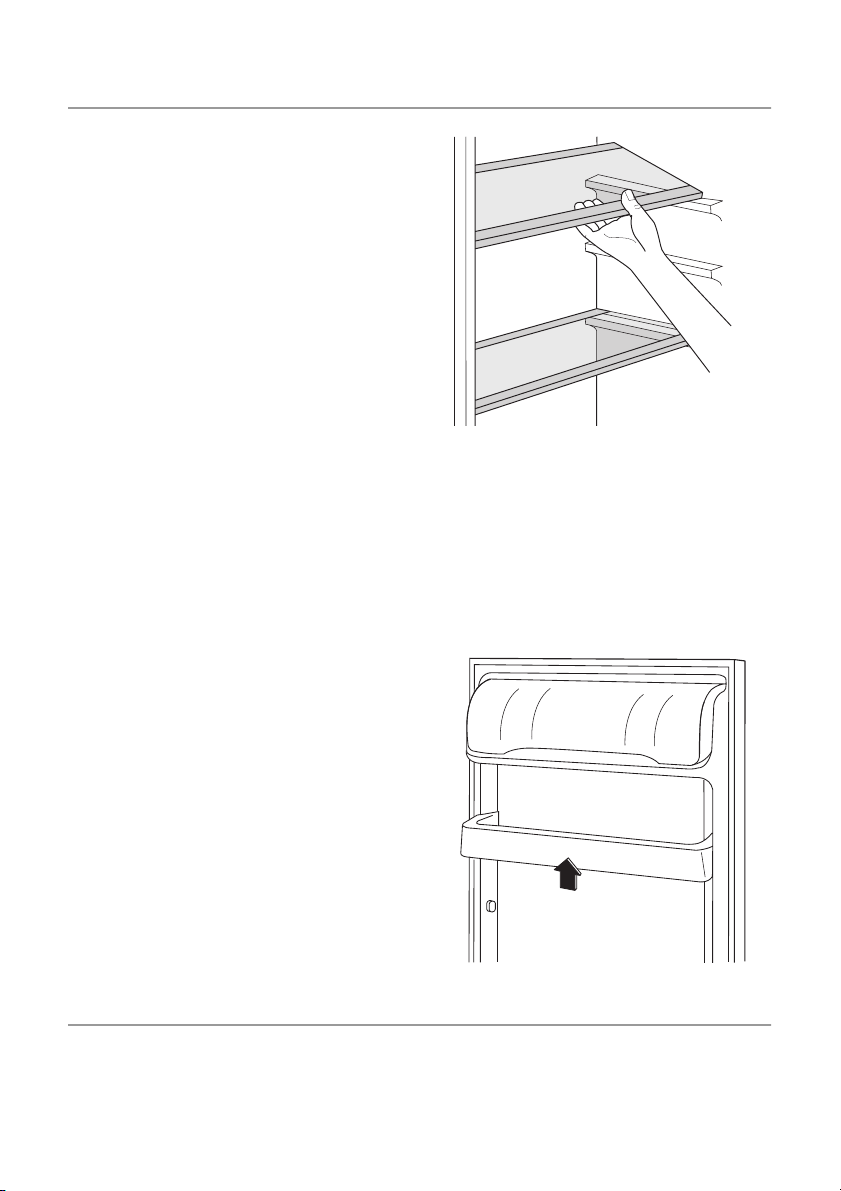

Movable shelves

The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
For better use of space, the front half­shelves can lie over the rear ones.

electrolux 5

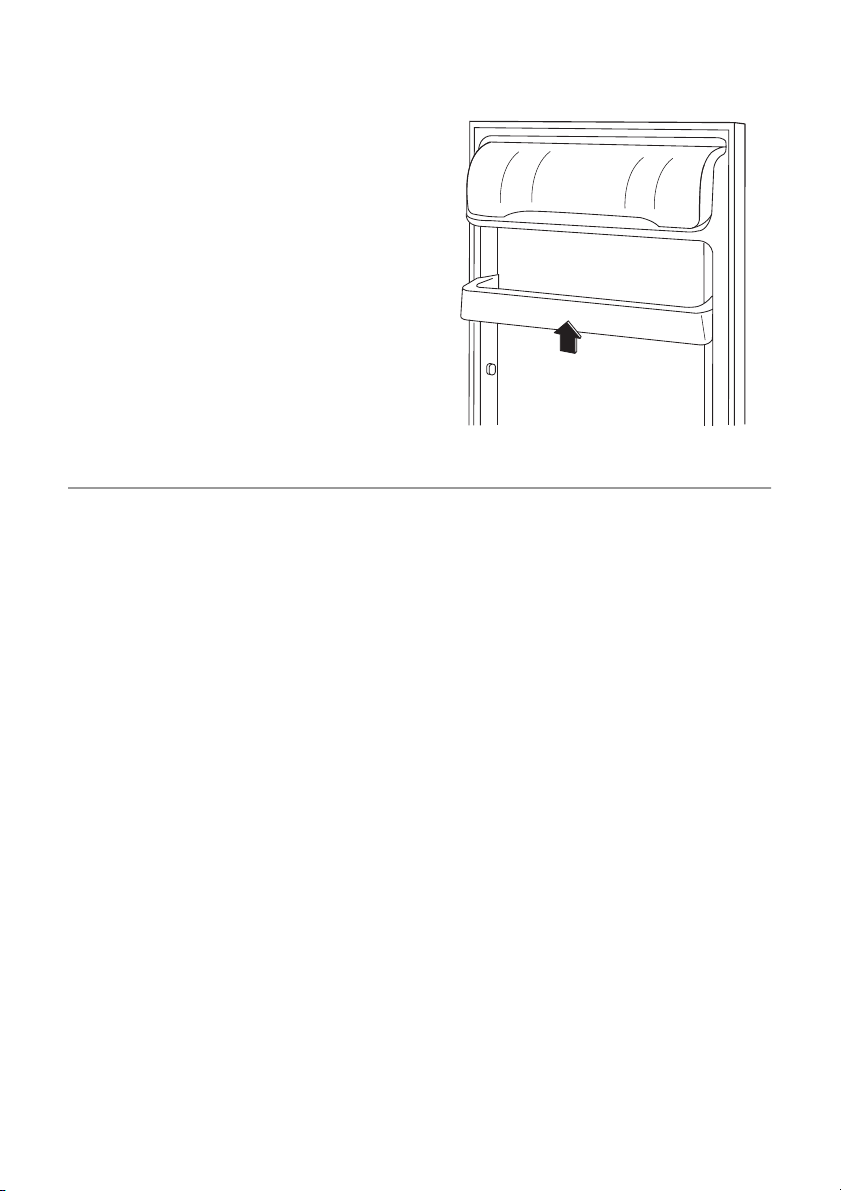

Positioning the door shelves

To permit storage of food packages of vari­ous sizes, the door shelves can be placed
at different heights.
To make these adjustments proceed as fol­lows:
gradually pull the shelf in the direction of the
arrows until it comes free, then reposition
as required.

HELPFUL HINTS AND TIPS

Normal Operating Sounds

• You may hear a faint gurgling and a bub­bling sound when the refrigerant is pum-

ped through the coils or tubing. This is
correct.

6 electrolux

• When the compressor is on, the refriger­ant is being pumped around and you will
hear a whirring sound and a pulsating
noise from the compressor. This is cor­rect.

• The thermic dilatation might cause a sud­den cracking noise. It is natural, not dan­gerous physical phenomenon. This is
correct.

• When the compressor switches on or
switches off, you will hear a faint "click" of
the temperature regulator. This is correct.

Hints for energy saving

• Do not open the door frequently or leave
it open longer than absolutely necessary.

• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run continu­ously, causing frost or ice on the evapo­rator. If this happens, set the Tempera­ture Regulator toward warmer settings to
allow automatic defrosting and so a sav­ing in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating
liquids in the refrigerator

• do cover or wrap the food, particularly if it
has a strong flavour

•position food so that air can circulate
freely around it

Hints for refrigeration

Useful hints:
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the veg­etable drawer.
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be thor­oughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.

Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigera­tor.

Hints for freezing

To help you make the most of the freezing
process, here are some important hints:

• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rat­ing plate;

• the freezing process takes 24 hours. No
further food to be frozen should be add­ed during this period;

• only freeze top quality, fresh and thor­oughly cleaned, foodstuffs;

• prepare food in small portions to enable it
to be rapidly and completely frozen and
to make it possible subsequently to thaw
only the quantity required;

• wrap up the food in aluminium foil or pol­ythene and make sure that the packages
are airtight;

• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the lat­ter;

• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;

• water ices, if consumed immediately after
removal from the freezer compartment,
can possibly cause the skin to be freeze
burnt;

• it is advisable to show the freezing in date
on each individual pack to enable you to
keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this
appliance, you should:

• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;

• be sure that frozen foodstuffs are trans­ferred from the foodstore to the freezer in
the shortest possible time;

• not open the door frequently or leave it
open longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly
and cannot be refrozen.

• Do not exceed the storage period indica­ted by the food manufacturer.

CARE AND CLEANING

Caution! Unplug the appliance before
carrying out any maintenance
operation.

This appliance contains hydrocarbons
in its cooling unit; maintenance and re­charging must therefore only be carried
out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with
lukewarm water and some neutral soap.

• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.

• rinse and dry thoroughly.

Important! Do not pull, move or damage
any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as this will
damage the surface and leave a strong
odour.

Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve the
performance of the appliance and save
electricity consumption.

Important! Take care of not to damage the
cooling system.

Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer
casing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops,
during normal use. The defrost water drains
out through a trough into a special contain­er at the back of the appliance, over the
motor compressor, where it evaporates.

electrolux 7

It is important to periodically clean the de­frost water drain hole in the middle of the
refrigerator compartment channel to pre­vent the water overflowing and dripping on­to the food inside. Use the special cleaner
provided, which you will find already inser­ted into the drain hole.

Defrosting the freezer

A certain amount of frost will always
form on the freezer shelves and around
the top compartment.

Important! Defrost the freezer when the
frost layer reaches a thickness of about 3-5
mm.

To remove the frost, do these steps:

1. Switch off the appliance.

2. Remove any stored food, wrap it in
several layers of newspaper and put it
in a cool place.

3. Leave the door open.

4. When defrosting is completed, dry the
interior thoroughly and refit the plug.

5. Switch on the appliance.

6. Set the temperature regulator to obtain
the maximum coldness and run the ap­pliance for two or three hours using this
setting.

7. Reload the previously removed food in­to the compartment.

8 electrolux

Important! Never use sharp metal tools to

scrape off frost from the evaporator as you
could damage it. Do not use a mechanical
device or any artificial means to speed up
the thawing process other than those
recommended by the manufacturer. A
temperature rise of the frozen food packs,
during defrosting, may shorten their safe
storage life.

Periods of non-operation

When the appliance is not in use for long

• disconnect the appliance from elec-

tricity supply

• remove all food

defrost

5)

and clean the appliance and all

•

accessories

• leave the door/doors ajar to prevent un-

pleasant smells.
If the cabinet will be kept on, ask some­body to check it once in a while to prevent
the food inside from spoiling in case of a
power failure.

periods, take the following precautions:

WHAT TO DO IF…

Warning! Before troubleshooting,
disconnect the mains plug from the
mains socket.
Only a qualified electrician or compe­tent person must do the troubleshoot­ing that is not in this manual.

Problem Possible cause Solution

The appliance is noisy

The appliance does not
operate. The lamp does
not operate.

The mains plug is not connected

The appliance has no power.

The lamp does not work.

The lamp is defective. Refer to "Replacing the lamp".

The compressor oper­ates continually.

The door is not closed correctly. Refer to "Closing the door".
The door has been opened too

The product temperature is too

The room temperature is too

Water flows on the rear
plate of the refrigerator.

Water flows into the re­frigerator.

5) If foreseen.

The appliance is not supported
properly

The appliance is switched off. Switch on the appliance.

to the mains socket correctly.

There is no voltage in the mains
socket.

The lamp is in stand-by. Close and open the door.

The temperature is not set cor­rectly.

frequently.

high.

high.
During the automatic defrosting

process, frost defrosts on the
rear plate.

The water outlet is clogged. Clean the water outlet.

Important! There are some sounds during
normal use (compressor, refrigerant
circulation).

Check if the appliance stands sta­ble (all the four feet should be on
the floor)

Connect the mains plug to the
mains socket correctly.

Connect a different electrical ap­pliance to the mains socket.
Contact a qualified electrician.

Set a higher temperature.

Do not keep the door open longer
than necessary.

Let the product temperature de­crease to room temperature be­fore storage.

Decrease the room temperature.

This is correct.

Problem Possible cause Solution

Products prevent that water

Water flows on the
ground.

The temperature in the
appliance is too low.

The temperature in the
appliance is too high.

The door is not closed correctly. Refer to "Closing the door".
The product temperature is too

Many products are stored at the

The temperature in the
refrigerator is too high.

The temperature in the
freezer is too high.

There is too much frost.

The door is not closed correctly. Refer to "Closing the door".
The temperature regulator is not

Replacing the lamp

1. Disconnect the mains plug from the

flows into the water collector.
The melting water outlet does

not flow in the evaporative tray
above the compressor.

The temperature regulator is not
set correctly.

The temperature regulator is not
set correctly.

high.

same time.
There is no cold air circulation in

the appliance.
Products are too near to each

other.
Food is not wrapped correctly. Wrap the food correctly.

set correctly.

8. Open the door. Make sure that the

lamp comes on.

Make sure that products do not
touch the rear plate.

Attach the melting water outlet to
the evaporative tray.

Set a higher temperature.

Set a lower temperature.

Let the product temperature de­crease to room temperature be­fore storage.

Store less products at the same
time.

Make sure that there is cold air
circulation in the appliance.

Store products so that there is
cold air circulation.

Set a higher temperature.

mains socket.

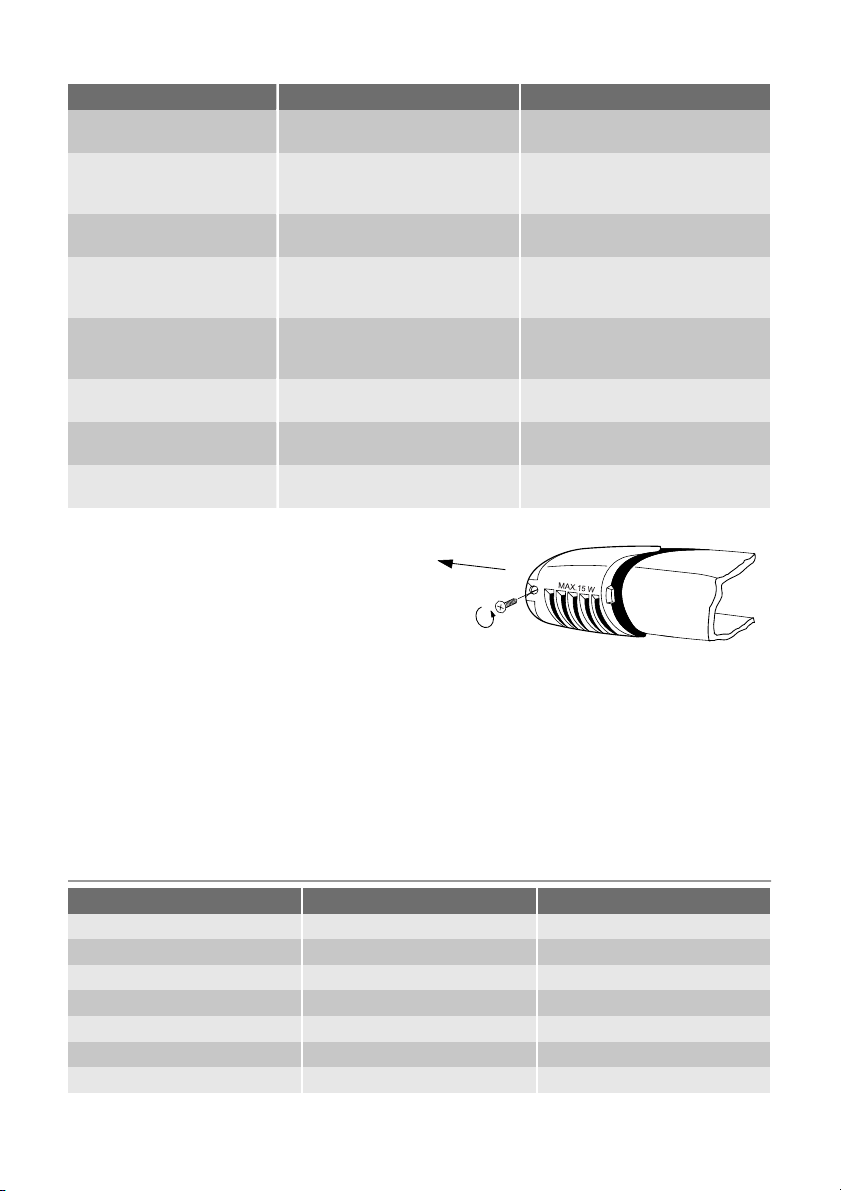

2. Remove the screw from the lamp cov­er.

3. Remove the lamp cover (refer to the il­lustration).

4. Replace the used lamp with a new
lamp of the same power and specifical­ly designed for household appliances.
(the maximum power is shown on the
lamp cover).

5. Install the lamp cover.

6. Tighten the screw to the lamp cover.

7. Connect the mains plug to the mains
socket.

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to
"Installation".

3. If necessary, replace the defective door
gaskets. Contact the Service Center.

electrolux 9

10 electrolux

TECHNICAL DATA

Dimension
Height 850 mm
Width 550 mm
Depth 612 mm
Rising Time 11 h
Voltage 230 V
Frequency 50 Hz

The technical information are situated in the
rating plate on the internal left side of the
appliance and in the energy label.

INSTALLATION

Read the "Safety Information" carefully
for your safety and correct operation of
the appliance before installing the
appliance.

Positioning

This appliance can be installed in a dry, well
ventilated indoor (garage or cellar) also, but
for optimum performance install this appli­ance at a location where the ambient tem­perature corresponds to the climate class
indicated on the rating plate of the appli­ance:

Climate

class

SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Levelling

When placing the appliance ensure that it
stands level. This can be achieved by two
adjustable feet at the bottom in front (2). If
necessary adjust the feet by removing the
spacer (1).

Ambient temperature

Location

The appliance should be installed well away
from sources of heat such as radiators,
boilers, direct sunlight etc. Ensure that air
can circulate freely around the back of the
cabinet. To ensure best performance, if the
appliance is positioned below an overhang­ing wall unit, the minimum distance be­tween the top of the cabinet and the wall
unit must be at least 100 mm . Ideally, how­ever, the appliance should not be posi­tioned below overhanging wall units. Accu­rate levelling is ensured by one or more ad­justable feet at the base of the cabinet.
If the cabinet is placed in a corner and the
side with the hinges facing the wall, the dis­tance between the wall and the cabinet
must be at least 10 mm to allow the door to
open enough so that the shelves can be re­moved.

1

2

electrolux 11

Warning! It must be possible to

disconnect the appliance from the
mains power supply; the plug must
therefore be easily accessible after
installation.

15mm 100mm

Door reversibility
Important! To carry out the following

operations, we suggest that this be made
with another person that will keep a firm
hold on the doors of the appliance during
the operations.

To change the opening direction of the
door, do these steps:

1. Remove the plug from the power sock­et.

2. Tilt back the appliance carefully so that
the compressor cannot touch the floor.

15mm

3. Unscrew both adjustable feet.

4. Unscrew the screws of the door bot­tom hinge. Remove the hinge. Put over
the pin in the direction of the arrow.

5. Unscrew and install the screw on the
opposite side.

6. Install the hinge on the opposite side.

7. Screw both adjustable feet.

8. Unscrew both screws on the rear side.

9. Push back the top and lift it from the
fixing elements.

10. Unscrew the screws of the door top
hinge.

11. Remove the hinge. Put over the pin in
the direction of the arrow. Install the
hinge on the opposite side.

12. Tighten the hinge.

12 electrolux

13. Put the top in position.

14. Pull it forward.

15. Screw both screws on the rear side.

16.

Remove and install the handle

6)

on the

opposite side.

17. Reposition, level the appliance, wait for
at least four hours and then connect it
to the power socket.

Do a final check to make sure that:

• All screws are tightened.

• The door opens and closes correctly.

If the ambient temperature is cold (i.e. in
Winter), the gasket may not fit perfectly to
the cabinet. In that case, wait for the natural
fitting of the gasket.
In case you do not want to carry out the
above mentioned operations, contact the
nearest After Sales Service Force. The After
Sales Service specialist will carry out the re­versibility of the doors at your cost.

6) If foreseen
