Page 1

ERR627SA ERR927SA

Rangehood Installation manual

Page 2

WELCOME TO ELECTROLUX

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

LEGEND

The symbols you will see in this booklet have these meanings:

WARNING!

This symbol indicates information concerning your personal safety

CAUTION! This symbol indicates information on how to avoid damaging the rangehood

CONTENTS

3 Important safety instructions 4 Installation 6 Operation and maintenance 7 Warranty

IMPORTANT! This symbol indicates tips and information about use of the rangehood

ENVIRONMENT!

This symbol indicates tips and information about economical and ecological use of the rangehood

CONDITIONS OF USE

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, ofﬁces and other

working environments

• Farm houses

• By clients in hotels, motels and other residential

type environments

• Bed and breakfast type environments.

• Catering and similar non-retail applications

RECORD MODEL AND SERIAL NUMBER HERE:

Model:

Serial No:

Page 3

SAFETY INSTRUCTIONS

Please read the user manual carefully and store in a handy place for later reference. Pass the user manual on to possible new owners of the appliance.

Read the following carefully to avoid damage or injury.

Note: You must read these warnings carefully before installing or using the accessory. If you need assistance, contact your Customer Care Department. The manufacturer will not accept liability, should these instructions or any other safety instructions incorporated in this book be ignored.

ENVIRONMENT!

Remove and discard any packaging material before using this accessory. Most of the packaging materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in the appropriate collection containers.

CAUTION

• Accessible parts may become hot when used with cooking appliance.

• Regulations concerning the discharge of air have to be fulﬁlled.

• Failure to install the screws or ﬁxing device in accordance with these instructions may result in electrical hazards.

Cleaning

• Wipe the rangehood body and ﬂue with a sponge or soft cloth soaked in warm soapy water, and dry with a soft cloth, for stainless steel models apply a stainless steel protector. Do not use oven cleaners or other abrasive materials.

• There is a ﬁre risk if cleaning is not carried out in accordance with the instructions.

WARNING!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Ensure the rangehood is switched off before carrying out maintenance, to avoid any possibility of electric shock.

• Grease ﬁlters must be removed every four weeks (maximum) for cleaning to reduce the risk of ﬁre.

• Do not light a ﬂame under the rangehood.

• This rangehood is not recommended for barbecues.

• The exhaust air from the rangehood must not be discharged into any heating ﬂue, which may carry combustion products from other sources.

• Exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.

• There must be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.

• Always cover lit gas burners with pots or pans when the rangehood is in use.

• Always switch off gas burners before you remove pots or pans.

Electrical Connection

• Check that the mains voltage matches with the voltage on the data plate inside the rangehood.

• Check that the installation complies with standards of local gas and electricity authorities.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualiﬁed person in order to avoid a hazard.

Accessories

• Use 150mm round exhaust ducting for best performance.

• When using ﬂexible duct always install duct with the wire helix pulled taut to minimise pressure loss.

• Try to keep exhaust duct short and straight.

• Keep bends in the exhaust duct to a minimum.

• Do not restrict exhaust duct.

• Reducing the size of the exhaust duct will reduce the airﬂow of the rangehood. Please read instructions carefully. Service calls resulting from incorrect installation will be charged for.

Exhaust air from the rangehood must not be discharged into any heating ﬂue which may carry combustion products from other sources. In addition, exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose. Adequate ventilation of the room must be ensured when the rangehood is operating simultaneously with appliances burning gas or other fuels. Installation must comply in all respects with your gas and electrical authorities. This rangehood is an indoor domestic appliance, and has been manufactured and tested to comply with Australian and New Zealand Standard AS/NZS 60335.2.31

Page 4

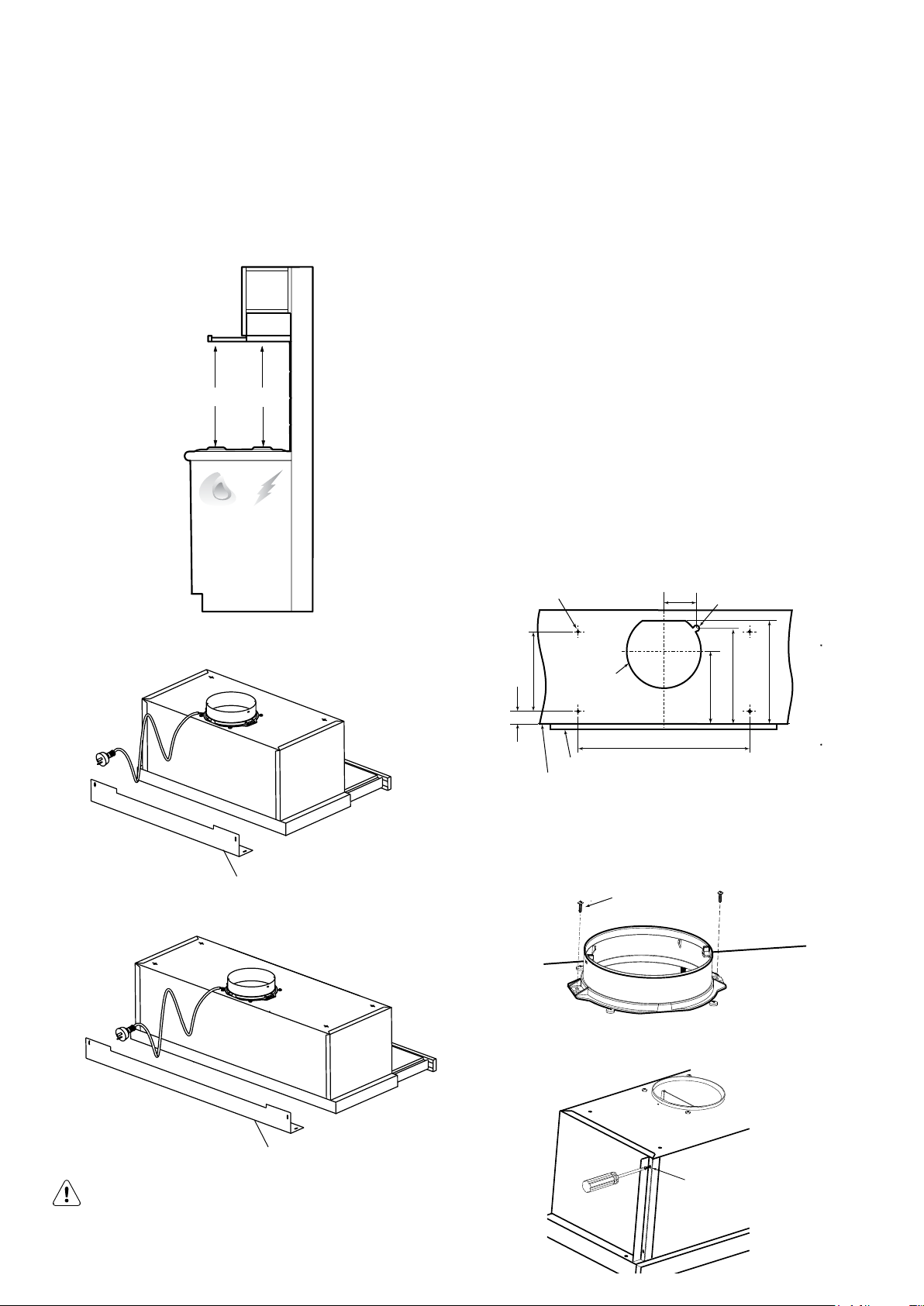

INSTALLATION

Standard ducting installation

It is recommended that the unit be positioned at a minimum of 600mm for an electric cooktop and 650mm for a gas cooktop, and no further from the cooktop than 800mm. Then unit becomes less effective as the distance from the cooking surface to the rangehood increase.

ELECTRIC

GAS

650

600

Parts supplied with hood

1 x Ø 150mm air outlet 1 x Ø 150mm to Ø 120mm converter 2 x rear covers 2 x lateral covers 6 x self tapping screws 3 x 12mm 2 x self tapping screws 3.5 x 10mm 4 x Ø 6 washers 4 x M6 x 40 screws 2 x carbon filters 2 x air intake grilles

Parts to be purchased

• Aluminium tape or cable ties to secure ﬂue pipe

• Ducting accessories

Drilling holes

Drill the holes on top wooden support

• drill Ø 7mm hole

• drill Ø 16mm hole

• cut Ø 196mm hole

Ø 7 for hood

fastening screws

Ø 16 for cable

clearance

Fixing point dimensions – ERR627SA

210

453

600

555

150

280

272

280

rear cover can be reversed to suit gap at rear

160

210

Ø 196 for ue

clearance

453/753

door/hood fascia

front of cabinet

Fixing the air outlet

Use screws to ﬁx the air outlet to the rangehood.

ST 3.5 x 10

192

252

272

Fixing point dimensions – ERR927SA

210

453

900

150

855

272

280

Fixing the lateral cover

Use screws to ﬁx the lateral cover to the rangehood.

160

280

rear cover can be reversed to suit gap at rear

WARNING! Failure to install the screws or ﬁxing device in accordance with these instructions may result in electrical hazards.

ST 3 x 12

Page 5

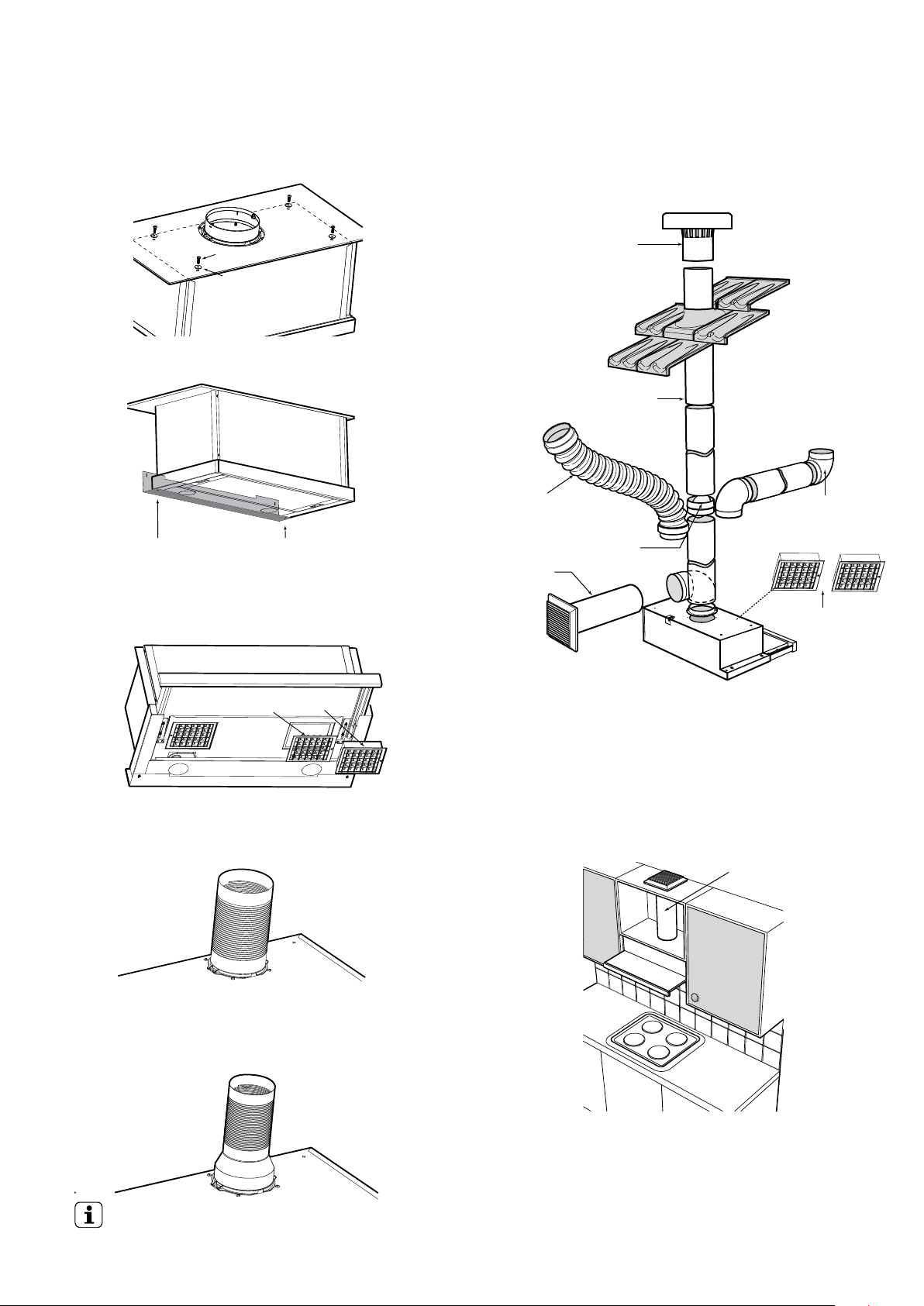

INSTALLATION

Fixing the rangehood

Use screw and washer to fasten the rangehood to the wood support from upper side.

M6 x 40 screws

Ø 6mm washer

Fixing the rear cover

Use screw to ﬁx the rear cover.

ST 3×12 self tapping screws

Installing the air intake grill

Carbon ﬁlters aren’t required for standard ducted installation. Remove and replace with air intake grills provided.

Ducting accessories - ERR627SA, ERR927SA

For best performance Ø 150mm ducting is recommended (Ø 125mm ducting can be used, but will reduce the airﬂow of the cooker hood).

roof cowl AR150RC (AR125RC)

rigid ue pipe AR150F (AR125F)

exible duct AR150FD (AR125FD)

wall vent kit AR150WV (AR125WV)

ue joiner

AR125FJD with damper

bend AR150FD (AR125B) for Ø 150 bend use

exible duct

carbon lter (2)

02825263

air intake grill

carbon filter

Fixing the ﬂue pipe

Fix a Ø 150mm, non-combustible, rigid ﬂue pipe to the exhaust transition duct using cable ties or duct tape.

Fixing a Ø 125mm ﬂue pipe

Fix the Ø 150mm to Ø 120 m m converter to the rangehood ﬁrst, then ﬁx a Ø 125mm noncombustible ﬂue pipe to the exhaust transition duct using cable ties or duct tape.

Accessories can be bought from your local appliance retailer, or in Australia at our online spare parts and accessories store: shop.electrolux.com.au

Ducted recirculating installation

If ducted recirculating installation is used, carbon ﬁlters are recommended. The carbon ﬁlters are already installed in the rangehood on delivery.

AR150WV (AR125WV)

IMPORTANT! If using a ﬂexible duct, always install duct with the wire helix pulled taut to minimise pressure and noise.

Carbon ﬁlters diminish cooking odours in the recirculated air. Depending on the frequency of use and the type of cooking, the expected life of carbon ﬁlters is 1-6 months. Using carbon ﬁlters with reduce the airﬂow of the rangehood.

Page 6

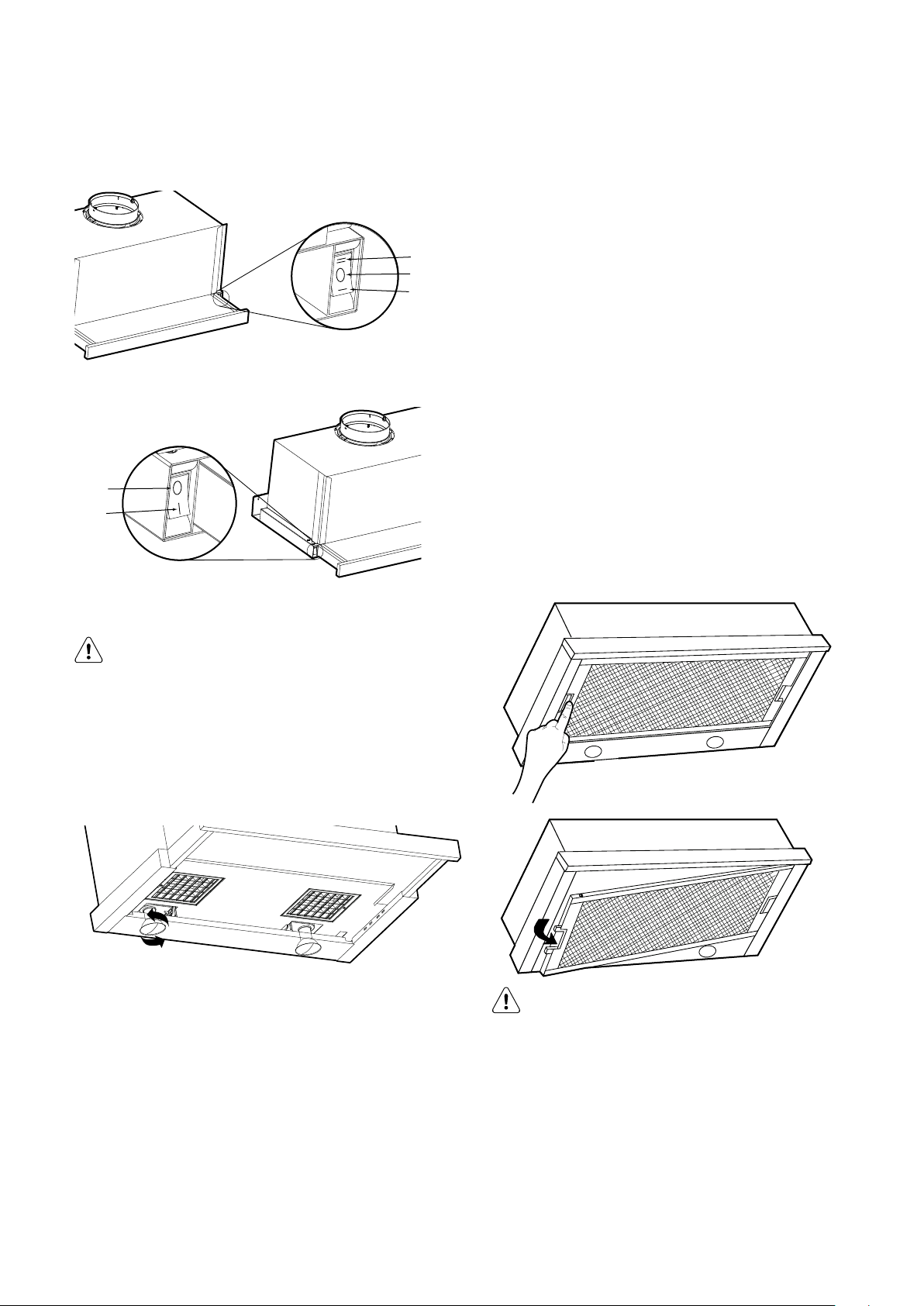

OPERATION & MAINTENANCE

To operate the rangehood, pull out the retractable hood and select the extraction level using the switch on the right hand side.

high

o

low

To switch on the rangehood light, use the switch located on the left hand side of the rangehood.

lamp on

lamp

o

Maintaining the rangehood

To maintain efﬁciency and reduce the risk of ﬁre, the ﬁlters should be removed at least once a month for cleaning.

1. Slide the retractable hood forward 1cm.

2. Push in clip on either side to release ﬁlter.

3. Pull ﬁlter downwards to remove. Repeat 2 & 3 for models with a second ﬁlter.

4. Turn off mains switch before cleaning drawer and cooker hood body.

5. Soak and agitate the ﬁlters in hot, soapy water or washing soda. Rinse, drain and shake well. The ﬁlters may also be placed in a dishwasher. Please note that some discolouration may occur. This will not affect the performance of the rangehood. Do not place the carbon ﬁlters in the dishwasher.

6. After cleaning, re-ﬁt ﬁlters making sure the clip pins are securely ﬁtted into the locating holes in the rangehood body and for twin ﬁlter versions, also located in the pull out drawer section.

7. Holding clip in, push opposite side of ﬁlter up until pins are over locating holes.

8. Release clip ensuring ﬁlter is securely ﬁtted.

Replacing the lamp

WARNING!

Ensure the rangehood is switched off before carrying out maintenance, to avoid any possibility of electric shock.

Ensure that the rangehood is unplugged, then slide out the retractable hood and remove the ﬁlter. Turn the lamp anti-clockwise to remove then replace the lamp by turning it clockwise.

CAUTION!

Use both hands for removing and re-ﬁtting the ﬁlters to avoid accidentally dropping the ﬁlters and causing damage to your cooktop or kitchen surfaces.

Page 7

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: RANGEHOOD

This document sets out the terms and conditions of the product warranties for Electrolux Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance.

1. In this warranty:

(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the

same meaning referred to in the ACL;

(b) ‘ACL’ means Schedule 2 to the Competition and Consumer Act 2010;

accompanied by this document;

(d) ‘ASC’ means Electrolux authorised service centres;

(e) ‘Electrolux’ means Electrolux Home Products Pty Ltd of 163

O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively ‘Electrolux’) of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;

(f) ‘major failure’ as referred to in clause 10 of this warranty has the same

meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Electrolux, at its discretion, to repair an Appliance during the Warranty Period;

(g) ‘Warranty Period’ means the Appliance is warranted against manufacturing defects in Australia for 24 months and in New Zealand for 24 months, following the date of original purchase of the Appliance;

(h) ‘you’ means the purchaser of the Appliance not having purchased the

Appliance for re-sale, and ‘your’ has a corresponding meaning.

2. This warranty only applies to Appliances purchased and used in Australia or New Zealand and used in normal domestic applications and is in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand.

3. During the Warranty Period Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux or its ASC may use remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux. This warranty does

not apply to light globes, batteries, lters or similar perishable parts.

4. Parts and Appliances not supplied by Electrolux are not covered by this warranty.

5. To the extent permitted by law, you will bear the cost of transportation,

travel and deliver y of the Appliance to and from Electrolux or its ASC. If you reside outside of the service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from

Electrolux or its ASC.

In all instances, unless the Appliance is transported by Electrolux or an

Electrolux authorised representative, the Appliance is transpor ted at the owner’s cost and risk while in transit to and from Electrolux or its ASC.

6. Proof of purchase is required before you can make a claim under this warranty.

7. You may not make a claim under this warranty unless the defect claimed is

(a) the Appliance is damaged by:

(i) accident

(ii) misuse or abuse, including failure to properly maintain or service

(iii) normal wear and tear

(iv) power surges, electrical storm damage or incorrect power supply

(v) incomplete or improper installation

(vi) incorrect, improper or inappropriate operation

(vii) insect or vermin infestation

(viii) failure to comply with any additional instructions supplied with

(b) the Appliance is modied without authority from Electrolux in writing;

(d) the Appliance was serviced or repaired by anyone other than

8. This warranty, the contract to which it relates and the relationship between

9. To the extent permitted by law and subject to your non-excludable statutory

10. For Appliances and services provided by Electrolux in Australia,

11. At all times during the Warranty Period, Electrolux shall, at its discretion,

12. For Appliances and services provided by Electrolux in New Zealand, the

13. To enquire about claiming under this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the terms

(b) have the model and serial number of the Appliance available;

(d) telephone the numbers shown below.

14. You accept that if you make a warranty claim, Electrolux and its ASC may

due to faulty or defective par ts or workmanship. Electrolux is not liable in the following situations (which are not exhaustive):

the Appliance;

or defaced;

Electrolux, an authorised repairer or ASC.

you and Electrolux are governed by the law applicable where the Appliance was purchased. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

rights and warranties, Electrolux excludes all warranties and liabilities (other than as contained in this document) including liability for any loss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.

the Appliances come with a guarantee by Electrolux that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The benets to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which the warranty relates.

determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.

Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act.

of this warranty;

exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Before calling for service, please ensure that the steps listed in clause 13 above have been followed.

FOR SERVICE

or to nd the address of your nearest

state service centre in Australia

PLEASE CALL 13 13 49

For the cost of a local call (Australia only)

FOR SERVICE

or to nd the address of your nearest

authorised service centre in New Zealand

FREE CALL 0800 10 66 10

(New Zealand only)

GRH_Warr_Sep15

Important Notice

SERVICE AUSTRALIA

ELECTROLUX HOME PRODUCTS

electrolux.com.au

SERVICE NEW ZEALAND

ELECTROLUX (NZ) Limited

electrolux.co.nz

FOR SPARE PARTS

or to nd the address of your nearest

state spare parts centre in Australia

PLEASE CALL 13 13 50

For the cost of a local call (Australia only)

FOR SPARE PARTS

or to nd the address of your nearest

state spare parts centre in New Zealand

FREE CALL 0800 10 66 20

(New Zealand only)

Page 8

Electrolux Home Products Australia

telephone: 1300 363 640 fax: 1800 350 067 email: [email protected] web: electrolux.com.au

Electrolux Home Products New Zealand

telephone: 0800 436 245 fax: 0800 225 088 email: [email protected] web: electrolux.co.nz

shop.electrolux.com.au

P/No. 60901795

EMAN_RetRange_Nov15
