1. RECOMMENDATIONS AND SUGGESTIONS
• The Instructions for Use apply to several versions of
this appliance. Accordingly, you may nd descriptions
of individual features that do not apply to your specic
appliance.
• The manufacturer will not be held liable for any damages
resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top
and the extractor hood is 650 mm (some models can be
installed at a lower height, please refer to the paragraphs
on working dimensions and installation).
• Check that the mains voltage corresponds to that indi-
cated on the rating plate xed to the inside of the hood.
• For Class I appliances, check that the domestic power
supply guarantees adequate earthing.
• Connect the extractor to the exhaust ue through a pipe
of minimum diameter 120 mm. The route of the ue must
be as short as possible.
• Do not connect the extractor hood to exhaust ducts car-
rying combustion fumes (boilers, replaces, etc.).
• If the extractor is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a sufcient
degree of aeration must be guaranteed in the room
in order to prevent the backow of exhaust gas. The
kitchen must have an opening communicating directly
with the open air in order to guarantee the entry of clean
air. When the cooker hood is used in conjunction with
appliances supplied with energy other than electric, the
negative pressure in the room must not exceed 0,04
mbar to prevent fumes being drawn back into the room
by the cooker hood.
• In the event of damage to the power cable, it must be
replaced by the manufacturer or by the technical service
department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify
a greater distance specied above, this has to be taken
into account. Regulations concerning the discharge of air
Page 4
www.electrolux.com
4
• Use only screws and small parts in support of the hood.
• Connect the hood to the mains through a two-pole switch
• Do not ambè under the range hood; risk of re.
• This appliance can be used by children aged from 8
• “CAUTION: Accessible parts may become hot when used
• The symbol on the product or on its packaging indicates
• Switch off or unplug the appliance from the mains supply
• Clean and/or replace the Filters after the specied time
have to be fullled.
Warning: Failure to install the screws or xing device in
accordance with these instructions may result in electrical hazards.
having a contact gap of at least 3 mm.
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
with cooking appliances.”
that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling
of this product, please contact your local city ofce, your
household waste disposal service or the shop where you
purchased the product.
before carrying out any maintenance work.
period (Fire hazard).
Page 5
2. USE
ZZ
• The extractor hood has been designed exclusively for domestic use
to eliminate kitchen smells.
• Never use the hood for purposes
other than for which it has been
designed.
• Never leave high naked ames un-
der the hood when it is in operation.
• Adjust the ame intensity to direct
it onto the bottom of the pan only,
making sure that it does not engulf
the sides.
• Deep fat fryers must be continuously monitored during use: over-
heated oil can burst into ames.
3. MAINTENANCE

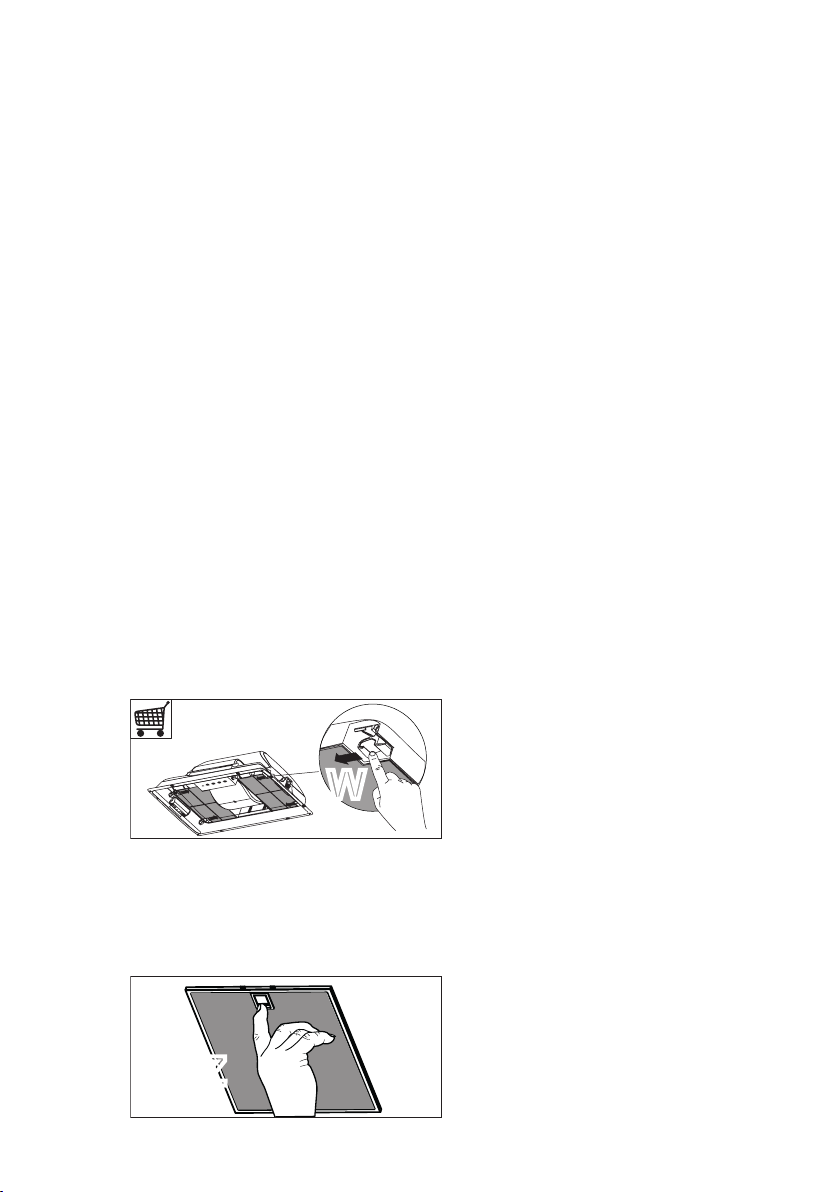

- The Activated charcoal lter is
not washable and cannot be regenerated, and must be replaced
approximately every 4 months of
operation, or more frequently for
particularly heavy usage (W).
- Note: Replacement carbon lter
(W) is available from Electrolux
spare parts.
ENGLISH
• Clean the hood using a damp cloth
and a neutral liquid detergent.
5
:
:
- The Grease lters must be cleaned
every 2 months of operation, or
more frequently for particularly
heavy usage, and can be washed
in a dishwasher (Z).
Page 6
www.electrolux.com
6
4. CONTROLS

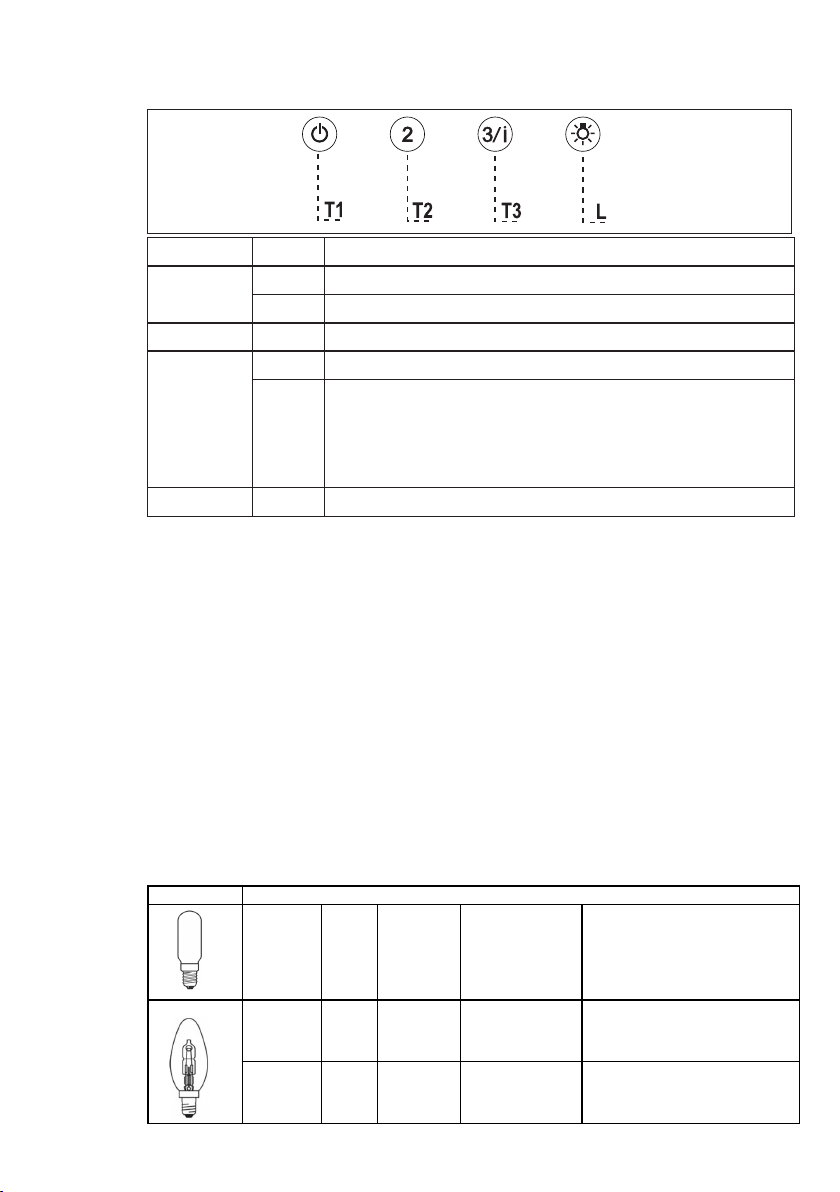

BUTTON LED FUNCTIONS
T1 Speed On Turns the Motor on at Speed one.
T2 Speed On Turns the Motor on at Speed two.
T3 Speed On When pressed briey, turns the Motor on at Speed three.
L Light Turns the Lighting System on and off.
Warning: Button T1 turns the motor off, after rst passing to speed one.
Flash
Turns the Motor off.
Press and hold for approximately 3 seconds, turns the
motor on at maximum speed. This speed is time to
run 6 minutes. At the end of this time, the system will
automatically return to the speed before.
5. LIGHTING
For replacement contact technical
support (“To purchase contact technical support”).
Warning: This appliance is tted with
LED lamps. Do not look directly at the
light through optical devices(binoculars,
magnifying glasses…).
Lamp Power [W] Socket Voltage [V] Dimension [mm] ILCOS Code
40 E14 230 85x25 IBB/C-40-230-E14-35
28 E14 220-240 104 x 35 HSGSB/C/UB-28-220/240-E14
4 E14 220-240 107 x 37 DRBB/F-4-220-240-E14-35/100
