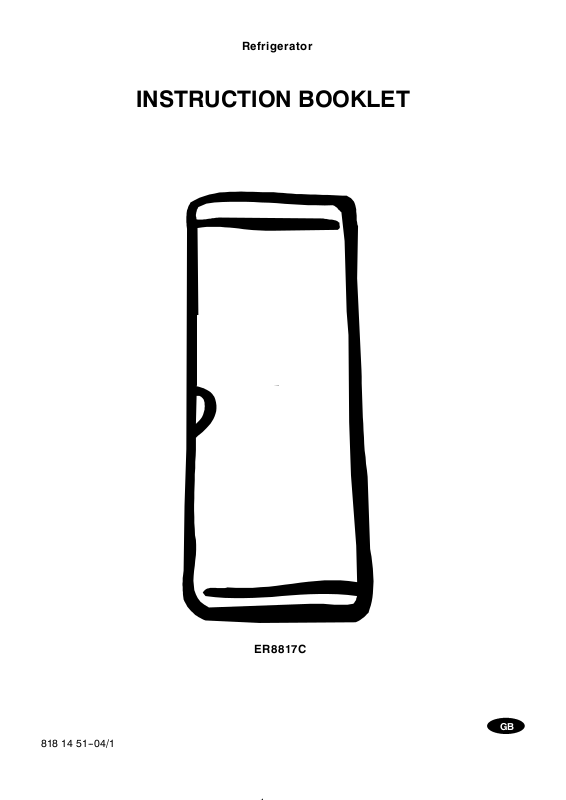

Electrolux ER8817C User Manual

Refrigerator
INSTRUCTION BOOKLET
818 14 51--04/1
ER8817C
GB
DK
Your new fridge may have other functions compared to your previous one. These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using the appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or warnings contact the Customer Care Department.
Keep the instruction booklet. It will come in handy if you later sell the appliance or give it to somebody else.
For the User
· The cabinet is intended for keeping foodstuff in a
normal household as explained in this instruction booklet.
· Do not keep explosive gases or liquids in the
refrigerator or freezer compartment. They may explode and cause injury and material damage.
parts of the cabinet may be sharp. Be careful when moving the cabinet and always use gloves.
Child Safety
· Pay attention so t hat small children do not gain
access to the operating controls or the inside of the cabinet.
· Do not let sharp objects come into contact with
the refrigerating system on the back of and inside the cabinet. If the refrigerating system is punctured, the cabinet will be damaged and foodstuff inside may spoil.
· Do not keep carbonised drinks or bottles in the
freezer compartment. The glass bottles may break.
Scrapping old cabinets
When discarding the cabinet, hand it over to a recycling station. For m ore information, call your local city office or your dealer.
· The cabinet is heavy. The edges and projecting
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instructions
1, 2, 3 ...
Safety instructions
Step by step instructions for an operation
Hints and tips
Electrolux 818 14 51-04/1
2
Contents
Important Safety Instructions 3.......
Scrapping old cabinets 3.......................
Contents 4..........................
Description of the Appliance 4........
Control Panel 4..............................
Before use 5.........................
Using the fridge 5....................
To start the fridge and thermostat control 5........
Temperature inside the fridge 5.................
Measuring the temperature 5...................
Switching off 6..............................
Cabinet interior 6............................
Hints and Tips 6.....................
Energy Saving Advice 6.......................
Food Storage 6..............................
Normal Operating Sounds 7....................
Maintenance and Cleaning 7..........
Removing the ventilation grille 7................
Internal Cleaning 7...........................
External Cleaning 7..........................
Defrosting the fridge 8........................
To Change the Light Bulb 8....................
When the appliance is not in use 8...............
Something Not Working 8............
ServiceandSpareParts 9............
Customer Care Department 9...................
Guarantee Conditions 10..............
Standard Guarantee Conditions 10................
Technical specification 10.............
Installation 10........................
Mains Cable 10...............................
Unpacking 10................................
Removing the transport supports 10..............
Cleaning 10..................................
Installing the appliance 11......................
Electrical connection 12........................

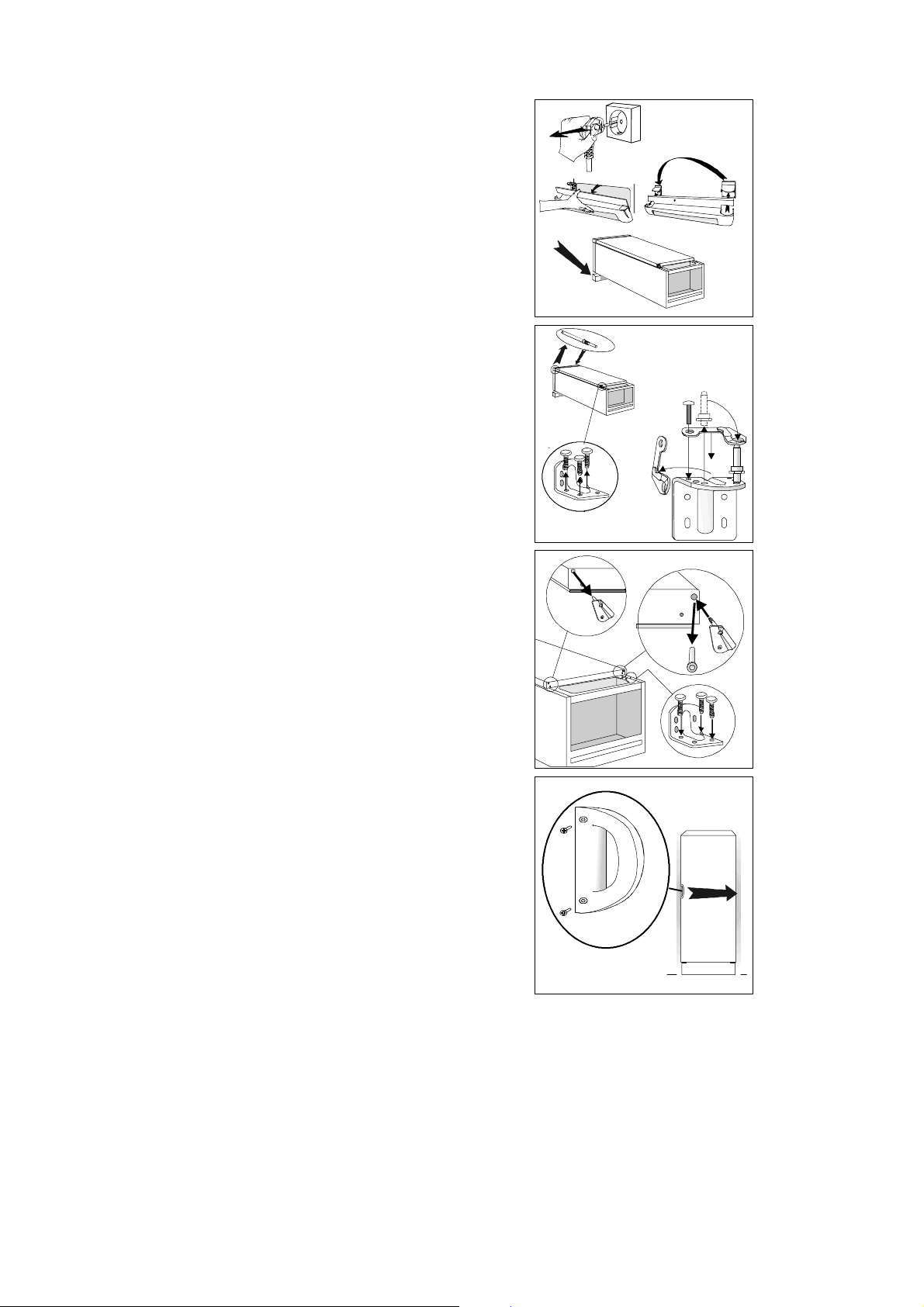

Door Reversal 13.............................
Description of the Appliance
Modell ER8817C
1. Wire shelf
2. Bottle shelf
3. Glas shelf
4. Egg tray
5. Salad drawer
6. Ventilation grille
7. Dairy compartment
8. Door shelf + box
9. Hanging doorshelf
10. Bottle shelf
11. Door shelf
1
2
1
1
3
5
1
1
3
5
6
Control Panel
7
8
9
11
4
11
11
10
A. Green pilot light
Illuminates when the fridge is operating.
AB
B. Thermostat control knob
Usetoswitchonandsetthedesiredtemperaturein the fridge.
Electrolux 818 14 51-04/1
3
Before use
GB
·Remove all securing tapes.
·Wash the inside of the appliance with lukewarm
water with a little bicarbonate of soda added (5ml to 0,5 litre of water). Do not use soap or detergent as the smell may linger. Dry the appliance thoroughly.
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax, polishes or products containing alcohol.
Check that the drain hose at the rear of the cabinet discharges into the drip tray.
·Before inserting the power plug into the socket and
switching on the appliance for the first time, leave it standing upright for about 30 minutes, or for 2 hours if it was transported horizontally. Otherwise the com-
Using the fridge
To start the fridge and thermostat control
Turn the thermostat control knob to the desired position. MIN The lowest position of the thermostat control results in the highest temperature inside the cabinet. MAX The highest position of the thermostat control results in the lowest temperature inside the cabinet. H : Switched off. Allow the appliance to run for a period of 24 hours whenever the temperature setting is changed. This will allow the temperature to stabilise inside the appliance.
pressor may sustain damage. This time will allow the oil sufficient time to return to the compressor.
Temperature inside the fridge
A suitable temperature inside the fridge is approx. +5°C. If the thermostat control is set too cold, food with a high water content may start to freeze if it has been placed in the coldest places in the fridge. (+ warm, - cold) Meat, fish and milk should be put in the coldest part of the cabinet. The temperature will be affected by:
· How often the door is opened
· How much food is stored
· Position of the appliance (See the Installation
section.)
Measuring the temperature
If the temperature is measured using a standard, single thermometer, this should be put in a glass of water centrally placed inside the appliance. This will reflect the temperature inside the food products. Do not place the thermometer hanging or lying directly on the shelf.
+
+
--
--
--
--
+
+
+
+
+
+
Electrolux 818 14 51-04/1
4
· Distribute foodstuffs to allow cold air to
circulate freely between the products.
· Do not place food products directly against the
cooling plate on the rear wall as they may freeze here.
· Also never put warm products into the appliance.
Wait until they have cooled down.
· Cover all foods properly to avoid odours and
flavours from tainting other food.
Switching off
Turn the control anti-clockwise past the click position to "H". Unplug the power supply plug from the wall socket.
Cabinet interior
The shelves and door compartments are removable and can easily be re-arranged. Certain shelves must be lifted up by the rear edge to enable them to be removed. The lower door compartment and the glass shelf above the salad drawer must not be moved. They are required for proper air circulation inside the cabinet. Shelves with a raised edge should be placed with the raised edge facing the rear wall of the cabinet, and thus prevent food products from touching the cooling plate.
Hanging h alf-shelf
The half-shelf can be moved sideways. It can be hung under all door shelves, except the lowest one.
Hints and Tips
Energy Saving Advice
· Do not install the cabinet close to sources of heat
such as a cooker, dishwasher or radiator.
· Locate the appliance in a cool well ventilated
room and make sure that the air openings of the cabinet are not obstructed.
· Always leave warm food to cool down to room
temperature before placing in the fridge.
· Try to avoid keeping the door open for long
periods, or opening the door too frequently as warm air will enter the cabinet, and cause the compressor to switch on unnecessarily often.
· Ensure there are no obstructions preventing the
door from closing properly.
· It is advisable to periodically clean the
refrigeration system at the back of the appliance with a duster or vacuum cleaner.
· Always leave warm food to cool downn to room
temperature before placing in the fridge.
· Make sure the door gasket is complete and
always clean.
Food Storage
· To obtain the best results from your appliance,
neither hot foods nor liquids which may evaporate, should be placed in the larder compartment.
· Keep the time between buying chilled food and
placing it in your fridge as short as possible.
· Do not push food together too much, try to allow
air to circulate around each item.
· Do not store food uncovered.
Remove suspect food from you refrigerator and clean, refer to cleaning and maintenance.
Electrolux 818 14 51-04/1
5
