Electrolux ER 7828 C User Manual
fridge
INSTRUCTION BOOK
2222 143-53
ER 7828 C
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety. You MUST read it carefully before
installing or using the appliance.
Installation
¥ This appliance is heavy. Care should be taken
when moving it.
¥ It is dangerous to alter the specifications or attempt
to modify this product in any way.
¥ Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from your
local Electrolux Service Force Centre.
¥ Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
¥ Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
¥ The appliance should be left for 2 hours after instal-
lation before it is turned on, in order to allow the
refrigerant to settle.
Child Safety
¥ Do not allow children to tamper with the controls or
play with the product.
¥ Keep all packaging well away from children.
General Safety
¥ Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
¥ The appliance must not be located close to radi-
ators or boilers.
¥ Avoid prolonged exposure of the appliance to
direct sunlight.
¥ Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
During Use
¥ This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
¥ Frozen food must NOT be re-frozen once it has
thawed out.
¥ Do not place carbonated or fizzy drinks in the freez-
er.
¥ Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
¥ Ice lollies can cause Ôfrost/freezer burnsÕ if con-
sumed straight from the freezer.
¥ ManufacturersÕ storage recommendations should
be strictly adhered to. Refer to relevant instructions.
¥ The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
Maintenance and Cleaning
¥ Switch off and unplug the appliance before carry-
ing out any cleaning or maintenance work.
Servicing
¥ This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
¥ Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Electrolux Service Force Centre and always
insist on genuine spare parts.
At the end of the
Appliance Life
¥ When disposing of your appliance, use an autho-
rised disposal site.
¥ Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
2
15

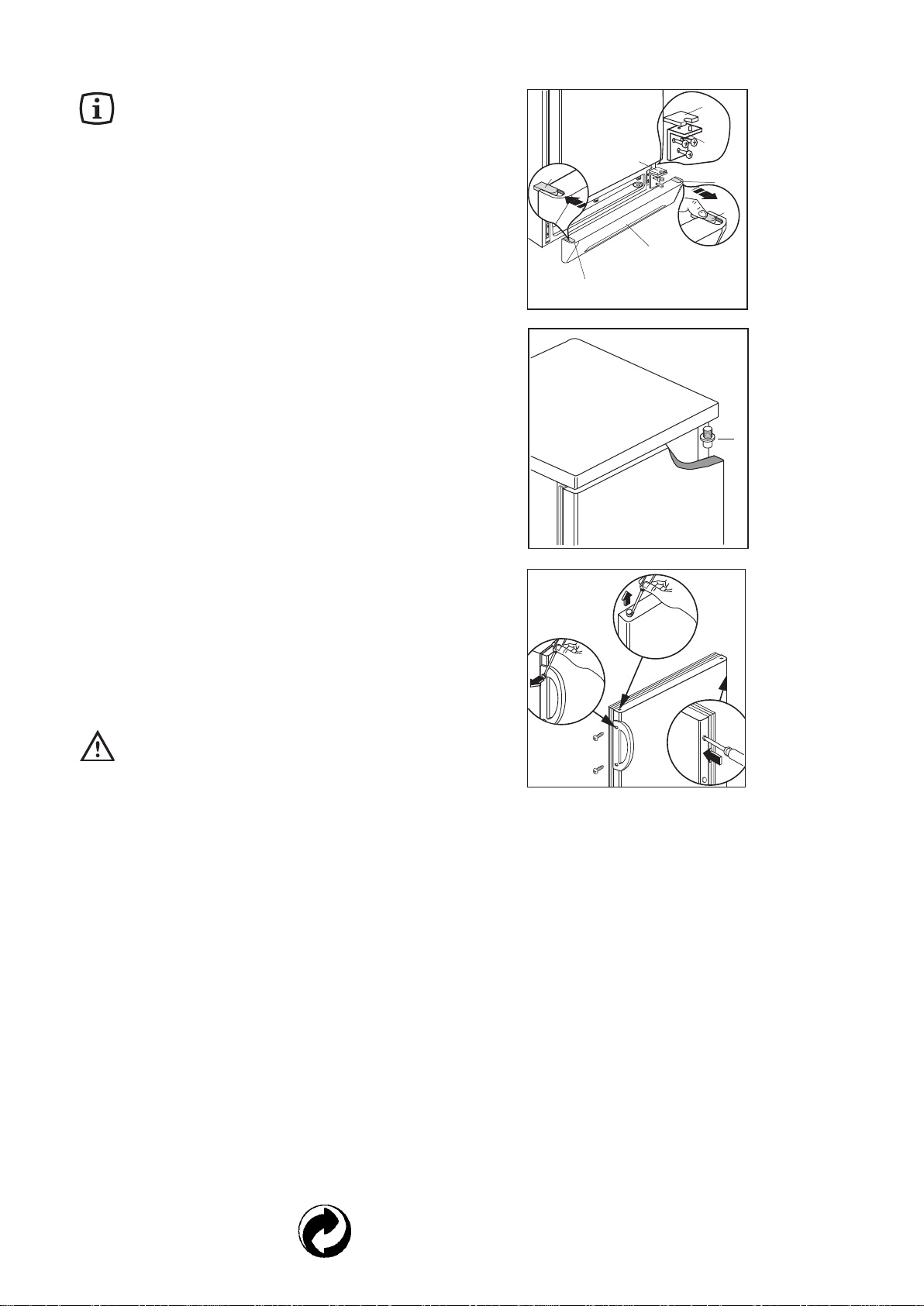

Door reversal directions
1. Disconnect from the electricity supply.
2. Gently lay the fridge/freezer on its back with the
top held away from the floor by 5-8 cm (2-3 inch-
es) of packing;
3. pull off the ventilation grille (D) which is clipped
into place;
4. remove the hole cover (G) and the bottom hinge
(E) by unscrewing its three fixing screws;
5. Slide out the fridge door from pin (G), unscrew
the latter and then refit it on the opposite side;
6. Remove the two screws which mask the holes for
fixing the hinge from the left hand side;
7. Reassemble the door;
8. using a 10 mm spanner, unscrew the hinge pin
(E) and reassemble it on the opposite side of the
hinge;
9. reassemble the lower hinge (E) on the opposite
side, using the screws previously removed; insert
the hole cover (G) on the lower hinge. Slide the
hole cover (F) out of the ventilation grille (D) by
pushing it in the direction of the arrow and
reassemble it on the opposite side;
10. refit the ventilation grille (D), clipping it into
place.
11.Unscrew the handle. Refit it on the opposite side
after having pierced the plugs with a punch.
Cover the holes left open with the plugs con-
tained in the documentation pack.
Attention
After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdryer on a low setting.
G
PR228
Printed on recycled
F
D
PR18
F
F
F
E
E
G
3
CONTENTS
2222 143-53
Instructions for the User
Important Safety Information
2
Description of the Appliance
4
Operation
5
Before use 5
Starting your appliance 5
Fresh food refrigeration 5
Movable shelves 6
Positioning the door shelves 6
Hints and Tips
7
Maintenance and Cleaning
8
Internal cleaning 8
External cleaning 8
When the appliance is not in use 8
Changing the light bulb 8
Defrosting 8
Something Not Working
9
Service and Spare Parts
10
Customer Care
10
Guarantee Conditions
11
Instructions for the
Installer
Technical Specification
12
Installation
13
Positioning 13
Rear Spacers 13
Electrical Connection
14
Door Reversal
15
4
DESCRIPTION OF THE APPLIANCE
A
B
C
E
F
G
H
D
A - Dairy compartment
B - Movable storage shelf
C - Can storage shelves
D - Bottle storage shelf
E - Salad crisper
F - Glass shelf
G - Storage shelves
H - Thermostat control
13
INSTALLATION
Positioning

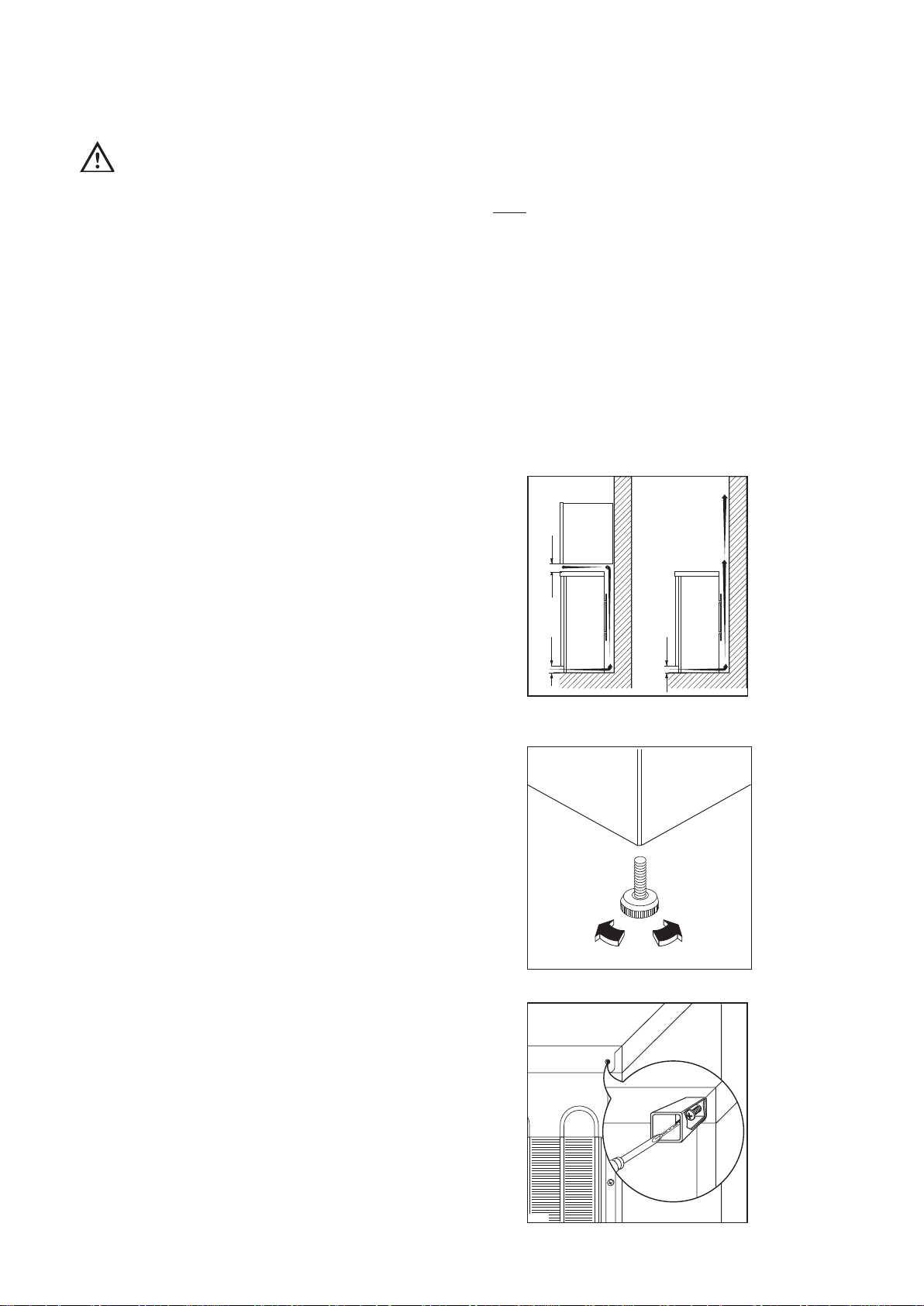

This appliance is designed to operate in ambient
temperatures between 10¡C (50¡F) and 38¡C (100¡F).
It should be located in a dry atmosphere, out of direct
sunlight and away from extreme temperature e.g. not
next to a boiler or radiator, or in a very cold room e.g.
an outhouse, where the temperatures may fall below
10¡C (50¡F). If these temperatures are exceeded i.e.
colder or warmer, then the appliance may not operate
correctly.
You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
must also be at least 100 mm (4Ó) distance between
the top of the cabinet and any overhanging kitchen
furniture (A). Ideally, the appliance should not be
positioned beneath overhanging furniture (B).
There should also be a gap of 25 mm either side of
the appliance. Do not obstruct the space underneath.
The back of the cabinet may be placed close to the
wall but must not touch it. DO NOT install in places
with restricted ventilation.
Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet
using your fingers (see figure).
D200
D594
100 mm10 mm
10 mm
A
B
NP007
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on ÒDoor reversal directionsÓ.
Rear spacers
In the bag with the documentation, there are two
spacers which must be fitted as shown in the figure.
Slacken the screws and insert the spacer under the
screw head, then re-tighten the screws.
Important
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.

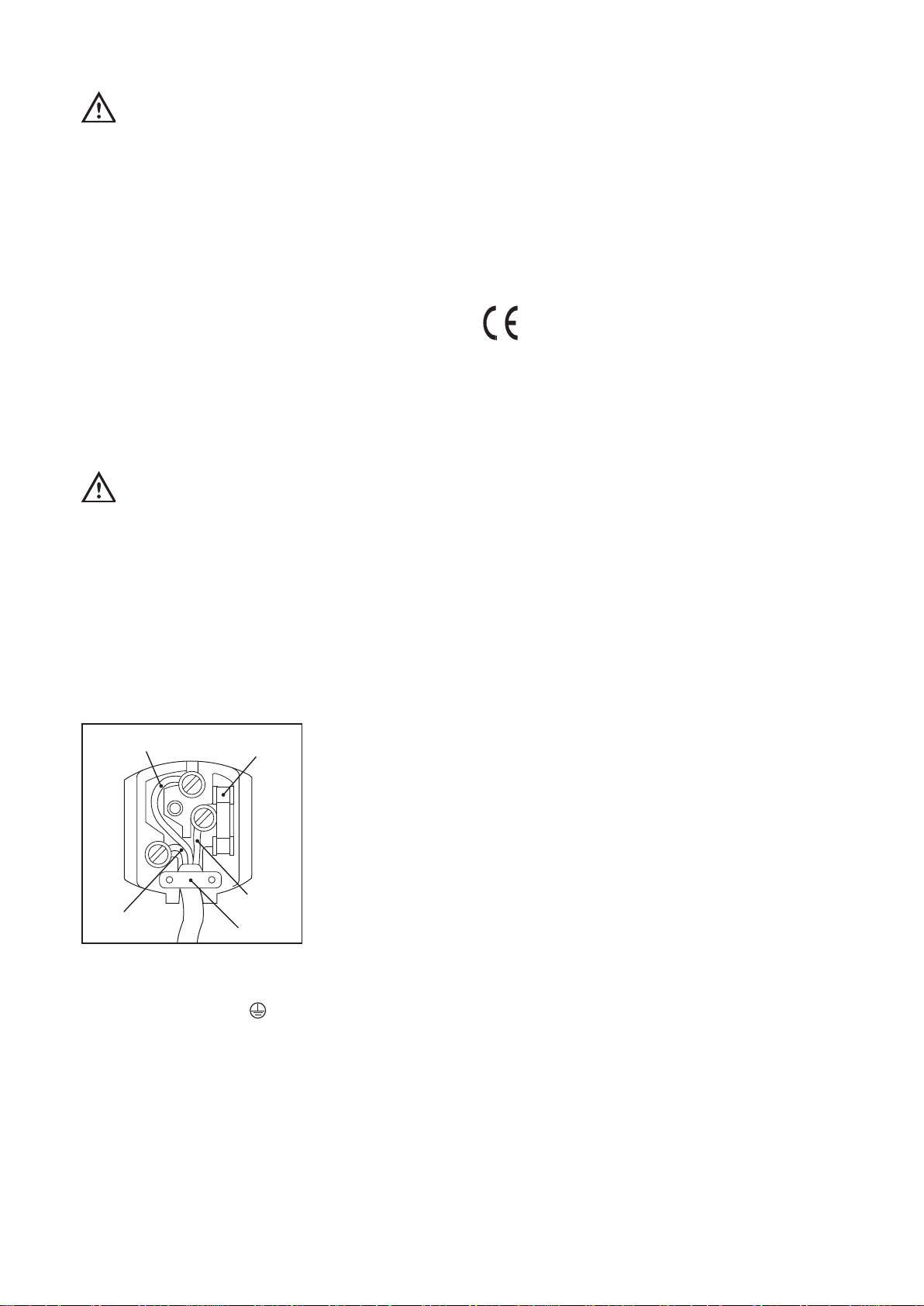

5
OPERATION
Before using
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Fresh food refrigeration
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
To help you use your refrigerator correctly, here are
some more useful hints:
Raw meat (beef, pork, lamb & wild fowl): wrap in
polythene bags and place on top of the salad
crispers.
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad crispers.
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
Setting the temperature
The temperature inside the refrigerator is regulated
by a thermostat with 6 temperature positions and an
ÒOFFÓ (O) position.
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat dial to the required position.
The intermediate position is usually the most
suitable (3-4).
The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:
Ð room temperature
Ð how often the door is opened
Ð how much food is stored
Ð position of the appliance
Important
During prolonged periods of abnormally hot weather,
if the thermostat is set on too high a number, the
cooling system may operate continuously and the
fridge cooling plate may not defrost. Turning the
knob to a lower number will cause the automatic
defrosting to resume.
