Please read this instruction booklet before using the appliance
35674-1101
Mod. EOB 812
GB
Important Safety Information
You MUST read these warnings carefully before installing or using the oven. If you need
assistance, contact our Customer Care Department on 08705 950950
Installation
This oven must be installed by qualified personnel to
the relevant British Standards.
This oven is heavy. Take care when moving it.
Remove all packaging, both inside and outside the
oven, before using the oven.
Do not attempt to modify the oven in any way.
Child Safety
This oven is designed to be operated by adults. Do not
allow children to play near or with the oven.
The oven gets hot when it is in use. Children should be
kept away until it has cooled.
During Use
This oven is intended for domestic cooking only. It is
not designed for commercial or industrial purposes.
Never line any part of the oven with aluminium foil.
Do not allow heatproof cooking material, e.g. roasting
bags, to come into contact with oven elements.
Never place plastic or any other material which may
melt in or on the oven.
Do not place sealed cans or aerosols inside the oven.
They may explode if they are heated.
Do not hang towels, dishcloths or clothes from the
oven or its handle.
Do not use this oven if it is in contact with water and
never operate it with wet hands.
Take great care when heating fats and oils as they will
ignite if they become too hot.
Always use oven gloves to remove and replace food in
the oven.
Ensure that all control knobs are in the OFF position
when not in use.
Do not leave cookware containing foodstuffs, e.g. fat
or oil in or on the oven in case it is inadvertently
switched ON.
When using other electrical appliances, ensure the
cable does not come into contact with the hot surfaces
of the oven.
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
Maintenance and Cleaning
Only clean this oven in accordance with the instructions.
The oven should be kept clean at all times. A build-up
of fats or other foodstuffs could result in a fire,
especially in the grill pan.
Always allow the oven to cool down and switch off the
electrical supply before carrying out any cleaning or
maintenance work.
Service
This oven should only be repaired or serviced by an
authorised Service Engineer and only genuine approved
spare parts should be used.
Environmental Information
After installation, please dispose of the packaging
with due regard to safety and the environment.
When disposing of an old appliance, make it unusable,
by cutting off the cable. Remove any door catches,
to prevent small children being trapped inside.
Guide to Use the instructions
The following symbols will be found in the text to guide
you throughout the Instructions:
Compatibility Directive),
and subsequent modifications
2
Contents
For the User
Important Safety Information2
Description of the Appliance3
Controls4
Before the First Use4
Using the Oven5
The Conventional Oven6
Grilling7
Cleaning the Oven8
Cleaning the hinged grill9
Something not working10
Service and Spare Parts11
Guarantee Conditions11
For the Installer
Electrical Connection14
Technical Data14

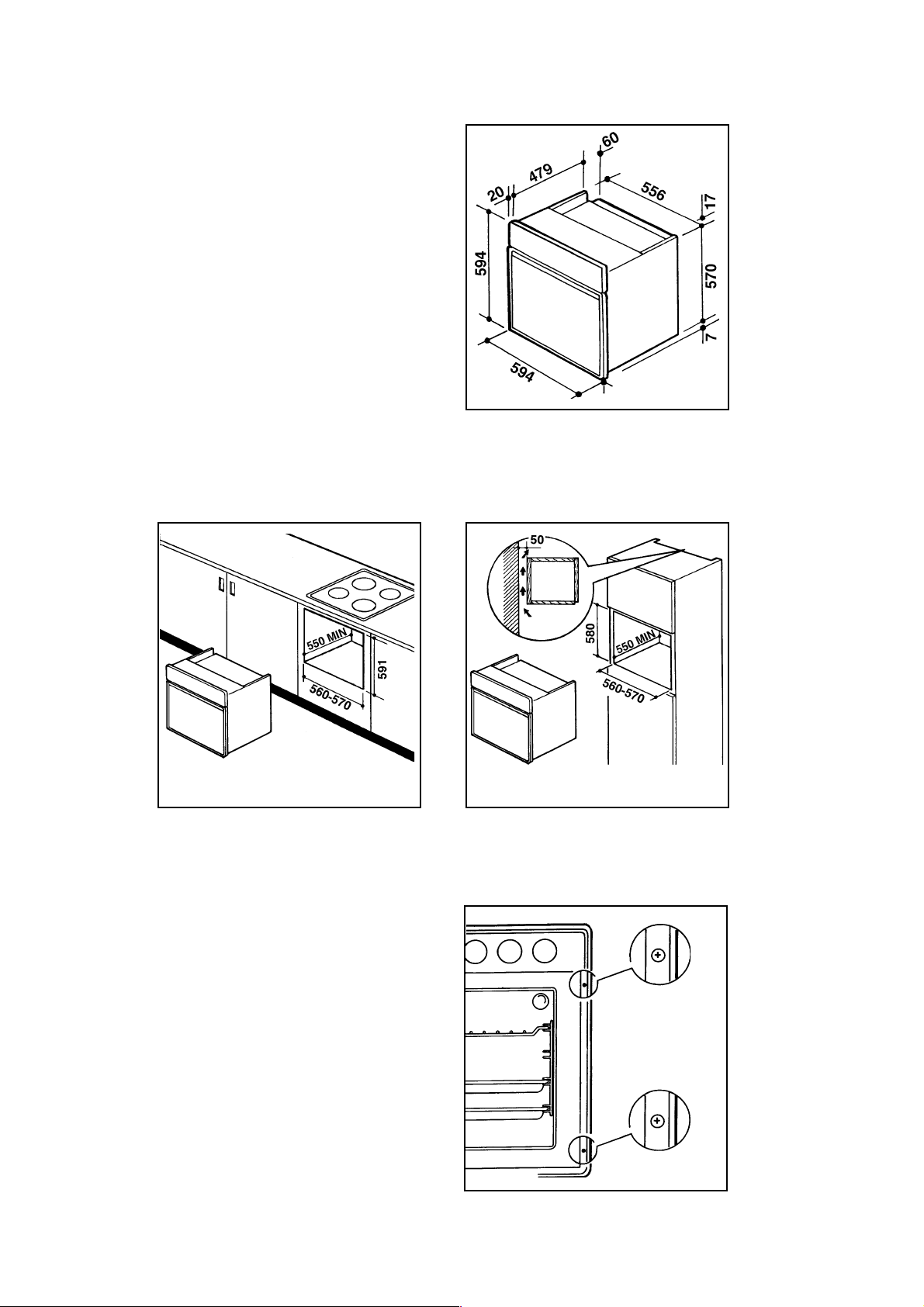

Building In15
Description of the Appliance
Control Panel
Mains on
Light
Thermostat
Control Light
Oven
Function Control
Knob
Thermostat Control
Knob
Grill Element
Oven door
Rating Plate
3
Controls
Oven Function Control Knob
Conventional cooking - The heat comes from the
top and bottom element of the oven, ensuring even
heating inside the oven
Bottom heating element - The heat comes from the
bottom of the oven only
Top heating element - The heat comes from the top
of the oven only
Grill - The heat comes from the top element only
Thermostat Control Knob
Turn the thermostat control knob clockwise to select
temperatures between 50°C and 250°C (MAX).
The Safety Thermostat
50
MAX
100
200
150
This oven is provided with a safety thermostat. In case of
malfunctioning of the main thermostat, and consequent
over-heating, the safety device will stop the power supply
to the appliance. If this happens, call your local Service
Force Centre. Under no circumstances should you
attempt to repair the appliance yourself.
Before the First Use
Remove all packaging, both inside and outside
the oven, before using the appliance.
Before first use, the oven should be heated without food.
During this time, an unpleasant odour may be emitted.
This is quite normal.
1. Switch the oven function control knob to
F
conventional cooking .
2. Set the thermostat control knob to MAX.
4. Open a window for ventilation.
5. Allow the oven to run empty for approximately
45 minutes.
This procedure should be repeated with the grill
function for approximately 5-10 minutes.
4
Using the Oven
Always cook with the oven door closed.
Stand clear when opening the drop down oven
door. Do not allow it to fall open - support the door
using the door handle, until it is fully open.
The oven has four shelf levels, and is supplied with
two shelves. The shelf positions are counted from
the bottom of the oven as shown in the diagram.
It is important that these shelves are correctly
positioned as shown in the diagram.
Do not place cookware directly on the oven base.
Accessories
Anti-tip shelf (x 2)
4
3
2
1
FO 0336
Grill/
Roasting
pan
Grill
trivet
metal tabs
The anti-tip shelf has four small metal tabs on its frame
to prevent it from sliding out from the shelf supports.
Hints and Tips
Condensation and steam
When food is heated it produces steam in the same way
as a boiling kettle. The oven vents allow some of this
steam to escape. However, always stand back fromthe oven when opening the oven door to allow any
build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the oven, e.g. a trim, it will condense and
produce water droplets. This is quite normal and is not a
fault with the oven.
To prevent discoloration, regularly wipe away
condensation and also soilage from surfaces.
Cooling fan
The cooling fan operates during cooking. Air is expelled
through vents between the oven door and the control
panel, as shown in the diagram.
The cooling fan may run on after the oven is switched off
to keep the controls cool. This is quite normal.
Cookware
Use any oven proof cookware which will withstand
temperatures of 250°C.
Baking trays, oven dishes, etc. should not be placed
on the oven base.
Do not use baking trays larger than 30 cm x 35 cm (12
in x 14 in) as they will restrict the circulation of heat
and may affect performance.
Removable
handles
The effects of dishes
on cooking results
Dishes and tins vary in their thickness, conductivity, colour,
etc. which affects the way they transmit heat to the food
inside them.
A Aluminium, earthenware, oven glassware and bright
shiny utensils reduce cooking and underneath
browning.
B Enamelled cast iron, anodized aluminium, aluminium
with non-stick interior and coloured exterior and dark,
heavy utensils increase cooking and underneath
browning.
5
The Conventional Oven
When using this setting, heat comes from both the top
and bottom elements. This allows you to cook on a single
level and is particularly suitable for dishes which require
extra base browning such as quiches and flans.
Gratins, lasagnes and hotpots which require extra top
browning also cook well in the conventional oven.
How to use the conventional
F
oven
1. Turn the oven function control knob to the required
cooking function ( ).
2. Turn the thermostat control knob to the required temperature.
Top oven element only
This function is suitable for finishing cooked dishes, e.g.
lasagne, shepherds pie, cauliflower cheese etc.
Bottom oven element only
This function is particularly useful when blind-baking
pastry. It may also be used to finish off quiches or flans
to ensure the base pastry is cooked through.
THINGS TO NOTE
The thermostat control light will remain on until the
correct temperature is reached. It will then cycle on
and off to show the temperature is being maintained.
The cooling fan will operate continually during cooking.
It may run on after the oven is switched off to keep
the controls cool. This is quite normal.
The action of the cooling fan will depend on how long
the oven has been used and at what temperature. It
may not switch on at all at lower temperature settings
nor run on where the oven has only been used for a
short time.
Cooking Chart
The oven temperatures are intended as a guide only. It
may be necessary to increase or decrease the
temperatures by 10 °C to suit individual preferences and
requirements.
NOTE: Shelf positions are counted from bottom of the
oven.
The middle shelf position allows for the best heat
distribution. To increase base browning simply lower the
shelf position. To increase top browning, raise the shelf
position.
The material and finish of the baking trays and dishes
used will affect base browning. Enamelware, dark, heavy
or non-stick utensils increase base browning, while oven
glassware, shiny aluminium or polished steel trays reflect
the heat away and give less base browning.
Always place dishes centrally on the shelf to ensure even
browning.
Stand dishes on suitably sized baking trays to prevent
spillage onto the base of the oven and make cleaning
easier.
Do not place dishes, tins or baking trays directly on the
oven base as it becomes very hot and damage will occur.
6
