Electrolux EOB53000X User Manual

user manual

Built-In Electric Oven

EOB53000

We were thinking of you
when we made this product

electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov­er in this manual. Please take a few min­utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

4 electrolux contents

Contents

Safety instructions 5
Description of the Appliance 7
Before using for the first time 9
Operating the Oven 11
Usage, Tables and Tips 22
Cleaning and care 34
What to do if … 44

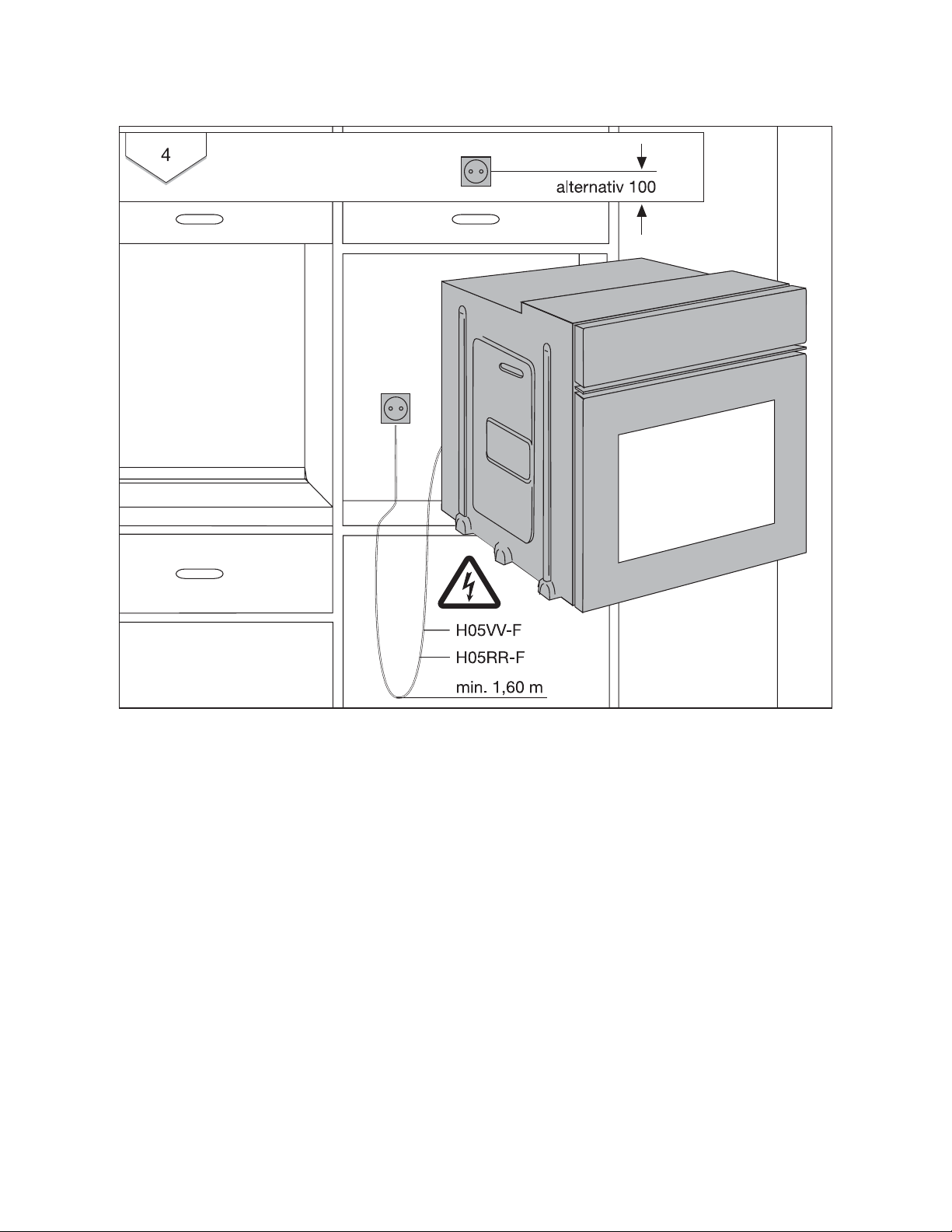

Electrical Connection 45

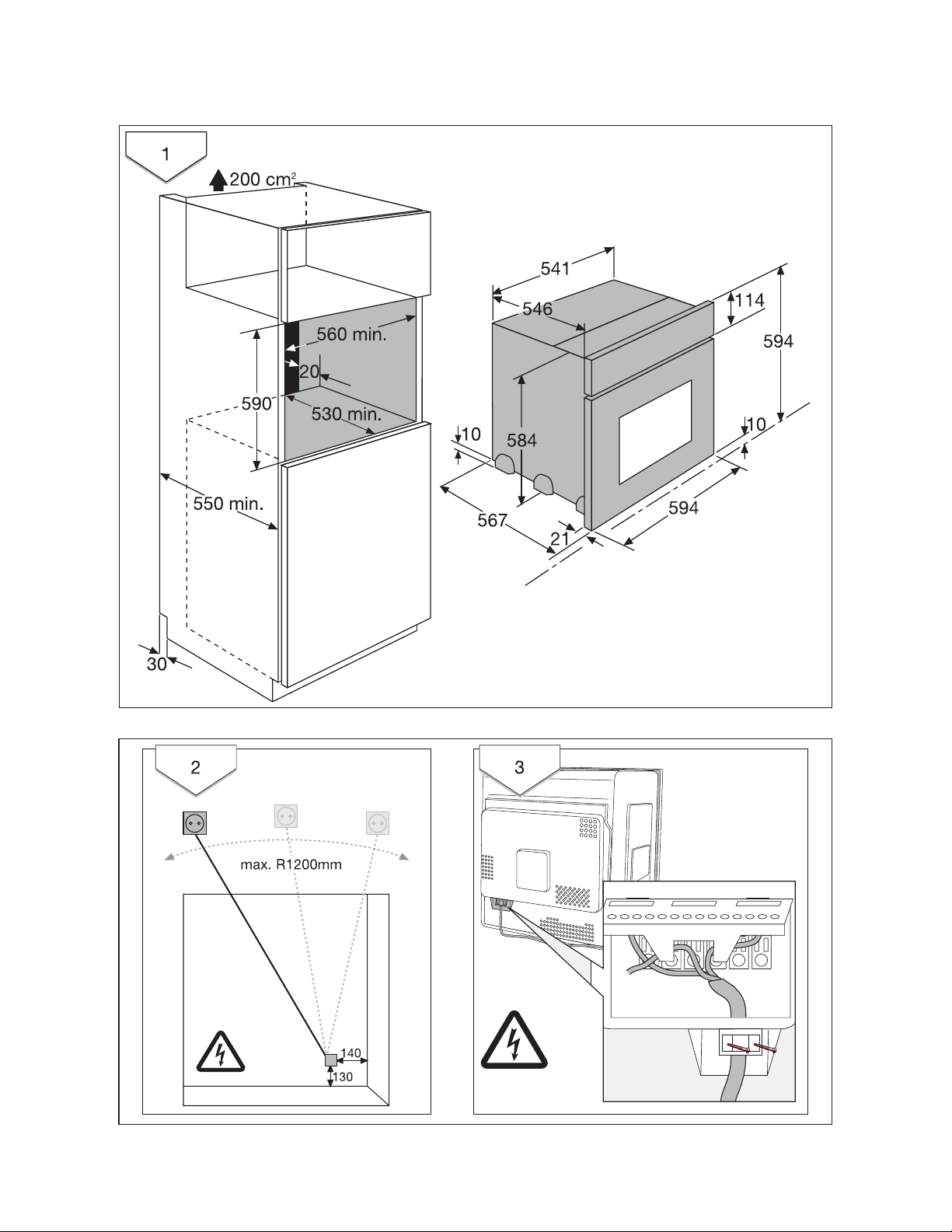

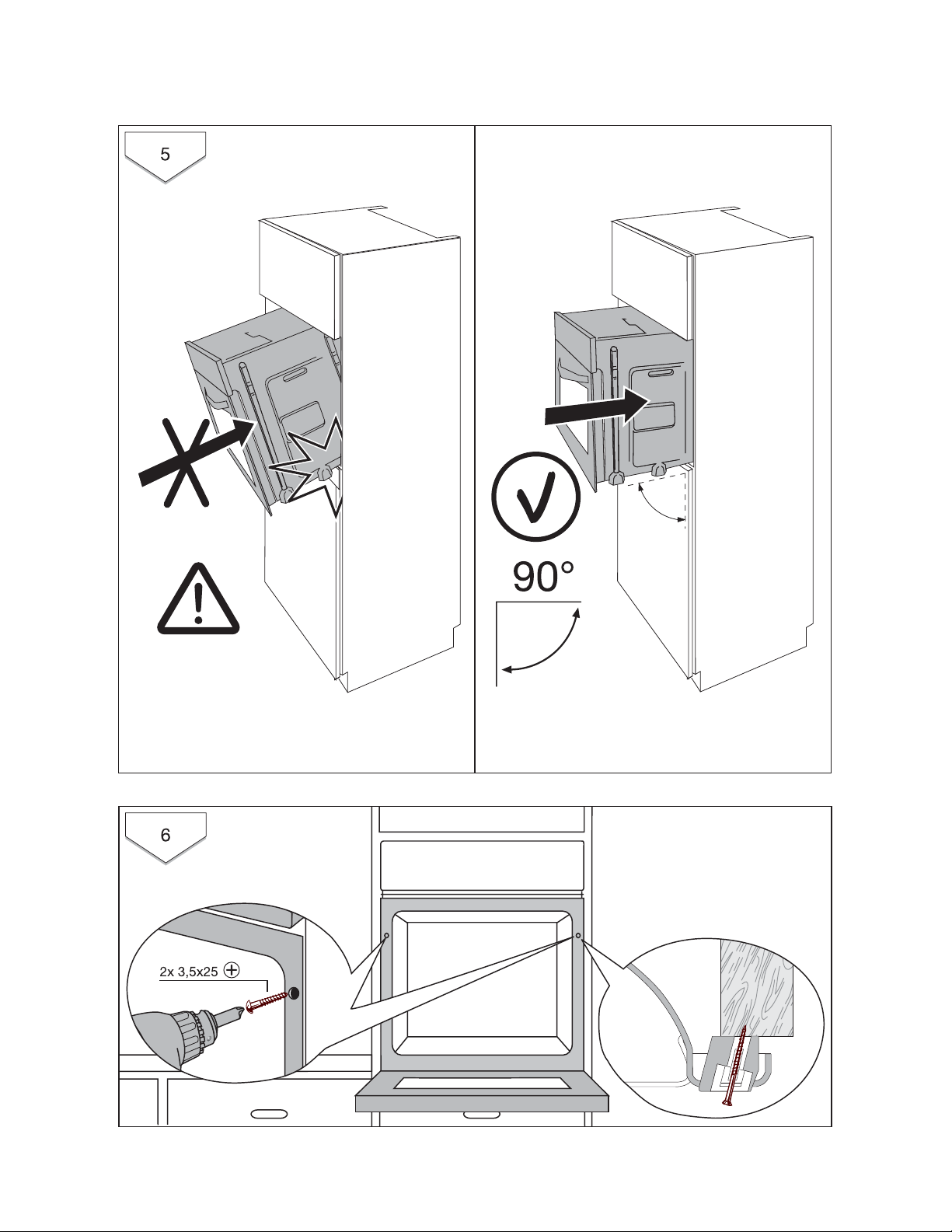

Installation Instructions 46
Disposal 50
Guarantee/Customer Service 51
Service and Spare Parts 54

T

he following symbols are used in this user manual:

1

Important information concerning your personal safety and information on
how to avoid damaging the appliance.

3 General information and tips

2 Environmental information

safety instructions electrolux 5

Safety instructions

Electrical safety

• This appliance must be connected
by a qualified electrician only.

• In the event of a fault or damage to
the appliance: take the fuses out or
switch off.

• Repairs to the appliance must only
be carried out by qualified serv­ice engineers. Considerable dan-

ger may result from improper repairs.
If repairs become necessary, please
contact your local Service Force
Centre.

Child Safety

• Never leave children unsupervised
when the appliance is in use.

Safety whilst Using

• People (including children) who, be­cause of their physical, sensory or
mental capabilities or their inexperi­ence or ignorance are not able to use
the device safely, should not use this
device without supervision or in­struction by a responsible person.

• This appliance is intended to be
used for cooking, roasting and bak­ing food in the home.

• Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.

• Warning: Risk of burns! The interi-
or of the oven becomes hot during
use.

• Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked
flames in the vicinity when opening
the door.

6 electrolux safety instructions

How to avoid damage to the
appliance

• Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.

• Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.

• Do not put any strain on the oven
door when open.

• Never pour water directly into the
oven when it is hot. This could cause
damage to the enamel and discol­ouration.

• Rough handling, especially around
the edges of the front panel, can
cause the glass to break.

• Do not store any flammable materi­als inside the oven. These could ig­nite when the oven is switched on.

• Do not store any moist foods inside
the oven. This could damage the
oven enamel.

• After switching off the cooling fan, do
not keep uncovered dishes in the ov­en. Moisture may condense in the
oven interior or on the glass doors
and may get into the units.

Note on enamel coating

Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor­mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

description of the appliance electrolux 7

Description of the Appliance

General Overview

Control Panel

Full glass
door

Control panel

Door
handle

Oven Functions

Temperature selector

Clock function buttons

Oven Power Indicator Temperature Pilot Light

Time display

8 electrolux description of the appliance

Oven Features

Oven Accessories

Shelf

For dishes, cake tins, items for roasting
and grilling.

Grill set

Grill

Insert for the roasting pan for roasting
and grilling.

Roasting Pan

For baking and roasting or as a pan for
collecting fat.

Top heat and heating elements

Oven lighting

Fan heating element
Fan

Shelf positions

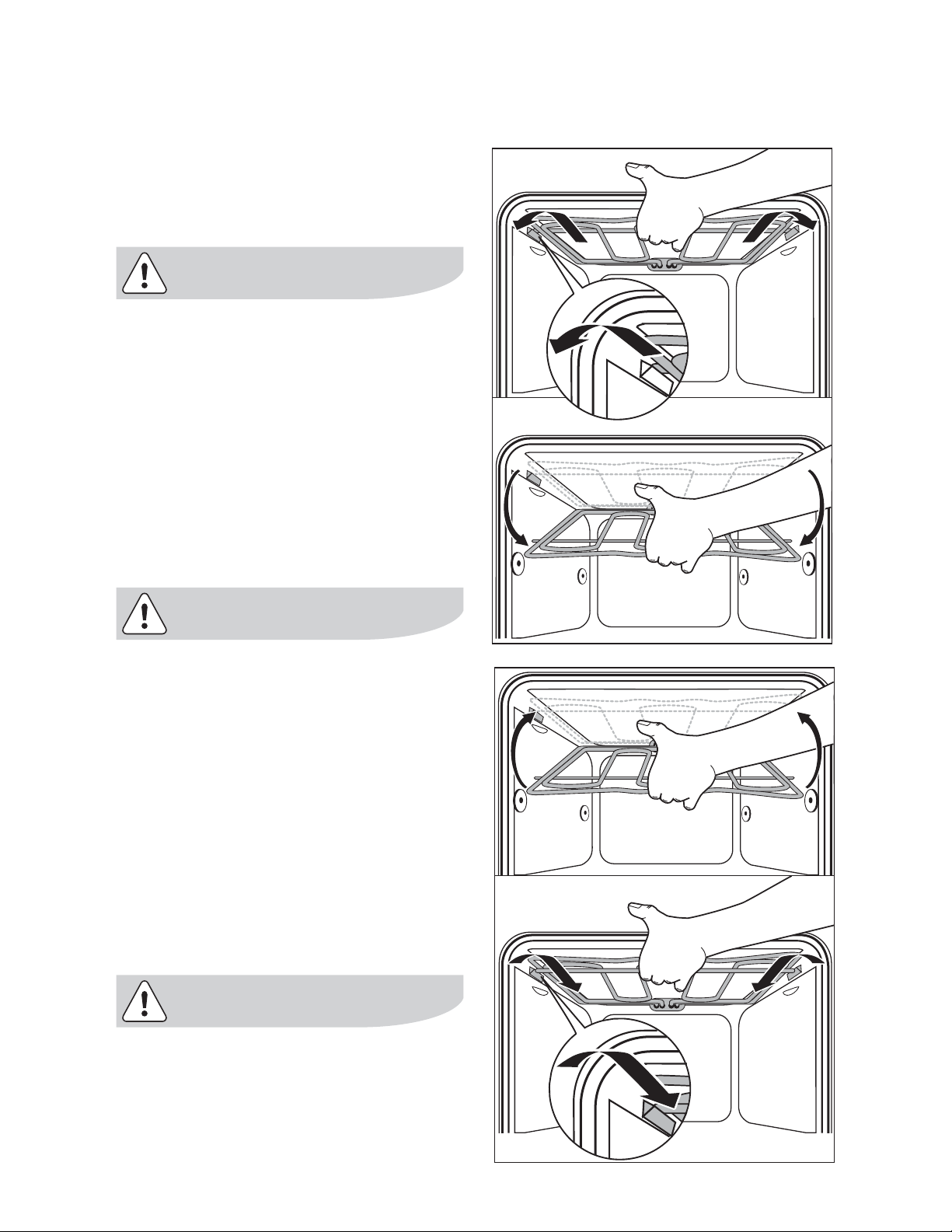

Oven shelf runners, removable

before using for the first time electrolux 9

Before using for the first time

Setting and changing the
current time

The oven only operates when the
time has been set.

When the appliance has been con­nected to the electrical supply or
when there has been a power cut,
the function indicator Time flash­es automatically.

1. To change the time that has already
been set, press the Selection but­ton repeatedly, until the function indi­cator Time flashes.

2. Set the current time using the or
button.

After approx. 5 seconds, the flashing
stops and the clock displays the time of
day set.

The appliance is now ready to use.

The time can only be changed if nei­ther of the automatic functions
(Cook time or End time ) have
been set.

10 electrolux before using for the first time

Initial Cleaning

Before using the oven for the first time
you should clean it thoroughly.

Caution: Do not use any caustic,
abrasive cleaners! The surface
could be damaged.

To clean any metal front panels use
commercially available cleaning
agents.

1. Turn the oven function switch to
oven lighting .

2. Remove all accessories and the shelf
support rails and wash them with
warm water and washing up liquid.

3. Then wash out the oven with warm
water and washing-up liquid and dry.

4. Wipe the front of the appliance with
a damp cloth.

operating the oven electrolux 11

Operating the Oven

Switching the Oven On and Off

1. Turn the oven functions control knob
to the desired function.

2. Turn the temperature control knob to
the desired temperature.

The power indicator is lit while the oven
is on.

The temperature power indicator is lit
while the oven is heating up.

3. To turn the oven off, turn the oven
functions and temperature control
knob back to the Off position.

Cooling fan
The fan switches on automatically

in order to keep the appliance’s sur­faces cool. When the oven is
switched off, the fan continues to
run to cool the appliance down, then
switches itself off automatically.

Temperature Pilot Light

Temperature selector

Oven Power Indicator

Oven Functions

12 electrolux operating the oven

Oven Functions

The oven has the following functions:

Oven function Use

Light

With this function you can

light up

the oven interior, e.g. for

cleaning.

Convection with
ring heating
element

For

baking

on

up to three oven shelves

at the same time.
Set the oven temperatures 20-40 °C lower than when using
Conventional.

Defrost

For

defrosting

e. g. gateaux and flans, butter, bread, fruit or

other

frozen foods

.

Dual grill

For

grilling

flat food items

in large quantities

and for

toast-

ing

.

operating the oven electrolux 13

Inserting the Oven Shelf and the
Roasting Pan

Shelf runner safety and anti-tip de­vice

As a shelf runner safety device all
insertable components have a small
curved indentation at the bottom on
the right and left-hand edge.
Always insert insertable compo­nents so that this indentation is at
the back of the oven interior. This in­dentation is also important for pre­venting the insertable components
from tipping.

Inserting the roasting pan:

Push the roasting pan between the
guide bars of the selected oven level.

Inserting the oven shelf:

Insert the oven shelf so that the feet
point downwards.

Push the oven shelf between the guide
bars of the selected oven level.

The high rim around the oven shelf is an
additional device to prevent cookware
from slipping.

14 electrolux operating the oven

Inserting the oven shelf and the
roasting pan together:

Lay the oven shelf on the roasting pan.
Push the roasting pan between the

guide bars of the selected oven level.

operating the oven electrolux 15

Grill set

The grill set consists of grill and roasting
pan. The grill can used on both sides.

Warning: There is a risk of burning
when removing the roasting pan
from the hot oven!

Inserting the grill tray underneath:

The grill tray rests in the roasting pan.
Push the roasting pan between the

guide bars of the selected oven level.

For roasting larger joints of meat or
poultry on one oven shelf.

Inserting the grill tray on top:

The grill tray rests on the roasting pan.
Push the roasting pan between the

guide bars of the selected oven level.

For grilling flat food items in large
quantities and for toasting.

16 electrolux operating the oven

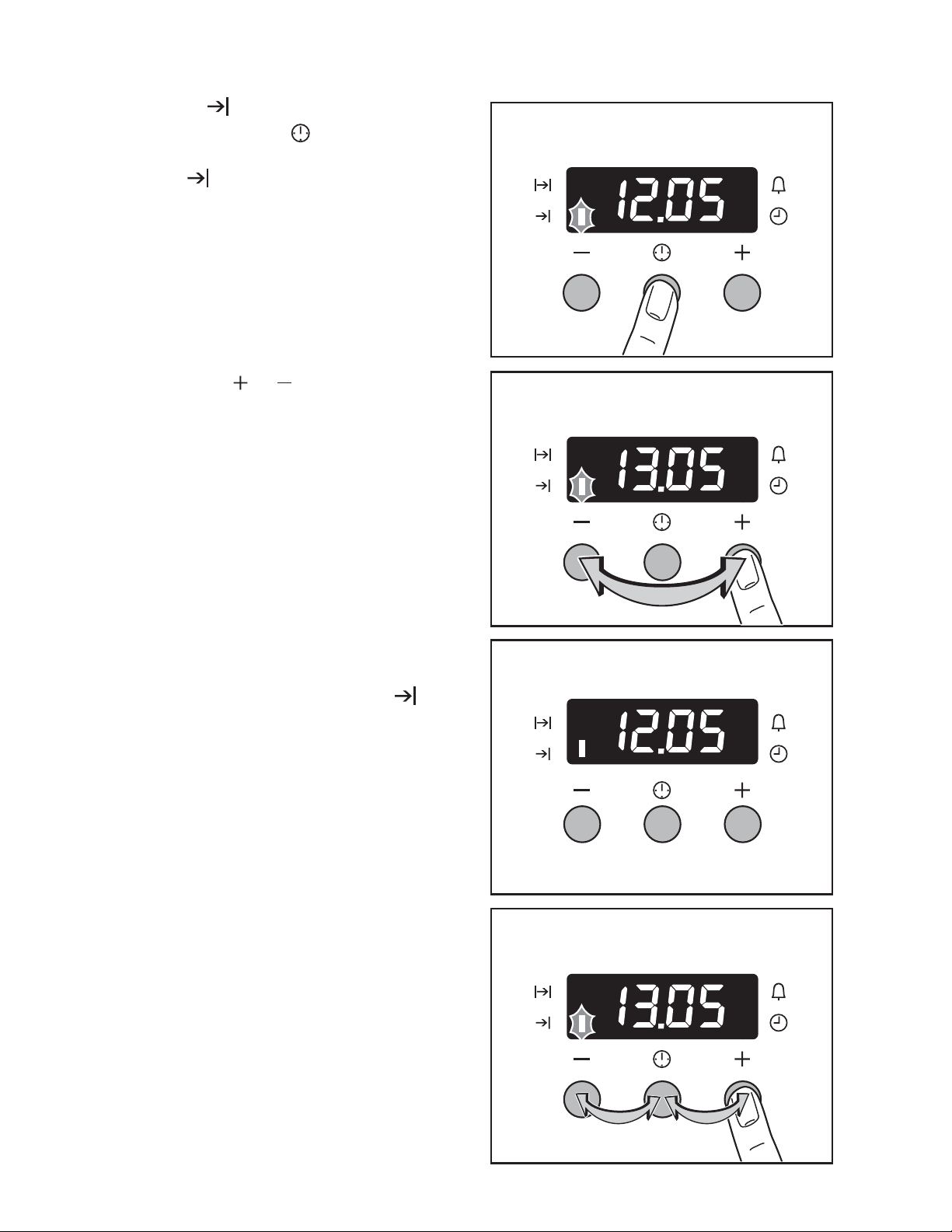

Clock Functions

Countdown

To set a countdown. A signal sounds af­ter the time has elapsed.

This function does not affect the opera­tion of the oven.

Cook time

To set how long the oven is to be in use.

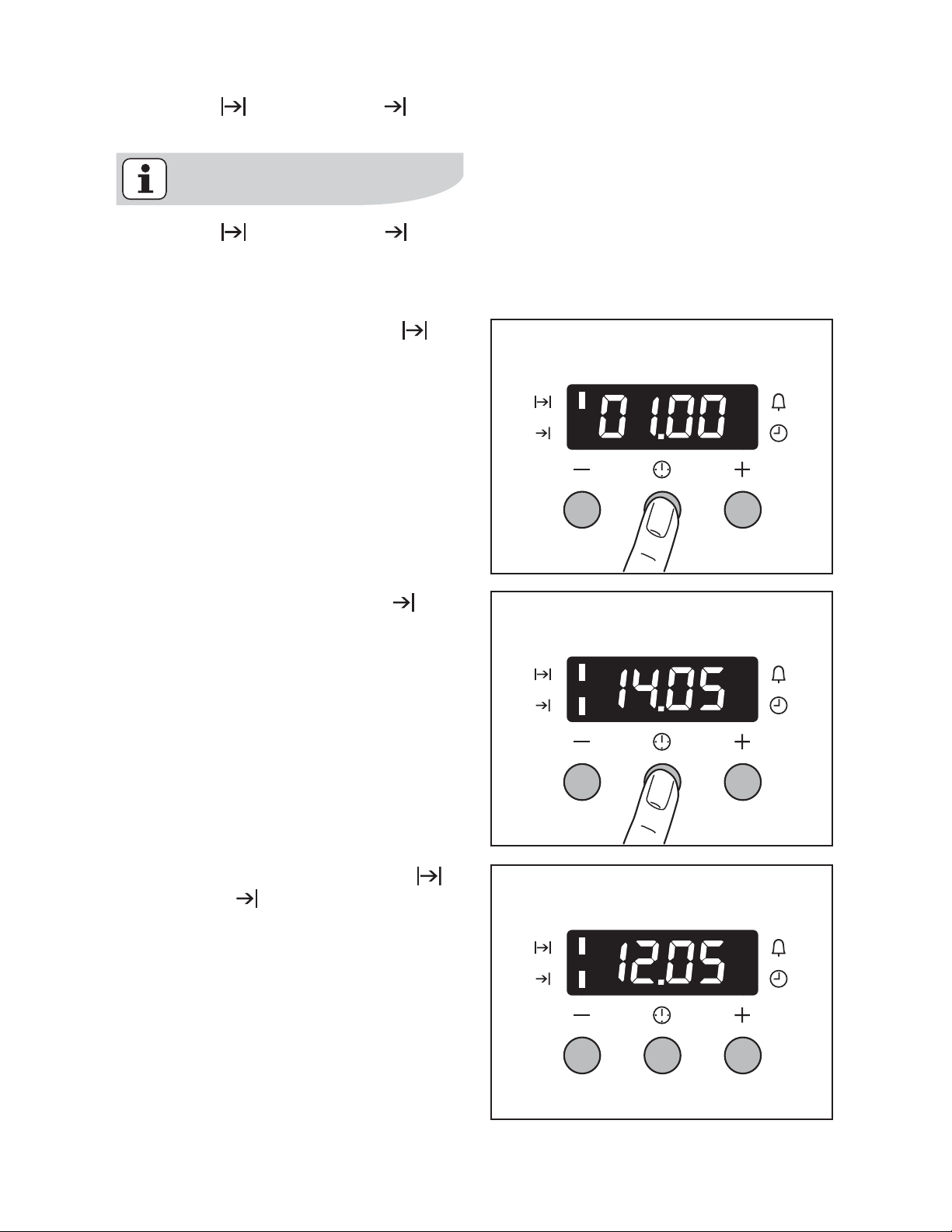

End time

To set when the oven is to switch off
again.

Time

To set, change or check the time
(See also section “Before Using for the
First Time”).

Selector Button

Button

Button

Time display Function IndicatorsFunction Indicators

operating the oven electrolux 17

How to use the clock functions

• When a function has been selected,
the corresponding function indicator
flashes for approx. 5 seconds. Dur­ing this time the desired times can be
set using the or button.

• When the desired time has been set,
the function indicator flashes for ap­prox. another 5 seconds. After that
the function indicator is then lit. The
set time begins to run.

• Press any of the buttons to stop the
acoustic signal.

• The desired oven function and tem­perature can be selected before or
after the clock functions Cook
time and End time are set.

• When the cooking time has ended,
turn the oven function and tempera­ture dial back to the OFF position.

Switching Off the Time Display

By switching off the time display you can
save energy.

Switching off the time display

Hold down any two buttons until the dis­play becomes dark.

Switching on the time display

Hold down any button until the time re­appears in the display.

The display can only be switched off
if none of the clock functions Cook
time End time or
Countdown are in use.

18 electrolux operating the oven

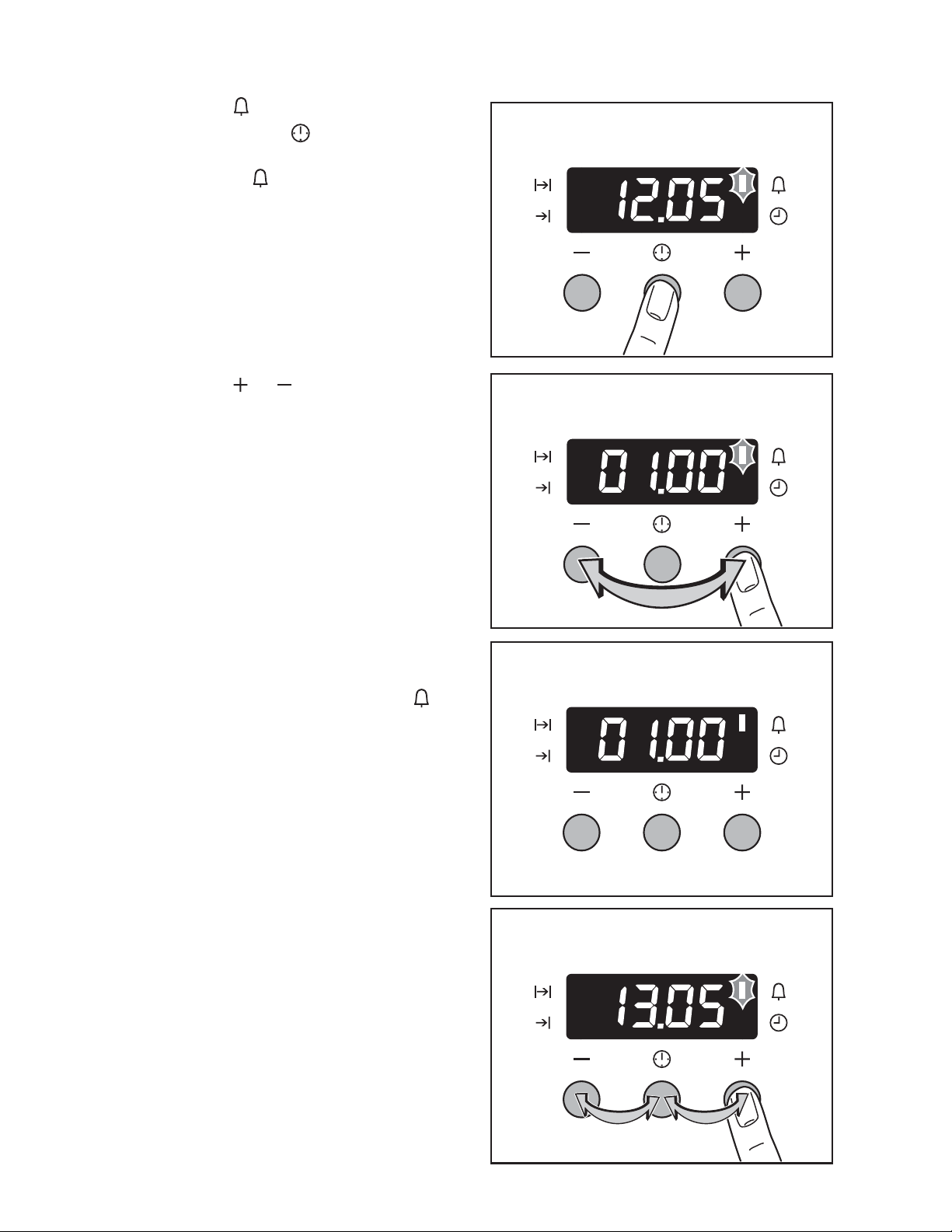

Countdown

1. Press Selection button repeated-
ly, until the function indicator
Countdown flashes.

2. Using the or button, set the re-
quired Countdown (max. 2 hours
30 minutes).

After approx. 5 seconds, the display
shows the remaining time.
The function indicator Countdown will
light up.

When the time has elapsed, the function
indicator flashes and an acoustic signal
sounds for 2 minutes.
Press any button to switch off the signal.

operating the oven electrolux 19

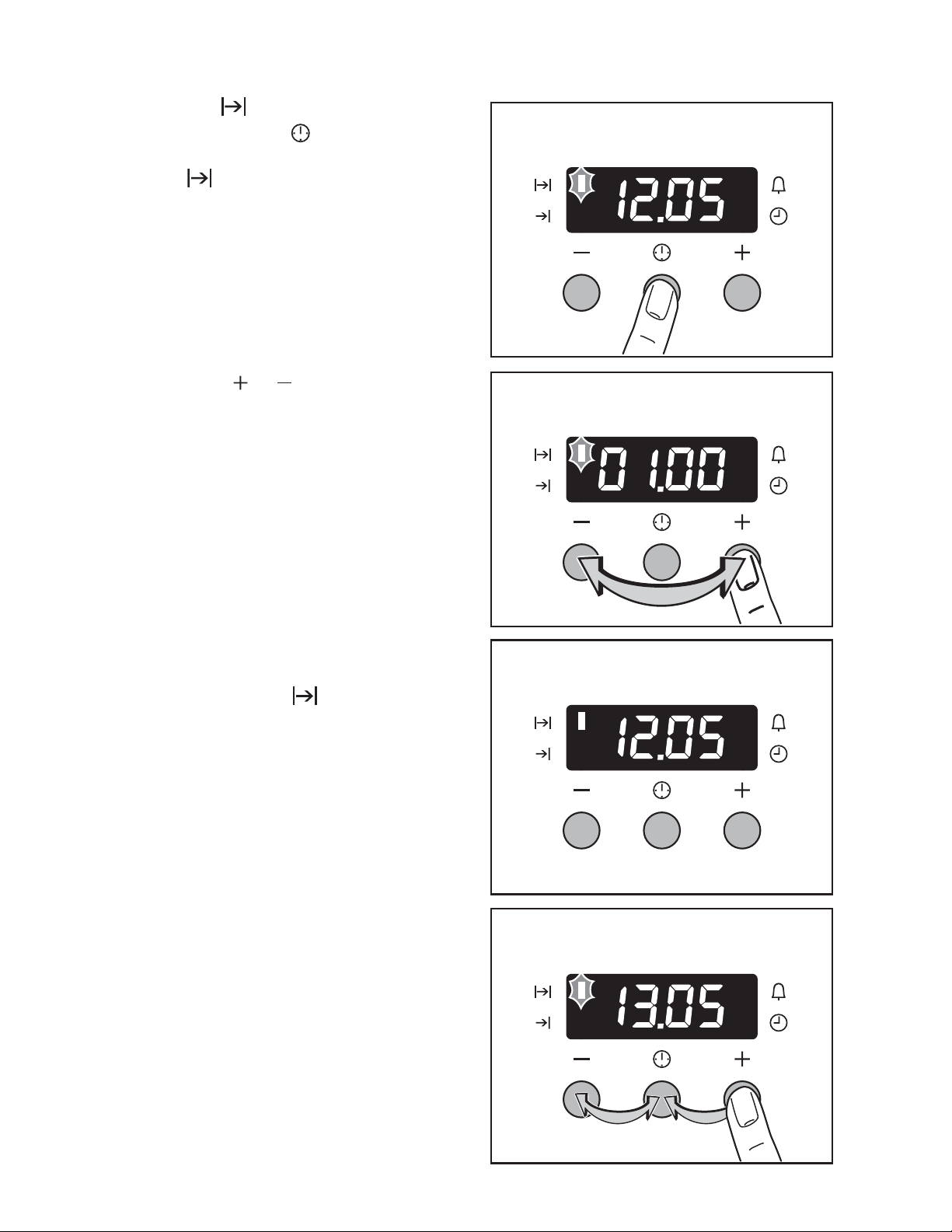

Cook time

1. Press Selection button repeated-
ly, until the function indicator Cook
time flashes.

2. Using the or button, set the re-
quired cooking time.

After approx. 5 seconds, the display re­turns to the current time. The function
indicator Cook time will light up.

When the time has elapsed, the function
indicator will flash, an acoustic signal will
sound for 2 minutes and the oven will
switch itself off.

3. Press any button to switch off the
signal and the programme.

20 electrolux operating the oven

End time

1. Press Selection button repeated-
ly, until the function indicator End
time flashes.

2. Using the or button, set the re-
quired switch-off time.

After approx. 5 seconds, the display re­turns to the current time.
The function indicator End time will
light up.

When the time has lapsed, the function
indicator will flash, an acoustic signal will
sound for 2 minutes and the oven will
switch itself off.

3. Press any button to switch off the
signal and the programme.

operating the oven electrolux 21

Cook time and End time com­bined

Cook time and End time can
be used simultaneously, if the oven
is to be automatically switched on
and off at a later time.

1. Using the function Cook time set
the period of time that the dish re­quires to cook.

In this example, 1 hour.

2. Using the function End time , set
the time at which the dish is to be
ready.

In this example, 14:05.

The function indicators Cook time
and End time light up and the time is
shown in the display.
In this example, 12:05.

The oven will automatically switch itself
on at the appropriate time as calculated.
In this example, at 13:05.

And will switch itself off when the cook­ing time set has elapsed.
In this example, at 14:05.

22 electrolux usage, tables and tips

Usage, Tables and Tips

Baking

Oven function: Convection with ring
heating element

Baking tins

• For Convection with ring heating
element bright metal tins are suit­able.

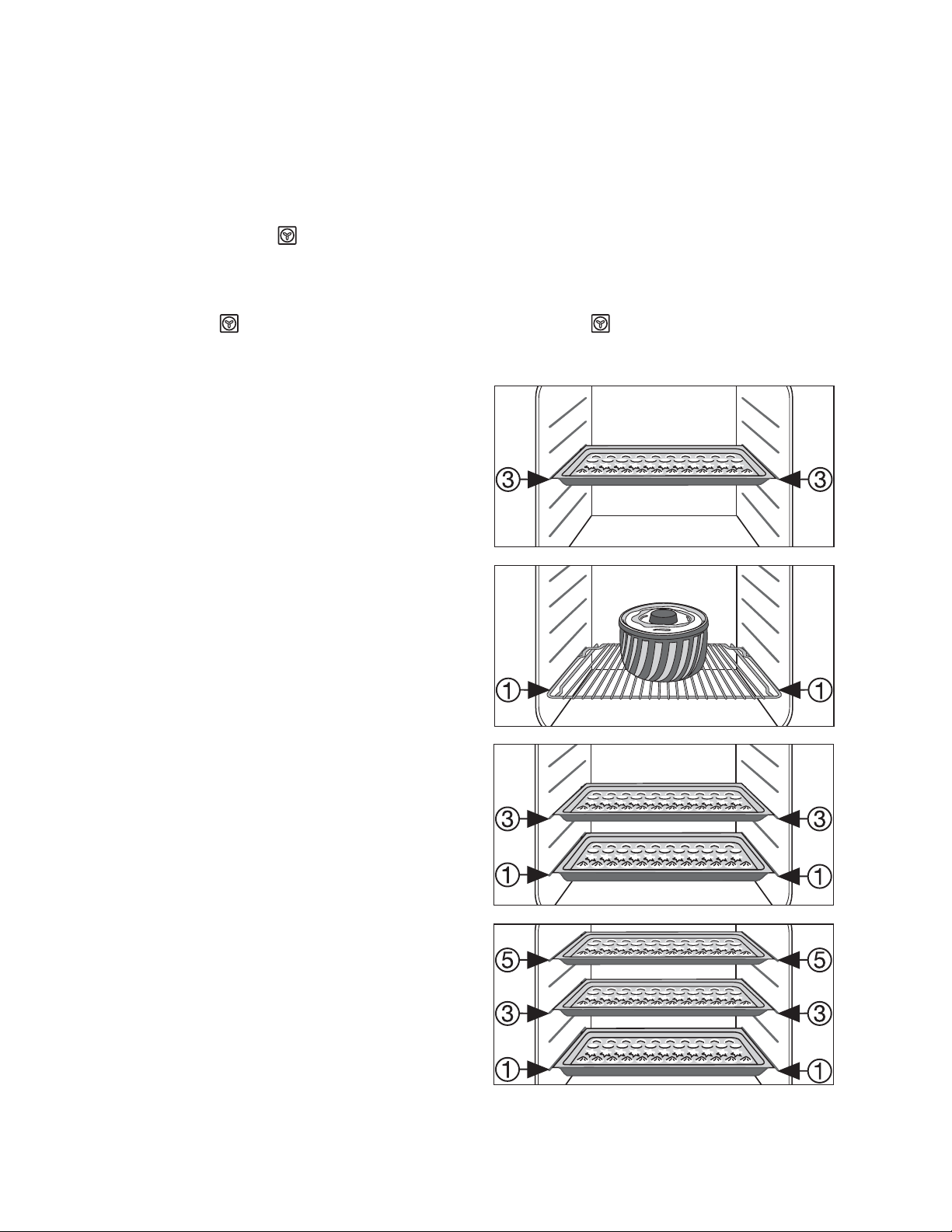

Oven levels

• With Convection with ring heating
element you can bake on up to 3
baking trays at the same time:

1 baking tray:
for example, oven level 3

1 baking tin:
for example, oven level 1

2 baking trays:
for example, oven level 1 and 3

3 baking trays:
oven level 1, 3 and 5

usage, tables and tips electrolux 23

General instructions

With Convection with ring heating
element you can also bake two cakes
at the same time in tins placed next to
each other on the shelf. This does not
significantly increase baking time.

When frozen foods are used the
trays inserted may distort during
cooking. This is due to the large dif­ference in temperature between the
freezing temperature and the tem­perature in the oven. Once the trays
have cooled the distortion will dis­appear again.

How to use the Baking Tables

The tables give the required tempera­ture settings, baking times and oven
shelf levels for a selection of typical dish­es.

• Temperatures and baking times are
for guidance only, as these will de­pend on the consistency of pastry,
mixture or dough, the number and
the type of baking tin.

• We recommend setting the lower
temperature when baking for the first
time, and if required, e.g. if a darker
browning is desired or if the baking
time is too long, select a higher tem­perature.

• If you cannot find the settings for a
particular recipe, look for the one
that is most similar.

• If baking cakes on baking trays or
tins on more than one level, baking
time can be extended by 10-15 min­utes.

• Moist recipes (for example, pizzas,
fruit flans, etc.) are baked on one lev­el.

• Cakes and pastries at different
heights may brown at an uneven rate
at first. If this occurs, please do not
change the temperature setting.
Different rates of browning even out
as baking progresses.

• Your new oven may bake or roast dif­ferently to your previous appliance.
So adapt your normal settings (tem­perature, cooking times) and oven
shelf levels to the recommendations
in the following tables.

With longer baking times, you can
switch the oven off about 10 min­utes before the end of the baking
time, in order to utilise the residual
heat.
Unless otherwise stated, the values
given in the tables assume that
cooking is started with the oven
cold.

24 electrolux usage, tables and tips

Baking Tables

Cakes,

Biscuits, Bread, Pies

Convection with ring

heating element

Time

Shelf-

position

Te mp er a-

ture

ºC

Hr. : Min.

Using cake tins

Cakes in Pound Cake tins 1 160-170 1:00-1:10

Sandcakes/Cakes in loaf tins 1 150-160 1:15-1:30

Madeira cake 1 150-160 1:00-1:10

Dundee cake 1 130-140 2:30-3:00

Large Christmas cake (10“) 1 130 4:30-5:00

Victoria Sandwich 1 / 4 160 0:25-0:35

Pastry cases 1 / 4 170-190 0:10-0:25

Bakewell tart 3 160-170 0:45-0:55

Swiss roll 3 150-170

1)

0:10-0:20

Flans & quiches 3 170-180 0:30-0:50

Using baking sheets

Short bread 1 / 4 140-150 0:40-0:50

Biscuits 1 / 4 150-170 0:15-0:25

Macaroons 1 / 4 140-150 0:25-0:35

Apple strudel 3 170-180

1)

0:30-0:50

Choux pastry buns 1 / 4 160-170

1)

0:20-0:35

Buns / cup cakes 1 / 4 150-160

1)

0:25-0:35

Scones 1 / 4 190-200

1)

0:10-0:15

Meringues 3 75 3:30-4:30

Sausage rolls 1 / 4 170-180

1)

0:20-0:35

Pizza 1 180-200 0:30-0:50

Bread

Wholemeal bread 1 180-200

1)

0:40-0:45

White bread 1 180-200

1)

0:40-0:45

1) Pre-heat oven

usage, tables and tips electrolux 25

Baking on more than one oven level

Type of baking

Convection

with ring

heating

element

Convection

with ring

heating

element

Time

Hours:

Mins.

Shelf positions from

bottom

Te mp e-

rature in

°C

2 levels 3 levels

Cakes/pastries/biscuits on baking trays

Cream puffs/Eclairs 1/4 --- 160-180

1)

0:35-0:60

Dry streusel cake 1/3 --- 140-160 0:30-0:60

Biscuits

Short pastry biscuits 1/3 1/3/5 150-160 0:15-0:35

Viennese whirls 1/3 1/3/5 140 0:20-0:60

Biscuits made with sponge mix­ture

1/3 --- 160-170 0:25-0:40

Pastries made with egg white,
meringues

1/3 --- 80-100 2:10-2:50

Macaroons 1/3 --- 100-120 0:40-1:20

Biscuits made with yeast dough 1/3 --- 160-170 0:30-0:60

Puff pastries 1/3 --- 170-180

1)

0:30-0:50

Rolls 1/4 --- 160 0:30-0:45

Small cakes (20per tray) 1/4 --- 140

1)

0:25-0:40

1) Pre-heat the oven!

26 electrolux usage, tables and tips

Tips on Baking

Baking results Possible cause Remedy

The cake is not browned
enough at the bottom

Wrong shelf level Place cake on a lower shelf

The cake sinks (be­comes soggy, lumpy,
streaky)

Oven temperature too high Use a slightly lower temperature

setting

Baking time too short Increase baking time

Baking times cannot be re­duced by setting higher
temperatures

Too much liquid in the dough/mix­ture

Use less liquid
Pay attention to mixing times,
especially if using mixing ma­chines

Cake is too dry Oven temperature too low Increase oven temperature

Baking time too long Shorten baking time

Cake browns unevenly Oven temperature too high and

baking time too short

Set a lower temperature and in­crease baking time

Dough/mixture is unevenly distrib­uted

Spread the dough/mixture even­ly on the baking tray

Cake is not cooked with­in the baking time set

Temperature too low Use a slightly higher temperature

setting

usage, tables and tips electrolux 27

Table: Desserts

Desserts

Convection with ring

heating element

Time

Shelf

position

Tempera-

ture °C

Hr. : Min.

Apple pie 3 180-190 0:45-050

Rice pudding 3 130-140 2:00-2:30

Fruit crumble 3 160 0:50-1:10

Pineapple upside down cake 3 160 0:35-0:45

Pavlova 3 130 1:00-1:10

Baked custard 3 150-160 0:45-1:00

Baked apples 3 160-170 0:40-1:00

Bread and butter pudding 3 170-180 0:40-0:55

Apple charlotte 3 180-190 0:40-0:55

Soufflé - sweet/savoury 3 170-190

1)

0:30-0:45

1) Pre-heat oven

28 electrolux usage, tables and tips

Roasting

Oven function: Convection with ring
heating element

Roasting dishes

• Any heat-resistant ovenware is suita­ble for roasting. (Please read the
manufacturer's instructions.)

• Large roasting joints can be cooked

directly in the tray or on the shelf
with the tray placed below

• For all lean meat, we recommend

roasting these in a roasting tray
with a lid. This makes the meat

more succulent.

• All types of meat, that can be
browned or have crackling, can be
roasted in the roasting tin without

the lid.

Tips on using the roasting chart
The figures in the following table are

for guidance only.

• We recommend cooking meat and
fish over 1 kg in weight in the oven.

• To prevent escaping meat juices or
fat from burning on to the pan, we
recommend placing some water in
the roasting pan.

• Turn the meat as required (after
about 1/2 - 2/3 of cooking time).

• Baste large roasting joints and poul­try several times during the cooking
time. This will give better roasting re­sults.

• Switch off the oven
approx. 10 minutes prior to the end
of the cooking time in order to use
the residual heat.

usage, tables and tips electrolux 29

Table: Meat, roasting, casseroles

Meat

Convection with ring

heating element

Time

Shelf posi-

tion

Temperature

ºC

Hrs. : Min.

Pork

Shoulder; leg; rolled; boned
spare rib; loin of pork

1 170-180

0:30-0:35

per 450 g/1 lb

plus 30-35 mins

Beef

Inexpensive cuts 1 160-170

0:35-0:40

per 450 g/1 lb

plus 15-20 mins

Prime cuts

-rare 1 170-180

1)

0:15-0:20

per 450 g/1 lb

plus 15-20 mins

-medium 1 170-180

0:20-0:25

per 450 g/1 lb

plus 25-25 mins

-well done 1 170-180

0:30-0:35

per 450 g/1 lb

plus 25-30 mins

Yorkshire pudding

- small 3 200

1)

0:10-0:15

- large 1 180-1901) 0:30-0:40

Lamb

1 170-180

0:30-0:35

per 450 g/1 lb

plus 30-35 mins

Veal

1 170-180

0:30-0:35

per 450 g/1 lb

plus 30-35 mins

1) Pre-Heat oven

30 electrolux usage, tables and tips

Table: Roasting, casseroles, au gratin

Poultry, Game, Fish,

Vegetables

Quantity approx.

Convection with ring

heating element

Time

Shelf

position

Te mp er a-

ture °C

Hrs. : Min.

Casseroles, miscellaneous

Casseroles 1 kg/2 lbs 1 150 2:30-3:00

Lancashire, Hot Pot 1 kg/2 lbs 1 150-160 2:15-2:30

Moussaka 1 kg/2 lbs 1 170-180 0:40-0:50

Meat Loaf 675 g/1.5 lbs 1 170-180 1:00-1:10

Poultry / Game

Chicken 1 kg/2 lbs 1 170-180 0:50-1:10

Chicken 1.5 kg/3 lbs 1 170-180 1:15-1:30

Duck 1.5-2 kg/3.5-4 lbs 1 180-190 1:15-1:45

Goose 3.5-5 kg/ 8-10 lbs 1 170-180 2:30-3:00

Turk ey 2.5-3.5 kg/5-7 lbs 1 160 1:30-2:00

Turk ey 4-6 kg/8-13 lbs 1 150-160 2:30-4:00

Pheasant, Wild Duck, Rabbit 1 kg/2 lbs 3 210 0:30-1:00

Partridge/Pigeon per 300-500g 3 190-200 0:30-0:50

Fish (baked, steamed)

Whole fish 1-1.5 kg/2-3 lbs 1 160-170 0:45-1:15

Fish pies, bakes

750 g-1 kg/

1.5-2 lbs

3 170-190 0:30-1:00

Vegetables

Stuffed pepper/aubergines 1 180-190 0:30-1:00

Au gratin dishes 3 180-200 0:15-0:45

usage, tables and tips electrolux 31

Defrosting

Oven function: Defrost (no tem­perature setting)

• Unpack the food and place it on a
plate on the oven shelf.

• Do not cover with a plate or bowl, as
these can substantially lengthen the
defrosting time.

• For defrosting, place the shelf on the

1st oven level from the bottom.

Defrosting table

Food

Defrost­ing time

Min.

Further de-

frosting

time (mins.)

Comments

Chicken, 1000 g 100-140 20-30

Place the chicken on an upturned saucer
placed on a large plate.
Halfway through the time, turn it over

Meat, 1000 g 100-140 20-30 Halfway through the time, turn it over

Meat, 500 g 90-120 20-30 Halfway through the time, turn it over

Trout, 150g 25-35 10-15 ---

Strawberries, 300g 30-40 10-20 ---

Butter, 250g 30-40 10-15 ---

Cream, 2 x 200 g 80-100 10-15

Cream that is still slightly frozen in part can
still be whipped

Flan/gateau, 1400 g 60 60 ---

32 electrolux usage, tables and tips

Grill sizes

Oven function: Dual grill with
maximum temperature setting

Important: Always grill with the oven
door closed.

The empty oven should always be
pre-heated with the grill functions
for 5 minutes.

• For grilling, place the shelf in the
recommended shelf position.

• Always insert the tray for collecting
the fat into the first shelf position

from the bottom.

• The grilling times are for guidance
only.

• Grilling is particularly suitable for flat
pieces of meat or fish.

•

•

•

•

•

•

•

Grilling table

Food to be grilled Oven level

Grilling time

1st side 2nd side

Burgers 4 8-10 mins. 6-8 mins.

Pork fillet 4 10-12 mins. 6-10 mins.

Sausages 4 8-10 mins. 6-8 mins.

Fillet steaks, veal steaks 4 6-7 mins. 5-6 mins.

Fillet of beef, roast beef
(approx. 1 kg)

3 10-12 mins. 10-12 mins.

To as t

1)

3 4-6 mins. 3-5 mins.

Toast with topping 3 6-8 mins. ---

1) Do not pre-heat

usage, tables and tips electrolux 33

Drying

Oven function: Convection with ring
heating element

• Use oven shelves covered with
greaseproof paper or baking parch­ment.

• You get a better result if you switch
the oven off halfway through the dry­ing time, open the door and leave the
oven to cool down overnight.

• After this finish drying the food to be
dried.

Food to be dried

Temperature

in °C

Oven level

Time in hours

(Guideline)

1 level 2 levels

Vegetables

Beans 60-70 3 1 / 4 6-8

Peppers (strips) 60-70 3 1 / 4 5-6

Vegetables for soup 60-70 3 1 / 4 5-6

Mushrooms 50-60 3 1 / 4 6-8

Herbs 40-50 3 1 / 4 2-3

Fruit

Plums 60-70 3 1 / 4 8-10

Apricots 60-70 3 1 / 4 8-10

Apple slices 60-70 3 1 / 4 6-8

Pears 60-70 3 1 / 4 6-9

34 electrolux cleaning and care

Cleaning and care

Warning: First switch off the appli­ance and let it cool down before
carrying out any cleaning.

Warning: For safety reasons, do not

clean the appliance with steam blasters
or high-pressure cleaners.

Attention: Do not use any corrosive
cleaning fluids, sharp objects or
stain removers.

Do not clean the glass oven door with
abrasive fluids or metal scrapers, which
could scratch the surface. The glass
could crack and shatter.

Outside of the appliance

• Wipe the front of the appliance with
a soft cloth and a solution of hot wa­ter and washing up liquid.

• For metal fronts, use normal com­mercially available cleaning agents.

• Please do not use scouring agents
and abrasive sponges.

Oven interior

Clean the appliance after each use. In
this way, residues are easier to clean off
and are not allowed to burn on.

1. To clean the oven, switch the oven
light on.

2. After every use, wipe the oven with a
solution of washing-up liquid and al­low to dry.

Remove stubborn residues with a
special oven cleaner.

Warning: If using an oven spray,
please follow the manufacturer's in­structions exactly.

Accessories

Wash all slide-in units (shelf unit, baking
tray, shelf support rails etc.) after each
use and dry well. Soak briefly to make
them easier to clean.

cleaning and care electrolux 35

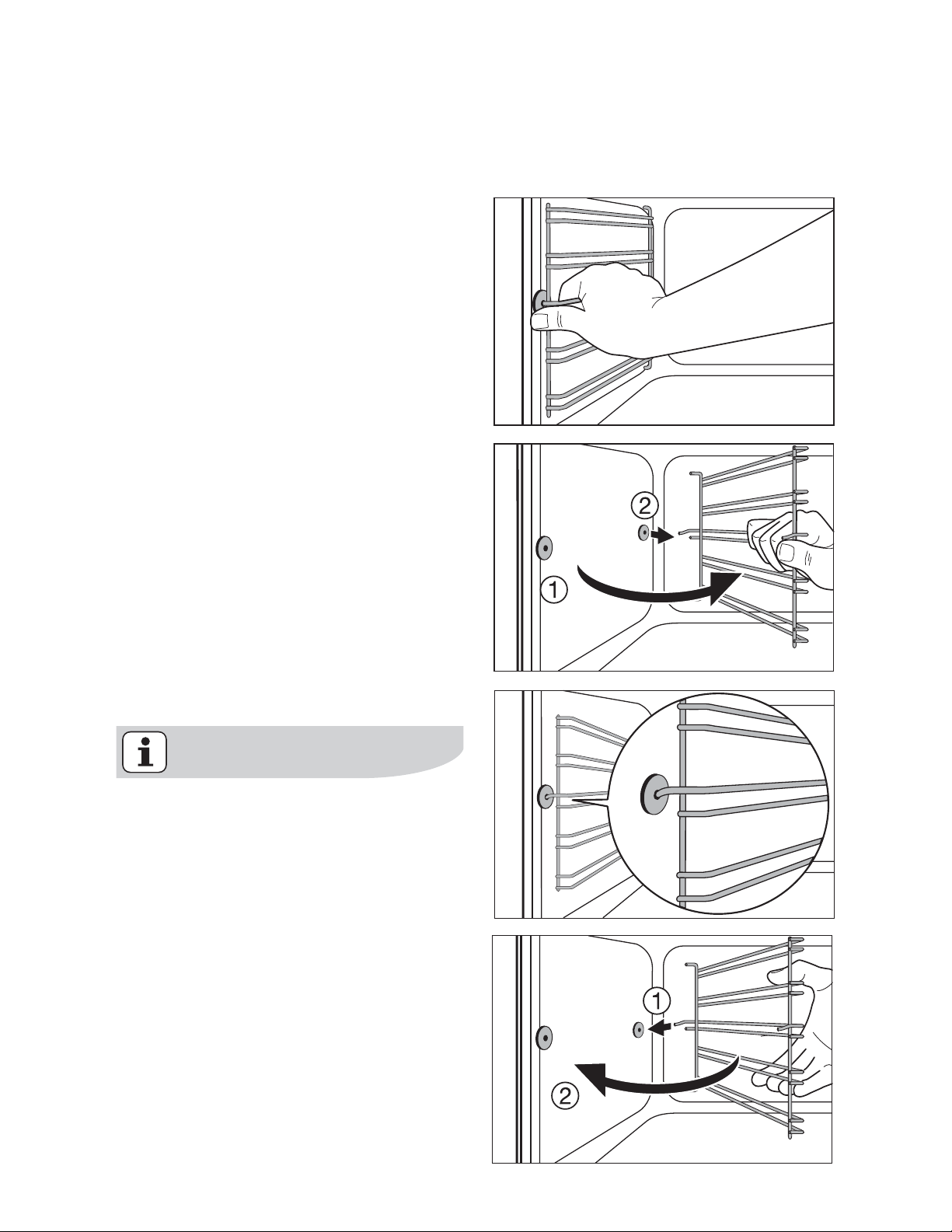

Shelf Support Rails

The shelf support rails on the left and
right hand sides of the oven can be re­moved for cleaning the side walls.

Removing the shelf support rails

First pull the front of the rail away from
the oven wall (1) and then unhook at the
back (2).

Fitting the shelf support rails

Important! The rounded ends of the
guide rails must be pointing for­wards!

To re-insert, first hook the rail into place
at the back (1) and then insert the front
and press into place (2).

36 electrolux cleaning and care

Oven Lighting

Warning: Risk of electric shock! Pri­or to changing the oven light bulb:

– Switch off the oven!
– Disconnect from the electricity sup-

ply.

Place a cloth on the oven floor to
protect the oven light and glass cov­er.

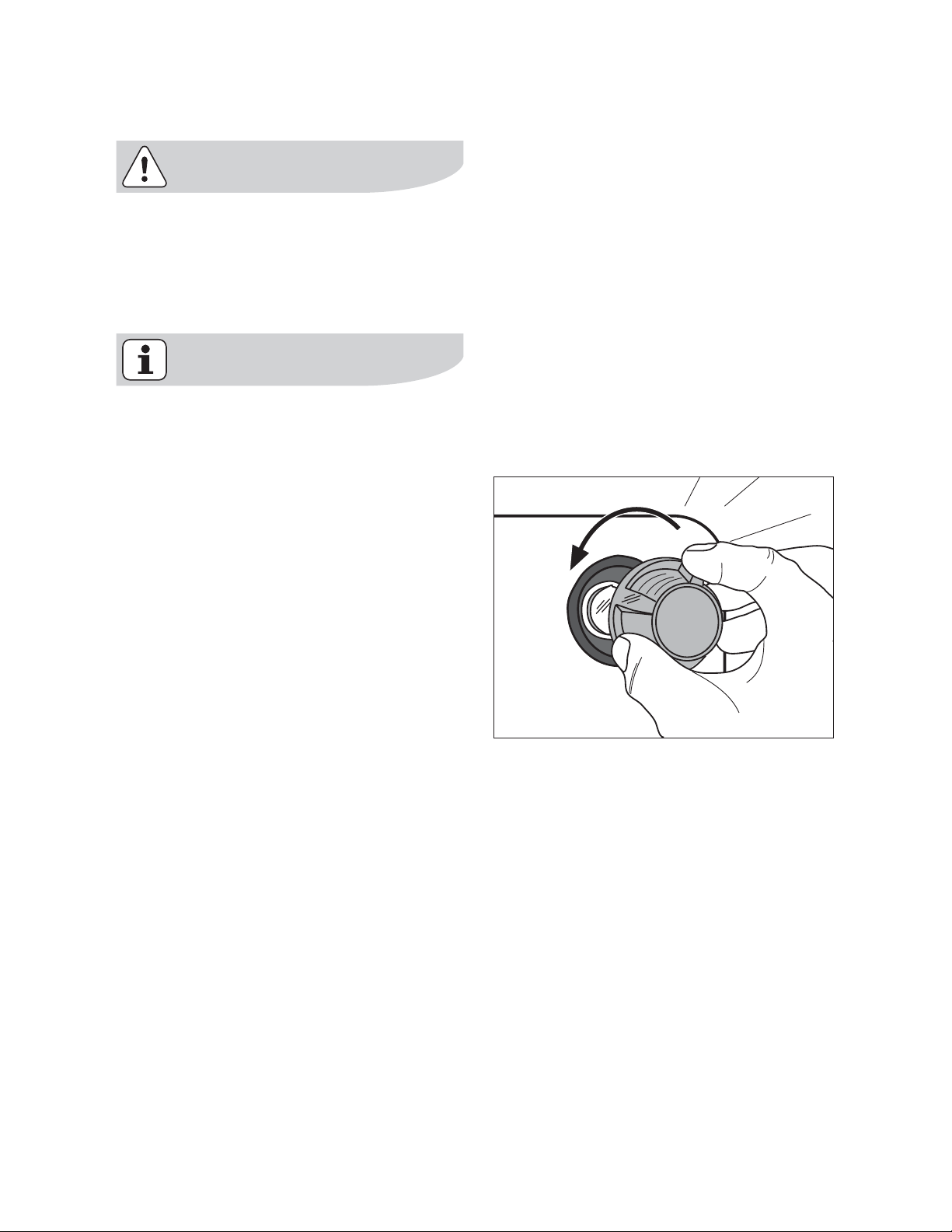

Changing the oven light bulb/clean­ing the glass cover

1. Remove the glass cover by turning it
anti-clockwise and then clean it.

2. If necessary: replace with

25 watt, 230 V, 300 °C heat-re­sistant oven lighting.

3. Refit the glass cover.

cleaning and care electrolux 37

Oven Roof

The upper heating element can be fold­ed down to make it easier to clean the
oven roof.

Folding down the heating element

Warning: Only fold down the heating
element when the oven is switched
off and there is no risk of being
burnt!

1. Remove the side shelf support rails.

2. Grip the heating element at the front

and pull it forwards and out over the
support lug on the inner wall of the
oven.

3. The heating element will now fold
down.

Caution: Do not use force to press
the heating element down! The
heating element might break.

Clean the oven roof

Repositioning the heating element

1. Move the heating element back up
towards the oven roof.

2. Pull the heating element forwards
against the spring pressure and
guide it over the oven support lug.

3. Settle it onto the support.

4. Insert shelf support rail.

Important: The heating element
must be positioned correctly and
securely on both sides above the
support lug on the inner wall of the
oven.

38 electrolux cleaning and care

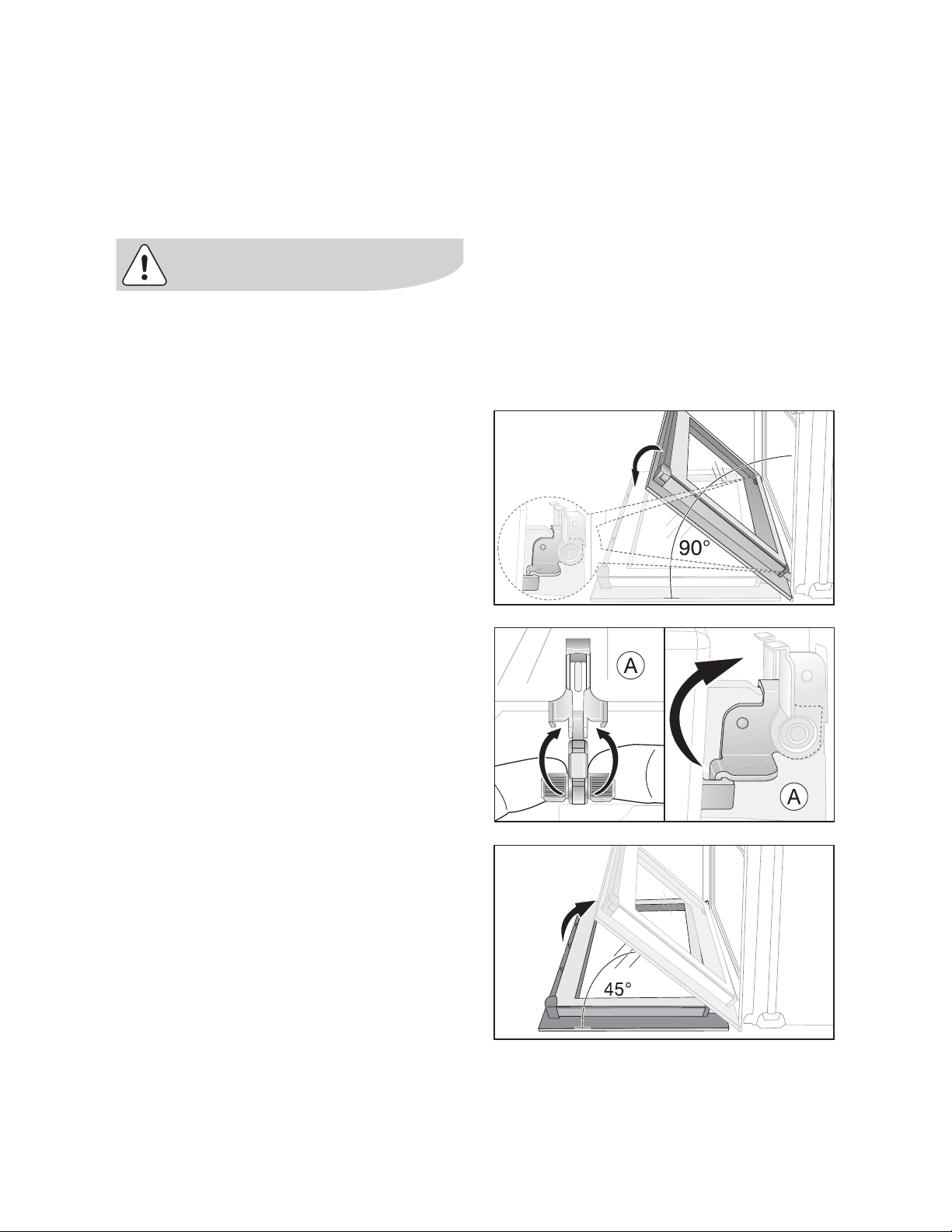

Oven door

For easier cleaning of the oven interior,
the oven door can be taken off its hinges.

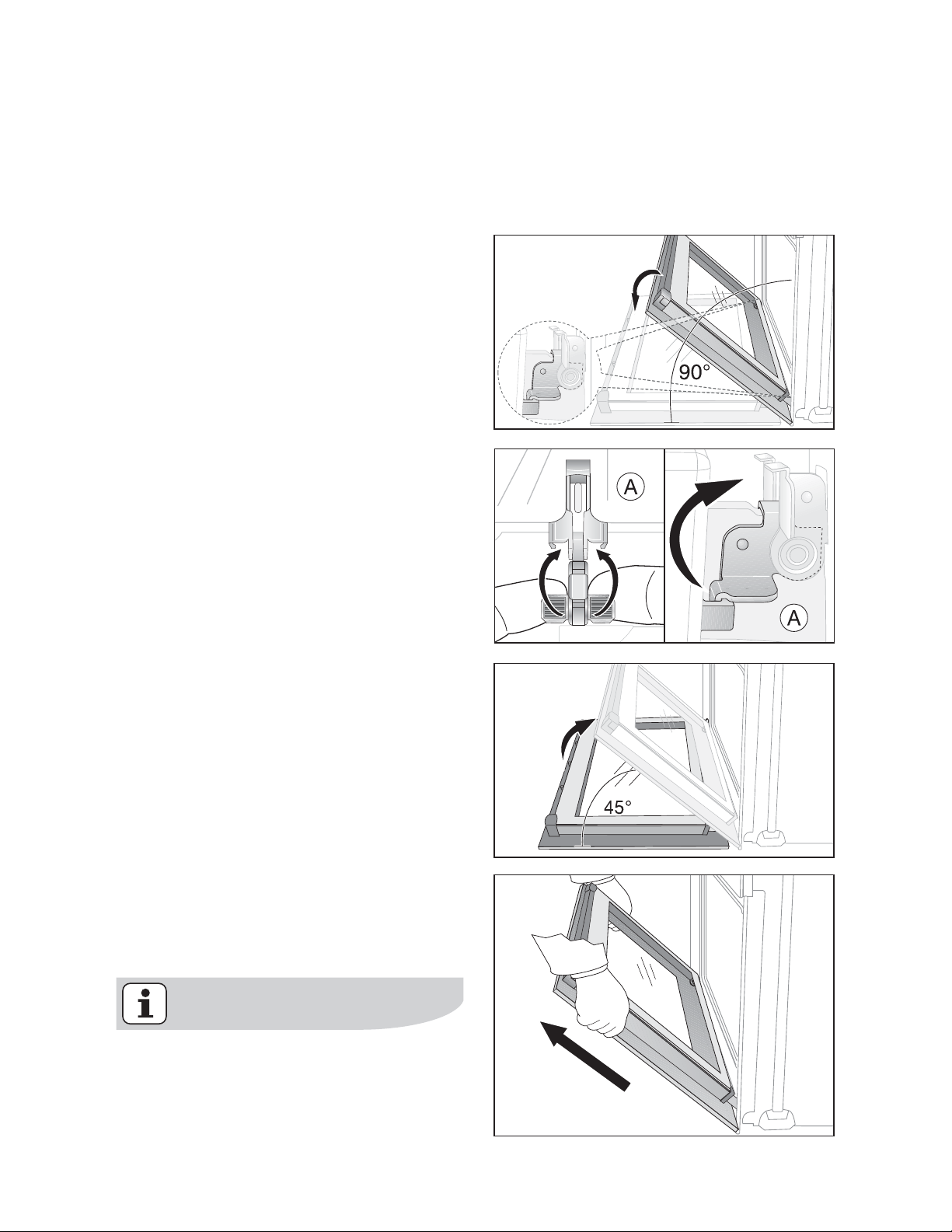

Removing the oven door from its
hinges

1. Open the oven door as far as it will
go.

2. Undo the clamping levers (A) on
both door hinges fully.

3. Close the oven door as far as the first
position (approx. 45°).

4. Take hold of the oven door with a
hand on each side and pull it away
from the oven at an upwards angle
(Take care: It is heavy).

Lay the oven door with the outer side
facing downwards on something soft
and level, for example, a blanket in
order to prevent scratches.

cleaning and care electrolux 39

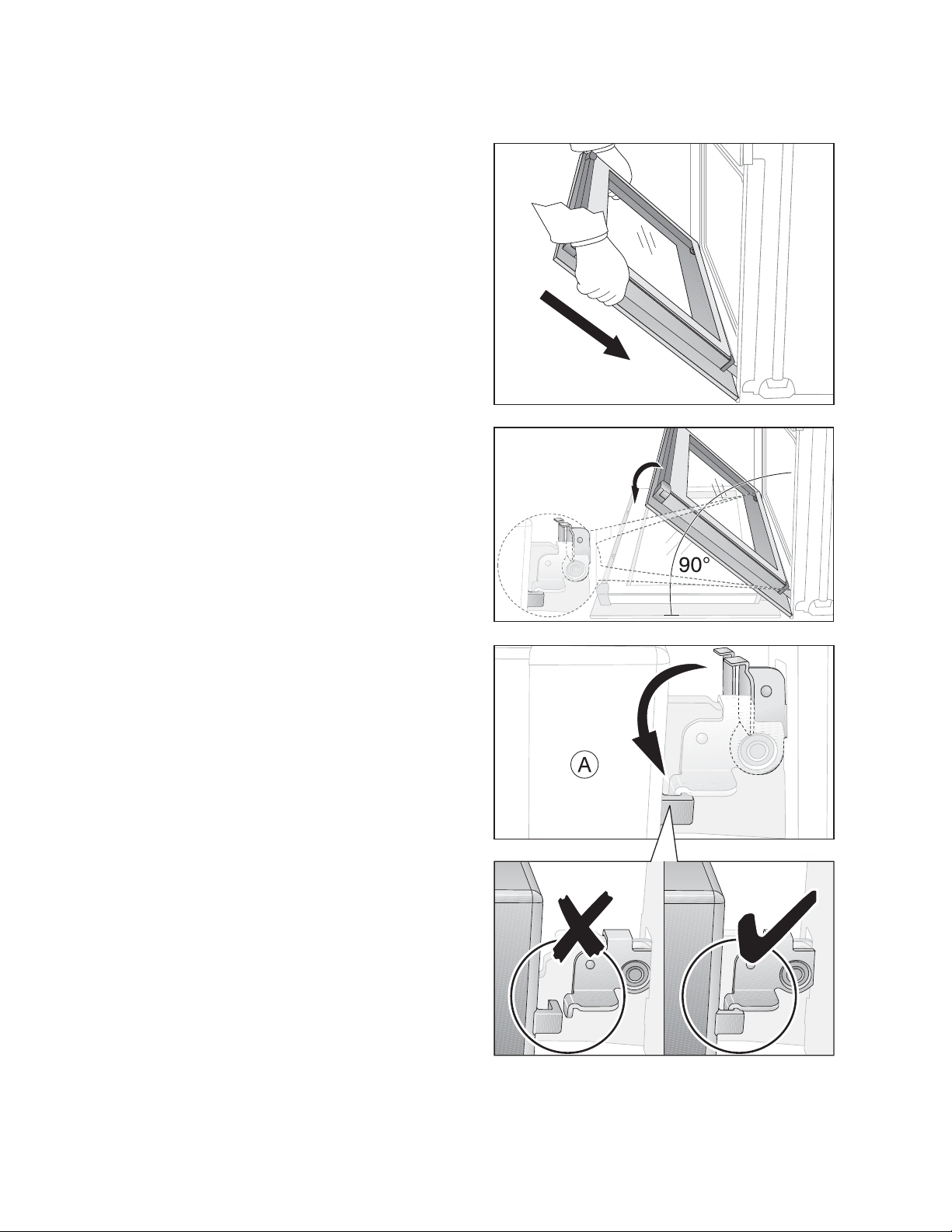

Hanging the oven door back on its
hinges

1. From the handle side take hold of the
oven door with a hand on each side
and hold at an angle of approx. 45°.
Position the recesses on the bottom
of the oven door on the hinges on
the oven.
Let the door slide down as far as it
will go.

2. Open the oven door as far as it will
go.

3. Fold up the clamping levers (A) on
both door hinges back into their orig­inal positions.

4. Close the oven door.

40 electrolux cleaning and care

Oven door glass

The oven door is fitted with two panels
of glass mounted one behind the other.
The inner panel can be removed for
cleaning.

Important Rough handling, espe­cially around the edges of the front
panel, can cause the glass to break.

Removing the door glass

1. Open the oven door as far as it will
go.

2. Undo the clamping levers (A) on
both door hinges fully.

3. Close the oven door as far as the first
position (approx. 45°).

cleaning and care electrolux 41

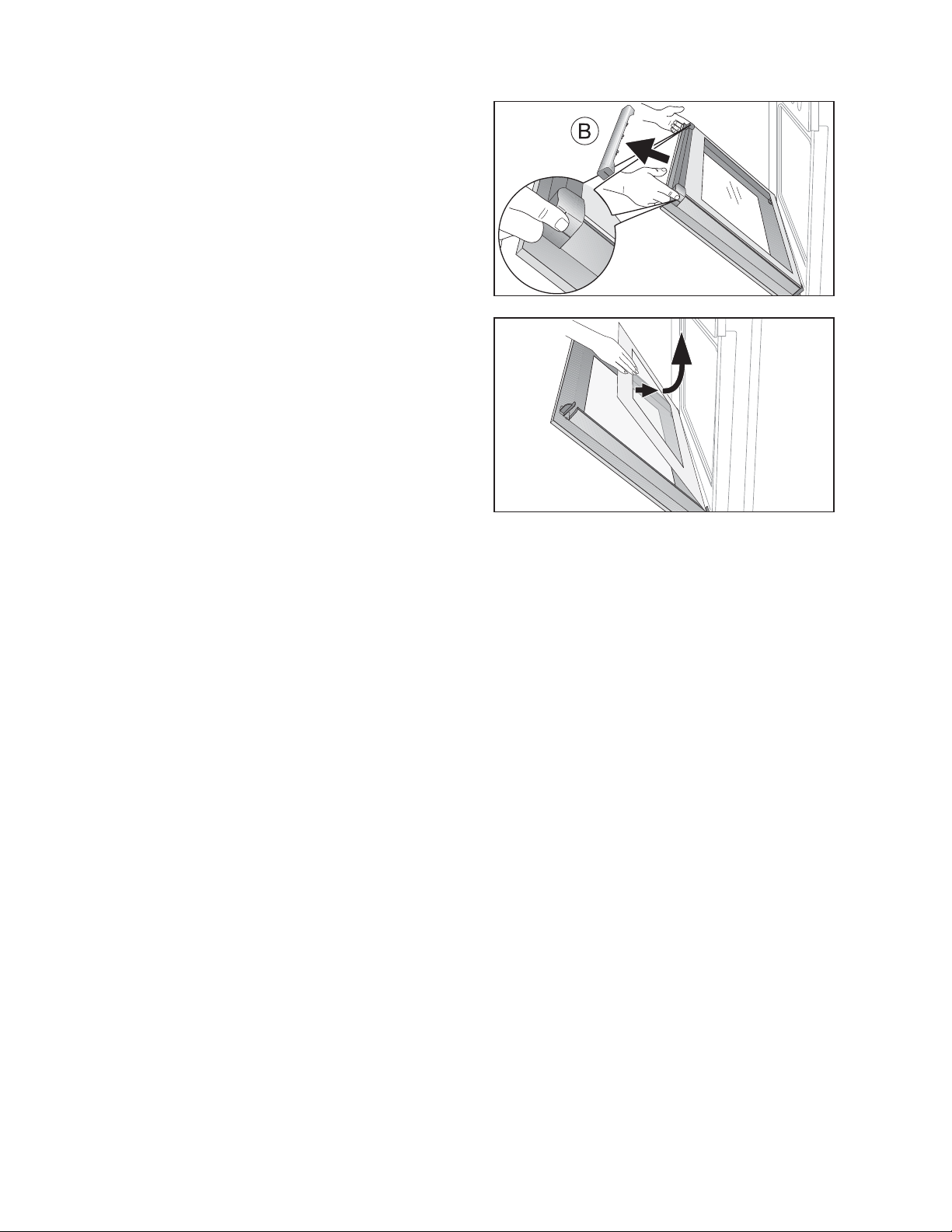

4. Take hold of the door trim (B) on the
upper edge of the door at both sides
and press inwards to release the clip
seal. Then remove the door trim by
pulling upwards.

5. Take hold of the door glass on its up­per edge and take it out of the guide
by pulling it upwards.

Cleaning the door glass

Clean the door glass thoroughly with a
solution of water and washing up liquid.
Then dry it carefully.

42 electrolux cleaning and care

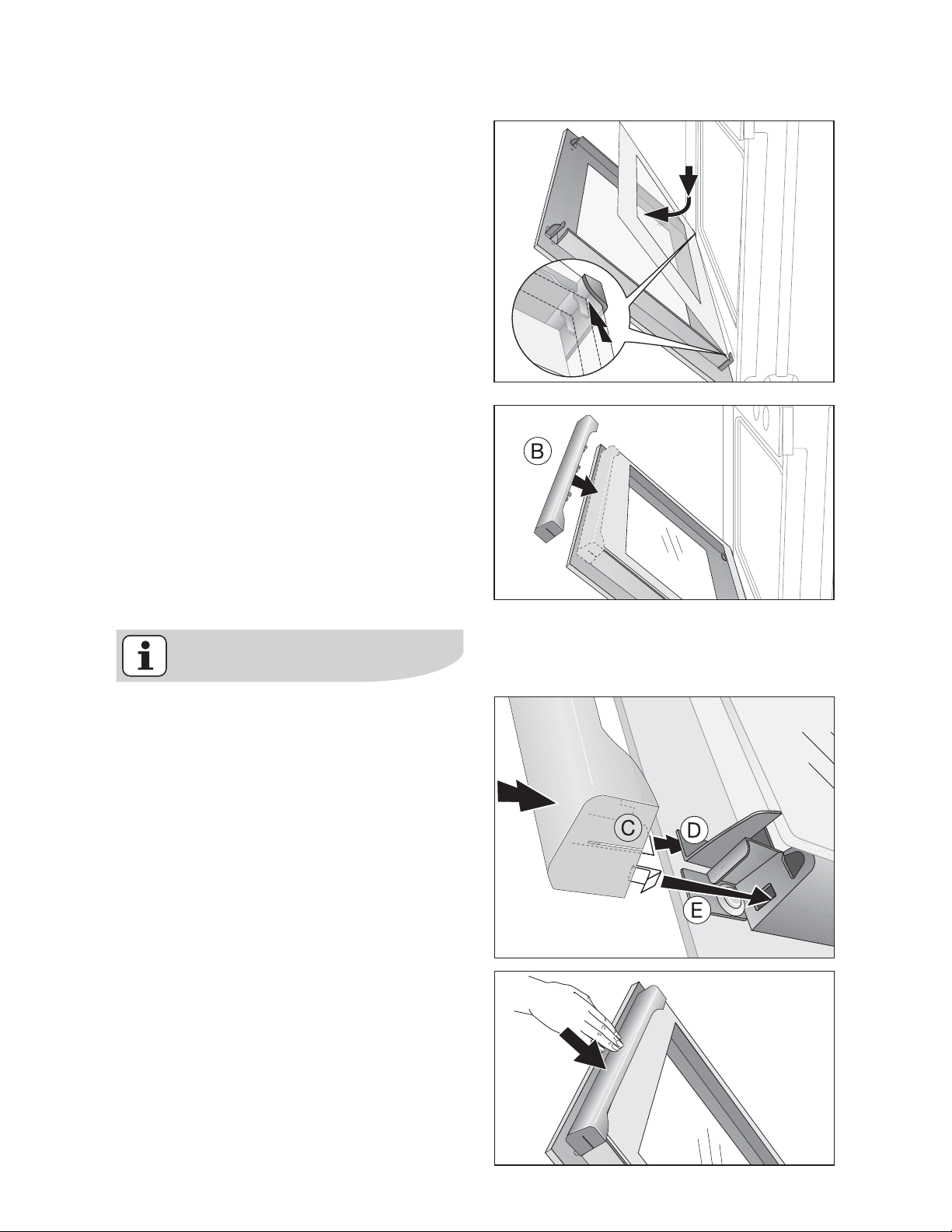

Putting the door glass back

1. From above insert the door glass at
an angle into the door profile at the
bottom edge of the door and lower
it.

2. Take hold of the door trim (B) at each
side, position it on the inside edge of
the door and plug the door trim(B)
into the upper edge of the door.

On the open side of the door trim (B)
there is a guide bar (C). This must be
pushed between the outer door
panel and the guide corner (D).
The clip seal (E) must be snapped in.

cleaning and care electrolux 43

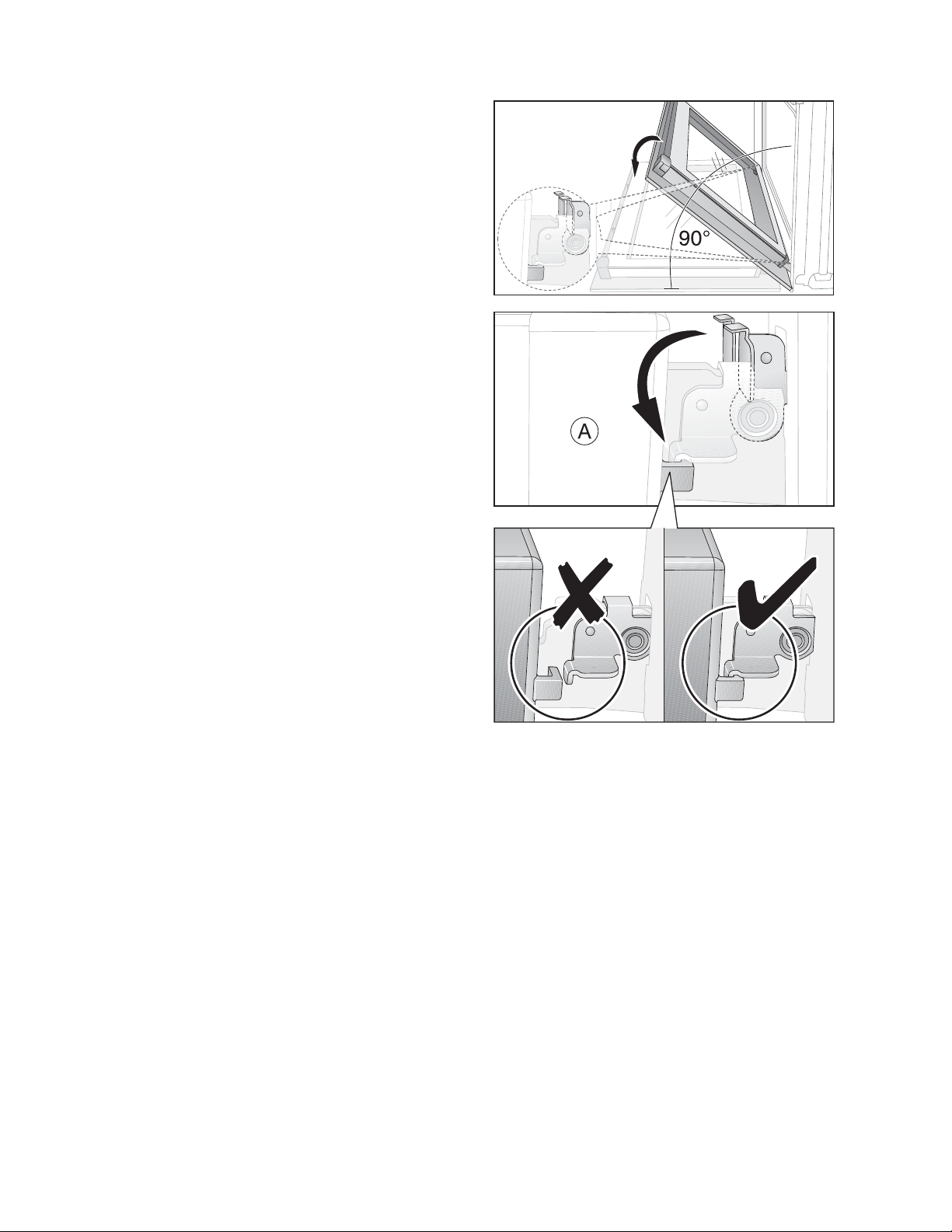

3. Open the oven door as far as it will
go.

4. Fold up the clamping levers (A) on
both door hinges back into their orig­inal positions.

5. Close the oven door.

44 electrolux what to do if …

What to do if …

If you are unable to remedy the
problem by following the above
suggestions, please contact your
local Service Force Centre.

Warning! Repairs to the appliance
are only to be carried out by quali­fied service engineers. Considera­ble danger to the user may result
from improper repairs.

If the appliance has been operated
incorrectly, the engineer's visit will
be chargeable, even during the war­ranty period.

Advice on cookers with metal
fronts:

Because of the cooler surface at the
front of the cooker, opening the
oven door during (or just after) bak­ing or roasting may cause the glass
to steam up.

Problem

Possible cause Remedy

The oven does not heat up The oven is not switched on Switch the oven on

The clock is not set Set the current time on the

clock

The necessary settings have
not been carried out

Check the settings

A fuse in the house’s wiring
system (in the fuse box) has
tripped

Check fuses
If the fuses trip several times,
please call a qualified electri­cian

The oven lighting is not operat­ing

The oven bulb is faulty. Replace oven bulb

electrical connection electrolux 45

Electrical Connection

The oven is designed to be connected
to 230-240V~(50Hz) electricity
supply.
The oven has an easily accessible termi­nal block which is marked as
follows:

This oven must be earthed!

The cable used to connect the oven to
the electrical supply must comply to the
specifications given below.

For UK use only

It is necessary that you install a double
pole switch between the oven and the
electricity supply (mains), with a mini­mum gap of 3mm
between the switch contacts and of a
type suitable for the required load in
compliance with the current regulations.
The switch must not break the yellow
and green earth cable at any point.

Important

After installation and connecting, the ca­ble must be placed so that it cannot at
any point reach a temperature of more
than 50°C above the ambient tempera­ture.
Before the oven is connected, check
that the main fuse and the domestic in­stallation can support the load; and that
the power supply is properly earthed.

The manufacturer declines any re­sponsibility should these safety
measures not be carried out.

Letter L - Live terminal
Letter N - Neutral terminal
E -Earth terminal

Connec-

tion

via

Min.

size

Cable/

flex

Cable/

flex

type

Fuse

Cooker
Control
Circuit

2,5 mm2PVC/PVC

twin and
earth

min:
15A
max:
20A

46 electrolux installation instructions

Installation Instructions

Attention: The new appliance may
only be installed and connected by a
registered expert.
Please comply with this. If you do
not, any damage resulting is not
covered by the warranty.

Safety information for the installer

• The electrical installation is to be set
up so that the appliance can be iso­lated from the mains with a minimum
3mm all-pole contact separation.
Suitable separation devices include
e.g. cut-outs, fuses (screw fuses are
to be taken out of the holder), RCD’s
and contactors.

• Anti-shock protection must be pro­vided by the installation.

• The built-in unit must meet the stabil­ity requirements of DIN 68930.

• Built-in ovens and built-in cooking
surfaces are fitted with special con­nection systems. For safety reasons,
they must only be combined with ap­pliances from the same manufactur­er.

installation instructions electrolux 47

48 electrolux installation instructions

installation instructions electrolux 49

50 electrolux disposal

Disposal

Packaging material
The packaging materials are envi-

ronmentally friendly and can be re­cycled. The plastic components are
identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the
packaging materials in the appro­priate container at your local waste
disposal facilities.

Old appliance

The symbol

W on the product or on

its packaging indicates that this
product may not be treated as
household waste. Instead it shall be
handed over to the applicable col­lection point for the recycling of
electrical and electronic equipment.
By ensuring this product is dis­posed of correctly, you will help pre­vent potential negative
consequences for the environment
and human health, which could oth­erwise be caused by inappropriate
waste handling of this product. For
more detailed information about re­cycling of this product, please con­tact your local city office, your
household waste disposal service
or the shop where you purchased
the product.

Warning: Before disposing of old
appliances please make them inop­erable so that they cannot be a
source of danger.
To do this, disconnect the appliance
from the mains supply and remove
the mains cable from the appliance.

guarantee/customer service electrolux 51

Guarantee/Customer
Service

Standard guarantee conditions

We, Electrolux, undertake that if within
12 months of the date of the purchase
this Electrolux appliance or any part
thereof is proved to be defective by rea­son only of faulty workmanship or mate­rials, we will, at our option repair or
replace the same FREE OF CHARGE for
labour, materials or carriage on condi­tion that:

• The appliance has been correctly in­stalled and used only on the electric­ity supply stated on the rating plate.

• The appliance has been used for
normal domestic purposes only, and
in accordance with the manufactur­er’s instructions.

• The appliance has not been serv­iced, maintained, repaired, taken
apart or tampered with by any per­son not authorised by us.

• Electrolux Service Force Centre must
undertake all service work under this
guarantee

• Any appliance or defective part re­placed shall become the Company’s
property.

• This guarantee is in addition to your
statutory and other legal rights.

Exclusions

• Damage or calls resulting from trans­portation, improper use or neglect,
the replacement of any light bulbs or
removable parts of glass or plastic.

• Costs incurred for calls to put right
an appliance which is improperly in­stalled or calls to appliances outside
the United Kingdom.

• Appliances found to be in use within
a commercial environment, plus
those which are subject to rental
agreements.

• Products of Electrolux manufacturer
that are not marketed by Electrolux

52 electrolux guarantee/customer service

European Guarantee

www.electrolux.com

This appliance is guaranteed by Electrolux in
each of the countries listed at the back of this
user manual, for the period specified in the appli­ance guarantee or otherwise by law. If you move
from one of these countries to another of the
countries listed below the appliance guarantee
will move with you subject to the following qual­ifications:

• The appliance guarantee starts from the date

you first purchased the appliance which will
be evidenced by production of a valid pur­chase document issued by the seller of the
appliance.

• The appliance guarantee is for the same pe-

riod and to the same extent for labour and
parts as exists in your new country of resi­dence for this particular model or range of
appliances.

• The appliance guarantee is personal to the

original purchaser of the appliance and can­not be transferred to another user.

• The appliance is installed and used in ac-

cordance with instructions issued by Elec­trolux and is only used within the home, i.e. is
not used for commercial purposes.

• The appliance is installed in accordance with

all relevant regulations in force within your

new country of residence.
The provisions of this European Guarantee do
not affect any of the rights granted to you by law.

p t b

Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/

Belgien

[phone] Bergensesteenweg 719, 1502 Lembeek

Èeská republika [phone] Budìjovická 3, Praha 4, 140 21
Danmark [phone] Sjællandsgade 2, 7000 Fredericia
Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg
Eesti [phone] Mustamäe tee 24, 10621 Tallinn

España [phone]

Carretera M-300, Km. 29,900
Alcalá de Henares Madrid

France www.electrolux.fr

Great Britain [phone]

Addington Way, Luton, Bedfordshire
LU4 9QQ

Hellas [phone] Limnou Str., 54627 Thessaloniki

guarantee/customer service electrolux 53

Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga
Lithuania [phone] Žirmūnų 67, LT-09001 Vilnius
Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm

Magyarország [phone]

H-1142 Budapest XIV,
Erzsébet királyné útja 87

Nederland [phone]

Vennootsweg 1, 2404 CG -

Alphen aan den Rijn
Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich [phone] Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, Warszawa

Portugal [phone]

Quinta da Fonte - Edificio Gonçalves Zarco -

Q 35

2774 - 518 Paço de Arcos
Romania [phone] Str. Garii Progresului 2, S4, 040671 RO
Schweiz/Suisse/

Svizzera

[phone] Industriestrasse 10, CH-5506 Mägenwil

Slovenija [phone]

Electrolux Ljubljana d.o.o.

Gerbièeva 98, 1000 Ljubljana

Slovensko [phone]

Electrolux Slovakia s.r.o., Electrolux Domáce

spotrebièe SK, Seberíniho 1, 821 03 Bratisla-

va
Suomi www.electrolux.fi

Sverige [phone]

Electrolux Service, S:t Göransgatan 143,

S-105 45 Stockholm

Türkiye [phone]

Tarlabaþý caddesi no : 35 Taksim

Istanbul

Россия [phone]

129090 Москва, Олимпийский проспект, 16,

БЦ „Олимпик“

Óêðà¿íà [phone]

04074 Ки¿в, вул.Автозаводська,

2a, БЦ „Алкон“

p t b

54 electrolux service and spare parts

Service and Spare Parts

If the event of your appliance requiring
service, or if you wish to purchase spare
parts, please contact Service Force by
telephoning:

Your telephone call will be automatically
routed to the Service Force Centre cov­ering your post code area.
For the address of your local Service
Force Centre and further information
about Service Force, please visit the
website at

www. serviceforce.co.uk

Before calling out an engineer, please
ensure you have read the details under
the heading „What to do if...“

When you contact the Service Force
Centre you will need to give the follow­ing details:

1. Your name, address and post code.

2. Your telephone number.

3. Clear and concise details of the fault.

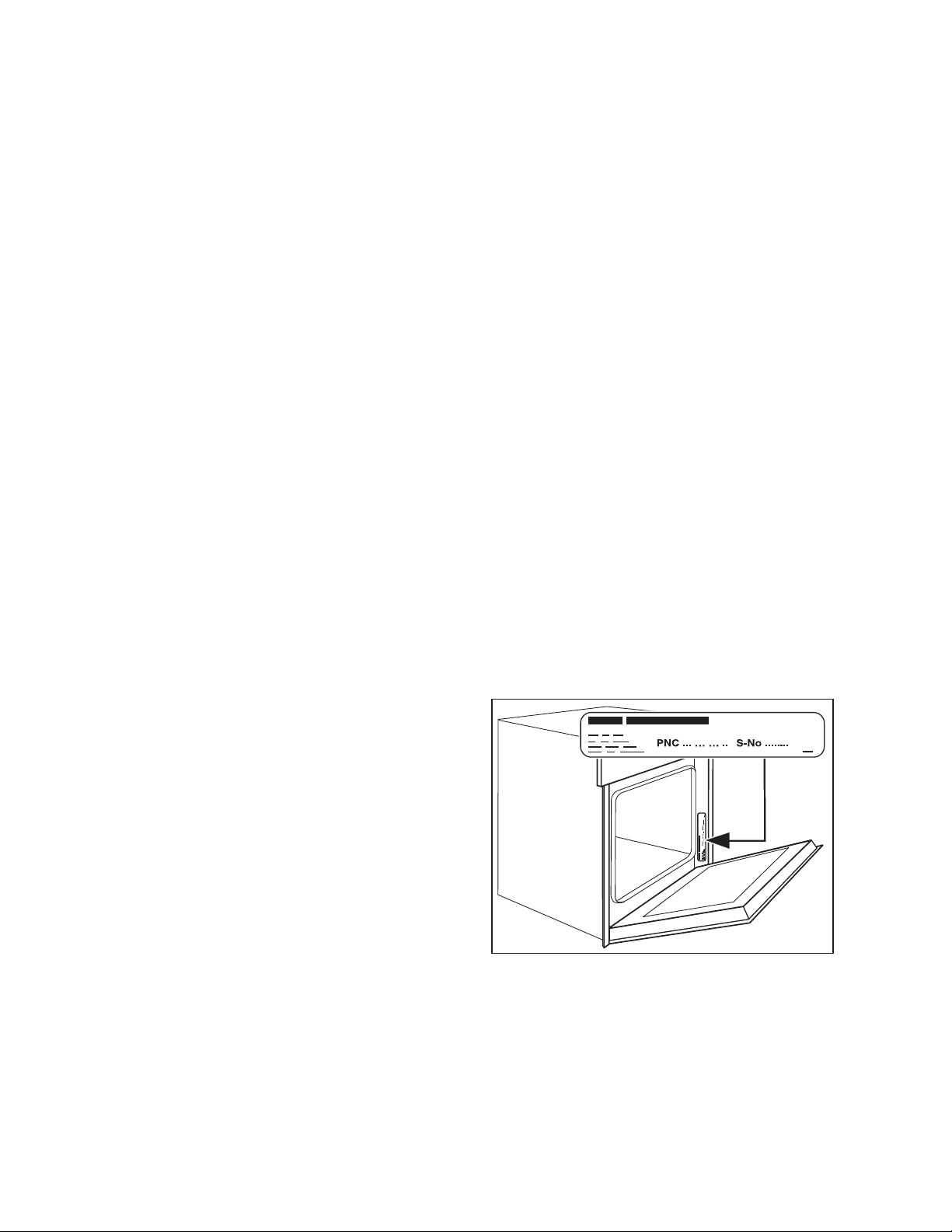

4. The model and serial number of the
appliance (found on the rating plate)

5. The purchase date.
Please note that a valid purchase receipt

or guarantee documentation is required
for in-guarantee service calls.

Customer Care

For general enquiries concerning your
Electrolux appliance, or for further infor­mation on Electrolux products please
contact our Customer Care Department
by letter or telephone at the address be­low or visit our website at

www.electrolux.co.uk.

(*) Calls may be recorded for training purposes

0870 5 929 929

Customer Care Department
Major Appliances
Electrolux
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: [phone] (*)

For Customer Service in the Republic of
Ireland

please contact us at the address below:
AEG/ Electrolux Group (Ire) Ltd
Long Mile Road/ Dublin 12
Republic of Ireland
Tel: [phone]
Email: [email protected]

www.electrolux.com

www.electrolux.co.uk

822 928 083-M-110208-01
