EOB3450AAX
EOB3450AOX
................................................ .............................................
EN OVEN USER MANUAL
Page 2
CONTENTS
1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. CLOCK FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. USING THE ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8.
ADDITIONAL FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
10.
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11. WHAT TO DO IF… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
12.
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
13. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2
www.electrolux.com
Page 3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
• Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the
appliance. Always use oven gloves to remove or put in
accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.
• Before maintenance cut the power supply.
ENGLISH 3
Page 4
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
• To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite sequence.
2.
SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction sup-
plied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Contact the Service or an electrician to
change a damaged mains cable.
• Do not let mains cables to come in
touch with the appliance door, specially
when the door is hot.
• The shock protection of live and insulated parts must be fastened in such a
way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation. Make sure that there is access to
the mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
2.2 Use
WARNING!
Risk of injury, burns or electric
shock or explosion.
4
www.electrolux.com
Page 5
• Use this appliance in a household environment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each
use.
• Be careful, when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Always keep the appliance door closed
when the appliance is in operation.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to
the enamel:
– Do not put ovenware or other objects
in the appliance directly on the bottom.
– Do not put aluminium foil directly on
the bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no effect on the performance of the appliance. It is not a defect in the sense of
the warranty law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be permanent.
2.3 Care and Cleaning
WARNING!
Risk of injury, fire or damage to
the appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged. Contact the Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Remaining fat or food in the appliance
can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.
2.4 Internal light
• The type of light bulb or halogen lamp
used for this appliance, is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same specifications.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
ENGLISH 5
Page 6
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.
3. PRODUCT DESCRIPTION
7
6
11
10
9
5
4
1
2
3
3 52 41
8
1
Knob for the oven functions
2
Power indicator
3
Electronic programmer
4
Knob for the temperature
5
Temperature indicator
6
Grill
7
Oven lamp
8
Fan
9
Shelf support, removable
10
Rating plate
11
Shelf positions
3.1 Oven accessories
•
Wire shelf
For cookware, cake tins, roasts.
•
Baking tray
For cakes and biscuits.
•
Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
•
Telescopic runners
For shelves and trays.
4. BEFORE FIRST USE
WARNING!
Refer to the Safety chapters.
4.1 Initial cleaning
• Remove all accessories and removable
shelf supports (if applicable).
• Clean the appliance before first use.
Refer to the chapter "Care and
cleaning".
4.2 Setting the time
You must set the time before you
operate the oven.
When you connect the appliance to the
electrical supply or after a power cut, the
indicator for the Time of Day function
flashes.
Press the + or - button to set the correct
time.
After approximately five seconds, the
flashing stops and the display shows the
time of day you set.
6
www.electrolux.com
Page 7
To change the time, press
again and again until the indicator
for the Time of Day function flashes. You must not set the Duration
or End function at the same
time.
4.3 Preheating
Preheat the empty appliance to burn off
the remaining grease.
1.
Set the function and the maximum
temperature.
2.
Let the appliance operate for one
hour.
3.
Set the function and the maximum
temperature.
4.
Let the appliance operate for ten minutes.
5.
Set the function and the maximum
temperature.
6.
Let the appliance operate for ten mi-
nutes.
Accessories can become hotter than usual. The appliance can emit an odour and
smoke. This is normal. Make sure that the
airflow is sufficient.
5. DAILY USE
WARNING!
Refer to the Safety chapters.
To use the appliance, push the knob. The
knob comes out.
5.1 Activating and deactivating
the appliance
1.
Turn the knob for the oven functions
to an oven function.
The power indicator comes on while
the appliance operates.
2.
Turn the knob for the temperature to
a temperature.
The temperature indicator comes on
while the temperature in the appliance
increases.
3.
To deactivate the appliance, turn the
knob for the oven functions and the
knob for the temperature to the Off
position.
5.2 Oven functions
Oven function Application
Off position The appliance is off.
Light To activate the oven lamp without a cooking function.
Conventional
Cooking
To bake and roast on one oven level. The top and
bottom heating elements operate at the same time.
Top Heat
To finish cooked dishes. Only the top heating element
operates.
Bottom Heat
To bake cakes with crispy or crusty bottom. Only the
bottom heating element operates.
Grilling
To grill flat food items in small quantities in the middle
of the shelf. To make toast.
ENGLISH 7
Page 8
Oven function Application
Fast Grilling
To grill flat food items in large quantities. To make
toast. The full grill element operates.
Turbo Grilling
To cook large pieces of meat. The grill element and
the oven fan operate one after the other and circulate
hot air around the food.
True Fan
Cooking /
Defrosting
To roast or roast and bake food with the same cook-
ing temperature on more than one oven level without
flavour transference. / To thaw frozen food. The knob
for the temperature must be in the off position
Pizza Setting
To make pizza, quiche or pie. The grill and bottom el-
ement provide direct heat and the fan circulates the
hot air to cook the pizza toppings or pie filling.
6. CLOCK FUNCTIONS
6.1 Electronic programmer
hr min
1 2 3
456
1
Function indicators
2
Time display
3
Function indicator
4
Button +
5
Selection button
6
Button -
Clock function Application
Time of day To set, change or check the time of day.
Minute Minder To set a countdown time. This function has no effect on
the operation of the oven.
Duration To set how long the appliance must operate.
End To set when the appliance must be deactivated.
You can use Duration and End
at the same time to set the
time when the appliance must be
activated and then deactivated.
First set Duration
, then End
.
6.2 Setting the clock functions
1.
For Duration and End , set an
oven function and temperature. This
is not necessary for the Minute Mind-
er
.
8
www.electrolux.com
Page 9
2.
Press the Selection button again and
again until the indicator for the necessary clock function flashes.
hr minhr min
3.
Press + or - to set the time for the
necessary clock function.
The display shows the indicator for
the clock function you set. When the
set time ends, the indicator flashes
and an acoustic signal sounds for two
minutes.
With the Duration and End
functions, the appliance deactivates automatically.
4.
Press a button to stop the signal.
5.
Turn the knob for the oven functions
and the knob for the temperature to
the off position.
6.3 Cancelling the clock
functions
1.
Press the Selection button again and
again until the necessary function indicator flashes.
2.
Press and hold the button -.
The clock function goes out after
some seconds.
7. USING THE ACCESSORIES
WARNING!
Refer to the Safety chapters.
7.1 Telescopic runners
°C
1.
Pull out the right and left hand telescopic runners.
ENGLISH 9
Page 10
°C
2.

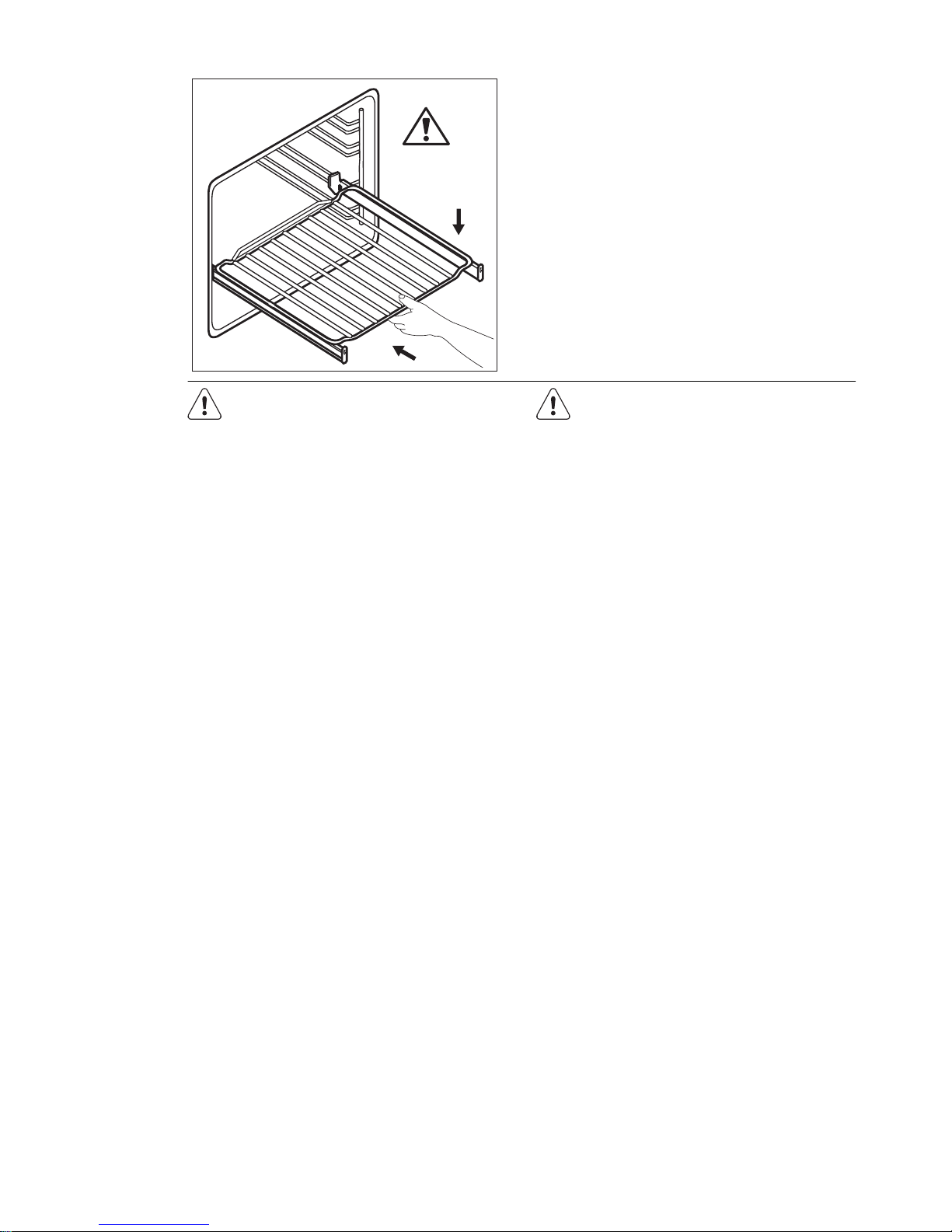

Put the wire shelf on the telescopic
runners and carefully push them into
the appliance.
Make sure you push back the telescopic runners fully in the appliance
before you close the oven door.
Keep the installation instructions
for the telescopic runners for future use.
With telescopic runners you can put in
and remove the shelves more easily.
CAUTION!
Do not clean the telescopic runners in the dishwasher. Do not lubricate the telescopic runners.
8. ADDITIONAL FUNCTIONS
8.1 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you deactivate the appliance, the cooling fan
continues to operate until the temperature
in the appliance cools down.
8.2 Safety thermostat
Incorrect operation of the appliance or defective components can cause dangerous
overheating. To prevent this, the oven has
a safety thermostat which interrupts the
power supply. The oven activates again
automatically when the temperature
drops.
9. HELPFUL HINTS AND TIPS
• The appliance has five shelf levels.
Count the shelf levels from the bottom
of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system
you can cook in a steamy environment
and keep the food soft inside and crusty outside. It decreases the cooking
time and energy consumption to a minimum.
• Moisture can condense in the appliance
or on the door glass panels. This is normal. Always stand back from the appliance when you open the appliance
door while cooking. To decrease the
condensation, operate the appliance for
10 minutes before cooking.
• Clean the moisture after each use of
the appliance.
10
www.electrolux.com
Page 11
• Do not put the objects directly on the
appliance floor and do not put aluminium foil on the components when you
cook. This can change the baking results and cause damage to the enamel.
9.1 Baking cakes
• Do not open the oven door before 3/4
of the set cooking time is up.
• If you use two baking trays at the same
time, keep one empty level between
them.
9.2 Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can
be permanent.
• Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
• To prevent too much smoke in the oven
during roasting, add some water into
the deep pan. To prevent the smoke
condensation, add water each time after it dries up.
9.3 Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you
use this appliance.
9.4 Baking and roasting table
CAKES
TYPE OF
DISH
Conventional
Cooking
True Fan Cook-
ing
Cooking
time
[min]
Notes
Shelf
position
Temp
[°C]
Shelf po-
sition
Temp
[°C]
Whisked
recipes
2 170 3 (2 and 4) 160 45 - 60 In a cake
mould
Shortbread
dough
2 170 3 (2 and 4) 160 20 - 30 In a cake
mould
Buttermilk
cheesecake
1 170 2 165 60 - 80 In a 26 cm
cake mould
Apple cake
(Apple pie)
2 170 2 (left and
right)
160 80 - 100 In two 20 cm
cake moulds
on a wire
shelf
1)
Strudel 3 175 2 150 60 - 80 In a baking
tray
Jam-tart 2 170 2 (left and
right)
165 30 - 40 In a 26 cm
cake mould
Sponge
cake
2 170 2 160 50 - 60 In a 26 cm
cake mould
Christmas
cake / Rich
fruit cake
2 160 2 150 90 - 120 In a 20 cm
cake mould
1)
Plum cake 1 175 2 160 50 - 60 In a bread
tin
1)
ENGLISH 11
Page 12
TYPE OF
DISH
Conventional
Cooking
True Fan Cook-
ing
Cooking
time
[min]
Notes
Shelf
position
Temp
[°C]
Shelf po-
sition
Temp
[°C]
Small cakes
- one level
3 170 3 140 -
150
20 - 30 In a baking
tray
Small cakes
- two levels
- - 2 and 4 140 150
25 - 35 In a baking
tray
Small cakes
- three levels
- - 1, 3 and 5 140 150
30 - 45 In a baking
tray
Biscuits /
pastry
stripes - one
level
3 140 3 140 -
150
30 - 35 In a baking
tray
Biscuits /
pastry
stripes - two
levels
- - 2 and 4 140 150
35 - 40 In a baking
tray
Biscuits /
pastry
stripes three levels
- - 1, 3 and 5 140 150
35 - 45 In a baking
tray
Meringues one level
3 120 3 120 80 - 100 In a baking
tray
Meringuestwo levels
- - 2 and 4 120 80 - 100 In a baking
tray
1)
Buns 3 190 3 190 12 - 20 In a baking
tray
1)
Eclairs - one
level
3 190 3 170 25 - 35 In a baking
tray
Eclairs - two
levels
- - 2 and 4 170 35 - 45 In a baking
tray
Plate tarts 2 180 2 170 45 - 70 In a 20 cm
cake mould
Rich fruit
cake
1 160 2 150 110 -
120
In a 24 cm
cake mould
Victoria
sandwich
1 170 2 160 50 - 60 In a 20 cm
cake mould
1)
Preheat for 10 minutes.
12
www.electrolux.com
Page 13
BREAD AND PIZZA
TYPE OF
DISH
Conventional
Cooking
True Fan Cook-
ing
Cooking
time
[min]
Notes
Shelf
position
Temp
[°C]
Shelf po-
sition
Temp
[°C]
White bread 1 190 1 190 60 - 70 1 - 2 pieces,
500 gr per
piece
1)
Rye bread 1 190 1 180 30 - 45 In a bread tin
Bread rolls 2 190 2 (2 and 4) 180 25 - 40 6 - 8 rolls in a
baking tray
1)
Pizza 1 230 -
250
1 230 -
250
10 - 20 In a baking
tray or a deep
pan
1)
Scones 3 200 3 190 10 - 20 In a baking
tray
1)
1)
Preheat for 10 minutes.
FLANS
TYPE OF
DISH
Conventional
Cooking
True Fan Cook-
ing
Cooking
time
[min]
Notes
Shelf
position
Temp
[°C]
Shelf po-
sition
Temp
[°C]
Pasta flan 2 200 2 180 40 - 50 In a mould
Vegetable
flan
2 200 2 175 45 - 60 In a mould
Quiches 1 180 1 180 50 - 60
In a mould
1)
Lasagne 2 180 -
190
2 180 -
190
25 - 40
In a mould
1)
Cannelloni 2 180 -
190
2 180 -
190
25 - 40
In a mould
1)
1)
Preheat for 10 minutes.
MEAT
TYPE OF
DISH
Conventional
Cooking
True Fan Cook-
ing
Cooking
time
[min]
Notes
Shelf
position
Temp
[°C]
Shelf po-
sition
Temp
[°C]
Beef 2 200 2 190 50 - 70 On a wire
shelf
Pork 2 180 2 180 90 - 120 On a wire
shelf
ENGLISH 13
Page 14
TYPE OF
DISH
Conventional
Cooking
True Fan Cook-
ing
Cooking
time
[min]
Notes
Shelf
position
Temp
[°C]
Shelf po-
sition
Temp
[°C]
Veal 2 190 2 175 90 - 120 On a wire
shelf
English roast
beef, rare
2 210 2 200 50 - 60 On a wire
shelf
English roast
beef, medium
2 210 2 200 60 - 70 On a wire
shelf
English roast
beef, well
done
2 210 2 200 70 - 75 On a wire
shelf
Shoulder of
pork
2 180 2 170 120 -
150
With rind
Shin of pork 2 180 2 160 100 -
120
2 pieces
Lamb 2 190 2 175 110 -
130
Leg
Chicken 2 220 2 200 70 - 85 Whole
Turkey 2 180 2 160 210 -
240
Whole
Duck 2 175 2 220 120 -
150
Whole
Goose 2 175 1 160 150 -
200
Whole
Rabbit 2 190 2 175 60 - 80 Cut in pieces
Hare 2 190 2 175 150 -
200
Cut in pieces
Pheasant 2 190 2 175 90 - 120 Whole
FISH
TYPE OF
DISH
Conventional
Cooking
True Fan Cook-
ing
Cooking
time
[min]
Notes
Shelf
position
Temp
[°C]
Shelf po-
sition
Temp
[°C]
Trout / Sea
bream
2 190 2 175 40 - 55 3 - 4 fish
Tuna fish /
Salmon
2 190 2 175 35 - 60 4 - 6 fillets
9.5 Grilling
Preheat the empty oven for 10 minutes, before cooking.
14
www.electrolux.com
Page 15
Quantity Grilling Cooking time [min]
TYPE OF DISH Pieces [g] Shelf po-
sition
Temp
[°C]
1st side 2nd side
Fillet steaks 4 800 4 max. 12 - 15 12 - 14
Beef steaks 4 600 4 max. 10 - 12 6 - 8
Sausages 8 - 4 max. 12 - 15 10 - 12
Pork chops 4 600 4 max. 12 - 16 12 - 14
Chicken (cut in
2)
2 1000 4 max. 30 - 35 25 - 30
Kebabs 4 - 4 max. 10 - 15 10 - 12
Breast of chicken
4 400 4 max. 12 - 15 12 - 14
Hamburger 6 600 4 max. 20 - 30 -
Fish fillet 4 400 4 max. 12 - 14 10 - 12
Toasted sandwiches
4 - 6 - 4 max. 5 - 7 -
Toast 4 - 6 - 4 max. 2 - 4 2 - 3
9.6 Turbo Grilling
Beef
TYPE OF DISH Quantity
Shelf posi-
tion
Tempera-
ture [°C]
Time [min]
Roast beef or fillet, rare
per cm of
thickness
1
190 - 200
1)
5 - 6
Roast beef or fillet, medium
per cm of
thickness
1
180 - 190
1)
6 - 8
Roast beef or fillet, well done
per cm of
thickness
1
170 - 180
1)
8 - 10
1)
Preheat the oven.
Pork
TYPE OF DISH Quantity
Shelf posi-
tion
Tempera-
ture [°C]
Time [min]
Shoulder, neck,
ham joint
1 - 1.5 kg 1 160 - 180 90 - 120
Chop, spare rib 1 - 1.5 kg 1 170 - 180 60 - 90
Meat loaf 750 g - 1 kg 1 160 - 170 50 - 60
Pork knuckle
(precooked)
750 g - 1 kg 1 150 - 170 90 - 120
ENGLISH 15
Page 16
Veal
TYPE OF
DISH
Quantity Shelf posi-
tion
Temperature
[°C]
Time [min]
Roast veal 1 kg 1 160 - 180 90 - 120
Knuckle of
veal
1.5 - 2 kg 1 160 - 180 120 - 150
Lamb
TYPE OF
DISH
Quantity Shelf posi-
tion
Temperature
[°C]
Time [min]
Leg of lamb,
roast lamb
1 - 1.5 kg 1 150 - 170 100 - 120
Saddle of
lamb
1 - 1.5 kg 1 160 - 180 40 - 60
Poultry
TYPE OF
DISH
Quantity Shelf posi-
tion
Temperature
[°C]
Time [min]
Poultry portions
200 - 250 g
each
1 200 - 220 30 - 50
Chicken , half 400 - 500 g
each
1 190 - 210 35 - 50
Chicken, poulard
1 - 1.5 kg 1 190 - 210 50 - 70
Duck 1.5 - 2 kg 1 180 - 200 80 - 100
Goose 3.5 - 5 kg 1 160 - 180 120 - 180
Turkey 2.5 - 3.5 kg 1 160 - 180 120 - 150
Turkey 4 - 6 kg 1 140 - 160 150 - 240
Fish (steamed)
TYPE OF
DISH
Quantity Shelf posi-
tion
Temperature
[°C]
Time [min]
Whole fish 1 - 1.5 kg 1 210 - 220 40 - 60
9.7 Defrosting
TYPE OF
DISH
[g]
Defrosting
time [min]
Further de-
frosting time
[min]
Notes
Chicken 1000 100 - 140 20 - 30
Place the chicken on
an upturned saucer
placed on a large
plate. Turn halfway
through.
16
www.electrolux.com
Page 17
TYPE OF
DISH
[g]
Defrosting
time [min]
Further de-
frosting time
[min]
Notes
Meat 1000 100 - 140 20 - 30 Turn halfway through.
Meat 500 90 - 120 20 - 30 Turn halfway through.
Trout 150 25 - 35 10 - 15 -
Strawberries 300 30 - 40 10 - 20 -
Butter 250 30 - 40 10 - 15 -
Cream 2 x 200 80 - 100 10 - 15
Cream can also be
whipped when still
slightly frozen in pla-
ces.
Gateau 1400 60 60 -
9.8 Preserving - Bottom Heat
Soft fruit
PRESERVE
Temperature
[°C]
Cooking time
until simmering
[min]
Further cooking
time at 100 °C
[min]
Strawberries, blueberries, raspberries, ripe gooseberries
160 – 170 35 – 45 –
Stone fruit
PRESERVE
Temperature
[°C]
Cooking time
until simmering
[min]
Further cooking
time at 100 °C
[min]
Pears, quinces,
plums
160 – 170 35 – 45 10 – 15
Vegetables
PRESERVE
Temperature
[°C]
Cooking time
until simmering
[min]
Further cooking
time at 100 °C
[min]
Carrots
1)
160 – 170 50 – 60 5 – 10
Cucumbers 160 – 170 50 – 60 –
Mixed pickles 160 – 170 50 – 60 5 – 10
Kohlrabi, peas, asparagus
160 – 170 50 – 60 15 – 20
1)
After you deactivate the appliance, leave the preserve in the oven.
ENGLISH 17
Page 18
9.9 Drying - True Fan Cooking
Cover the oven shelves with baking
parchment.
VEGETABLES
TYPE OF
DISH
Shelf position
Temperature
[°C]
Time [hr]
1 level 2 levels
Beans 3 1/4 60 - 70 6 - 8
Peppers 3 1/4 60 - 70 5 - 6
Vegetables for
soup
3 1/4 60 - 70 5 - 6
Mushrooms 3 1/4 50 - 60 6 - 8
Herbs 3 1/4 40 - 50 2 - 3
FRUIT
TYPE OF
DISH
Shelf position
Temperature
[°C]
Time [hr]
1 level 2 levels
Plums 3 1/4 60 - 70 8 - 10
Apricots 3 1/4 60 - 70 8 - 10
Apple slices 3 1/4 60 - 70 6 - 8
Pears 3 1/4 60 - 70 6 - 9
10. CARE AND CLEANING
WARNING!
Refer to the Safety chapters.
• Clean the front of the appliance with a
soft cloth with warm water and a cleaning agent.
• To clean metal surfaces use a usual
cleaning agent.
• Clean the oven interior after each use.
Then you can remove dirt more easily
and it does not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories after each
use and let them dry. Use a soft cloth
with warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a dishwasher. It can destroy nonstick coating.
Stainless steel or aluminium
appliances:
Clean the oven door with a wet
sponge only. Dry it with a soft
cloth.
Do not use steel wool, acids or
abrasive materials, as they can
cause damage to the oven surface. Clean the oven control panel
with the same precautions.
10.1 Cleaning the door gasket
• Regularly do a check of the door gasket. The door gasket is around the
frame of the oven cavity. Do not use the
appliance if the door gasket is damaged. Contact the Service Centre.
• To clean the door gasket, refer to the
general information about cleaning.
18
www.electrolux.com
Page 19

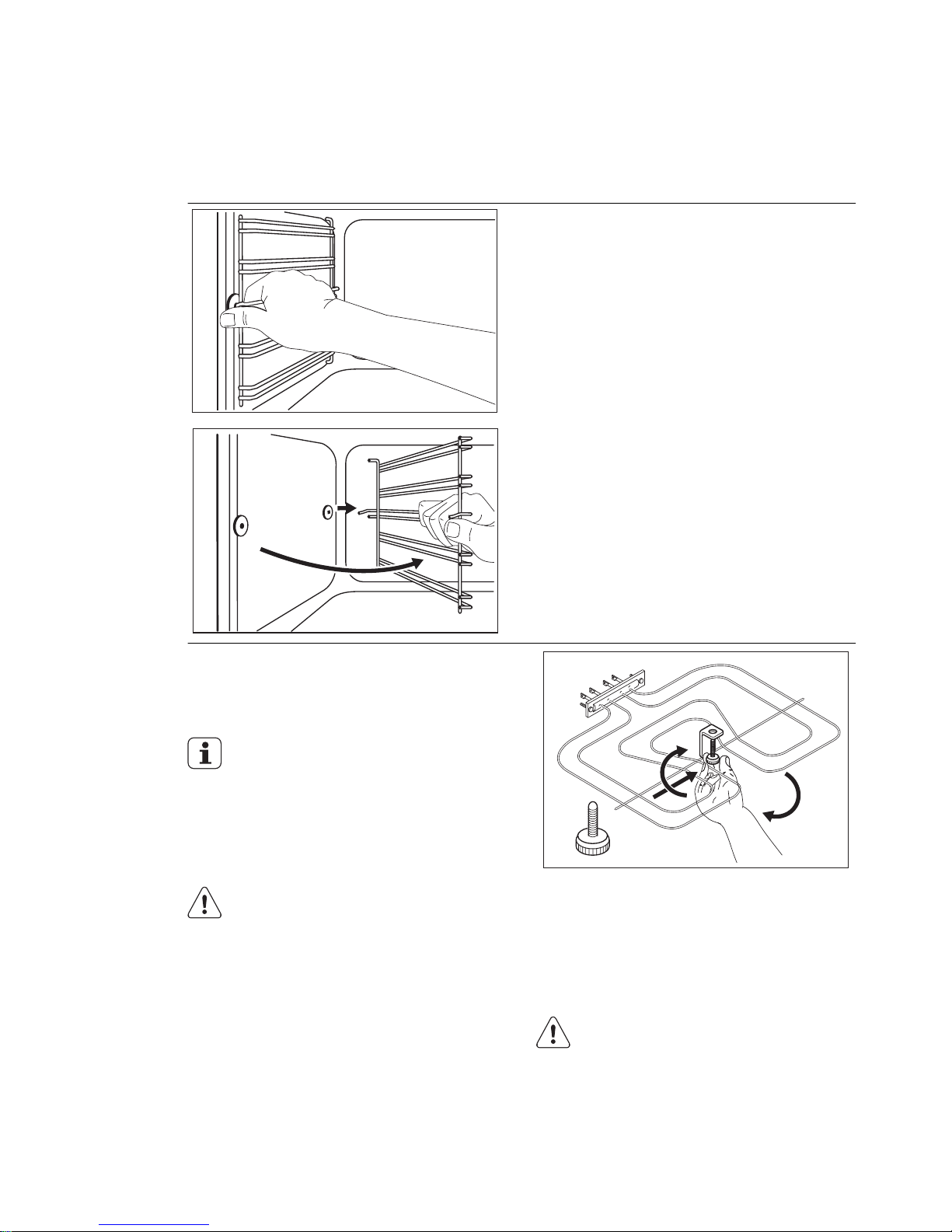

10.2 Shelf supports
You can remove the shelf supports to
clean the side walls.
Removing the shelf supports
1.
Pull the front of the shelf support away
from the side wall.
2
1
2.
Pull the rear end of the shelf support
away from the side wall and remove
it.
Installing the shelf supports
Install the shelf supports in the opposite
sequence.
The rounded ends of the shelf
supports must point to the front.
10.3 Oven ceiling
You can remove the grill to clean the oven
ceiling more easily.
WARNING!
Deactivate the appliance before
you remove the grill. Make sure
that the appliance is cold. There is
a risk of burns.
1.
Remove the screw which holds the
grill. For the first time, use a screwdriver.
2.
Carefully pull the grill down.
3.
Clean the oven ceiling with a soft
cloth with warm water and a cleaning
agent, and let it dry.
4.
Install the grill in the opposite sequence.
WARNING!
Make sure that the grill is correctly
installed and that it does not fall
down.
ENGLISH 19
Page 20
10.4 Oven lamp
WARNING!
Be careful when you change the
oven lamp. There is a risk of electrical shock.
Before you change the oven lamp:
• Deactivate the oven.
• Remove the fuses in the fuse box or
deactivate the circuit breaker.
Put a cloth on the bottom of the
oven to prevent damage to the
oven light and glass cover.
Always hold the halogen lamp
with a cloth to prevent grease residue from burning on the lamp.
1.
Turn the glass cover counterclockwise to remove it.
2.
Clean the glass cover.
3.
Replace the oven light bulb with an
applicable 300 °C heat-resistant oven
light bulb.
Use the same oven lamp type.
4.
Install the glass cover.
10.5 Cleaning the oven door
The oven door has two glass panels. You
can remove the oven door and the internal glass panel to clean it.
The oven door can close if you try
to remove the internal glass panel
before you remove the oven door.

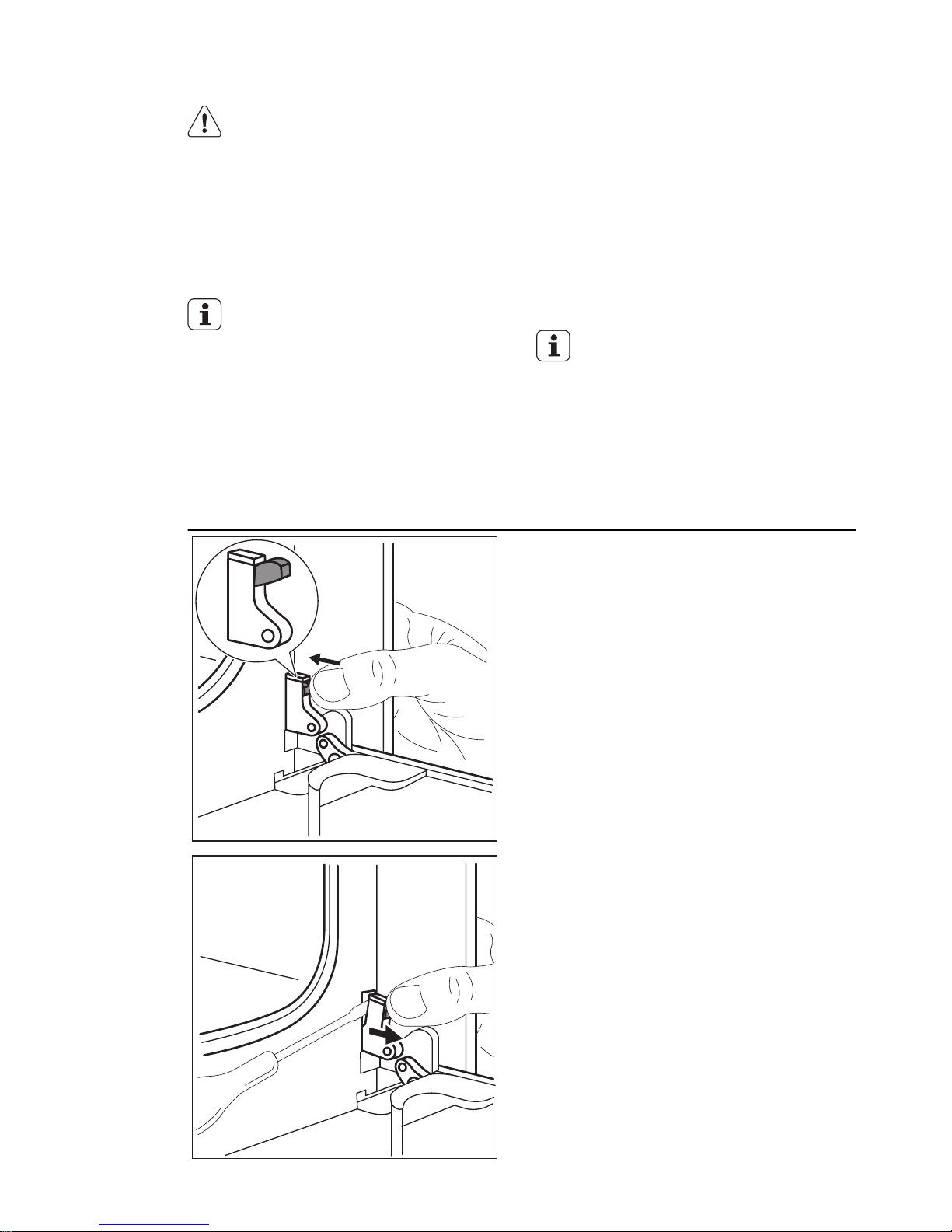

Removing the oven door and the glass panel

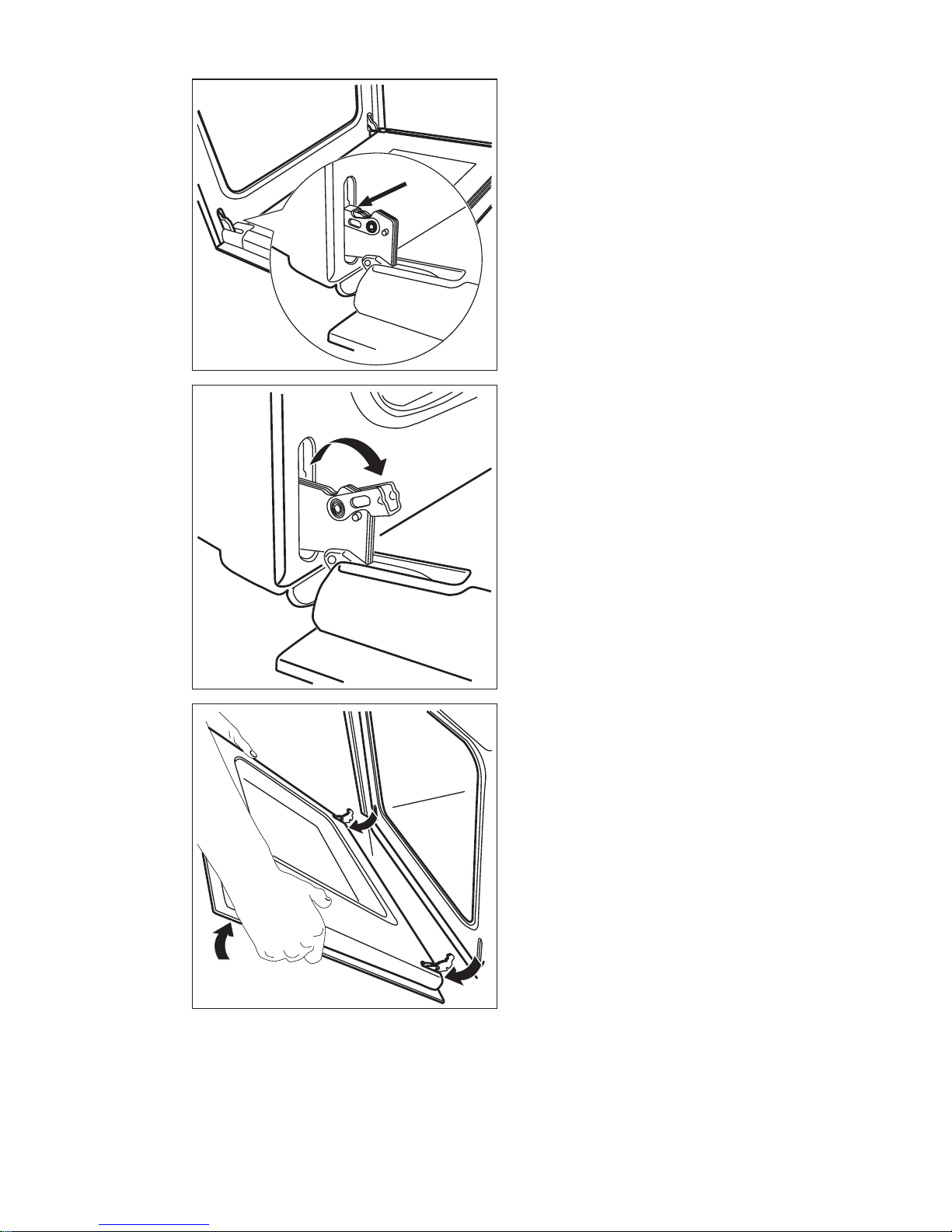

1.
Fully open the door and identify the
hinge to the right side of the door.
2.
Push the tightening component until it
pulls back.
3.
Hold the pushed component with
one hand. Use a screwdriver with the
other hand to lift and turn the right
side hinge lever.
20
www.electrolux.com
Page 21
4.
Identify the hinge to the left side of
the door.
5.
Lift and turn the lever on the left
hinge.
6.
Close the oven door to the first opening position (halfway). Then pull forward and remove the door from its
seat.
ENGLISH 21
Page 22

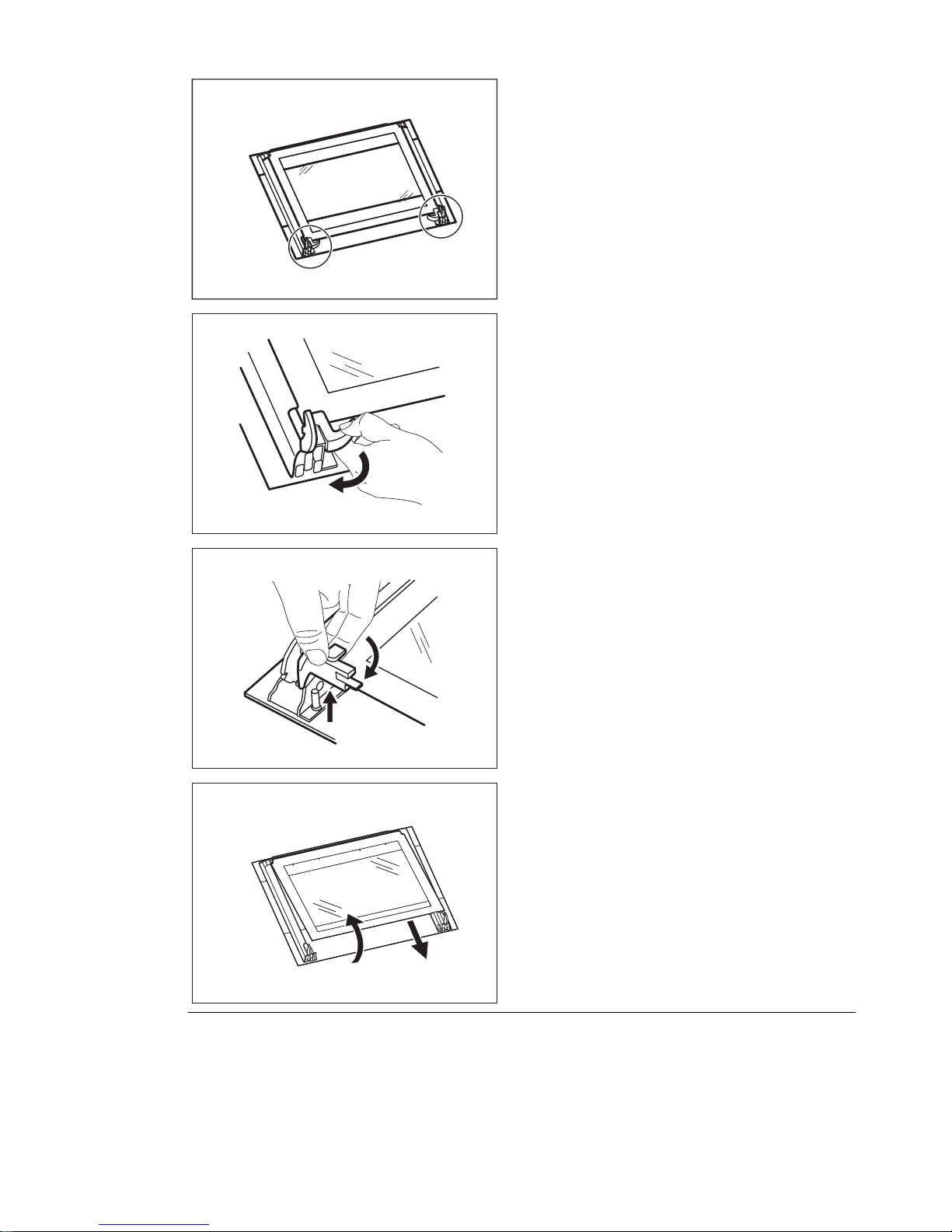

7.
Put the door on a soft cloth on a stable surface.
8.
Release the locking system to remove the internal glass panel.
90°
9.
Turn the two fasteners by 90° and remove them from their seats.
1
2
10.
Carefully lift (step 1) and remove (step
2) the glass panel.
11.
Clean the glass panel with water and
soap. Dry the glass panel carefully.
22
www.electrolux.com
Page 23

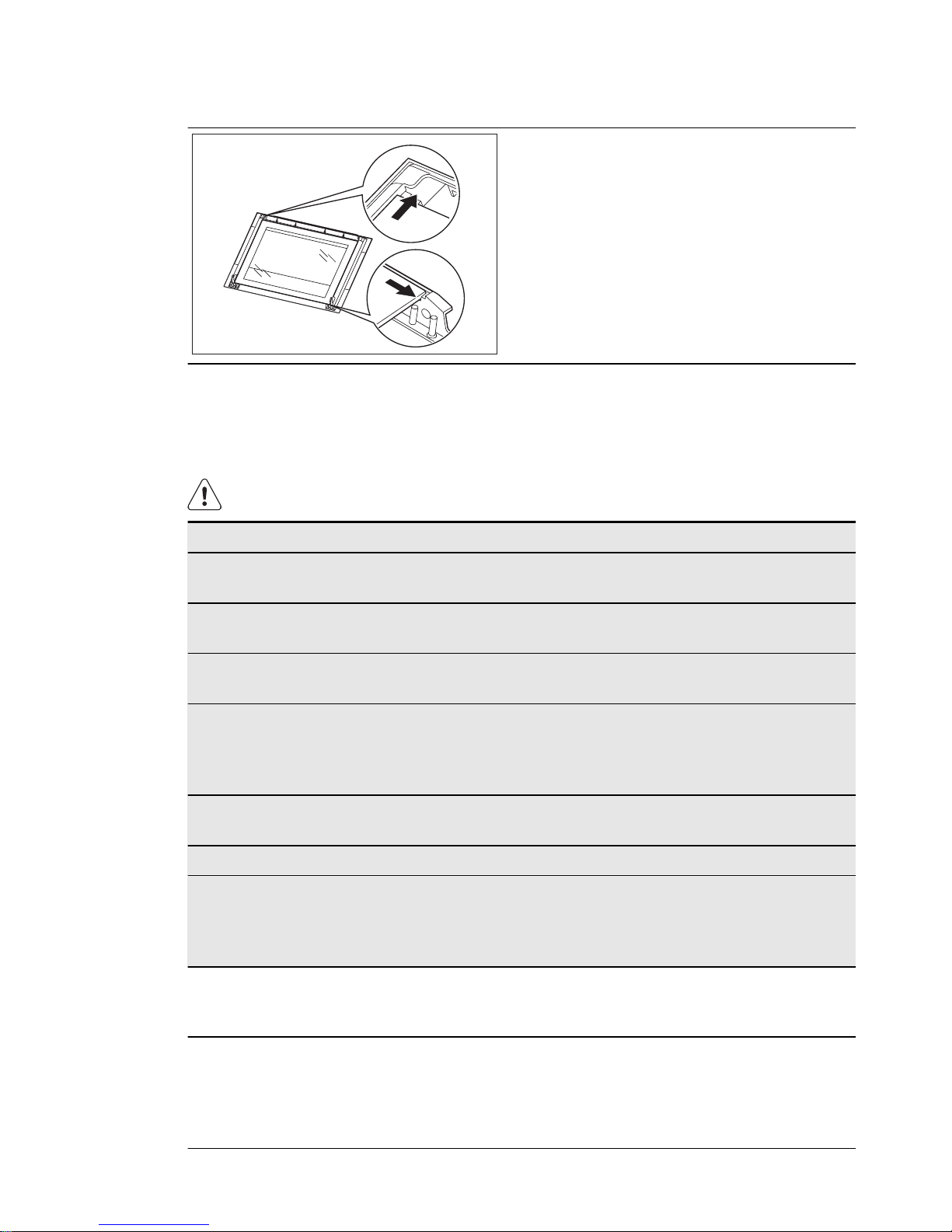

Installing the door and the glass panel
When the cleaning is completed, install
the glass panel and the oven door. Do the
above steps in the opposite sequence.
The screen-printing zone must face the
inner side of the door. Make sure that after the installation the surface of the glass
panel frame on the screen-printing zones
is not rough when you touch it.
Make sure that you install the internal
glass panel in the seats correctly. Refer to
the illustration.
11. WHAT TO DO IF…
WARNING!
Refer to the Safety chapters.
Problem Possible cause Remedy
The oven does not heat
up.
The appliance is deactivated.
Activate the appliance.
The oven does not heat
up.
The clock is not set. Set the clock.
The oven does not heat
up.
The necessary settings
are not set.
Make sure that the settings are correct.
The oven does not heat
up.
The fuse in the fuse box
is released.
Do a check of the fuse. If
the fuse is released more
than one time, contact a
qualified electrician.
The oven lamp does not
operate.
The oven lamp is defective.
Replace the oven lamp.
The display shows 12.00. There was a power cut. Set the clock.
Steam and condensation
settle on the food and in
the oven.
You left the dish in the
oven for too long.
Do not keep the dishes in
the oven for longer than
15 - 20 minutes after the
cooking ends.
If you cannot find a solution to the problem yourself, contact your dealer or the
service centre.
The necessary data for the service centre
is on the rating plate. The rating plate is
on the front frame of the appliance cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
ENGLISH 23
Page 24
12. TECHNICAL DATA
Voltage 230 V
Frequency 50 Hz
13. INSTALLATION
WARNING!
Refer to the Safety chapters.

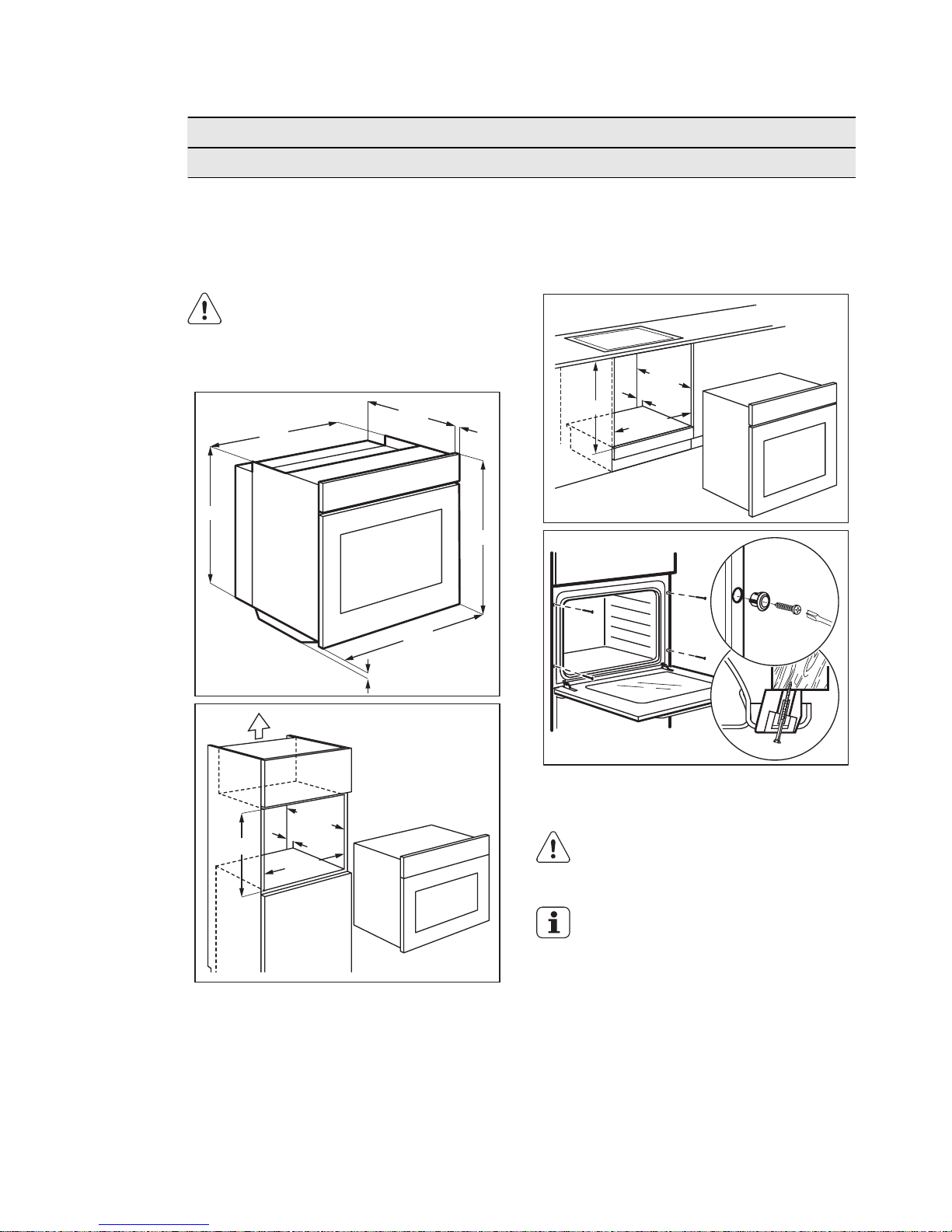

13.1 Building In
573
594
5
589
558
548
20
min. 550
20
590
min. 560
min. 550
min. 560
600
20
A
B
13.2 Electrical installation
WARNING!
Only a qualified person must do
the electrical installation.
The manufacturer is not responsible if you do not follow the safety
precautions from the chapter
"Safety Information".
This appliance is supplied with a main
plug and a main cable.
13.3 Cable
Cable types applicable for installation or
replacement: H07 RN-F, H05 RN-F, H05
RRF, H05 VV-F, H05 V2V2-F (T90), H05
BB-F.
24
www.electrolux.com
Page 25
For the section of the cable refer to the
total power (on the rating plate) and to the
table:
Total power
Section of the ca-
ble
maximum 1380W3 x 0.75 mm²
maximum 2300W3 x 1 mm²
Total power
Section of the ca-
ble
maximum 3680W3 x 1.5 mm²
The earth cord (green / yellow cable) must
be 2 cm longer than phase and neutral
cables (blue and brown cables).
14. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
ENGLISH 25
Page 26
26
www.electrolux.com
Page 27
ENGLISH 27
Page 28
www.electrolux.com/shop
397112502-F-402012
Loading...
