Electrolux EME2820 User Manual
User Manual
8221913- 27 -01
Model EME2820
English
EME2820 U English
Contents
Safety Instructions 4
Utensil safety
Testing suitability of cookware 5
Foil containers
Food safety 5
Oven utensils and accessories guide 6
Technical Data
Unpacking 7
Installation
Connecting to the mains
The microwave and accessorie s 8
Name and function of parts
Accessories

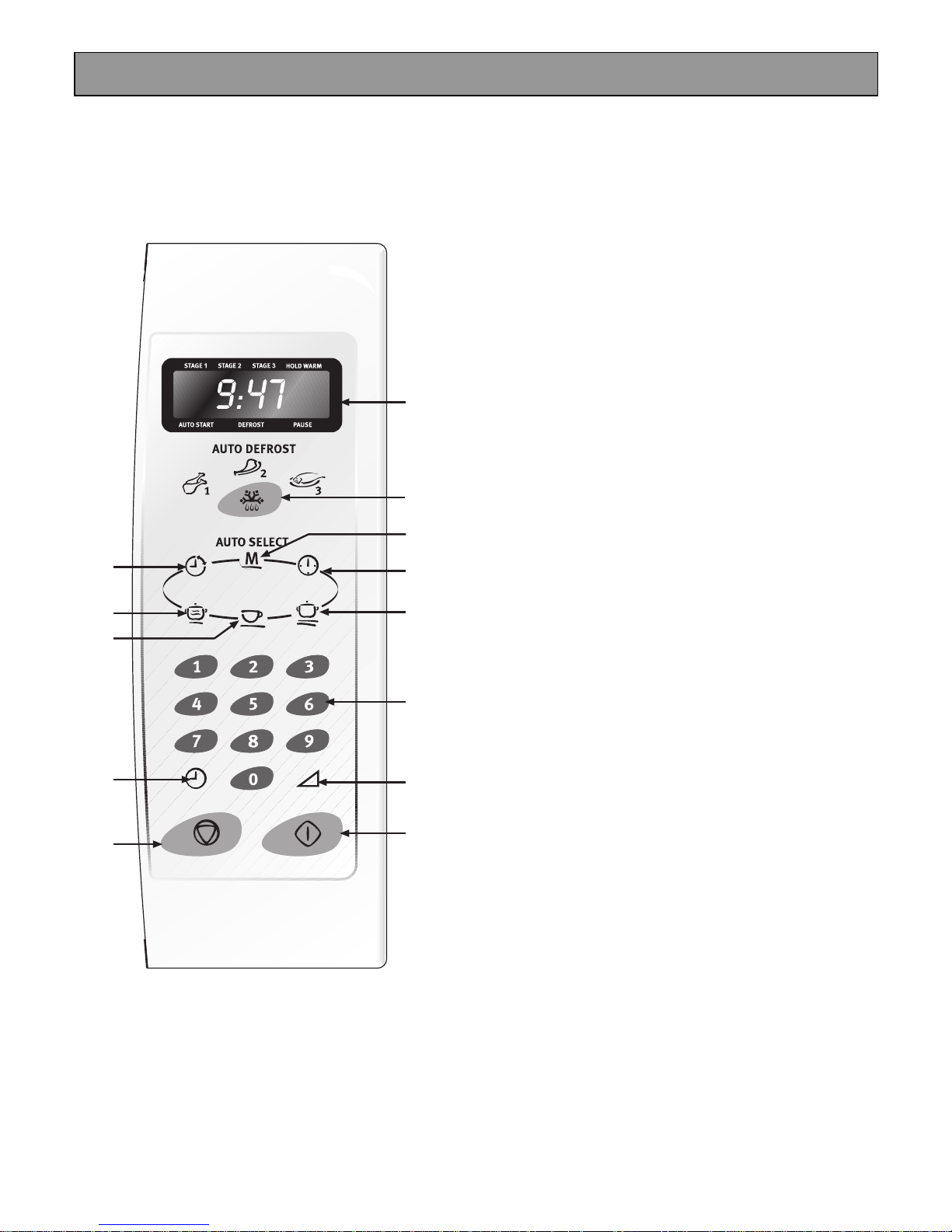

Control panel 9
Display window
Turntable installation
How to operate your microwave oven 10
Pause/Clear
Setting the clock
Child safety lock
Microwave cooking 11
Microwave setting guide
Microwave cooking in two and three stages 12
Manual Defrosting 13
Memory Cooking 14
Hold Warm
Auto Start
Auto Programmes 15
Auto Programme Example 16
Auto Defrost 17
Charts
Recommendations for Defrosting using 180W 18
Microwave Hints 19
Microwave Tips
Care and cleaning 20
Service and spare parts 21
3
EME2820 U English
'SRKVEXYPEXMSRWSRXLITYVGLEWISJ]SYVRI[1MGVS[EZI3ZIR
Thank you for having chosen a Electrolux product . We are convinced that you will find your new microwave
oven very useful and that it will be of great help to you. As with all new kitchen appliances, it will take some
time to learn all the new functions and features, but with time, this oven will become indispensable to you.
Before using your Microwave Oven
Read through the instruction manual carefully and ensure that you follow the recommendatio ns given, these
instructions have been prepared so that you get the best from your new Electrolux Microwave Oven.
It is important that this instruction book is retain ed with the appliance for future reference. Should the appliance
be sold or transferred to another owner, or if you move h ouse and leave the appliance, always ensure that the
book is supplied with the appliance so that the new owner can be acquainted with the f unctioning of the
appliance and the relevant warnings.
Safety Instructions
• The built-in safety interlock switches prevent t he
microwave oven from operating when the door is
open.
• Do not tamper with them, or attempt to operate
the oven with the door open as open door
operation can result in exposure to microwav e
energy.
• Do not allow food spills or cleaner residue to
accumulate on door sealing surfaces. See the
Cleaning and Care section for cleaning
instructions.
• Do not operate the oven if it is damaged unti l it
has been repaired by qualified service personnel.
• It is particularly important that the oven d oor
closes properly and that there is no damage to
the: (1) door (warped), (2) hinges and latches
(broken or insecure), (3) door seals and sealing
surface.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carrie d out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local Service
Force Centre.
• Do not remove the outer case, door or control
panel at any time. Doing so may cause exposure
to extremely high voltage.
• Install or locate this oven only in accordance with
“INSTALLATION INSTRUCTIONS” found in this
manual.
• Use the appliance for its intended use as
described in this manual. Do not use corrosive
chemicals in this appliance. This type of oven is
specifically designed to heat, cook, or defrost
food. It is not designed for industrial or laboratory
use neither for commercial use as this will
invalidate the guarantee.
• Do not operate the oven empty. If food or water is
not present to absorb the microwave energy, the
magnetron tube can be damaged.
• Close supervision is necessary when the oven is
used by children.
• Do not store this appliance outdoors. Do not use
this product near water.
• Do not attempt to dry clothing or newspapers in
the microwave oven. These items can ignite.
• Do not use the cavity for storage purposes. Do
not leave paper products, cooking utensi ls, or
food in the cavity when not in use.
Utensil safety
Most glass, glass ceramic and heat-resistant
glassware utensils are excellent for use in the
microwave oven. Although microwave energy will not
heat most glass and ceramic items, these utensils
can become hot as heat transfers from the food to
the container. The use of oven gloves to remove
dishes is recommended.
4
EME2820 U English
Testing suitability of cookware Food safety
Do not heat food in a can in the microwave oven.
• Place the cookware in the cavity along with a
glass half full of water. Heat on 900 W (100%) for
one minute. If the cookware feels hot, you s hould
not use it. If it is just slightly warm, you can use it
for reheating but not for cooking. If the dish is
room temperature, it is suitable for microwave
cooking.
• Paper napkins, wax paper, paper towels, plates,
cups, cartons, freezer wrap and cardboard are
great convenience utensils. Always be sure
containers are filled with food to absorb energy
and thus avoid the possibility of overheating.
• Many plastic dishes, cups, freezer containers and
plastic wraps may be used in the microwave
oven. Follow manufacturer’s instructions when
using plastics in the oven. Avoid using plastic
utensils with foods that have high fat or sugar
content since these foods reach high
temperatures and could melt some plastics.
Do not leave oven unattended, an d look at it
•
from time to time when heating or cooking
food in plastic, paper or other combustible
containers. If smoke is observed, keep door
closed, switch the oven off or disco nnect
oven until smoke stops.
Metal utensils and utensils with metallic trim
•
should not be used in the microwave oven, unless
specifically recommended for microwave use.
Containers with restricted openings, such as
•
bottles, should not be used for microwave
cooking.
Use caution when removing a lid or cover from a
•
dish to avoid steam burns.
•
Always remove the food to a suitable container.
Deep fat frying should not be done in the
•
microwave oven, because the fat temperature
cannot be controlled, hazardous situations can
result.
Popcorn may be prepared in the microwave oven,
•
but only in special packages or utensils designed
specifically for this purpose. This cooking
operation should never be un-attended.
Pierce foods with non-porous skins or
•
membranes to prevent steam build-up and
bursting. Apples, potatoes, chicken livers, and
egg yolks are examples of items that should be
pierced.
WARNING: When heating liquids, e.g. soups, sauces
and beverages in your microwave oven, overheating
the liquid beyond boiling point can occur without
evidence of bubbling. This could result in a sudden
boil over of the hot liquid. To prevent this possi bility
the following steps should be taken:
1. Avoid using straight-sided containers with narrow
necks.
2. Do not overheat.
3. Stir the liquid before placing the contain er in t he
oven and again halfway through the heating time.
4. After heating, allow to stand in the oven for a
short time, stirring again before carefully removing
the container.
Some products such as whole eggs and sealed
•
containers – for example, closed glass jars – may
explode and should not be heated in th is oven.
Occasionally, poached eggs may explode during
cooking. Always pierce the yolk, then cover and
allow the standing time of one minute bef ore
removing cover.
NOTE:
Do not force the turntable to rotate by hand. This
•
may cause malfunctioning.
Arcing in the oven during microwave operatio n
•
usually occurs from use of metallic utensils.
Continuous arcing, however, can damage the
unit. Stop the programme and check the utensil.
Care should be taken not to obstruct any air vents
•
located on the top, rear, side and bottom of the
oven.
Do not use this oven for commercial purposes.
This oven is made for domestic use only.
Keep these instructions
5
EME2820 U English
Oven utensils and accessories guide
A variety of Utensils and Materials may be used for cooking i n your microwave oven. For your safety and to
prevent damaging utensils and your oven choose, appropriate utensils and materials for each cooking method.
The list below is a general guide.
Material Utensils Microwave Cooking
Ceramic & Glass
China
Pottery YES
Plastic
Metal
Paper
Waxed Paper YES
Wood NO
Accessories
Corning ware
Heat resistant glass ware
Glass ware with metal decoration
Lead crystal glass
Without metal decoration
Microwave oven heat-proof wear
Plastic wrap
Metal baking pan
Aluminium foil*
Cups, plates, towels
Turntable
Turntable support
YES
YES
NO
NO
YES
YES
YES
NO
YES
YES
YES
YES
YES: Utensils and accessories to use
NO: Utensils and accessories to avoid
*NOTE: Use aluminium foil onl y for shielding purposes, overu se may cause arcing.
Technical data
Overall dimension Width
Depth 376 mm
Height 292 mm
Cavity dimension Width
Depth 355 mm
Height 220 mm
520 mm
349 mm
Power source
Fuse
Power consumption
Microwave (Power)
Weight
Volume
230 V, 50 Hz
10 A
1450W
900W
19 kg
28 litre
6
EME2820 U English
GETTING STARTED
Unpacking
N.B. When you unpack the oven, check that the
product is free from damage. Damage or any missing
parts must be reported immediately to the retailer.
The oven, parts of the oven or the accessories may
be wrapped by a protection foil. If so, you must
remove this foil before using the oven. Do not leave
packing material so that small children can play with
it. This can be hazardous.
Installation
1. Remove any promotion label from the door.
2. Install the oven on a flat, level surface. The
surface must be strong enough to safely bear the
weight (19 kg) of the oven, and the contents. To
avoid the possibility of causing vibration or noise
the oven must be in a stable position.
3. Keep the oven away from heat and water.
Exposure to heat and water can lower oven
efficiency and lead to malfunctioning, so be sure
to install the oven away from heat and water
sources.
4. Do not block air vents on the top and the sides of
the cabinet and also do not place any articl es on
the top of the oven. If air vents are blocked during
operation, the oven may overheat, and this may
lead to malfunctioning. Hot air escapes from the
vents, so be sure not to obstruct it or let curtains
come between the oven and the rear wall.
5. Place the oven as far away from radios and TV’s
as possible. Some interference may occur if it is
placed too close to a radio or TV, so keep them
as far apart as possible.
6. If positioned in a corner, leave a gap of at least
5,0 cm from the walls to meet ventilation
demands.
Connecting to the mains
The oven is delivered with the power cord and a plug
for 230V, 50Hz, earthed socket outlet. Earth
protection minimises the risks should a short-circuit
occur. Check to ensure the voltage of the oven
matches the supply.
N.B. If the oven is connected to the socket via an
extension cord, make sure the cord is earthed.
WARNING! This appliance must not be used on a
non-earth protected power supply.
Contact an electrician if you are uncertai n regarding
electrical connection of the oven or provision of earth
protection of the supply.
This appliance must be earthed. If this appliance is
fitted with a non-rewireable plug for which your socket
is unsuitable, the plug should be cut off and the
appropriate plug fitted. If it is necessary to change the
fuse in a non-rewireable plug, the fuse cover must be
refitted. If the fuse cover is lost or damaged, the plug
must not be used until a replacement is obtained.
Electrical connections
This appliance come fitted with a standard 2 pin
moulded Euro plug
WARNING! THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should
this safety measure not be observed.
Important! The oven can be placed almost anywhere
in the kitchen. Make sure the oven is placed on a f lat,
level surface and that vents as well as the surface
underneath the oven are not blocked (for suff icient
ventilation).
If the plug that is fitted to your appliance is not
•
suitable for your socket outlet, it must be cut off
and the appropriate plug fitted.
Remove the fuse from the cut off plug. The cut off
plug should then be disposed of to prevent t he
hazard of shocks in case it should be plugged into a
socket in another part of your home.
7
EME2820 U English
The Microwave and Accessories
1
3
2
5
6
4
4
8
7
Name and function of parts Turntable Installation
1. Cooking compartment. Wipe the compartment
clean after using the oven.
2. Viewing window. Food can be checked while t he
microwave oven is in operation.
3. Oven door. The door must always be firmly
closed while cooking.
4. Latch hook, Safety interlock system.
5. Control panel.
6. Drive shaft for turntable
7. Turntable. Made of special heat-resistant glass.
Food in a suitable container is placed on this tray
for cooking. Do not use the oven without the
turntable.
8. Turntable support. Place the support on the f loor
of the cooking chamber to support the turntable.
1. Place the turntable support on the cavity Bottom.
2. Place the turntable on top of the turnta ble support
as shown in the diagram. Make sure that turntable
hub is securely locked in the turntable shaft. Never
place the turntable upside down.
• Both turntable and turntable support must always be
used during cooking.
• All food and containers of food are always placed on
this turntable for cooking.
• This turntable rotates clockwise and anticlockwise;
this is normal.
Turntable
Roller rest
Turntable Shaft
8
Loading...
