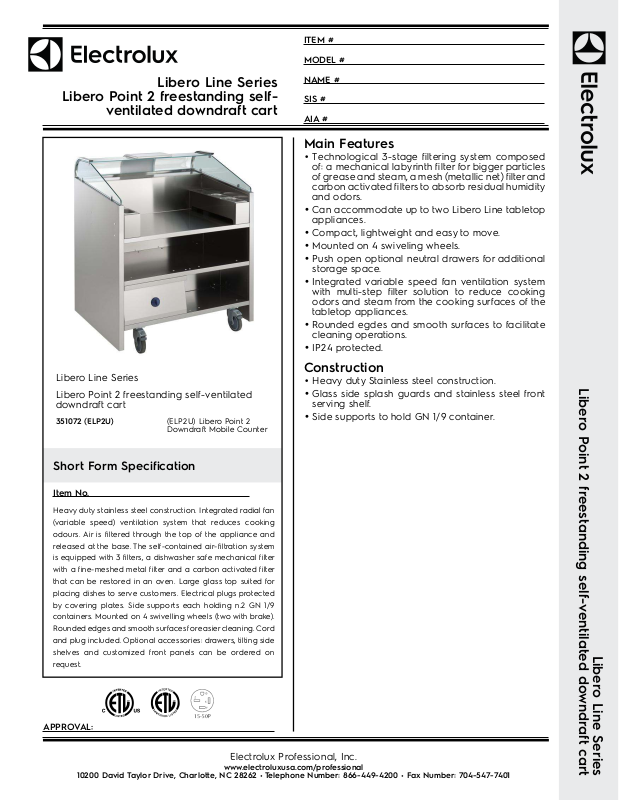

Page 1
ITEM #
MODEL #
Libero Line Series
Libero Point 2 freestanding self-
ventilated downdraft cart
Libero Line Series
Libero Point 2 freestanding self-ventilated
downdraft cart
351072 (ELP2U)(ELP2U) Libero Point 2
Downdraft Mobile Counter
NAME #
SIS #
AIA #
Main Features
•Technological 3-stage filtering system composed
of: a mechanical labyrinth filter for bigger particles
of grease and steam, a mesh (metallic net) filter and
carbon activated filters to absorb residual humidity
and odors.
•Can accommodate up to two Libero Line tabletop
appliances.
•Compact, lightweight and easy to move.
•Mounted on 4 swiveling wheels.
•Push open optional neutral drawers for additional
storage space.
•Integrated variable speed fan ventilation system
with multi-step filter solution to reduce cooking
odors and steam from the cooking surfaces of the
tabletop appliances.
•Rounded egdes and smooth surfaces to facilitate
cleaning operations.
•IP24 protected.
Construction
•Heavy duty Stainless steel construction.
•Glass side splash guards and stainless steel front
serving shelf.
•Side supports to hold GN 1/9 container.
Libero Point 2 freestanding self-ventilated downdraft cart
Short Form Specification
Item No.
Heavy duty stainless steel construction. Integrated radial fan
(variable speed) ventilation system that reduces cooking
odours. Air is filtered through the top of the appliance and
released at the base. The self-contained air-filtration system
is equipped with 3 filters, a dishwasher safe mechanical filter
with a fine-meshed metal filter and a carbon activated filter
that can be restored in an oven. Large glass top suited for
placing dishes to serve customers. Electrical plugs protected
by covering plates. Side supports each holding n.2 GN 1/9
containers. Mounted on 4 swivelling wheels (two with brake).
Rounded edges and smooth surfaces for easier cleaning. Cord
and plug included. Optional accessories: drawers, tilting side
shelves and customized front panels can be ordered on
request.
APPROV AL:
Electrolux Professional, Inc.
www.electroluxusa.com/professional
10200 David T aylor Drive, Charlotte, NC 28262 • T elephone Number: 866-449-4200 • Fax Number: 704-547-7401
Libero Line Series
Page 2
Included Accessories
•4 of Stainless steel 1/9 GN container -
2.5" (65mm) height
•3 of Carbon filterPNC 650069
•1 of Support for containers right side
(LP2 - LP3)
•1 of Support for containers left side
(LP2 - LP3)
•3 of Labyrinth filter with stainless steel
grid
PNC 329050
PNC 650070
PNC 650071
PNC 650072
Optional Accessories
•Stainless steel 1/9 GN container - 2.5
" (65mm) height
•Stainless steel 1/9 GN container - 4
" (100mm) height
•Stainless steel lid for 1/9 GN containersPNC 329052
•Tilting side shelf for Libero PointPNC 650005
•Eutectic platePNC 650013
•Front Panels, teak wood color, set of 2,
for Libero Point 2 (PNC 351072)
•Front Panels, blue color, set of 2, for
Libero Point 2 (PNC 351072)
•Front Panels, red color, set of 2, for
Libero Point 2 (PNC 351072)
•Front Panels, green color, set of 2, for
Libero Point 2 (PNC 600063)
•Top neutral drawer for Libero Point
ventilated cart (PNC 351072 or PNC
351073)
•Bottom neutral drawer for Libero Point
ventilated cart (PNC 351072 or PNC
351073)
•Carbon filterPNC 650069
•Support for containers right side (LP2 -
LP3)
•Support for containers left side (LP2 -
LP3)
•Labyrinth filter with stainless steel gridPNC 650072
PNC 329050
❑
PNC 329051
❑
❑
❑
❑
PNC 650017
❑
PNC 650018
❑
PNC 650019
❑
PNC 650020
❑
PNC 650030
❑
PNC 650033
❑
❑
PNC 650070
❑
PNC 650071
❑
❑
Libero Line Series
Libero Point 2 freestanding self-
ventilated downdraft cart
Page 3
Libero Point 2 freestanding self-
ventilated downdraft cart
Libero Line Series
Front
Electric
Supply voltage:
351072 (ELP2U)208 V /3 ph/60 Hz
Plug Type:NEMA 15-50P
MCA:34A
Motor electrical power:0,3 kW
Key Information:
External dimensions, Width:39 3/8" (1000 mm)
External dimensions, Depth:30 11/16" (780 mm)
External dimensions, Height:47 3/ 8" (1204 mm)
Net weight:220 lbs (100 kg)
Shipping width:44 1/16" (1120 mm)
Shipping depth:35 7 /16" (900 mm)
Shipping height:55 1/8" (1400 mm)
Shipping weight:315 lbs (143 kg)
Top
Shipping volume:49 .83 ft³ (1.41 m³)
EI=Electrical connection
EO=Electrical Outlet
Side
Libero Point 2 freestanding self-ventilated downdraft cart
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Libero Line Series
2016.03.08
