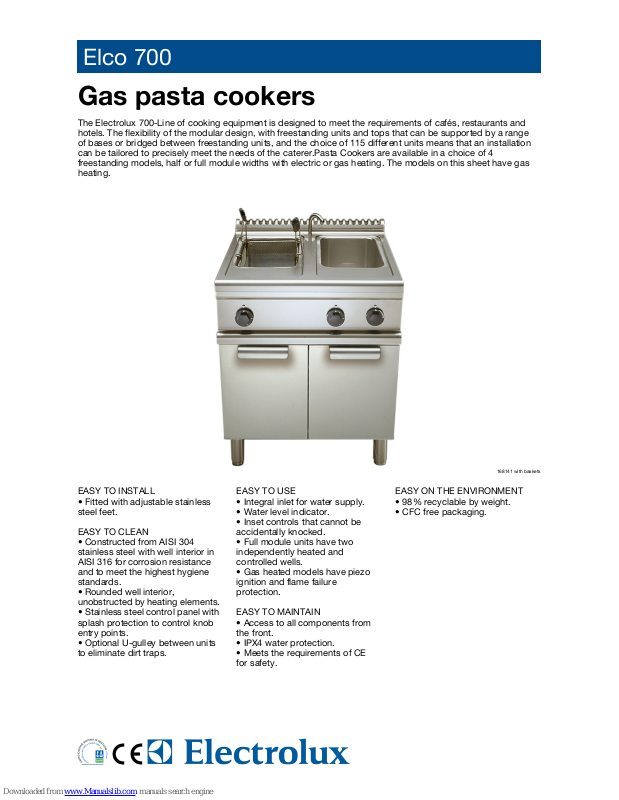

Elco 700
Gas pasta cookers
The Electrolux 700-Line of cooking equipment is designed to meet the requirements of cafés, restaurants and
hotels. The flexibility of the modular design, with freestanding units and tops that can be supported by a range
of bases or bridged between freestanding units, and the choice of 115 different units means that an installation
can be tailored to precisely meet the needs of the caterer.Pasta Cookers are available in a choice of 4
freestanding models, half or full module widths with electric or gas heating. The models on this sheet have gas
heating.
168141 with baskets
EASY TO INSTALL
• Fitted with adjustable stainless
steel feet.
EASY TO CLEAN
• Constructed from AISI 304
stainless steel with well interior in
AISI 316 for corrosion resistance
and to meet the highest hygiene
standards.
• Rounded well interior,
unobstructed by heating elements.
• Stainless steel control panel with
splash protection to control knob
entry points.
• Optional U-gulley between units
to eliminate dirt traps.
EASY TO USE
• Integral inlet for water supply.
• Water level indicator.
• Inset controls that cannot be
accidentally knocked.
• Full module units have two
independently heated and
controlled wells.
• Gas heated models have piezo
ignition and flame failure
protection.
EASY TO MAINTAIN
• Access to all components from
the front.
• IPX4 water protection.
• Meets the requirements of CE
for safety.
EASY ON THE ENVIRONMENT
• 98% recyclable by weight.
• CFC free packaging.
Page 2
Elco 700
Gas pasta cookers
Internet: http://www.electrolux.com/foodservice
CBI0102009-12-16
SUPPORT FOR 4 PASTA COOKER BASKETS 921606 921606
PRESSURE REGULATOR FOR GAS UNITS 927225 927225
MATCHING RING-FLUE CONDENSER 120-130DIAM 206127
LID FOR PASTA COOKERS 921607 921607
DRAUGHT DIVERTER WITH 120 MM DIAMETER 206126
BASKET 350X220 FOR PASTA COOKERS 921611 921611
4 BASKETS 105X160 FOR PASTA COOKERS 921618 921618
2 BASKETS 170X220 FOR PASTA COOKERS 921610 921610
2 BASKETS 105X350 FOR PASTA COOKERS 921619 921619
ACCESSORIES
Net weight - kg. 47 67
gas 10 20
Power - kW
Maximum Well Capacity - lt 18, 24.5 18, 24.5
height 300 300
depth 400 400
width 250 250
Usable well dimensions - mm
N° of wells 1 2
height adjustment 50 50
height 850 850
depth 700 700
width 350 700
External dimensions - mm
Configuration FreeStanding FreeStanding
Power supply Gas Gas
TECHNICAL DATA
7PCSG1S
168140
7PCSG2D
168141
