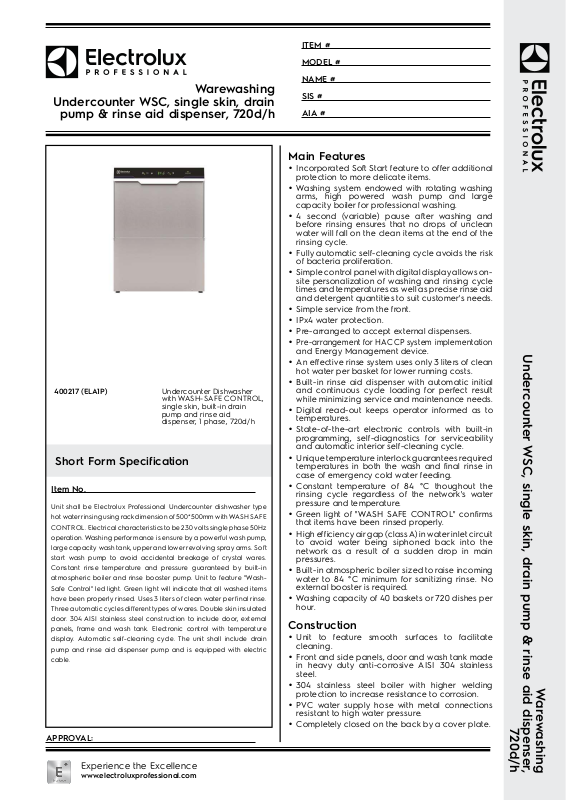

Warewashing
Undercounter WSC, single skin, drain
pump & rinse aid dispenser, 720d/h
400217 (ELA1P)Undercounter Dishwasher
Short Form Specification
Item No.
Unit shall be Electr olux Professional Undercounter dishwasher type
hot water rinsing using rack dimension of 500*500mm with WASH SAFE
CONTROL. Electrical characteristics to be 230 volts single phase 50Hz
operation. Washing performance is ensure by a powerful wash pump,
large capacity wash tank, upper and lower revolving spray arms. Soft
start wash pump to avoid accidental breakage of crystal wares.
Constant rinse temperature and pressure guaranteed by built-in
atmospheric boiler and rinse booster pump. Unit to feature "W ashSafe Control" led light. Green light will indicate that all washed items
have been properly rinsed. Uses 3 liters of clean water per final rinse.
Three automatic cycles different types of wares. Double skin insulated
door. 304 AISI stainless steel construction to include door, external
panels, frame and wash tank. Electronic control with temperature
display. Automatic self-cleaning cycle. The unit shall include drain
pump and rinse aid dispenser pump and is equipped with electric
cable.
APPROV AL:
with W ASH-SAFE CONTROL,
single skin, built-in drain
pump and rinse aid
dispenser, 1 phase, 720d/h
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
•Incorporated Soft Start feature to offer additional
protection to more delicate items.
•Washing system endowed with rotating washing
arms, high powered wash pump and large
capacity boiler for professional washing.
•4 second (variable) pause after washing and
before rinsing ensures that no drops of unclean
water will fall on the clean items at the end of the
rinsing cycle.
•Fully automatic self-cleaning cycle avoids the risk
of bacteria proliferation.
•Simple control panel with digital display allows on-
site personalization of washing and rinsing cycle
times and temperatures as well as precise rinse aid
and detergent quantities to suit customer's needs.
•Simple service from the front.
•IPx4 water protection.
•Pre-arranged to accept external dispensers.
•
Pre-arrangement for HACCP system implementation
and Energy Management device.
•An effective rinse system uses only 3 liters of clean
hot water per basket for lower running costs.
•Built-in rinse aid dispenser with automatic initial
and continuous cycle loading for perfect result
while minimizing service and maintenance needs.
•Digital read-out keeps operator informed as to
temperatures.
•State-of-the-art electronic controls with built-in
programming, self-diagnostics for serviceability
and automatic interior self-cleaning cycle.
•Unique temperature interlock guarantees required
temperatures in both the wash and final rinse in
case of emergency cold water feeding.
•Constant temperature of 84 °C thoughout the
rinsing cycle regardless of the network's water
pressure and temperature.
•Green light of "W ASH SAFE CONTROL" confirms
that items have been rinsed properly .
•High efficiency air gap (class A) in water inlet circuit
to avoid water being siphoned back into the
network as a result of a sudden drop in main
pressures.
•Built-in atmospheric boiler sized to raise incoming
water to 84 °C minimum for sanitizing rinse. No
external booster is required.
•Washing capacity of 40 baskets or 720 dishes per
hour.
Construction
•Unit to feature smooth surfaces to facilitate
cleaning.
•Front and side panels, door and wash tank made
in heavy duty anti-corrosive AISI 304 stainless
steel.
•304 stainless steel boiler with higher welding
protection to increase resistance to corrosion.
•PVC water supply hose with metal connections
resistant to high water pressure.
•Completely closed on the back by a cover plate.
Undercounter WSC, single skin, drain pump & rinse aid dispenser,
Warewashing
720d/h
Experience the Excellence
www.electroluxprofessional.com
Page 2
•Element protection from dry fire and low water.
•Interchangeable wash/rinse arms screw out for simple
clean up.
•The boiler drain facilitates the evacuation of stagnant
water after long periods of inactivity to ensure a higher
level of hygiene.
•Double skin insulated door to reduce heat dispersion.
•Large wash tank with round corners and no pipes to
avoid dirt built-up.
•Incorporated drain pump to control water level in wash
tank draining.
•Single phase electrical connection.
•Unit to include drain pump and rinse aid dispenser pump.
Included Accessories
•1 of Yellow cutlery containerPNC 864242
•1 of Basket for 18 dinner plates -
yellow
PNC 867002
Optional Accessories
•12lt external manual water softenerPNC 860412❑
•8lt external automatic water softenerPNC 860413❑
•Stand for undercounter dishwasherPNC 860418❑
•External detergent level probe kit PNC 864004❑
•External rinse aid level probe kitPNC 864005❑
•Kit 4 flanged feet for undecounter
dishwashers
•Stainless steel inlet hose kitPNC 864016❑
•Filter for partial demineralizationPNC 864017❑
•Kit to measure total and partial
water hardness
•Detergent dosing kitPNC 864218❑
•Stainless steel tank filter for single
skin undercounter
•Yellow cutlery containerPNC 864242❑
•Reverse osmosis filter for single tank
Dishwasher with atmosphere boiler
•Pressure reducer for single tank
dishwasher
•Kit 4 plastic boxes for cutlery -
yellow
•Basket for 18 dinner plates - yellowPNC 867002❑
•Basket for 5 trays 530x325 mm - red,
for undercounter (top level), utensil
dishwashers, hood type, rack type
•Basket for 48 small cups or 24 cups -
blue
•Cover rack for small and light items
(500x500 baskets)
PNC 864009❑
PNC 864050❑
PNC 864222❑
PNC 864388❑
PNC 864461❑
PNC 86557 4❑
PNC 867006❑
PNC 867007❑
PNC 867016❑
Warewashing
Undercounter WSC, single skin, drain
pump & rinse aid dispenser, 720d/h
Undercounter WSC, single skin, drain pump & rinse aid dispenser , 720d/
The company reserves the right to make modifications to the pr oducts
without prior notice. All information correct at time of printing.
Warewashing
h
2021.07 .20
Page 3
Warewashing
Undercounter WSC, single skin, drain
pump & rinse aid dispenser, 720d/h
Front
Electric
Supply voltage:
400217 (ELA1P)230 V /1 ph/50 Hz
Convertible to:
Default Installed Power:3.65 kW
Boiler heating elements: 2,8 kW
Tank heating elements:2 kW
Wash pump size: 0.736 kW
Water:
Pressure, bar min/max:0.5-7 bar
Water supply temperature*:50 °C
Drain line size:40 mm
Inlet W ater supply pressure:7 - 102 psi (0.5 - 7 bar)
Washing tank capacity (lt):33
Water consumption per cycle
(lt):3
Boiler Capacity (lt):5,8
Side
Key Information:
Baskets per hour*:40
Dishes per hour:720
Working cycles time (sec.):90/120/240
Wash temperature:55-65°C
Cell dimensions - width:500 mm
Cell dimensions - depth:500 mm
Cell dimensions - height:330 mm
Rinse temperature:84 °C
External dimensions, Width:600 mm
External dimensions, Height:820 mm
External dimensions, Depth:648 mm
Packaging size
(WxDxH):740x670x1020 mm
Noise level:<70 dBA

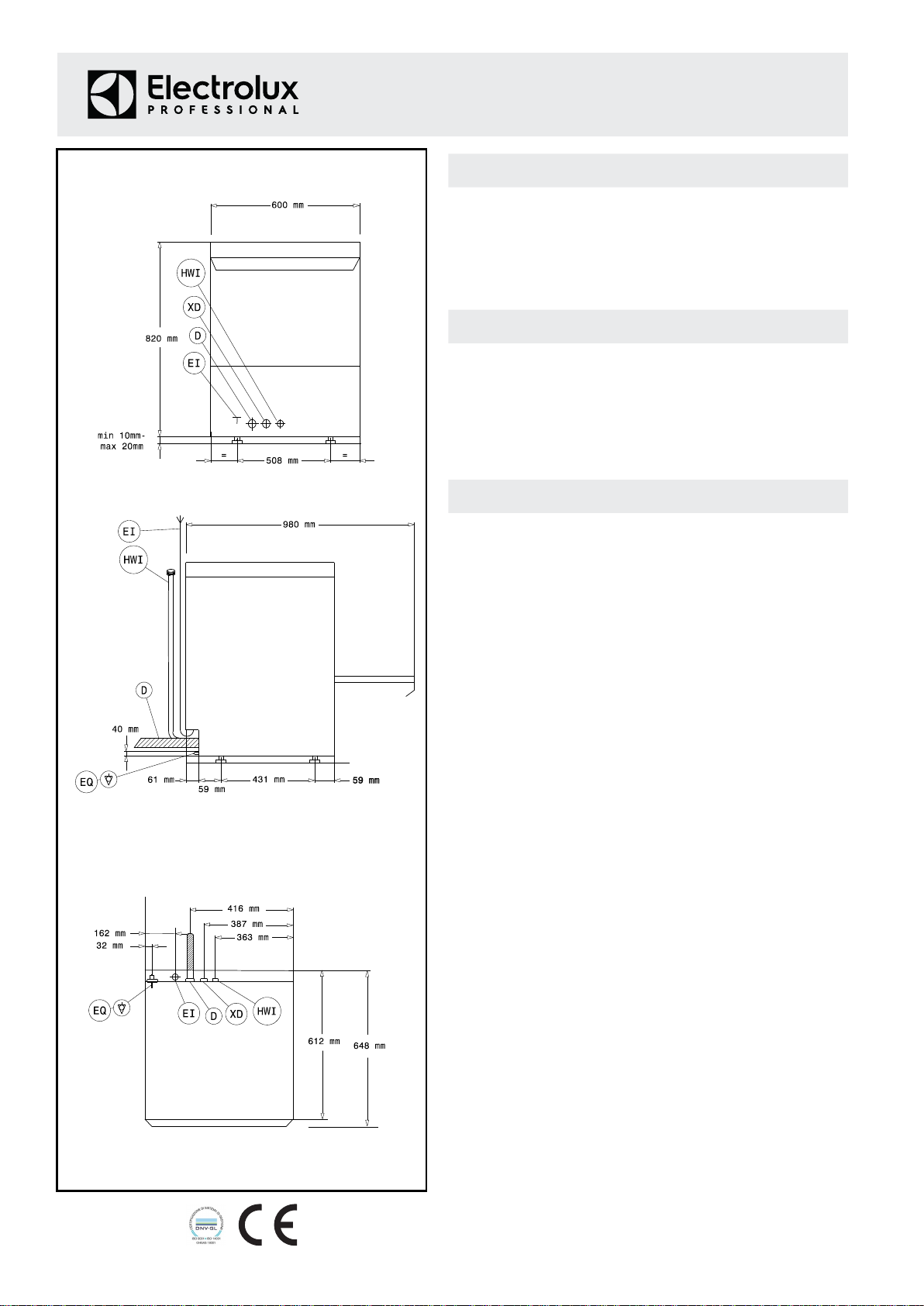

D=Drain
EI=Electrical inlet (power )
EO=Electrical Outlet
HWI=Hot water inlet
XR=Rinse aid connection
Top
Undercounter WSC, single skin, drain pump & rinse aid dispenser , 720d/
The company reserves the right to make modifications to the pr oducts
without prior notice. All information correct at time of printing.
Warewashing
h
2021.07 .20
