Page 1
Electric cookers
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
35673-8502
Mod. EK 5741
1
GB
Page 2
Important Safety Information
You MUST read these warnings carefully before installing or using the appliance. If you
need assistance, contact our Customer Care Department on 08705 950950
Installation
l This cooker must be installed by qualified
personnel, according to the manufacturers
instructions and to the relevant British
Standards.
This cooker is heavy. Take care when moving it.
l Remove all packaging before using the cooker.
l Ensure that the electrical supply complies with
the type stated on the rating plate.
l Do not attempt to modify the cooker in any way.
Child Safety
l This cooker is designed to be operated by
adults. Do not allow children to play near or with
the cooker.
l This cooker should be kept clean at all times.
A build-up of fats or foodstuffs could result in a
fire.
l Do not store flammable materials in the storage
drawer.
l Never use plastic dishes in the oven or on the
hob hotplates. Never line any part of the oven
with aluminium foil.
l Always ensure that the oven vent which is
located at the centre back of the hob is left
unobstructed to ensure ventilation of the oven
cavity.
l Perishable food, plastic items and areosols may
be affected by heat and should not be stored
above the cooker.
l The cooker gets hot when it is in use. Children
should be kept away until it has cooled.
l Children can also injure themselves by pulling
pans or pots off the cooker.
During Use
l This cooker is intended for domestic cooking
only. It is not designed for commercial or
industrial purposes.
l Do not use this cooker if it is in contact with
water. Do not operate the cooker with wet hands.
l Ensure the control knobs are in the OFF
position when not in use.
l When using other electrical appliances, ensure
the cable does not come into contact with the
hot surfaces of the cooker.
l Unstable or misshapen pans should not be used
on the hob hotplates as unstable pans can cause an accident by tipping or spillage.
Service
l This cooker should only be repaired or serviced
by an authorised Service Engineer and only genuine approved spare parts should be used.
Environmental Information
l After installation, please dispose of the
packaging with due regard to safety and the
environment.
l When disposing of an old appliance, make it
unusable, by cutting off the cable.
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
These instructions are valid for UK only.
l Never leave the cooker unattended when
cooking with oil and fats.
2
Page 3
Contents
For the User
Important Safety Information 2
Description of the Cooker 4
Control Panel 5
Operation 6
Before the First Use of the Oven 7
Using the Oven 8
Using the Conventional Oven 9
Grilling 11
Maintenance and Cleaning 12
Cleaning the Oven 13
Something Not Working 14
For the Installer

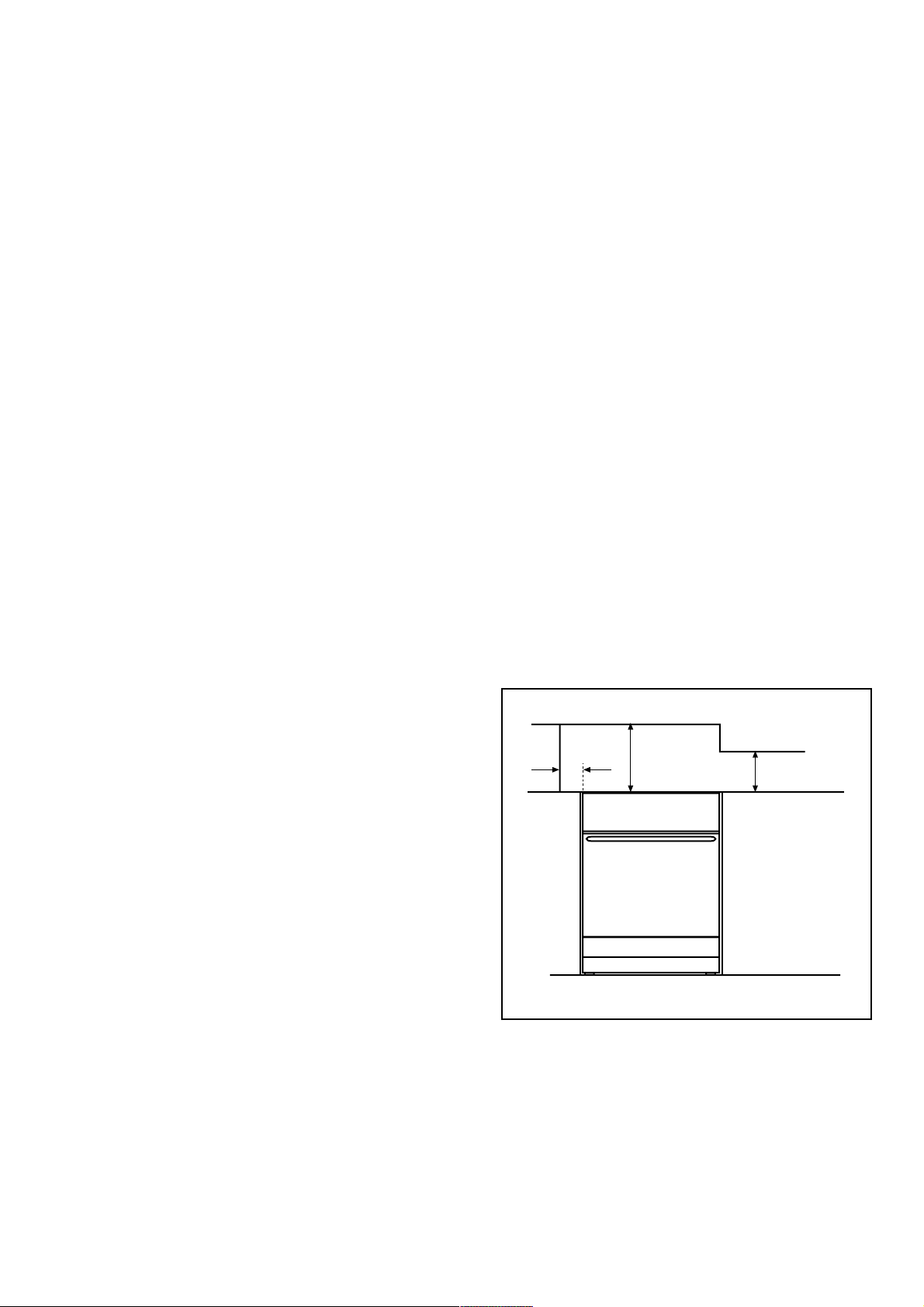

Important Safety Requirements 18

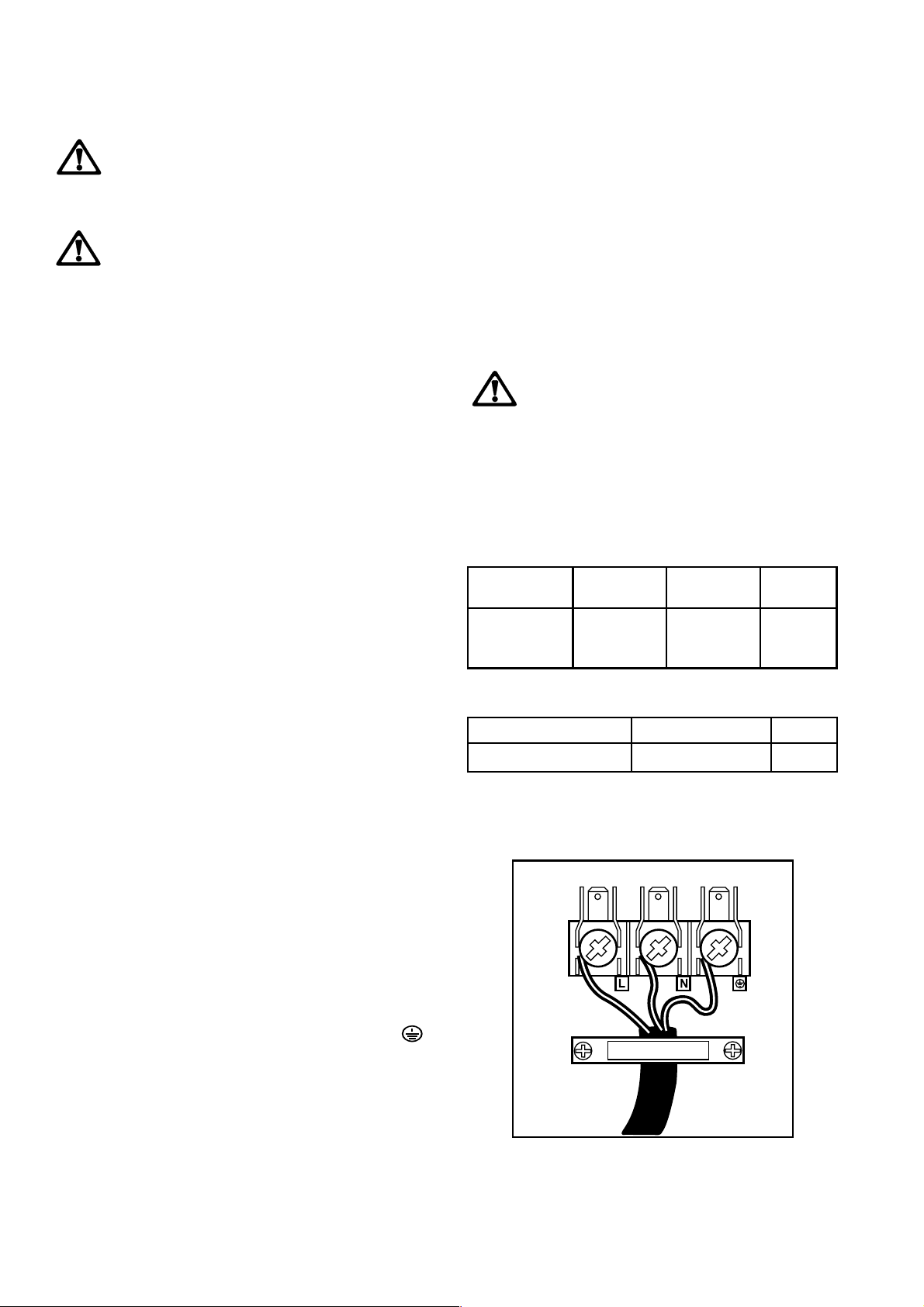

Electrical connections 19
Guide to Use the instructions
The following symbols will be found in the text to
guide you throughout the Instructions:
Safety Instructions
F
Step by step instructions for an
operation
Hints and Tips
Environmental information
This appliance is manufactured
according to the following EEC
directives:
73/23 EEC - 90/683 EEC - 93/68 EEC 89/336 EEC current edition.
Oven Door Protection Device
All our appliances comply with the
European safety standards.
Nevertheless, in order to ensure the
highest safety level, and avoid small
children to be exposed to the heat
when the appliance is operated, it is
possible to fit a special protection
device to the oven door. This device
can be purchased in our Service
Force Centres, specifying the
relevant code (35791) and the
Product No. shown on the rating
plate.
3
Page 4
Description of the Cooker
Back left hotplate
Front left hotplate
Control panel
Oven door
Back right hotplate
Front right hotplate
mains on
temperature
Storage drawer
4
Page 5
Control Panel
2
front left back left back right front right
3
1. Oven Thermostat Pilot Light
2. Cooker Operation Pilot Light
3. Front left hotplate control knob
4. Back left hotplate control knob
5. Back right hotplate control knob
6. Front right hotplate control knob
7. Oven function control knob
Premier
654
grill and oven
7
mains on
temperature
1
The Oven Cavity
Grill element
Oven Light
Accessories
Removable handle
Q
Grill/roasting pan
P
Grill trivet
5
Page 6
Operation
Electric Hotplates
To switch on a hotplate, turn the relevant control
knob to the required heat setting.
The control knob is numbered 0 - 6
0 - OFF
1 - Minimum
6 - Maximum.
The hob has two types of hotplates:
Normal Hotplates
We recommend the plates are switched to
maximum (6) for a short while to boost the plate,
and then adjusted to the required setting.
Rapid Hotplate (Front right)
The rapid hotplates indicated by a red spot, will
heat up more quickly than a normal plate.
Over a period of time the red spot may
disappear, this will not affect the performance of the hotplate.
It is important to note that the plate may
smoke a little and produce a slightly
unpleasant odour when used for the first
time. This is quite normal and will
disappear after a few minutes.
Suggestions for the correct setting of the plates
are given in the following table.
OFF 0
Very Gentle 1 To keep food warm
To melt butter and chocolate
Hints and Tips
Saucepans for use on solid plates should have
several characteristics:
l They should be fairly heavy duty
l They should fit the heat area exactly, or be
slightly larger for efficient use, NEVER
smaller.
l They should have a flat base to ensure good
contact with the plate.
This is particularly important when using pans
for high temperature frying or pressure
cooking.
As soon as liquid starts boiling, turn down the
plate control knob so that it will barely keep the
liquid simmering.
You can switch off the plate a short while before
you finish cooking, and the final stage will be
completed on the accumulated heat. Similarly,
stews etc. cooked in well covered saucepans
cook at lower temperature which is more
economical.
Ensure pans are large enough to avoid
liquids being split onto the plates.
Never leave the plates on without a pan on
them or with an empty pan on them.
Take care never to lean or reach over a hot
electric plate. Always point pan handles
inward or over the work surface next to the
hob to avoid accidentally knocking over a
pan as you pass by.
Take care when frying food in hot oil or fat,
as the overheated splashes could easily
ignite.
If the control knobs become difficult to turn,
please contact your local Electrolux
Service Centre.
Gentle 2 To prepare cream-sauces,
stews and milk puddings
or to fry eggs
Slow 3 Dried vegetables, frozen
food, fruit, boiling water
or milk
Medium 4 Boiled potatoes, fresh
vegetables, pâtés, soups,
broths, pancakes or fish
High 5 Larger stews, meat roll, fish,
omelettes, steaks
Fast 6 Steaks, escalopes and
frying.
6
Page 7
Electric Oven

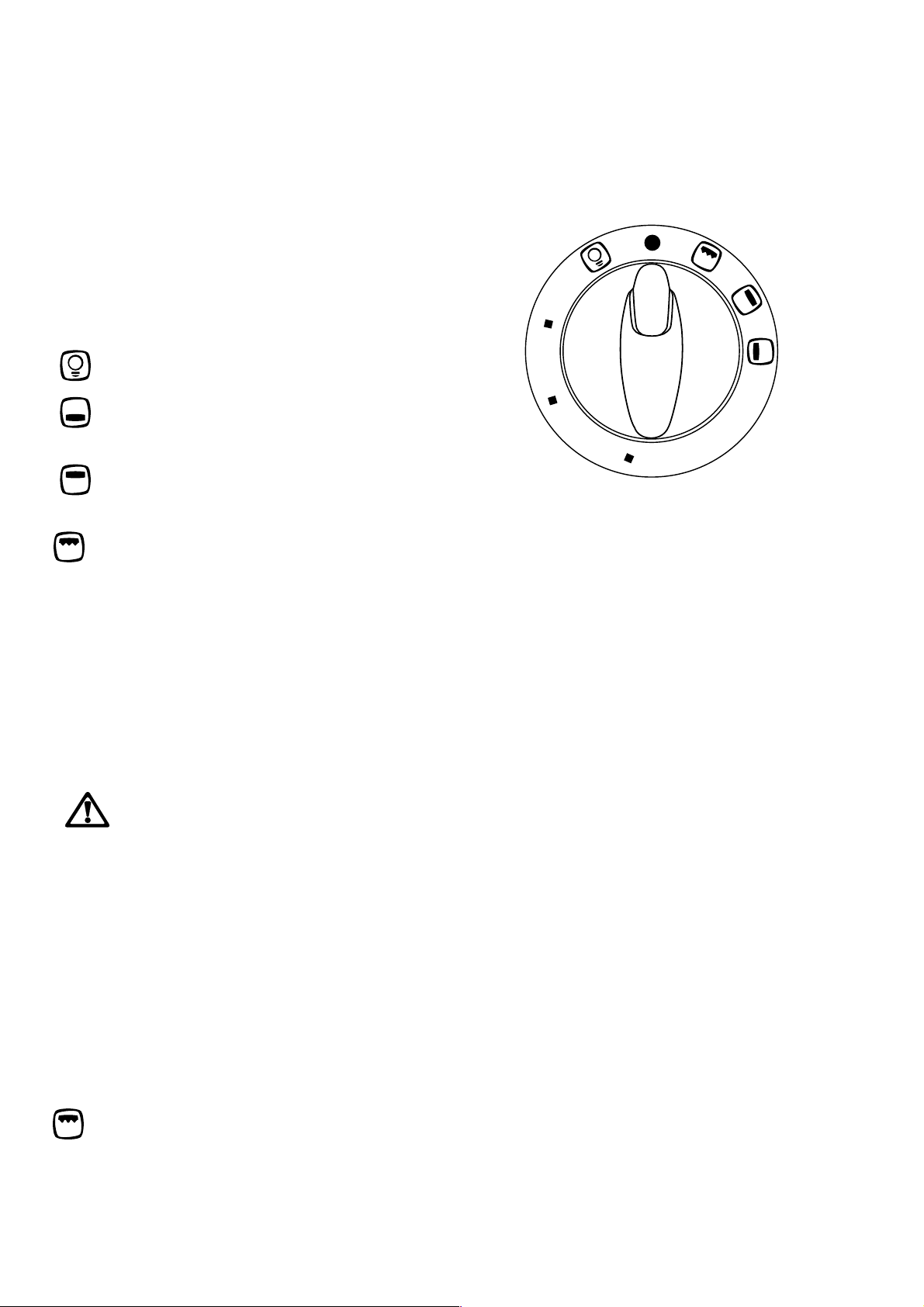

Oven Function Control Knob
l Oven switched off
l-max Range of temperature regulation for
conventional cooking
Oven light
Bottom heating element - The heat
comes from the bottom of the oven only
Top heating element - The heat comes
from the top of the oven only
Grill - The heat comes only from the top
element
50
100
150
200
Before the First Use of the Oven
max
Remove all packaging, both inside and
outside the oven, before using the oven.
Before first use, the oven should be heated
without food. During this time, an unpleasant
odour may be emitted. This is quite normal.
F
This procedure should be repeated with the grill
1. Set the oven function control knob to
MAX.
2. Open a window for ventilation.
3. Allow the oven to run empty for
approximately 45 minutes.
function for approximately 5-10 minutes.
7
Page 8
Using the Oven
Always cook with the oven door closed.
Stand clear when opening the drop
down oven door. Do not allow it to fall
open - support the door using the door
handle, until it is fully open.

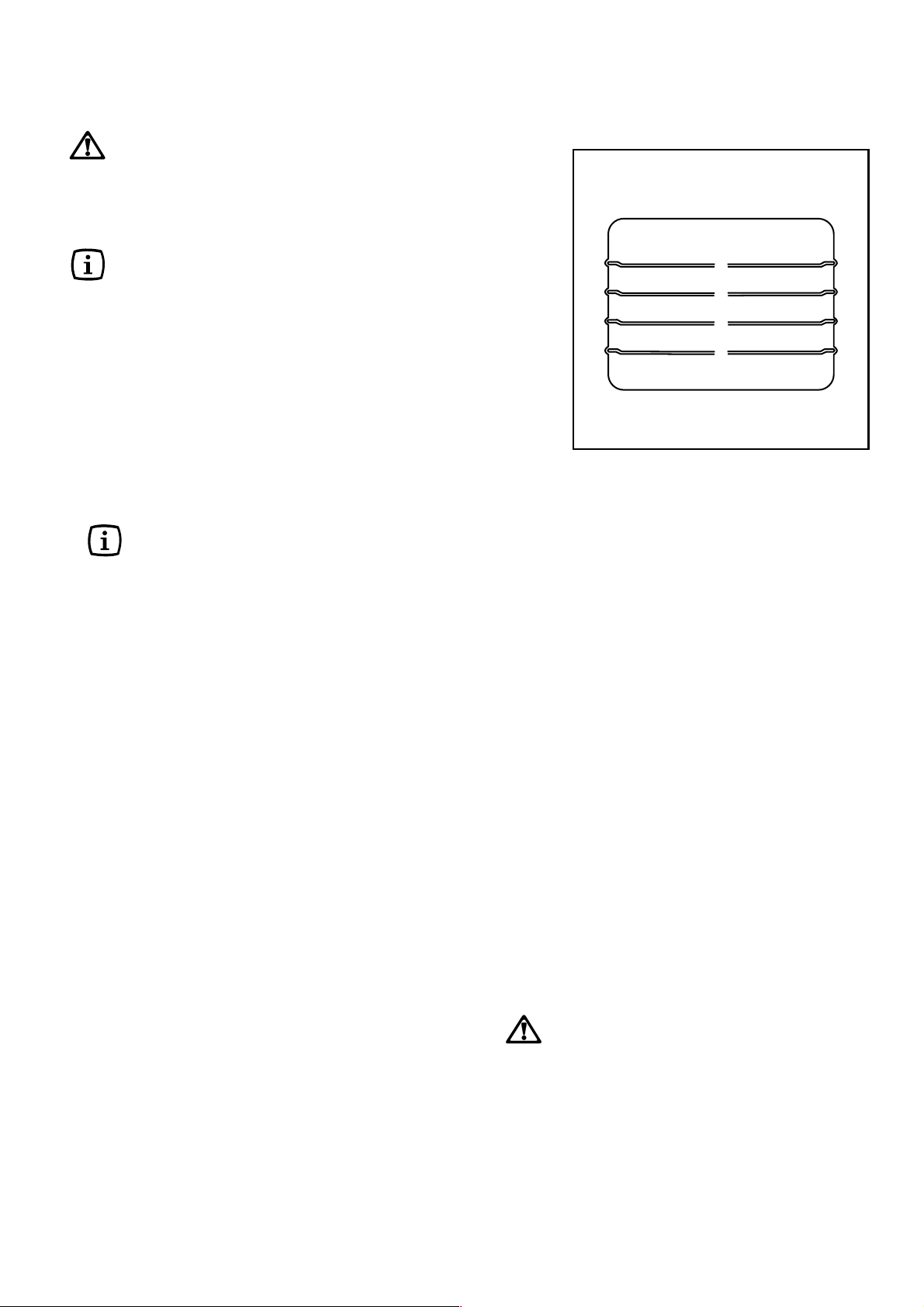

The oven has four shelf levels, and is
supplied with one shelf.
The shelf positions are counted from the
bottom of the oven as shown in the
diagram.
It is important that the shelf is correctly
positioned as shown in the diagram.
Do not place cookware directly on the oven
base.
Additional shelves are available from your
local Service Force Centre.
4
3
2
1
Hints and Tips
Condensation and steam
When food is heated it produces steam in the
same way as a boiling kettle. The oven vents
allow some of this steam to escape. However,
always stand back from the oven when
opening the oven door to allow any build up of
steam or heat to release.
If the steam comes into contact with a cool
surface on the outside of the oven, e.g. a trim, it
will condense and produce water droplets. This
is quite normal and is not a fault with the oven.
To prevent discoloration, regularly wipe away
condensation and also soilage from surfaces.
Cookware
Use any oven proof cookware which will
withstand temperatures of 250°C.
Baking trays, oven dishes, etc. should not be
placed directly against the grid covering the
fan at the back of the oven, or placed on the
oven base.
Do not use baking trays larger than 30 cm x
35 cm (12 in x 14 in) as they will restrict the
circulation of heat and may affect performance.
The effects of dishes
on cooking results
Dishes and tins vary in their thickness,
conductivity, colour, etc. which affects the way
they transmit heat to the food inside them.
A Aluminium, earthenware, oven glassware
and bright shiny utensils reduce cooking and
underneath browning.
B Enamelled cast iron, anodized aluminium,
aluminium with non-stick interior and
coloured exterior and dark, heavy utensils
increase cooking and underneath browning.
Storage Drawer
The storage drawer is located underneath the
oven cavity.
During cooking the storage drawer may
become hot if the oven is on high for a
long period of time, therefore flammable
materials such as oven gloves, tea towels,
plastic aprons etc. should not be stored in
the drawer.
Oven accessories such as baking sheets,
will also become hot, therefore care
should be taken when removing these
items from the drawer whilst the oven is in
use or still hot.
8
Page 9
Using the Conventional Oven
How to Use the
F
Conventional Oven
Turn the oven function control knob to the
required temperature.
THINGS TO NOTE
l
The thermostat control light will remain on
until the correct temperature is reached. It will
then cycle on and off to show that temperature is being maintained.
Top oven element only
This function is suitable for finishing cooked
dishes, eg; lasagne, shepherds pie, cauliflower
cheese etc.
Bottom oven element only
This function is particularly useful when blindbaking pastry or cooking pizza. It may also be
used to finish off quiches or flans to ensure the
base pastry is cooked through.
Hints and Tips
The middle shelf position allows for the best heat
distribution. To increase base browning simply
lower the shelf position. To increase top
browning, raise the shelf position.
The material and finish of the baking trays and
dishes used will affect base browning.
Enamelware, dark, heavy or non-stick utensils
increase base browning, while oven glassware,
shiny aluminium or polished steel trays reflect
the heat away and give less base browning.
Always place dishes centrally on the shelf to
ensure even browning.
Stand dishes on suitably sized baking trays to
prevent spillage onto the base of the oven and
make cleaning easier.
Do not place dishes, tins or baking trays directly
on the oven base as it becomes very hot and
damage will occur.
Single level cooking gives best results.
9
Page 10
Cooking Chart
These charts are intended as a guide only. It may be necessary to increase or decrease the temperature to suit your individual requirements. Only experience will enable you to determine the correct setting
for your personal requirements.
Food Temperature (°C) Runner Cooking
Positions Time (mins)
Biscuits - small cakes 160-180 2 25-30
Bread, buns, yeast, doughs 200-220 2 35-45
Casseroles 150-170 1-2 90-180
Queen Victoria sponge 170-190 1-2 20-30
Cakes - madeira, rich fruit 150-170 2 90-150
Choux pastry, eclairs 200-220 2 30-35
Fish 200-220 2 20-40
Fruit pies, plate tarts, crumbles 180-200 2 50-65
Meringues 90-100 2 90-150
Milk puddings 140-160 2 90-150
Pate, terrine (in baine-marie) 160-180 1-2 60-90
Pizzas 200-230 1-2 25-30
Puff pastry, sausage rolls, vol-au-vents 200-220 2 15-25
Quiches, flans 170-200 1-2 50-60
Scones 200-220 2 8-15
Souffle 200-220 2 35-45
Stuffed vegetables 200-220 2 35-45
Roast meat & poultry 180-200 2
Yorkshire pudding 200-220 2 40-50
Keep food warm, heat dishes 90-100 2
Meat and Poultry Roasting Chart
Meat Cooking Time
Beef 20-35 mins per 1/2kg (lb) + 20-35 mins
When roasting, ensure the
meat is cooked thoroughly, use
a meat thermometer if preferred
to check the centre temperature
has reached the required temperature (see table below).
see meat + poultry
roasting chart
Beef, boned 25-35 mins per 1/2kg (lb) + 25-35 mins
Mutton and Lamb 25-35 mins per 1/2kg (lb) + 25-35 mins
Pork and Veal 30-40 mins per 1/2kg (lb) + 30-40 mins
Ham 30-40 mins per 1/2kg (lb) + 30-40 mins
Chicken 15-20 mins per 1/2kg (lb) + 20 mins
Turkey and Goose 15-20 mins per 1/2kg (lb) up to 3.5kg
(7.5lb) + 15 mins
Duck 25-35 mins per 1/2kg (lb) + 20 mins
10
MEAT TEMPERATURES
Beef Rare - 60°C
Medium - 70°C
Well Done - 80°C
Pork Well Done - 80°C
Lamb Medium - 70°C
Well Done - 80°C
Page 11

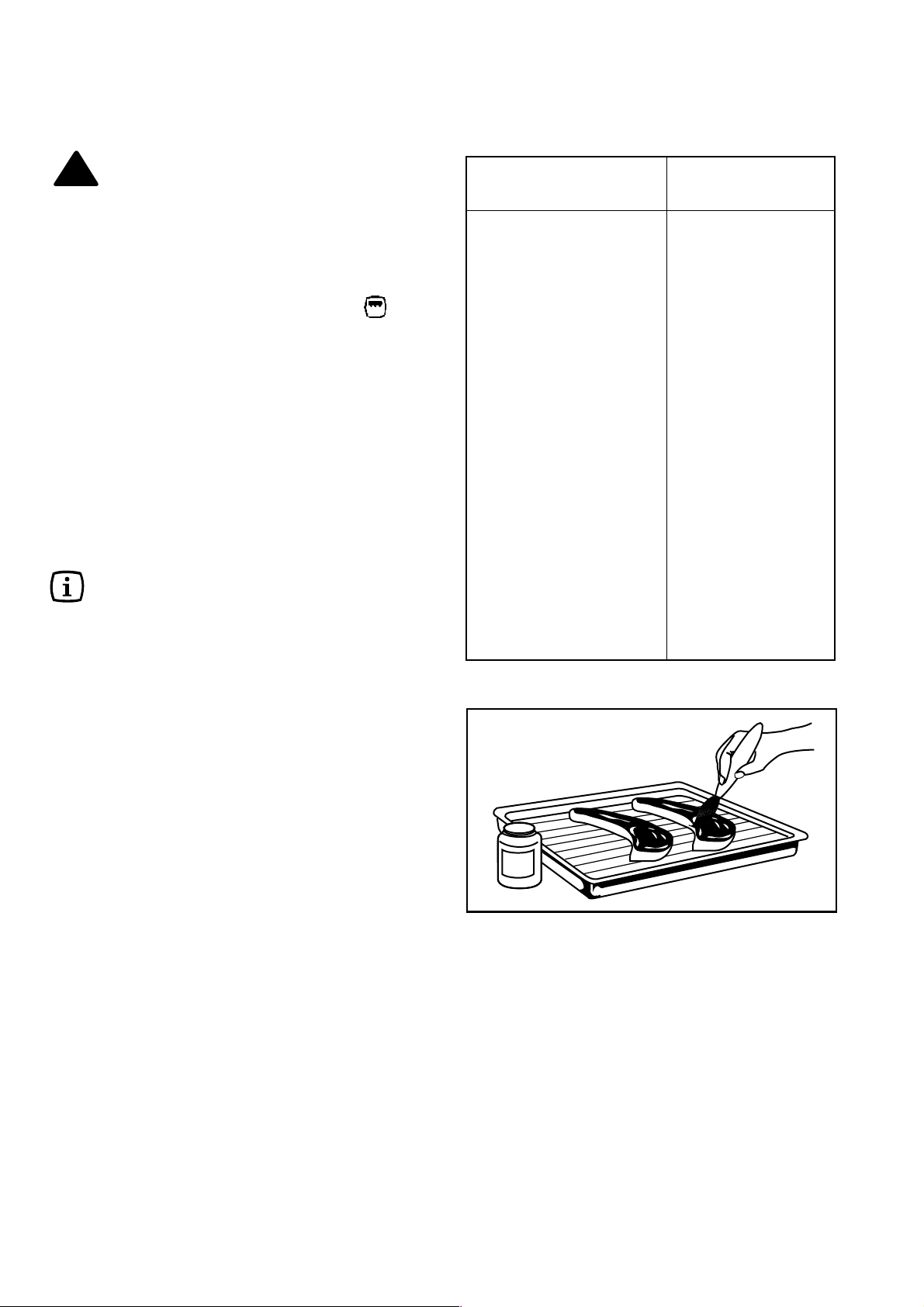

Grilling
Grilling must be carried out with the
oven door closed. The grill pan
handle must be removed from the
pan.
How to Use the Grill
F
1. Turn the oven control function knob to .
2. Adjust the grid and grill pan runner position to
allow for different thicknesses of food.
Position the food close to the element for
faster cooking and further away for more
gentle cooking.
Preheat the grill for a few minutes before
sealing steaks or toasting. Adjust the shelf as
necessary, during cooking.
Hints and Tips
- Most foods should be placed on the grid in the
grill pan to allow maximum circulation of air to
lift the food out of the fats and juices.
Food
Bacon rashers 2-3 each side
Beefburgers 6-10 each side
Chicken joints 10-15 each side
Chops: 7-10 each side
Fish: 8-12 each side
Kebabs 10-15 each side
Kidneys: 4-6 each side
Liver: 5-10 each side
Sausages 10-15 turn as required
Steaks: 3-6 each side
Browning only 3-5
lamb
pork
whole trout/herring
fillets plaice/cod
lamb/pig
lamb/pig
rare
medium
well
Grill
Time (Min)
10-15 each side
4-6 each side
6-8 each side
7-10 each side
- Food such as fish, liver and kidneys may be
placed directly on the grill pan, if preferred.
- Food should be thoroughly dried before
grilling to minimise splashing. Brush lean
meats and fish lightly with a little oil or melted
butter to keep them moist during cooking
- Accompaniments such as tomatoes and
mushrooms may be placed underneath the
grid when grilling meats
- When toasting bread, we suggest that the top
runner position is used.
- The food should be turned over during
cooking, as required.
O
L
I
11
Page 12
Maintenance and Cleaning
Before any maintenance or cleaning
can be carried out, you must
DISCONNECT the cooker from the
electricity supply.

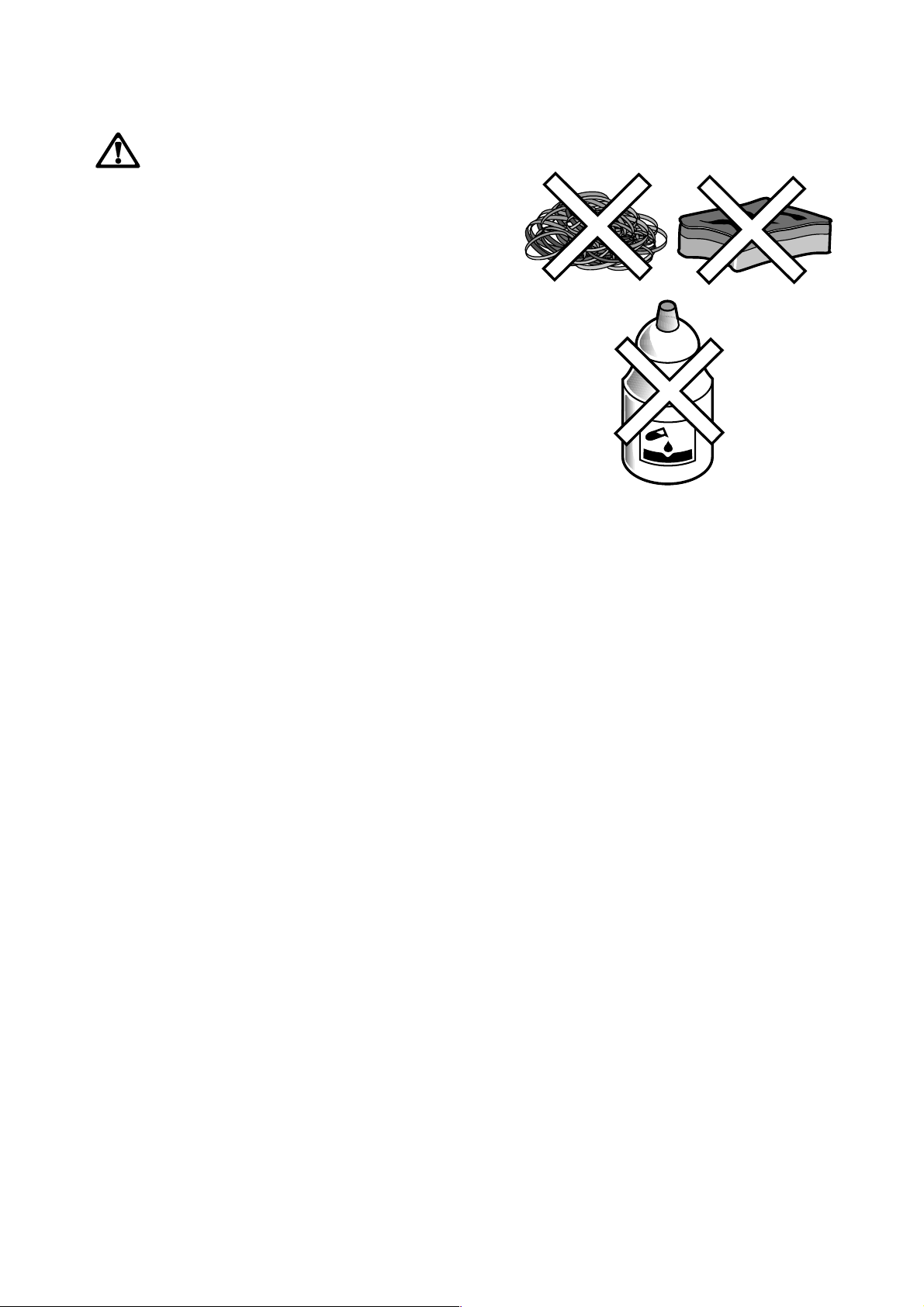

The Hob Top
The hob is best cleaned whilst it is still warm, as
spillage can be removed more easily than if it is
left to cool.
Regularly wipe over the hob top using a soft cloth
well wrung out in warm water to which a little
wasing up liquid has been added. Avoid the use
of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick
saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is
recommended that a cleaning product such as
Hob Brite or Bar Keepers Friend is used.
The Hotplates
Spills onto the actual plate should be removed
using warm water and a soft brush, nylon or
plastic scourer. To keep the plates looking as
new, hotplate conditioner can be purchased from
most hardware stores, e.g. "4 Hob" by
HomeCare Products (follow the manufacturer's
instruction for use).
Alternatively, wipe the plates with a drop of olive
oil on a kitchen towel to avoid rust. It is important
to note that the plate will smoke a little and produce a slightly unpleasant odour when next
used.
Drying
Important: After cleaning, dry the hotplates
thoroughly by switching on to a low-medium
setting for a few minutes.
Restoring
To maintain the appearance of your sealed
hotplates apply a little salt-free vegetable oil or
restorative agent (i.e. "Collo Electrol", or Minky
Hotplate Cleaning Cloths) periodically.
To apply vegetable oil: first heat the hotplate on a
medium setting for 30 seconds then turn off.
Pour a very small amount of salt-free oil onto a
dry cloth or kitchen paper. Apply a thin coat of oil
to the hotplate surface and wipe off any excess.
Heat the hotplate on a medium setting for 1
minute.
To apply restorative agent: first heat the hotplate
on a medium setting for 30 seconds then turn
off. Apply a very thin coating of Collo Electrol
(using the applicator). Heat the hotplate on a high
setting for 2-3 minutes to cure. Some smoke will
occur, this is normal and nontoxic. (NB: this
product is a resorative agent not a cleanser. It is
available from hardware stores).
Stainless steel parts: the stainless steel spill
rings may become straw coloured with use. Use
a proprietary stainless steel cleaner to remove
this straw discolouration. This also applies to the
area around the hotplates on stainless steel
hobs.
12
Page 13
Cleaning the Oven
Before cleaning always allow the cooling
fan to cool the oven down before
switching off at the electricity supply.
The oven should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Cleaning materials
Before using any cleaning materials on your
oven, check that they are suitable and that their
use is recommended by the manufacturer.
Cleaners that contain bleach should NOT be
used as they may dull the surface finishes.
Harsh abrasives should also be avoided.
External cleaning
Regularly wipe over the control panel, oven door
and door seal using a soft cloth well wrung out in
warm water to which a little washing up liquid
has been added.
To prevent damaging or weakening the door
glass panels avoid the use of the following:
Household detergent and bleaches
Impregnated pads unsuitable for
non-stick saucepans
Brillo/Ajax pads or steel wool pads
Chemical oven pads or aerosols
Rust removers
Bath/Sink stain removers
Oven Cavity
The enamelled oven cavity is best cleaned whilst
the oven is still warm.
Wipe the oven over with a soft cloth soaked in
warm soapy water after each use. From time to
time it will be necessary to do a more thorough
cleaning, using a proprietary oven cleaner.
Oven Shelves
To clean the oven shelves, soak in warm soapy
water and remove stubborn marks with a well
wetted soap impregnated pad. Rinse well and
dry with a soft cloth.

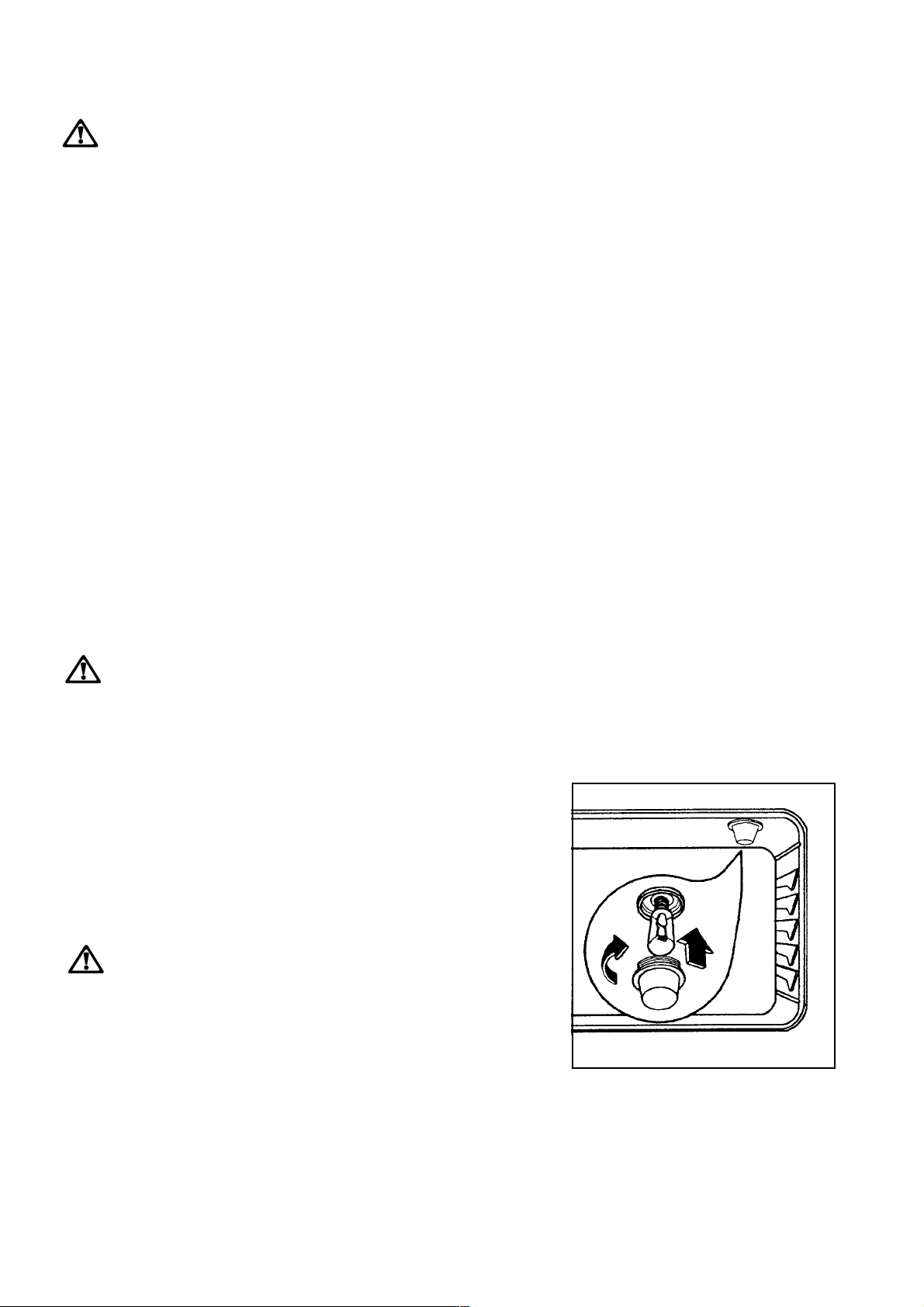

Oven lamp replacement
Disconnect the appliance.
Unscrew the lamp and substitute it with another
suitable for higher temperature (300°C) having
the following characteristics:
Voltage: 230-240V (50Hz)
Power: 15W
Connection: E14
Clean the outer and inner door glass using warm
soapy water. Should the inner door glass
become heavily soiled it is recommended that a
cleaning product such as Hob Brite, or Bar
Keepers Friend is used.
DO NOT clean the oven door while the
glass panels are warm. If this
precaution is not observed the glass
panel may shatter.
If the door glass panel becomes
chipped or has deep scratches, the
glass will be weakened and must be
replaced to prevent the possibility of the
panel shattering. Contact your local
Service Centre who will be pleased to
advise further.
FO 0424
13
Page 14
Something Not Working
If the appliance is not working correctly, please carry out the following checks, before contacting your
local Electrolux Service Centre.
IMPORTANT:
or installation, a charge will be made even if the appliance is under guarantee.
If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use
SYMPTOM
n The hob hotplate does not heat up.
n The plate is not giving satisfactory results
n The oven does not come on
SOLUTION
u Check that the unit is plugged in and the
electrical supply is switched on
u Check that the RCCB has not tripped (if fitted)
u Check the mains fuse has not blown
u Check the correct control knob has been
turned.
u Check the plate is clean and dry
u Check the cooking pan is the correct size for the
plate.
u Check the cooking pan has a flat bottom
u Check the setting is correct for the type of
cooking.
u Check a cooking function / temperature have
been selected.
u The socket switch or the switch from the
mains supply to the cooker are ON.
n The oven temperature light does not come on
n It takes too long to finish the dishes, or they
are cooked too fast.
n Steam and condensation settle on the food
and the oven cavity.
If after these checks, the appliance still does not
work, contact your local Service Force Centre.
When you contact the Service Centre, they will
need the following information:
1. Your name, address and post code.
2. Your telephone number
3. Clear and concise details of the fault
4. The model and the serial number (see rating
label)
5. Date of purchase
u Check the light bulb, and replace it if
necessary (see "Oven Light Replacement")
u The temperature may need adjusting
u Refer to the contents of this booklet,
especially to the chapter Using the Oven.
u Leave dishes inside the oven no longer than
15-20 minutes after the cooking is completed.
14
Page 15
Service and Spare Parts
If you require spare parts or an engineer contact
your local Service Force Centre by telephoning:
08705 929 929
Your call will be routed to the Service Centre
covering your post code area. The addresses of
Electrolux Service Force Centres are detailed on
the following pages.
Guarantee Conditions
ELECTROLUX STANDARD GUARANTEE
CONDITIONS
We, Electrolux, undertake that if, within 12 months of
the date of the purchase, this Electrolux appliance or
any part thereof is proved to be defective by any
reason only of faulty workmanship or materials, we
will, at our option, repair or replace the same FREE
OF ANY CHARGE for labour, materials or carriage on
condition that:
* The appliance has been correctly installed and
used only on the gas and electricity supply stated
on the rating plate.
* The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer's instructions.
* The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any
person not authorised by us.
* All service work under this guarantee must be
undertaken by a Electrolux Service Force Centre.
* Any appliance or defective part replaced shall
become the Company's property.
* This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours, in which case a premium will be
charged.
Exclusions
This guarantee does not cover:
* Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
* Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliance
outside the United Kingdom.
* Appliances found to be in use within a commercial
or similar environment, plus those which are the
subject to rental agreements.
* Products of Electrolux manufacture which are not
marketed by Electrolux.
CUSTOMER CARE
For general enquiries concerning your Electrolux
appliance and for further information on
Electrolux products, contact our Customer Care
Department by letter or telephone as follows:
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire SL1 1DZ
Tel : 08705 950 950
European Guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new home
subject to the following qualifications:
* The guarantee starts from the date you first
purchased your product.
* The guarantee is for the same period and to the
same extent for labour and parts as exist in the
new contry of use for this brand or range of
products.
* This guarantee relates to you and cannot be
transferred to another user.
* Your new home is within the European Community
(EC) or European Free Trade Area.
* The product is installed and used in accordance
with our instructions and is only used domestically,
i.e. a normal household
The electrical supply complies with the
specification given in the rating label.
* The product is installed taking into account
regulations in your new country.
Before you move, please contact your nearest
Customer Care centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France Senlis +33 (0)3 44 62 22 22
Germany Nürnberg +49 (0)911 323 2600
Italy Pordenone +39 (0)1678 47053
Sweden Stockholm +46 (0)20 78 77 50
UK Slough +44 (0)1753 219 898
15
Page 16
ELECTROLUX SERVICE FORCE
To contact your local Electrolux Service Force Centre telephone 08705 929 929
CHANNEL ISLANDS
GUERNSEY G uernsey Electricity
PO Box 4
Vale, Guernsey
Channel Islands
JERSEY Jersey Electricity
Company
PO Box 45
Queens Road
St Helier
Jersey
Channel Islands
JE4 8NY
SCOTLAND
ABERDEEN 54 Cl aremont Street
(M05) Aberdeen
AB10 6RA
AUCHTERMUCHY 33A Burnside
(M03) Auchtermuchy
Fife
KY14 7AJ
BLANTYRE Unit 5
(M07) Block 2
Auchenraith Industrial
Estate
Rosendale Way
Blantyre
G72 0NJ
DUMFRIES 9 3 Irish Street
(M01) Dumfries
Scotland
DG1 2PQ
DUNOON Briar Hill
7 Hill Street
(M 67) Dunoon
Argyll
PA23 7AL
GLASGOW 20 Cunningham Road
(M04) Clyde Estate
Rutherglen,
Glasgow,
G73 1PP
INVERNESS Unit 3B
(M06) Smithton Indust. Est.
Smithton
Inverness
IV1 2PD
ISLE OF ARRAN Arran Domestics
(OWN SALES) Unit 4 The Douglas
Centre
Brodick
Isle of Arran
KA27 8AJ
ISLE OF BARRA J Zerfah
(OWN SALES) 244 Bruernish
Isle of Barra
Western Islands
HS9 5QY
ISLE OF BUTE Walker Engineering
(M66) Glenmhor
Upper Serpentine
Road
Rothesay
Isle of Bute
PA20 9EH
ISLE OF LEWIS ND Macleod
(M69) 16 James Street
Stornoway
Isle of Lewis
PA872QW
KELSO 2-8 Wood Market
(M08) Kelso
Borders TD5 7AX
ORKNEY Corsie Domestics
(M65) 7 King Street
Kirkwall
Orkney KW15 1RE
PERTH Hydro Electrical
Inveralmond House
Ruthervenfield Road
Perth PH1 3AQ
PERTH Graham Begg Unit 4
(OWN SALES) Airport Ind Estat e
Wick KW1 4QS
SHETLAND Tait Electronic
(OWN SALES) Systems Ltd.
Holmsgarth Road
Lerwick
Shetland ZE1 0PW
SHETLAND Bolts Shetland Ltd
(OWN SALES) 26 North Road
Lerwick
Shetland ZE1 0PE
WHALSAY Leask Electrical
Harlsdale
Symbister, Whalsay
(OWN SALES) Shetland ZE2 9AA
NORTHERN IRELAND
BELFAST Owenmore House
(M27) Kilwee Industrial
Estate
Upper Dunmury Lane
Belfast
BT17 0HD
WALES
CARDIFF Guardian Industrial
(M28) Estate
Clydesmuir Road
Tremorfa, Cardiff
CF2 2QS
CLYWD Unit 6-7 Coed - Parc
(M14) Abergele Road
Rhuddlan
Clwyd
Wales
LL18 5UG
OSWESTRY P las Funnon
Warehouse
(M17) Middleton Road
Oswestry
SY11 2PP
HAVERFORDWEST Cro mlech Lodge
(M75) Ambleston
Haverfordwest
Pembrokeshire
SA62 5DS
DYFED Maes Y Coed
(M77) High Mead
Llanybydder
Carmarthenshire
SA40 9UL
NORTH EAST
GATESHEAD Unit 356a
(M39) Dukesway Court
Dukesway
Team Valley
Gateshead
NE11 0BH
GRIMSBY 15 Hainton Avenue
(M42) Grimsby
South Humberside
DN32 9AS
HULL Unit 1
(M41) Boulevard Industrial
Estate
Hull
HU3 4AY
LEEDS 64 -66 Cross Gates
(M37) Road
Leeds
LS15 7NN
NEWTON AYCLIFFE Unit 16
(M45) Gurney Way
Aycliffe Ind Estate
Newton Aycliffe
DL5 6UJ
SHEFFIELD Pennine House
(M38) Roman Ridge Ind.
Roman Ridge Road
Sheffield
S9 1GB
NORTH WEST
BIRKENHEAD 1 Kelvin Park
(M11) Dock Road
Birkenhead
L41 1LT
CARLISLE Unit 7
(M10) James Street
Workshops
James Street
Carlisle
Cumbria CA2 5AH
ISLE OF MAN South Quay Ind.
(M64) Estate
Douglas
Isle of Man IM1 5AT
LIVERPOOL Unit 1
(M15) Honeys Green
Precinct
Honeys Green Lane
Liverpool
L12 9JH
MANCHESTER Unit B
(M09) Central Industrial
Estate
St Marks Street
Bolton
BL3 6NR
PRESTON Un it 250
(M13) Dawson Place
Walton Summit
Bamber Bridge
Preston
Lancashire
PR5 8AL
STOCKPORT Un it 20 H ai gh Par k
(M16) Haigh Avenue
Stockport
SK4 1QR
16
Page 17
ELECTROLUX SERVICE FORCE
To contact your local Electrolux Service Force Centre telephone 08705 929 929
MIDLANDS
BIRMINGHAM 6 6 Birch Road East,
(M18) Wyrley Road
Industrial
Estate
Witton
Birmingham
B67DB
BOURNE Manning Road Ind
(M44) Estate
Pinfold Road
Bourne
PE10 9HT
BRIDGNORTH 65 St. Mar ys Street
(M72) Bridgnorth
Shropshire
WV16 4DR
GLOUCESTER 101 Rycroft Street
(M23) Gloucester
GL1 4NB
HEREFORD Unit 3
(M31) Bank Buildings
Cattle Market
Hereford
HE4 9HX
HIGHAM FERRERS 3 0 High Street
(M51) Higham Ferrers
Northants
NN10 8BB
ILKESTON Unit 2
(M43) Furnace Road
Ilkeston
DE7 5EP
LEICESTER Unit 7
(M22) Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE0 5GF
LINCOLN Unit 8 Stonefield Park
(M40) Clifton Street
Lincoln
LN5 8AA
NEWCASTLE 18-21 Croft Roa d
UNDER LYME Br ampton Industrial
(M12) Estate
Newcastle under
Lyme
Staffordshire
ST5 0TW
REDDITCH 13 Thornhill Road
(M20) North Moons Moat
Redditch
Worcestershire
B98 9ND
TAMWORTH Unit 3
(M19) Sterling Park
Claymore
Tamworth
B77 5DO
WORCESTER Un it 1&2
(M73) Northbrook Close
Gregorys Mill Ind
Estate
Worcester
WR3 8BP
LONDON & EAST ANGLIA
BECKENHAM 11a Gar dener Ind
(M79) Estate
CHELMSFORD Hanbury Road
(M47) Widford Ind Estate
COLINDALE Unit 14
(M53) Capital Park
ELTHAM 194 Court Road
(M78) Mottingham - Eltham
ENFIELD 284 Alma Road
(M49) Enfield
GRAVESEND Unit B4,
(M57)
HARPENDEN Unit 4
(M46) Riverside Estate
LETCHWORTH 16-17 Woodsite Ind
(M50) Est.
LONDON 2/ 4 R oya l Lane
(M76) Yiewsley
MAIDENHEAD Reform Road
(M60) Maidenhead -
MOLESEY 10 Island Farm
(M61) Avenue
NEWBURY 9 Pipers Court
(M24) Berkshire Drive
IPSWICH Unit 6C
(M48) Elton Park Business
NORWICH 2b Trafalgar Street
(M52) Norwich
SUNBURY Unit 1a
(M63) The Summit
Kent House Lane
Beckenham
Kent BR3 1QZ
Chelmsford
Essex
CM12 3AE
Capital Way
Colindale
London NW9 0EQ
London SE9 4EW
London
EN3 7BB
Imperial Business
Estate
Gravesend
Kent
DA11 0DL
Coldharbour Lane
Harpenden
AL5 4UN
Works Road
Letchworth
Herts
SG6 1LA
West Drayton
Middlesex
UB7 8DL
Berkshire
SL6 8BY
West Molesey
Surrey
KT8 2UZ
Thatcham
Berkshire
RG19 4ER
Centre
Hadleigh Road
Ipswich
IP2 0DD
NR1 3HN
Hanworth Road
Hanworth Ind Estate
Sunbury on Thames
TW16 5D
SOUTH EAST
ASHFORD Unit 2
(M58) Bridge Road
FLEET Unit 1
(M59) Redfields Industrial
HAYWARDS HEATH 21-25 Bridge Road
(M55) Haywards Heath
Business
Estate
Bridge Road
Ashford
Kent
TN2 1BB
Estate
Church Crookham
Fleet
Hampshire
GU13 0RD
Sussex
RH16 1UA
SOUTH WEST
BARNSTAPLE Main Road
(M30) Fremington
BOURNEMOUTH 63-65 Curzon Road
(M26) Bournemouth
BRIDGEWATER
(M35)
BRISTOL 11 Eldon Way
(M25) Eldonwall Trading
EMSWORTH 266 Main Road
(M33) Southboure
ISLE OF WIGHT Unit 8
(M34) Enterprise Court
NEWTON ABBOT Unit 2
(M29)
PLYMOUTH 1 6 Faraday Mill
(M32) Cattledown
REDRUTH Unit 7D Pool Industrial
(M36) Estate
Barnstaple
North Devon
EX31 2NT
Dorset
BH1 4PW
6 Hamp Industrial
Estate
Bridgewater
Somerset
Bristol
Avon
BS4 3QQ
Emsworth
PO10 8JL
Ryde Business Park
Ryde
Isle of Wight
PO33 1DB
Zealley Industrial
Estate
Kingsteignton
Newton Abbot
S. Devon
TQ12 3TD
Plymouth
PL4 0ST
Wilson Way, Redruth,
Cornwall
TR15 3QW
17
Page 18
Instructions for the Installer
50
700
420
Technical Data
Model Number: EK 5741
Dimensions
Height 900 mm
Depth 600 mm
Width 499 mm
Oven Capacity 1.7 Cu. ft
Hob
Front left plate (normal) 1,044 W/Ø145 mm
Back left plate (normal) 1,565 W/Ø180 mm
Back right plate (normal) 1,044 W/Ø145 mm
Front right plate (rapid) 2,088 W/Ø180 mm
Total rating 5,741 W
Oven
Top heating element 1,044 W
Bottom heating element 1,252 W
Grill Element 1,879 W
Oven light 15 W
Total rating 2,311 W
Supply voltage (50 Hz) 230-240 V
Total cooker rating 8,052 W
Important Safety Requirements
This cooker must be installed in accordance with
the IEE Wiring Regulations (Current Edition).
Detailed recommendations are contained in the
following British Standards Codes Of Practice:
B.S. 6172/ B.S. 5440, Par. 2 and B.S. 6891
Current Editions.
Location
This cooker has been registered as a "Class X"
appliance according to Fire Risk Regulations.
Any adjacent cabinets or walls must not exceed
the cooker's height.
The cooker may be located in a kitchen, a
kitchen/diner or bed sitting room, but not in a
bathroom or shower room.
The minimum distance combustible material can
be fitted above the cooker in line with the edges
of the cooker is 420 mm. If it is fitted below 420
mm. a space of 50 mm. must be allowed from
the edges of the cooker.
The minimum distance combustible material can
be fitted directly above the cooker is 700 mm.
FO 2433
Dimensions are given in millimeters
18
Page 19
Electrical connections
Any electrical work required to install
this hob should be carried out by a
qualified electrician or competent
person, in accordance with the current
regulations.
THIS COOKER MUST BE EARTHED.
The manufacturer declines any liability
should these safety measures not be
observed.
This cooker is designed to be connected to a
230-240V 50Hz AC electrical supply.
Before switching on, make sure the electricity
supply voltage is the same as that indicated on
the hob rating plate. The rating plate is located on
the bottom of the hob. A copy is attached on the
back cover of this book.
The cooker is supplied without supply cord. A 3
core flexible supply cord must be fitted, in
accordance with the specification given in the
relevant tables.
F
1) Loosen the two fixing screws securing the
back protective screen of the cooker, then
lift it up and remove it. This will expose
the terminal block on the right bottom
corner.
2) Loosen the two cable clamp screws and
lift the top section of the clamp enough to
allow the cable to be passed through.
The cooker should be connected to a double
pole switch with a minimum gap of 3 mm.
between the switch contacts and of a type
suitable for the required load in compliance with
the current electric regulations. The switch
should be sited within 2m of the hob and be
easily accessible upon completion of the
installation.
The switch must not break the yellow and green
earth cable at any point.
Ensure that the hob supply cord
does not come into contact with
surfaces with temperatures higher
than 50 deg. C.
Supply Cable Specifications
For Uk use only
Connection Min. size Cable / flex Fuse
via Cable/flex type
Cooker 3 x 6 mm
Control
Circuit
For Europe use only
Min.size Cable/flex Cable / flex type Fuse
3x 2.5 mm
2
2
H05 VV-F 30 A
H05 RR-F 30 A
3) Connect the red (live) wire to the terminal
which is marked with the letter "L".
4) Connect the black (neutral) wire to the
terminal which is marked with the letter
"N".
5) After fitting a green or yellow/green sleeve
over the bare copper wire (earth wire),
connect the exposed end to the terminal
which is marked with the earth symbol
or with the letter "E"coloured green and
yellow.
NOTE:
longer than the live and neutral wires.
The earth wire should be about 2 cm.
6) Secure the cable by means of the clamp
screws and refit the back protective
screen.
FO 2375
19
Page 20
CUSTOMER CARE
Electrolux
55-77 High Street
Slough
Berkshire - SL1 1DZ
Tel : 08705 950950
© Electrolux Household Appliances Limited 2000
Grafiche MDM - Forlì
The Electrolux Group. The worlds No.1 choice.
The Electrolux Group is the worlds largest producer of powered appliances for kitchen, cleaning and outdoor use. More than
55 Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are
sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
10/00
Loading...
