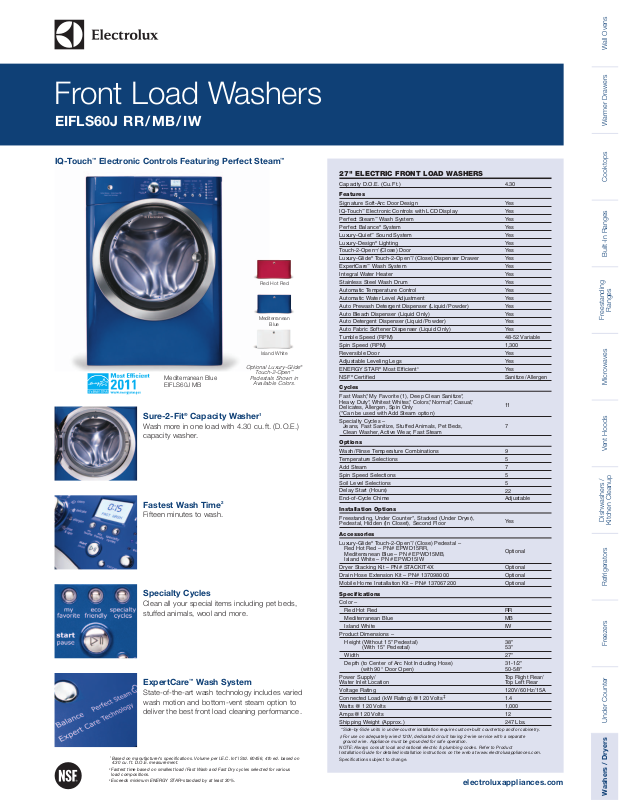

Electrolux EIFLS60J RR, EIFLS60JMB Specification Sheet

Front Load Washers

EIFLS60J RR/MB/IW

IQ-Touch™ Electronic Controls Featuring Perfect Steam™

	Red Hot Red
	Mediterranean
	Blue
	Island White
	Optional Luxury-Glide®
Mediterranean Blue	Touch-2-Open™
	Pedestals Shown in
EIFLS60J MB	Available Colors.

Sure-2-Fit® Capacity Washer1

Wash more in one load with 4.30 cu. ft. (D.O.E.) capacity washer.

Fastest Wash Time2

Fifteen minutes to wash.

Specialty Cycles

Clean all your special items including pet beds, stuffed animals, wool and more.

ExpertCare™ Wash System

State-of-the-art wash technology includes varied wash motion and bottom-vent steam option to deliver the best front load cleaning performance.

1Based on manufacturer's specifications. Volume per I.E.C. Int’l Std. 60456, 4th ed. based on

4.30cu. ft. D.O.E. measurement.

2Fastest time based on smallest load/Fast Wash and Fast Dry cycles selected for various load compositions.

3 Exceeds minimum ENERGY STAR® standard by at least 30%.

27" ELECTRIC FRONT LOAD WASHERS

	Capacity D.O.E. (Cu.Ft.)	4.30
	Features
	Signature Soft-Arc Door Design	Yes
	IQ-Touch™ Electronic Controls with LCD Display	Yes
	Perfect Steam™ Wash System	Yes
	Perfect Balance® System	Yes
	Luxury-Quiet™ Sound System	Yes
	Luxury-Design® Lighting	Yes
	Touch-2-Open™/(Close) Door	Yes
	Luxury-Glide® Touch-2-Open™/(Close) Dispenser Drawer	Yes
	ExpertCare™ Wash System	Yes
	Integral Water Heater	Yes
	Stainless Steel Wash Drum	Yes
	Automatic Temperature Control	Yes
	Automatic Water Level Adjustment	Yes
	Auto Prewash Detergent Dispenser (Liquid/Powder)	Yes
	Auto Bleach Dispenser (Liquid Only)	Yes
	Auto Detergent Dispenser (Liquid/Powder)	Yes
	Auto Fabric Softener Dispenser (Liquid Only)	Yes
	Tumble Speed (RPM)	48-52 Variable
	Spin Speed (RPM)	1,300
	Reversible Door	Yes
	Adjustable Leveling Legs	Yes
	ENERGY STAR® Most Efficient3	Yes
	NSF® Certified	Sanitize/Allergen
	Cycles
	Fast Wash*, My Favorite (1), Deep Clean Sanitize*,
	Heavy Duty*, Whitest Whites*, Colors*, Normal*, Casual*,	11
	Delicates, Allergen, Spin Only
	(*Can be used with Add Steam option)
	Specialty Cycles –
	Jeans, Fast Sanitize, Stuffed Animals, Pet Beds,	7
	Clean Washer, Active Wear, Fast Steam
	Options
	Wash/Rinse Temperature Combinations	9
	Temperature Selections	5
	Add Steam	7
	Spin Speed Selections	5
	Soil Level Selections	5
	Delay Start (Hours)	22
	End-of-Cycle Chime	Adjustable
	Installation Options
	Freestanding, Under Counter*, Stacked (Under Dryer),	Yes
	Pedestal, Hidden (In Closet), Second Floor
	Accessories
	Luxury-Glide® Touch-2-Open™/(Close) Pedestal –
	Red Hot Red – PN# EPWD15RR,	Optional
	Mediterranean Blue – PN# EPWD15MB,
	Island White – PN# EPWD15IW
	Dryer Stacking Kit – PN# STACKIT4X	Optional
	Drain Hose Extension Kit – PN# 137098000	Optional
	Mobile Home Installation Kit – PN# 137067200	Optional
	Specifications
	Color –
	Red Hot Red	RR
	Mediterranean Blue	MB
	Island White	IW
	Product Dimensions –
	Height (Without 15" Pedestal)	38"
	(With 15" Pedestal)	53"
	Width	27"
	Depth (to Center of Arc Not Including Hose)	31-1/2"
	(with 90° Door Open)	50-5/8"
	Power Supply/	Top Right Rear/
	Water Inlet Location	Top Left Rear
	Voltage Rating	120V/60Hz/15A
	Connected Load (kW Rating) @120 Volts‡	1.4
	Watts @ 120 Volts	1,000
	Amps@120 Volts	12
	Shipping Weight (Approx.)	247 Lbs.

*Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry.

‡ For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.

NOTE: Always consult local and national electric & plumbing codes. Refer to Product

Installation Guide for detailed installation instructions on the web at www.electroluxappliances.com.

Specifications subject to change.

electroluxappliances.com

	<![if ! IE]> <![endif]>Wall Ovens
	<![if ! IE]> <![endif]>Warmer Drawers
	<![if ! IE]> <![endif]>Cooktops
	<![if ! IE]> <![endif]>Built-In Ranges
	<![if ! IE]> <![endif]>Freestanding	<![if ! IE]> <![endif]>Ranges
	<![if ! IE]> <![endif]>Microwaves
	<![if ! IE]> <![endif]>Vent Hoods
	<![if ! IE]> <![endif]>Dishwashers /	<![if ! IE]> <![endif]>Kitchen Cleanup
	<![if ! IE]> <![endif]>Refrigerators
	<![if ! IE]> <![endif]>Freezers
	<![if ! IE]> <![endif]>Under Counter
	<![if ! IE]> <![endif]>Washers / Dryers

Front Load Washers

EIFLS60J RR/MB/IW

Front Load Washer Specifications

•Product Weight – 237 Lbs.

•An electrical supply with grounded three-prong receptacle is required. The power supply circuit must be installed in accordance with current edition of National Electrical Code (ANSI/NFPA 70) and local codes & ordinances.

(Do not use same circuit as dryer.)

•Voltage Rating – 120V/60Hz/15 Amps

•Amps @120 Volts = 12 Amps

•Connected Load (kW Rating) @120 Volts = 1.4kW

•Equipped with 120V 3-wire power supply cord, approx. 60" long.

•Always consult local and national electric & plumbing codes.

•To maximize detergent effectiveness, ambient temperature should never be below 60°F.

•Can be installed alone, with or without optional 15" drawer pedestal, or stacked beneath matching Electrolux Dryer, which requires installation of optional dryer stacking kit. (For installation details, refer to instructions included with optional pedestal or stacking kit or on web.)

•Can be built in with matching Electrolux Dryer in under-counter, recessed or closet installation. Installations requiring countertop and/or cabinetry will require custom building. (Refer to Built-In Installations on this page for cutout dimensions. For additional installation details, refer to Product Installation Guide on web.)

•Closet installation requires vented door with 2 unobstructed louvered openings, minimum 60 sq. in. each, located 3" from top and bottom of door. Full-length120 sq. in. opening also acceptable. Allow 1" clearance between door and fronts of units.

•Do NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables, including automobiles, are kept or stored.

•Floor MUST be solid with 1" maximum slope. To ensure vibration or movement does not occur, reinforcement of floor may be necessary. Do NOT install on carpeted surface.

•Leveling legs supplied to level washer properly and reduce excessive noise and vibration.

•H/C water faucets MUST be installed within 42" of washer’s water inlet and MUST be 3/4" garden hose type, to connect to 48-1/2" inlet hoses.

•Water pressure MUST be between 30 and120 psi with NOT more than 10 psi pressure difference between hot and cold.

•Drain required with standpipe diameter of 1-1/4" min. and height of 24" min. /96" max. above floor, capable of eliminating 17 gallons per minute. Attached 59" drain hose can reach 79"-high standpipe.

Note: For planning purposes only. Refer to Product Installation Guide on the web at electroluxappliances.com for detailed instructions.

Optional Accessories

•Drawer Pedestals – Red Hot Red (PN# EPWD15RR),

Mediterranean Blue (PN# EPWD15MB), Island White (PN# EPWD15IW).

•Dryer Stacking Kit – (PN# STACKIT4X).

•Drain Hose Extension Kit – (PN# 137098000).

•Mobile Home Installation Kit – (PN# 137067200).

Electrolux Major Appliances, N.A.

	USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com		High standards of quality at Electrolux Home Products, Inc. mean
			we are constantly working to improve our products. We reserve the right
	CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
			to change specifications or discontinue models without notice.
	EIFLS60J 12/11	© 2011 Electrolux Home Products, Inc.	Printed in the U.S.A.
