Electrolux EI32AR80QS User Manual

EN REFRIGERATOR

FR RÉFRIGÉRATEUR ES REFRIGERADOR

USE AND CARE GUIDE GUIDE D’UTILISATION ET D’ENTRETIEN GUIA DE USO Y CUIDADO

A01061201 August 2014

Finding Information

Please read and save this guide

Thank you for choosing Electrolux, our new premium brand in home appliances. This Use & Care Guide is part of our commitment to customer satisfaction and product quality throughout the service life of your new appliance.

Keep a record for quick reference

Purchase date

Electrolux model number

Electrolux serial number

NOTE

Registering your product with Electrolux enhances our ability to serve you. You can register online at www.electroluxappliances.com or by sending your Product Registration Card in the mail.

Questions?

For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX (1-877-435-3287)

For online support and product information visit http://www.electroluxappliances.com

Table of contents

Finding Information .............................. 2

Safety .................................................... 3

Feature Overview .................................. 5

Installation ............................................ 6

Installing Door Handle .......................... 7

Leveling ................................................. 8

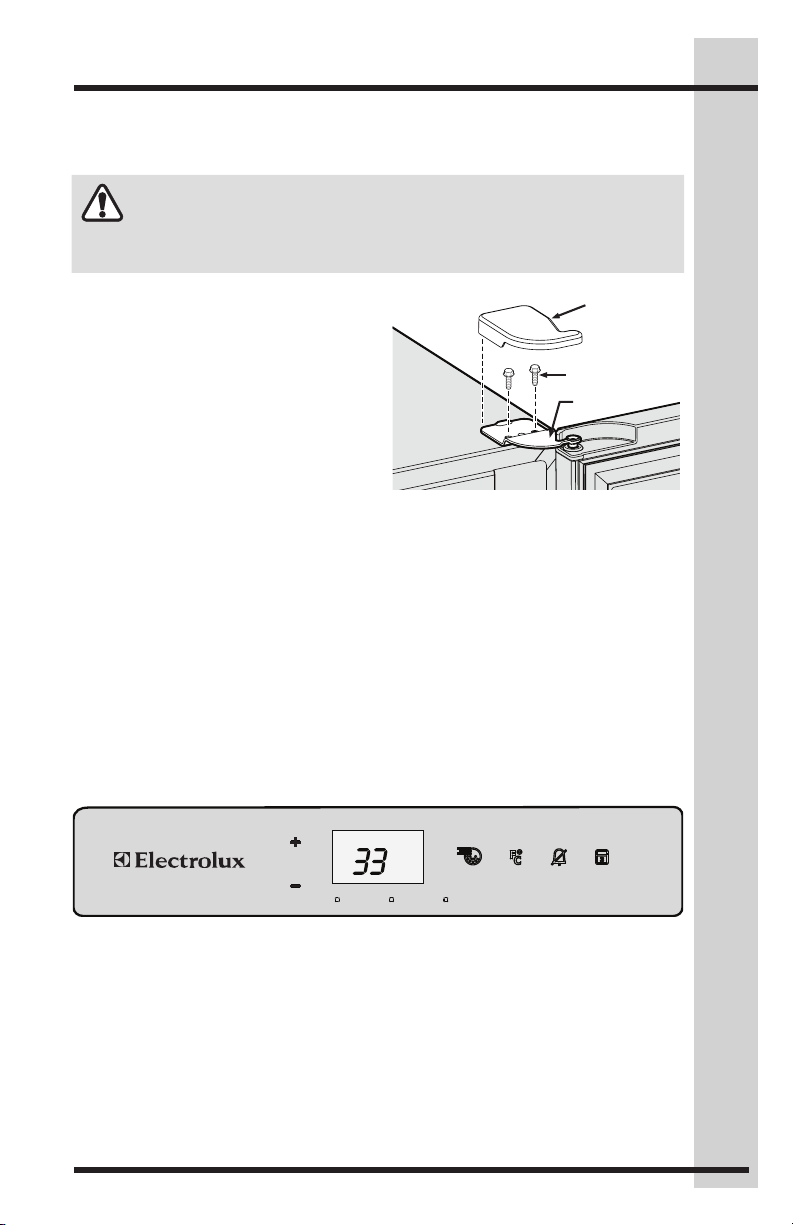

Door Removal & Temperature Control. ....9

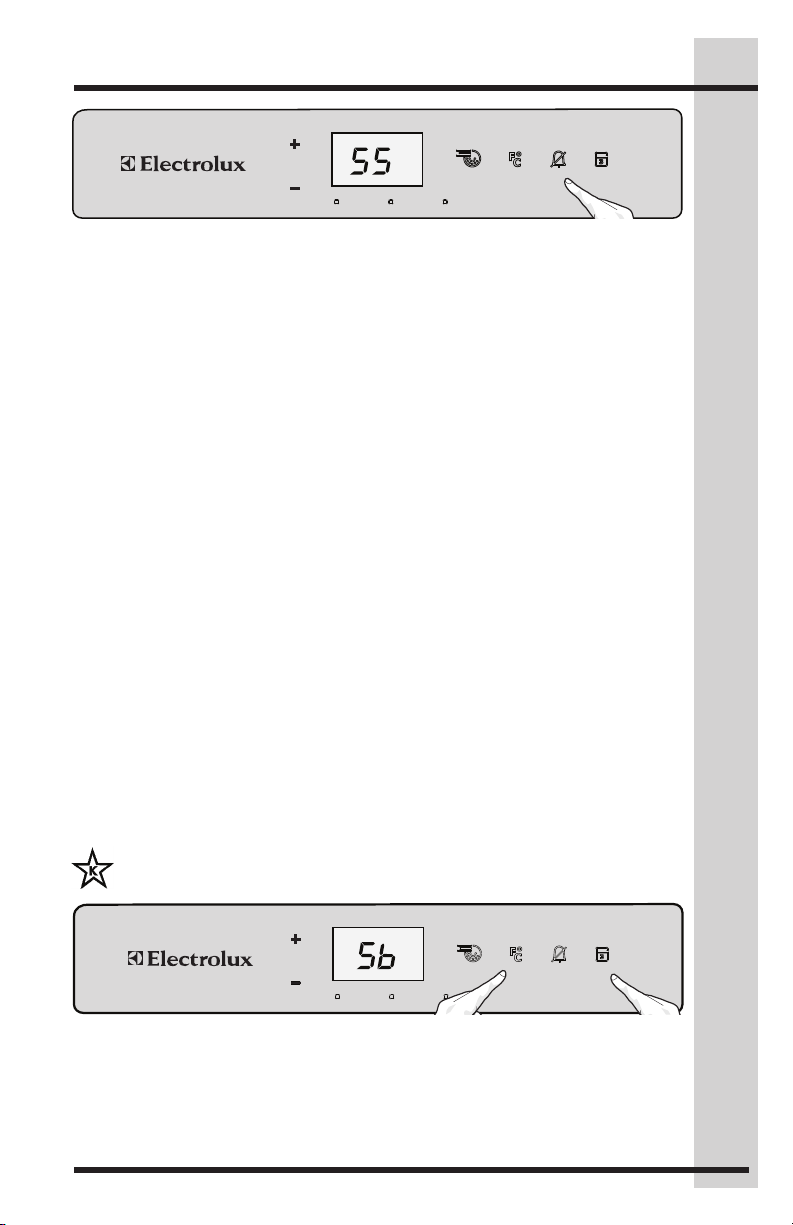

Electronic Control & Alarms ............... 10

Alarms & Sabbath Mode .................... 11

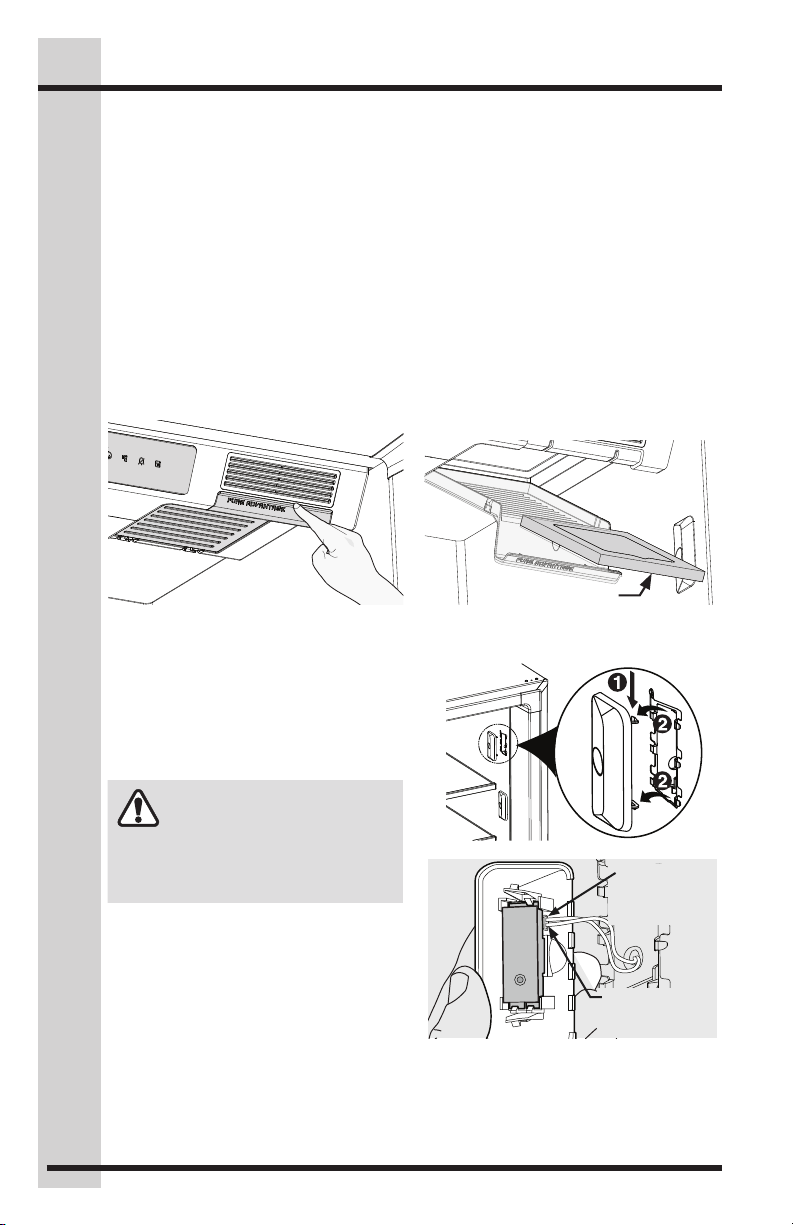

Air Filter & Luxury Design™ Lighting........12

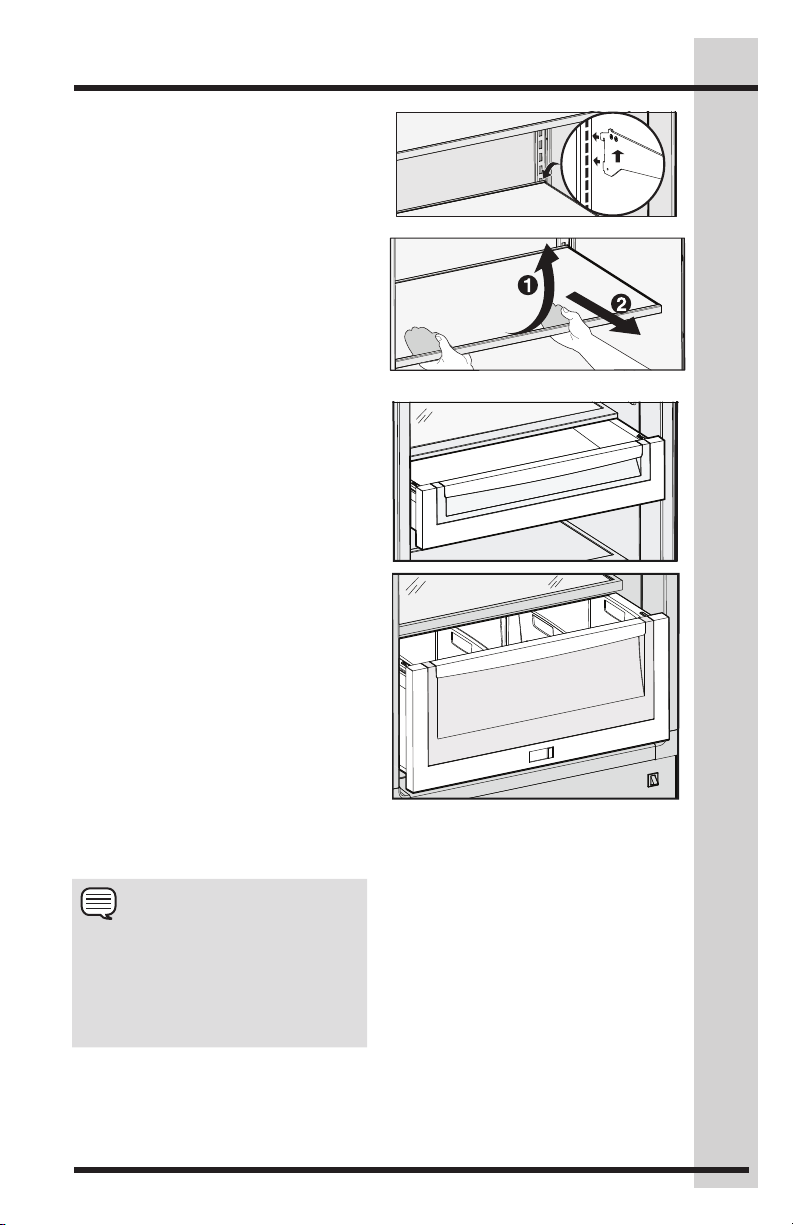

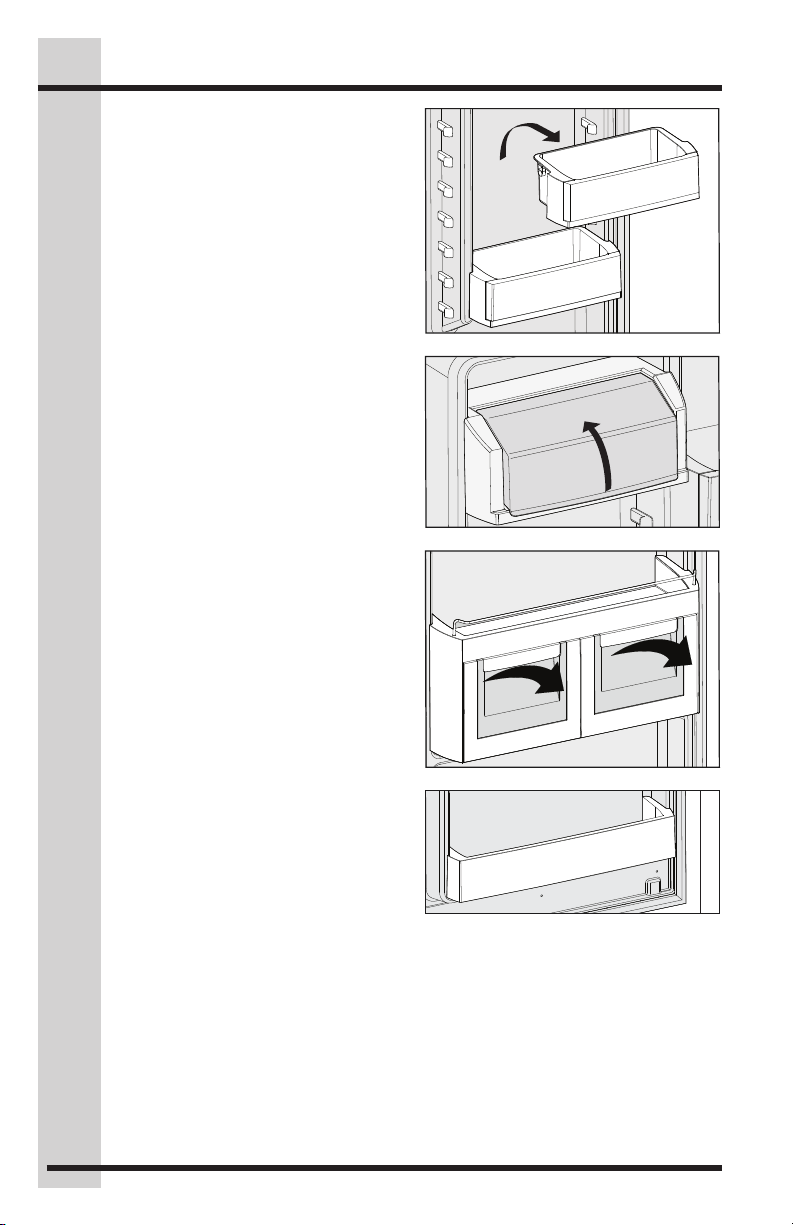

Storage Components..........................13

Storing Food & Saving Energy.................15

Care and Cleaning .............................. 16

Solutions to Common Problems ........ 17

Warranty Information .......................... 20

Installation Checklist

Doors

 Handles are secure and tight  Door seals completely to cabinet on

all sides  Freezer drawer is level across top

Leveling

 Refrigerator is level, side-to-side and front-to-back

 Toe grille is properly attached to refrigerator  Cabinet is set solid on all corners

Electrical Power

 House power turned on  Refrigerator plugged in

Air Filter

 Air Filter is installed

Final Checks

 Shipping material removed  Fresh food and freezer temperatures set  Crisper humidity controls set  Registration card sent in

Important safety instructions

Safety Precautions

Do not attempt to install or operate your unit until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a Danger, Warning, or Caution based on the risk type.

Deﬁnitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

Indicates installation, operation, or maintenance information which is important but not hazard-related.

General Safety

Safety

• Remove all staples from the carton to avoid injury. Staples can also damage ﬁnishes if they come in contact with other appliances or furniture.

Child Safety

Packing Materials:

• Packing cartons covered with rugs, bedspreads, plastic sheets, or stretch wrap may become airtight chambers and can quickly cause suffocation.

• Destroy or recycle the product’s carton, plastic bags, and any other exterior wrapping material immediately after the unit is unpacked. Children should never play with these items.

Child Entrapment and Suffocation:

• These problems are not limited to the past. Whether junked, abandoned, or temporarily stored (even for a few hours), unattended appliances are dangerous. Please take the precautions listed below.

Proper Disposal of Appliance

We strongly encourage responsible appliance recycling/disposal methods. Check with your utility company or visit www.energystar.gov/recycle for more information on recycling your old unit.

Before you recycle or dispose of your old appliance:

• Remove the doors.

• Leave the shelves and baskets in place so children may not easily climb inside.

• Have refrigerant and compressor oil removed by a qualiﬁed service technician.

WARNING

Please read all safety instructions before using your new refrigerator.

• Do not store or use gasoline or other ﬂammable liquids near this or any other appliance. Read product labels for warnings regarding ﬂammability and other hazards.

• Do not operate the appliance in the presence of explosive fumes.

• Avoid contact with any moving parts of the automatic ice maker.

Grounding type wall receptacle

Power cord with 3-prong grounded plug

Do not, under any circumstances, cut, remove, or bypass the grounding prong.

Safety

Electrical information

WARNING

You must follow these guidelines to ensure that your appliance’s safety mechanisms are operating correctly.

• The unit must be plugged into its own dedicated 115 Volt, 60 Hz, AC-only non-GFCI electric outlet. The power cord of the appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three-prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualiﬁed electrician. Do not use an extension cord or adapter plug.

• If the power cord is damaged, it should be replaced by the manufacturer, service technician, or a qualiﬁed person.

• Never unplug the appliance by pulling on the power cord. Always grip the plug ﬁrmly and pull straight out from the receptacle to prevent damaging the power cord.

• To avoid electrical shock, unplug the unit or switch the breaker that supplies power to the unit to the off position before cleaning and before replacing a light bulb or LED light.

• Performance may be affected if the voltage varies by 10% or more. Operating the appliance with insufﬁcient power can damage the compressor. Such damage is not covered under your warranty.

• Do not plug the unit into an outlet controlled by a wall switch or pull cord to prevent the appliance from being turned off accidentally.

IMPORTANT

To disconnect power to the unit, unplug the unit or switch the breaker that supplies power to the unit to the off position.

Feature Overview

Adjustable Door

Switch

Luxury Design™

with Tall Bottle

Perfect Bins™

Design™ LED

Understanding features and terms

Your Electrolux appliance is designed for optimal convenience and storage ﬂexibility. The illustration below is provided to assist you with familiarizing yourself with product features and terminology.

NOTE

*Features may vary according to model.

Air

Bafﬂ e

Luxury

Lighting

Glass Shelves

Cool Zone™

Drawer

Luxury

Design™ LED

Lighting

Tall Crisper Drawer with Divider and

Bins

Light

Electronic

Control

Toe Grille

Pure

Advantage®

Air Filter

Adjustable Dairy

Door Bin

Adjustable

Bottom Hinge

Gallon Shelf

Door Storage

Two Liter

Bins

Retainer

Condiment

Shelf

Adjustable

Phillips Head

Drive Head

Tools Necessary:

Wrench Set

Installation

Required Tools

You will need the following tools:

NOTE

Wrench

(OR)

#2 Square

Socket

This Use & Care Guide provides general installation and operating instructions for your model. We recommend using a service or kitchen contracting professional to install your appliance. Use the unit only as instructed in this Use & Care Guide.

Before starting the appliance, follow these important ﬁrst steps.

and

oror

3/8" Fixed

Wrench

Location

• Choose a place that is near a grounded, non-GFCI, electrical outlet. Do Not use an extension cord or an adapter plug.

• If possible, place the unit out of direct sunlight and away from the range, dishwasher, or other heat sources.

• The appliance must be installed on a ﬂoor that is level and strong enough to support a fully loaded unit.

If your appliance is placed with the door hinge against a wall, you may have to allow additional space so the door can be opened wider.

Installation

• Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:

Sides ⅜” (9.5 mm) Top & Back 1” (25.4 mm)

• Allow for trim kit if it to be installed with the unit.

NOTE

The appliance doors are designed to shut by themselves within a 20-degree opening.

1” (25 mm)

Refrigerator

1”

(25 mm)

⅜”

(10 mm)

CAUTION

DO NOT install the appliance where the temperature will drop below 40°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the unit.

DO NOT block the toe grille on the lower front of your appliance. Sufﬁcient air circulation is essential for the proper operation of your unit.
