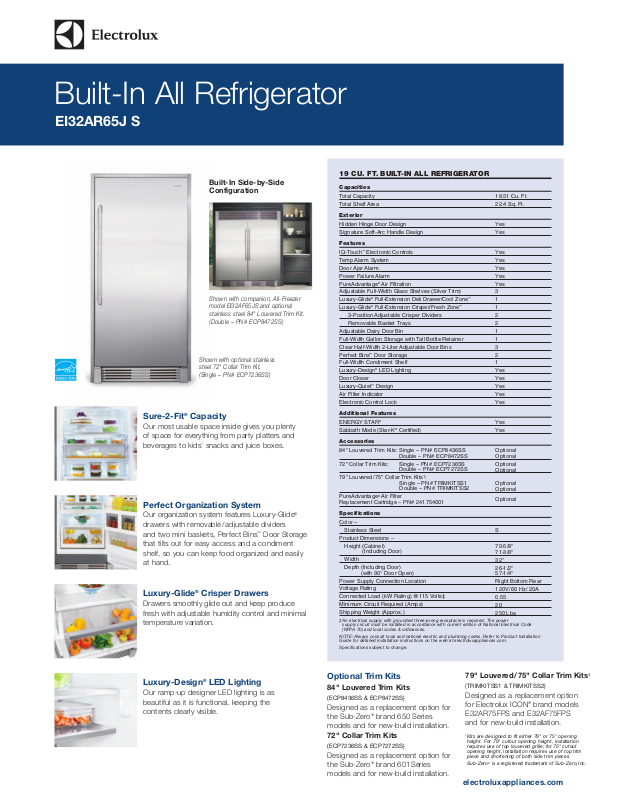

Electrolux EI32AR65JS User Manual

Built-In All Refrigerator

EI32AR65J S

19 CU. FT. BUILT-IN ALL REFRIGERATOR

Capacities

Total Capacity
Total Shelf Area

Exterior

Hidden Hinge Door Design
Signature Soft-Arc Handle Design

Features

IQ-Touch™Electronic Controls
Temp Alarm System
Door Ajar Alarm
Power Failure Alarm
PureAdvantage®Air Filtration
Adjustable Full-Width Glass Shelves (Silver Trim)
Luxury-Glide®Full-Extension Deli Drawer/Cool Zone

™

Luxury-Glide®Full-Extension Crisper/Fresh Zone

™

3-Position Adjustable Crisper Dividers

Removable Basket Trays
Adjustable Dairy Door Bin
Full-Width Gallon Storage with Tall Bottle Retainer
Clear Half-Width 2-Liter Adjustable Door Bins
Perfect Bins™Door Storage
Full-Width Condiment Shelf
Luxury-Design®LED Lighting
Door Closer
Luxury-Quiet™Design
Air Filter Indicator
Electronic Control Lock

Additional Features

ENERGY STAR

®

Sabbath Mode (Star-K®Certified)

Accessories

84" Louvered Trim Kits: Single – PN# ECP8436SS

Double – PN# ECP8472SS

72" Collar Trim Kits: Single – PN# ECP7236SS

Double – PN# ECP7272SS

79" Louvered/ 75" Collar Trim Kits

1

:
Single – PN# TRIMKITSS1
Double – PN# TRIMKITSS2

PureAdvantage

®

Air Filter

Replacement Cartridge – PN# 241754001

Specifications

Color –

Stainless Steel

Product Dimensions –

Height (Cabinet)

(Including Door)
Width
Depth (Including Door)

(with 90° Door Open)
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @115 Volts‡
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)

‡An electrical supply with grounded three-prong receptacle is required. The power

supply circuit must be installed in accordance with current edition of National Electrical Code
(NFPA 70) and local codes & ordinances.

NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation
Guide for detailed installation instructions on the web at electroluxappliances.com.

Specifications subject to change.

Sure-2-Fit®Capacity

Our most usable space inside gives you plenty
of space for everything from party platters and
beverages to kids’ snacks and juice boxes.

Perfect Organization System

Our organization system features Luxury-Glide

®

drawers with removable/adjustable dividers
and two mini baskets, Perfect Bins

™

Door Storage
that tilts out for easy access and a condiment
shelf, so you can keep food organized and easily
at hand.

Luxury-Glide®Crisper Drawers

Drawers smoothly glide out and keep produce
fresh with adjustable humidity control and minimal
temperature variation.

Luxury-Design®LED Lighting

Our ramp-up designer LED lighting is as
beautiful as it is functional, keeping the
contents clearly visible.

electroluxappliances.com

18.51 Cu. Ft.

22.4 Sq. Ft.

Yes
Yes

Yes
Yes
Yes
Yes
Yes
3
1
1
2
2
1
1
3
2
1
Yes
Yes
Yes
Yes
Yes

Yes
Yes

Optional
Optional

Optional
Optional

Optional
Optional

Optional

S

70-5/8"
71-3/8"

32"
26-1/2"

57-1/4"
Right Bottom Rear
120V/ 60 Hz/20A

0.55
20
250 Lbs.

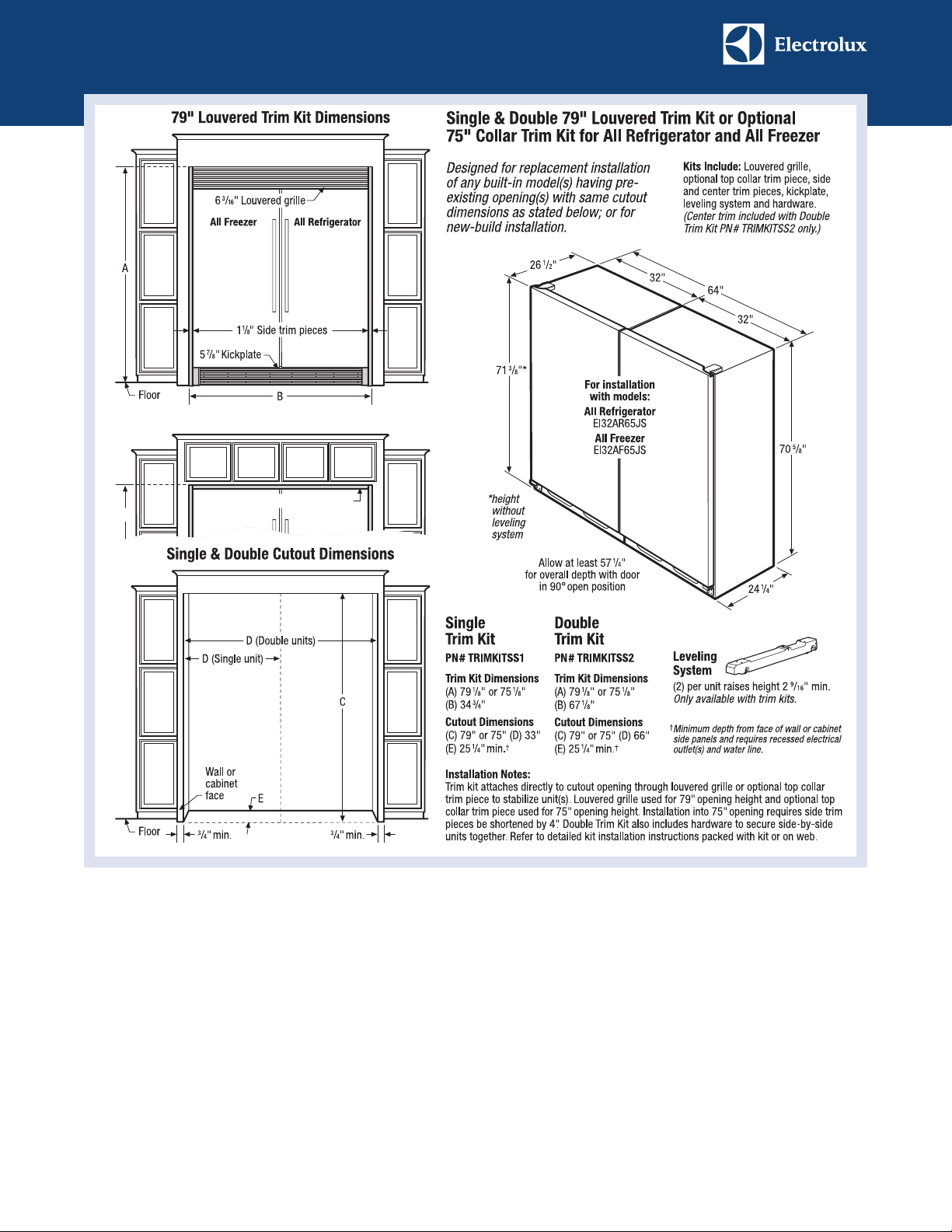

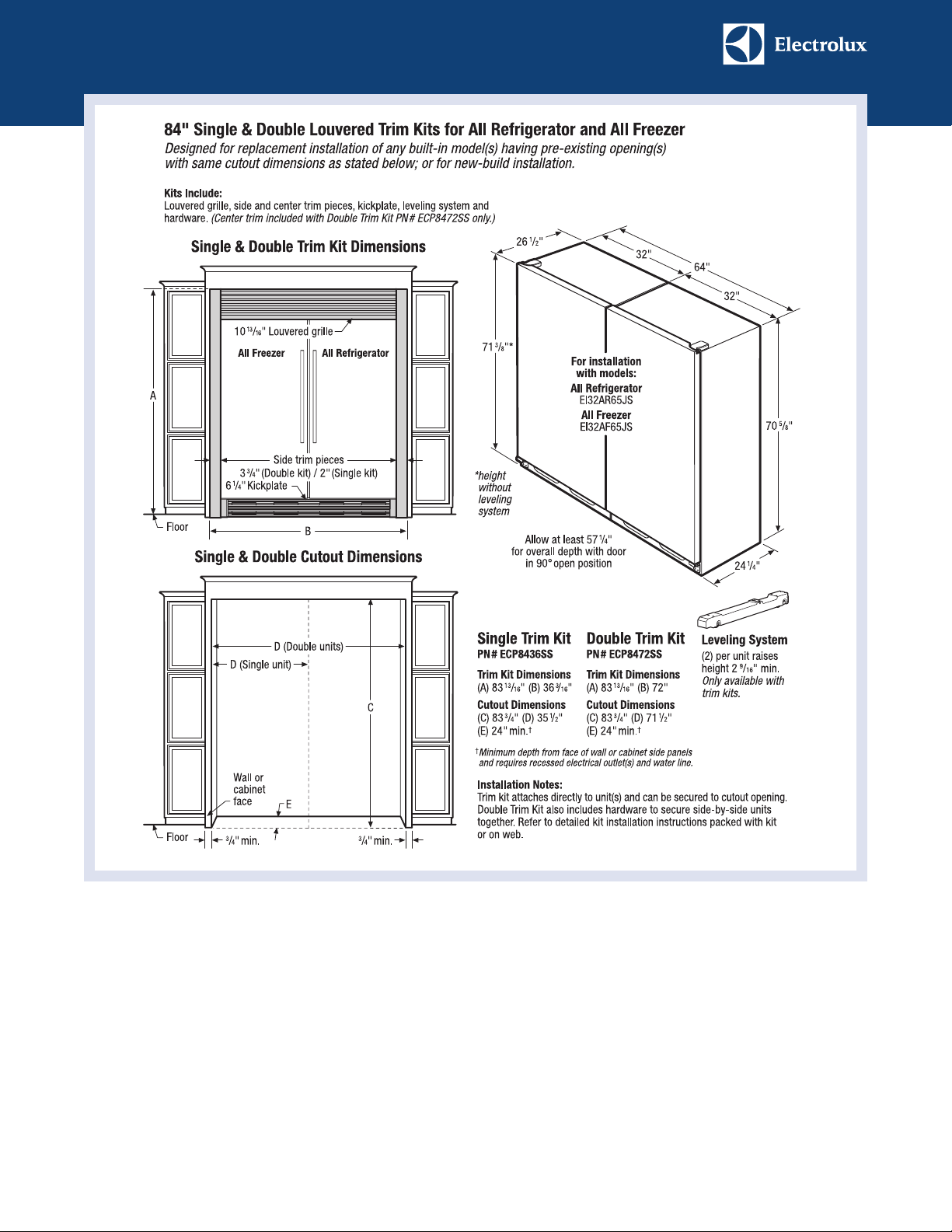

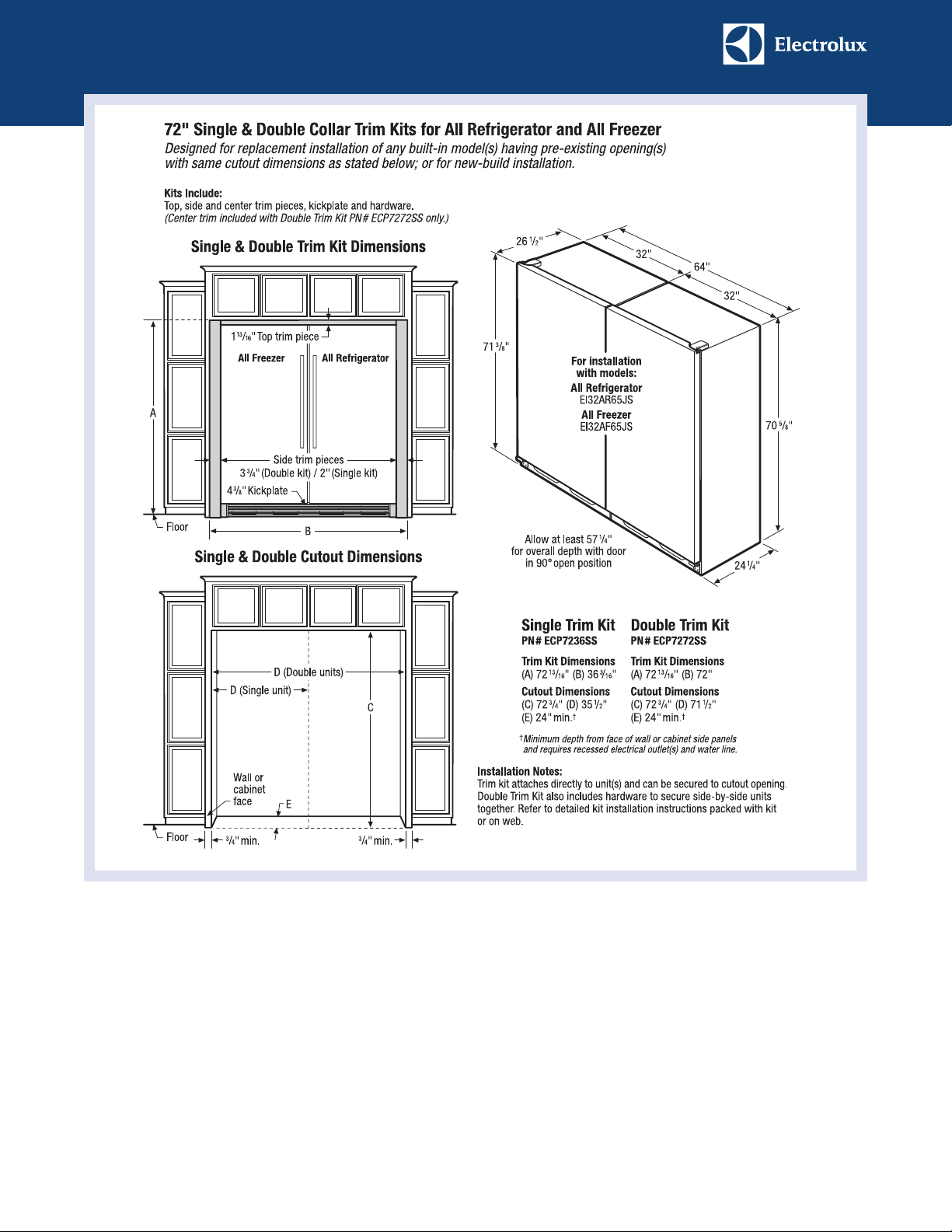

Optional Trim Kits

84" Louvered Trim Kits

(ECP8436SS & ECP8472SS)

Designed as a replacement option for
the Sub-Zero®brand 650 Series
models and for new-build installation.

72" Collar Trim Kits

(ECP7236SS & ECP7272SS)

Designed as a replacement option for
the Sub-Zero®brand 601Series
models and for new-build installation.

79" Louvered/75" Collar Trim Kits

1

(TRIMKITSS1 & TRIMKITSS2)

Designed as a replacement option
for Electrolux ICON®brand models
E32AR75FPS and E32AF75FPS
and for new-build installation.

1

Kits are designed to fit either 79" or 75" opening
height. For 79" cutout opening height, installation
requires use of top louvered grille; for 75" cutout
opening height, installation requires use of top trim
piece and shortening of both side trim pieces.

Sub-Zero®is a registered trademark of Sub-Zero,Inc.

Shown with optional stainless
steel 72" Collar Trim Kit.
(Single – PN# ECP7236SS)

Built-In Side-by-Side
Configuration

Shown with companion, All-Freezer
model EI32AF65JS and optional
stainless steel 84" Louvered Trim Kit.
(Double – PN# ECP8472SS)

Built-In All Refrigerator

EI32AR65J S

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•

10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)

•

electroluxappliances.com

CANADA

•

5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352

•

electroluxappliances.ca

EI32AR65J 09/12 © 2012 Electrolux Home Products, Inc.

32" Built-In All-Refrigerator Specifications

•

Product Weight – 240 Lbs.

•

An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.

•

Voltage Rating – 120V/ 60 Hz /20 Amps

•

Connected Load (kW Rating) @115 Volts = 0.55kW

•

Amps @115 Volts = 5 Amps

•

Always consult local and national electric codes.

•

Minimum 25-1/4" depth requires recessed electrical outlet.

•

To allow for ease of installation, tape excess power cord to back of unit.

•

When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 140° door swing, providing complete
drawer/crisper access and removal. (Absolute 4" minimum clearance will

ONLY allow for 90°door swing which will provide limited drawer /crisper
access with restricted removal.)

•

Refrigerator must be placed on level surface of hard material, same
height as flooring. Surface must support approximately 800 lbs. when
fully loaded. Unit equipped with 4-point leveling.

“Built-In Look” Specifications

•

Minimum opening of 72"H x 33"W x 25-1/4" D required for single-unit
“Built-In Look” installation; 66"W required for double-unit installation.
(72"H to be measured from finished floor to underside of soffit or
overhead cabinet.)

Optional Trim Kit Specifications

For planning information, refer to model-specific Trim Kit Installation
pages on web.

•

Optional Trim Kits available for built-in installation with All Refrigerator
and/or All Freezer – requiring different cutout dimensions.

•

Designed as built-in replacement option for any model(s) having
pre-existing opening(s) with same cutout dimensions as stated for
specific Trim Kit or for new-build installation.

•

Remove all wall/floor molding prior to built-in installation.

•

For detailed Trim Kit installation, refer to instructions packed with kit
or on web.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

Optional Accessories

•

84" Louvered Trim Kits:
Single – (PN# ECP8436SS), Double – (PN# ECP8472SS).

•

72" Collar Trim Kits:
Single – (PN# ECP7236SS), Double – (PN# ECP7272SS).

•

79" Louvered/75" Collar Trim Kits:
Single – (PN# TRIMKITSS1), Double – (PN# TRIMKITSS2).

•

PureAdvantage®Air Filter
Replacement Cartridge – (PN# 241754001).
