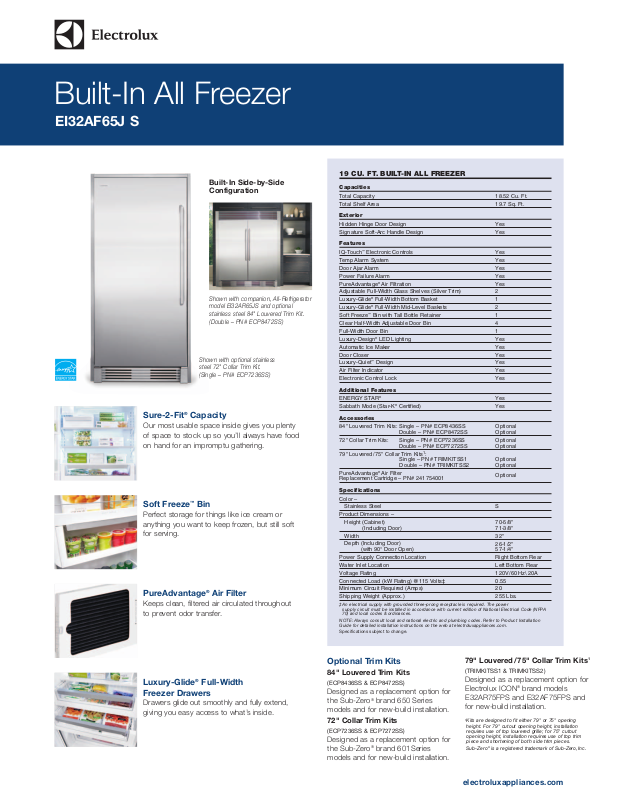

Electrolux EI32AF65JS User Manual

Built-In Side-by-Side Configuration

Shown with companion, All-Refrigerator model EI32AR65JS and optional stainless steel 84" Louvered Trim Kit. (Double – PN# ECP8472SS)

Shown with optional stainless steel 72" Collar Trim Kit. (Single – PN# ECP7236SS)

Sure-2-Fit®Capacity

Our most usable space inside gives you plenty of space to stock up so you’ll always have food on hand for an impromptu gathering.

Soft Freeze™Bin

Perfect storage for things like ice cream or anything you want to keep frozen, but still soft for serving.

PureAdvantage®Air Filter

Keeps clean, filtered air circulated throughout to prevent odor transfer.

Luxury-Glide®Full-Width Freezer Drawers

Drawers glide out smoothly and fully extend, giving you easy access to what’s inside.

Built-In All Freezer

EI32AF65J S

19 CU. FT. BUILT-IN ALL FREEZER

Capacities

Total Capacity Total Shelf Area

Exterior

Hidden Hinge Door Design Signature Soft-Arc Handle Design

Features

IQ-Touch™Electronic Controls Temp Alarm System Door Ajar Alarm Power Failure Alarm PureAdvantage®Air Filtration Adjustable Full-Width Glass Shelves (Silver Trim) Luxury-Glide®Full-Width Bottom Basket Luxury-Glide®Full-Width Mid-Level Baskets Soft Freeze™Bin with Tall Bottle Retainer Clear Half-Width Adjustable Door Bin Full-Width Door Bin Luxury-Design®LED Lighting Automatic Ice Maker Door Closer Luxury-Quiet™Design Air Filter Indicator Electronic Control Lock

Additional Features

ENERGY STAR

Sabbath Mode (Star-K®Certified)

Accessories

84" Louvered Trim Kits: Single – PN# ECP8436SS

Double – PN# ECP8472SS

72" Collar Trim Kits: Single – PN# ECP7236SS

Double – PN# ECP7272SS

79" Louvered/ 75" Collar Trim Kits

: Single – PN# TRIMKITSS1 Double – PN# TRIMKITSS2

PureAdvantage

Air Filter

Replacement Cartridge – PN# 241754001

Specifications

Color –

Stainless Steel

Product Dimensions –

Height (Cabinet)

(Including Door) Width Depth (Including Door)

(with 90° Door Open) Power Supply Connection Location Water Inlet Location Voltage Rating Connected Load (kW Rating) @115 Volts‡ Minimum Circuit Required (Amps) Shipping Weight (Approx.)

‡An electrical supply with grounded three-prong receptacle is required. The power

supply circuit must be installed in accordance with current edition of National Electrical Code (NFPA

70) and local codes & ordinances.

NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxappliances.com.

Specifications subject to change.

18.52 Cu. Ft.

19.7 Sq. Ft.

Yes Yes

Yes Yes Yes Yes Yes 2 1 2 1 4 1 Yes Yes Yes Yes Yes Yes

Yes Yes

Optional Optional

Optional

70-5/8" 71-3/8"

32" 26-1/2"

57-1/4" Right Bottom Rear Left Bottom Rear 120V/ 60Hz \20A

0.55 20 255 Lbs.

electroluxappliances.com

Optional Trim Kits

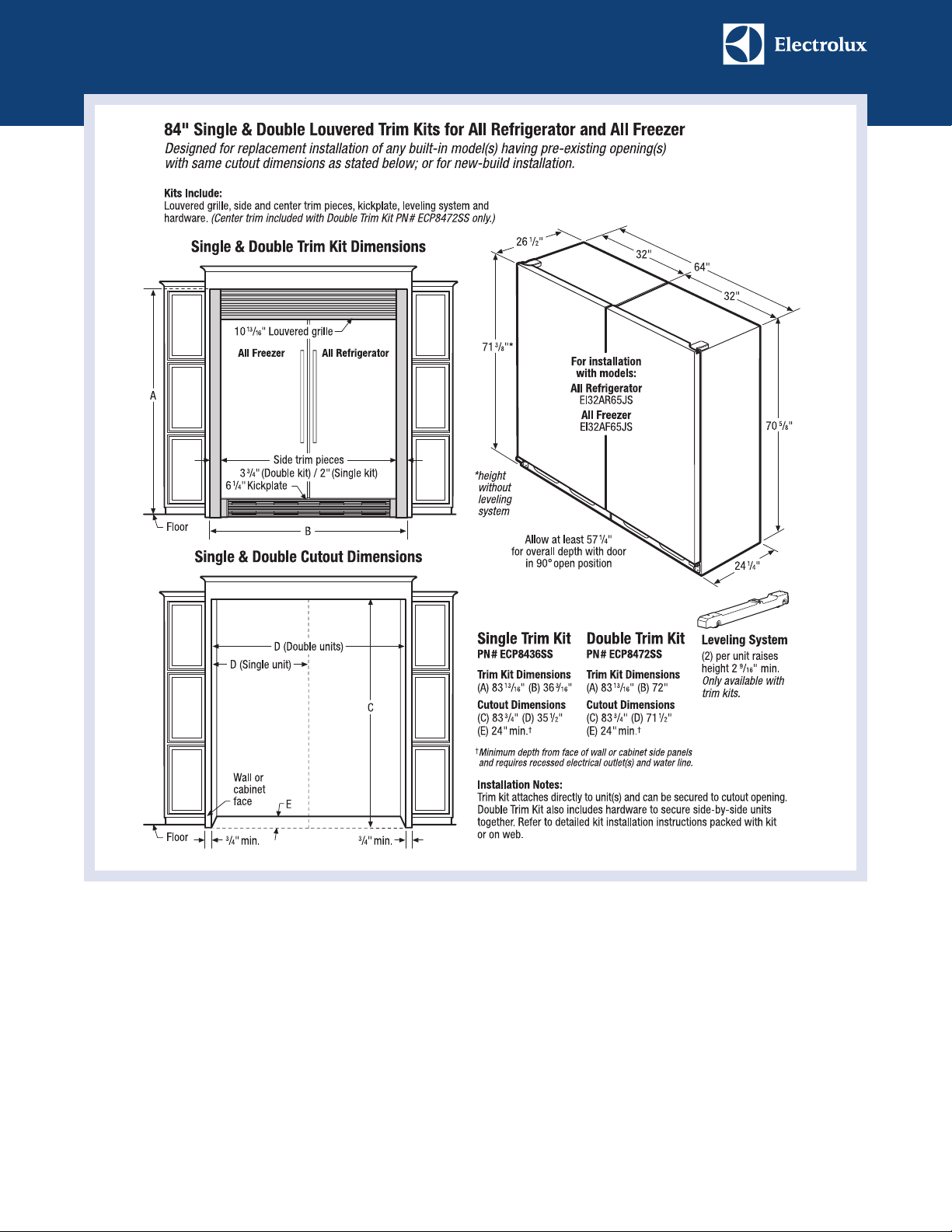

84" Louvered Trim Kits

(ECP8436SS & ECP8472SS)

Designed as a replacement option for the Sub-Zero®brand 650 Series models and for new-build installation.

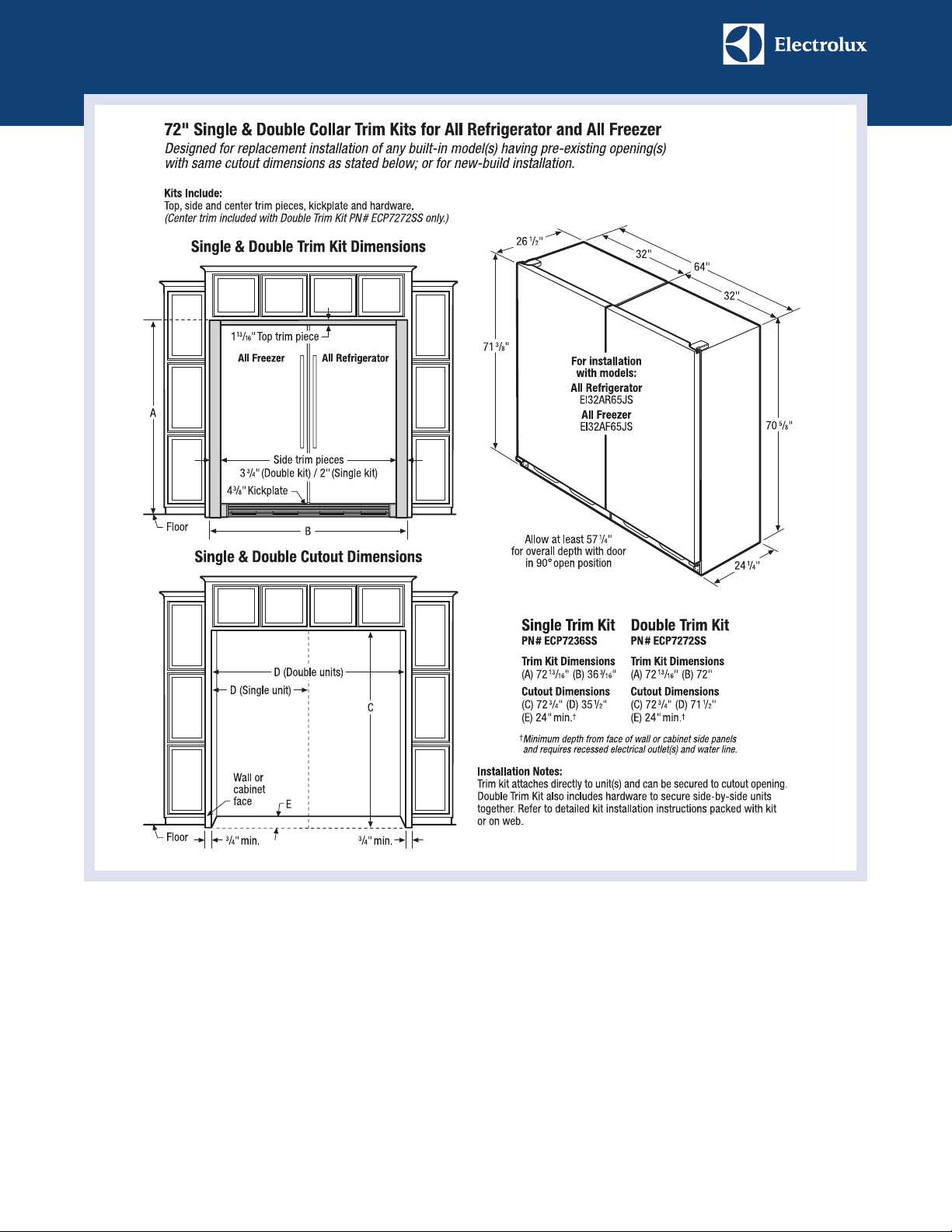

72" Collar Trim Kits

(ECP7236SS & ECP7272SS)

Designed as a replacement option for the Sub-Zero®brand 601Series models and for new-build installation.

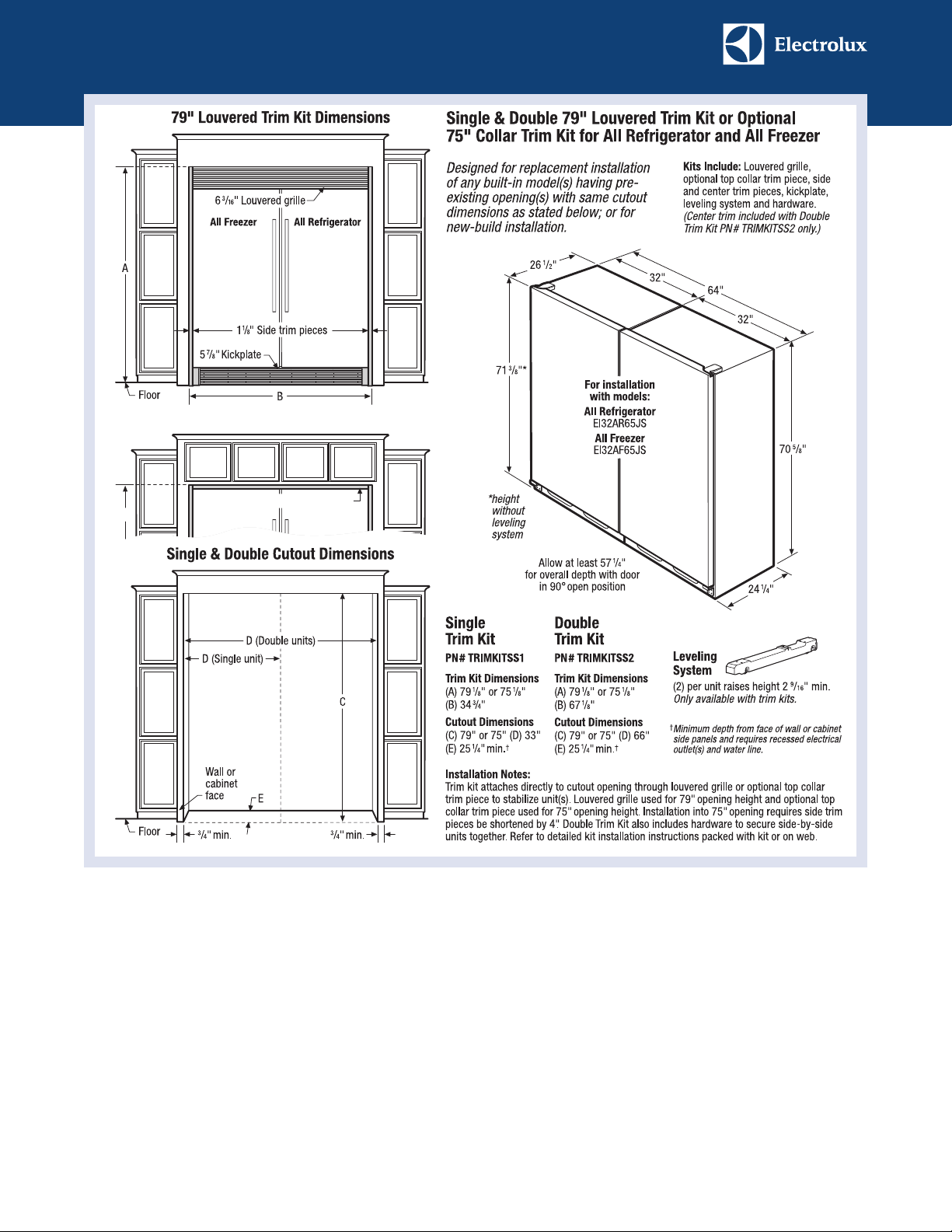

79" Louvered/75" Collar Trim Kits

(TRIMKITSS1 & TRIMKITSS2)

Designed as a replacement option for Electrolux ICON®brand models E32AR75FPS and E32AF75FPS and for new-build installation.

Kits are designed to fit either 79" or 75" opening height. For 79" cutout opening height, installation requires use of top louvered grille; for 75" cutout opening height, installation requires use of top trim piece and shortening of both side trim pieces.

Sub-Zero®is a registered trademark of Sub-Zero,Inc.

32" Built-In All-Freezer Specifications

•

Product Weight – 245 Lbs.

•

An electrical supply with grounded three-prong receptacle is required. The power supply circuit must be installed in accordance with current edition of National Electrical Code (NFPA 70) and local codes & ordinances.

•

Voltage Rating – 120V/ 60 Hz /20 Amps

•

Connected Load (kW Rating) @115 Volts = 0.55kW

•

Amps @115 Volts = 5 Amps

•

Always consult local and national electric & plumbing codes.

•

Water line for ice maker can enter opening through floor or rear wall. Copper tubing recommended between cold water line and water connection location. Water line tubing recommended is 48" minimum length by 1/4" diameter. Installation of easily accessible shutoff valve in water line required.

•

Minimum 25-1/4" depth requires recessed electrical outlet and copper water line.

•

To allow for ease of installation, tape excess power cord to back of unit.

•

To allow for ease of moving out side-by-side units after installation, 84" minimum length of coiled copper tubing recommended.

•

When installing freezer adjacent to wall, cabinet or other appliance that extends beyond front edge of unit, 20" minimum clearance recommended to allow for optimum 140° door swing, providing complete drawer/crisper access and removal. (Absolute 4" minimum clearance will

ONLY allow for 90°door swing which will provide limited drawer /crisper access with restricted removal.)

•

Freezer must be placed on level surface of hard material, same height as flooring. Surface must support approximately 800 lbs. when fully loaded. Unit equipped with 4-point leveling.

“Built-In Look” Specifications

•

Minimum opening of 72"H x 33"W x 25-1/4" D required for single-unit “Built-In Look” installation; 66"W required for double-unit installation. (72"H to be measured from finished floor to underside of soffit or overhead cabinet.)

•

Remove all wall/floor molding prior to built-in installation.

Optional Trim Kit Specifications

For planning information, refer to model-specific Trim Kit Installation pages on web.

•

Optional Trim Kits available for built-in installation with All Refrigerator and/or All Freezer – requiring different cutout dimensions.

•

Designed as built-in replacement option for any model(s) having pre-existing opening(s) with same cutout dimensions as stated for specific Trim Kit or for new-build installation.

•

Remove all wall/floor molding prior to built-in installation.

•

For detailed Trim Kit installation, refer to instructions packed with kit or on web.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

Optional Accessories

•

84" Louvered Trim Kits: Single – (PN# ECP8436SS), Double – (PN# ECP8472SS).

•

72" Collar Trim Kits: Single – (PN# ECP7236SS), Double – (PN# ECP7272SS).

•

79" Louvered/75" Collar Trim Kits: Single – (PN# TRIMKITSS1), Double – (PN# TRIMKITSS2).

•

PureAdvantage®Air Filter Replacement Cartridge – (PN# 241754001).

Built-In All Freezer

EI32AF65J S

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.
