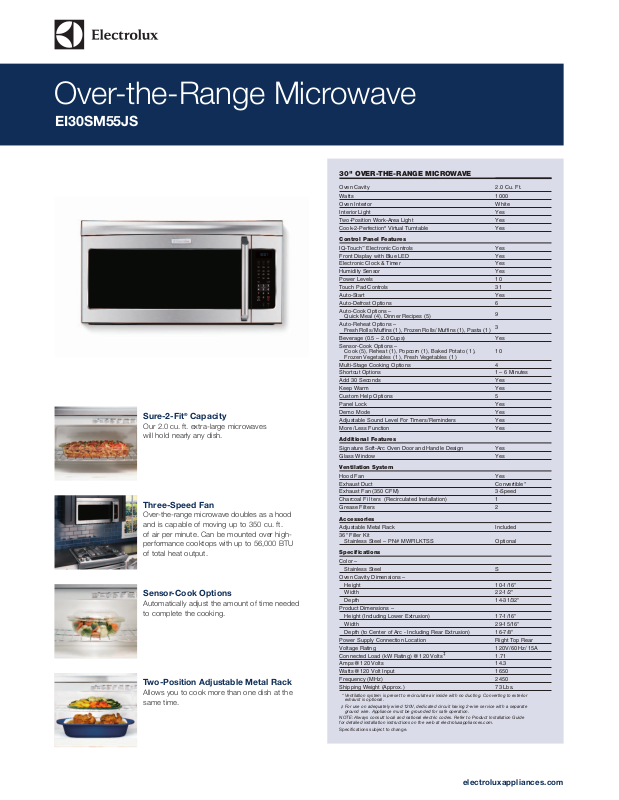

Electrolux EI30SM55JS User Manual
Over-the-Range Microwave
EI30SM55JS
30" OVER-THE-RANGE MICROWAVE
Oven Cavity
Watts
Oven Interior
Interior Light
Two-Position Work-Area Light
Cook-2-Perfection®Virtual Turntable
Control Panel Features
IQ-Touch™Electronic Controls
Front Display with Blue LED
Electronic Clock & Timer
Humidity Sensor
Power Levels
Touch Pad Controls
Auto-Start
Auto-Defrost Options
Auto-Cook Options –
Quick Meal (4), Dinner Recipes (5)
Auto-Reheat Options –
Fresh Rolls / Muffins (1 ), Frozen Rolls / Muffins (1 ), Pasta ( 1 )
Beverage (0.5 – 2.0 Cups)
Sensor-Cook Options –
Cook (5), Reheat (1), Popcorn (1), Baked Potato ( 1 ),
Frozen Vegetables ( 1 ), Fresh Vegetables ( 1 )
Multi-Stage Cooking Options
Shortcut Options
Add 30 Seconds
Keep Warm
Custom Help Options
Panel Lock
Demo Mode
Adjustable Sound Level For Timers / Reminders
More / Less Function
Additional Features
Signature Soft-Arc Oven Door and Handle Design
Glass Window
Ventilation System
Hood Fan
Exhaust Duct
Exhaust Fan (350 CFM)
Charcoal Fi lte rs (Recirculated Installation)
Grease Filters
Accessories
Adjustable Metal Rack
36" Filler Kit
Stainless Steel – PN # MWFILKTSS
Specifications
Color –
Stainless Steel
Oven Cavity Dimensions –
Height
Width
Depth
Product Dimensions –
Height (Including Lower Extrusion)
Width
Depth (to Center of Arc - Including Rear Extrusion)
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
‡
Amps @ 120 Volts
Watts @ 120 Volt Input
Frequency (MHz)
Shipping Weight (Approx.)
* Ventilation system is preset to recirculate air inside with no ducting. Converting to exterior
exhaust is optional.
‡ For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
2.0 Cu. Ft.
1000
White
Yes
Yes
Yes
Yes
Yes
Yes
Yes
10
31
Yes
6
9
3
Yes
10
4
1 – 6 Minutes
Yes
Yes
5
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Convertible*
3-Speed
1
2
Included
Optional
S
10-1/16"
22-1/2"
14-31/32"
17-1/16"
29-15/16"
16-7/8"
Right Top Rear
120V / 60 Hz / 15A
1.71
14.3
1650
2450
73 Lbs.
electroluxappliances.com
Sure-2-Fit®Capacity
Our 2.0 cu. ft. extra-large microwaves
will hold nearly any dish.
Three-Speed Fan
Over-the-range microwave doubles as a hood
and is capable of moving up to 350 cu. ft.
of air per minute. Can be mounted over highperformance cooktops with up to 56,000 BTU
of total heat output.
Sensor-Cook Options
Automatically adjust the amount of time needed
to complete the cooking.
Two-Position Adjustable Metal Rack
Allows you to cook more than one dish at the
same time.
Over-the-Range Microwave
EI30SM55JS
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287)
•
electroluxappliances.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxappliances.ca
EI30SM55J 09/13 © 2013 Electrolux Home Products, Inc.
30" Over-the-Range Microwave Specifications
•
Product Weight – 61 Lbs.
•
Voltage Rating –120V /60 Hz/ 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.71 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =14.3 Amps
•
Always consult local and national electric codes.
•
Grounded outlet should be located in cabinet above, with hole in base
to route power cord. Carefully follow top template instructions for power
cord clearance when installing beneath smooth, flat cabinets.
•
Microwave’s ventilation system is preset to recirculate air inside with no
ducting system required. Exhausting air outside is optional, using either
vertical or horizontal ducting system. (Refer to Ducted Option
Specifications for outside ventilation.)
•
For safe and proper installation, microwave MUST be mounted to
BOTH a top cabinet AND a wall, and connected to at least one wall stud.
Can NOT be installed in island or peninsula cabinet arrangements.
•
Cabinet bottom MUST be level to insure proper installation.
•
Cabinet MUST be capable of supporting a total load of 110 lbs.
•
Filler blocks recommended for installation when cabinet front hangs
below recessed bottom shelf.
•
Minimum distance of 30" required from cooking surface to bottom edge
of top cabinet.
•
Minimum distance of 66" required from floor to top of microwave.
•
Opening between cabinets MUST be 30" wide and free of obstructions.
For openings up to 36" wide, order optional 36" Filler Kit to fill in gap
between unit and cabinets.
•
Allow 26" minimum clearance for 90° door swing.
Ducted Option Specifications
•
For outside ventilation.
•
Exhaust duct adapter will be needed for outside ventilation, to mate
with standard 3-1/4" x 10" rectangular duct. If round duct required,
rectangular-to-round transition adapter will be needed with no less than
6" diameter.
•
For most efficient airflow exhaust, use a straight run or as few elbows
as possible with a maximum duct length of 3-1/4" x 10" rectangular or
6" diameter round duct, not to exceed 140 equivalent feet.
•
For horizontal installation, be sure to allow enough space between wall
studs to accommodate exhaust.
•
Refer to installation instructions on web for detailed duct preparation and
converting exhaust vent blower system for exterior exhaust ventilation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
36" Filler Kit: S – (PN # MWFILKTSS).
