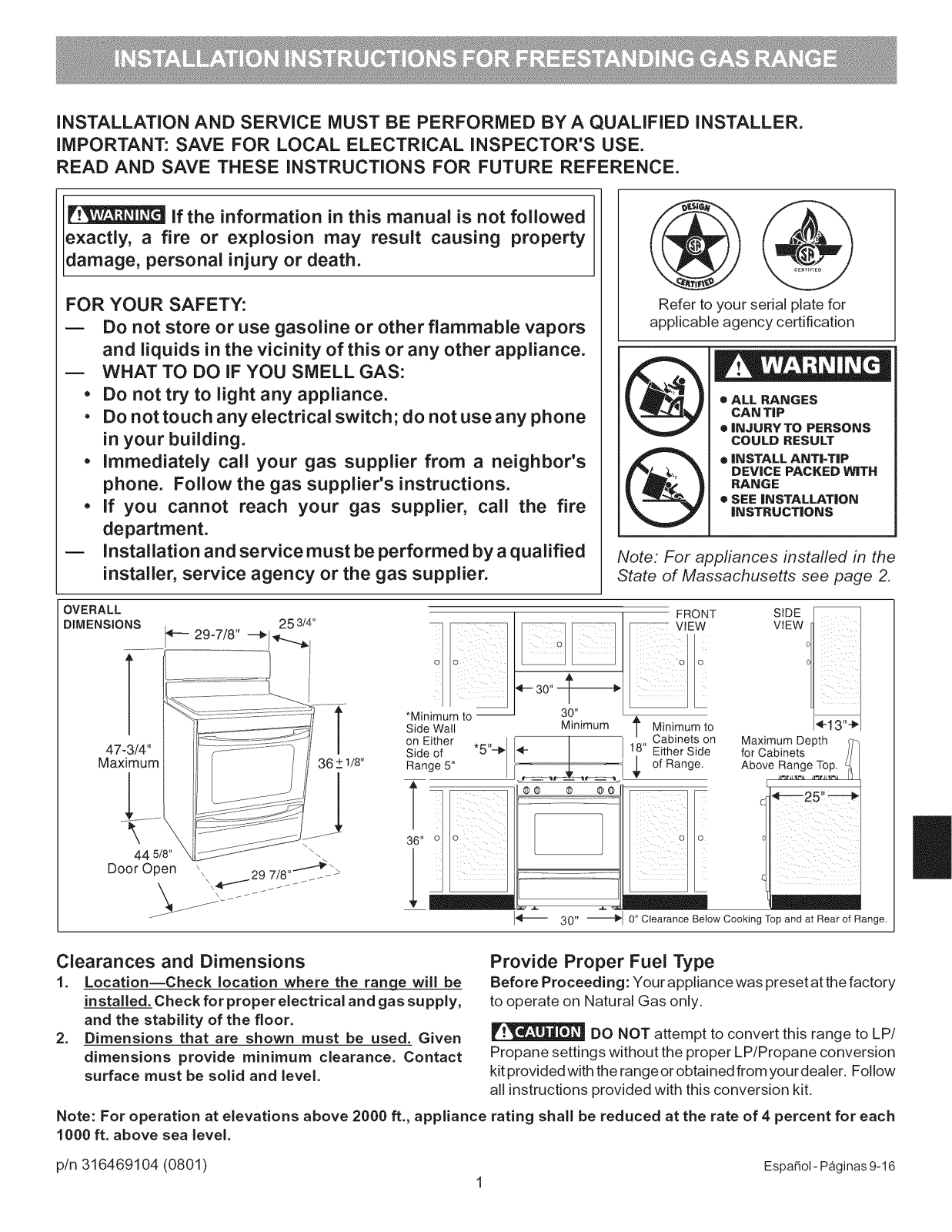

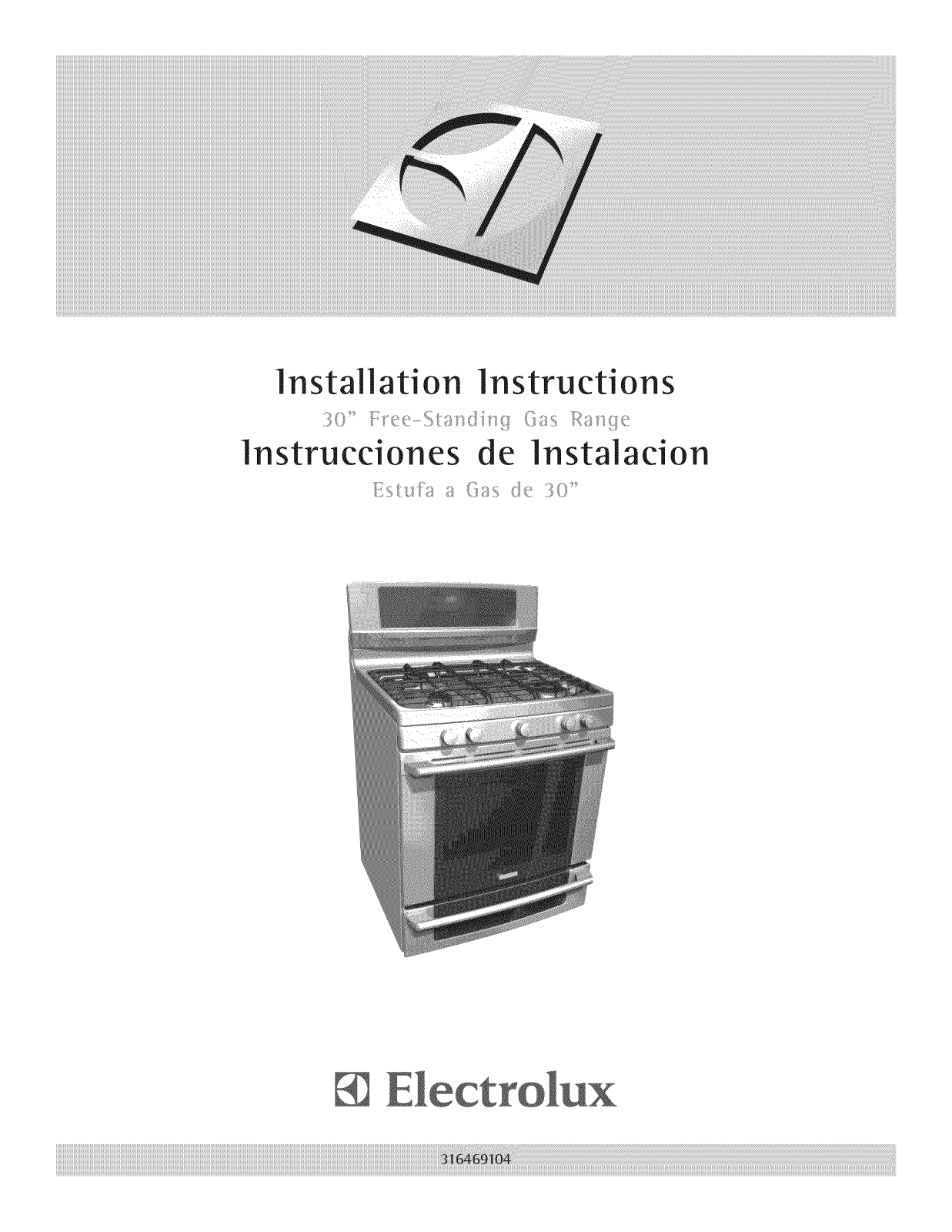

Electrolux EI30GF35JSA, EI30GF55GBA, EI30GF55GBB, EI30GF55GBC, EI30GF55GSA Installation Guide

|nstallafion |nstrucfions

_, ,_.... /_i_ _,,

lnstrucciones de |nstalacion

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.

iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.

READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.

if the information in this manual is not followed

exactly, a fire or explosion may result causing property

damage, personal injury or death.

FOR YOUR SAFETY:

-- Do not store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

-- WHAT TO DO iF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone

in your building.

• Immediately call your gas supplier from a neighbor's

phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire

department.

-- Installation and service must be performed by a qualified

installer, service agency or the gas supplier.

Refer to your serial plate for

applicable agency certification

e ALL RANGES

CAN TiP

• INJURY TO PERSONS

COULD RESULT

• INSTALL ANTI=TIP

DEVICE PACKED WITH

RANGE

e SEE INSTALLATION

INSTRUCTIGNS

Note." For appliances installed in the

State of Massachusetts see page 2.

OVERALL

DIMENSIONS

47-3/4"

Maximum 36 _+1/8"

l

\

44 5/8" \\

Door Open _, 29 7/8''_'-'_'>

FRONT

VIEW

_-- 30" _-_

*Minimum to -- 30"

Side Wall Minimum T Minimum to

&

°nEither I .Cabinetsoni

Side of Either Side

Range 5" J..... __-_.... _1 ofRange.

36" i o

I'_- 30" _1 0" Clearance Below Cooking Top and at Rear of Range.

|

Clearances and Dimensions

1. Location--Check location where the range will be

installed. Check for proper electrical and gas supply,

and the stability of the floor.

2. Dimensions that are shown must be used. Given

dimensions provide minimum clearance. Contact

surface must be solid and level.

Provide Proper Fuel Type

Before Proceeding: Your appliance was preset at thefactory

to operate on Natural Gas only.

DO NOT attempt to convert this range to LP/

Propane settings without the proper LP/Propane conversion

kit provided with the range or obtained from your dealer. Follow

all instructions provided with this conversion kit.

Note: For operation at elevations above 2000 ft., appliance rating shall be reduced at the rate of 4 percent for each

1000 ft. above sea level.

p/n 316469104 (0801) Espa_ol-P_ginas9-16

1

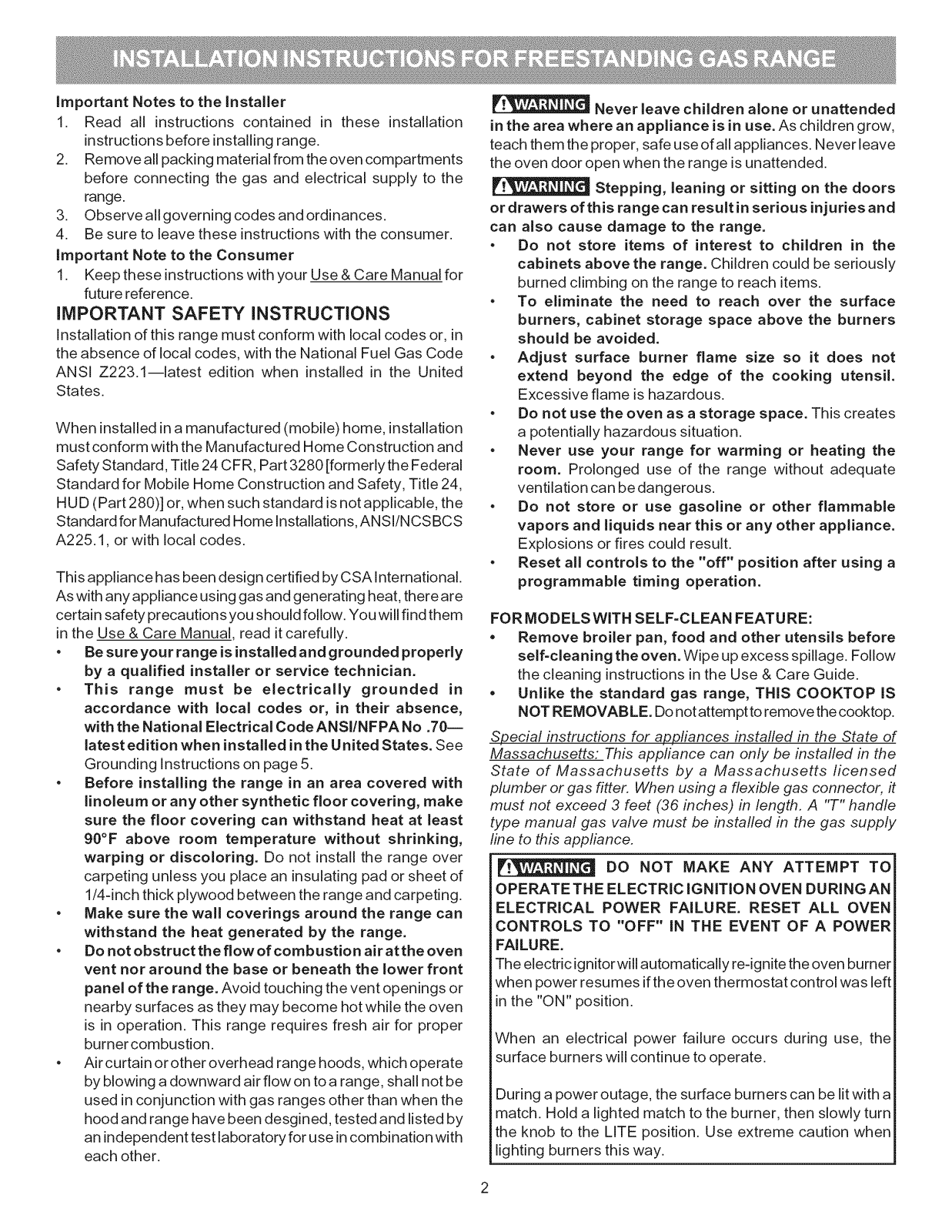

ImportantNotestotheInstaller

1. Readall instructions contained in these installation

instructions before installingrange.

2. Remove all packing material from the oven compartments

before connecting the gas and electrical supply to the

range.

3. Observe all governing codes and ordinances.

4. Be sure to leave these instructionswith the consumer.

Important Note to the Consumer

1. Keep these instructionswith your Use & Care Manual for

future reference.

IMPORTANT SAFETY INSTRUCTIONS

Installation of this range must conform with local codes or, in

the absence of local codes, with the National Fuel Gas Code

ANSI Z223.1--1atest edition when installed in the United

States.

When installed in amanufactured (mobile) home, installation

must conform with the Manufactured Home Construction and

Safety Standard, Title 24 CFR, Part 3280 [formerly the Federal

Standard for Mobile Home Construction and Safety, Title 24,

HUD (Part 280)] or, when such standard isnot applicable, the

Standard for Manufactured Home Installations, ANSI/NCSBCS

A225.1, or with local codes.

This appliance has been design certified by CSAInternational.

As with any appliance using gas and generating heat, there are

certain safety precautions you should follow. You will find them

in the Use & Care Manual read it carefully.

Be sure your range is installed and grounded properly

by a qualified installer or service technician.

This range must be electrically grounded in

accordance with local codes or, in their absence,

with the National Electrical Code ANSI/NFPA No .70--

latest edition when installed in the United States. See

Grounding Instructions on page 5.

Before installing the range in an area covered with

linoleum or any other synthetic floor covering, make

sure the floor covering can withstand heat at least

90°F above room temperature without shrinking,

warping or discoloring. Do not install the range over

carpeting unless you place an insulating pad or sheet of

1/4-inch thick plywood between the range and carpeting.

Make sure the wall coverings around the range can

withstand the heat generated by the range.

Do not obstruct the flow of combustion air at the oven

vent nor around the base or beneath the lower front

panel of the range. Avoid touching the vent openings or

nearby surfaces as they may become hot while the oven

is in operation. This range requires fresh air for proper

burner combustion.

Air curtain or other overhead range hoods, which operate

by blowing adownward air flow onto a range, shall not be

used in conjunction with gas ranges other than when the

hood and range have been desgined, tested and listedby

an independent test laboratory for use in combination with

each other.

Never leave children alone or unattended

in the area where an appliance is in use. As children grow,

teach them the proper, safe use of all appliances. Never leave

the oven door open when the range is unattended.

Stepping, leaning or sitting on the doors

or drawers of this range can result in serious injuries and

can also cause damage to the range.

Do not store items of interest to children in the

cabinets above the range. Children could be seriously

burned climbing on the range to reach items.

To eliminate the need to reach over the surface

burners, cabinet storage space above the burners

should be avoided.

Adjust surface burner flame size so it does not

extend beyond the edge of the cooking utensil.

Excessive flame is hazardous.

Do not use the oven as a storage space. This creates

a potentially hazardous situation.

Never use your range for warming or heating the

room. Prolonged use of the range without adequate

ventilation can be dangerous.

Do not store or use gasoline or other flammable

vapors and liquids near this or any other appliance.

Explosions or fires could result.

Reset all controls to the "off" position after using a

programmable timing operation.

FOR MODELSWITH SELF-CLEAN FEATURE:

• Remove broiler pan, food and other utensils before

seJf-cJeaning the oven. Wipe up excess spillage. Follow

the cleaning instructions in the Use & Care Guide.

• Unlike the standard gas range, THIS COOKTOP IS

NOT REMOVABLE. Donot attempt to remove the cooktop.

Special instructions for appfiances instafled in the State of

Massachusetts: This appfiance can only be installed in the

State of Massachusetts by a Massachusetts licensed

plumber or gas fitter. When using a flexible gas connector, it

must not exceed 3 feet (.36 inches) in length. A "T" handle

type manual gas valve must be installed in the gas supply

line to this appliance.

DO NOT MAKE ANY ATTEMPT TO

OPERATE THE ELECTRIC iGNiTiON OVEN DURING AN

ELECTRICAL POWER FAILURE. RESET ALL OVEN

CONTROLS TO "OFF" IN THE EVENT OF A POWER

FAILURE.

The electric ignitorwillautomatically re-ignite the oven burner

when power resumes ifthe oven thermostat control was left

inthe "ON" position.

When an electrical power failure occurs during use, the

surface burners will continue to operate.

During a power outage, the surface burners can be lit with a

match. Hold a lighted match to the burner, then slowly turn

the knob to the LITE position. Use extreme caution when

lighting burners this way.
