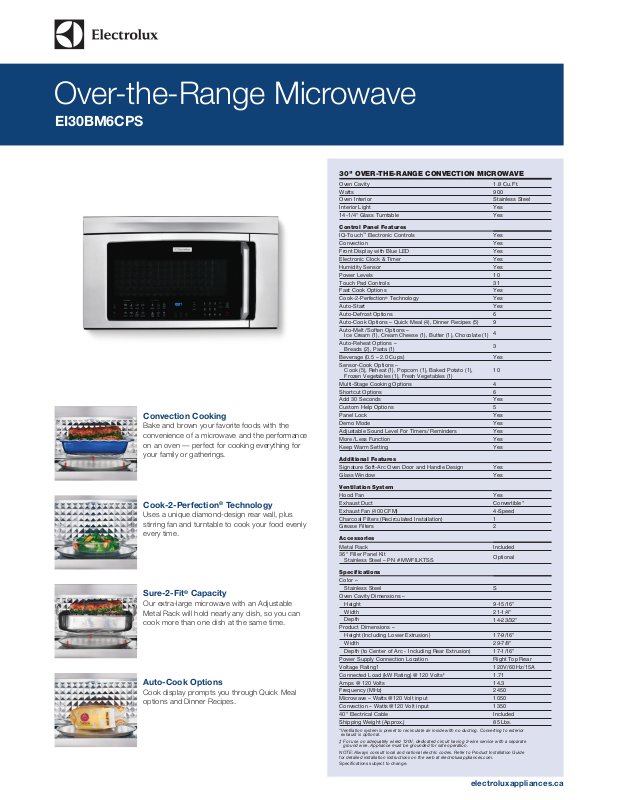

Page 1
Over-the-Range Microwave
EI30BM6CPS
30" OVER-THE-RANGE CONVECTION MICROWAVE
Oven Cavity
Watts
Oven Interior
Interior Light
14-1/4" Glass Turntable
Control Panel Features
™
IQ-Touch
Electronic Controls
Convection
Front Display with Blue LED
Electronic Clock & Timer
Humidity Sensor
Power Levels
Touch Pad Controls
Convection Cooking
Bake and brown your favorite foods with the
convenience of a microwave and the performance
on an oven — perfect for cooking everything for
your family or gatherings.
Cook-2-Perfection® Technology
Uses a unique diamond-design rear wall, plus
stirring fan and turntable to cook your food evenly
every time.
Sure-2-Fit® Capacity
Our extra-large microwave with an Adjustable
Metal Rack will hold nearly any dish, so you can
cook more than one dish at the same time.
Auto-Cook Options
Cook display prompts you through Quick Meal
options and Dinner Recipes.
Fast Cook Options
Cook-2-Perfection
Auto-Start
Auto-Defrost Options
Auto-Cook Options – Quick Meal (4), Dinner Recipes (5)
Auto-Melt / Soften Options –
Ice Cream (1), Cream Cheese (1), Butter (1), Chocolate (1)
Auto-Reheat Options –
Breads (2), Pasta (1)
Beverage (0.5 – 2.0 Cups)
Sensor-Cook Options –
Cook (5), Reheat (1), Popcorn (1), Baked Potato (1),
Frozen Vegetables (1), Fresh Vegetables (1)
Multi-Stage Cooking Options
Shortcut Options
Add 30 Seconds
Custom Help Options
Panel Lock
Demo Mode
Adjustable Sound Level For Timers / Reminders
More / Less Function
Keep Warm Setting
Additional Features
Signature Soft-Arc Oven Door and Handle Design
Glass Window
Ventilation System
Hood Fan
Exhaust Duct
Exhaust Fan (400 CFM)
Charcoal Filters (Recirculated Installation)
Grease Filters
Accessories
Metal Rack
36" Filler Panel Kit
Stainless Steel – PN # MWFILKTSS
Specifications
Color –
Stainless Steel
Oven Cavity Dimensions –
Height
Width
Depth
Product Dimensions –
Height (Including Lower Extrusion)
Width
Depth (to Center of Arc - Including Rear Extrusion)
Power Supply Connection Location
Voltage Rating1
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Frequency (MHz)
Microwave – Watts @ 120 Volt input
Convection – Watts @ 120 Volt input
40" Electrical Cable
Shipping Weight (Approx.)
* Ventilation system is preset to recirculate air inside with no ducting. Converting to exterior
exhaust is optional.
‡ For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
®
Technology
1.8 Cu. Ft.
900
Stainless Steel
Yes
Yes
Yes
Yes
Yes
Yes
Yes
10
31
Yes
Yes
Yes
6
9
4
3
Yes
10
4
6
Yes
5
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Convertible*
4-Speed
1
2
Included
Optional
S
9-15/16"
21-1/4"
14-23/32"
17-9/16"
29-7/8"
17-1/16"
Right Top Rear
‡
120V / 60Hz / 15A
1.71
14.3
2450
1050
1350
Included
85 Lbs.
electroluxappliances.ca
Page 2
Over-the-Range Microwave
EI30BM60MS

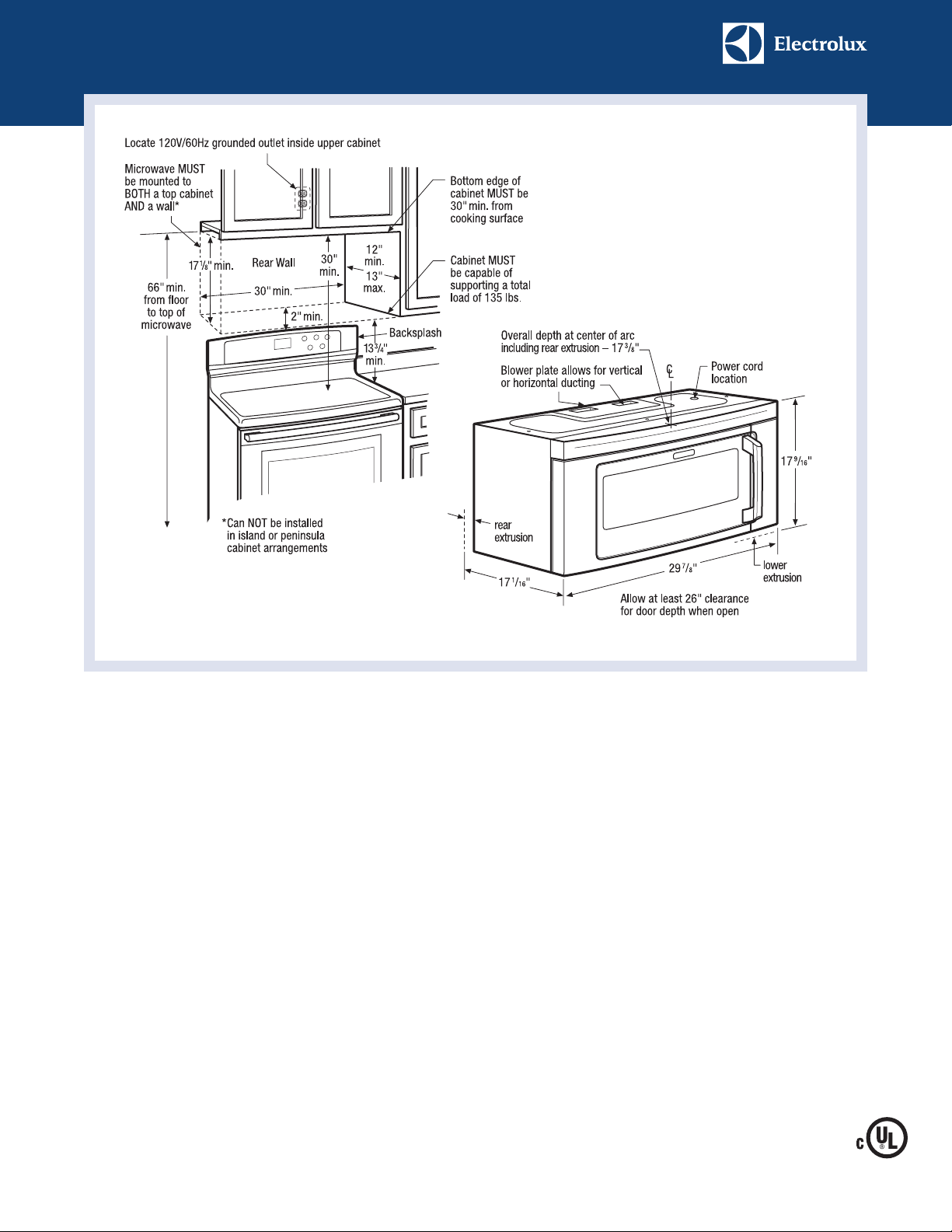

30" Over-the-Range Microwave Specifications
•
Product Weight – 70 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.71 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 14.3 Amps
•
Always consult local and national electric codes.
•
Grounded outlet should be located in cabinet above, with hole in base
to route power cord. Carefully follow top template instructions for power
cord clearance when installing beneath smooth, flat cabinets.
•
Microwave’s ventilation system is preset to recirculate air inside with
no ducting system required. Exhausting air outside is optional, using
either vertical or horizontal ducting system. (Refer to Ducted Option
Specifications for outside ventilation.)
•
For safe and proper installation, microwave MUST be mounted to BOTH
a top cabinet AND a wall, and connected to at least one wall stud. Can
NOT be installed in island or peninsula cabinet arrangements.
•
Cabinet bottom MUST be level to insure proper installation.
•
Cabinet MUST be capable of supporting a total load of 135 lbs.
•
Filler blocks recommended for installation when cabinet front hangs
below recessed bottom shelf.
•
Minimum distance of 30" required from cooking surface to bottom edge
of top cabinet.
•
Minimum distance of 66" required from floor to top of microwave.
•
Opening between cabinets MUST be 30" wide and free of obstructions.
For openings up to 36" wide, order optional 36" Filler Panel Kit to fill in
gap between unit and cabinets.
•
Allow 26" minimum clearance for 90° door swing.
Ducted Option Specifications
•
For outside ventilation.
•
Exhaust duct adapter will be needed for outside ventilation, to mate
with standard 3-1/4" x 10" rectangular duct. If round duct required,
rectangular-to-round transition adapter will be needed with no more
than 6" diameter.
•
For most efficient airflow exhaust, use a straight run or as few elbows
as possible with a maximum duct length of 3-1/4" x 10" rectangular or
6" diameter round duct, not to exceed 120 equivalent feet.
•
For horizontal installation, be sure to allow enough space between wall
studs to accommodate exhaust.
•
Refer to installation instructions on web for detailed duct preparation and
converting exhaust vent blower system for exterior exhaust ventilation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.ca for detailed instructions.
Optional Accessories
•
36" Filler Panel Kits: S – (PN # MWFILKTSS).
Electrolux Major Appliances, N.A.
•
CANADA
EI30BM6CP 09/13 © 2013 Electrolux Major Appliances, N.A. Printed in Canada
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
