Page 1
Product No. EI30BM5CHBC EI30BM5CHSC EI30BM5CHWC EI30BM5CHZC
Market Canada Canada Canada Canada
Color black stainless steel white zebra
Volts 120 120 120 120
Watts 1000 1000 1000 1000
Wiring Diagram 5995585717 5995585717 5995585717 5995585717
Owner's Guide TINSEB305WRRZ TINSEB305WRRZ TINSEB305WRRZ TINSEB305WRRZ
Installation Instructions TINSEB294WRRZ TINSEB294WRRZ TINSEB294WRRZ TINSEB294WRRZ
EI30BM55H Cover.tif EI30BM5CH-C Cabinet.eps EI30BM55H_C Controls.eps
EI30BM5CH Wiring.eps
Electrolux Major Appliances
P.O. BOX 8020
CHARLOTTE, NC 28262
Publication No.
5995585717
11/02/02
(EN/SERVICE/KC)
099
OVER-RANGE
MICROWAVE
Model No.
EI30BM5CH
Page 2
Publication No: 5995585717 EI30BM5CH

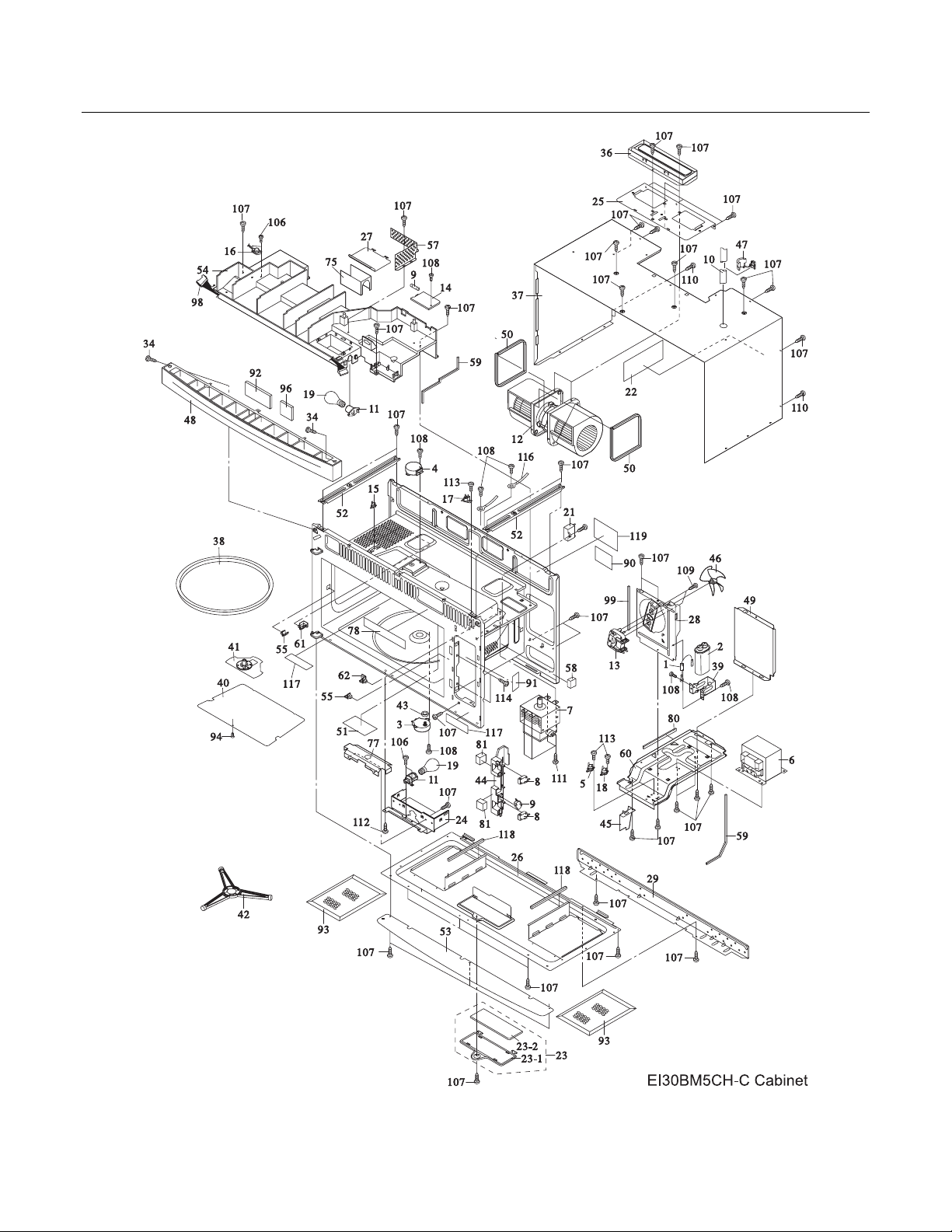

OVEN,CABINET
02/11 2
Page 3
EI30BM5CH Publication No: 5995585717
OVEN,CABINET
POS. NO PART NO. DESCRIPTION
1 # 5304467670 A B C D Rectifier, high voltage
2 # 5304472108 A B C D Capacitor, high voltage
3 # 5304467690 A B C D Motor, turntable
4 # 5304467691 A B C D Motor, stirrer fan
5 # 5304440023 A B C D Thermal Cutout, hood
6 # 5304468156 A B C D Transformer, power
7 # 5304472109 A B C D Magnetron
8 # 5304467694 A B C D Switch, interlock, primary/door
9 # 5304467695 A B C D Switch, monitor, w/ceramic fuse
10 # 5304440028 A B C D Power Cord, electric
11 # 5304463785 A B C D Lampholder, socket
12 # 5304467696 A B C D Motor, hood fan
13 # 5304467697 A B C D Motor, cooling fan
14 # 5304467698 A B C D Filter, noise, electronic
15 # 5304440032 A B C D Thermal Cutout, oven cavity
16 # 5304463786 A B C D Sensor, humidity, cook control
17 # 5303319550 A B C D Fuse, magnetron
18 # 5304467699 A B C D Thermal Cutout, oven cavity
19 5304464198 A B C D Lamp, oven light
21 # 5304467701 A B C D Capacitor, lamp
22 5304472110 A B C D Wiring Diagram, schematic, label
23 5303319573 A B C D Lens/Frame Assy, lamp, black
23-1 5303319574 A B C D Frame, lens holder, black
23-2 5303319575 A B C D Lens, cooktop lamp, glass
24 5304481340 A B C D Frame, lens holder
25 5304481341 A B C D Plate, rear stay
26 5304477239 A B C D Cover, unit base
27 5304467707 A B C D Cover, oven lamp
28 5304467708 A B C D Duct, cooling fan
29 5304467709 A B C D Bracket, unit mtg plate, rear
34 5304467710 A B C D Screw, 3 mm x 8 mm
36 5304481342 A B C D Damper Assembly, exhaust
37 5304481352 A B - - Cabinet, outer casing, black
37 5304467713 - - C D Cabinet, outer casing, white
38 5304441872 A B C D Tray, turntable, glass
39 5304477240 A B C D Retainer, capacitor strap
40 5304467715 A B C D Cover, stirrer fan
41 # 5304475705 A B C D Stirrer Assembly
42 5304467717 A B C D Support Assy, turntable, roller
43 5304467718 A B C D Bushing, motor shaft, turntable
44 5304440289 A B C D Latch Hook
45 5304467719 A B C D Cover, wiring harness
46 # 5304467720 A B C D Fan Blade, mag cooling fan
47 5304467721 A B C D Bushing, grommet, power cord
48 # 5304477242 A - - - Louver Assembly, hood, black
48 # 5304477241 - B - - Louver Assembly, hood, stainless steel
48 # 5304477243 - - C - Louver Assembly, hood, white
Model Index: A EI30BM5CH (EI30BM5CHBC)
B EI30BM5CH (EI30BM5CHSC)
C EI30BM5CH (EI30BM5CHWC)
D EI30BM5CH (EI30BM5CHZC)
# Functional Parts
3 02/11
* Non-Illustrated Parts
Page 4
Publication No: 5995585717 EI30BM5CH
OVEN,CABINET
02/11 4
Page 5
EI30BM5CH Publication No: 5995585717
OVEN,CABINET
POS. NO PART NO. DESCRIPTION
48 # 5304472113 - - - D Louver Assembly, hood, white
49 5304467725 A B C D Duct, hood intake, right side
50 5304467726 A B C D Gasket, hood fan motor, cushion
51 5304467727 A B C D Lens, lamp filter
52 5304481343 A B C D Support, chassis
53 5304477244 A B C D Deflector
54 5304467732 A B C D Duct, exhaust hood
55 5304473092 A B C D Support, rack, front
57 5304467734 A B C D Barrier
58 5304467759 A B C D Cushion, transformer pad
59 5304467760 A B C D Cushion, intake duct, seal
60 5304467761 A B C D Plate, base, right
61 5304473093 A B C D Support, rack, left rear
62 5304473094 A B C D Support, rack, right rear
75 5304467764 A B C D Shield, heat, lamp
77 5304468919 A B C D Reflector, hood lamp
78 5304467767 A B C D Label, menu
80 5304467768 A B C D Cushion, base, right side, seal
81 5304467769 A B C D Cushion, latch hook, pad
90 5304468229 A B C D Label, Ground-Caution
91 5304472114 A B C D Label, Caution-monitor
92 # 5304467772 A B C D Filter, inside exhaust, charcoal
93 # 5303319568 A B C D Filter, grease, (2)
94 5304467773 A B C D Clip, canoe type, stirrer cover
96 # 5304467774 A B C D Filter, air, charcoal
98 # 5304467775 A B C D Wiring Harness, control-B
99 5304467776 A B C D Cushion, fan duct, seal
106 5304467778 A B C D Screw, 3 mm x 8 mm
107 5304451552 A B C D Screw, 4 mm x 8 mm, silver
107 5304467777 A B - - Screw, 4 mm x 8 mm, black
108 5304451550 A B C D Screw, 4 mm x 8 mm
109 5304450253 A B C D Screw, 4 mm x 8 mm
110 5304451557 A B C D Screw, 4 mm x 12 mm
111 5304467780 A B C D Screw, 4 mm x 8 mm, Tap Tight
112 5304451553 A B C D Screw, 4 mm x 12 mm
113 5304467781 A B C D Screw, 3 mm x 6 mm
114 5303319641 A B C D Screw
116 5304468921 A B C D Holder, wire
117 5304468226 A B C D Label, Caution-DHHS
118 5304472115 A B C D Cushion, bottom
119 5304468230 A B C D Label, HWC Caution
Model Index: A EI30BM5CH (EI30BM5CHBC)
B EI30BM5CH (EI30BM5CHSC)
C EI30BM5CH (EI30BM5CHWC)
D EI30BM5CH (EI30BM5CHZC)
# Functional Parts
5 02/11
* Non-Illustrated Parts
Page 6
Publication No: 5995585717 EI30BM5CH

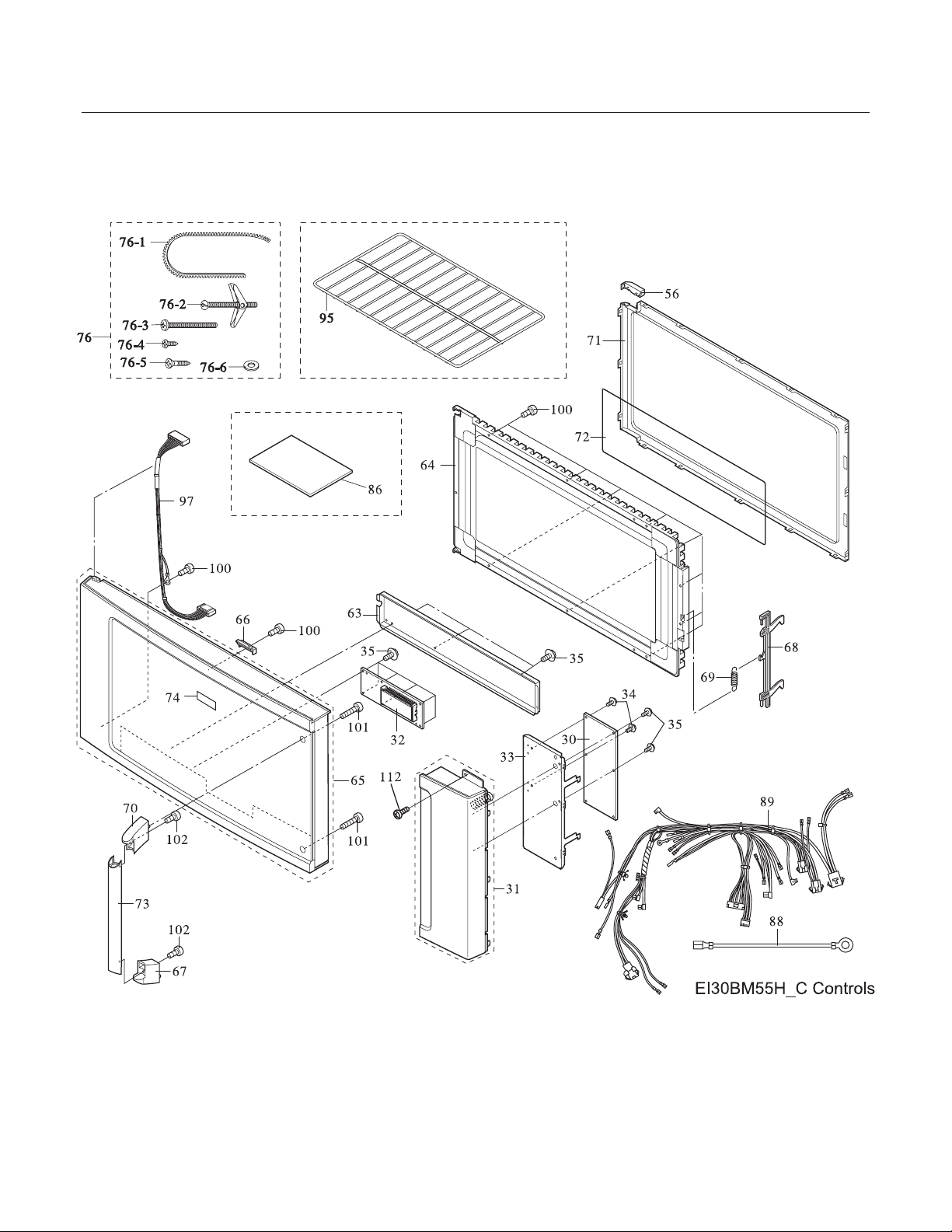

CONTROL PANEL,DOOR,MISC.
02/11 6
Page 7
EI30BM5CH Publication No: 5995585717
CONTROL PANEL,DOOR,MISC.
POS. NO PART NO. DESCRIPTION
30 # 5304481345 A B C D Control Board, printed circuit
31 5304467784 A - - - Cover, power unit, black, RS
31 5304467783 - B - - Cover, power unit, stainless, RS
31 5304467785 - - C - Cover, power unit, white, RS
31 5304472116 - - - D Cover, power unit, white, RS
32 # 5304467786 A B C D Display, time, digital
33 5304467787 A B C D Panel, control mount
34 5304467710 A B C D Screw, 3 mm x 8 mm
35 5304456930 A B C D Screw, 3 mm x 10 mm
56 5304463156 A B C D Door Stop
63 5304481349 A B C D Cover, control display
64 5304481350 A B C D Panel, inner door, black
65 5304467791 A - - - Frame Assembly, door, black
65 5304467790 - B - - Frame Assembly, door, stainless
65 5304467792 - - C - Frame Assembly, door, white
65 5304467793 - - - D Frame Assembly, door, zebra
66 5304467794 A B C D Clip, glass retainer, door
67 5304467796 A - - - End Cap, handle, black, lower
67 5304467795 - B - - End Cap, handle, stainless, lower
67 5304467797 - - C D End Cap, handle, white, lower
68 5304467798 A B C D Latch, door
69 5304440316 A B C D Spring, door latch
70 5304467800 A - - - End Cap, handle, black, upper
70 5304467799 - B - - End Cap, handle, stainless, upper
70 5304467801 - - C D End Cap, handle, white, upper
71 5304467802 A B C D Frame, choke cover, inner door
72 5304467803 A B C D Seal, door, film
73 5304467805 A - - - Handle, door, black
73 5304467804 - B - - Handle, door, stainless
73 5304467806 - - C D Handle, door, white
74 5304467808 A - - - Badge, nameplate, black
74 5304467807 - B - - Badge, nameplate, stainless
74 5304467809 - - C D Badge, nameplate, white
76 5304467765 A B C D Hardware Kit, installation
76-1 5303318761 A B C D Sleeve, power cord, grommet
76-2 5303318762 A B C D Screw, toggle
76-3 5304481344 A B C D Screw, machine
76-4 5304451552 A B C D Screw, 4 mm x 8 mm, silver
76-5 5304453723 A B C D Screw, 5mm x 35mm
76-6 5304453724 A B C D Washer
86 5304467832 A B C D Template, installation, top
87 5304481351 A B C D Template, installation, wall
88 # 5304467828 A B C D Wire, ground
89 # 5304467829 A B C D Wiring Harness, main
95 5304463180 A B C D Rack, microwave oven, wire
97 # 5304467830 A B C D Wiring Harness, control-A, w/ground wire
100 5304451561 A B C D Screw, 4 mm x 8 mm
101 5304467810 A B C D Screw, 4 mm x 30 mm
102 5304467780 A B C D Screw, 4 mm x 8 mm, Tap Tight
112 5304451553 A B C D Screw, 4 mm x 12 mm
120 5304468232 A B C D Label, User Caution
Model Index: A EI30BM5CH (EI30BM5CHBC)
B EI30BM5CH (EI30BM5CHSC)
C EI30BM5CH (EI30BM5CHWC)
D EI30BM5CH (EI30BM5CHZC)
# Functional Parts
7 02/11
* Non-Illustrated Parts
Page 8
Publication No: 5995585717 EI30BM5CH
WIRING DIAGRAM
02/11 8
